3x1 S/PDIF Toslink Switch
3x1 S/PDIF Toslink Switch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
3x1 SPDIF Toslink Splitter
3x1 SPDIF Toslink Splitter
Stable Signal
Stable Signal
3 Audio Format
3 Audio Format
High Quality Design
High Quality Design
Premium Customer Service
Premium Customer Service
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
| Audio | |
| S/PDIF | 3x input, 1x output |
| Sample Rate | Up to 192KHz |

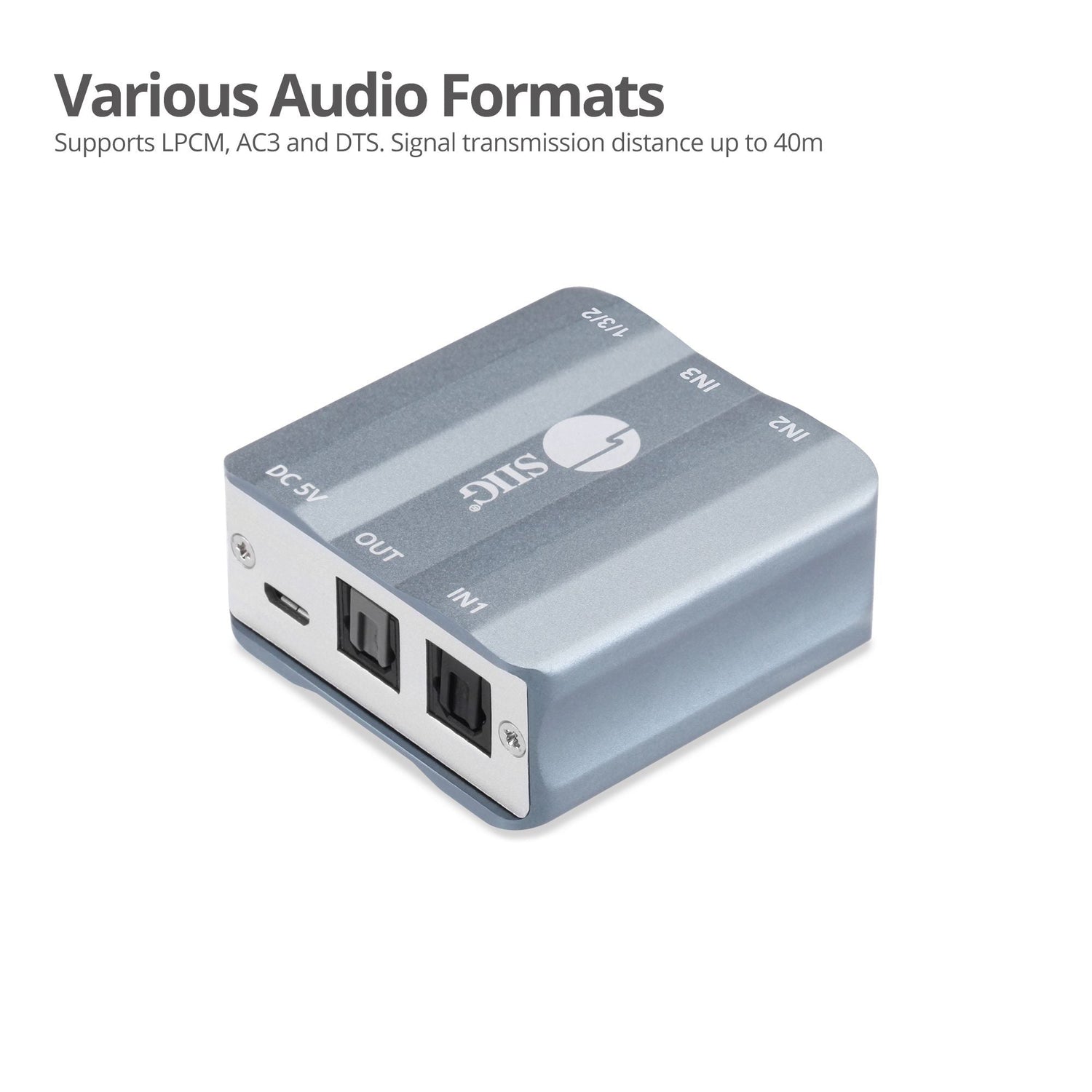

| S/PDIF Audio Formats | LPCM, AC3 and DTS |
| ESD Protection | ±12kV Air / ±8kV Contact |

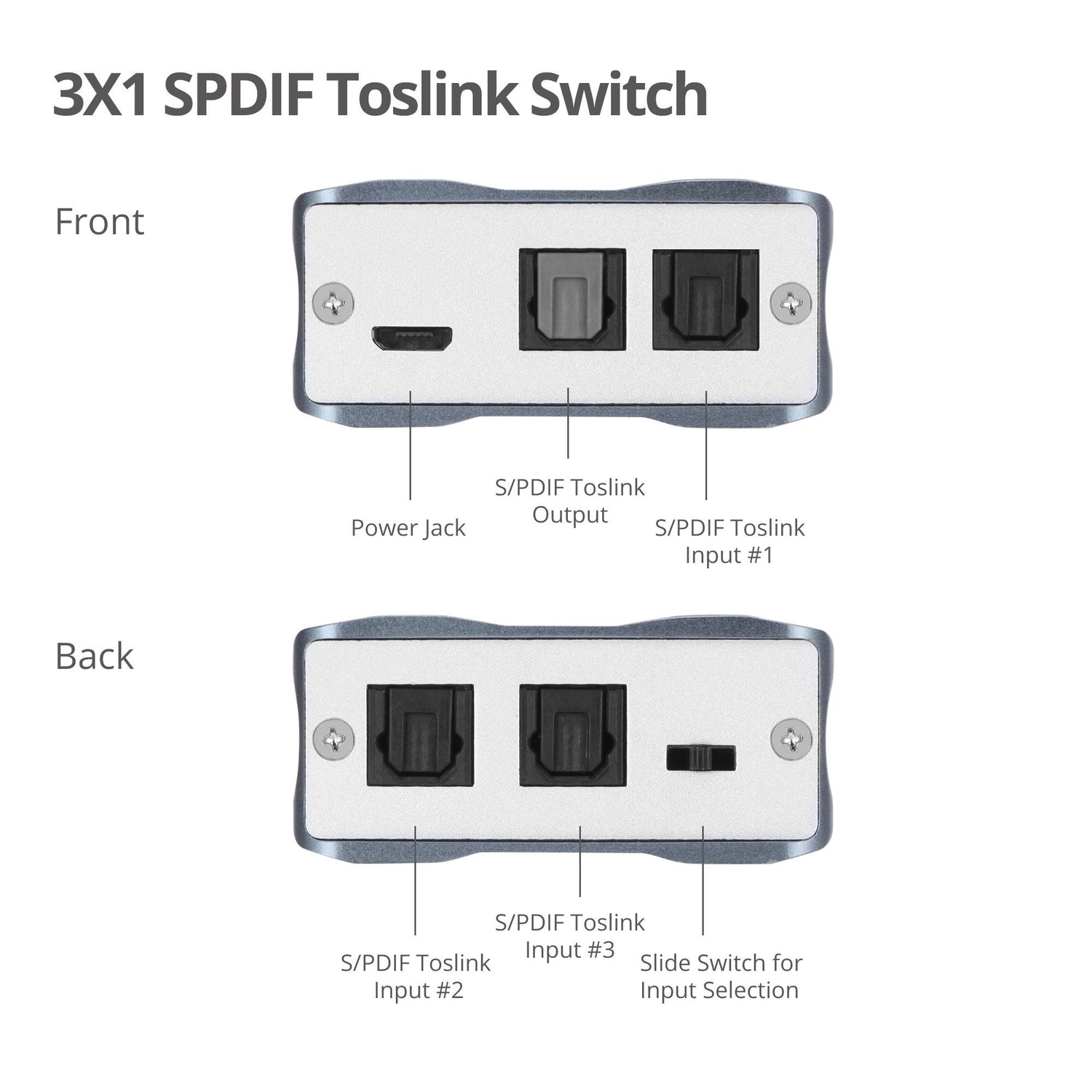

| Interface | 1x Toslink, S/PDIF, female, output 3x Toslink, S/PDIF, female, input 1x 5-pin, Micro USB, power input 1x DIP switch |

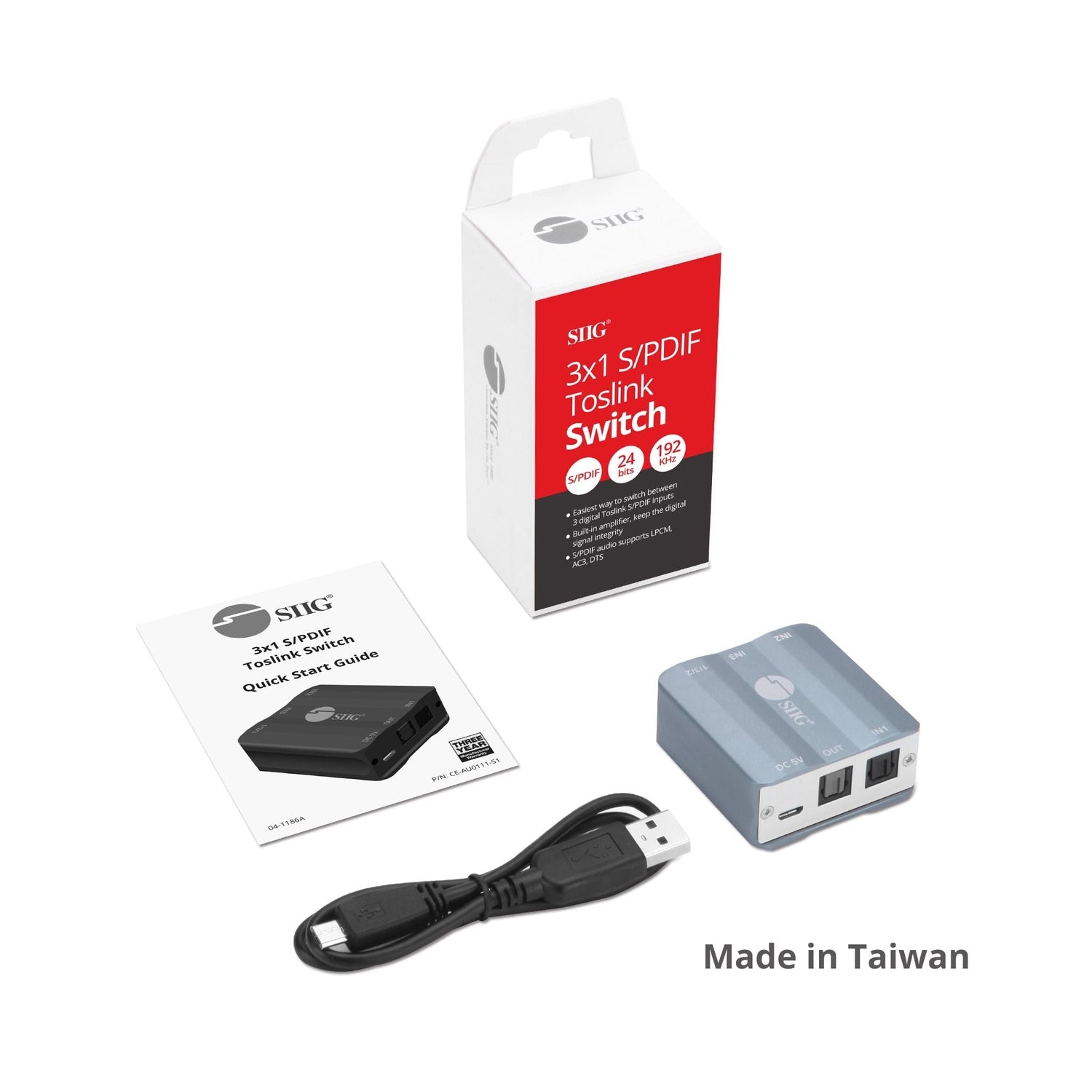

| Package Contents | 1x 3x1 S/PDIF Toslink Switch 1x Micro-USB power cable 1x User reference guide |
| Environmental Conditions | |
| Operating Temperature | 32° to 122° F |
| Storage Temperature | 14° to 140° F |
| Relative Humidity | 20% to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS, TAA Compliant |
| UPC Code | 662774-042510 |
| Warranty | 3 years limited |
| Country of Origin | Taiwan |
| Product | |

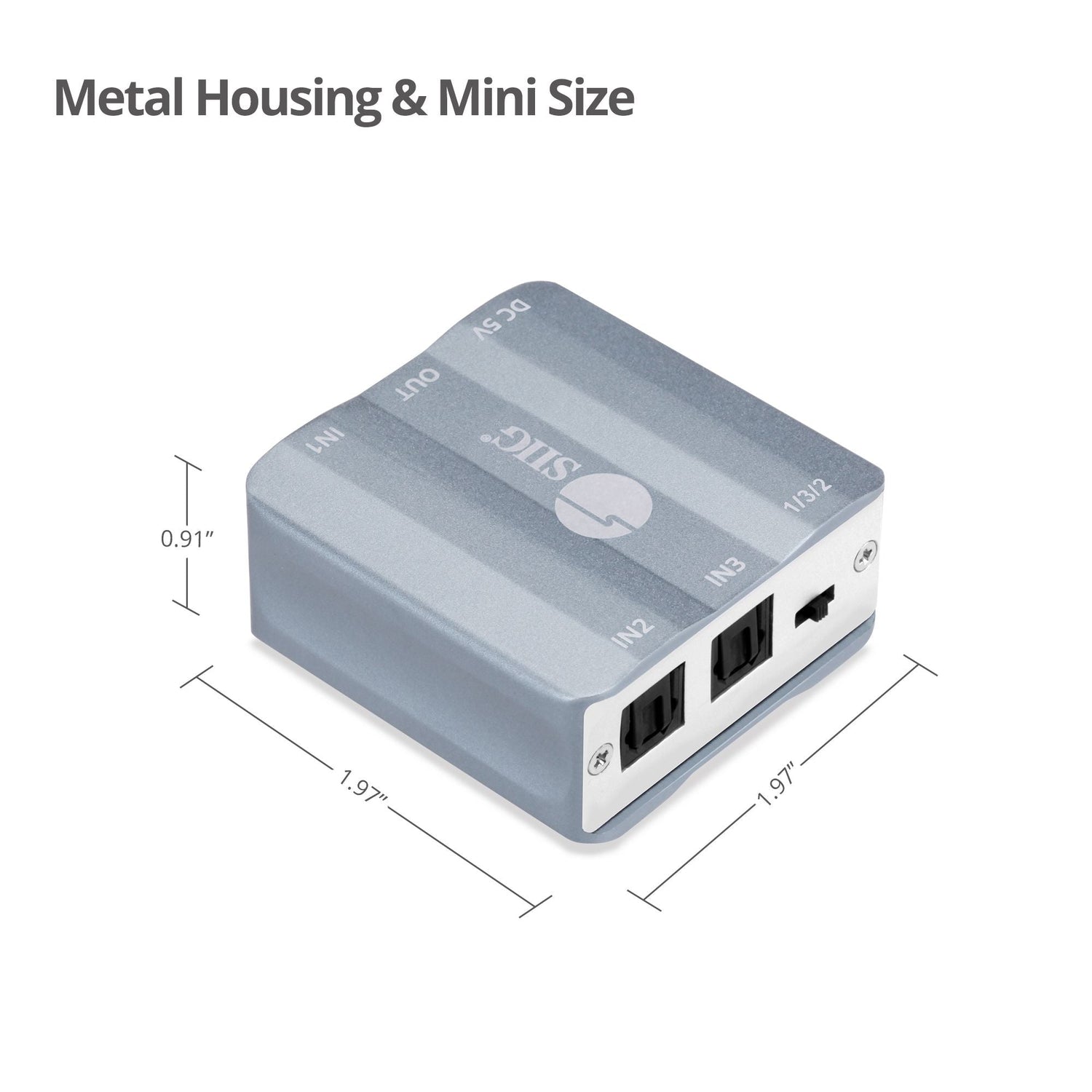

| Dimensions (L) x (H) x (W) | 1.98″ x 0.91″ x 1.98″ 5.03 cm x 2.31 cm x 5.03 cm |
| Weight | 0.12 lb (0.05 kg) |
| Color | Black |
| Housing | Metal |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 5.51″ x 0.94″ x 4.45″ 14.00 cm x 2.39 cm x 11.30 cm |
| Weight | 0.20 lb (0.09 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 17.90″ x 10.00″ x 11.50″ 45.47 cm x 25.40 cm x 29.21 cm |
| Weight | 22.95 lbs (10.41 kg) |
| Quantity | 100 pcs/ctn |
