Switch |
SKU:
CE-VG0F11-S1

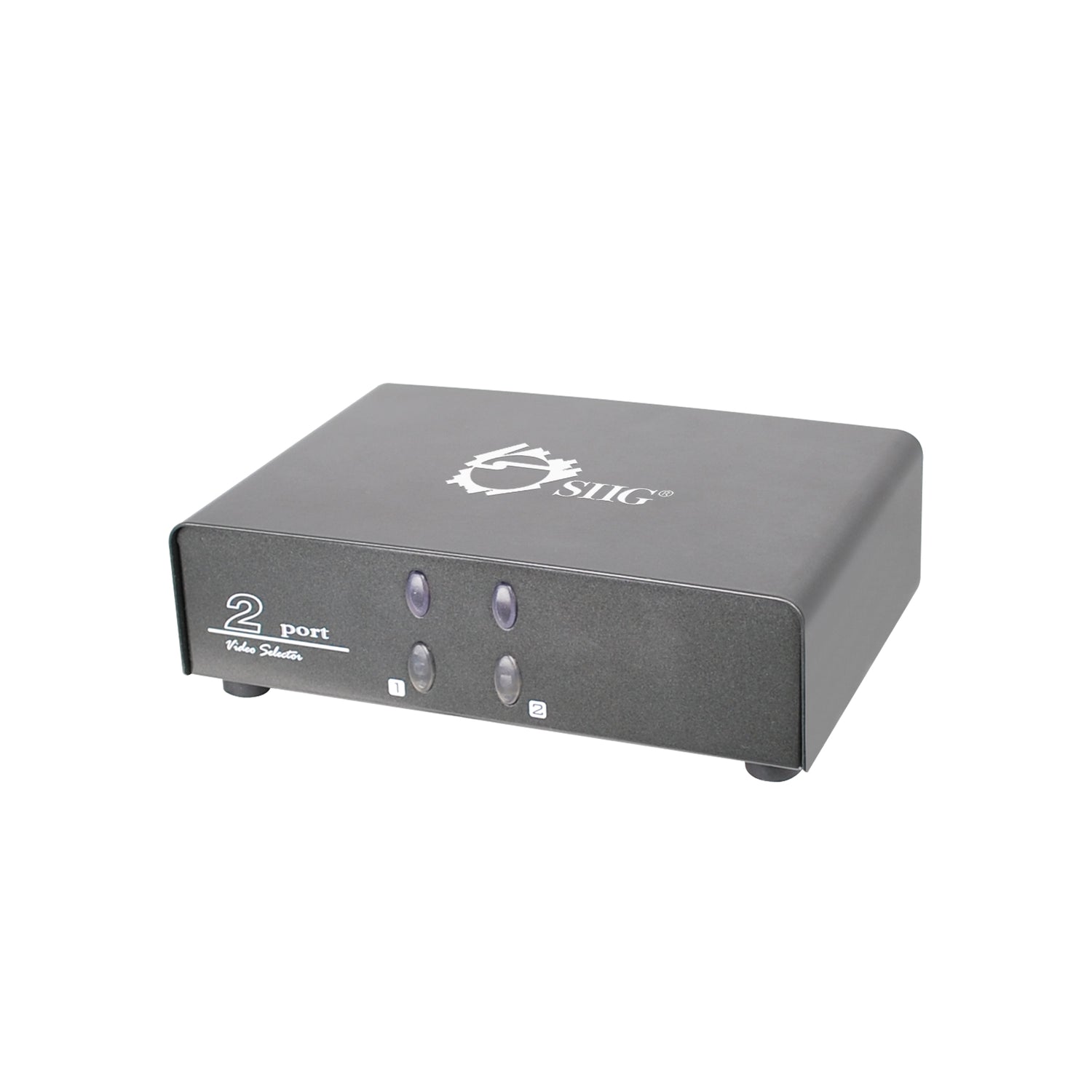

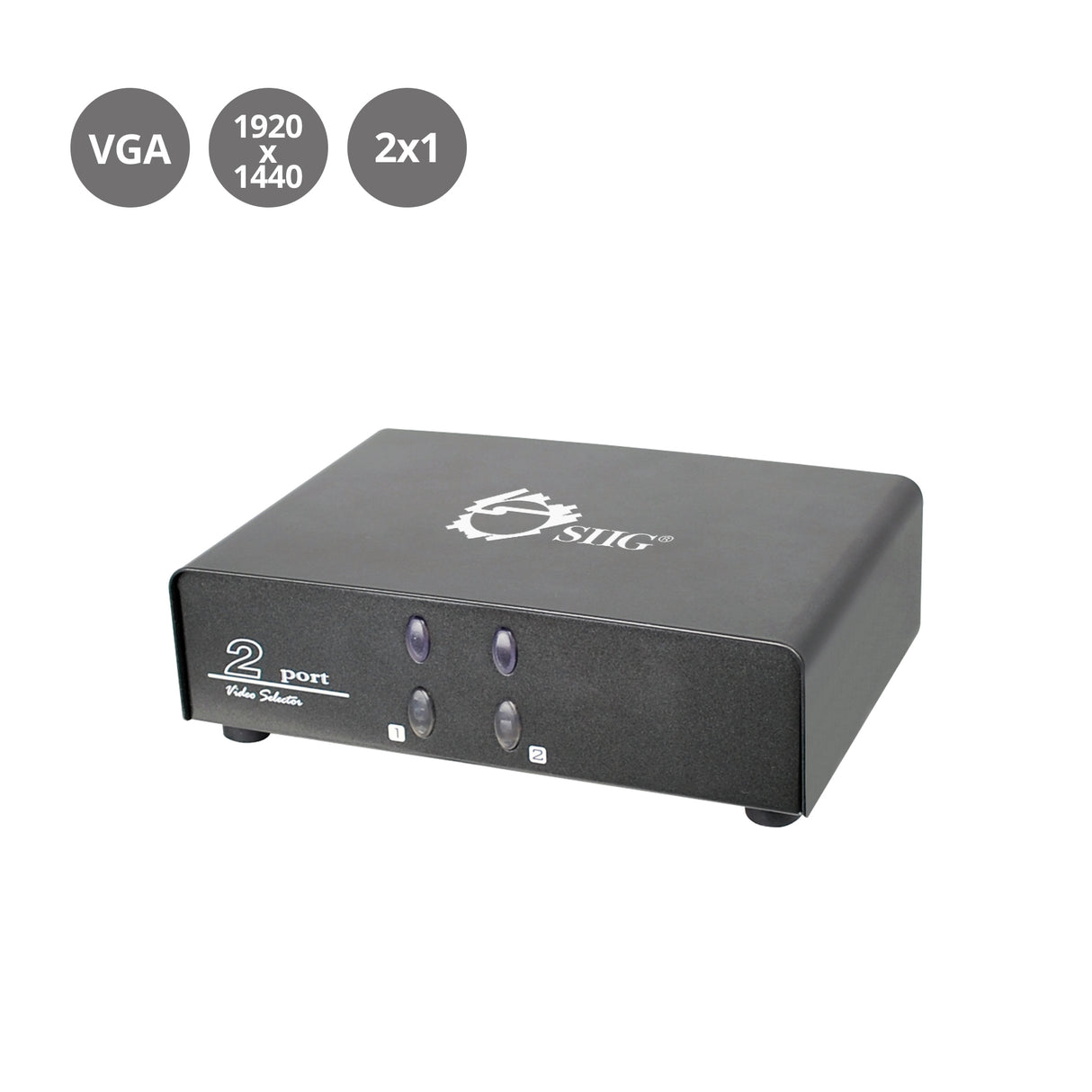

2x1 VGA Switch
2x1 Video Switch
VGA
1920x1440 60Hz
Press Button
Metal Housing
Regular price
$39.99
Unit price
/
Unavailable
Shipping calculated at checkout.
2x1 VGA Switch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
2x1 Switcher
2x1 Switcher
Video Bandwidth
Video Bandwidth
Quality Materials
Quality Materials
VGA Resolutions
VGA Resolutions
Control Methods
Control Methods
No content found
| Supports | Supports VGA, SVGA, XGA, UXGA, and multi-sync monitors Supports up to 1920x1440 resolution |
| Video Bandwidth | 300MHz |
| Feature | LED status indicators |
| Ports | |

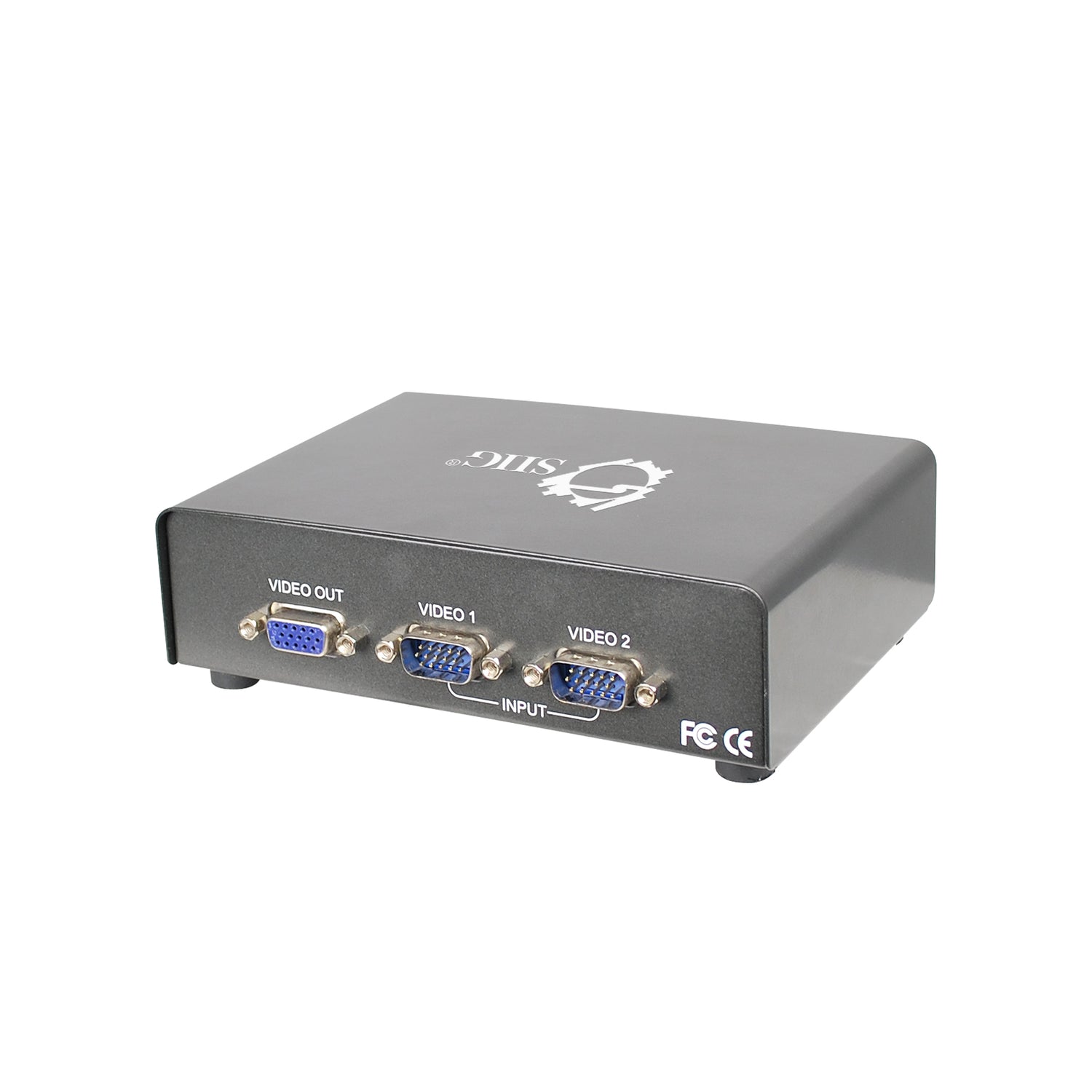

| Input | 2, 15-pin, VGA, DB15, Male |
| Output | 1, 15-pin, VGA, DB15, Female |
| VGA Cables | 1, 15-pin, VGA (M/F) with Type A USB Male (for power only), 6 ft (1.8 m) 1, 15-pin, VGA (M/F), 6 ft (1.8 m) |
| Product | |
| Dimensions | 5.71″(W) x 3.94″(H) x 1.57″(D) |
| Weight | 0.86 lbs |
| Color | Black |
| Housing | Metal |
| Unit Package | |
| Dimensions | 10.38″(W) x 3.06″(H) x 6.88″ (D) |
| Weight | 1.94 lbs |
| Master Carton | |
| Dimensions | 15.94″(W) x 14.17″(H) x 11.81″(D) |
| Weight | 21.61 lbs |
| Quantity | 10pcs/ctn |
| Package Contents | 2x1 VGA Switch 2x Cables Rubber Pads (4pcs) Installation Guide |
| Environmental Conditions | |
| Operating Temperature | 32 to 104 degrees F (0 to 40 degrees C ) |
| Storage Temperature | 23 to 160 degrees F (-5 to 70 degrees C) |
| Certifications/Standards | FCC, CE, RoHS |
| Warranty | 3 years limited |
| Country of Origin | China |
