KVM |
SKU:
CE-KV0711-S1

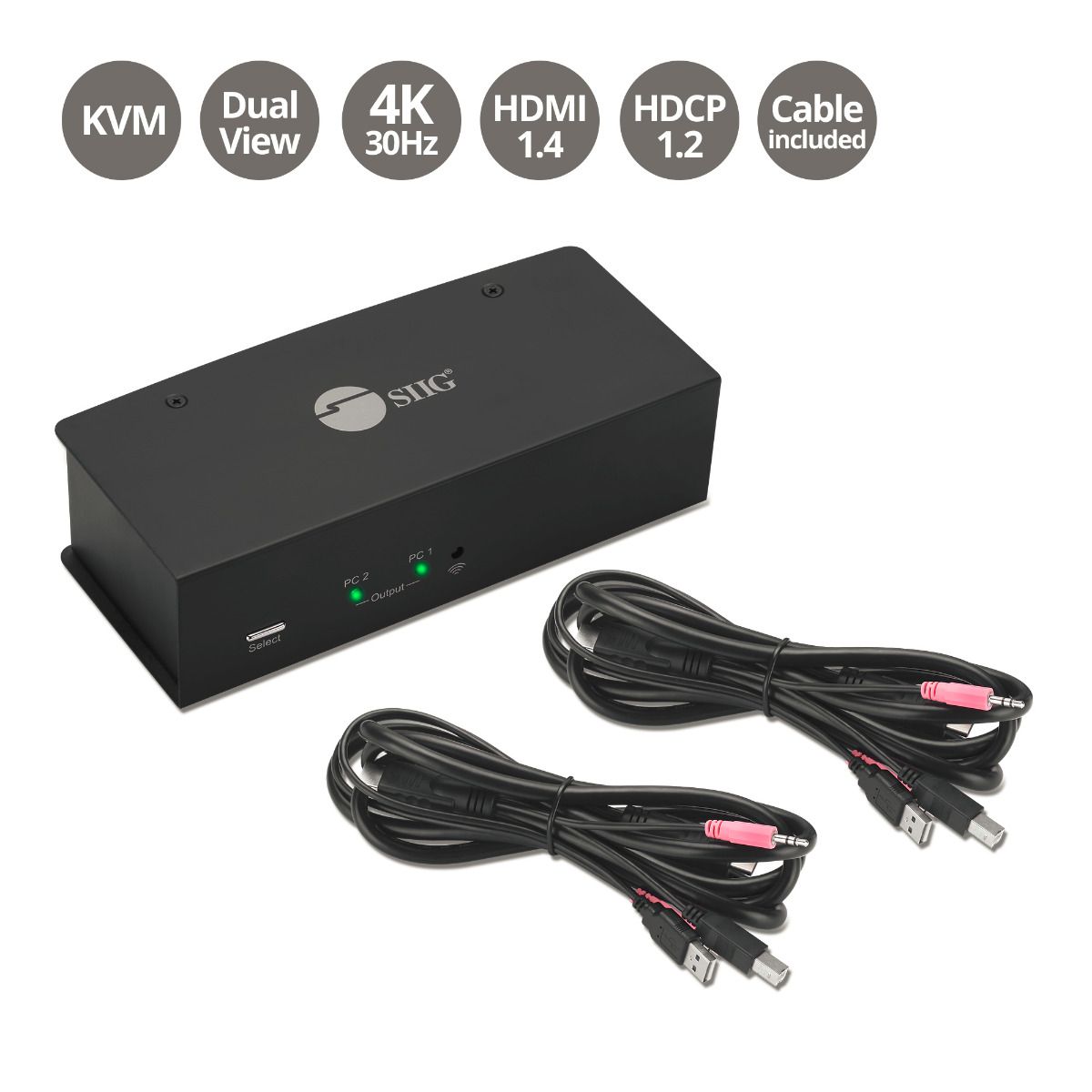

2x2 Dual View USB HDMI KVM Switch - 4K, Dual Display or Extended Display
HDMI KVM Switch
Dual View
4K30Hz
IR Remote Control
3.5mm MIC
Regular price
$439.99
Unit price
/
Unavailable
Shipping calculated at checkout.
2x2 Dual View USB HDMI KVM Switch - 4K, Dual Display or Extended Display is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
UHD Resolution
UHD Resolution
High Performance
High Performance
SuperSpeed Data Transfer
SuperSpeed Data Transfer
High-Quality Circuit Design
High-Quality Circuit Design
Metal Housing Design
Metal Housing Design
No content found
| Chipset | Sil9687, GL850G |
| OS Compatibility | W indows®, mac OS® |
| Video | |
| HDMI | 3840x2160 30Hz, HDCP 1.4, 3D |
| Bandwidth | Up to 10.2Gbps |
| HDMI frequency | Up to 300MHz (up to 3Gbps) |
| Video cable length | HDMI: 4K |
| USB 2.0 | 3x Type-A, up to 480Mbps, Compliant with USB 1.1 specifications |
| Audio | 5.1 channel surround sound PCM 2.1 channel stereo digital audio |
| IR remote control | |
| Working | Distance: up to 5 meters |
| Battery | CR2025 |
| Power adapter | |
| Input | 100-240V/50-60Hz |
| Output | DC 5V/3A |
| UL listed | E480963/Level: VI |

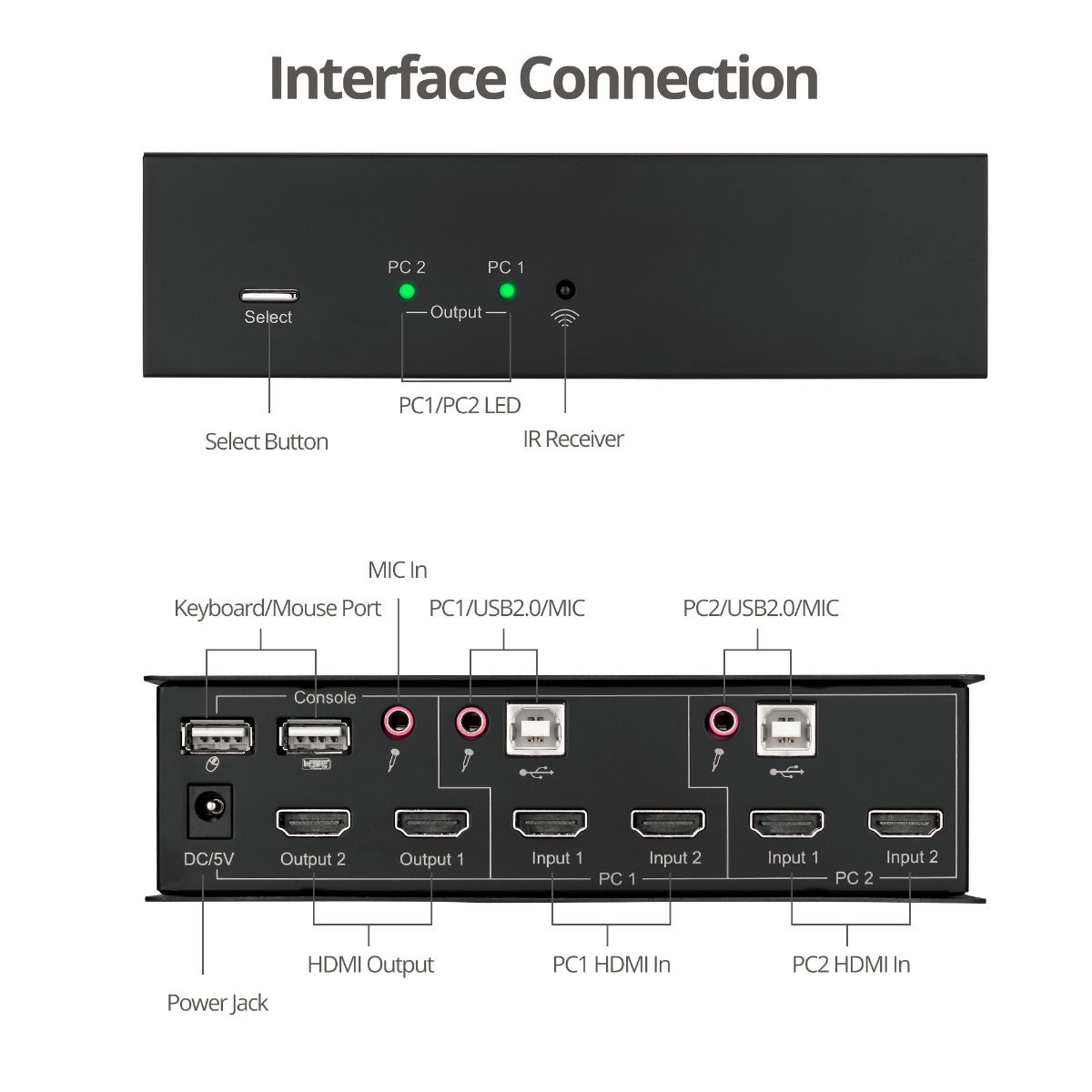

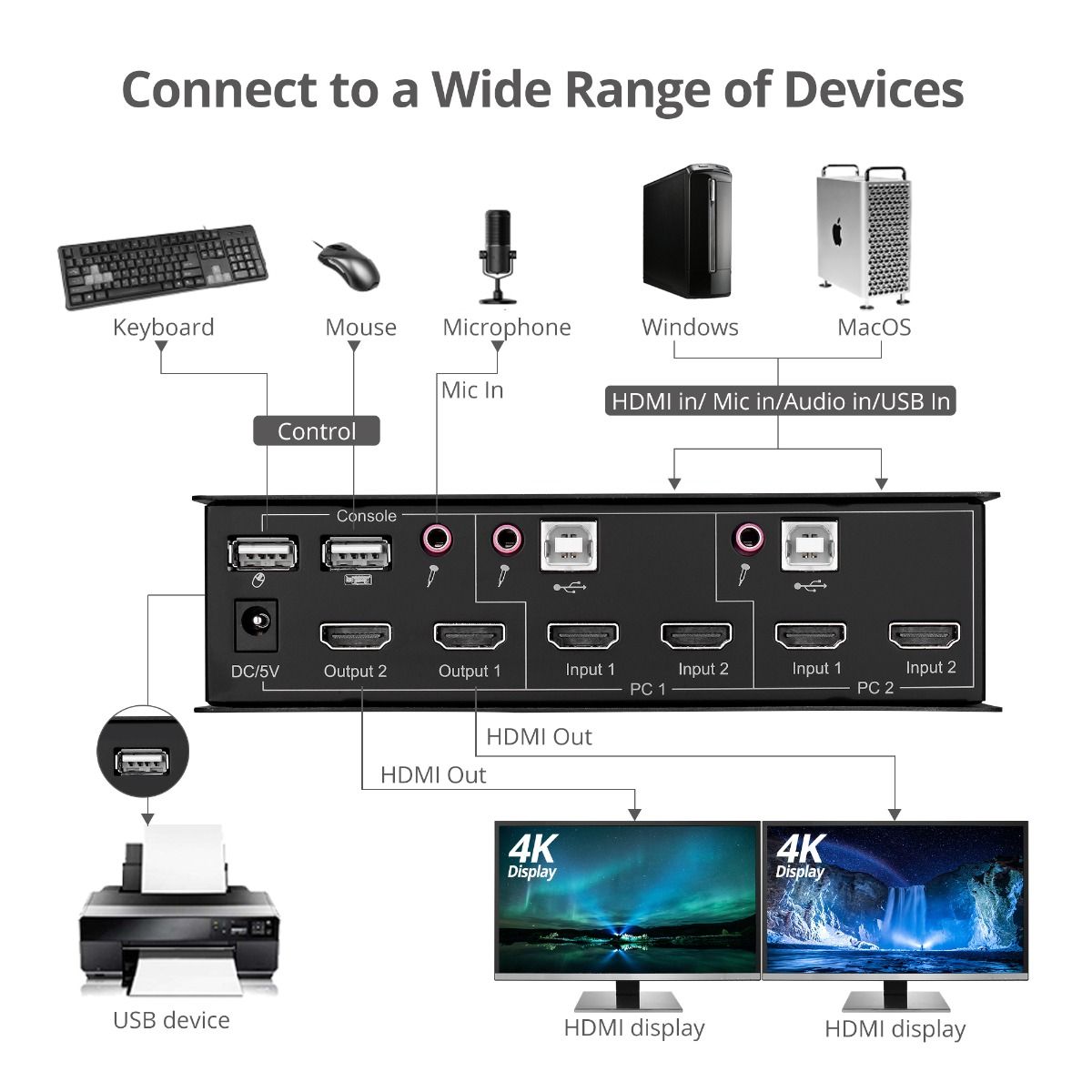

| Interface | 4x 19-pin HDMI, Female (PC input) 2x 4-pin USB 2.0 Type-B, Female, input 2x 3.5mm phone jack for Microphone, Female (PC) 2x 19-pin HDMI, Female, Output 1x 3.5mm phone jack for Microphone, Female (Device) 3x 4-pin USB 2.0 Type-A, Female (for Keyboard/Mouse and USB device) 1x DC power jack (5.5x2.5x10mm) |
| Product | |

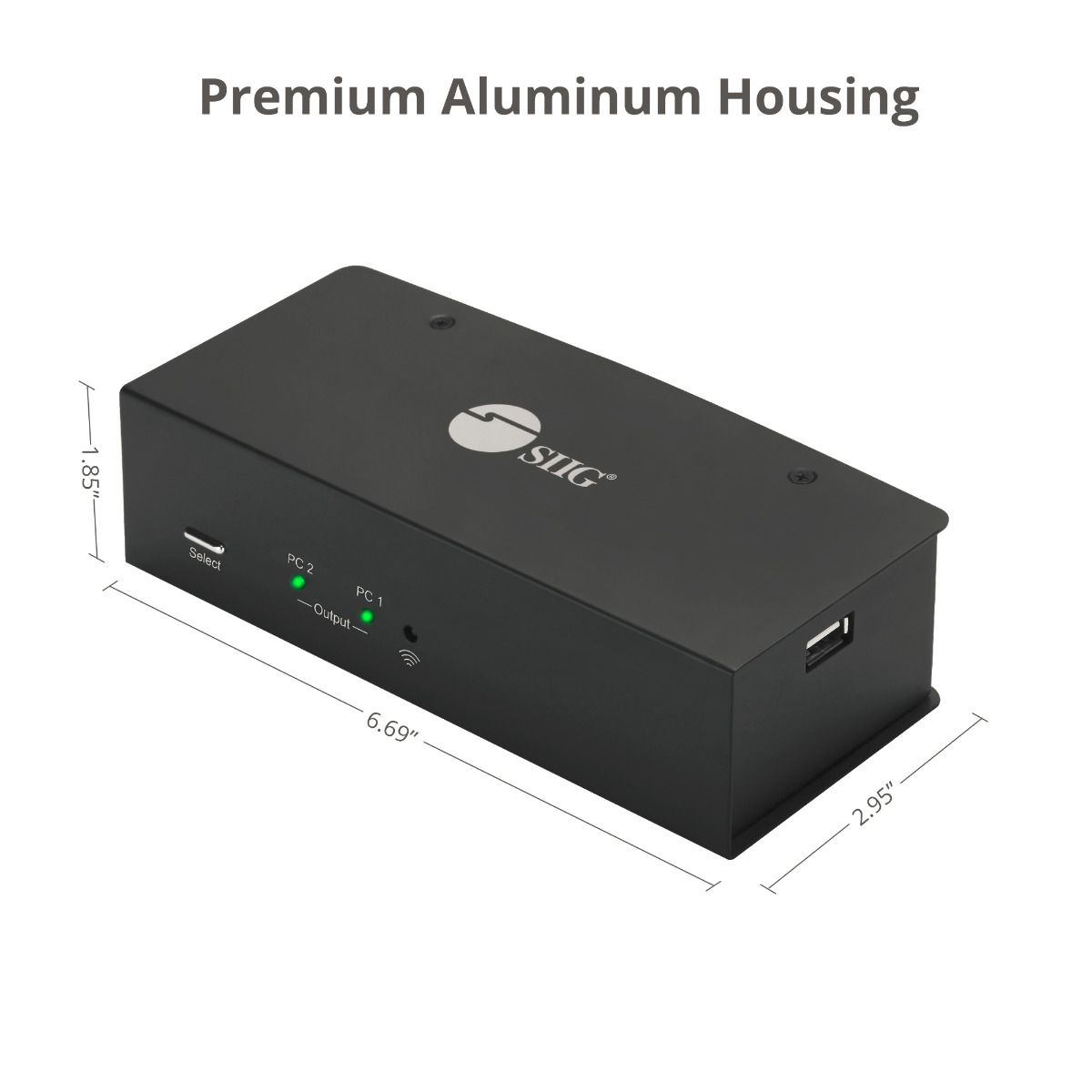

| Dimensions | 6.69″ (W) x 1.77″ (H) x 2.99″(D) |
| Weight | 1.9 lbs |
| Color | Black |
| Housing material | Aluminum metal (Housing with wall mount design) |
| Unit package | |
| Dimensions | 11.02″ (W) x 2.55″ (H) x 7.08″(D) |
| Weight | 2.27 lbs |
| Master carton | |
| Dimensions | 16.14″ (W) x 11.81″ (H) x 14.17″ (D) |
| Weight | 24.34 lbs |
| Quantity | 10 pcs/ctn |

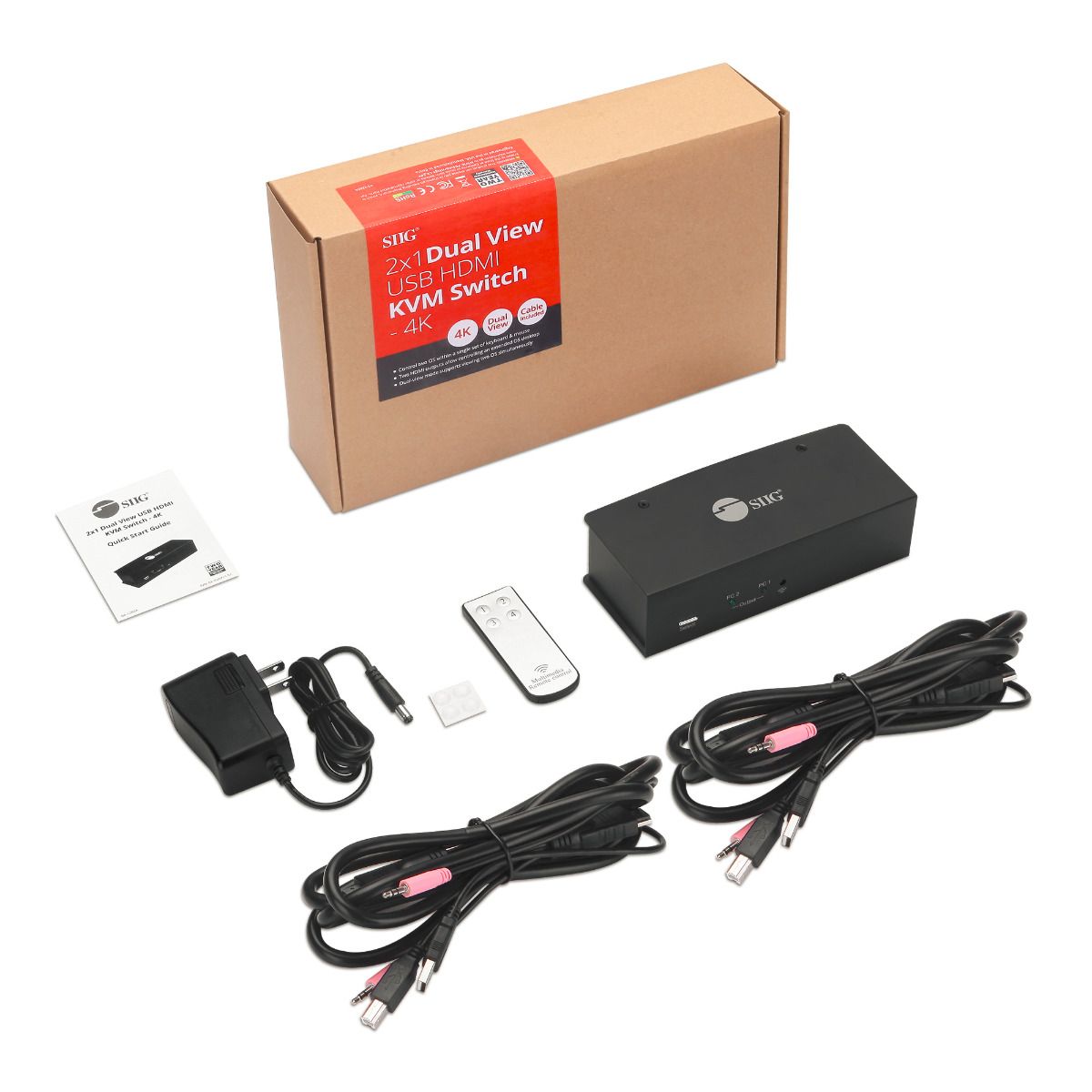

| Package contents | 1x 2x2 Dual View USB HDMI KVM Switch - 4K 2x USB HDMI KVM Cable with Audio & Mic (1.8m) 4x Rubber pad 1x Remote controller + CR2025 battery 1x Power adapter (5V/3A) 1x User reference guide |
| Environmental Conditions | |
| Operating temperature | 32 to 104 degrees F |
| Storage temperature | 14 to 158 degrees F |
| Relative humidity | 5 to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS |
| UPC code | 662774043890 |
| Warranty | 2 years limited |
| Country of Origin | Engineered in USA , Manufactured in China |
The KVM work on PC1, why can't switch to PC2?
The KVM work on PC1, why can't switch to PC2?
KVM relies on power from USB to determine which computer to control. If only PC1's USB is connected, it will only control PC1 and not switch to PC2. If you want to switch to PC2, you need to connect PC2's USB to KVM. Please connect two USB cables from PC to KVM.
