Splitter |
SKU:
CE-H26D11-S1
33% off

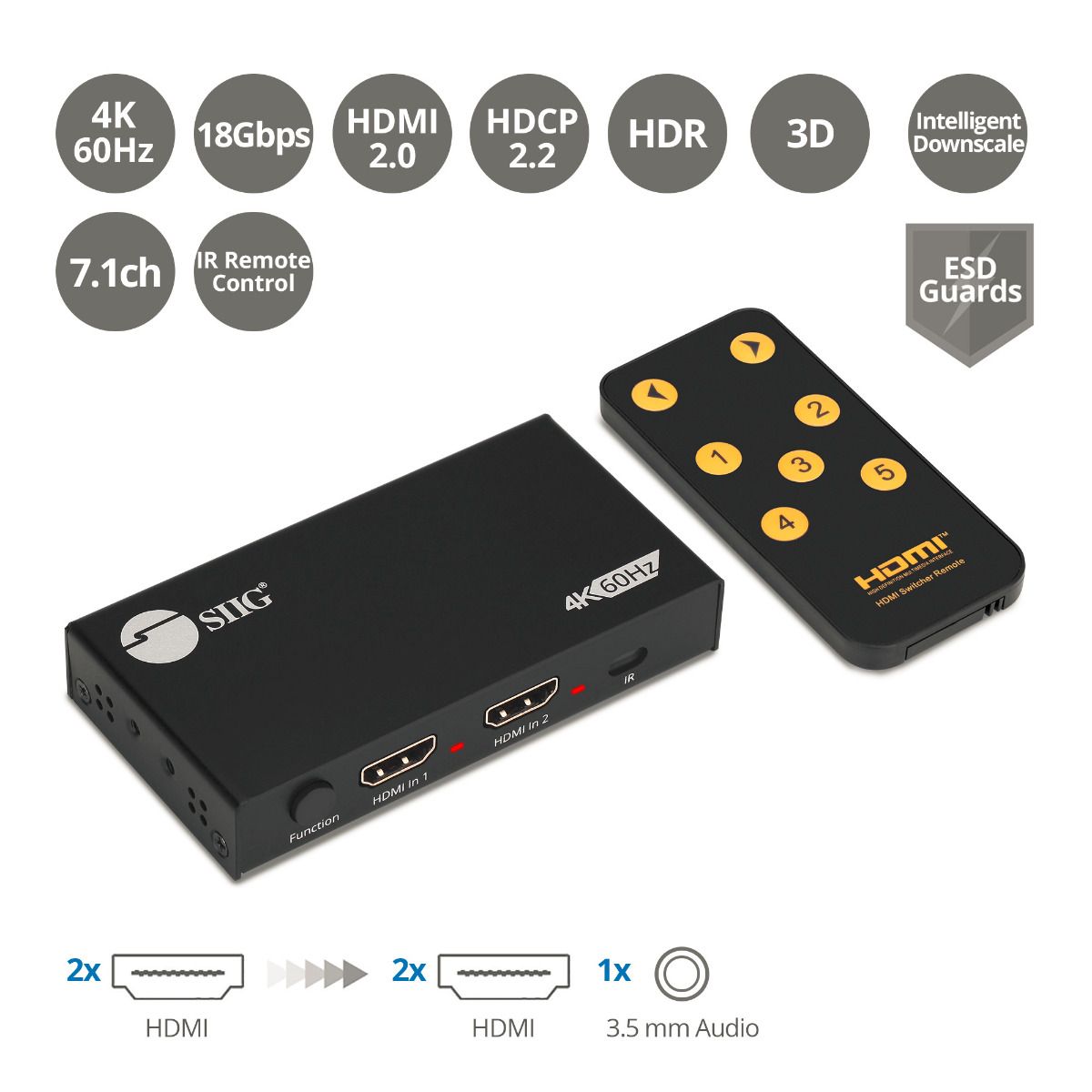

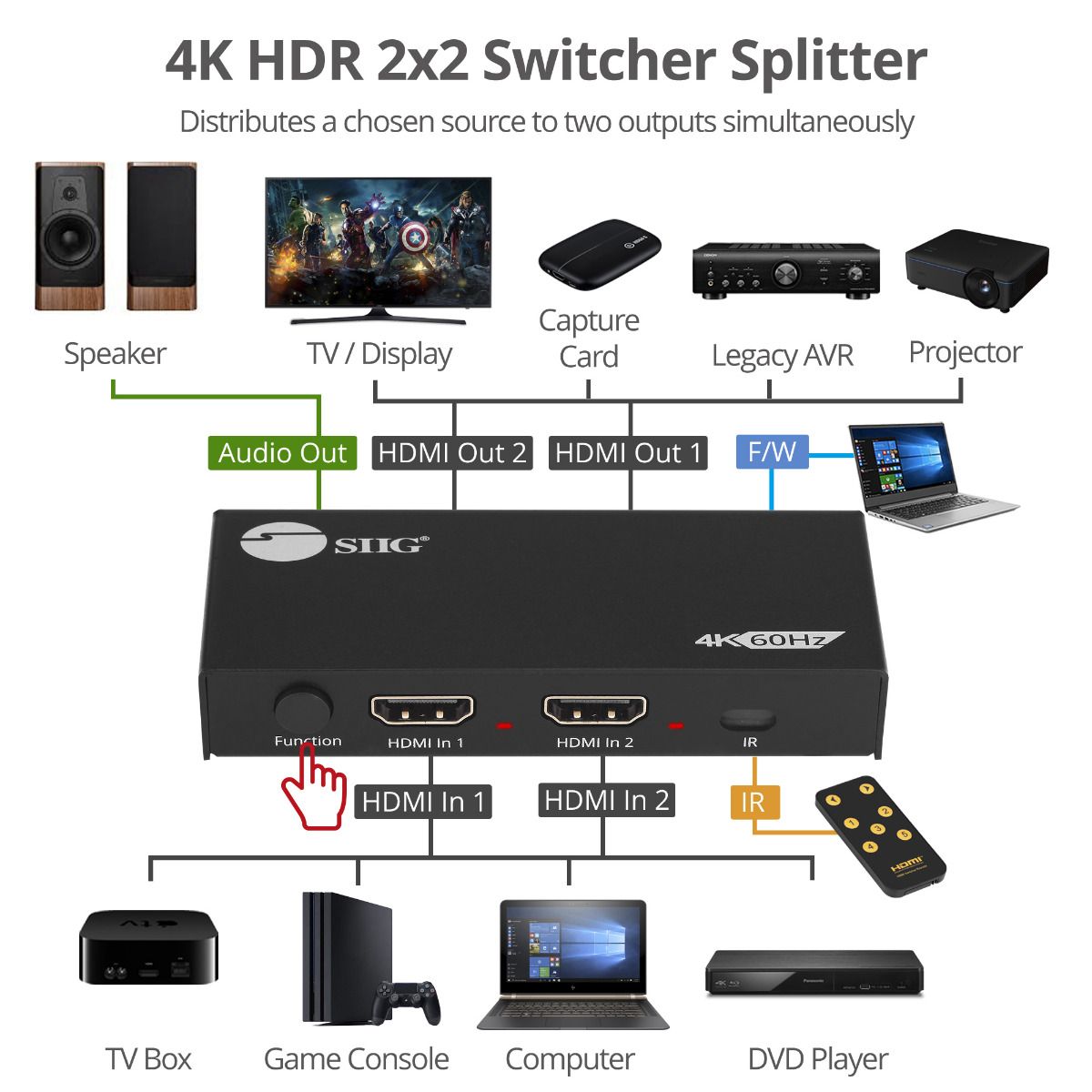

2x2 HDMI® Switch Splitter, 4K at 60 Hz HDR
HDMI Switch/Splitter
2 In / 2 Out
4K60Hz
Remote Control
Audio Extractor
Sale price
$46.95
Regular price
$69.99
Unit price
/
Unavailable
Shipping calculated at checkout.
2x2 HDMI® Switch Splitter, 4K at 60 Hz HDR is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Video Distribution
Video Distribution
Resolution & Audio
Resolution & Audio
Advanced Features
Advanced Features
Durability
Durability
EDID Management
EDID Management
No content found
| Video | |
| HDMI | 2x input, 2x output |

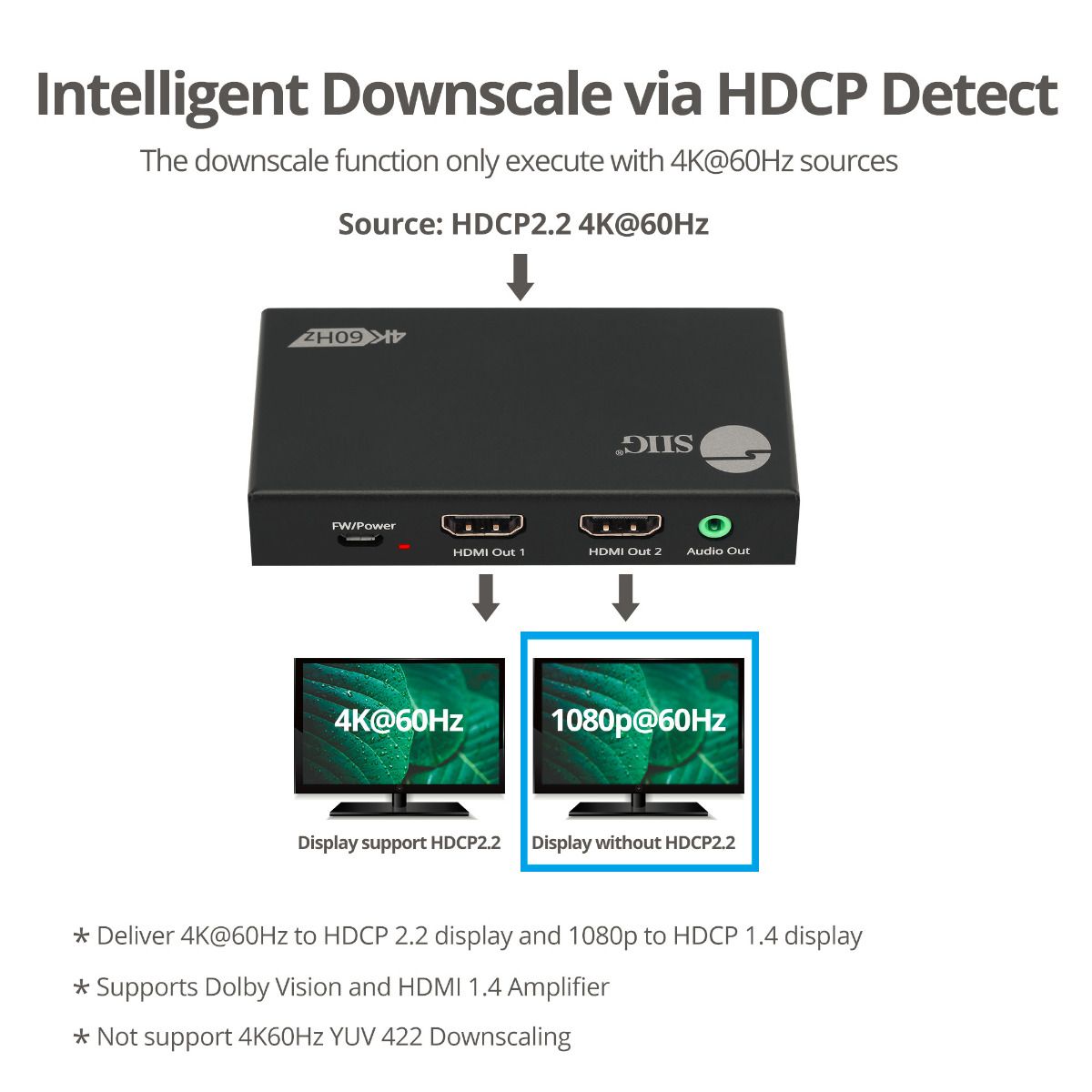

| Standard | HDMI 2.0, HDCP 2.2 & 1.4 compliant |
| Bandwidth | Up to 18Gbps |
| Resolution | 4K (3840x2160) YUV 4:4:4, HDR10 1080p / 1080i / 720p / 480i / 480p 60Hz |
| Deep Color | 36-bit |

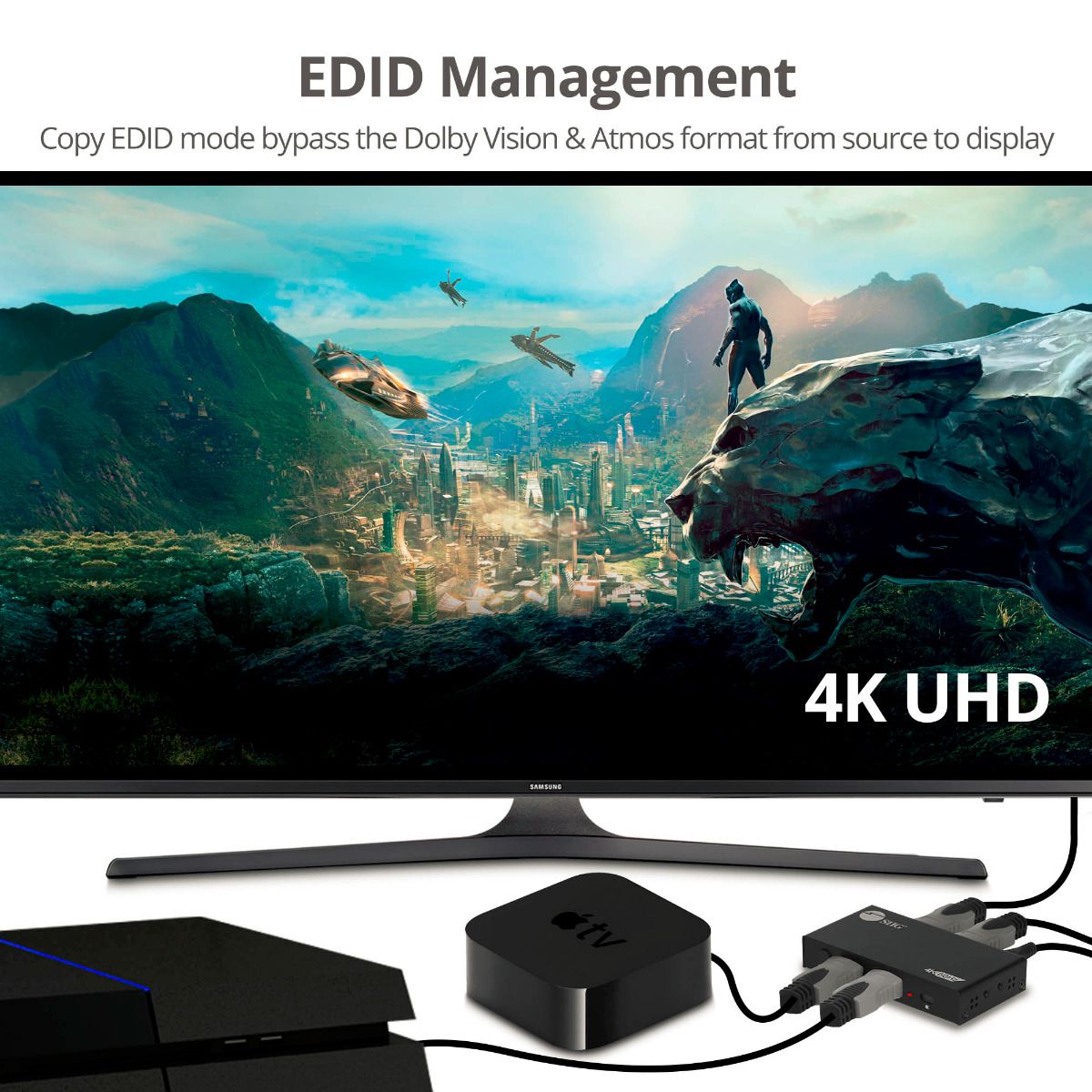

| EDID management | Auto EDID: 4K 60Hz (default) Copy EDID: from HDMI output 1 Mixed EDID: follow the lowest resolution |
| Audio | - 7.1 channel surround sound from HDMI port, supports LPCM, Dolby Vision, Dolby Atmos, Dolby Digital, DTS-HD Master Audio, Dolby TrueHD - 3.5mm Audio: 2 channel stereo audio from 3.5mm analog audio |
| IR Pass-through | Built-in IR sensor allows you to control HDMI source devices via IR remote control |
| Power | |
| Input | AC 100-240V, 50 / 60Hz |
| Output | DC 5V / 1A |
| UL Listed | E314357 / Level VI |

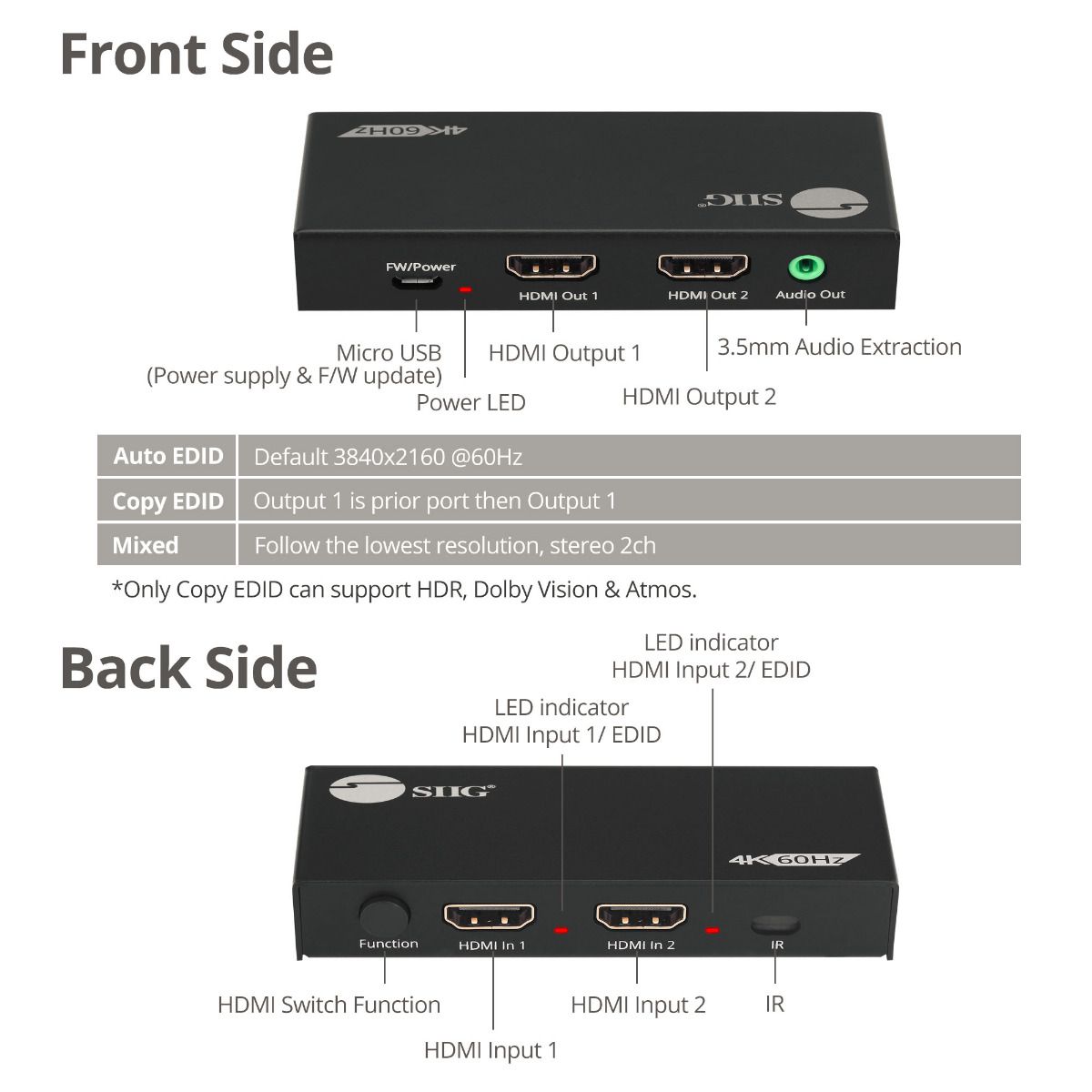

| Interface | 2x 19-pin HDMI, female, input 1x Switch button, channel and EDID selection 1x IR sensor, remote control 1x 5-pin Micro USB, power and FW update, 5V/1A, female 2x 19-pin HDMI, female 1x 3.5mm phone jack, stereo audio |
| Certifications/Standards | FCC, CE, RoHS, REACH |
| UPC Code | 662774-044026 |
| Warranty | 2 years limited |
| Country of Origin | China |
| Product | |

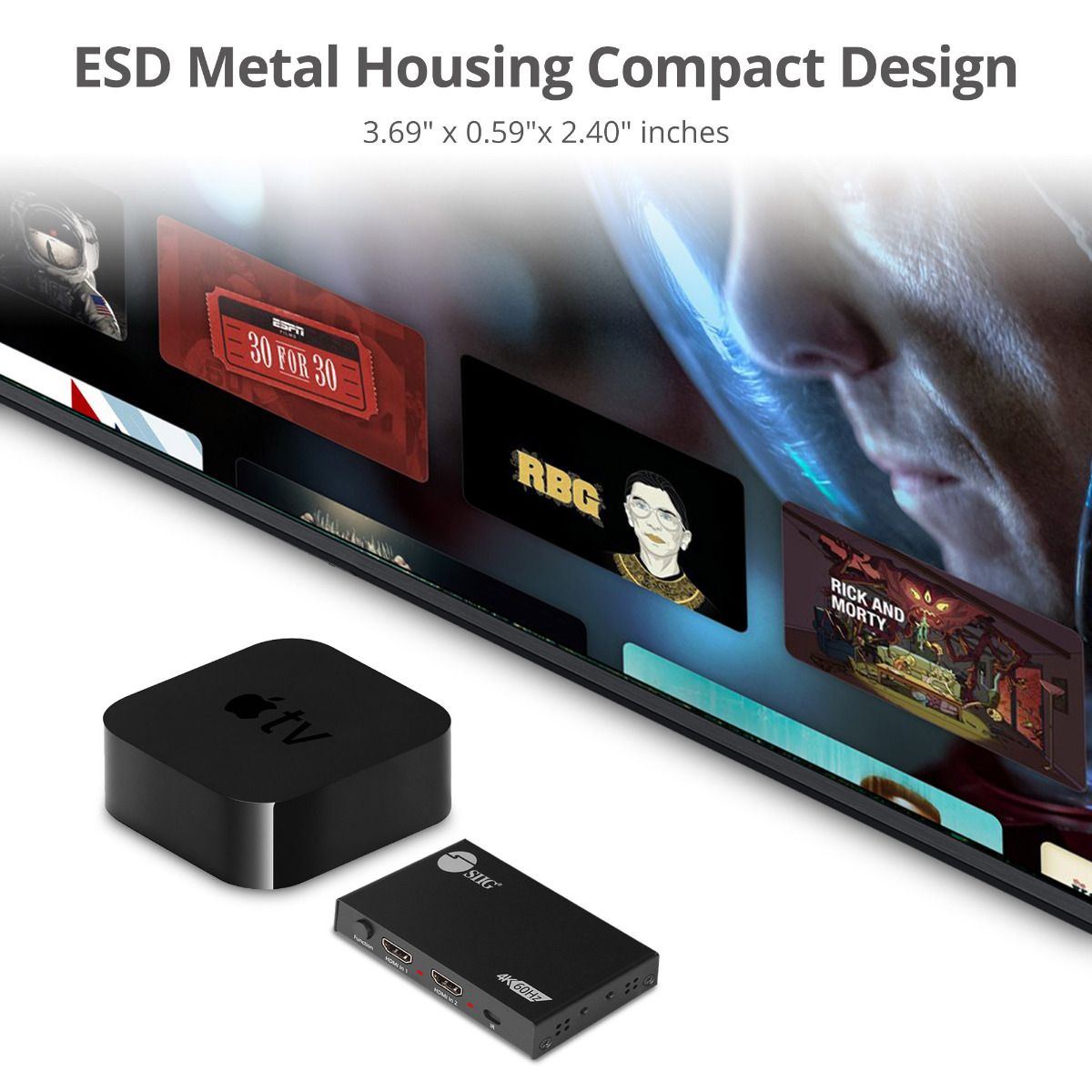

| Dimensions (L) x (H) x (W) | 3.86″ x 0.67″ x 2.05″ 9.80 cm x 1.70 cm x 5.21 cm |
| Weight | 0.33 lb (0.15 kg) |
| Color | Black |
| Housing | Metal |
| Unit package | |
| Dimensions (L) x (H) x (W) | 8.19″ x 2.17″ x 5.91″ 20.80 cm x 5.51 cm x 15.01 cm |
| Weight | 0.78 lb (0.35 kg) |
| Master carton | |
| Dimensions (L) x (H) x (W) | 16.93″ x 12.20″x 12.60″ 43.00 cm x 30.99 cm x 32.00 cm |
| Weight | 17.78 lbs (8.06 kg) |
| Quantity | 20 pcs/ctn |

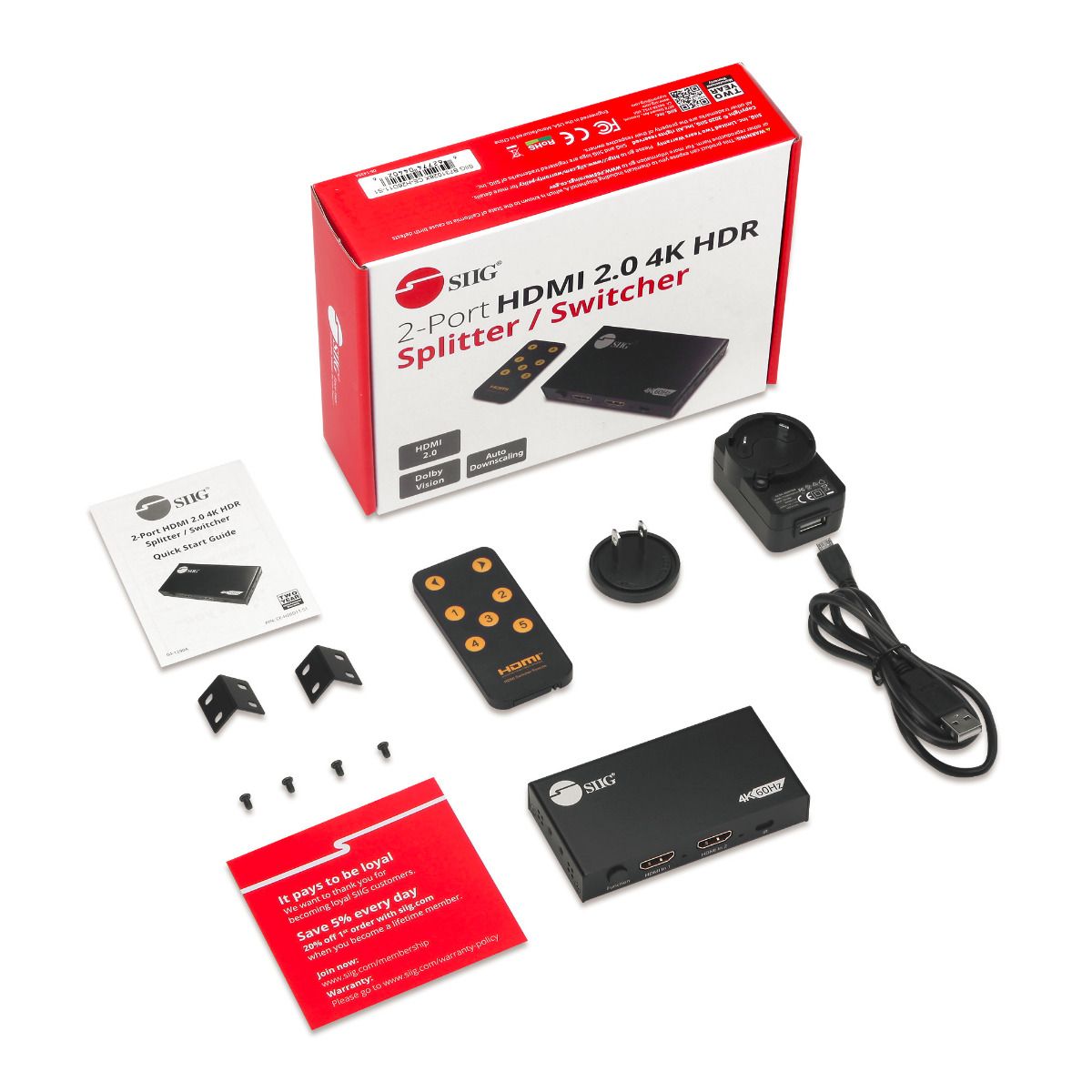

| Package Contents | 1x 2-Port HDMI 4K HDR Splitter / Switcher 1x IR Remote control 1x USB-A to Micro-B cable (80cm) 1x USB-A power adapter (5V/1A) 1x Mounting kits 1x User reference guide |
| Environmental Conditions | |
| Operating Temperature | 23° to 104° F |
| Storage Temperature | -4° to 140° F |
| Relative Humidity | 5% to 90% RH (non-condensing) |
Q1: Can this extend to 2 different screens?
Q1: Can this extend to 2 different screens?
A1: No, it can not extend to 2 different screens. All splitter outputs will always have the same screens.
