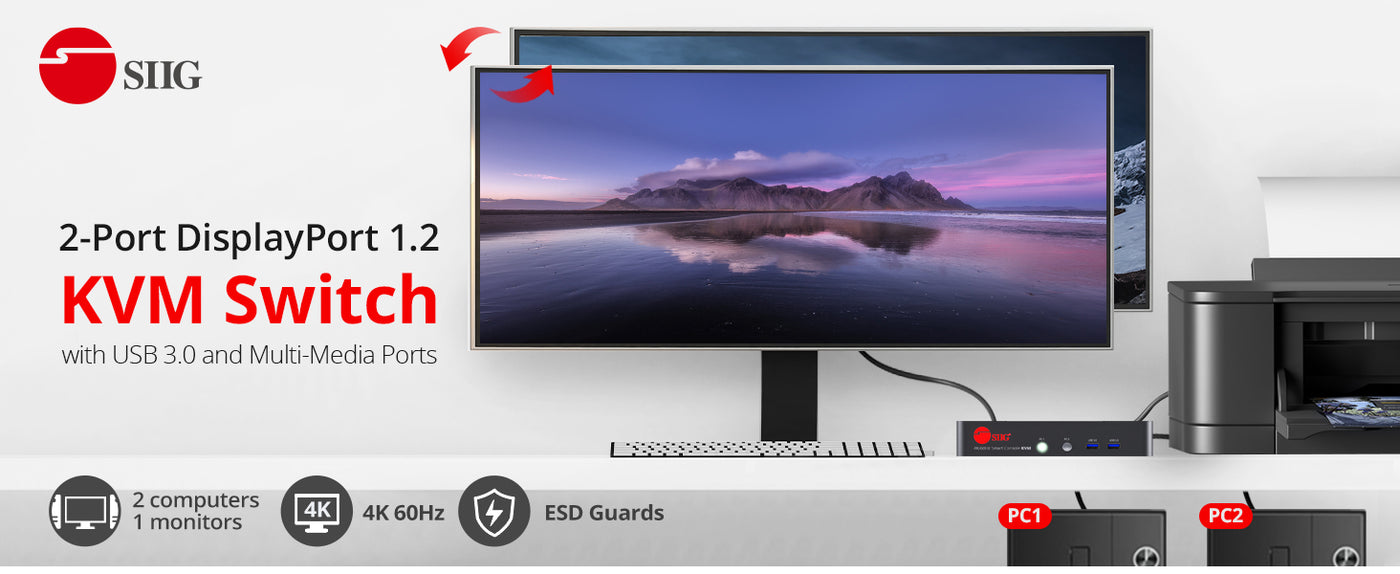

2-Port DisplayPort 1.2 Smart Console KVM Switch with USB 3.0 and Multi-Media Ports - 4K@60Hz
DisplayPort KVM
21.6Gbps
Up to 4K60Hz
USB-A 5Gbps
TAA Compliant
Regular price
$279.99
Unit price
/
Unavailable
Shipping calculated at checkout.
2-Port DisplayPort 1.2 Smart Console KVM Switch with USB 3.0 and Multi-Media Ports - 4K@60Hz is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Control 2 Computers with One Setup
Control 2 Computers with One Setup
4K Ultra HD Resolution at 60Hz
4K Ultra HD Resolution at 60Hz

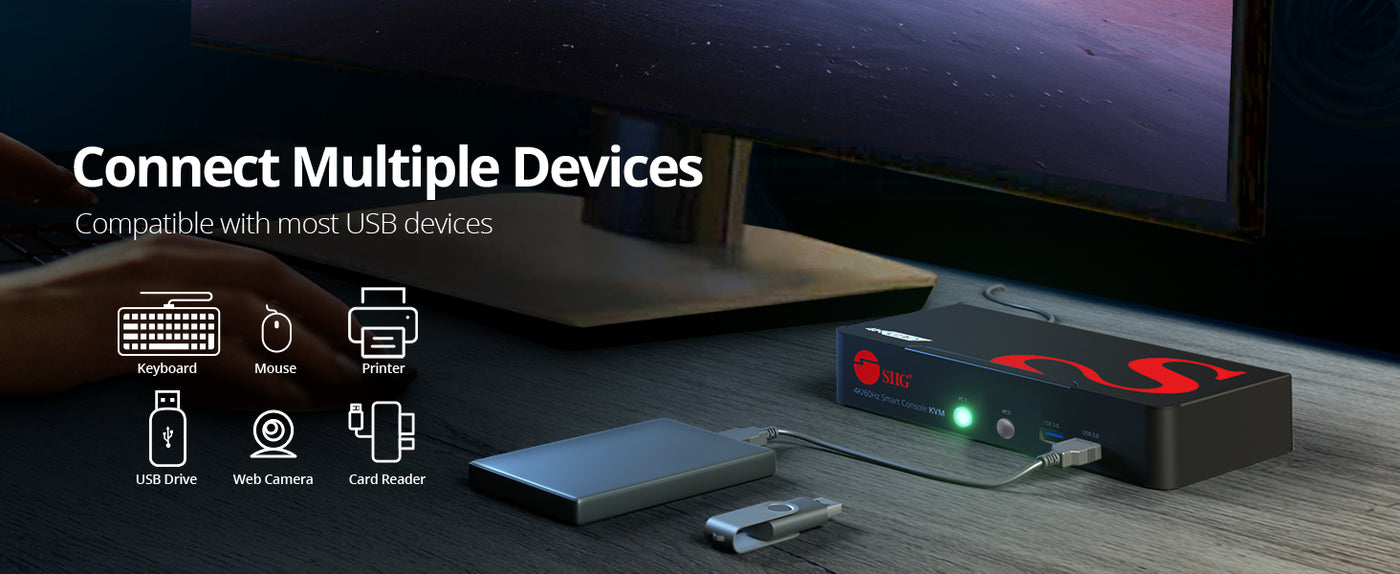

High-Speed USB 3.0 & Multi-Device Connectivity
High-Speed USB 3.0 & Multi-Device Connectivity

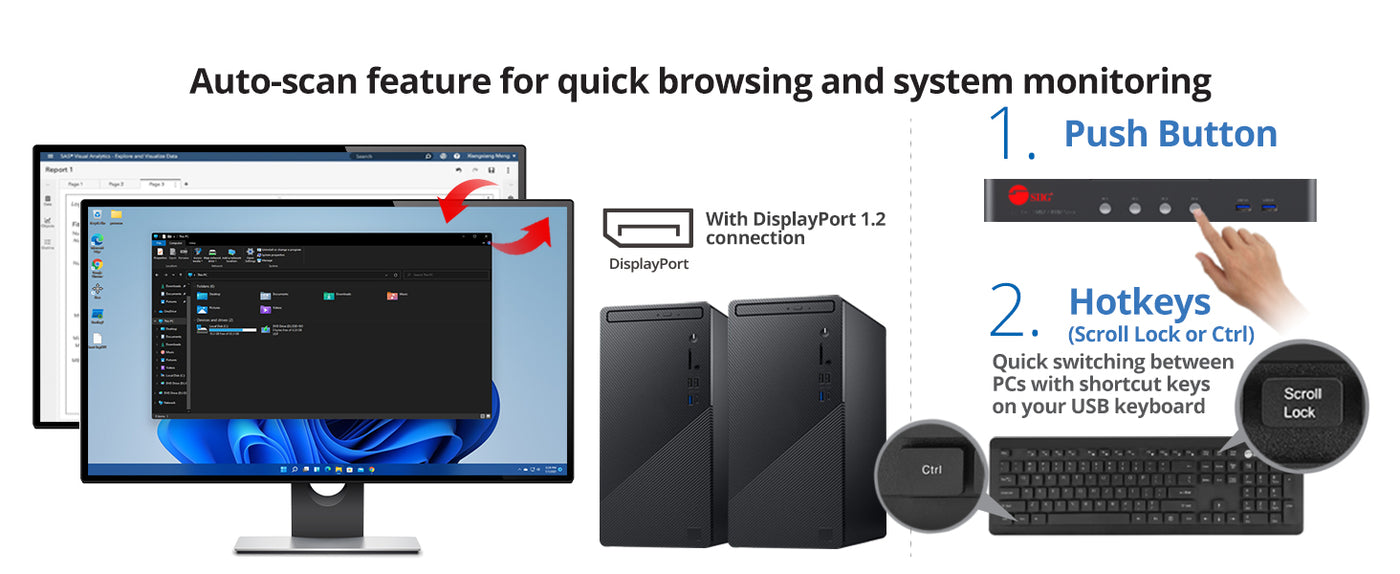

Easy Switching via Hotkeys or Button
Easy Switching via Hotkeys or Button
Plug & Play with Wide Compatibility
Plug & Play with Wide Compatibility
Perfect for Businesses that Need to Switch Between Multiple Computers Quickly and Easily




-

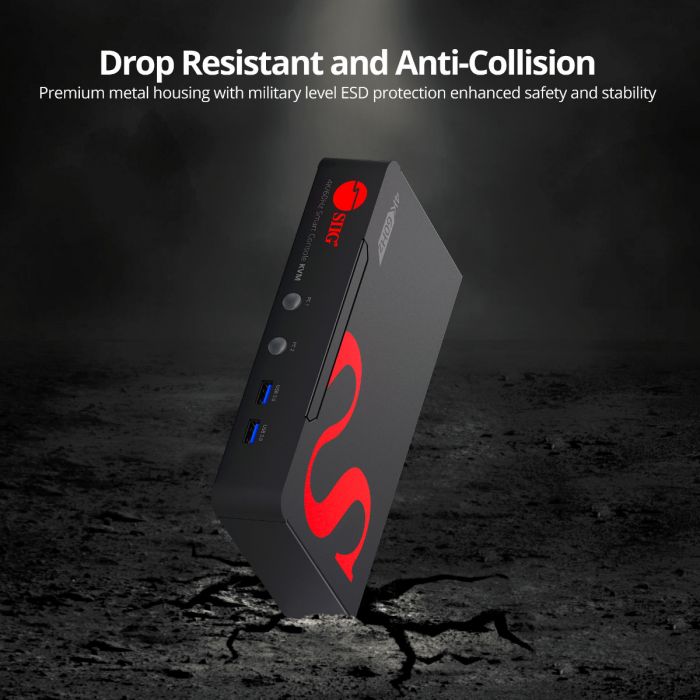

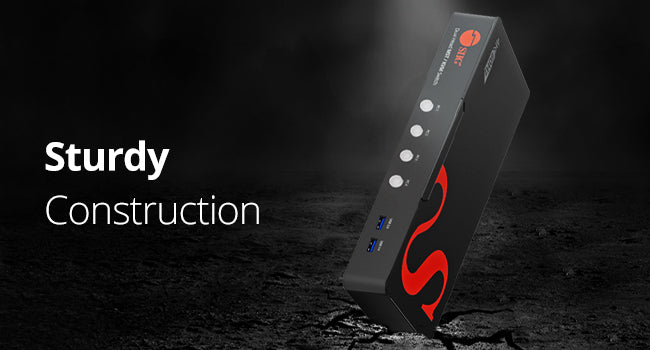

Metal Housing
The metal housing of this product is both drop-resistant and anti-collision, which also helps it dissipate heat better and improve its overall performance and safety. -
Manufactured in TAA Country
Suppose you or your company are involved with GSA Schedules, IDIQ, or DoD contracts.
This kit complies with TAA for businesses seeking to acquire goods wholly made or substantially transformed in trusted countries

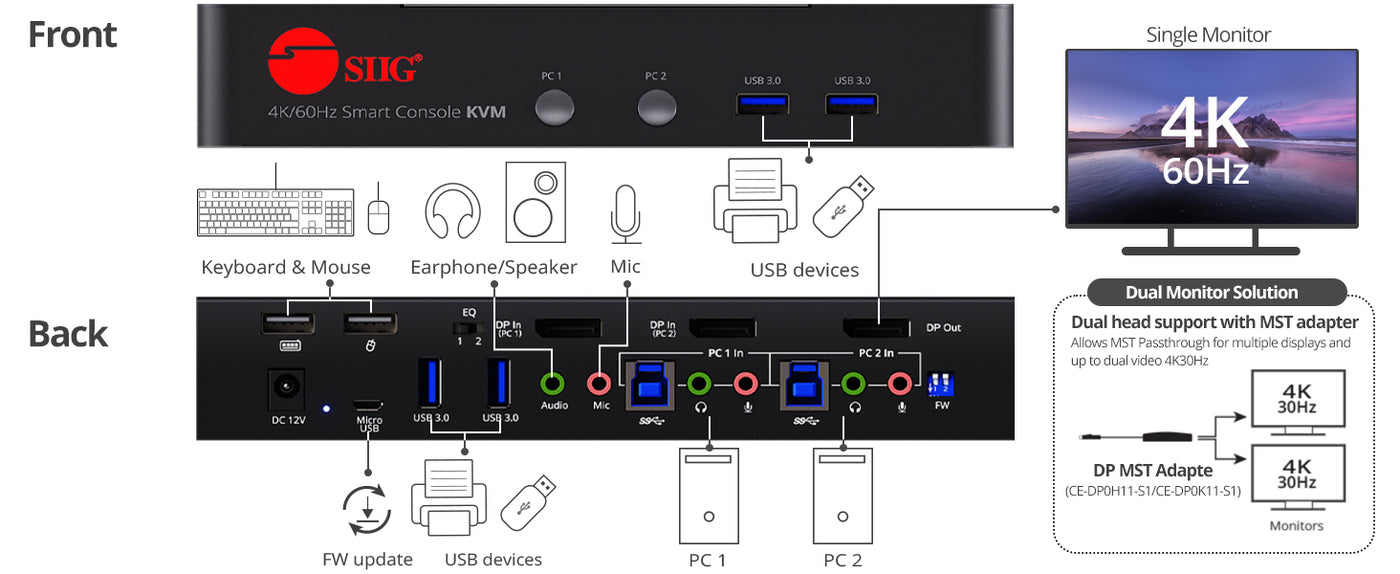

Allows you to Control 2 Computers Using One Keyboard and Mouse

| Chipset | TI SN75DP130 |
| OS Compatibility | Windows® and macOS® |
| DisplayPort 1.2 Video | |
| Bandwidth | up to 21.6Gbps Video cable length: up to 3M (max.) |
| Resolution | 3840x2160 / 3840x1600* @60 / 30 / 24Hz 3440x1440* @100 / 60Hz 2560x1440 @165 / 144 / 120 / 100 / 60 / 30Hz 1920x1200 / 1920x1080 @ 144 / 120 / 100 / 60 / 30 / 24Hz 1680x1050 / 1600x900 / 1440x900 @60Hz 1280x 1024 / 1280x800 / 1280x720 @60Hz 1024x768 / 800x600 / 640x480 @60Hz |
| USB 3.0 | 4x Type-A, Gen 1 up to 5Gbps |
| USB 1.1 | 2x Type-A, up to 12Mbps |
| Power Adapter | |
| Input | AC 100-240V/50-60Hz |
| Output | DC 12V/2A |
| UL Listed | E163743 /Level: VI |
| Audio | 7.1 channel surround sound PCM 2.0 channel stereo digital audio |

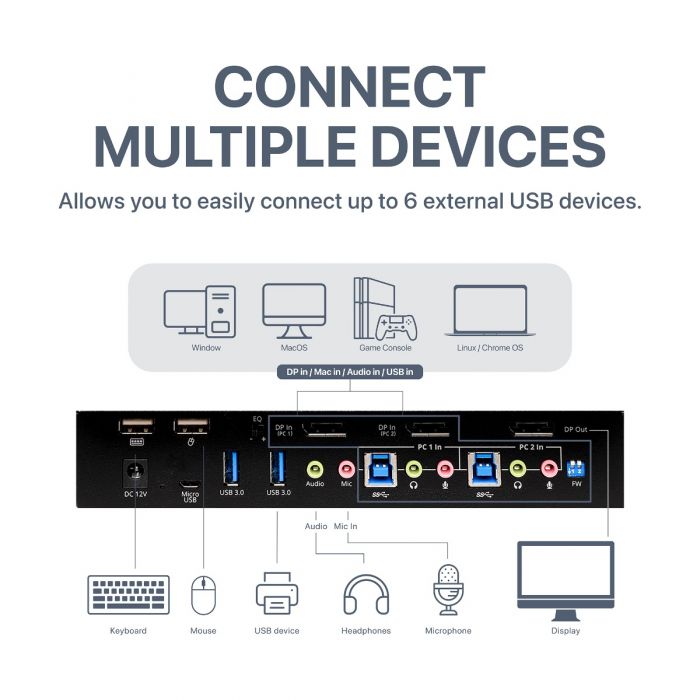

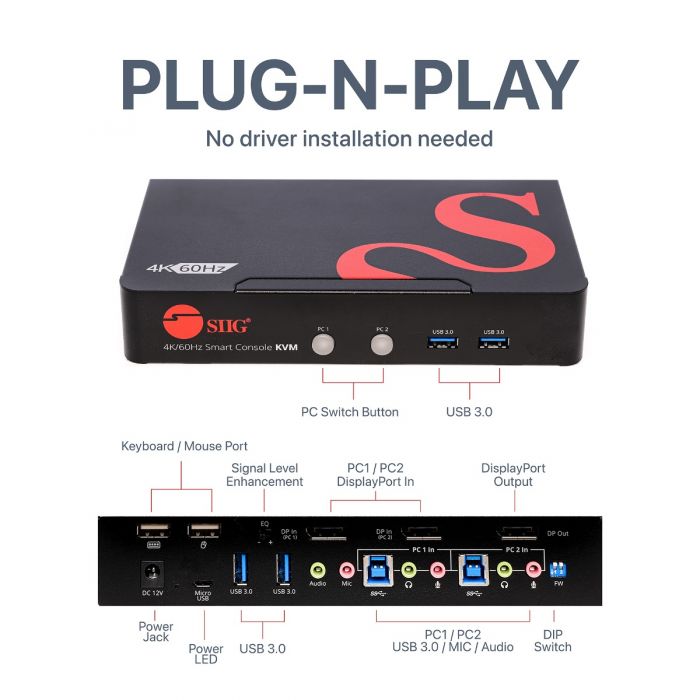

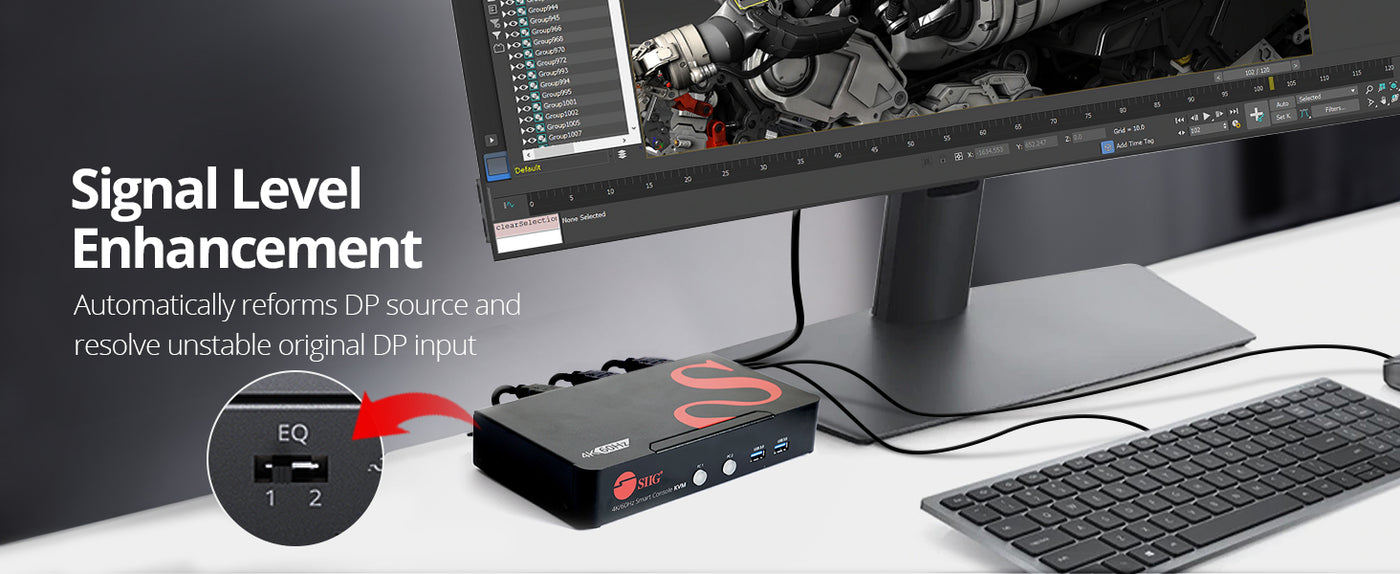

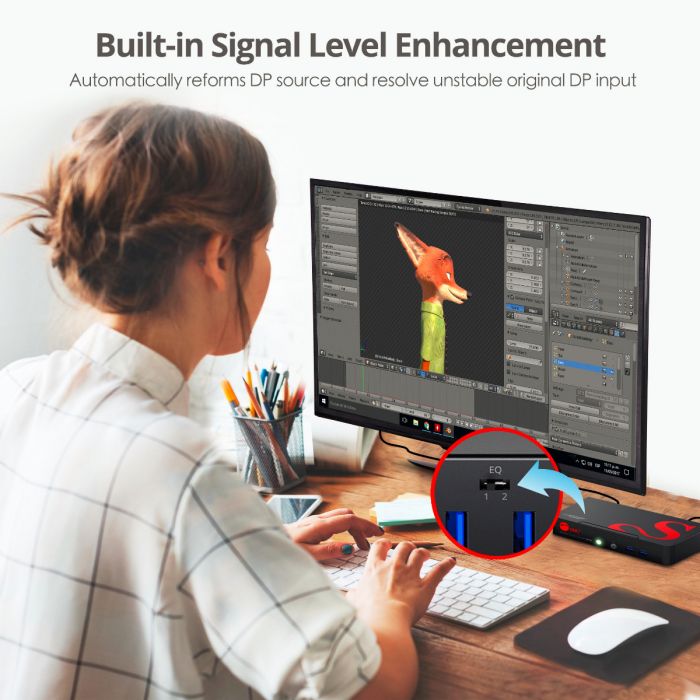

| Interface | 2x 20-pin DisplayPort 1.2, Female (PC input) 2x 9-pin USB 3.0 Type-B, Female 4x 3.5mm phone jack for Microphone and Stereo audio, Female (PC) 1x 20-pin, DisplayPort, Female, Output 2x 3.5mm phone jack for Microphone and Stereo audio, Female (Device) 4x 9-pin USB 3.0 Type-A, Female 2x 4-pin USB 1.1 Type-A, Female (for Keyboard/Mouse) 1x 5-pin Micro USB, FW update, Female 1x 2-pin DIP switch (control FW) 1x Slide switch (signal level) 1x DC power jack (5.5x2.5x10mm) |
| System Requirements | PC or Laptop with available DisplayPort 1.2 port, USB Type-A port (USB 3.0 recommended), audio and Mic ports Compliant with Windows or Mac system |
| Product | |

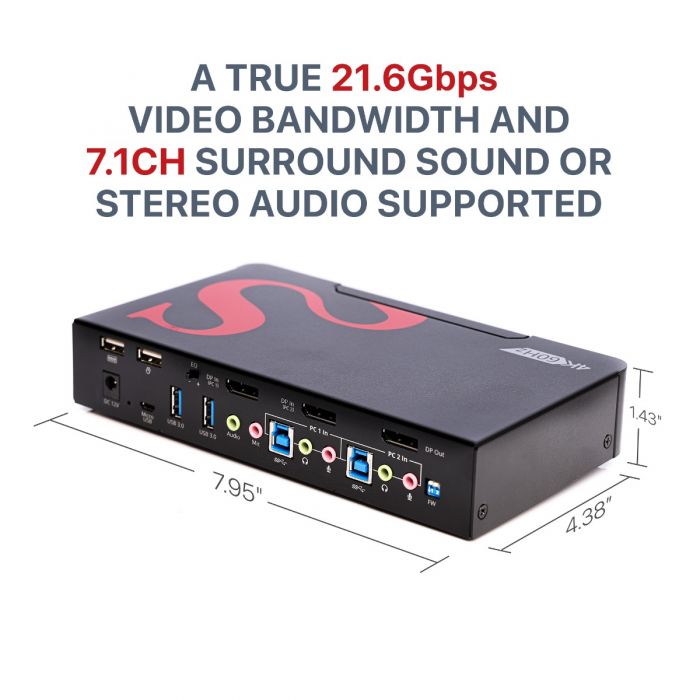

| Dimensions (L) x (H) x (W) | 7.95" x 1.43" x 4.38" 20.19 cm x 3.63 cm x 11.13 cm |
| Weight | 1.54 lbs (0.70 kg) |
| Color | Black |
| Housing Material | Metal |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 13.03" x 6.38" x 8.03" 33.10 cm x 16.21 cm x 20.4 cm |
| Weight | 4.15 lbs (1.88 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 19.88" x 13.58" x 17.17" 50.50 cm x 34.49 cm x 43.60 cm |
| Weight | 27.40 lbs (12.43 kg) |
| Quality | 6 pcs/ctn |
| Environmental Conditions | |
| Operating Temperature | 32 to 104 degrees F |
| Storage Temperature | 4 to 140 degrees F |
| Relative Humidity | <85% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS, TAA compliant, [[Cable UL Listed]] |
| UPC Code | 662774-042947 |
| Warranty | 3 years limited |
| Country of Origin | Taiwan |

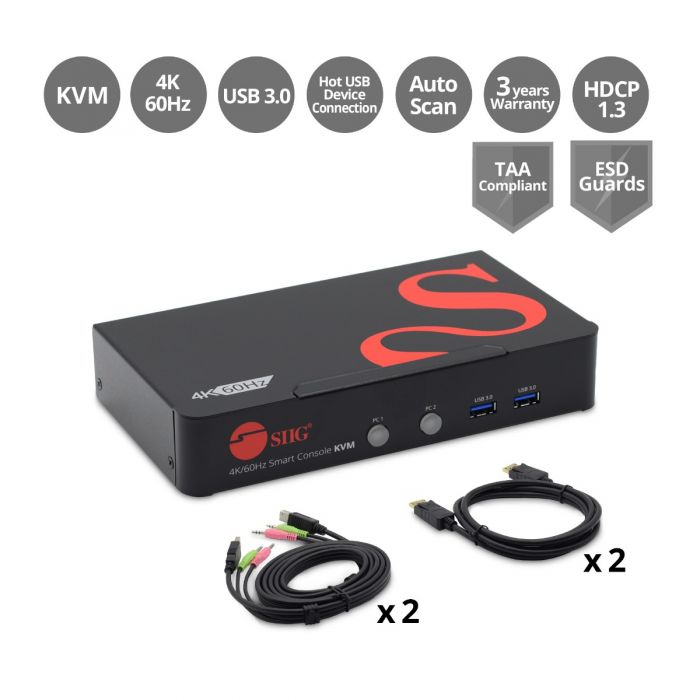

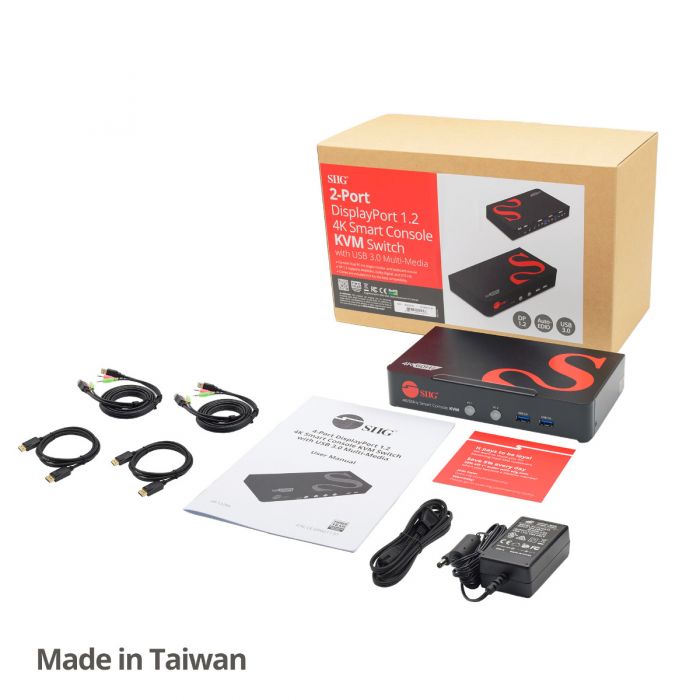

| Package Contents | 1x 2-Port DisplayPort 1.2 4K Smart Console KVM Switch with USB 3.0 Multi-Media 2x DisplayPort 1.2 cable (1.8m) 2x 3-in-1 cable (USB 3.0+Mic+Stereo, 1.8m) 1x Power Adapter (12V/2A) 1x User Reference Guide |
Q1: Are the 4K Smart Console KVM Switches DDM Fast Switching Compliant?
Q1: Are the 4K Smart Console KVM Switches DDM Fast Switching Compliant?
A1: Applies to the Following Products:
- 2-Port HDMI 2.0 4K HDR Smart Console KVM Switch with USB 3.0 and Multimedia Ports (CE-H25511-S1)
- 4-Port HDMI 2.0 4K HDR Smart Console KVM Switch with USB 3.0 and Multimedia Ports (CE-H25611-S1)
- 2-Port DVI Dual-Link Smart Console KVM Switch with USB 3.0 and Multimedia Ports (CE-DV0111-S1)
- 4-Port DVI Dual-Link Smart Console KVM Switch with USB 3.0 and Multimedia Ports (CE-DV0211-S1)
- 2-Port DisplayPort 1.2 4K Smart Console KVM Switch with USB 3.0 and Multimedia Ports (CE-DP0F11-S1)
- 4-Port DisplayPort 1.2 4K Smart Console KVM Switch with USB 3.0 and Multimedia Ports (CE-DP0G11-S1)
Answer :
DDM fast switching feature is not supported.
- 2-Port HDMI 2.0 4K HDR Smart Console KVM Switch with USB 3.0 and Multimedia Ports (CE-H25511-S1)
- 4-Port HDMI 2.0 4K HDR Smart Console KVM Switch with USB 3.0 and Multimedia Ports (CE-H25611-S1)
- 2-Port DVI Dual-Link Smart Console KVM Switch with USB 3.0 and Multimedia Ports (CE-DV0111-S1)
- 4-Port DVI Dual-Link Smart Console KVM Switch with USB 3.0 and Multimedia Ports (CE-DV0211-S1)
- 2-Port DisplayPort 1.2 4K Smart Console KVM Switch with USB 3.0 and Multimedia Ports (CE-DP0F11-S1)
- 4-Port DisplayPort 1.2 4K Smart Console KVM Switch with USB 3.0 and Multimedia Ports (CE-DP0G11-S1)
Answer :
DDM fast switching feature is not supported.
Q2: Why I can't use 21:9 monitor to with the KVM?
Q2: Why I can't use 21:9 monitor to with the KVM?
A2: For compatibility issue with 21:9 monitor, please go to the product download page to download and update the firmware for 21: 9 monitor
