Extender |
SKU:
CE-H25G11-S1

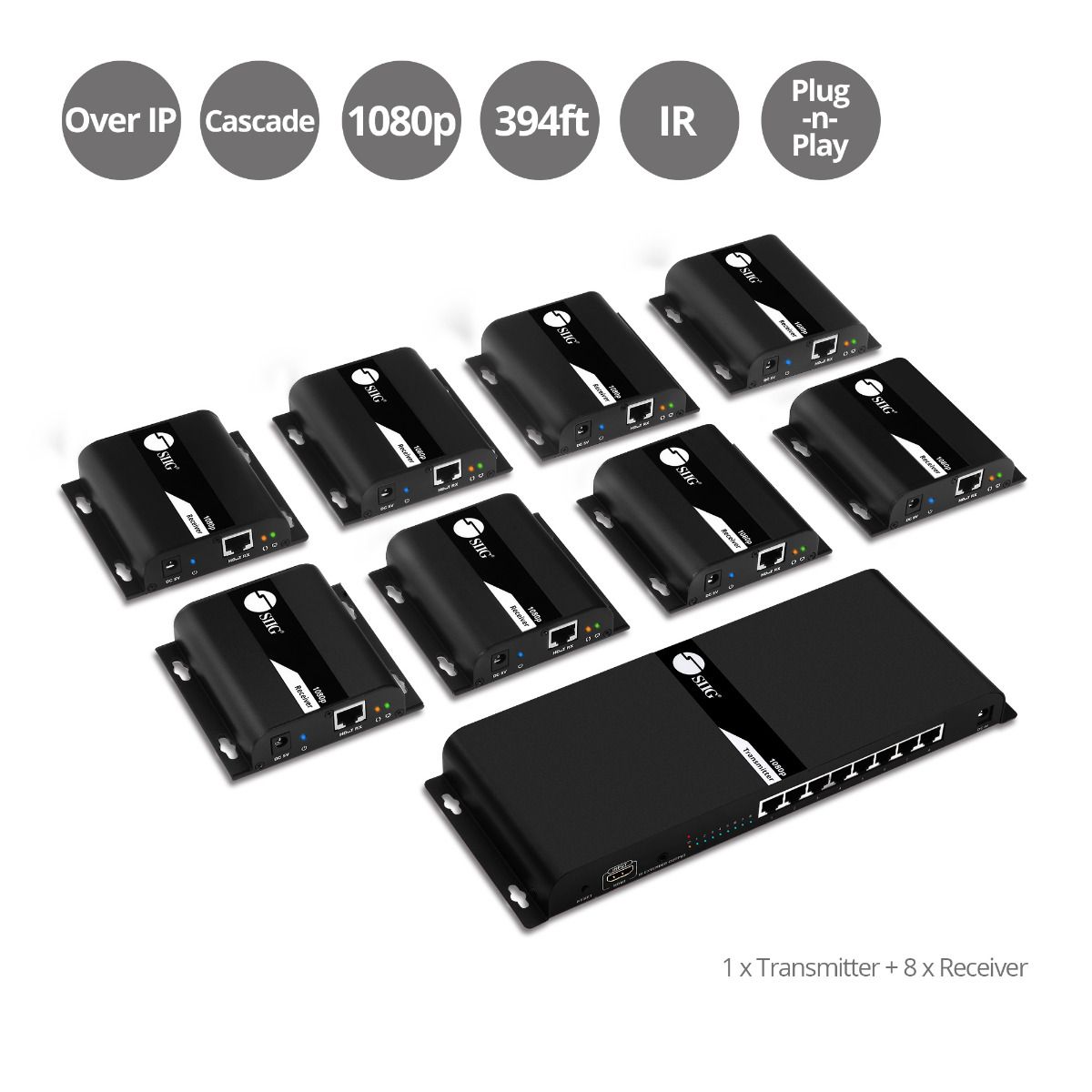

1x8 HDMI Splitter HDbitT over IP Extender - 120m
HDMI over HDBitT
1 to 8
1080p 60Hz
Up to 394ft (120m)
One to Many
Regular price
$1,099.99
Unit price
/
Unavailable
Shipping calculated at checkout.
1x8 HDMI Splitter HDbitT over IP Extender - 120m is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Long-Range HDMI Extension
Long-Range HDMI Extension
Cascade & Network Distribution
Cascade & Network Distribution
Full HD 1080p Clarity
Full HD 1080p Clarity
IR Control
IR Control

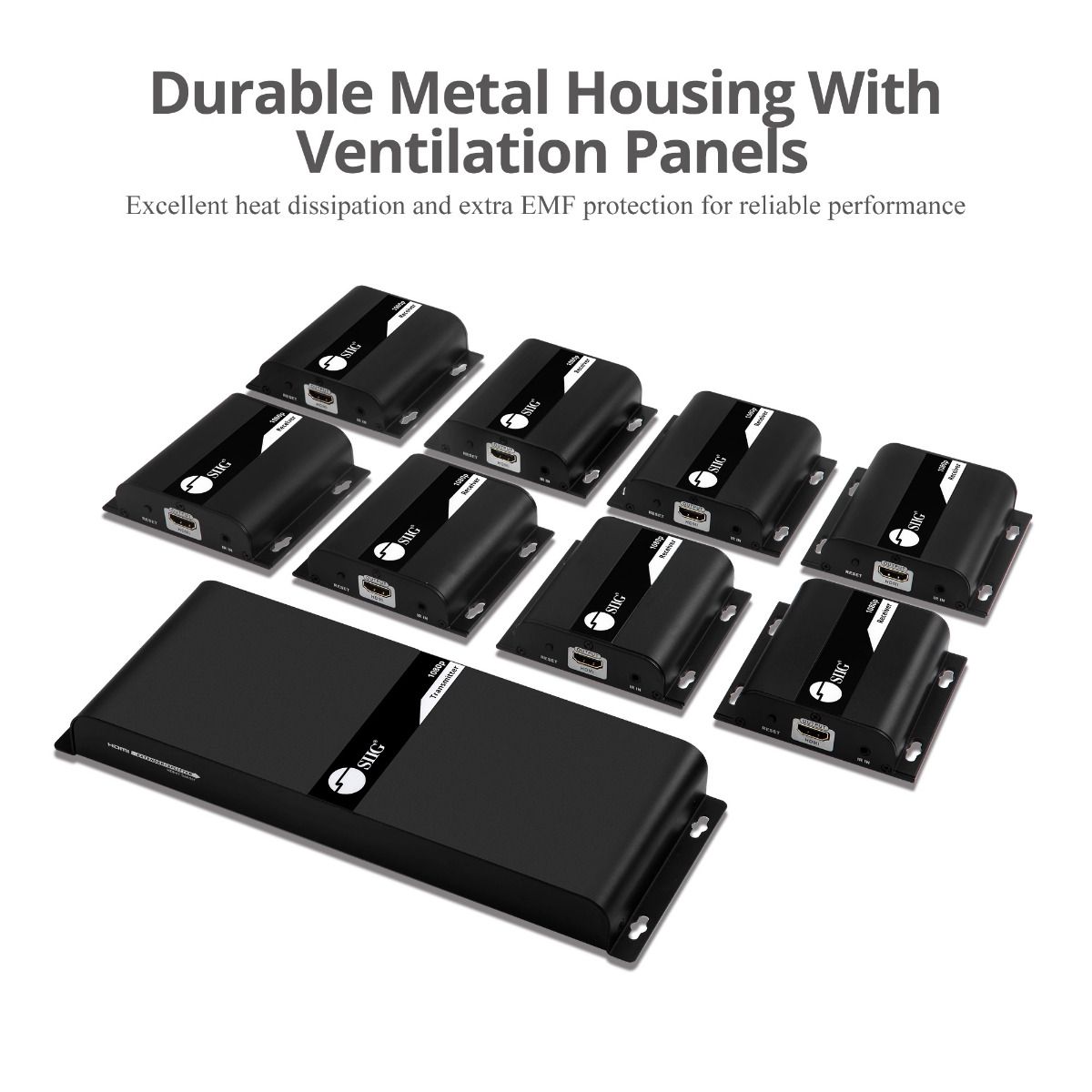

Metal Housing Design
Metal Housing Design
1x8 HDMI Splitter HDbitT over IP Extender - 120m
Estimated shipping by May 25, 2026
Regular price
$1,099.99
Unit price
/
Unavailable
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
No content found
| Transport Protocol | HDbitT |
| Transmission Distance | Up to 120m (394ft) via single Cat6 cable at 1080p 60Hz |
| Audio | 7.1 channel, PCM, DTS, AC3 audio |
| Full Frequency IR Signal | From 20KHz to 60KHz |
| Video Resolution | 480p / 720p / 1080i / 1080p 60Hz |
| Network Cable | UTP/STP Cat6 / 6a / 7 |

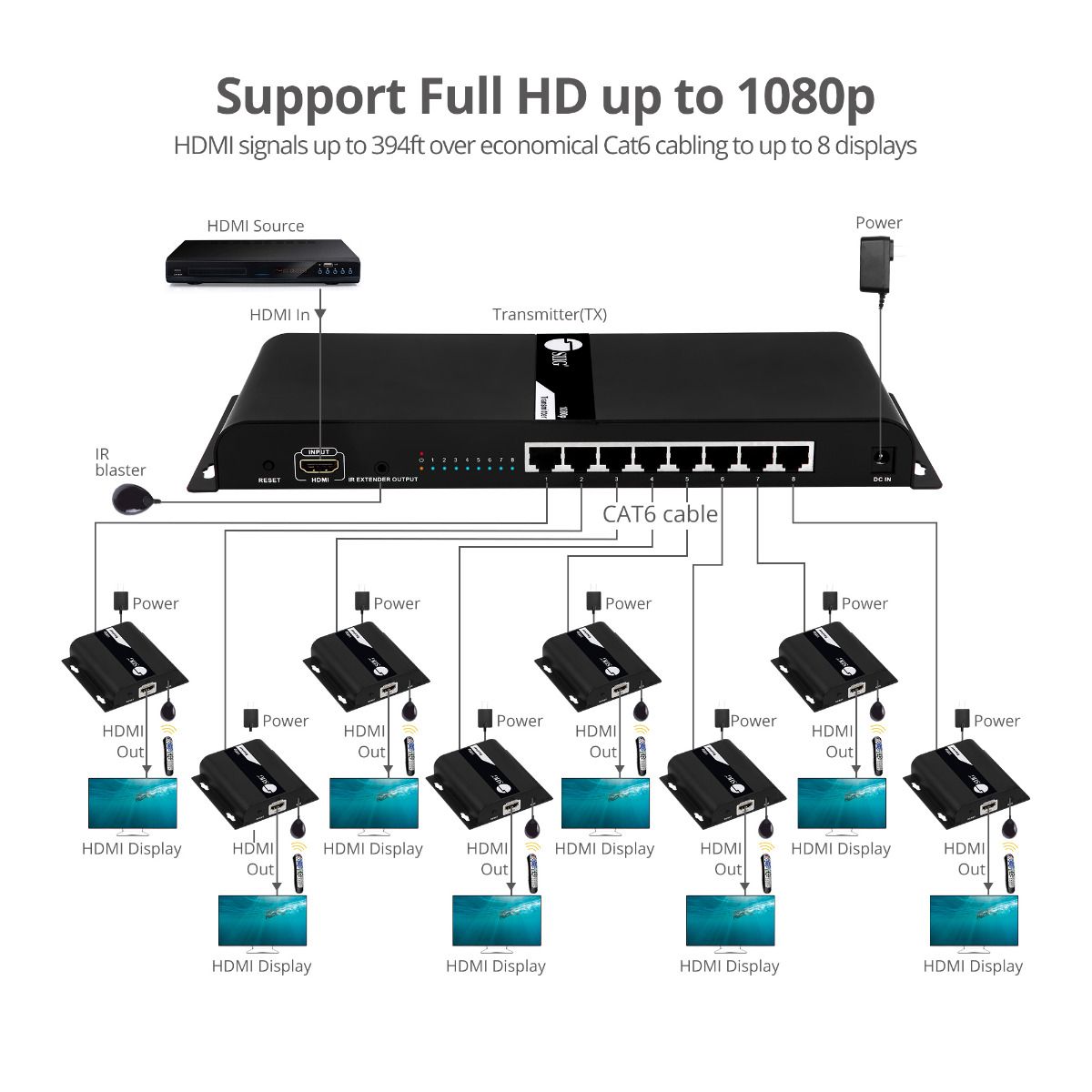

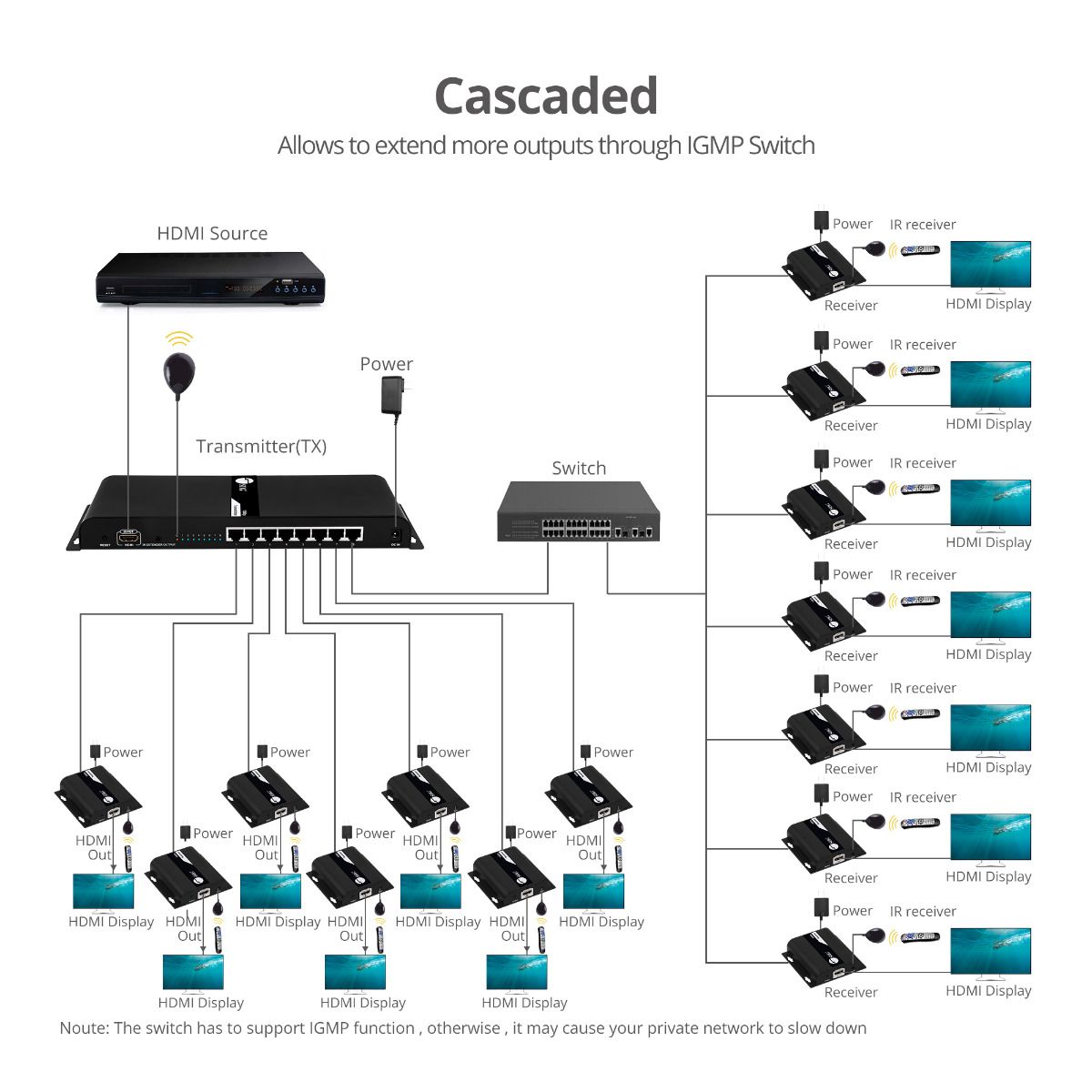

| Connection Methods | - 1x8: Direct connection - Cascade: 1-to-Multiple through IGMP Gigabit network routers or switches |
| Connectors | |

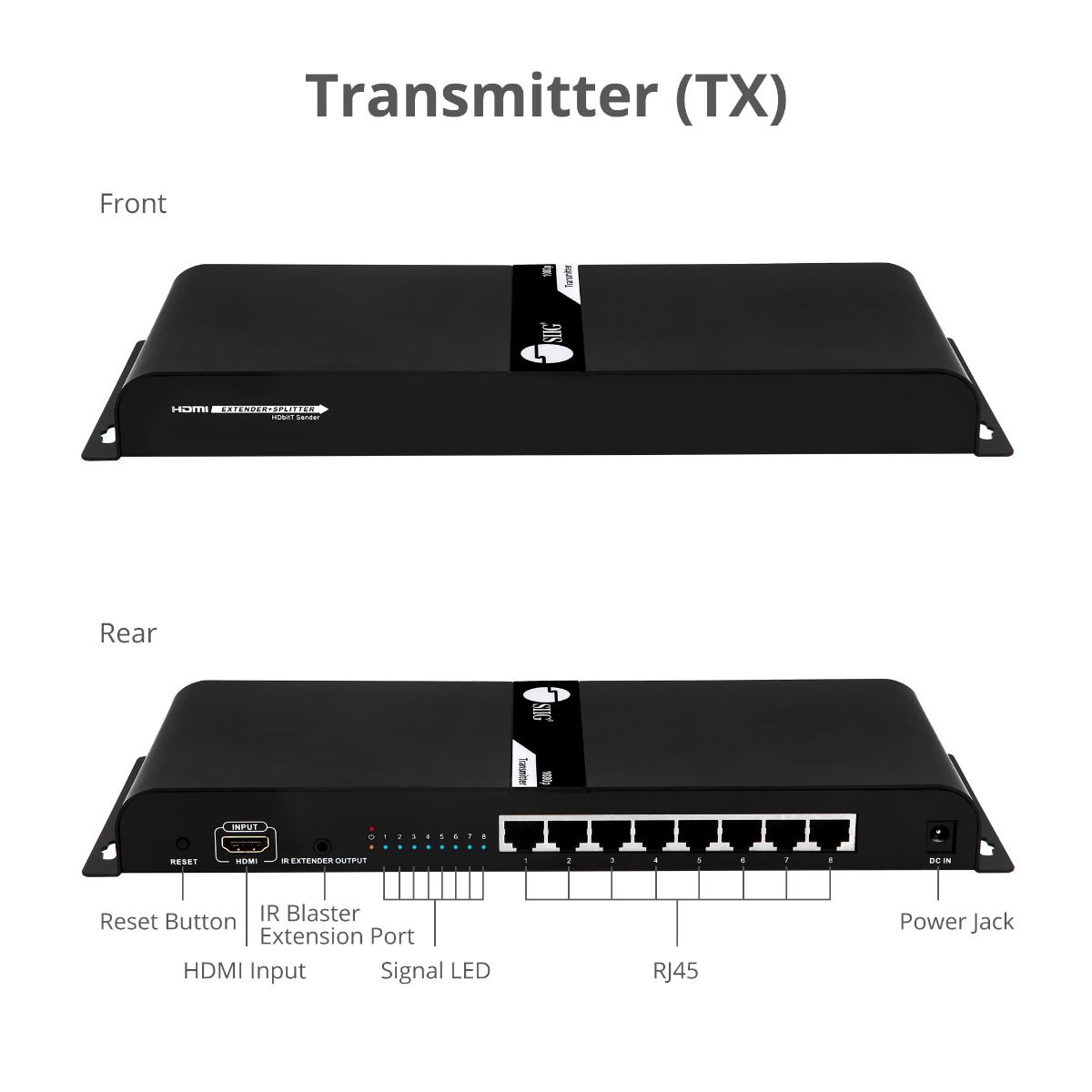

| Transmitting Unit (TX) | 1x 19-pin HDMI, Type A, female, input 1x 3.5mm jack, IR, output 8x 8-pin, RJ45, HDbitT signal, output 1x Power jack, 5V/2A 1x Reset button |

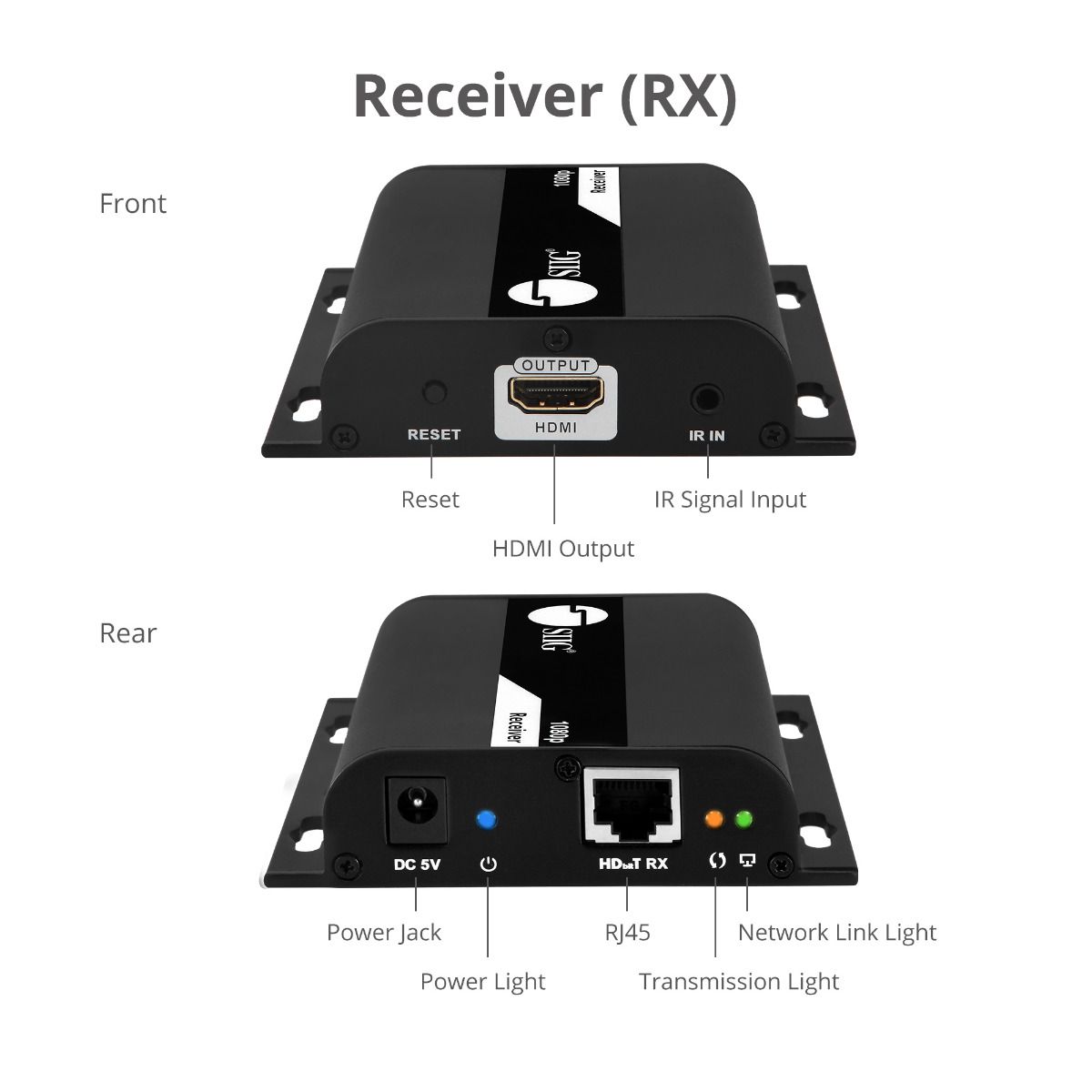

| Receiving Unit (RX) | 1x 19-pin HDMI, Type A, female, output 1x 3.5mm jack, IR, input 1x 8-pin, RJ45, HDbitT signal, input 1x Power jack, 5V/1A 1x Reset button |
| Power Adapter | |
| Input | 100-240V / 50-60Hz |
| Transmitter Unit (TX) | DC 5V/2A |
| Receiver Unit (RX) | DC 5V/1A |
| UL Listed | E335801 / Level: VI |
| System Requirements | - Cat6/6a/7 cable using T568B wiring standard - 100% copper wire recommended for best performance - HDMI displays and cables - Dedicated IGMP Gigabit network routers or switches (for Cascade connection) |

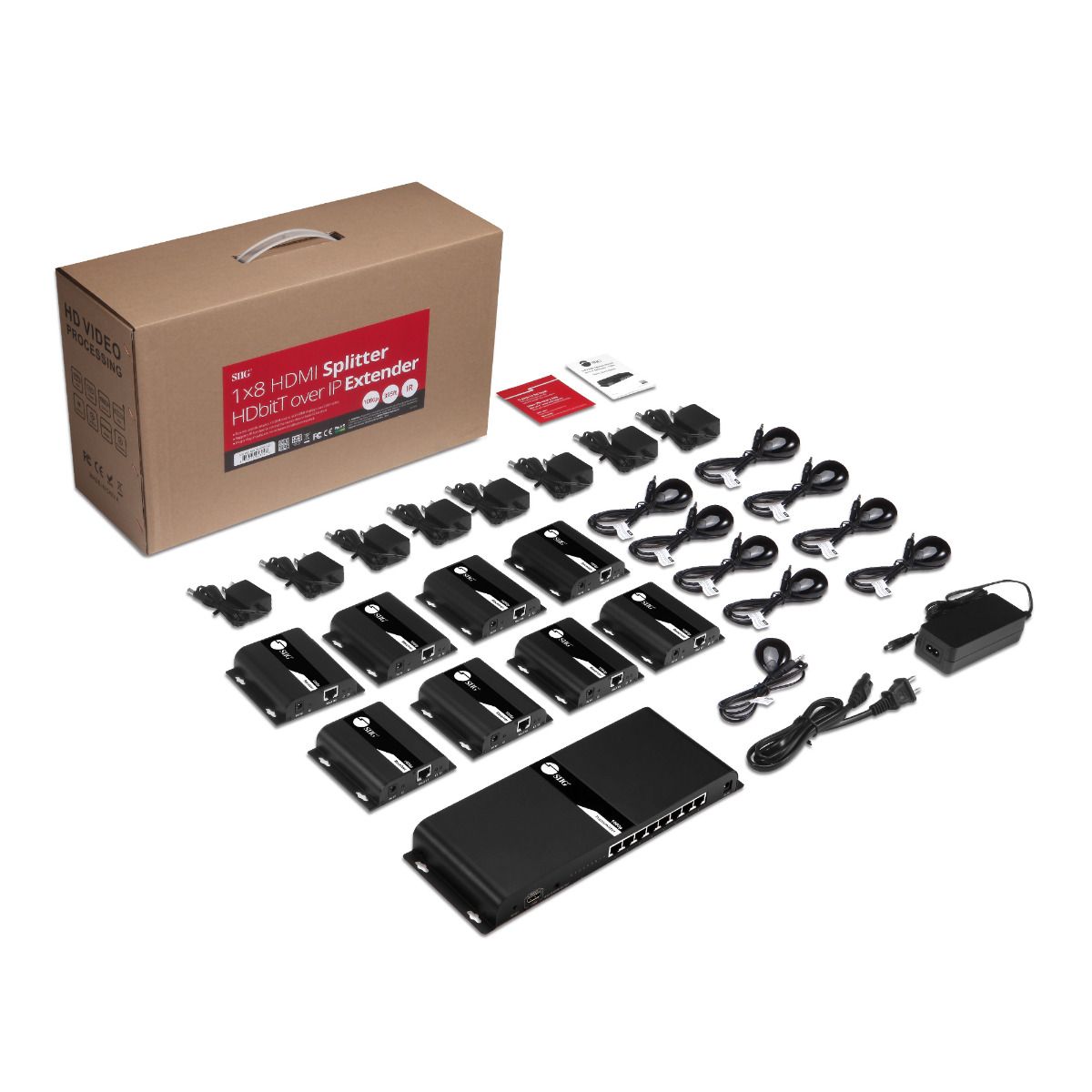

| Package Contents | 1x8 HDMI Splitter HDbitT over IP Extender - 120m (1 TX & 8 RXs) 9x Power adapter 1x IR Blaster extension cable 8x IR Receiver extension cable 1x Screw kit 1x Quick start guide |
| Product | |
| Transmitter Unit (TX) | |
| Dimensions (L) x (H) x (W) | 11.81″ x 1.18″ x 4.37″ 30.00 cm x 3.00 cm x 11.10 cm |
| Weight | 1.83 lbs (0.83kg) |
| Color | Black |
| Housing Material | Metal |
| Receiver Unit (RX) | |
| Dimensions (L) x (H) x (W) | 3.81″ x 0.93″ x 3.70″ 9.68 cm x 2.36 cm x 9.40 cm |
| Weight | 0.33 lb (0.15 kg) |
| Color | Black |
| Housing Material | Aluminum with wall mount design |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 18.11″ x 6.30″ x 10.24″ 46.00 cm x 16.00 cm x 26.01 cm |
| Weight | 9.49 lbs (4.30 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 18.70″ x 13.39″ x 14.57″ 47.50 cm x 34.01 cm x 37.01 cm |
| Weight | 21.40 lbs (9.71 kg) |
| Quantity | 2 pcs/ctn |
| Environmental Conditions | |
| Operating Temperature | 32 to 122 degrees F |
| Storage Temperature | 14 to 158 degrees F |
| Relative Humidity | 0 to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-043142 |
| Warranty | 2 years limited |
| Country of Origin | China |
Q1 : Can this extend to 8 different screens?
Q1 : Can this extend to 8 different screens?
A1: No, it can not extend to 8 different screens. All splitter outputs will always have the same screens.
Q2: Why the Over IP extender video can not cross the Router?
Q2: Why the Over IP extender video can not cross the Router?
A2: The Over IP extender are using Multicast Protocol, please check do the Switch and Router can support Multicast packet pass through.
