Splitter |
SKU:
CE-H22Y11-S1

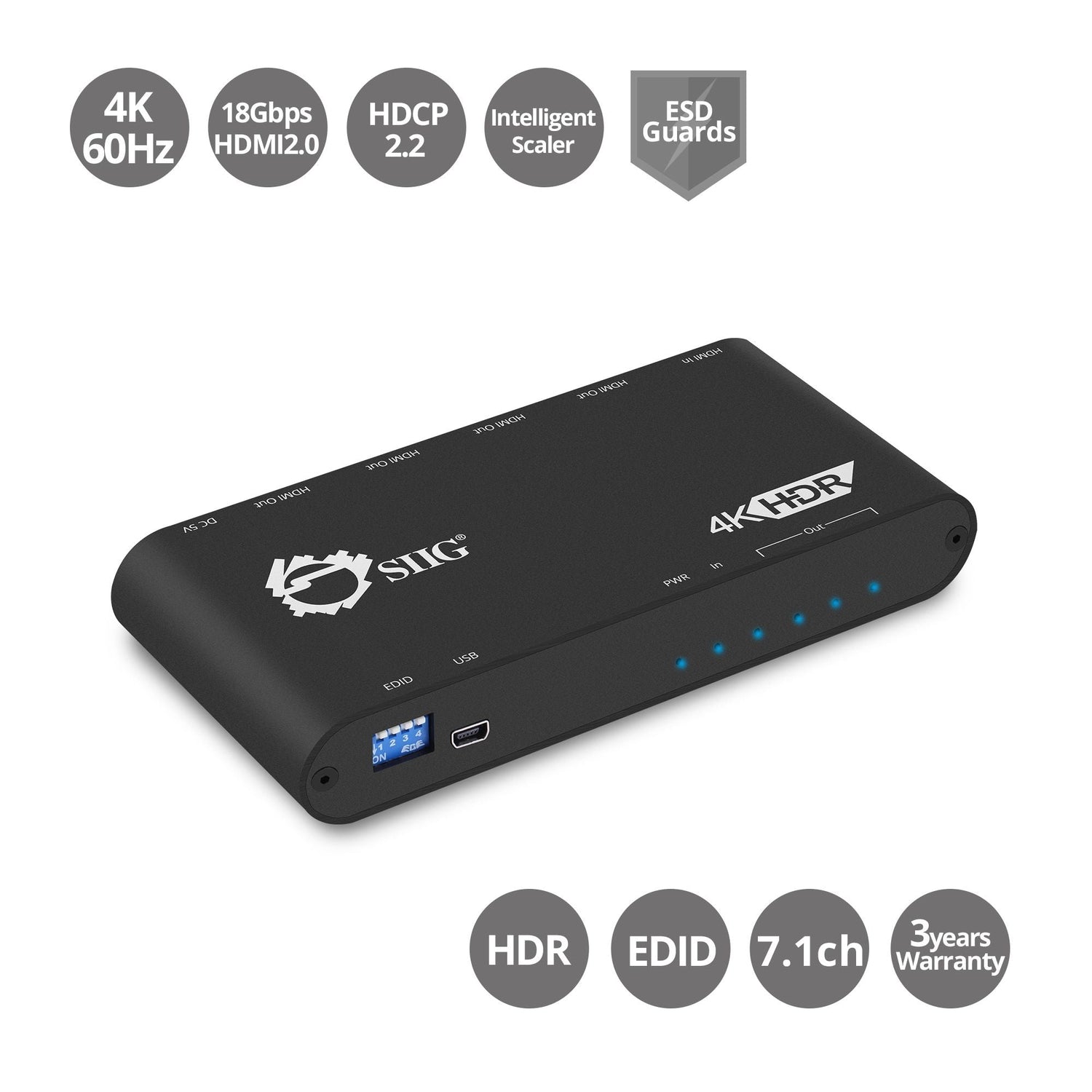

1x4 HDMI Splitter / Distribution Amplifier with Auto Video Scaling - 4K 60Hz HDR
HDMI Splitter
1 In / 4 Out
4K60Hz
EDID Management
TAA Compliant
Regular price
$169.99
Unit price
/
Unavailable
Shipping calculated at checkout.
1x4 HDMI Splitter / Distribution Amplifier with Auto Video Scaling - 4K 60Hz HDR is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features

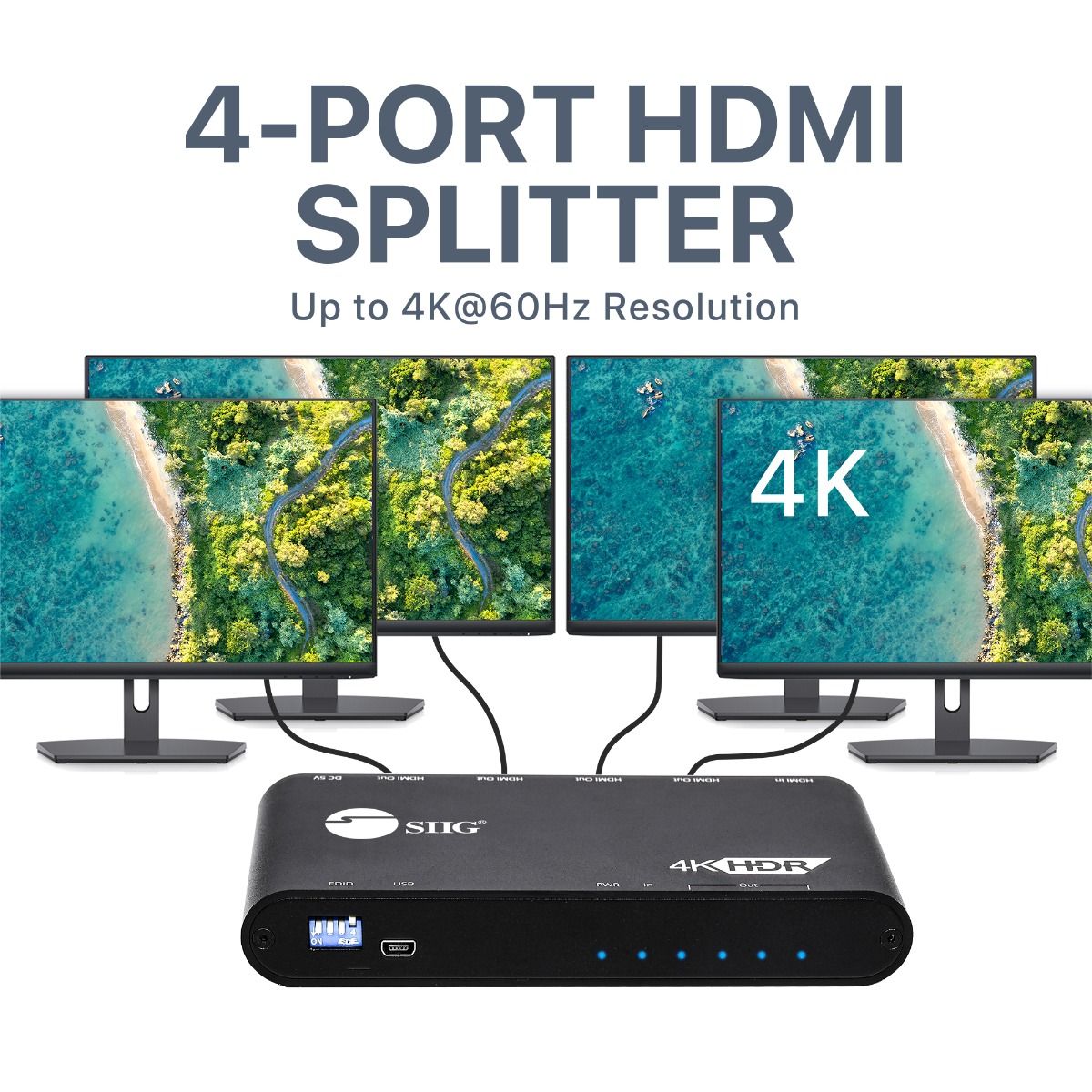

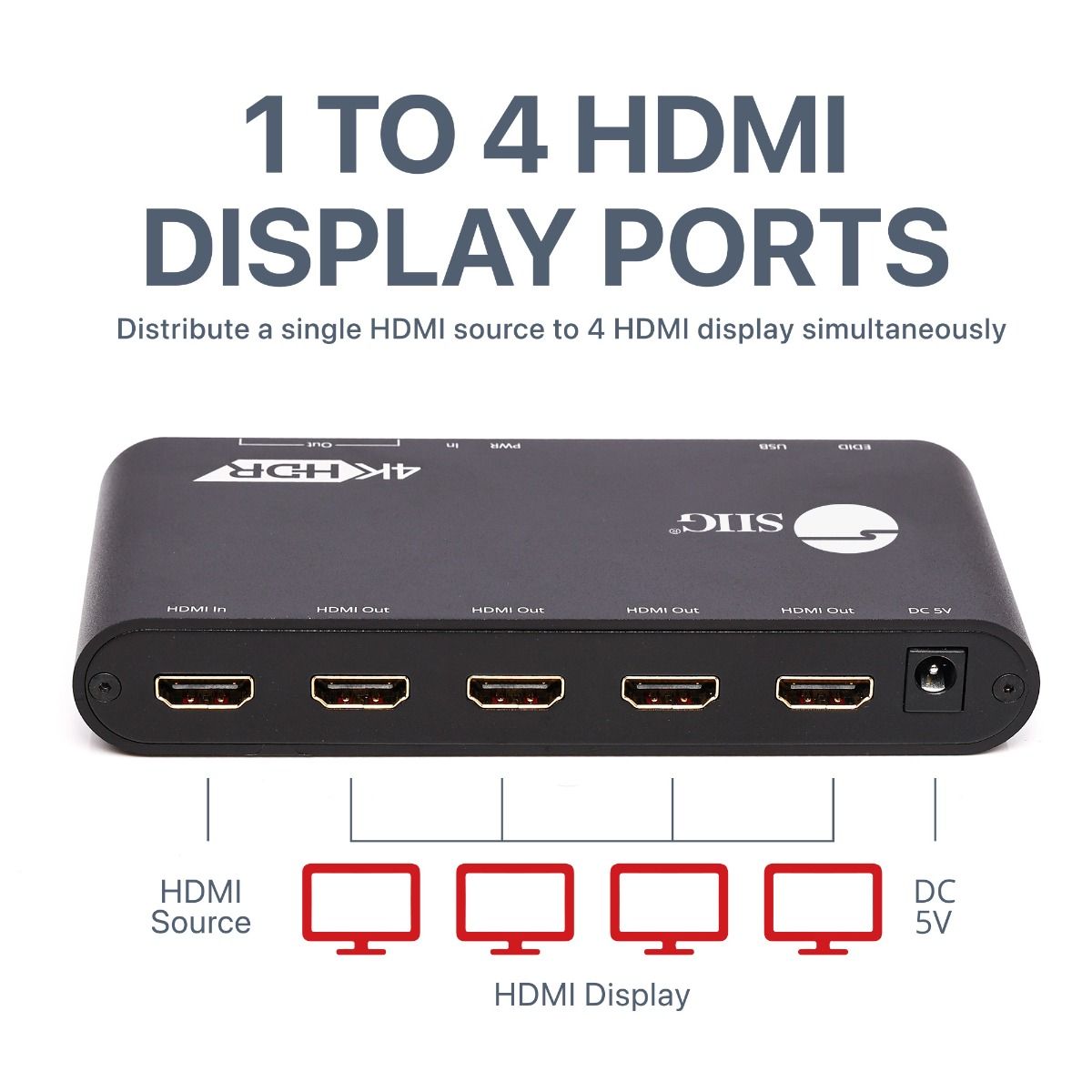

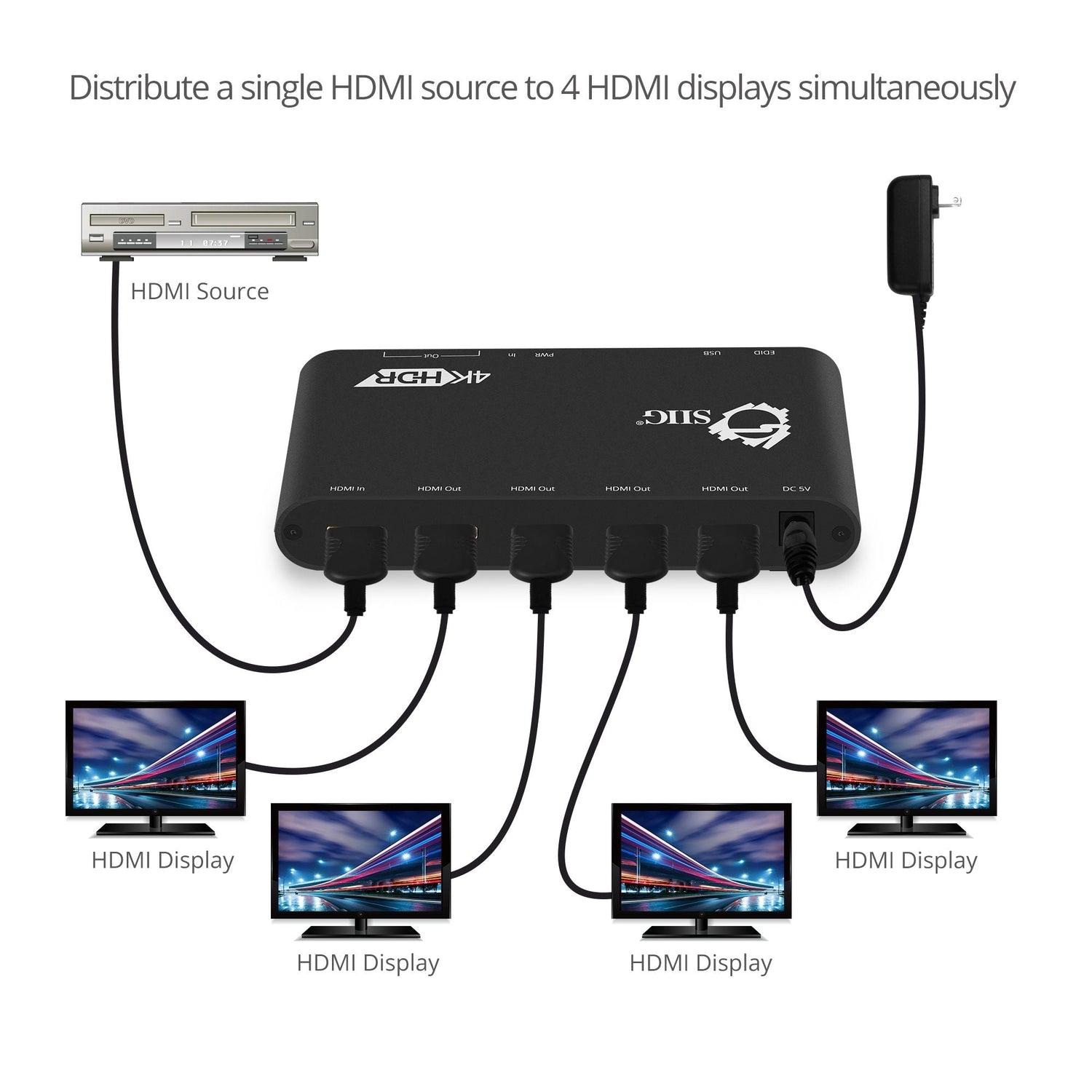

4-port HDMI Splitter for Multi-Display
4-port HDMI Splitter for Multi-Display
True 4K60Hz & HDR Support
True 4K60Hz & HDR Support
High-Speed 18Gbps Performance
High-Speed 18Gbps Performance
Smart EDID & Downscaling Function
Smart EDID & Downscaling Function
Advanced Audio & Reliable Design
Advanced Audio & Reliable Design
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
No content found
| Chipset | ITE-IT6664 |
| Standard | HDCP 2.2 compliant |
| Resolution | Supports 4Kx2K 60Hz (YUV 4:4:4 8bit) HDR 4Kx2K 60Hz (YUV 4:2:0 10bit) |
| Color | xvYCC, x.v.Color and Deep Color |
| Video Bandwidth | 18Gbps (single-link 600MHz) |
| Frequency Range | 25MHz - 600MHz |

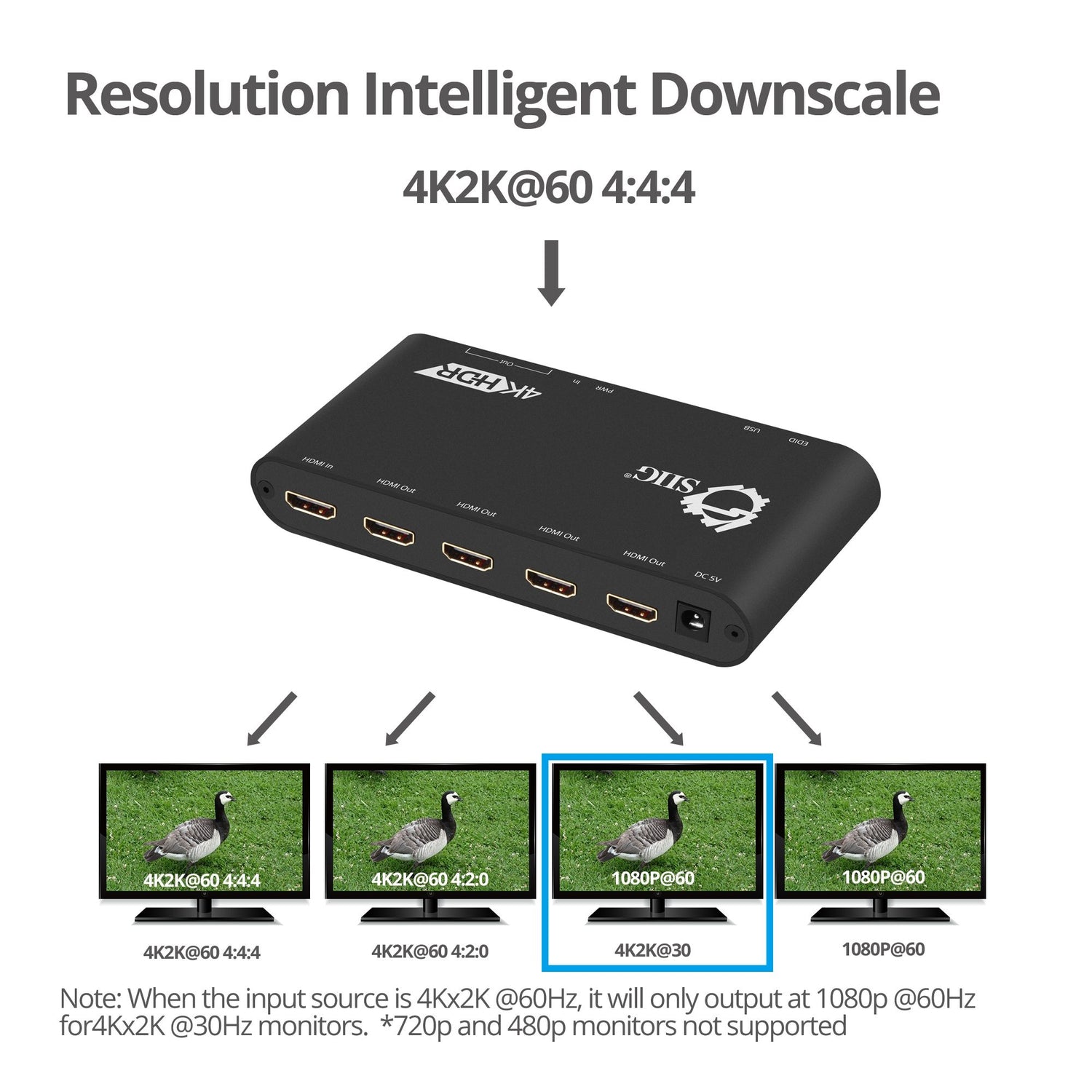

| Down scaling | Supports resolution down scaling from 4K to 1080p *See Notes below for limitations |
| Display Mode | Mirror |

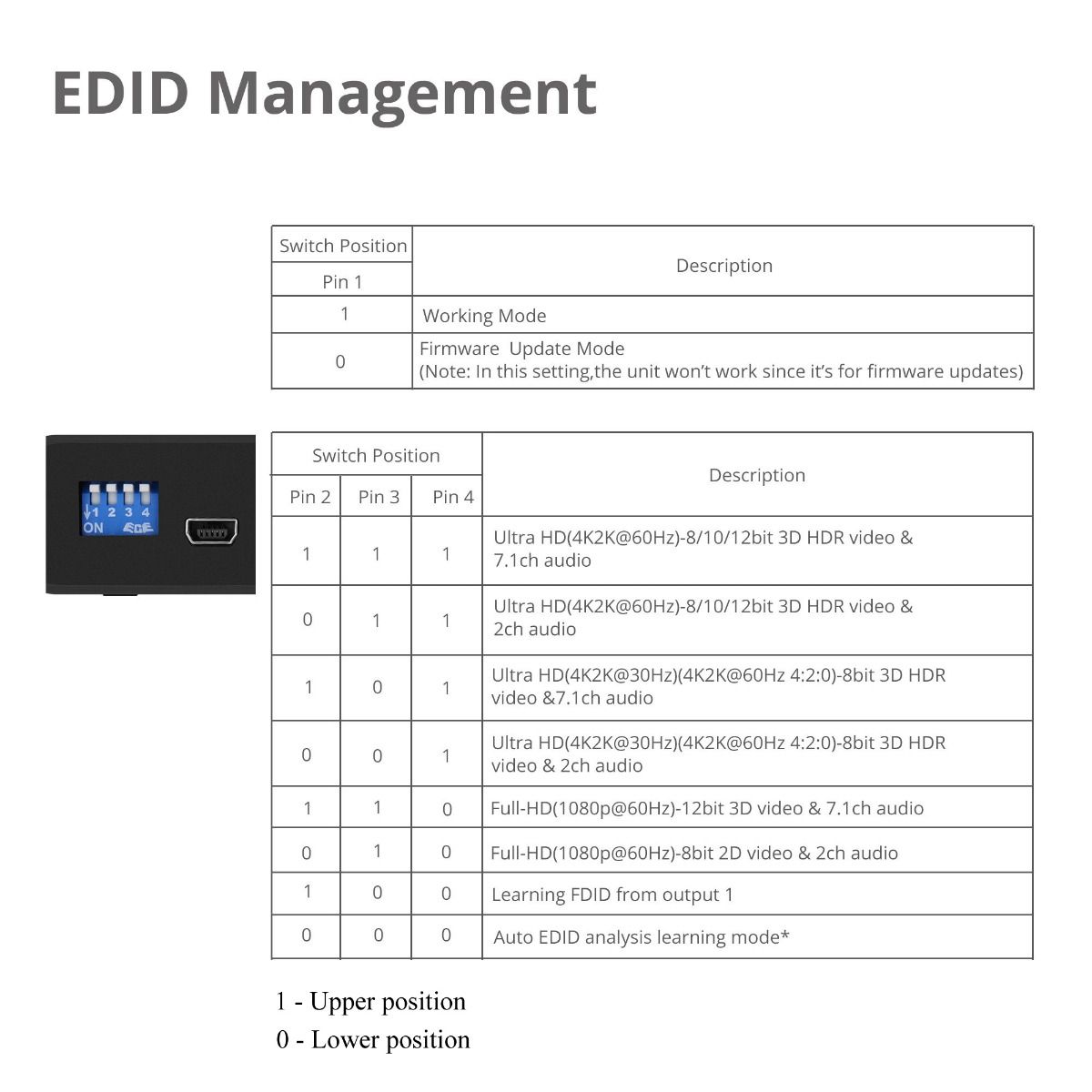

| EDID supports | Embedded EDID and EDID learning via DIP switch |
| Audio Support | DTS-HD Master Audio, Dolby Atmos, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM |
| ESD Protection | ±15kV Air / ±8kV Contact |

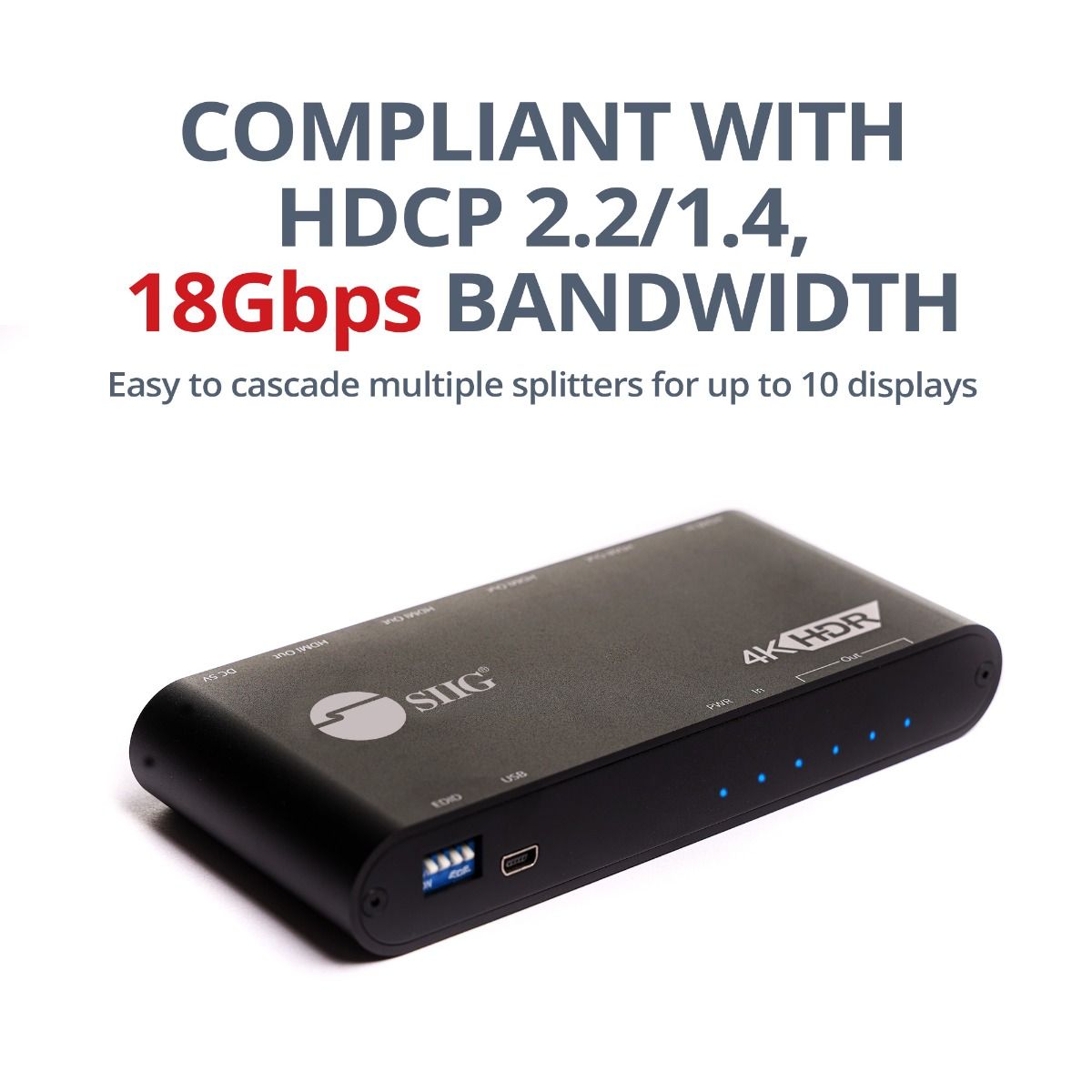

| Cascading Support multiple splitters for adding more displays, supports up to 10 layers | |

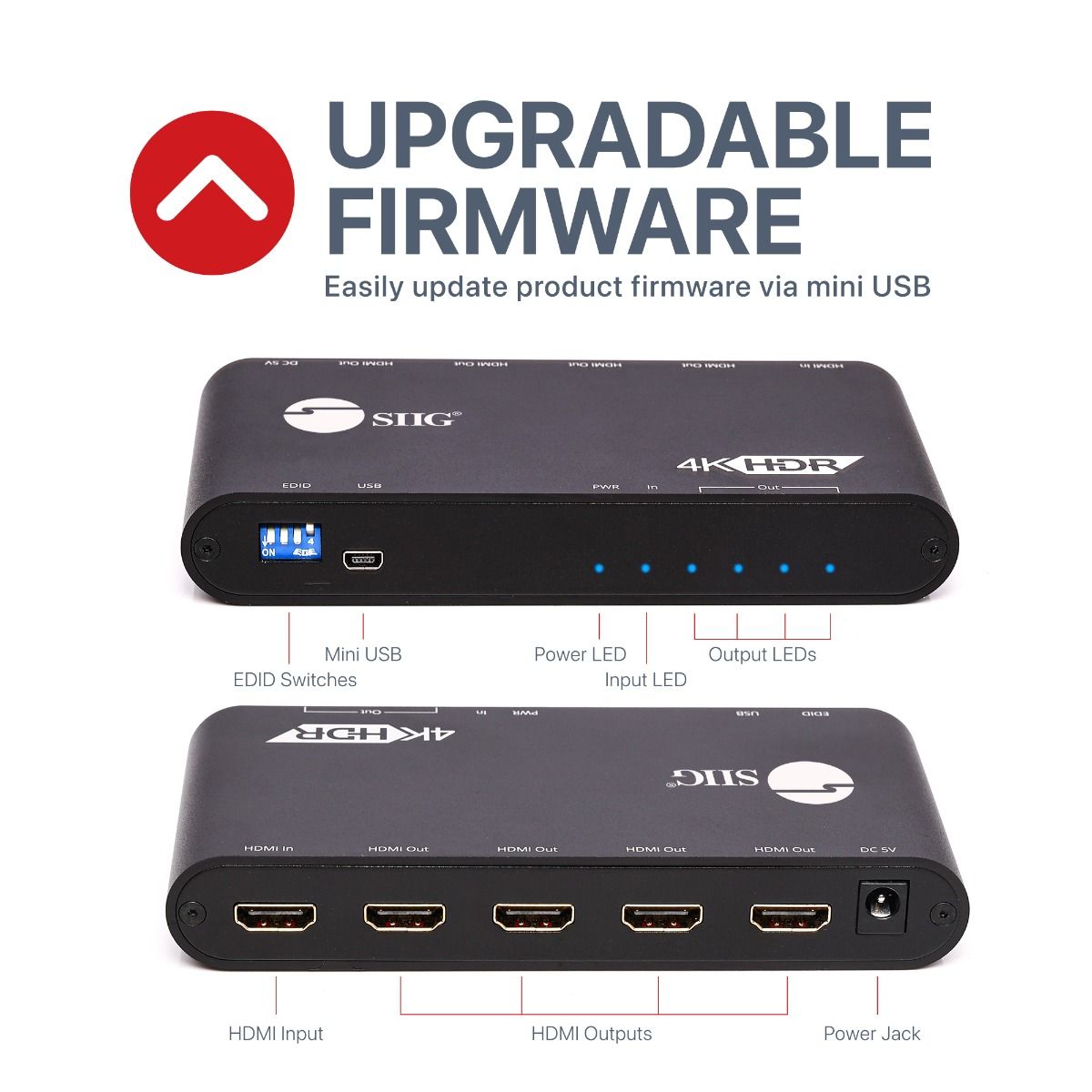

| FW support | Built-in firmware update mechanism (via Mini USB port) for expanding compatibility |

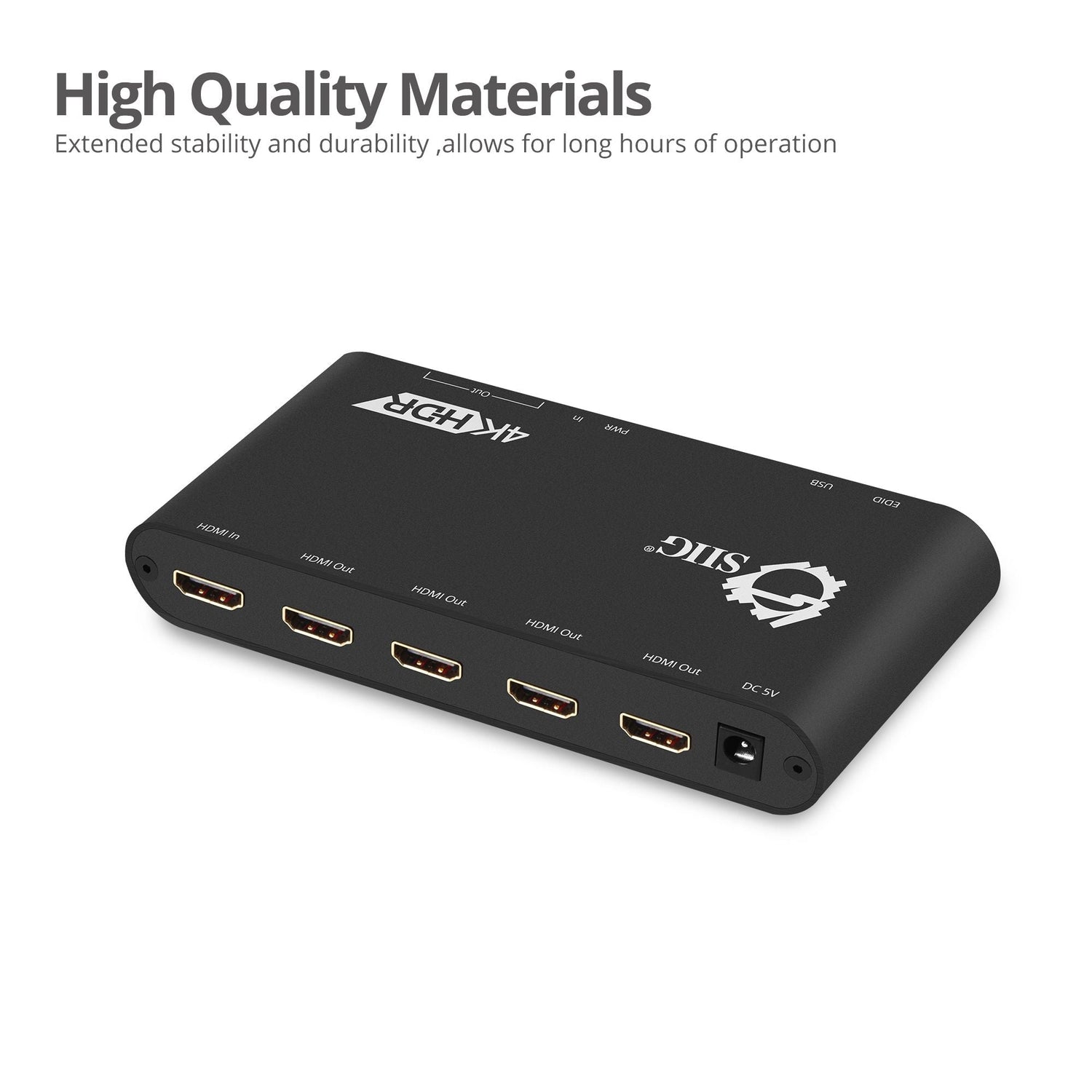

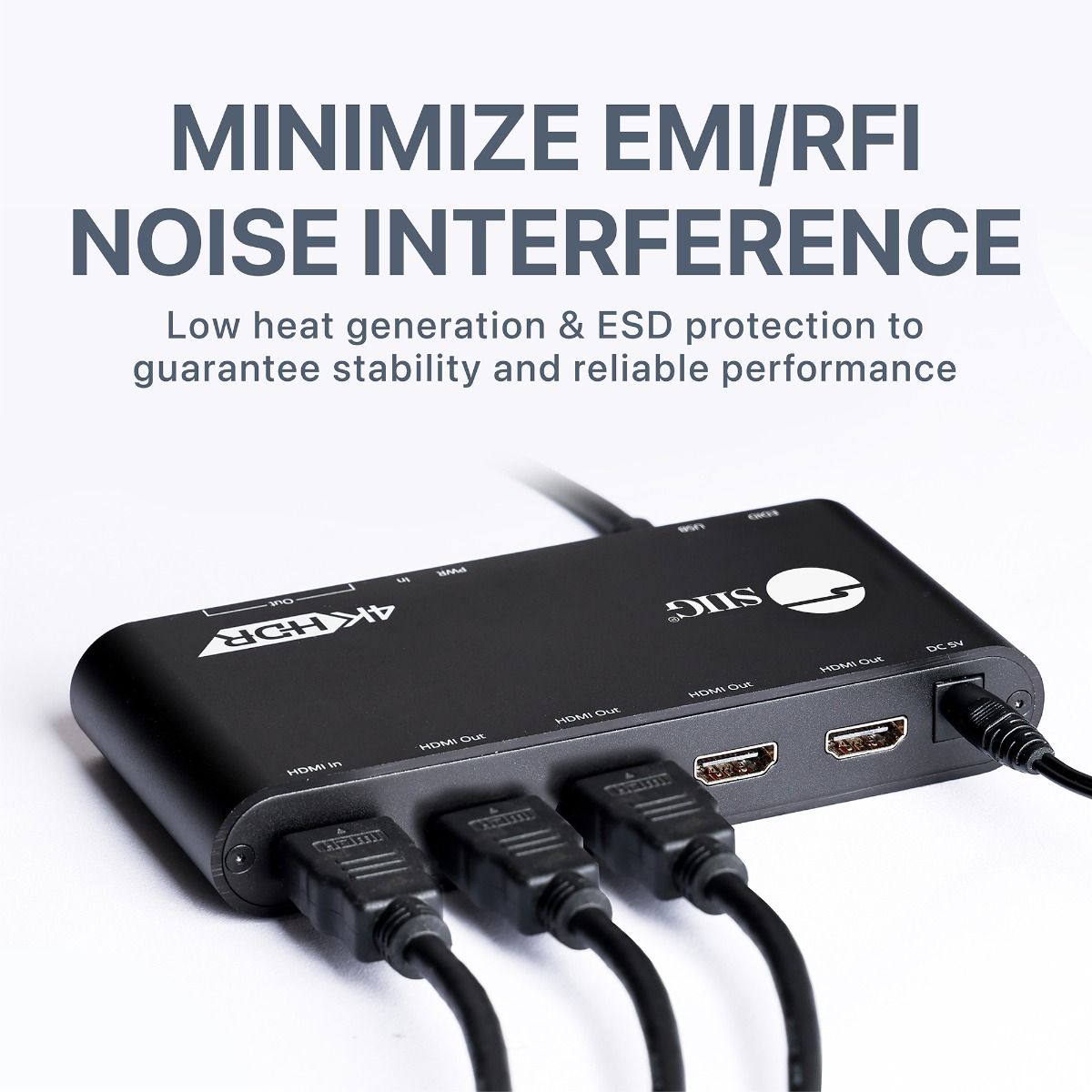

| Durability | Sturdy metal housing provides durability and reduces EMI/RFI noise interference |
| Power consumption | 2.115W |
| Product | |
| Transmission Distance (HDMI cable) | 4K60Hz: Up to 10m (5m/In; 5m/Out) 1080p 60Hz & 4K30Hz: Up to 15m (5m/In; 10m/Out) |
| Connector | 1x 19-Pin, HDMI, Type A, Female, Input 4x 19-Pin, HDMI, Type A, Female, Output 1x 5-Pin, Mini USB, Female, Firmware update 1x 4-Pin, DIP switch, EDID management |
| Power Adapter | |
| Input | 100-240VAC, 50/60 Hz |
| Output | 5VDC, 2A |
| System Requirements | HDMI source device, such as computers, game consoles, Blu-ray/DVD players, and media players HDMI displays, monitors, and HD TVs |
| Product | |

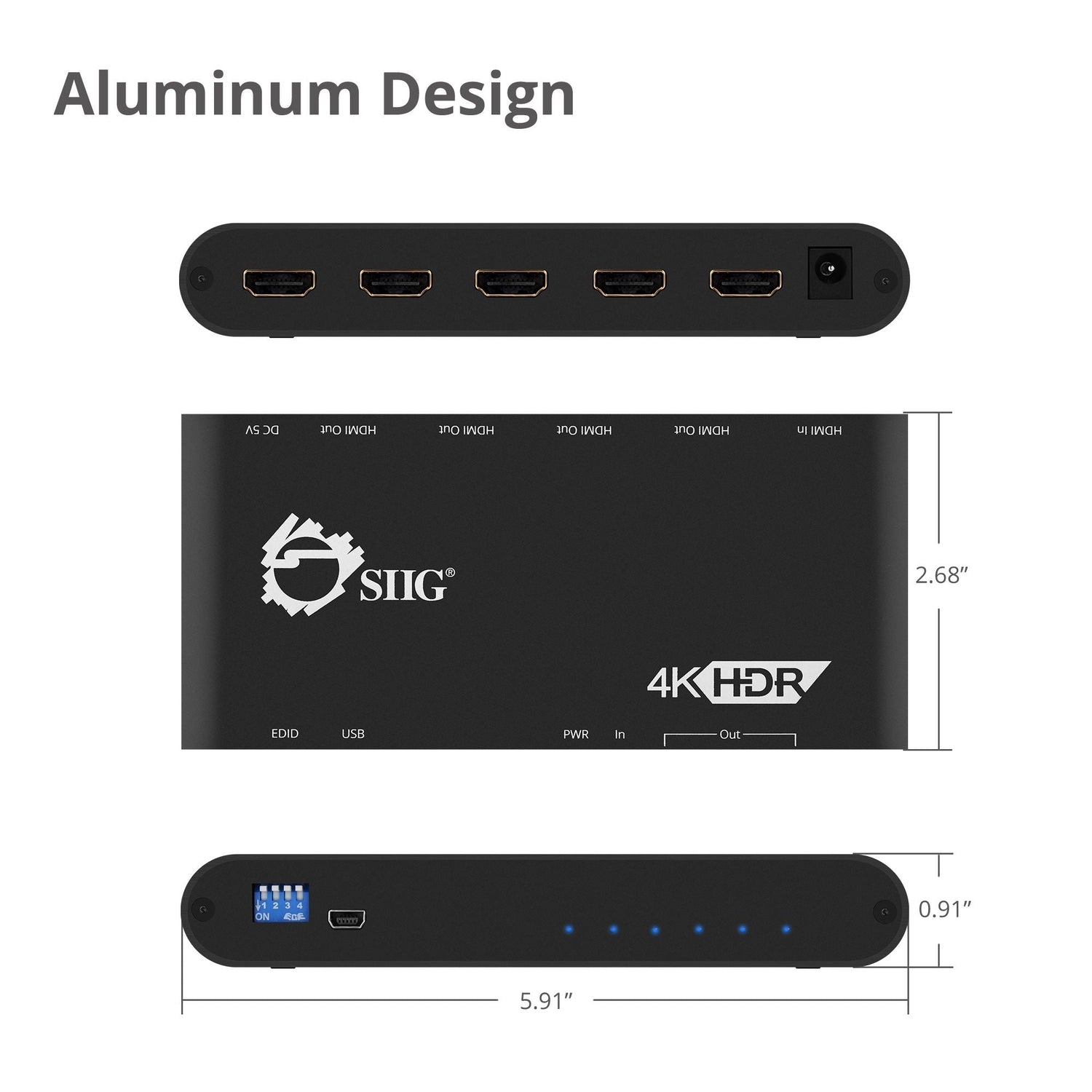

| Dimensions | 5.91" (L) x 0.91" (H) x 2.64" (W) |
| Weight | 0.44 lbs |
| Color | Black |
| Housing Material | Aluminum |
| Unit package | |
| Dimensions | 9.06″(W) x 1.61″(H) x 3.74″(D) |
| Weight | 0.87 lbs |
| Master carton | |
| Dimensions | 19.7″(W) x 9.8″(H) x 19.3″(D) |
| Weight | 46.34 lbs |
| Quantity | 50 pcs/ctn |
| Package contents | 1x2 HDMI HDR Distribution Amplifier with EDID Management - 4Kx2K 60Hz Power Adapter User Reference Guide |
| Environmental Conditions | |
| Operating Temperature | 32 to 104 degrees F |
| Storage Temperature | -4 to 140 degrees F |
| Relative Humidity | 20 to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS, TAA compliant |
| UPC code | 662774041100 |
| Warranty | 3 years limited |
| Country of Origin | Engineered in USA , Manufactured in Taiwan |
Can this extend to 4 different screens?
Can this extend to 4 different screens?
No, it can not extend to 4 different screens. All splitter outputs will always have the same screens
I have a setup issue when I connect the different TVs that are playing the same content but no sound. What should I do?
I have a setup issue when I connect the different TVs that are playing the same content but no sound. What should I do?
Please change the audio output format to PCM or change the EDID of the Splitter to 2 channel, because the TVs or displays cannot decode the audio. * Don't use bitstream or digital format
