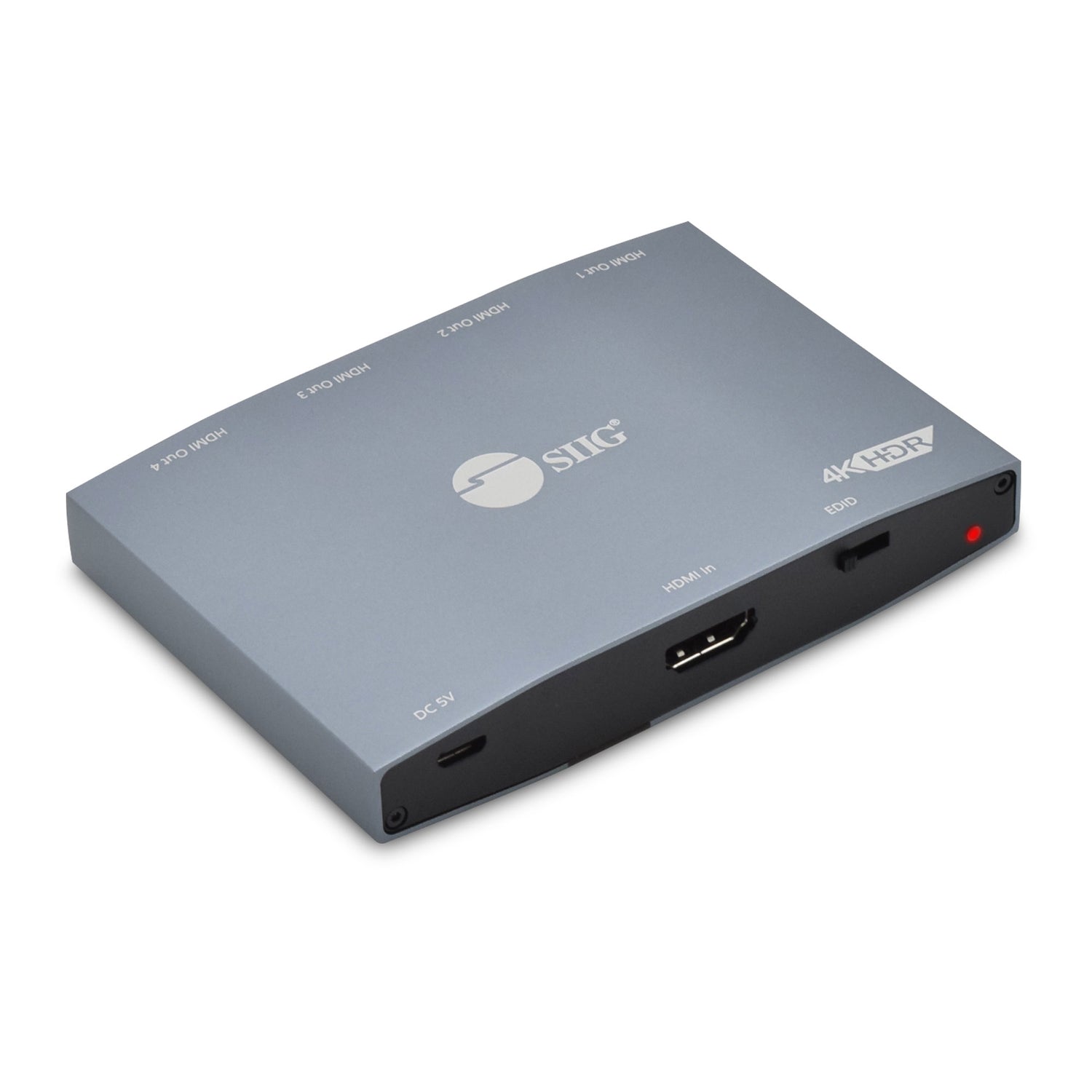

1x4 HDMI 4K HDR Splitter with EDID
1x4 HDMI 4K HDR Splitter with EDID is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features

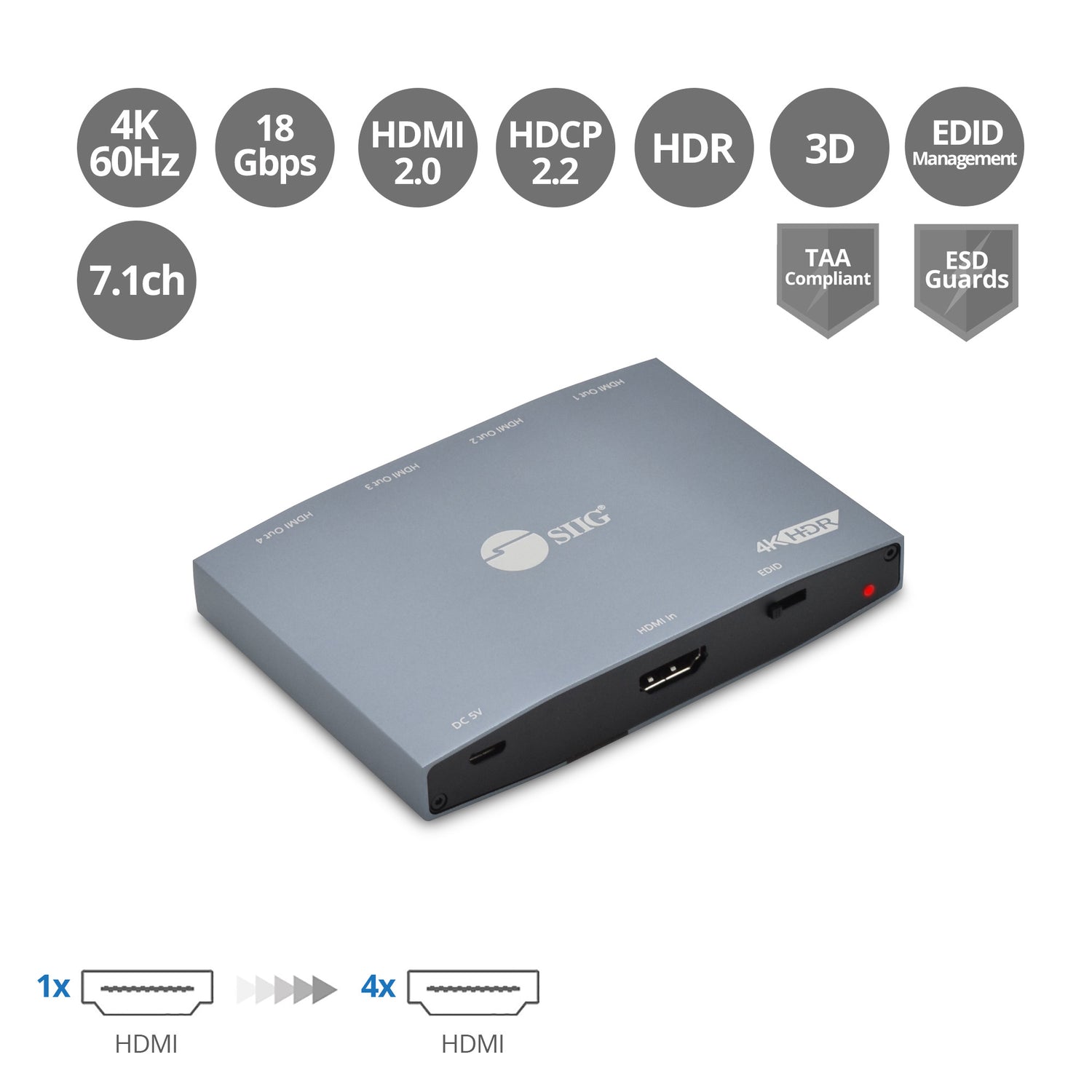

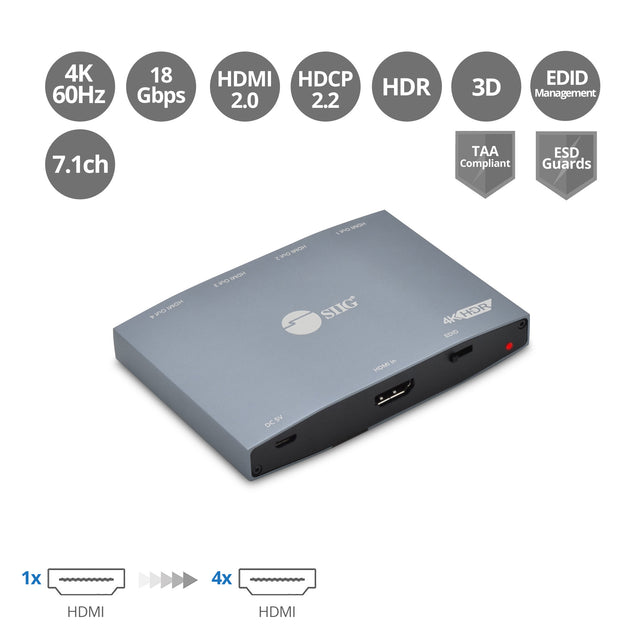

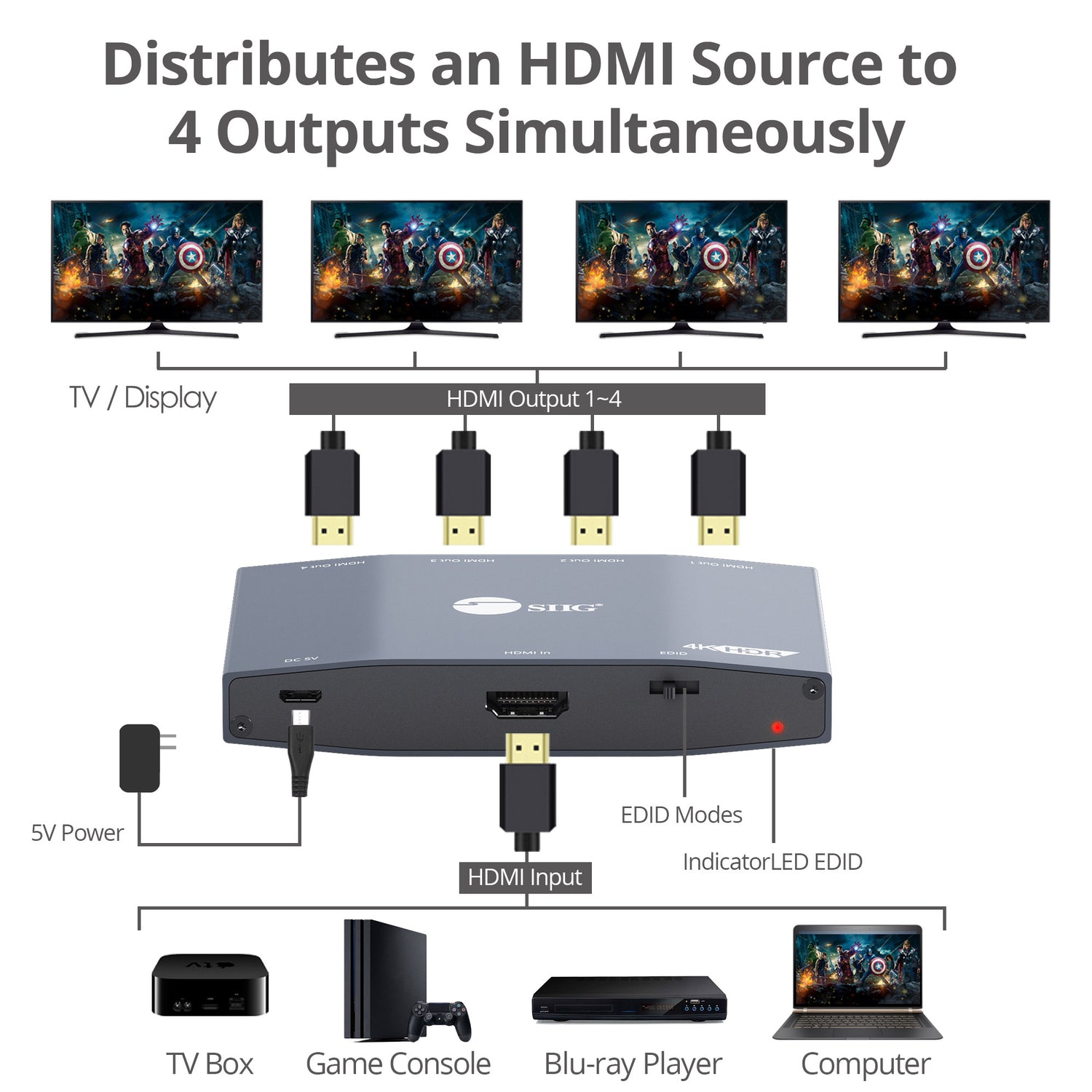

1 in 4 Out HDMI Splitter
1 in 4 Out HDMI Splitter

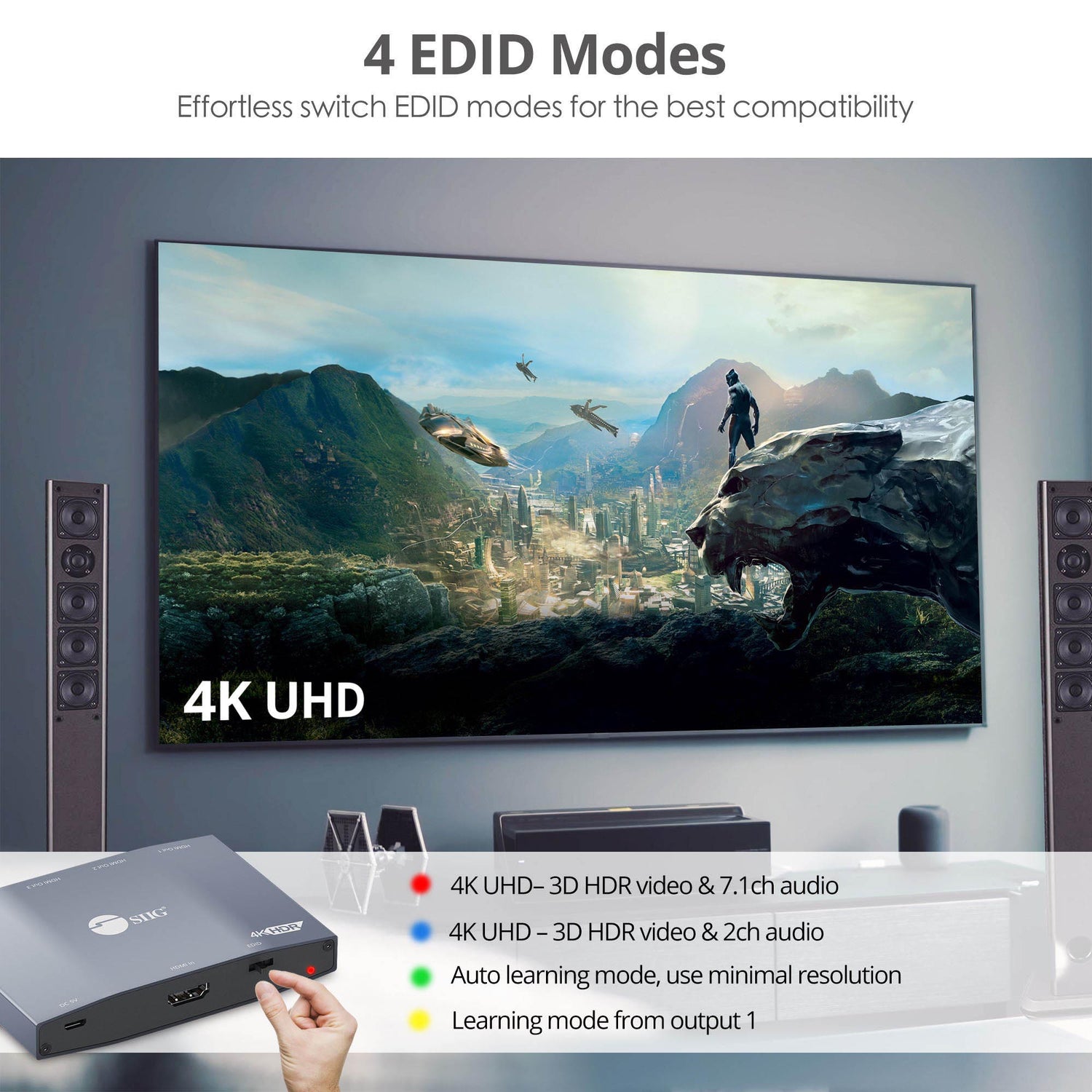

4 EDID Modes
4 EDID Modes

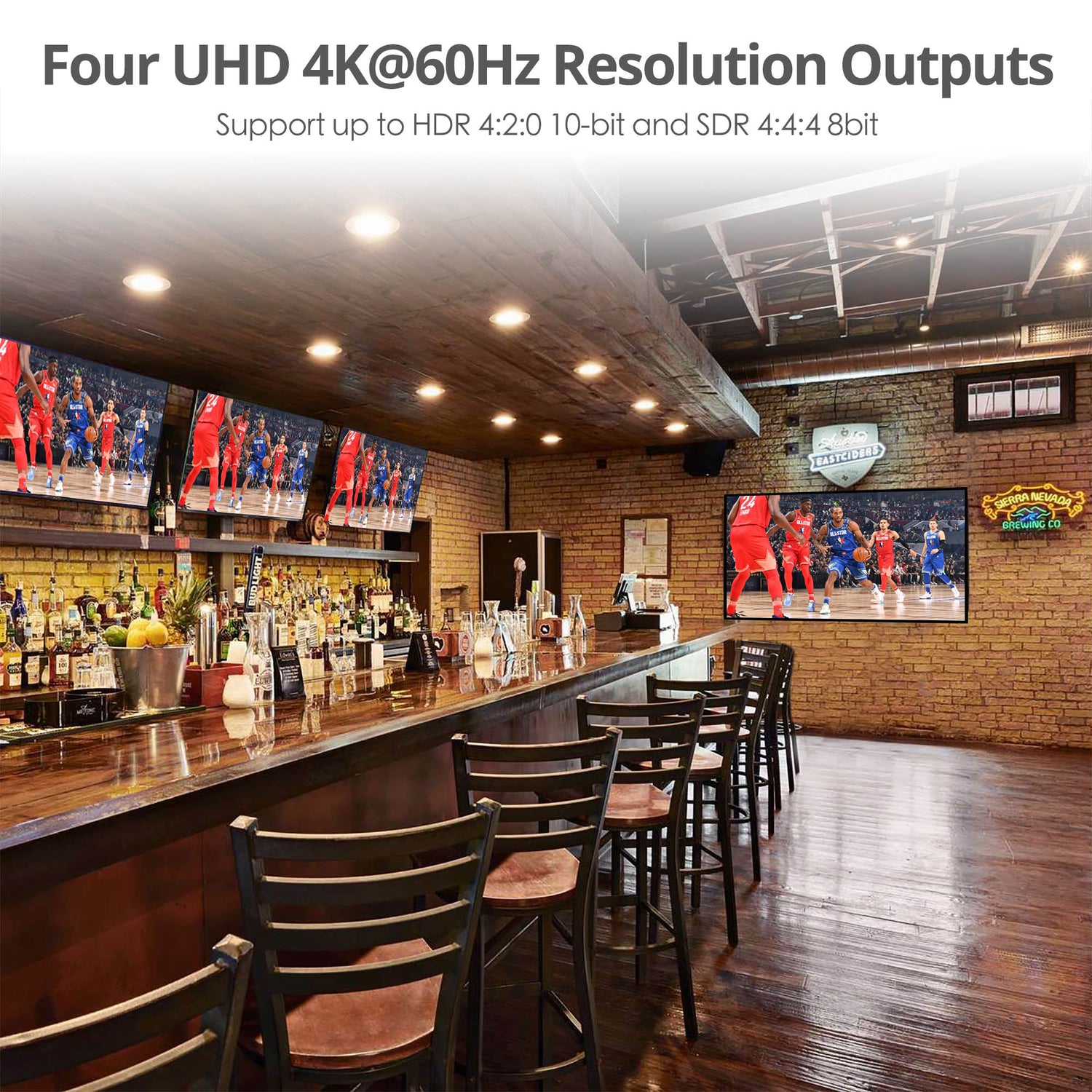

4K HDR Compatible
4K HDR Compatible

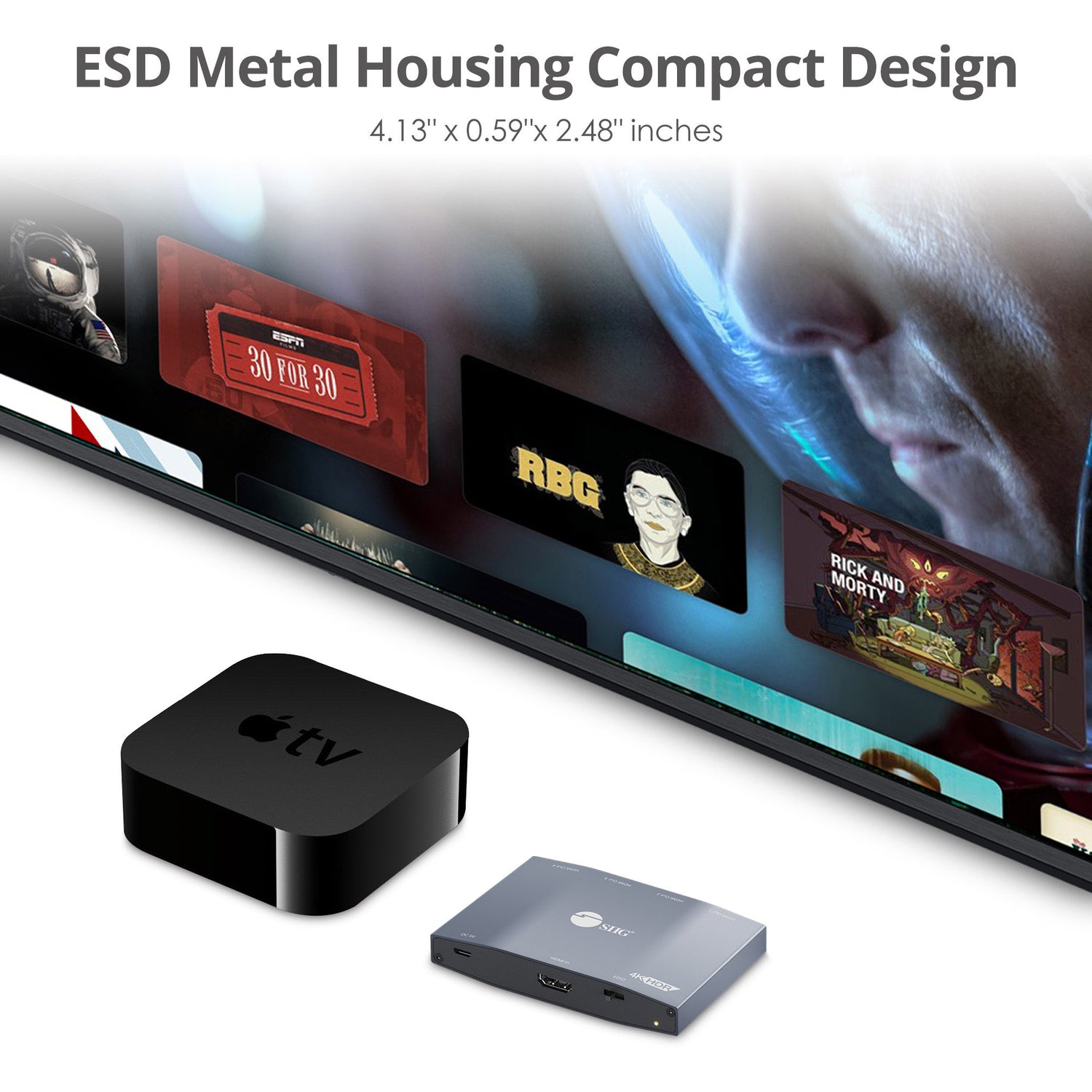

Metal Housing Design
Metal Housing Design
TAA compliant
TAA compliant
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
| Chipset | EP91X4 |

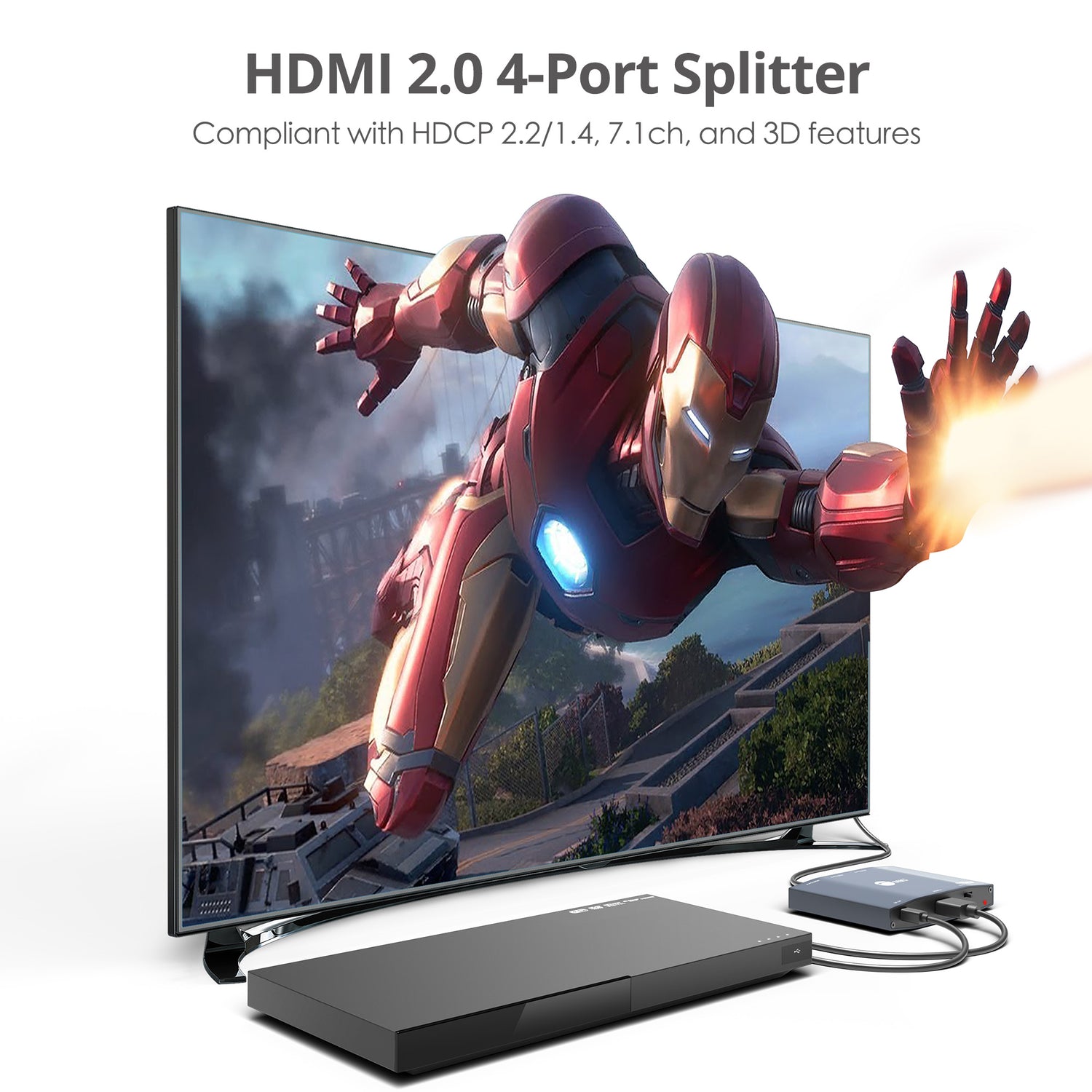

| Standard | Compliant with HDCP 2.2/1.4 specification |
| Color space | xvYCC, x.v.Color and Deep Color |
| Resolution | up to 4K60Hz YUV4:4:4 8bit, 4K60Hz YUV 4:2:0 10bit HDR |
| Video bandwidth | Up to 18Gbps (single-link 600MHz) |
| Video | 480p/720p/1080i/1080p/HDR 4K60Hz (YUV 4:2:0 10bits)/4K60Hz (YUV 4:4:4 8bits) |
| EDID modes | |
| Red LED | 4K60Hz, 8/10/12bit, 3D, HDR, 7.1ch |
| Blue LED | 4K60Hz, 8/10/12bit, 3D, HDR, 2ch |
| Green LED | Auto EDID analysis learning - use the EDID of the display with the lowest capabilities |
| Yellow LED | EDID learning - use the EDID of the display connected to HDMI Output 1 |
| Audio | DTS-HD Master Audio, Dolby TrueHD, Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM |
| ESD protection | ±15kV Air / ±8kV Contact |
| HDMI cable length | |
| 4K60Hz | Up to 10 meters (5m/In ; 5m/Out) |
| 1080p & 4K30Hz | Up to 15 meters (5m/In ; 10m/Out) |
| Power Adapter | |
| Input | 100-240VAC, 50/60 Hz |
| Output | DC 5V/2A |
| UL Listed | E135856 /Level: VI |
| Product | |
| Connector | 1x 19-Pin, HDMI, Type A, Female, Input 4x 19-Pin, HDMI, Type A, Female, Output 1x Slide Switch for EDID Selection 1x 5-Pin, Micro-USB, Female, Power |
| Product | |
| Dimensions | 4.13″ (W) x 0.59″ (H) x 2.48″ (D) |
| Weight | 0.27 lbs |
| Color | Pantone 425C |
| Housing material | Aluminum |
| Unit package | |
| Dimensions | 9.1″ (W) x 1.7″ (H) x 3.9″ (D) |
| Weight | 0.69 lbs |
| Master carton | |
| Dimensions | 19.69″ (W) x 9.49″ (H) x 18.78″ (D) |
| Weight | 36.99 lbs |
| Quantity | 50 pcs/ctn |

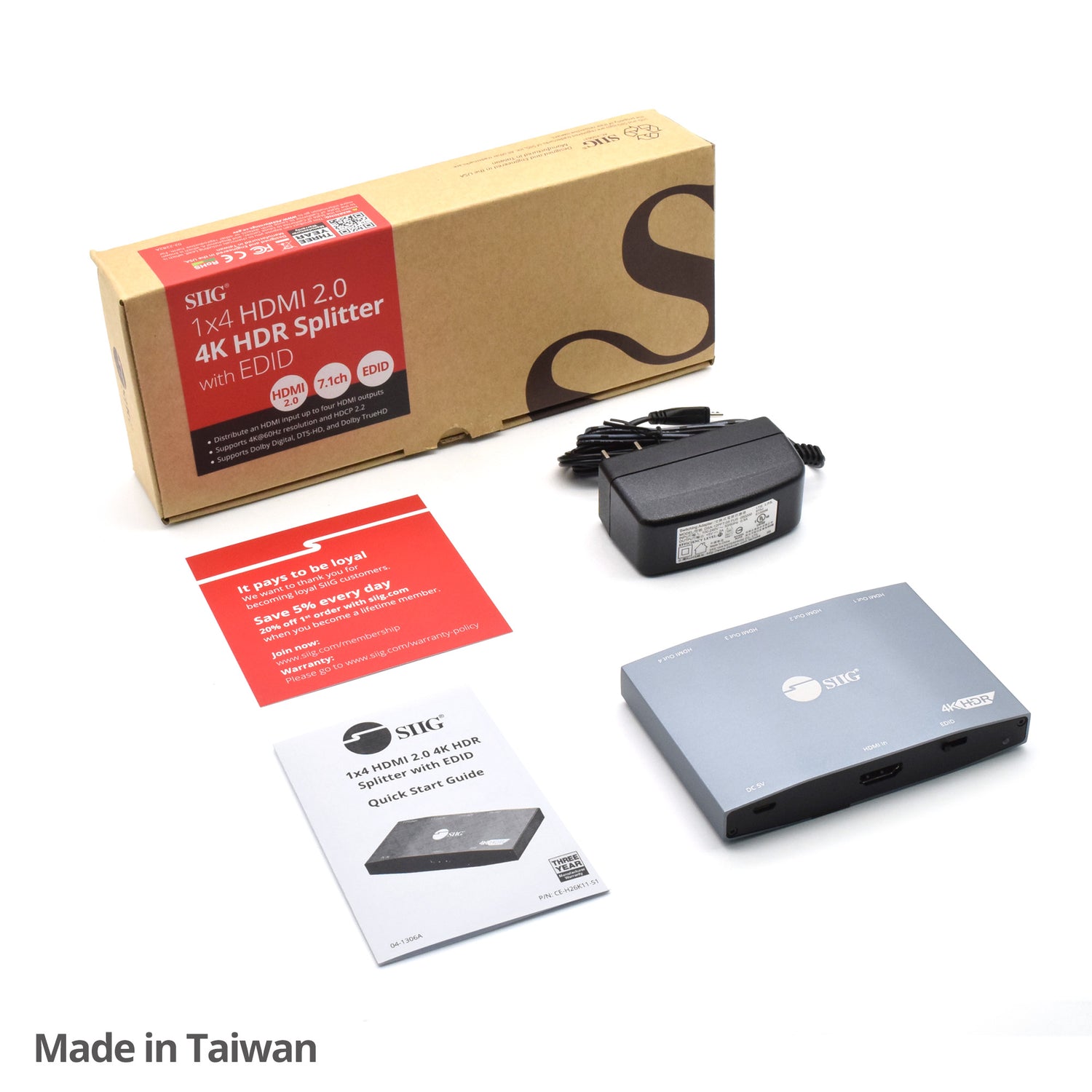

| Package contents | 1x4 HDMI 4K HDR Splitter with EDID Power Adapter Quick Start Guide |
| Environmental Conditions | |
| Operating temperature | 32 to 140 degrees F |
| Storage temperature | -4 to 140 degrees F |
| Relative humidity | 20 to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS, TAA compliant |
| UPC code | 662774044248 |
| Warranty | 3 years limited |
| Country of Origin | Engineered in USA , Manufactured in Taiwan |
