Splitter |
SKU:
CE-H26911-S1

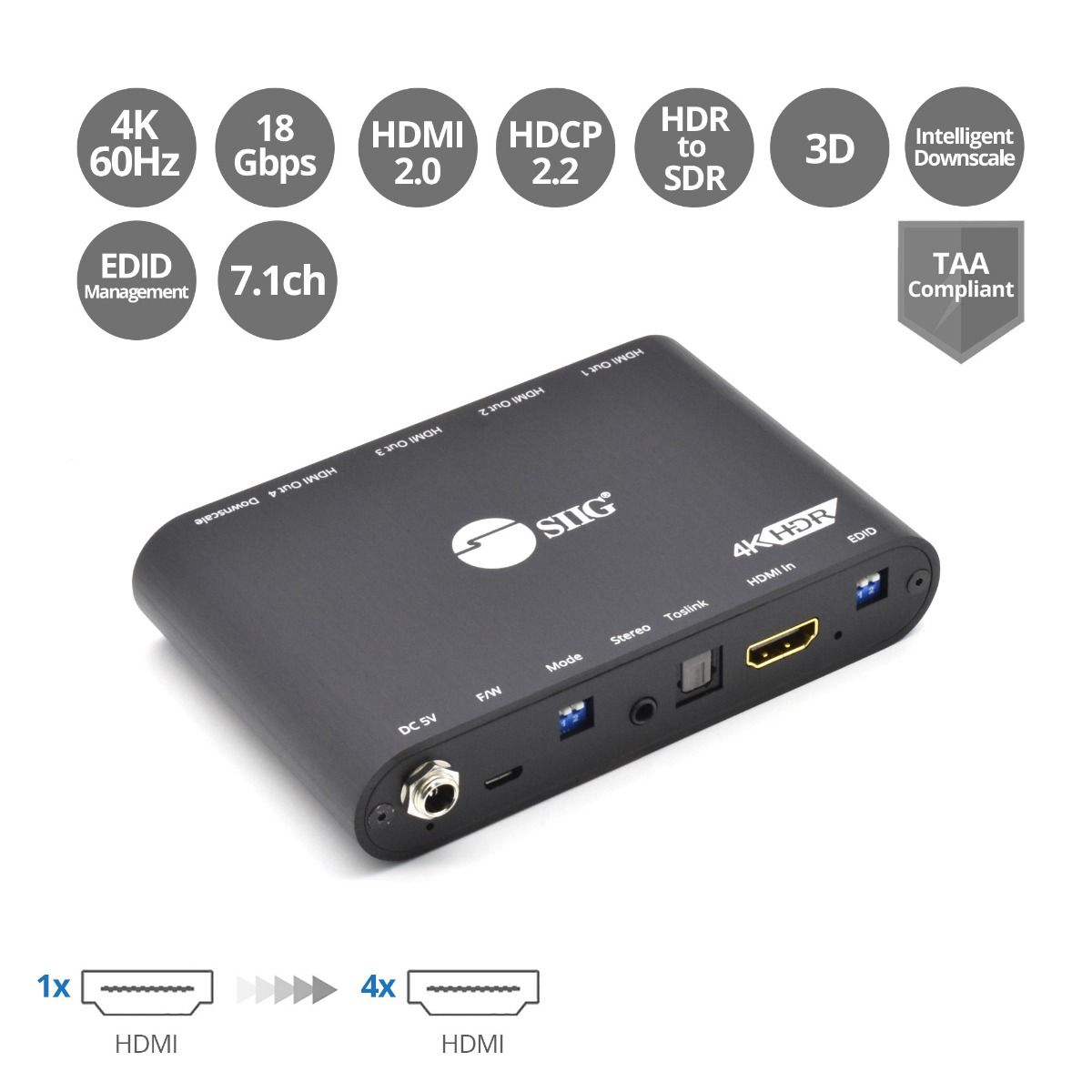

1x4 Splitter with Built-in & User Adjustable EDID Management, Audio Extractor and HDR to SDR Conversion
HDMI Splitter
HDR to SDR Conversion
4K60Hz
Audio Extractor
TAA Compliant
Regular price
$189.99
Unit price
/
Unavailable
Shipping calculated at checkout.
1x4 Splitter with Built-in & User Adjustable EDID Management, Audio Extractor and HDR to SDR Conversion is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
4-port HDMI Splitter for Multi Displays
4-port HDMI Splitter for Multi Displays
True 4K60Hz & HDR Performance
True 4K60Hz & HDR Performance
Smart Scaling & HDR Conversion
Smart Scaling & HDR Conversion
Audio Extraction & Dual Output
Audio Extraction & Dual Output
Durable Design with Easy Control
Durable Design with Easy Control
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
No content found
| Chipset | IT6664E |
| Standard | Compliant with HDCP 2.2/1.4 specifications |
| Resolution | Up to 4K (3840x2160) 60Hz YUV 4:4:4 8bits, HDR 4K (3840x2160) 60Hz YUV 4:2:0 10bits |
| Video bandwidth | 18Gbps (single-link 600MHz) |
| Video support | 480p/720p/1080i/1080p/HDR 4K60Hz (YUV 4:2:0 10bits)/4K60Hz (YUV 4:4:4 8bits) |

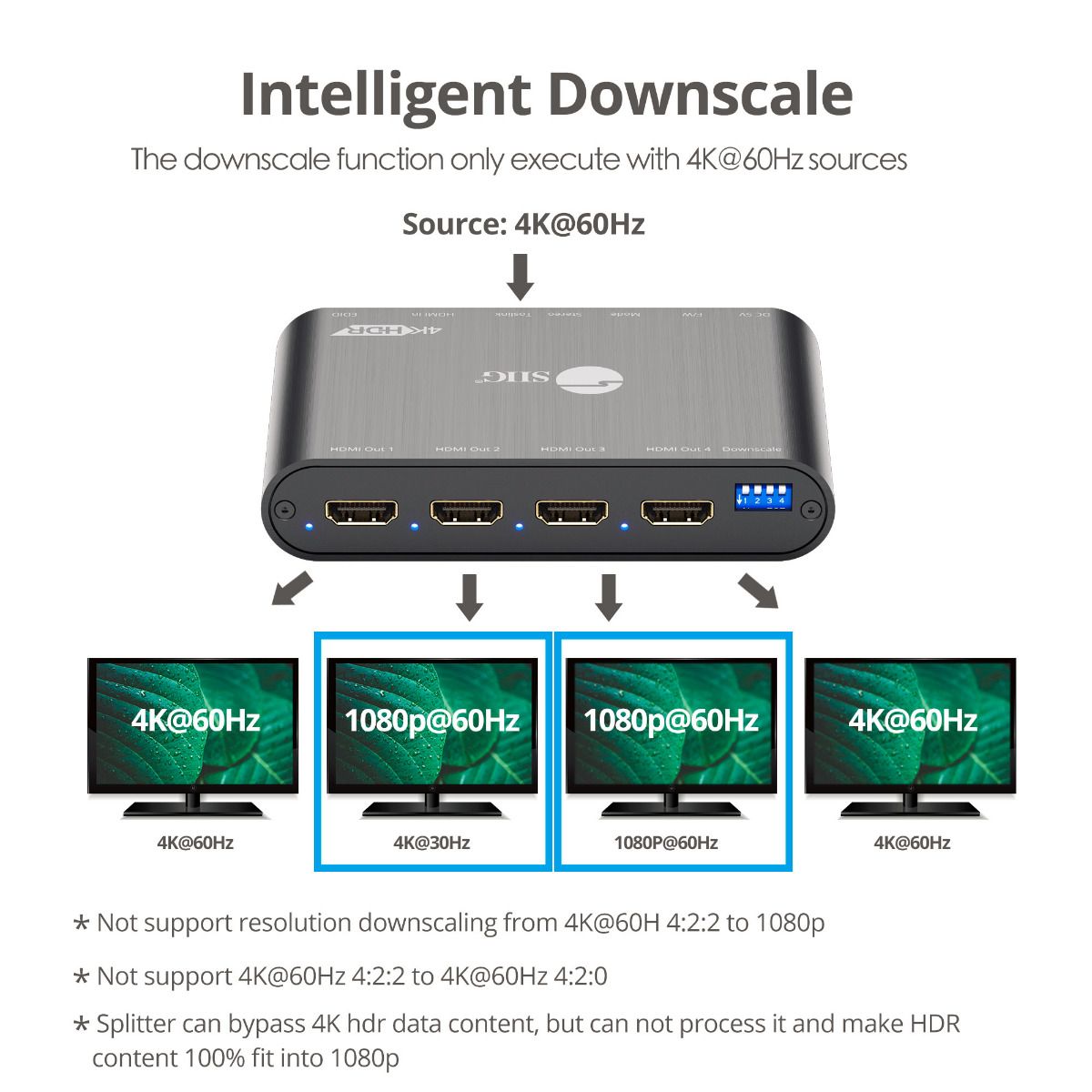

| Downscaling | Supports resolution downscaling from 4K to 1080p |
| EDID Management | Supports default EDID and EDID learning from HDMI display |

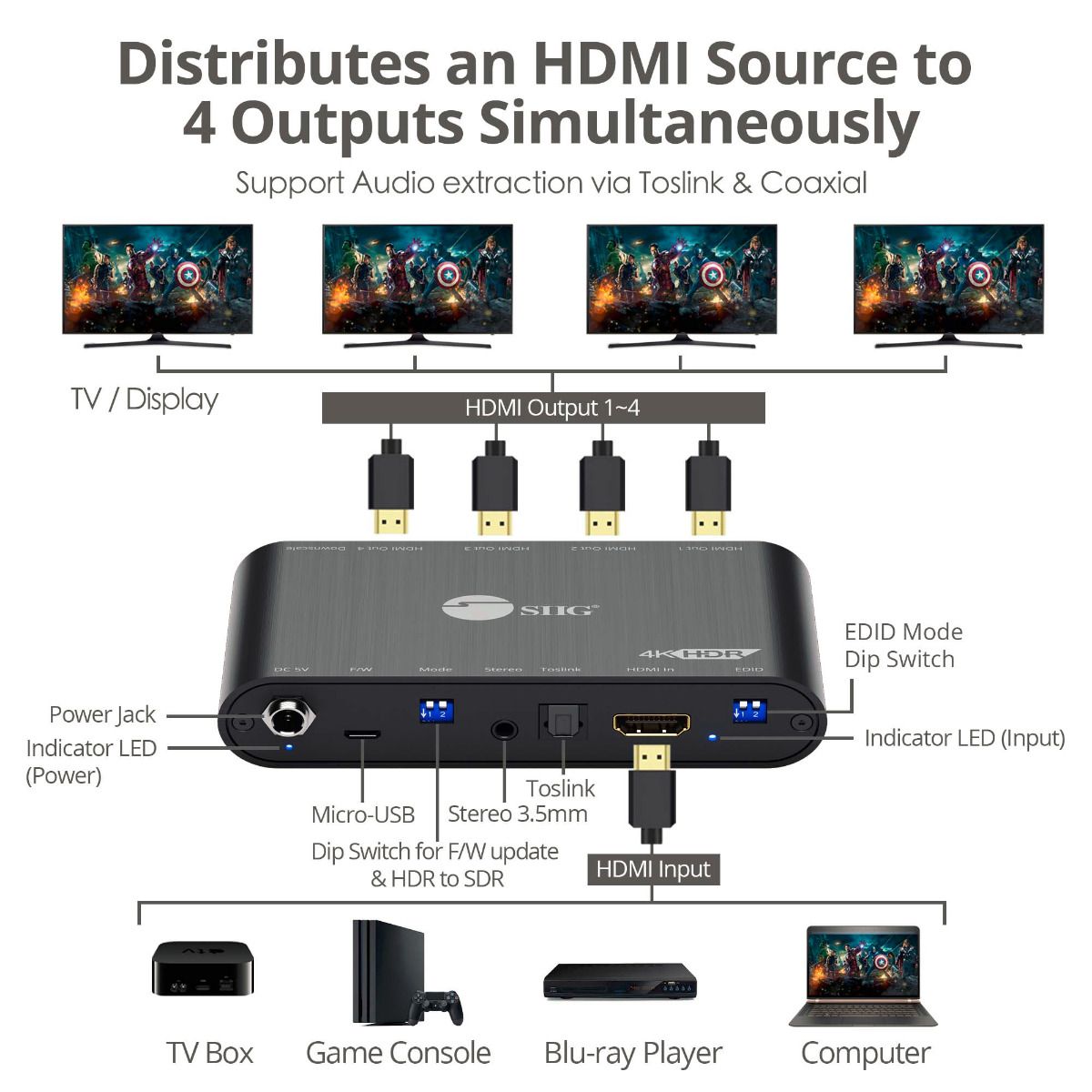

| Digital audio | Supports audio extraction via Toslink and Coaxial. Audio format: PCM 2, Dolby 5.1, DTS 5.1 |
| HDMI audio format | PCM 2 / 5.1 / 7.1, Dolby 5.1 / 7.1, DTS 5.1 / 7.1 |
| FW update | Built-in Micro-USB port for firmware update for expanding compatibility |
| Audio format | DTS-HD Master Audio, Dolby TrueHD, Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM |
| HDMI cable length | |
| 4K60Hz | Up to 10 meters (5m/In ; 5m/Out) |
| 1080p & 4K30Hz | Up to 15 meters (5m/In ; 10m/Out) |
| LED indicators | For power and signal status |
| ESD protection | ±15kV Air / ±8kV Contact |
| Power Adapter | |
| Input | 100-240VAC, 50/60 Hz |
| Output | DC 5V/2A |
| UL Listed | E253376 /Level: VI |
| Product | |
| Connector | 1x 19-Pin, HDMI, Type A, Female, Input 1x 19-Pin, HDMI, Type A, Female, Output 1x S/PDIF Toslink, Female, Output 1x 3.5mm Stereo Audio Jack, Output 1x 4-pin DIP switch, Downscale control 1x 2-pin DIP switch, F/W and Service control 1x 2-pin DIP switch, EDID mode 1x 5-pin Micro USB, Female, F/W update 1x Power jack |
| Notes | Auto downscale from 4K to 1080p should work in most cases. If Auto doesn’t work, try the Forced downscale option Downscaling to 720p and 480p is not supported Does NOT support resolution downscaling from 4K2K 60Hz YUV 4:2:2 to 1080P YCbCr YUV 4:2:2 downscaling is not supported Frame rate conversion (e.g., 60Hz to 24Hz) is not supported 4K30Hz monitors will display in 1080p60Hz when the source content is 4K60Hz Some Sharp 4K TV models (such as 4T-C45AH1T, LC-43UC30U) are found incompatible with our Splitter in a downscaling operation. Contact us before purchasing if you are not sure about compatibility Splitter can bypass 4K HDR data content but cannot process it to make 4K HDR content fit 1080p proportionally Dolby Vision and Dolby Atmos is supported using EDID learning from the display connected to HDMI output 1 only |
| Product | |

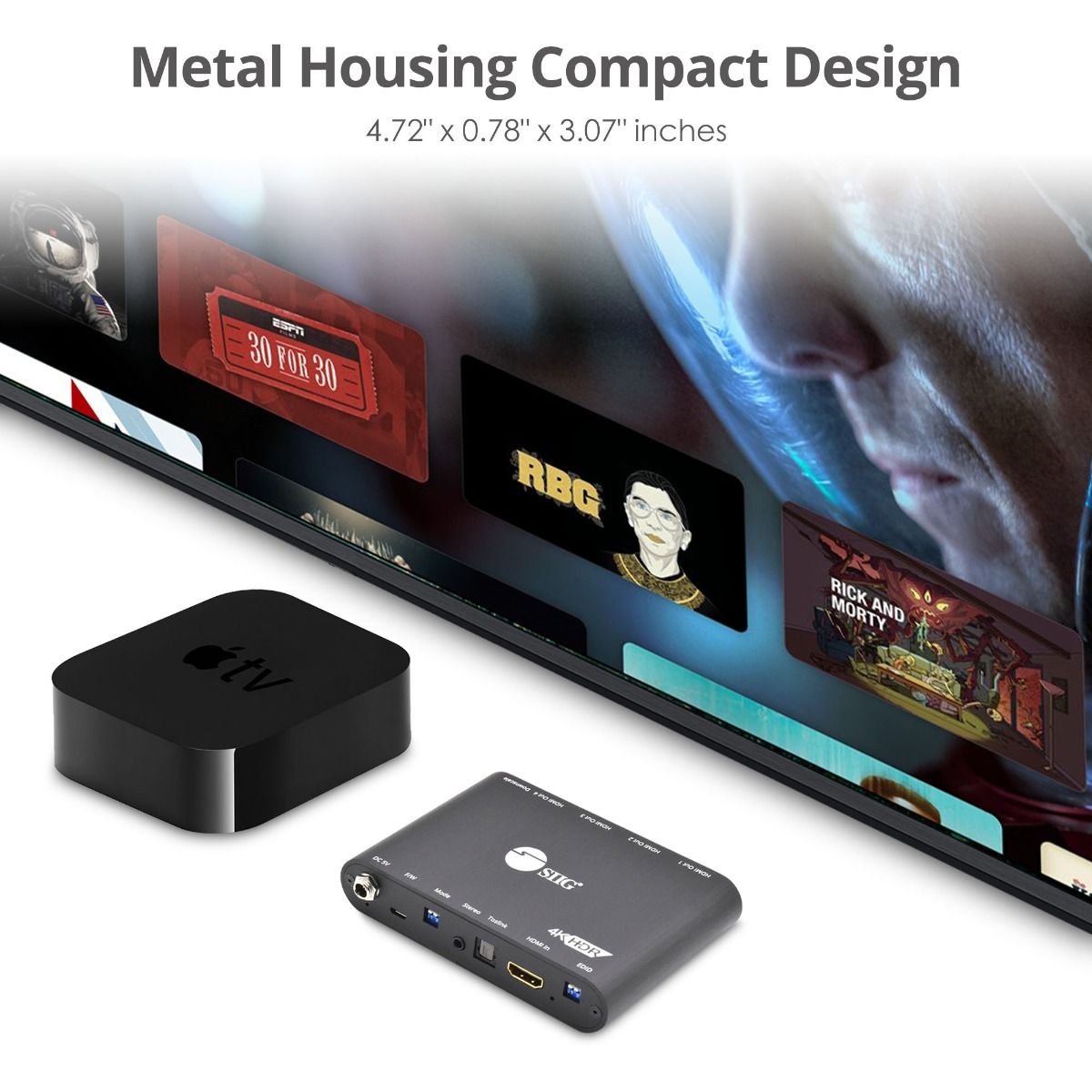

| Dimensions | 4.72″ (W) x 0.94″ (H) x 3.07″ (D) |
| Weight | 0.47 lbs |
| Color | Black |
| Housing material | Aluminum |
| Unit package | |
| Dimensions | 9.1″ (W) x 1.7″ (H) x 3.9″ (D) |
| Weight | 0.88 lbs |
| Master carton | |
| Dimensions | 19.69″ (W) x 9.49″ (H) x 18.78″ (D) |
| Weight | 46.56 lbs |
| Quantity | 50 pcs/ctn |

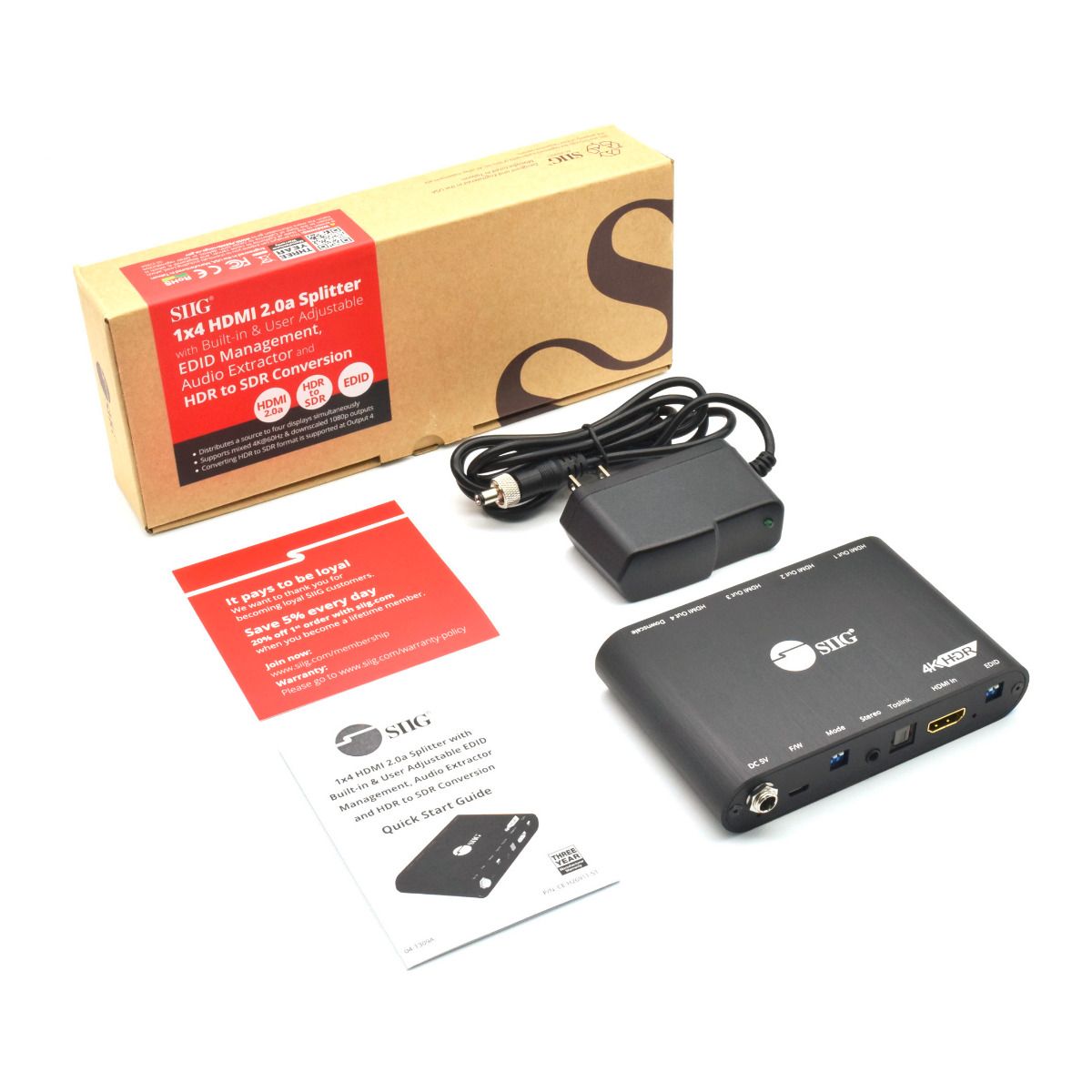

| Package contents | 1x4 HDMI Splitter with Built-in & User Adjustable EDID Management, Audio Extractor and HDR to SDR Conversion Power Adapter Quick start guide |
| Environmental Conditions | |
| Operating temperature | 32 to 140 degrees F |
| Storage temperature | -4 to 140 degrees F |
| Relative humidity | 20 to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS, TAA compliant |
| UPC code | 662774043913 |
| Warranty | 3 years limited |
| Country of Origin | Engineered in USA , Manufactured in Taiwan |
Q1: Can this extend to 4 different screens?
Q1: Can this extend to 4 different screens?
A1: No, it can not extend to 4 different screens. All splitter outputs will always have the same screens
Q2: Why the audio extract not working?
Q2: Why the audio extract not working?
A2: Make sure HDMI output 4 is connected to a display, or else the audio extraction feature will not work. Audio extraction only works when HDMI output 4 is connected to a display
