1x3 S/PDIF Toslink Splitter
1x3 S/PDIF Toslink Splitter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features

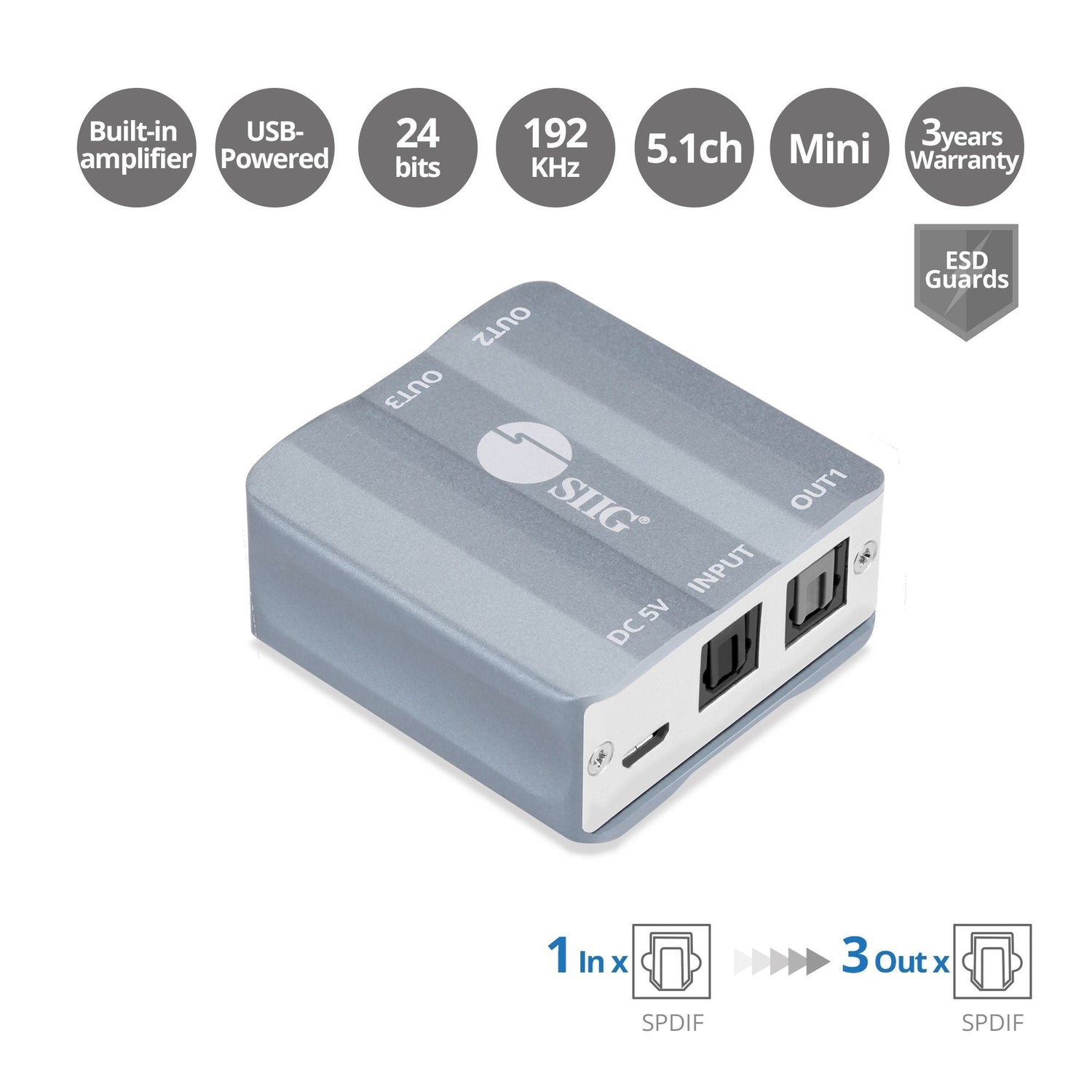

Toslink S/PDIF 1 in 3 Out Splitter
Toslink S/PDIF 1 in 3 Out Splitter
Stable Signal
Stable Signal
3 Audio Format
3 Audio Format
High Quality Design
High Quality Design
Premium Customer Service
Premium Customer Service
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
| Audio | |

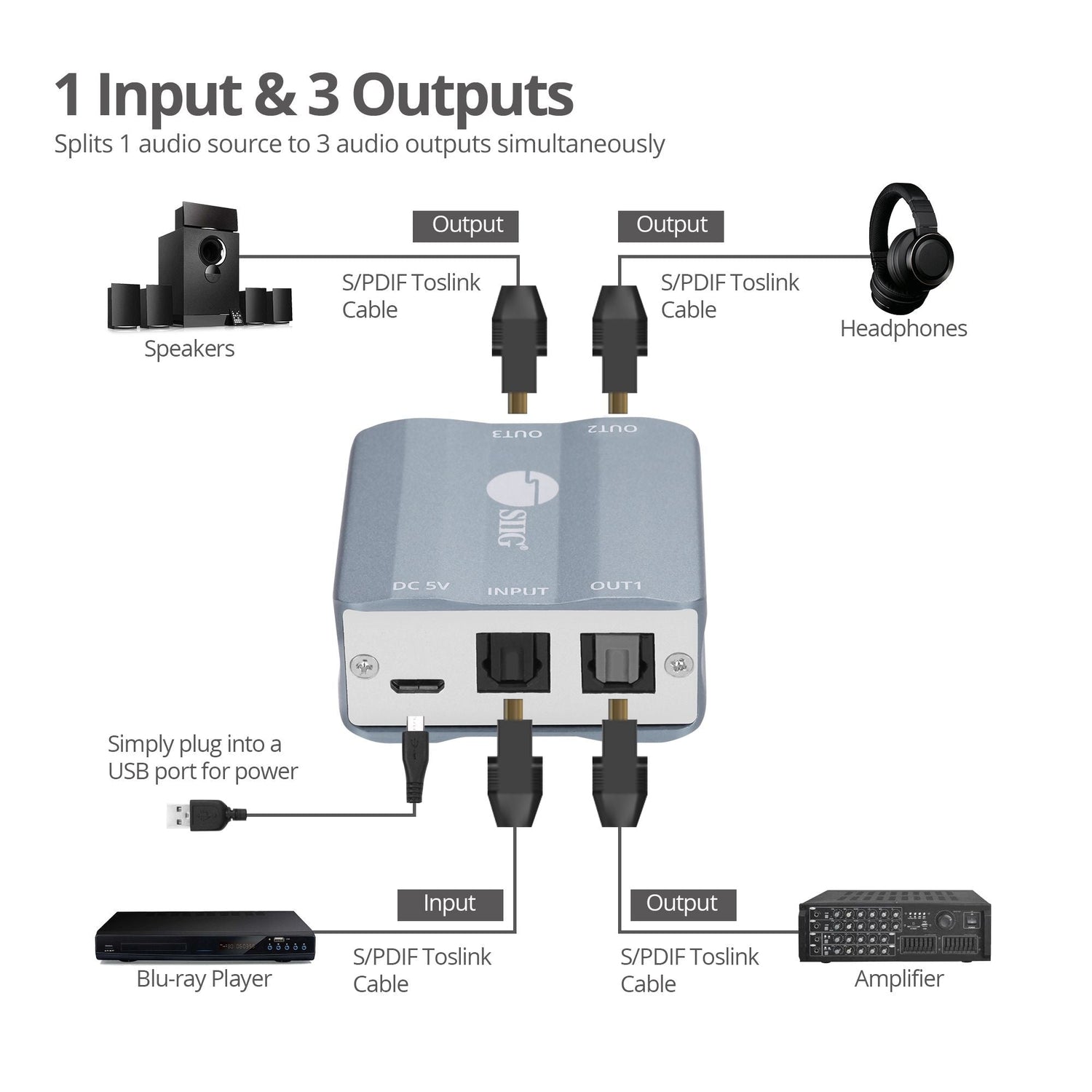

| S/PDIF | 1x input, 3x output |
| Sample Rate | Up to 192KHz |

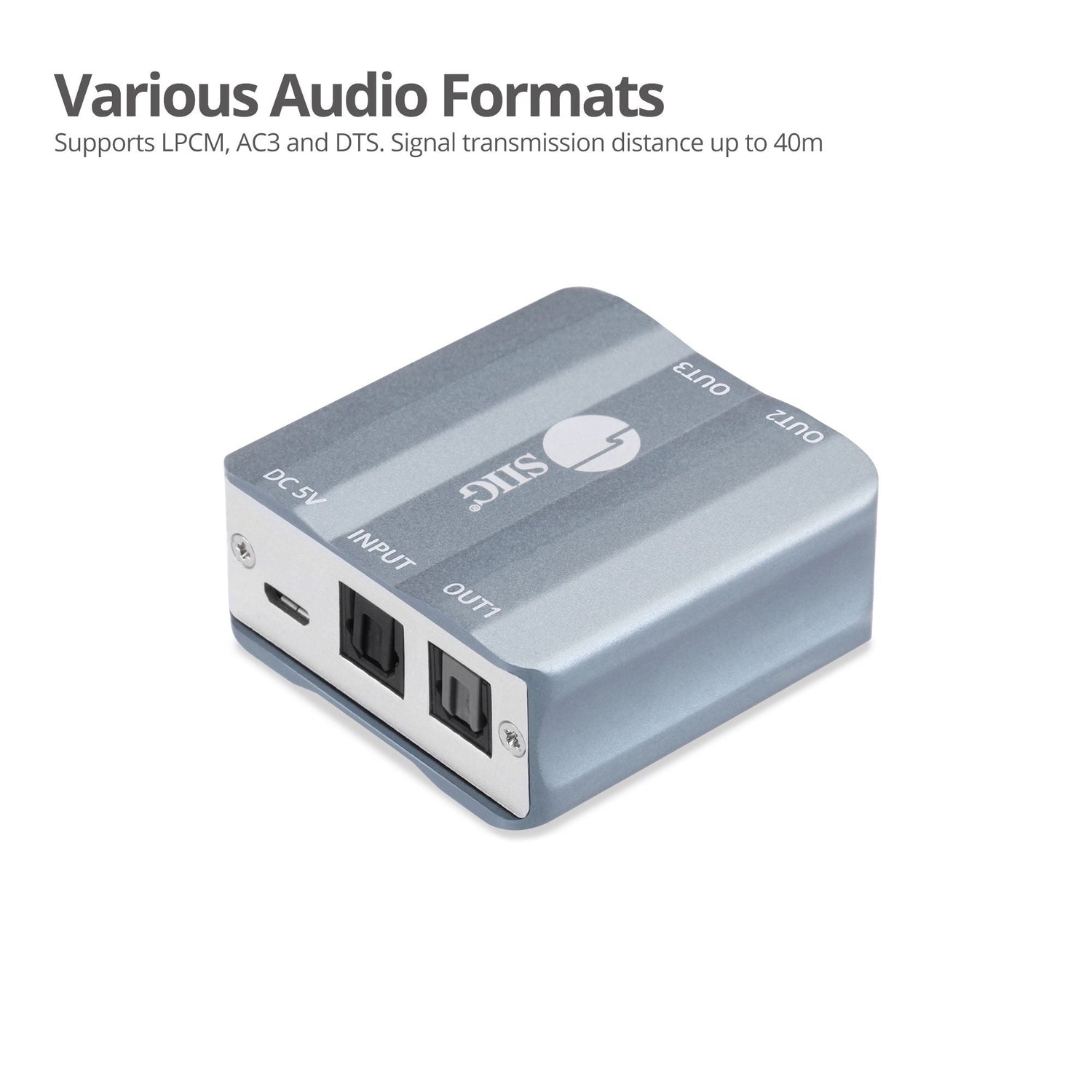

| S/PDIF Audio Formats | LPCM, AC3 and DTS |
| Bit Depth | Up to 24bits |
| ESD Protection | ±12kV Air / ±8kV Contact |

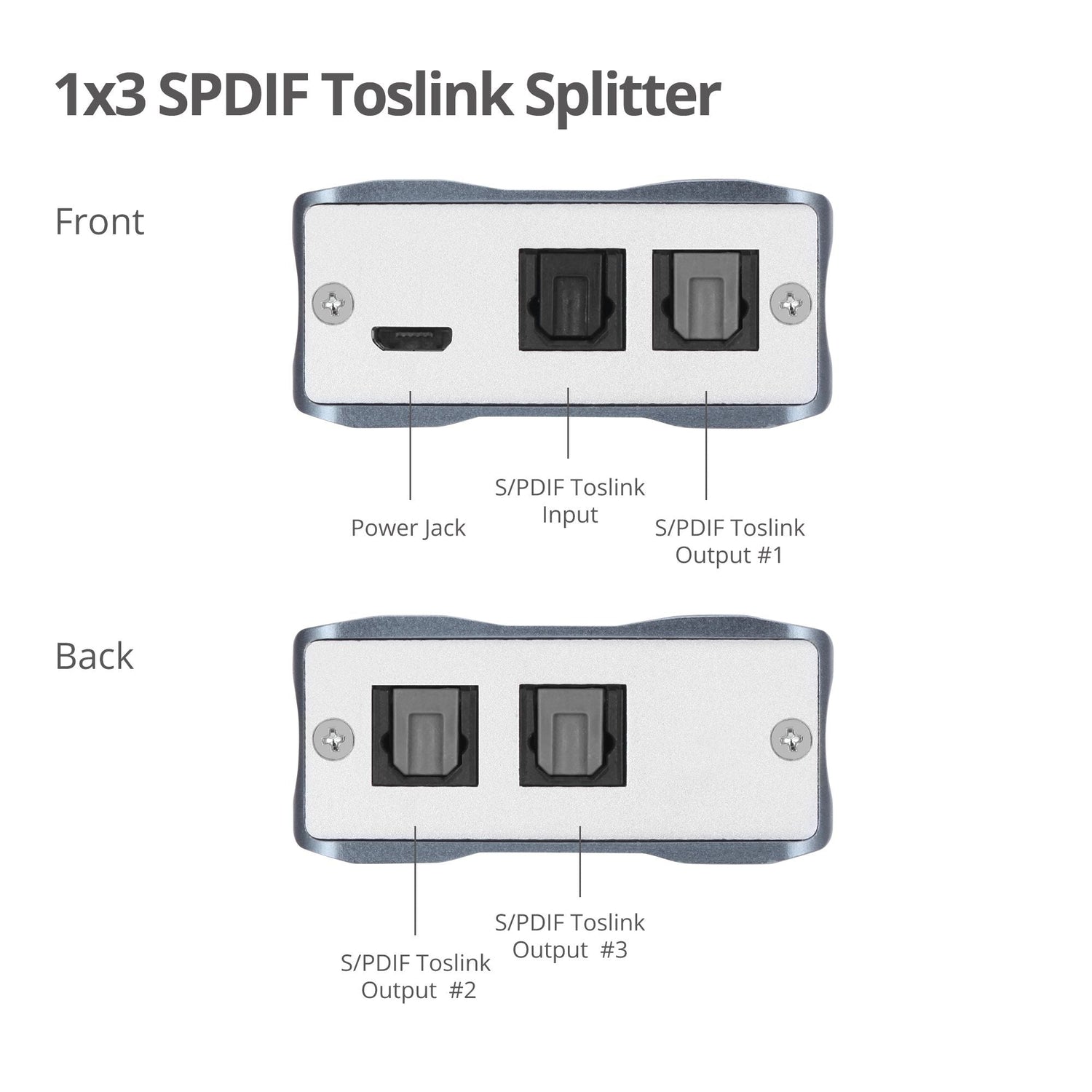

| Interface | 1x Toslink, S/PDIF, female, input 3x Toslink, S/PDIF, female, output 1x 5-pin, Micro USB, power input |

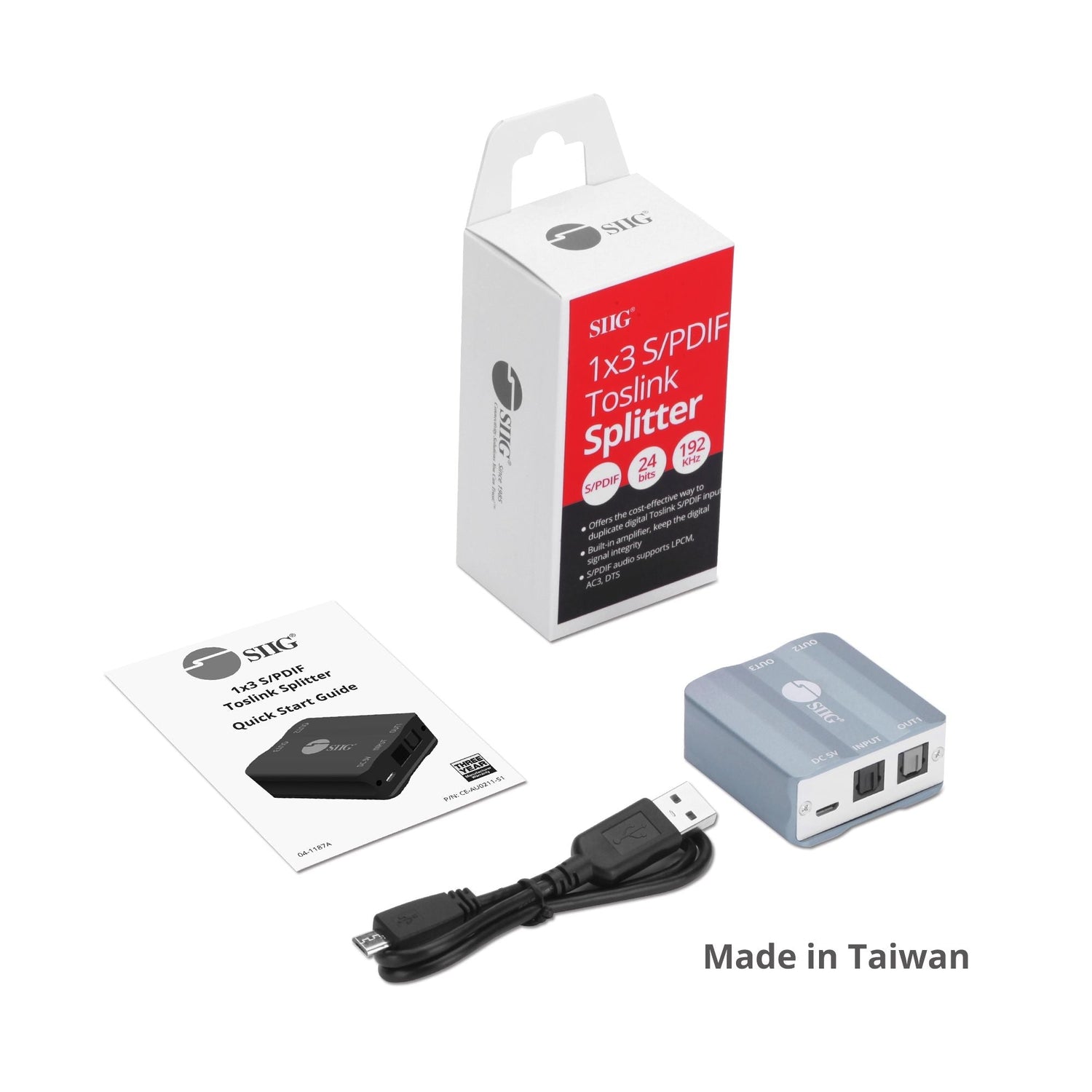

| Package Contents | 1x 1x3 S/PDIF Toslink Splitter 1x Micro USB power cable 1x User reference guide |
| Environmental Conditions | |
| Operating Temperature | 32° to 104° F |
| Storage Temperature | 14° to 140° F |
| Relative Humidity | 20% to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS, TAA Compliant |
| UPC Code | 662774-042527 |
| Warranty | 3 years limited |
| Country of Origin | Taiwan |
| Product | |
| Dimensions (L) x (H) x (W) | 1.98″ x 0.91″ x 1.98″ 5.03 cm x 2.31 cm x 5.03 cm |
| Weight | 0.12 lb (0.05 kg) |
| Color | Black |
| Housing Material | Metal |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 5.51″ x 0.94″ x 4.45″ 14.00 cm x 2.39 cm x 11.30 cm |
| Weight | 0.20 lb (0.09 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 17.9″ x 10.00″ x11.50″ 45.47 cm x 25.40 cm x 29.21 cm |
| Weight | 22.95 lbs (10.41 kg) |
| Quantity | 100 pcs/ctn |
