MST |
SKU:
CE-DP0S11-S1

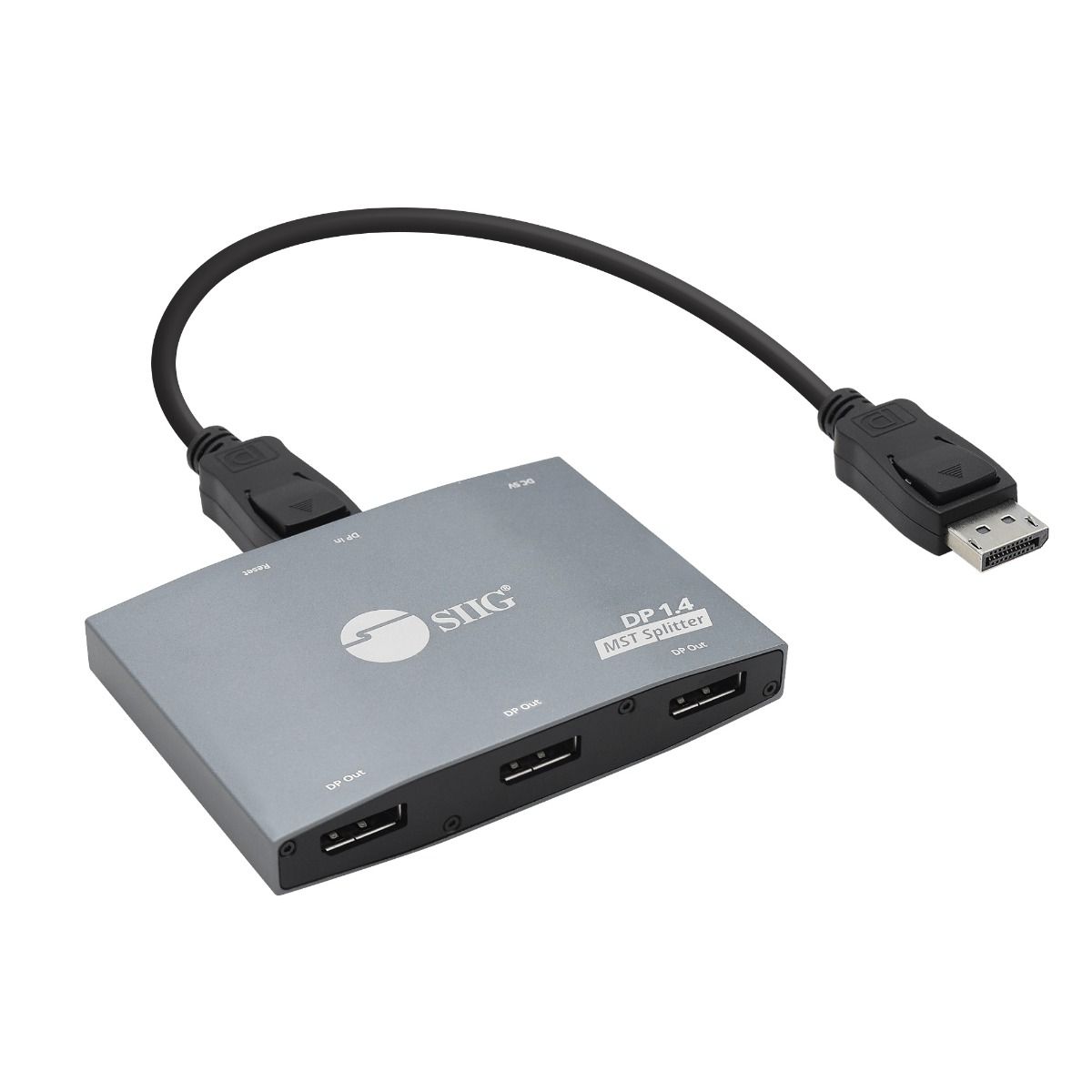

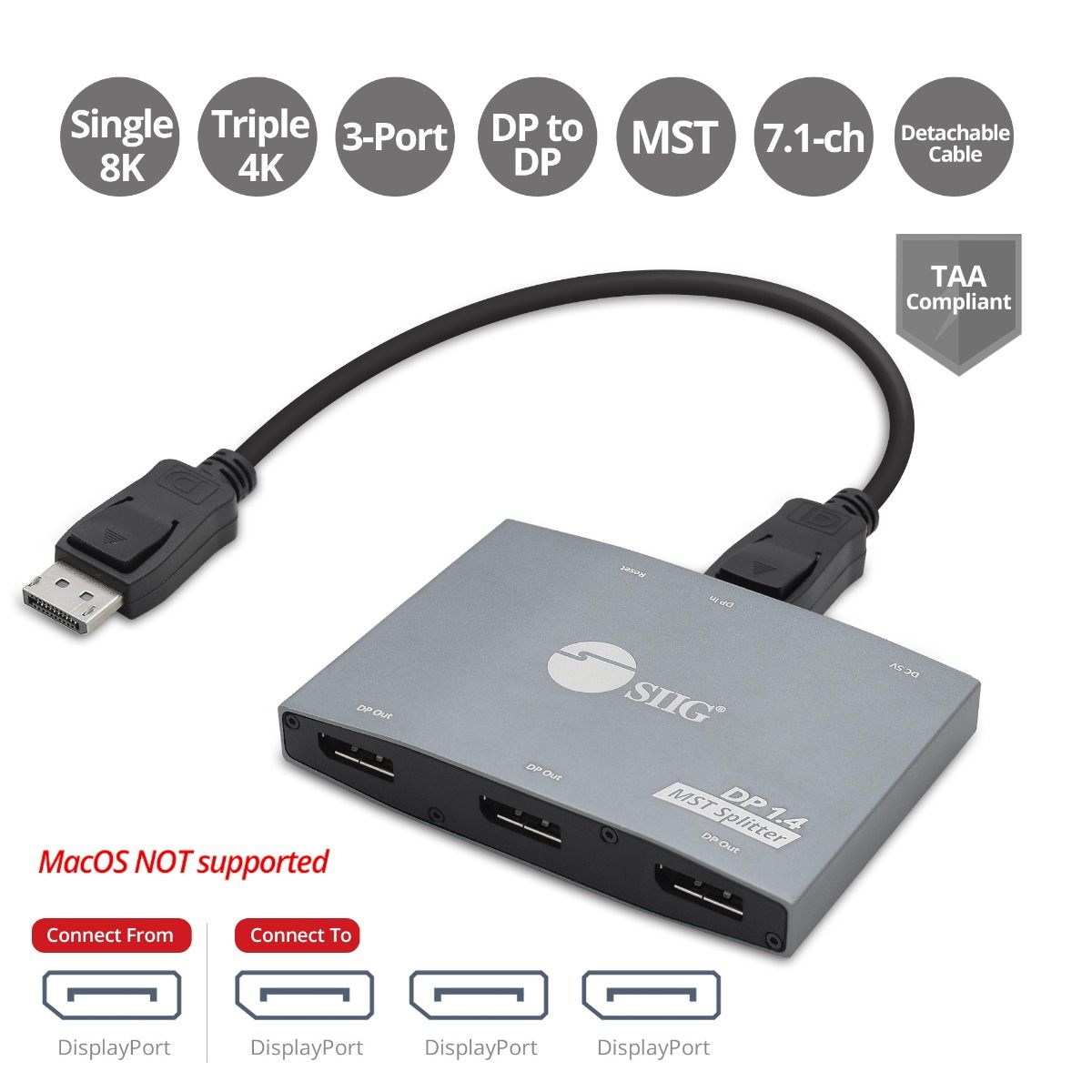

1x3 DisplayPort 1.4 to DisplayPort MST Splitter
MST Splitter
DP to DP
32.4Gbps
Triple Monitors
Detachable Cable
Regular price
$169.99
Unit price
/
Unavailable
Shipping calculated at checkout.
1x3 DisplayPort 1.4 to DisplayPort MST Splitter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
3 DP Ports
3 DP Ports
Multiple display modes
Multiple display modes
High performance
High performance
Female Input Port & TAA Compliance
Female Input Port & TAA Compliance
Compatibility
Compatibility
1x3 DisplayPort 1.4 to DisplayPort MST Splitter
Estimated shipping by June 14, 2026
Regular price
$169.99
Unit price
/
Unavailable
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
No content found
| Hardware | |
| Chipset | VMM5320 |
| Software | |
| OS Compatibility | Windows® 11 or new |
| Video | |

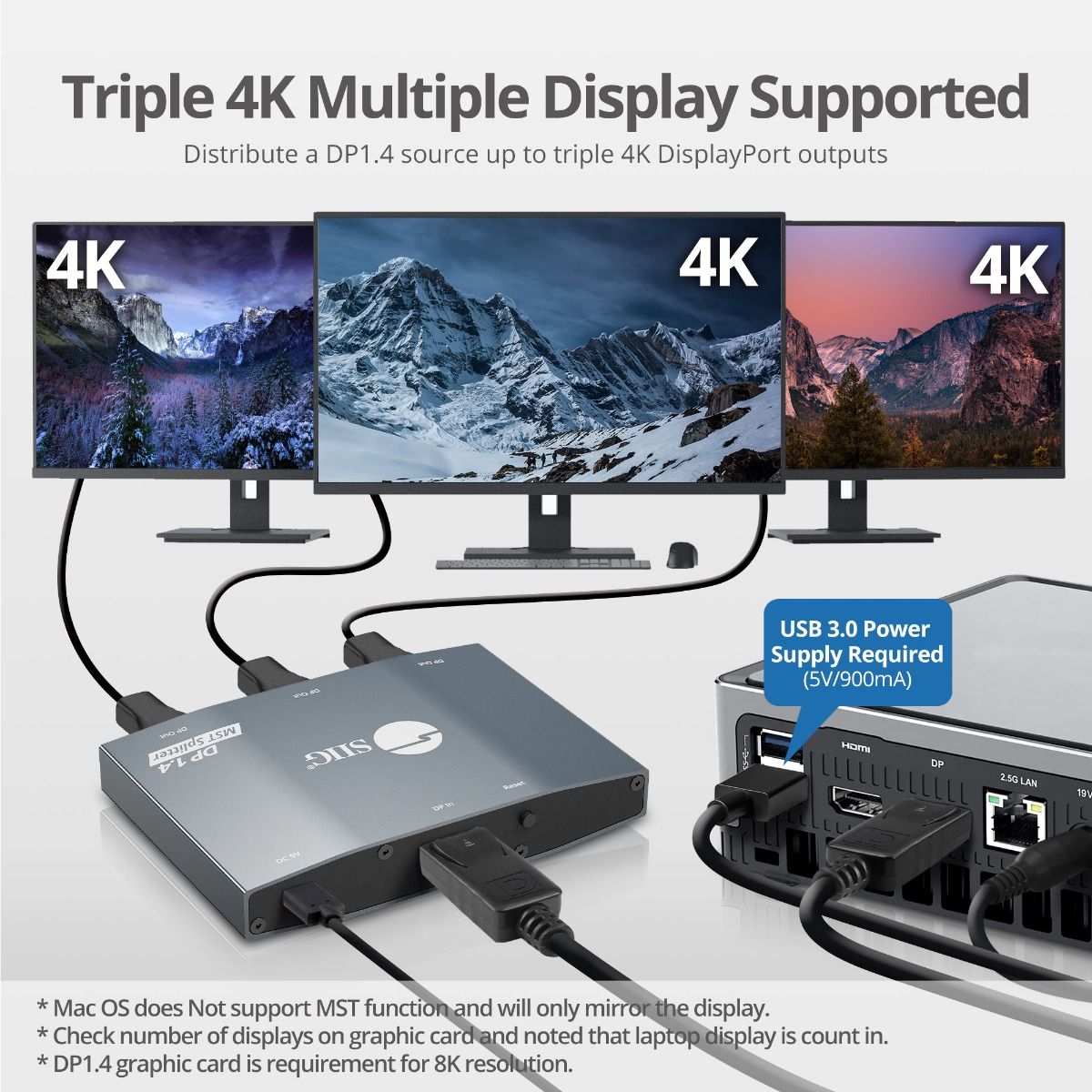

| Resolution | One screen: up to 8K (7680x4320) 30Hz with DSC (Display Stream Compression) Two screens: up to 4K (3840x2160) 60Hz with DSC Three screens: up to 4K (3840x2160) 30Hz with DSC |
| Bandwidth | 32.4Gbps |
| Display Modes | 3 different display modes: Mirror mode, Extended mode, and Panoramic Video Wall mode *Note: AMD Eyefinity or NVIDIA Surround technology graphics adapter is required to support Panoramic Video Wall mode |
| Audio | 7.1 channel surround sound, up to 192KHz sampling rate |

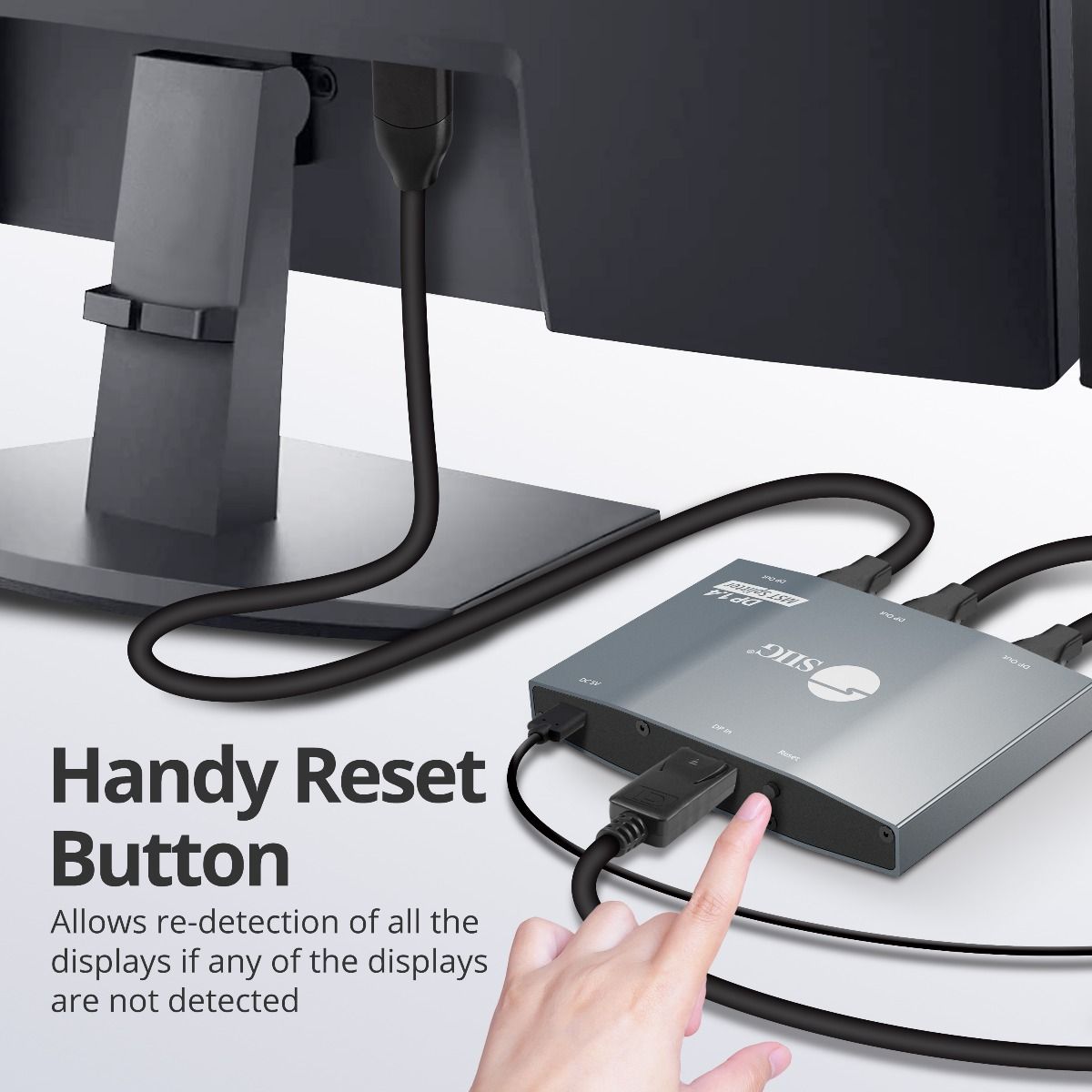

| Interface | 1x 20-pin, DisplayPort 1.4. female, input, Host 3x 20-pin, DisplayPort 1.4, female, output x 5-pin, Micro USB, power only (at least 5V/500mA), female 1x Reset button |

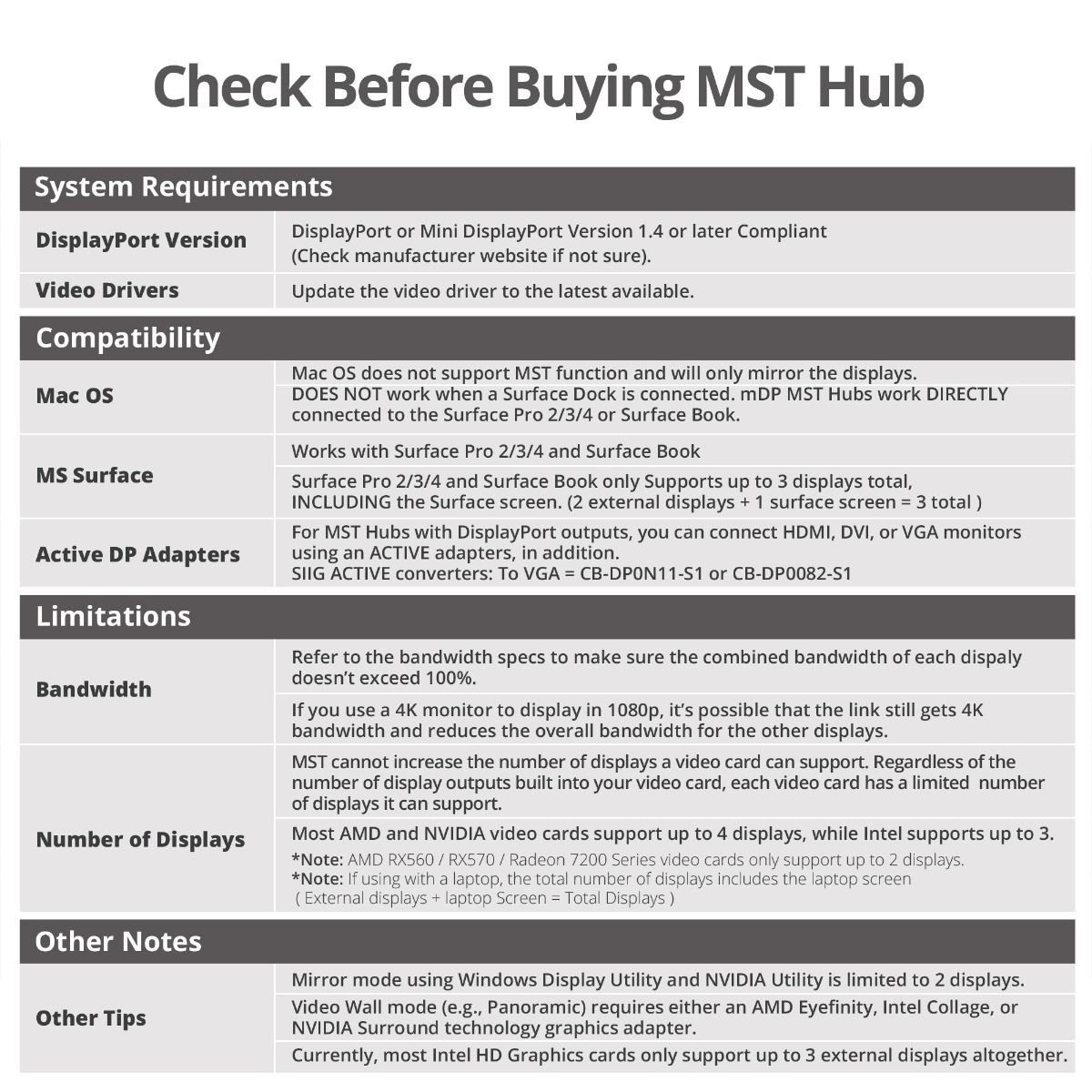

| System Requirements | Desktop or laptop with an available DisplayPort 1.4 port Windows® 11 / 10 / 8.x / 7 * Note: macOS® doesn't support MST function and only Mirror display (SST) |

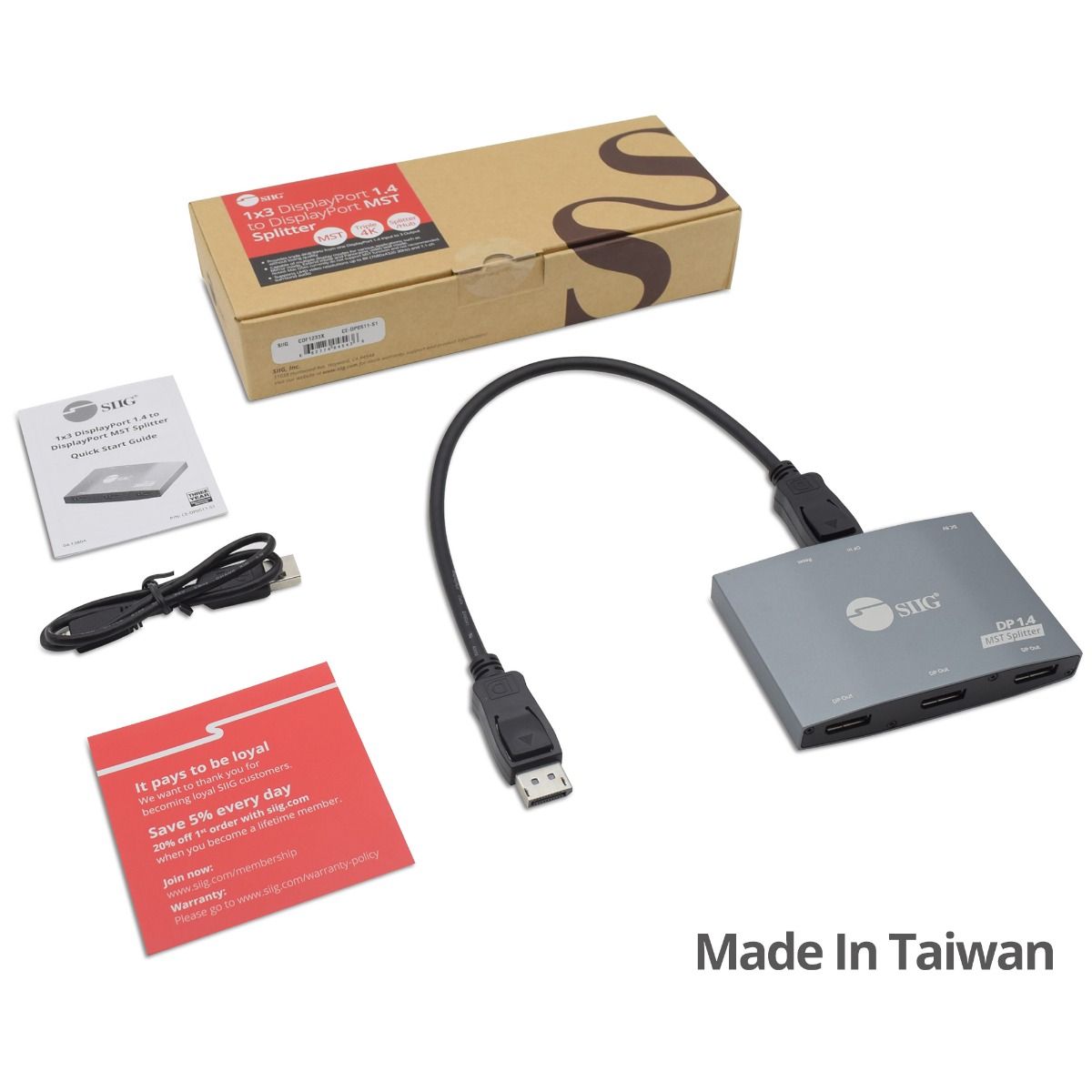

| Package Contents | 1x 1x3 DisplayPort 1.4 to DisplayPort MST Splitter 1x DisplayPort to DisplayPort cable, 11.81" (30cm) 1x Micro-USB power cable, 1.64ft (50cm) 1x User reference guide |
| Product | |

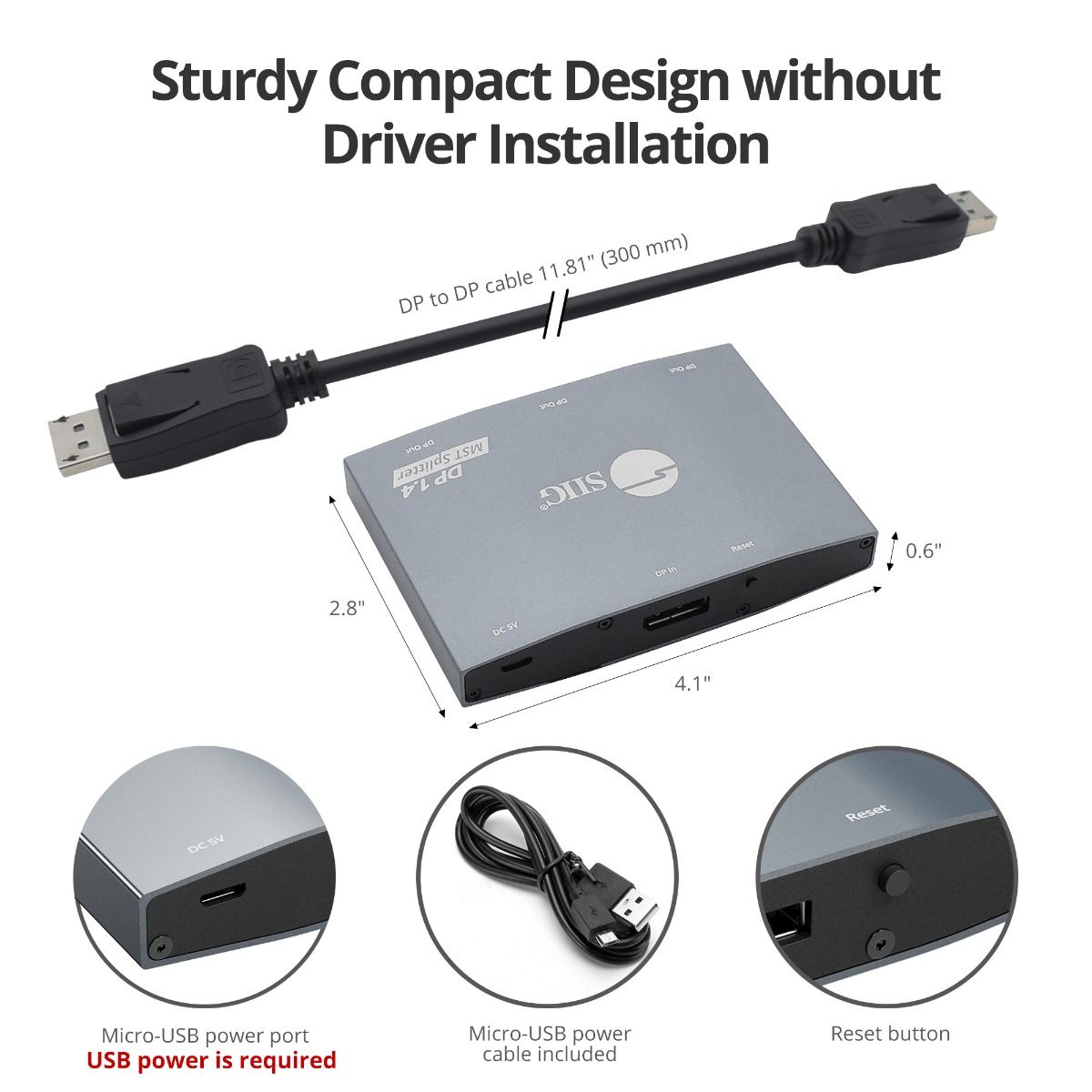

| Dimensions (L) x (H) x (W) | 4.13″ x 0.69″ x 2.87″ 10.49 cm x 1.75 cm x 7.29 cm |
| Weight | 0.26 lb (0.12 kg) |
| Color | Silver Grey/Black |
| Housing Material | Aluminum |
| DisplayPort Cable (embedded) | 11.81" (0.98ft) |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 9.06" x 1.61" x 3.74" 23.01 cm x 4.09 cm x 9.50 cm |
| Weight | 0.58 lb (0.26 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 19.69″ x 9.49″ x 18.78″ 50.01 cm x 24.01 cm x 47.70 cm |
| Weight | 31.55 lbs (14.31 kg) |
| Quantity | 50 pcs/ctn |
| Environmental Conditions | |
| Operating Temperature | 32 to 104 degrees F |
| Storage Temperature | -4 to 140 degrees F |
| Relative Humidity | 20% to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS, REACH, TAA Compliant |
| UPC Code | 662774-045436 |
| Warranty | 3 years limited |
| Country of Origin | Taiwan |
Q1: If i were to run 3 1080p monitors at 60hz each and be using only 36% bandwidth, wouldn't i be able to run 3 1080p at 120hz and be using 72% bandwidth?
Q1: If i were to run 3 1080p monitors at 60hz each and be using only 36% bandwidth, wouldn't i be able to run 3 1080p at 120hz and be using 72% bandwidth?
A2: When connected to a DisplayPort 1.4 graphics card, you can run 3 1080p monitors at 120hz each. DisplayPort 1.4 has a maximum total data rate of 25.92Gbit/s, one 1080p monitor at 120Hz data rate needs 6.59Gbit/s, and 3 1080p monitors at 120hz can use 19.77Gbit/s data rate (76%). For more "DP data rate bandwidth", please refer to DisplayPort Wikipedia.
Q2: If I can run 3 4k monitors 30hz ea, can I then run 3 2k monitors 60hz ea?
Q2: If I can run 3 4k monitors 30hz ea, can I then run 3 2k monitors 60hz ea?
A2: When connected to a DP 1.4 graphics card, you can run 3 2K monitors at 60hz each. DP 1.4 has a maximunm total data rate of 25.92Gbit/s, one 2K monitor at 60Hz data rate needs 5.63Gbit/s, and 3 2K monitors at 60hz can use 16.89Gbit/s data rate (65%). For more "DP data rate bandwidth", please refer to DisplayPort Wikipedia.
Q3: Is it support G-Sync or FreeSync?
Q3: Is it support G-Sync or FreeSync?
A3: Yes, it supports G-Sync and FreeSync, they are pass-through.
Q4: Does the MST Hub Splitter support 21:9 or 32:9 ultrawide resolution?
Q4: Does the MST Hub Splitter support 21:9 or 32:9 ultrawide resolution?
A4: All MST Hubs can support ultrawide resolutions like 21:9 or 32:9. However, our current examples use 16:9 resolution. It's important to note that 21:9 and 32:9 resolutions require a higher bandwidth compared to 16:9.
Since the total bandwidth of an MST Hub remains constant, the maximum supported resolution and number of connected monitors will vary depending on the bandwidth required by each monitor. For example, with a DP 1.2 connection, an MST Hub can support four 1080p monitors. if you use displays with a resolution of 2560x1080, the maximum number of supported monitors would decrease to three.
Upgrading to DP 1.4, which offers a higher bandwidth than DP 1.2, would allow the MST hub to support four monitors with a resolution of 2560x1080.
Since the total bandwidth of an MST Hub remains constant, the maximum supported resolution and number of connected monitors will vary depending on the bandwidth required by each monitor. For example, with a DP 1.2 connection, an MST Hub can support four 1080p monitors. if you use displays with a resolution of 2560x1080, the maximum number of supported monitors would decrease to three.
Upgrading to DP 1.4, which offers a higher bandwidth than DP 1.2, would allow the MST hub to support four monitors with a resolution of 2560x1080.
