Splitter |
SKU:
CE-VG0A11-S1

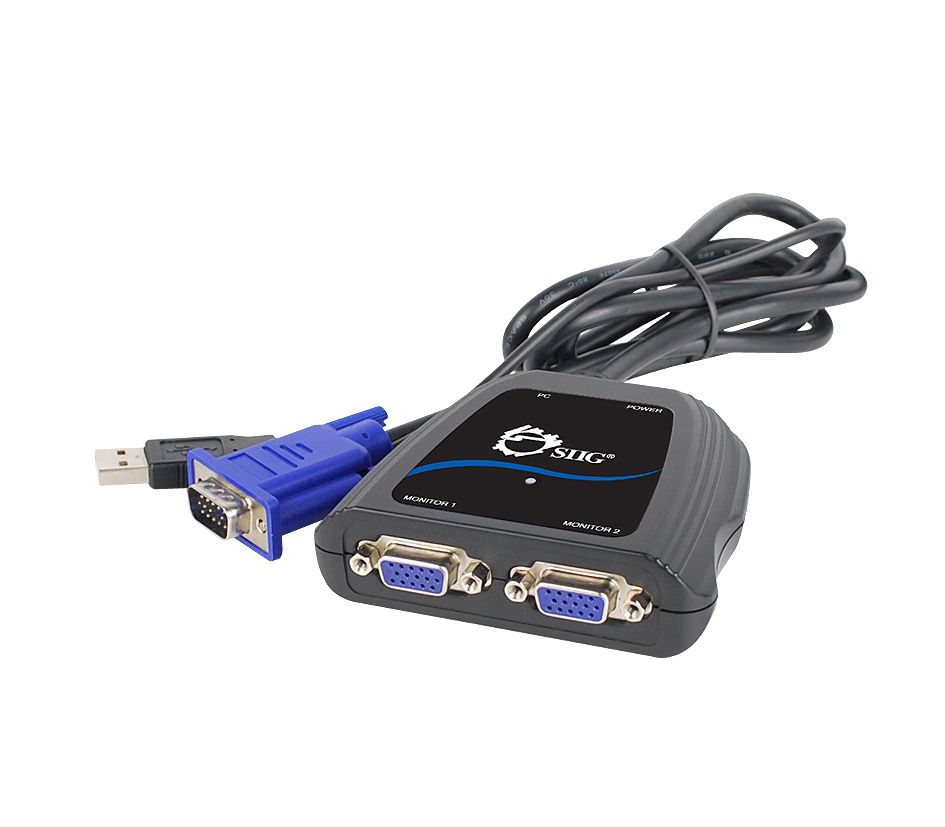

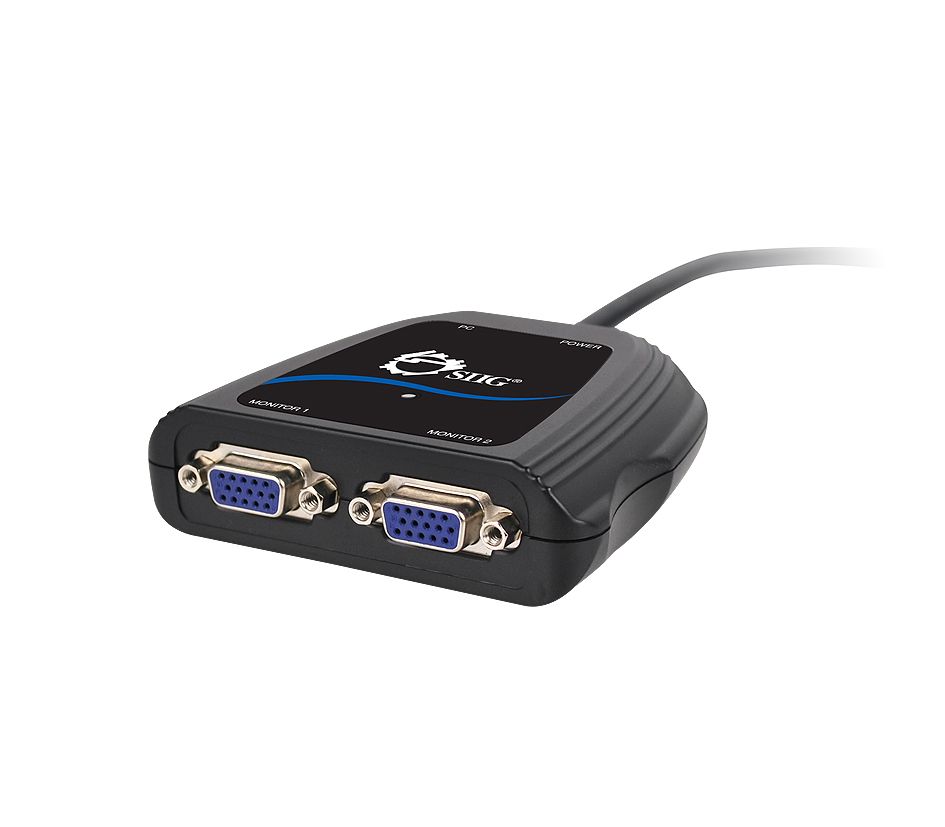

1x2 Compact VGA Splitter
VGA Splitter
1 In / 2 Out
1920x1440 60Hz
300MHz
Compact Design
Regular price
$49.99
Unit price
/
Unavailable
Shipping calculated at checkout.
1x2 Compact VGA Splitter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features

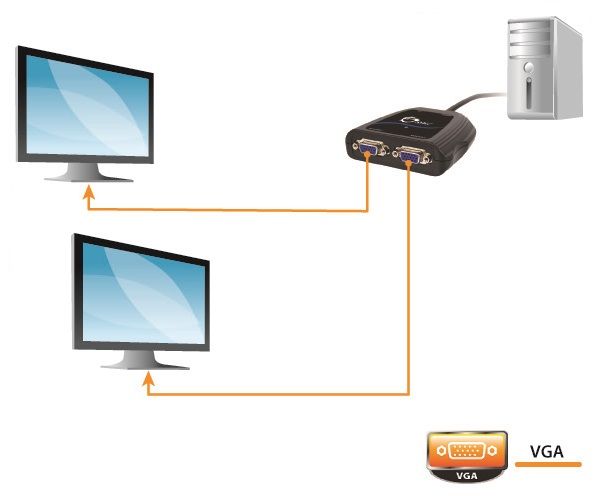

2-port VGA Signal Splitter
2-port VGA Signal Splitter
High Resolution Support
High Resolution Support
Strong Signal Performance
Strong Signal Performance
Long-Distance Transmission
Long-Distance Transmission
Expandable & Compact Design
Expandable & Compact Design
No content found
| Chipset | LCHG B399 + 0E46 HC125 |
| Monitor resolution | Supports VGA, SVGA, XGA, UXGA, and multi-sync monitors |
| Resolution | Supports up to 1920x1440 resolution |
| Video bandwidth | 300MHz |
| Distance | Extends video signal up to 50M (164ft) including the embedded cable |
| Display mode | Mirror |
| Daisy chain | Daisy-chainable to expand beyond 2 monitors |
| Cable length | Embedded cable length: 34.5" (+/- 0.5") |

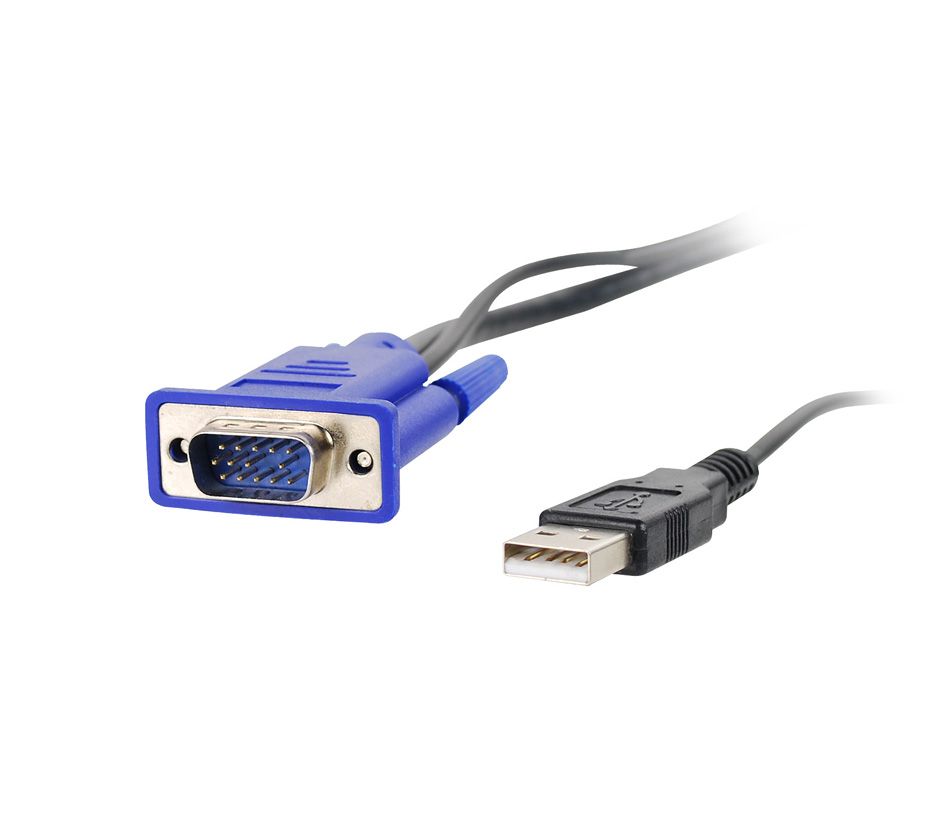

| Connector | 1, VGA, DB15, Male, Input 1, USB, Type A, Male, Power, Input 2, VGA, DB15, Female, Output |
| Product | |
| Dimensions | 3.53″ (W) x 0.98″ (H) x 2.94″ (D) |
| Weight | 0.36 lbs |
| Color | Black |
| Housing material | Plastic |
| Unit package | |
| Dimensions | 7.09″ (W) x 0.98″ (H) x 10.24″ (D) |
| Weight | 0.40 lbs |
| Master carton | |
| Dimensions | 16.14″ (W) x 11.81″ (H) x 12.20″ (D) |
| Weight | 20.72 lbs |
| Quantity | 50 pcs/ctn |
| Package contents | 1x2 Compact VGA Splitter Rubber pads (4pcs) Installation guide |
| Environmental Conditions | |
| Operating temperature | 32 to 104 degrees F |
| Storage temperature | 23 to 158 degrees F |
| Relative humidity | 10 to 90% RH (non-condensing) |
| Certifications/Standards | FCC, RoHS |
| UPC code | 662774013114 |
| Warranty | 2 years limited |
| Country of Origin | Engineered in USA , Manufactured in China |
Q1: Can this extend to 2 different screens?
Q1: Can this extend to 2 different screens?
A1: No, it can not extend to 2 different screens. All splitter outputs will always have the same screens.
