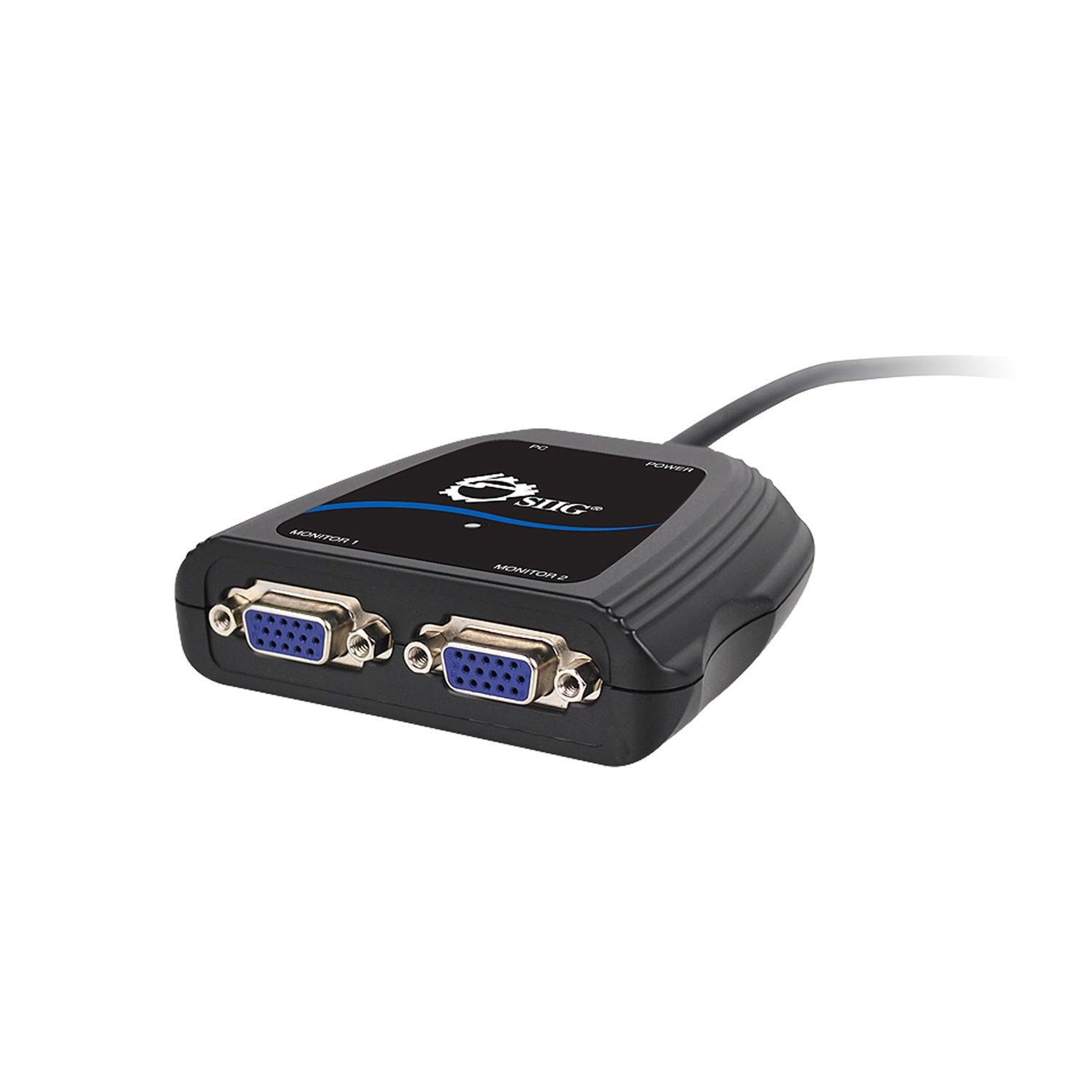

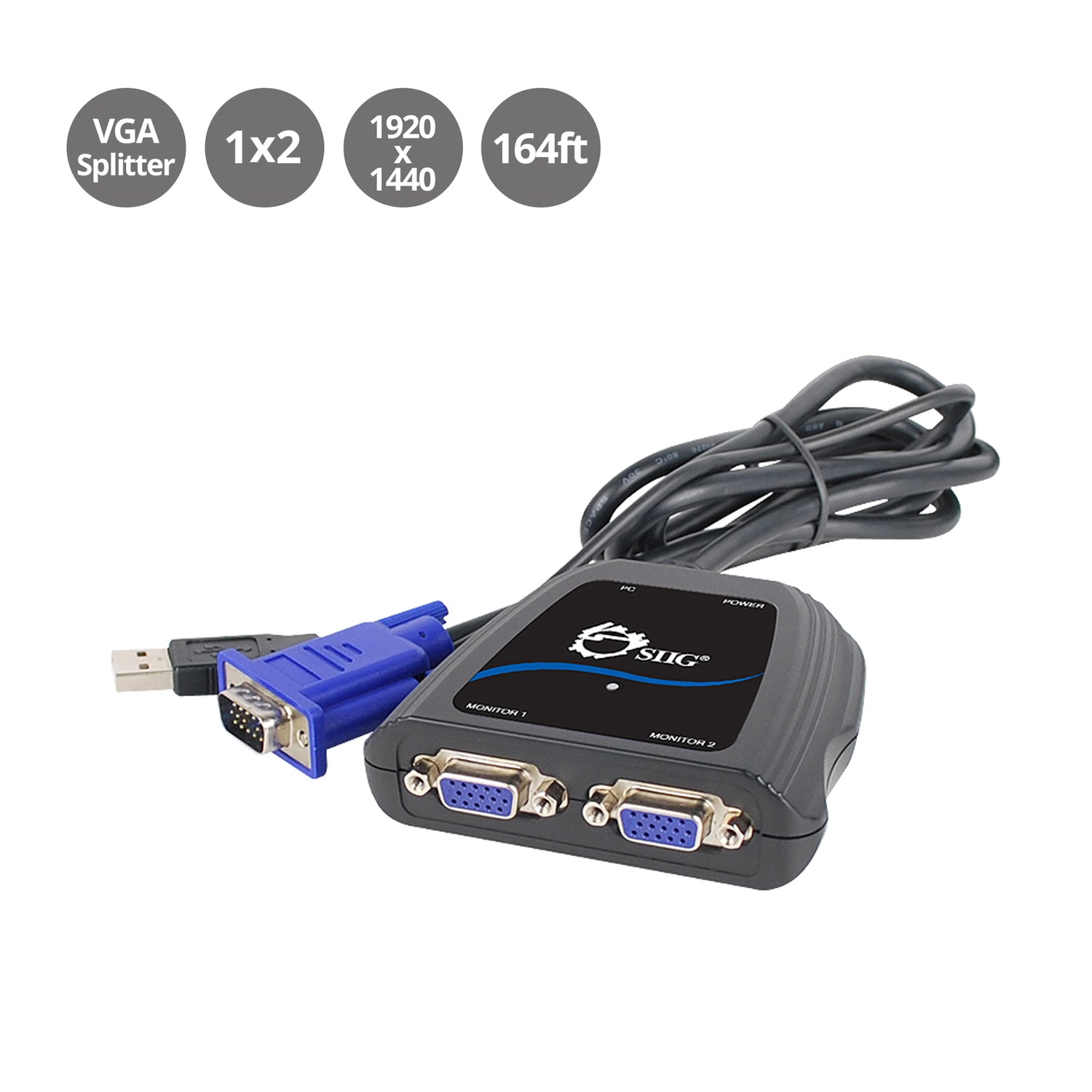

1x2 Compact VGA Splitter
1x2 Compact VGA Splitter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
2-port VGA Signal Splitter
2-port VGA Signal Splitter
High Resolution Support
High Resolution Support
Strong Signal Performance
Strong Signal Performance
Long-Distance Transmission
Long-Distance Transmission
Expandable & Compact Design
Expandable & Compact Design
1x2 Compact VGA Splitter
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
| Hardware | |
| Chipset | LCHG B399 + 0E46 HC125 |
| Video | |
| Bandwidth | 300MHz |
| Resolution | Up to 1920x1440 |
| Monitor Mode | VGA, SVGA, XGA, UXGA, and multi-sync monitors |
| Transmission Distance | Up to 164ft (50m) including the embedded cable |

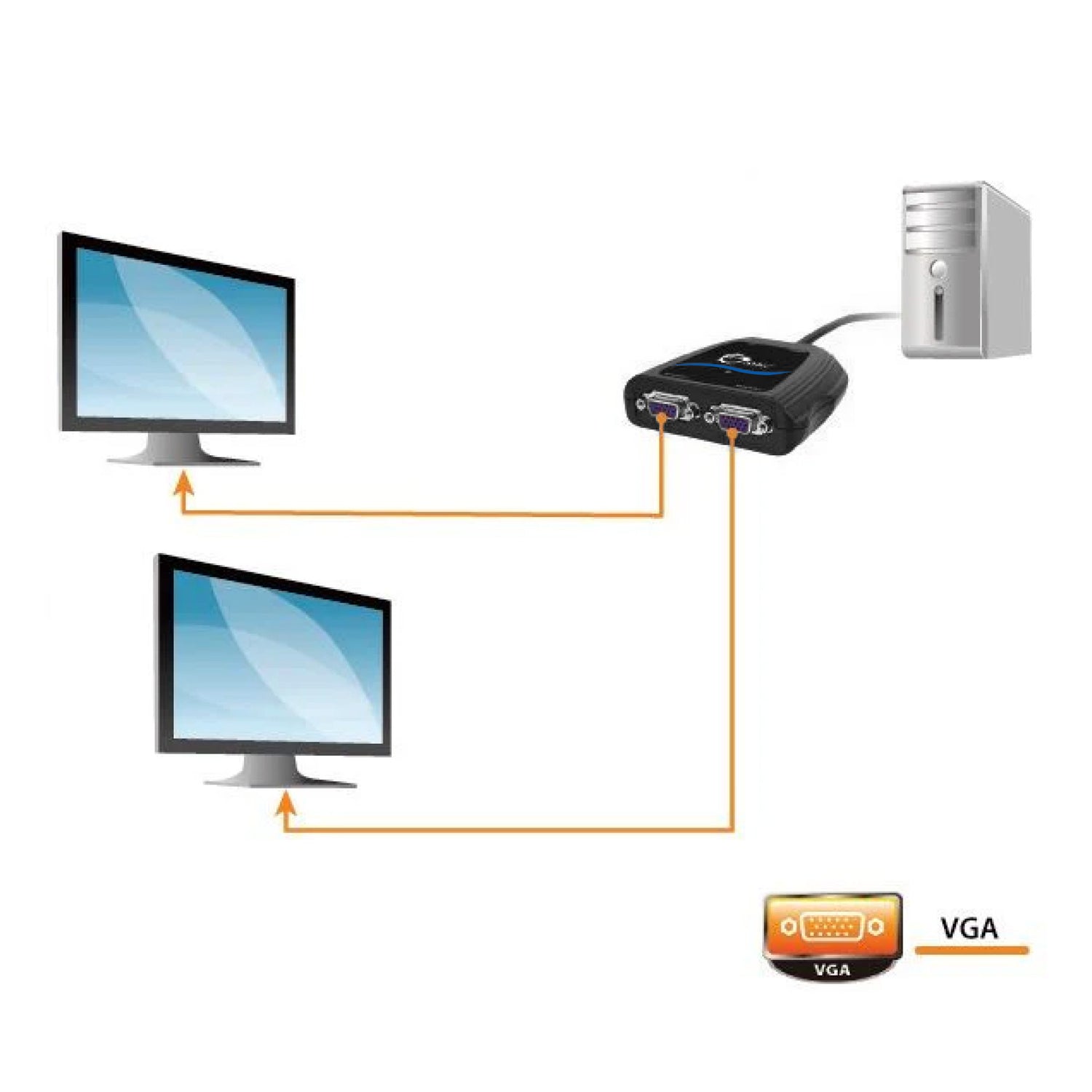

| Display Mode | Mirror |
| Daisy chain | Daisy-chainable to expand beyond 2 monitors |
| Cable Length | 34.5" (+/- 0.5") Embedded |

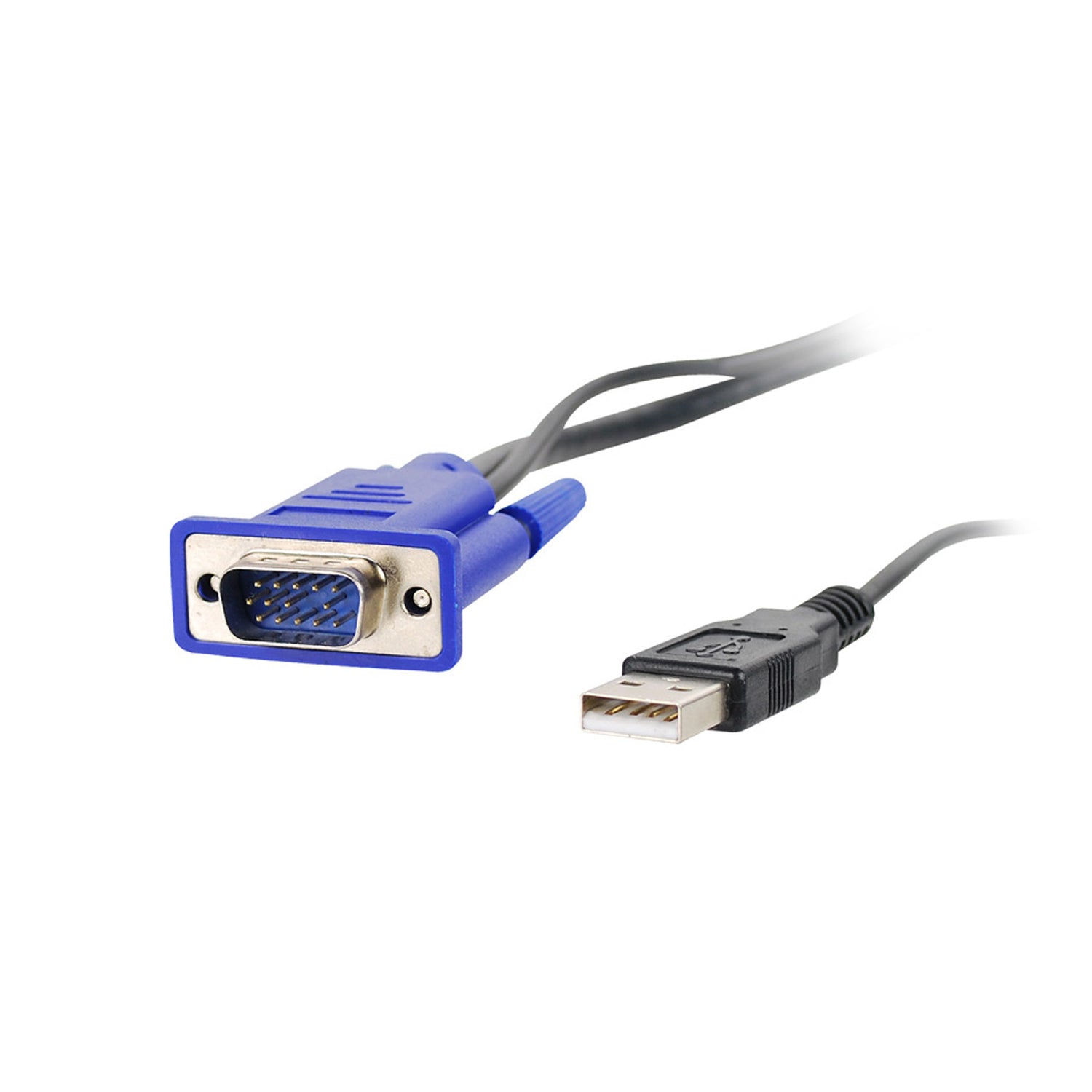

| Interface | 1x VGA, DB15, male, input 1x USB, Type A, for power, male, input 2x VGA, DB15, female, output |
| Package Contents | 1x2 Compact VGA Splitter 4x Rubber pads 1x Installation guide |
| Certifications/Standards | FCC, RoHS |
| UPC Code | 662774-013114 |
| Warranty | 2 years limited |
| Country of Origin | China |
| Product | |
| Dimensions (L) x (H) x (W) | 3.53″ x 0.98″ x 2.94″ 8.97 cm x 2.49 cm x 7.47 cm |
| Weight | 0.36 lb (0.16 kg) |
| Color | Black |
| Housing Material | Plastic |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 7.09″ x 0.98″ x 10.24″ 18.01 cm x 2.49 cm x 26.01 cm |
| Weight | 0.40 lb (0.18 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 16.14″ x 11.81″ x 12.20″ 41.00 cm x 30.00 cm x 30.99 cm |
| Weight | 20.72 lbs (9.40 kg) |
| Quantity | 50 pcs/ctn |
| Environmental Conditions | |
| Operating Temperature | 32° to 104° F |
| Storage Temperature | 23° to 158° F |
| Relative Humidity | 10% to 90% RH (non-condensing) |
