Splitter |
SKU:
CE-H21Q11-S1

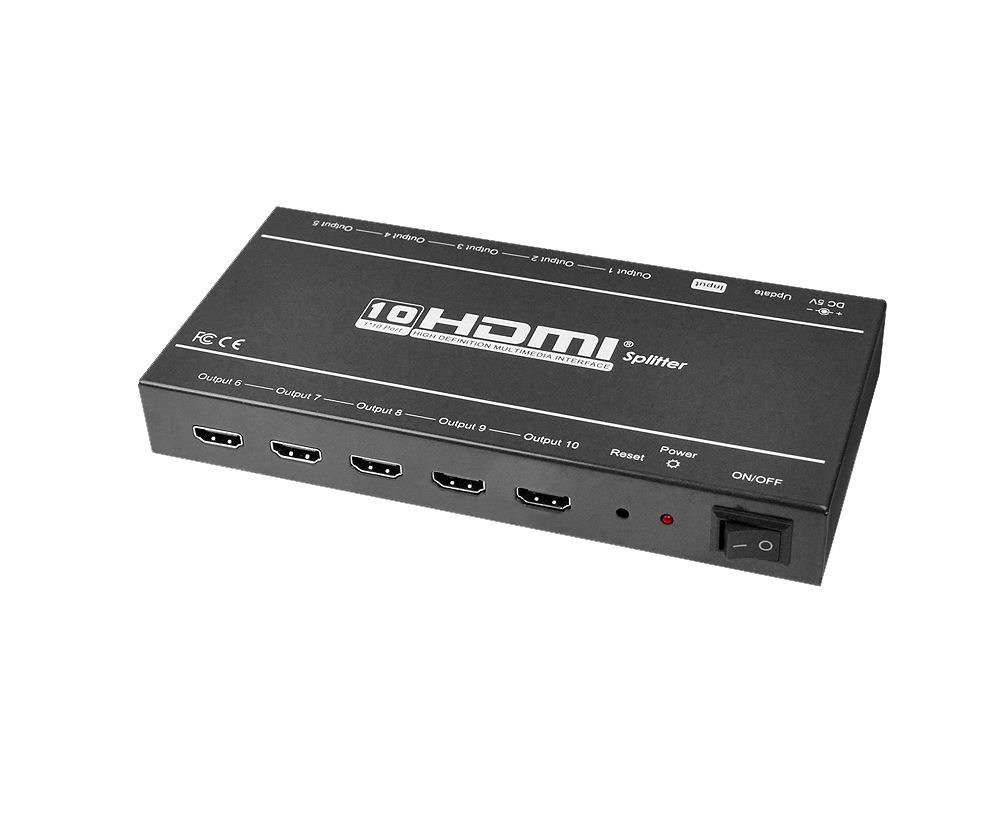

1x10 HDMI Splitter with 3D and 4Kx2K
HDMI Splitter
1 In / 10 Out
4K30Hz
USB Firmware Update
Metal Housing
Regular price
$299.99
Unit price
/
Unavailable
Shipping calculated at checkout.
1x10 HDMI Splitter with 3D and 4Kx2K is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
4K Ultra HD & Full HD Support
4K Ultra HD & Full HD Support
Advanced HDMI Features
Advanced HDMI Features
High-Speed Performance
High-Speed Performance
Premium Build & Easy Setup
Premium Build & Easy Setup
Wide Audio & Format Compatibility
Wide Audio & Format Compatibility
No content found
| Chipset | Lontium LT86104EX |
| Standard | Compliant with HDCP 1.4 |
| Resolution | Supports resolution 480i, 480P, 576i, 720p, 1080i, 1080p, 4Kx2K |
| Wide frequency range | 25MHz to 340MHz |
| Video bandwidth | 10.2Gbps |
| Display mode | Mirror |
| Audio support | Standard, DSD and HD (HBR) |
| Input TMDS signal | 1.2V (peak-to-peak) |
| Input DDC signal | 5V (peak-to-peak, TTL) |
| Transmission distance | Up to 20 meters (5m input, 15m output) |
| LED | Power LED indicator |

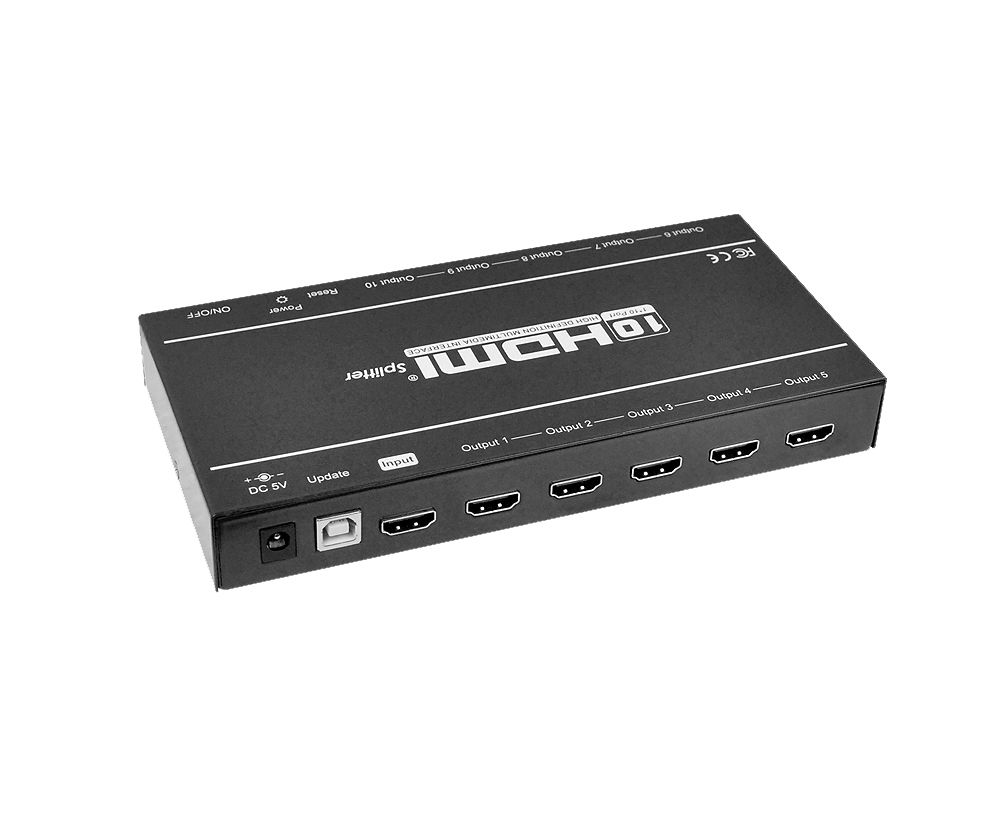

| Connector | 1x 19-pin, HDMI, Type A, Female, Input 10x 19-pin, HDMI, Type A, Female, Output 1x 4-pin, USB, Type B, Female, Firmware update |
| Power Adapter | |
| Input | 100-240VAC, 50/60 Hz |
| Output | 5V/3A |
| Product | |
| Dimensions | 7.68"(W) x 3.78"(H) x 1.08"(D) |
| Weight | 0.95 lbs |
| Color | Black |
| Housing | Metal |
| Unit package | |
| Dimensions | 10.38″(W) x 3.06″(H) x 6.88″ (D) |
| Weight | 1.87 lbs |
| Master carton | |
| Dimensions | 15.94″(W) x 14.17″(H) x 11.81″(D) |
| Weight | 20.94 |
| Quantity | 10 pcs/ctn |
| Package contents | 1x10 HDMI Splitter with 3D and 4Kx2K Power adapter Housing rubber pads (4) Installation guide |
| Environmental conditions | |
| Operating temperature | 32 to 158 degrees F |
| Storage temperature | 14 to 176 degrees F |
| Relative humidity | 0 to 90% RH (non-condensing) |
| Certifications/Standards FCC, CE, RoHS | |
| Warranty | 3 years limited |
| Country of origin | Engineered in USA , Manufactured in China |

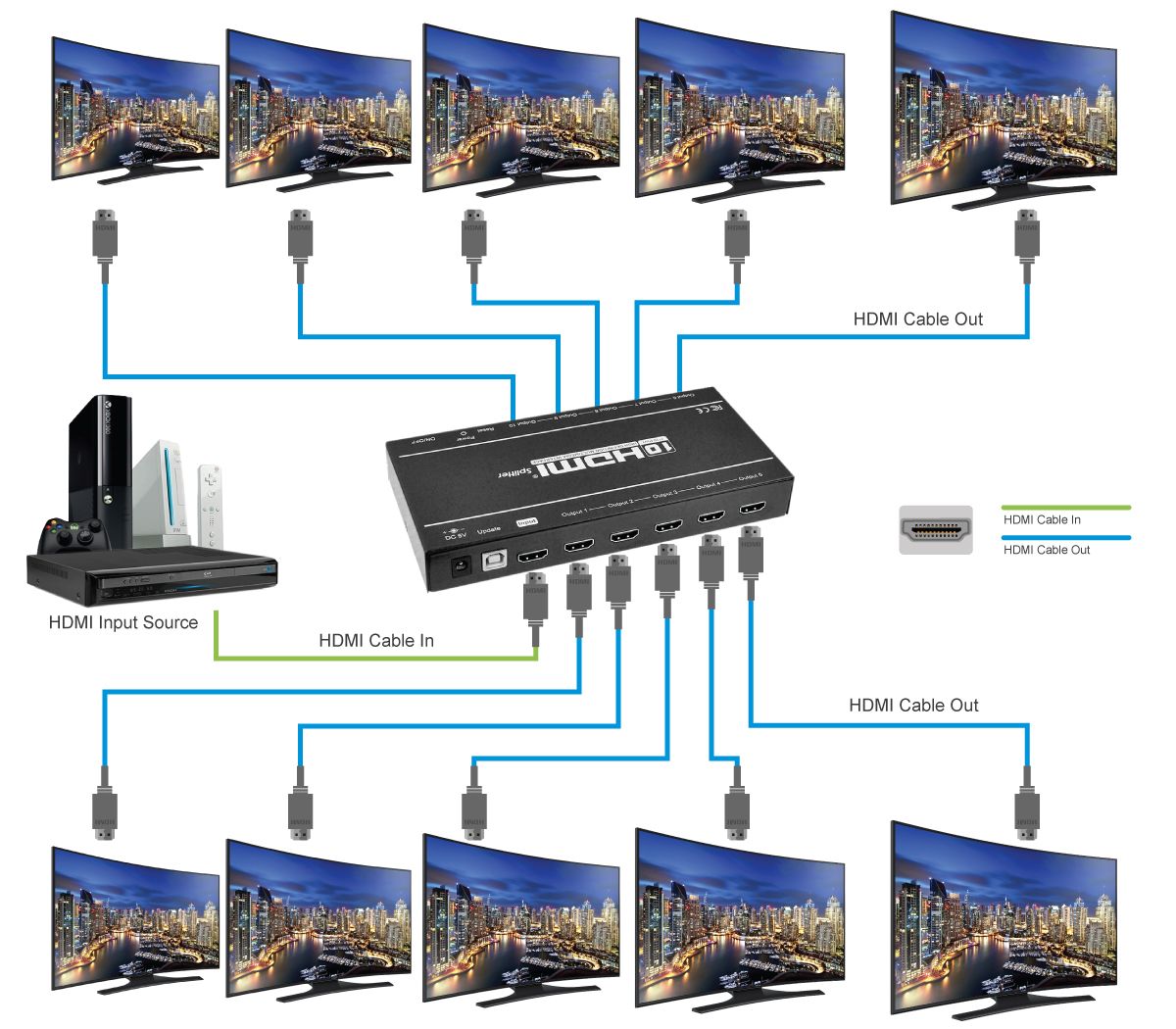

Q1: Can this extend to 10 different screens?
Q1: Can this extend to 10 different screens?
A1: No, it can not extend to 10 different screens. All splitter outputs will always have the same screens.
