AV-Converter/Adapter |
SKU:
CE-SD0E11-S1
12G-SDI to HDMI Converter
SDI to HDMI Converter
4K60Hz
12G SDI
SDI Loopout
TAA Compliant
Regular price
$799.99
Unit price
/
Unavailable
Shipping calculated at checkout.
12G-SDI to HDMI Converter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Lossless Conversion
Lossless Conversion
SDI Loop-Out
SDI Loop-Out
Audio Extraction
Audio Extraction
Long Cable Distance
Long Cable Distance
Future Compatibility
Future Compatibility
No content found
| SDI signal | 12G / 6G / 3G / HD / SD-SDI standard |
| Bandwidth | Up to 11.88Gbps |
| Video | |
| Input | - 12G-SDI: 4Kx2K 50 / 59.94 / 60Hz (4:2:2) - 6G-SDI: 4Kx2K 23.98 / 24, 25, 29.97, 30Hz (4:2:2) - 3G-SDI: 1080p 60 / 59.94 / 50Hz - HD-SDI: 720p 50 / 59.94 / 60Hz, 1080i 50 / 59.94 / 60Hz, 1080p 23.98 / 24 / 25 / 29.97 / 30Hz (4:2:2) - SD-SDI: NTSC 59.94Hz, PAL 50Hz |
| Output | HDMI up to 4Kx2K 60Hz (4:4:4 8bits) |

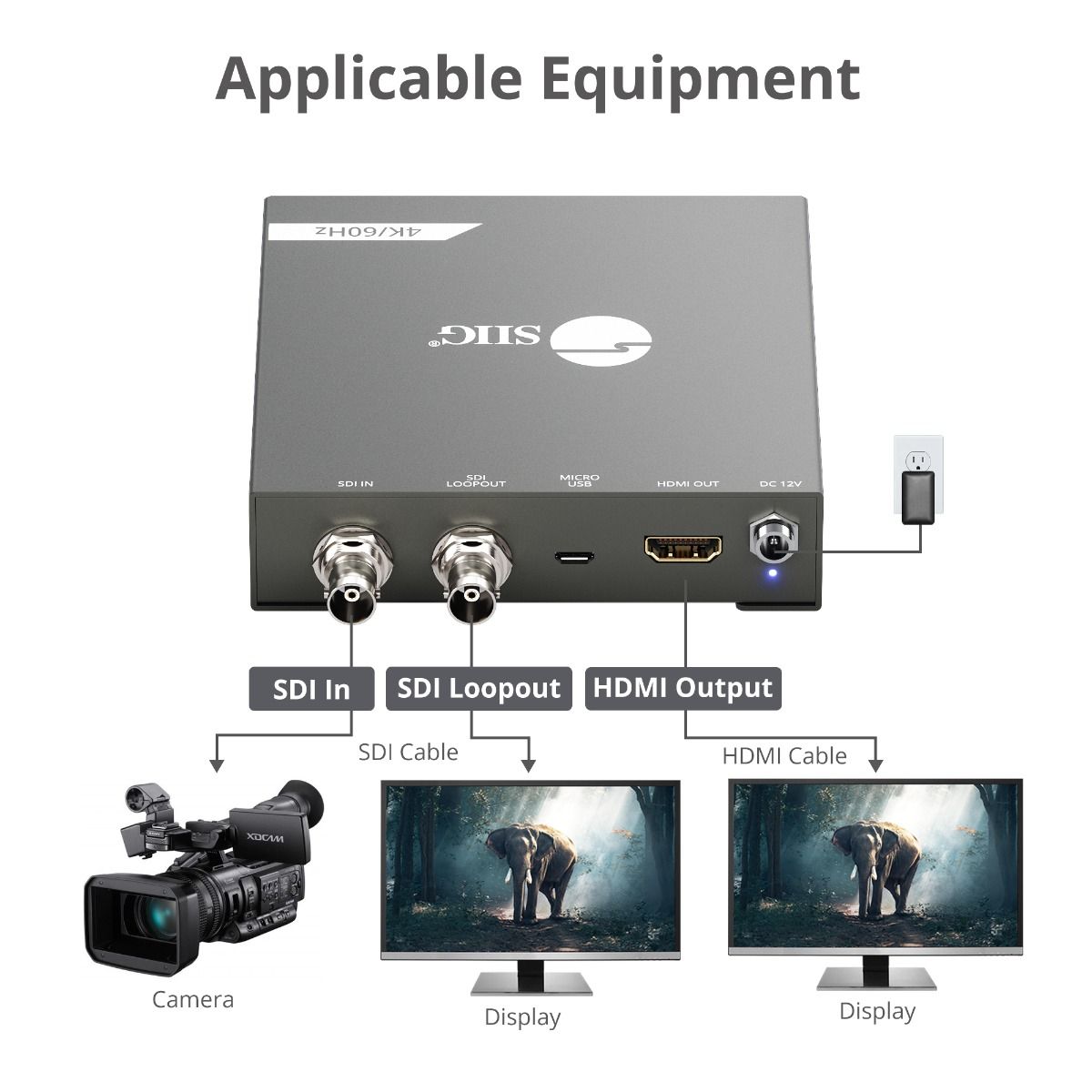

| Connectors | 1x SDI BNC, female, input 1x 5-pin Micro USB, FW update, female, input 1x 19-Pin, HDMI Type-A, female, output 1x SDI BNC, female, output |
| Power Supply | |
| Input | 100-240VAC, 50/60 Hz |
| Output | DC 12V/2A |
| UL Listed | E163743/ Level: VI |

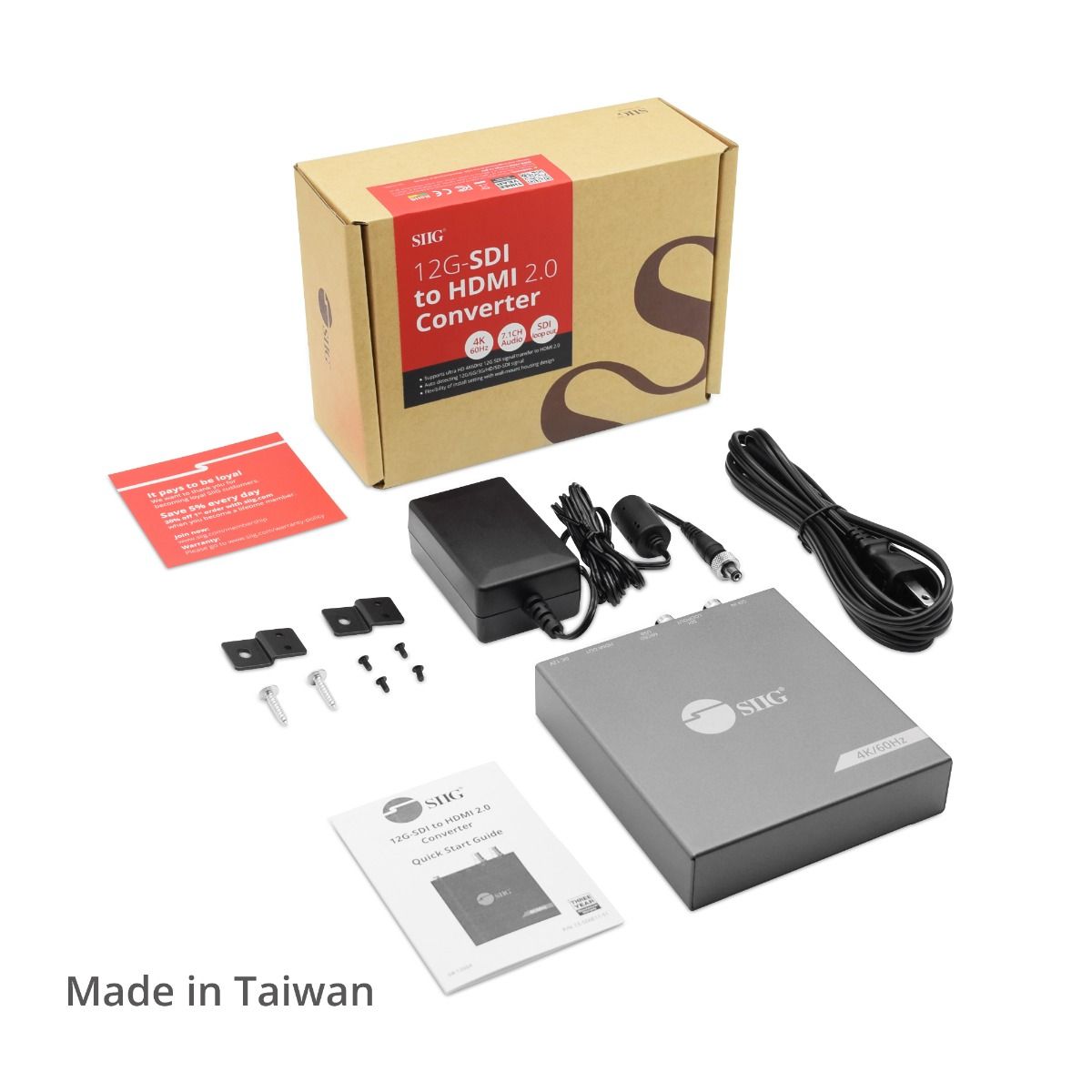

| Package Contents | 1x 12G-SDI to HDMI Converter 1x Power adapter 1x Power cord 2x Mounting ear 4x Screw kit (3x6mm) 2x Screw Kit (4x20mm) 1x User reference guide |
| Certifications/Standards | FCC, CE, RoHS, TAA Compliant |
| UPC Code | 662774-043401 |
| Product | |

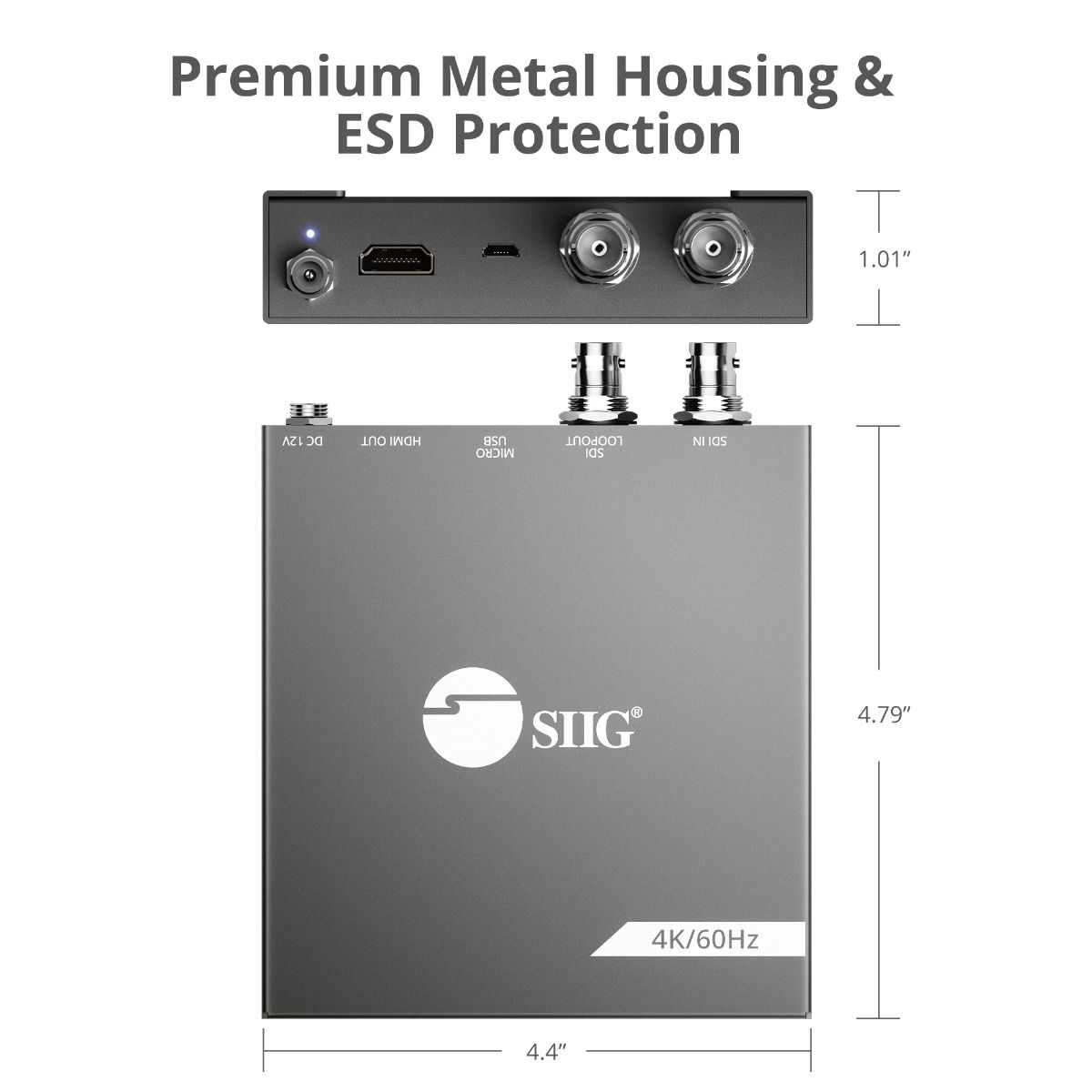

| Dimensions (L) x (H) x (W) | 5.51″ x 1.06″ x 4.49″ 14.00 cm x 2.69 cm x 11.40 cm |
| Weight | 0.51 lb (0.23 kg) |
| Color | Gray |
| Housing Material | Metal |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 7.80″ x 2.91″ x 5.39″ 19.81 cm x 7.39 cm x 13.69 cm |
| Weight | 1.34 lbs (0.61 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 16.54″ x 11.81" x 15.75″ 42.01 cm x 30.00 cm x 40.00 cm |
| Weight | 31.86 lbs (14.45 kg) |
| Quantity | 20 pcs/ctn |
| Environmental Conditions | |
| Operating Temperature | 32 to 104 degrees F |
| Storage Temperature | -4 to 140 degrees F |
| Relative Humidity | 20% to 90% RH (non-condensing) |
| Warranty | 3 years limited |
| Country of Origin | Taiwan |
