Wireless |
SKU:
CE-H24E11-S1

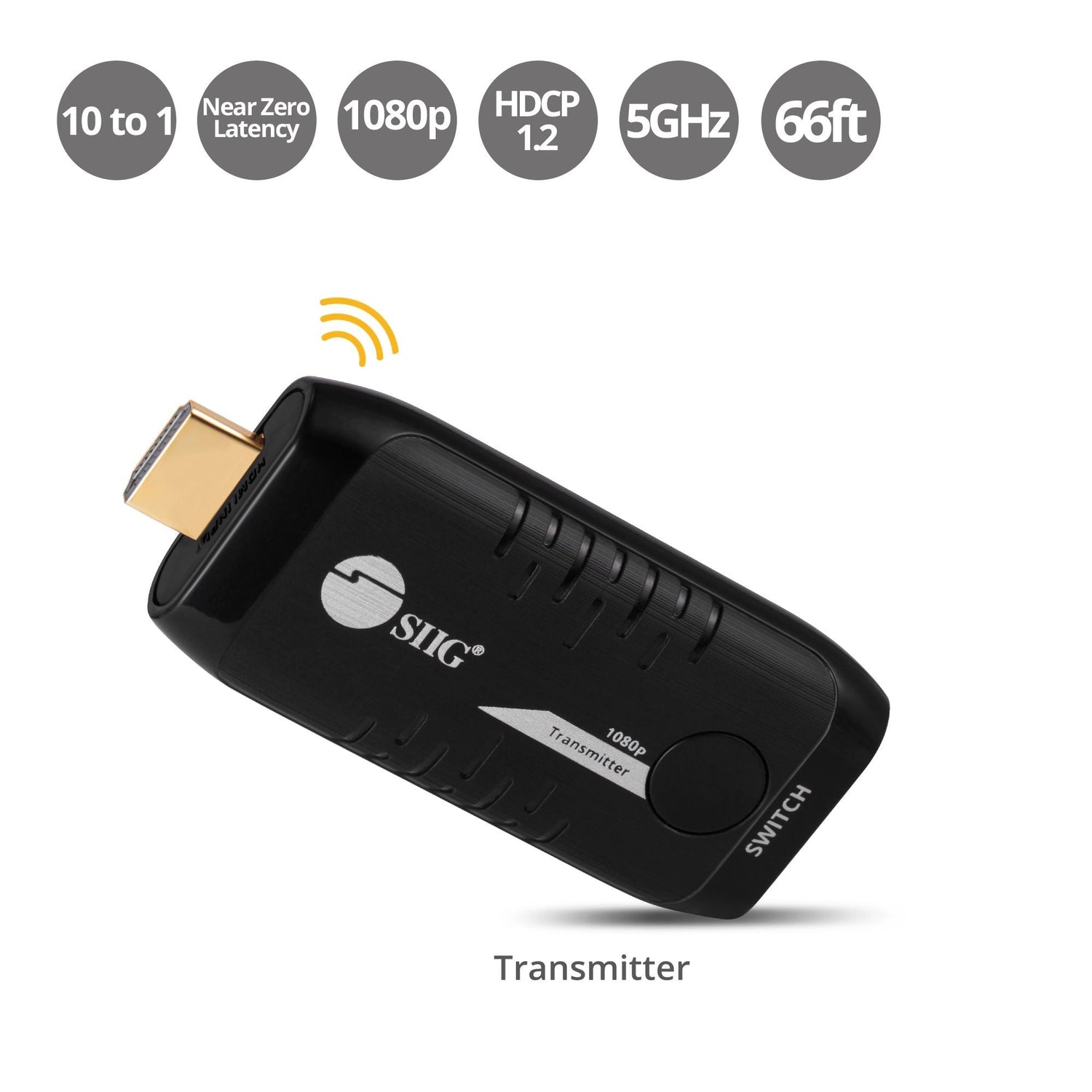

10x1 1080p Wireless HDMI Extender - Transmitter
HDMI
10 to 1
Wireless
Extender
1080p
Regular price
$227.99
Unit price
/
Unavailable
Shipping calculated at checkout.
10x1 1080p Wireless HDMI Extender - Transmitter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Transmitter (TX) Unit
Transmitter (TX) Unit
Up to 10 Displays
Up to 10 Displays
Stunning Video Quality
Stunning Video Quality
Easy Installation
Easy Installation
Switch Button
Switch Button
No content found
| Wireless Technology | 5GHz |

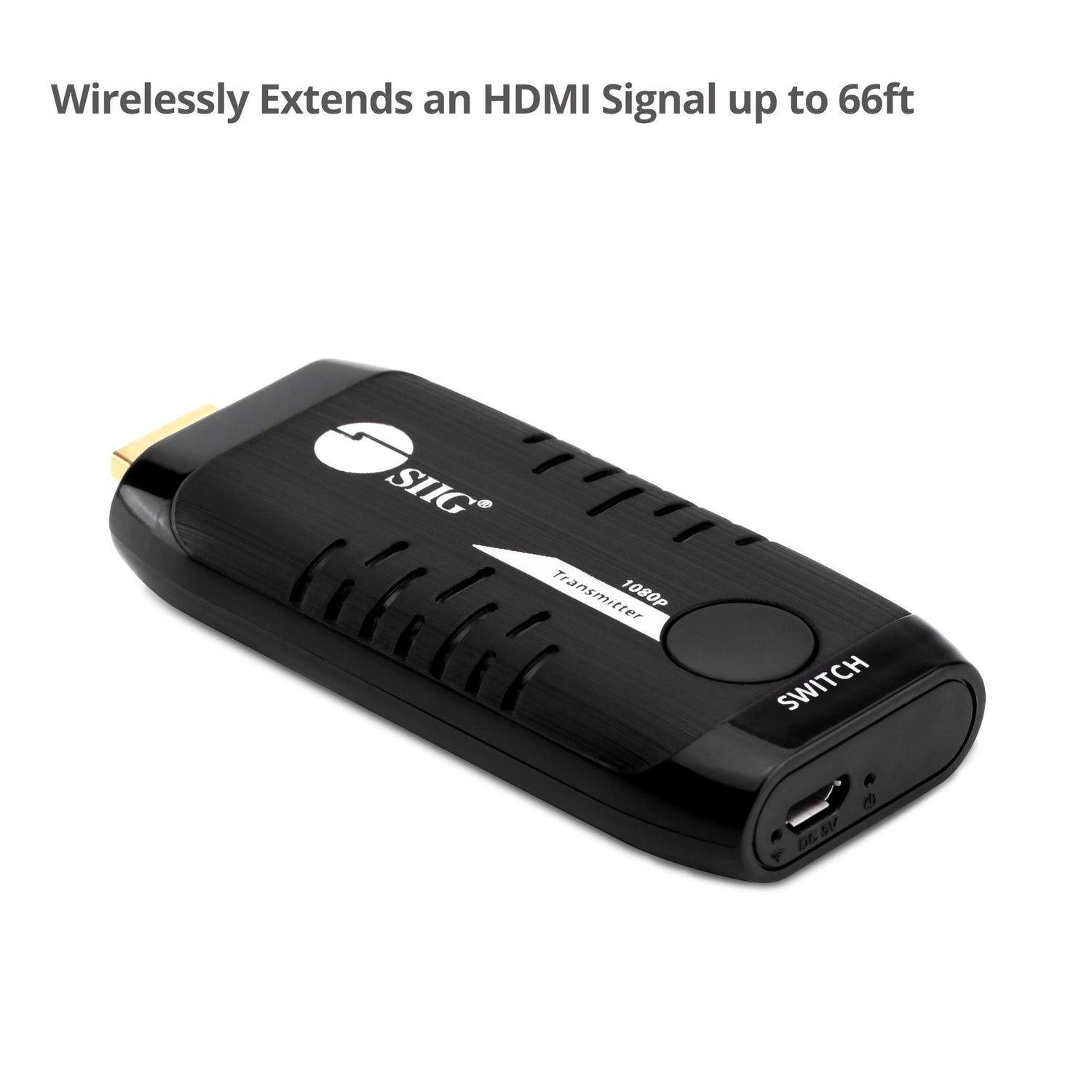

| Transmission Distance | Up to 66 feet (20 meters) maximum *Note: Distance will vary based on layout, interference, walls, and other environmental conditions |
| Video | |
| Standard | HDCP 1.2 compliant |
| Resolution] | 480p / 720p / 1080i / 1080p 60Hz |

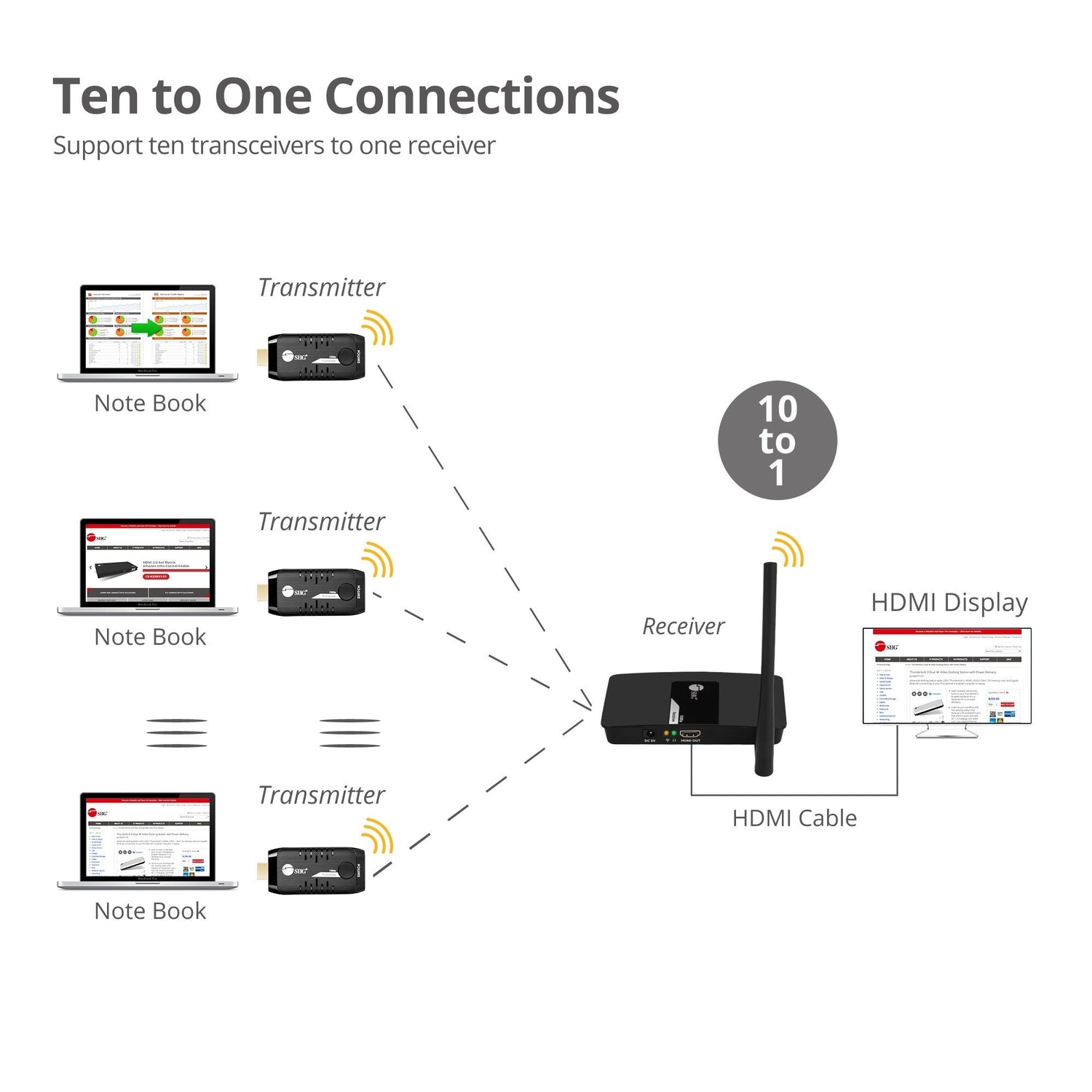

| Supported Topology | Extender: 1x1 (1 Transmitter to 1 Receiver) Switch: Up to 10x1 (10 Transmitters to 1 Receiver) |
| Audio | 2-Ch PCM stereo audio |

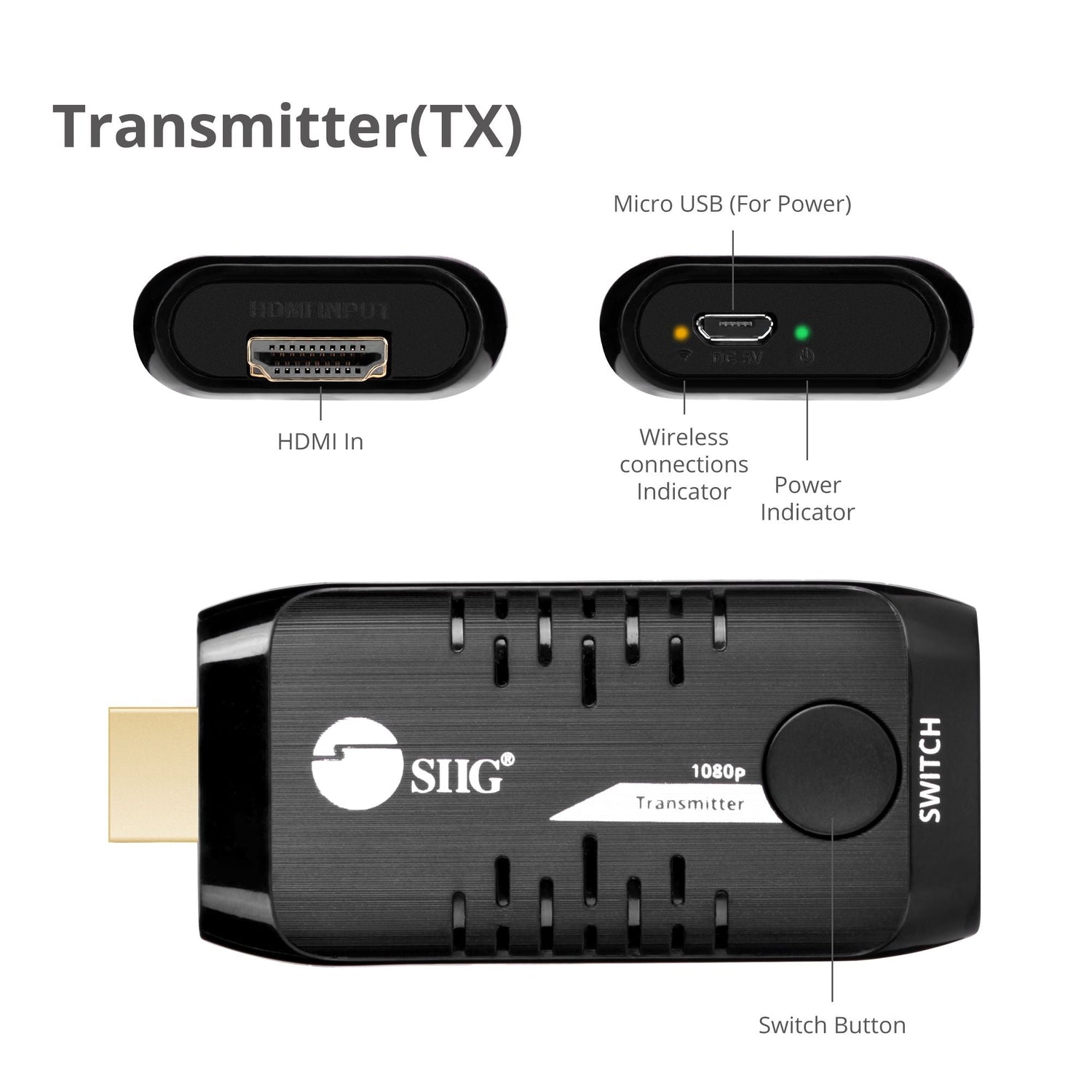

| Interface | 1x 19-pin HDMI, Type A, male, input 1x 5-pin Micro USB, Power input 1x Switch button |
| System Requirements | - Requires one 10x1 1080p Wireless HDMI Extender - Kit, part # CE-H24D11-S1 (ordered separately) - Additional Transmitters available for 10x1 switch topology (ordered separately) |

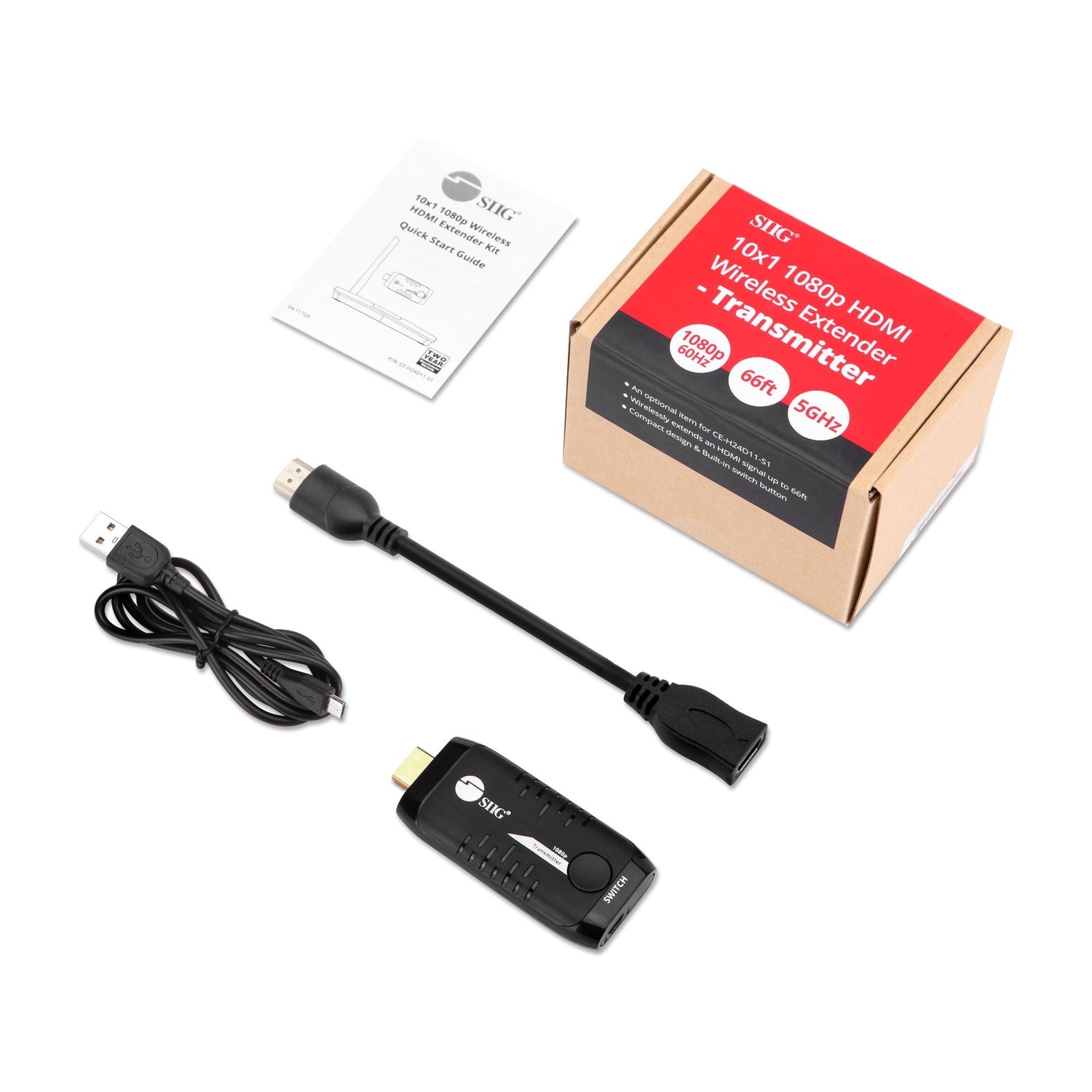

| Package Contents | 1x 10x1 1080p Wireless HDMI Extender - Transmitter 1x HDMI Extension cable 1x Micro USB cable 1x User reference guide |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-042244 |
| Warranty | 2 years limited |
| Country of Origin | China |
| Product | |

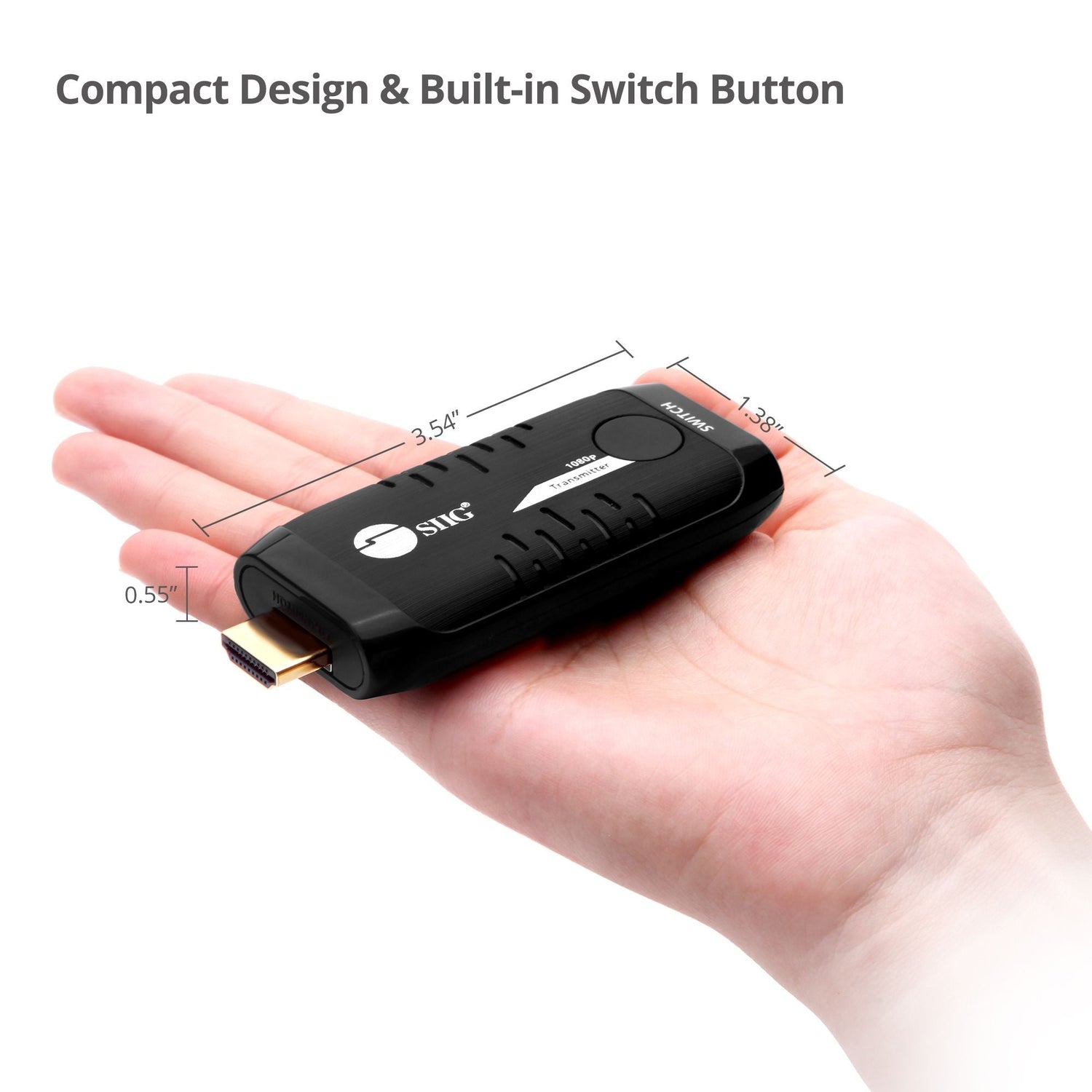

| Dimensions (L) x (H) x (W) | 3.46" x 1.50" x 0.59" 8.79 cm x 3.81 cm x 1.50 cm |
| Weight | 0.07 lb (0.03 kg) |
| Color | Black |
| Housing Material | Plastic |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 4.72″ x 3.03″x 3.31″ 11.99 cm x 7.70 cm x 8.41 cm |
| Weight | 0.33 lb (0.15 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 16.93″ x 12.99″ x 14.96″ 43.00 cm x 32.99 cm x 38.00 cm |
| Weight | 18.14 lbs (8.23 kg) |
| Quantity | 50 pcs/ctn |
| Environmental Conditions | |
| Operating Temperature | 32° to 122° F |
| Storage Temperature | 14° to 140° F |
| Relative Humidity | 0% to 90% RH (non-condensing) |
