Wireless-N Mini USB Wi-Fi Adapter
Wireless-N Mini USB Wi-Fi Adapter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
MIMO Technoloty
MIMO Technoloty
2.4GHz
2.4GHz
Operating Distance:
Operating Distance:
Wireless Protocol
Wireless Protocol
AD Hoc
AD Hoc
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
| Chipset | RTL8188EUS |
| USB Compliance | Compliant with USB 2.0 specification and backward compatible with USB 1.1 |
| Security Features | Enhanced WEP and WPA wireless security for protected Internet access |
| WiFi Standards | Compliant with IEEE 802.11n (draft), 802.11g, 802.11b standards |
| Setup | WiFi Protected Setup (WPS) simplifies setup and operation |
| Frequency Band | 2.4GHz ISM (Industrial Scientific Medical) Band |
| RF Frequency | 2.412 GHz to 2.484 GHz |
| Radio Channel | 1 to 14 channels (Universal Domain Selection) |
| RF Output Power | 13 to 17 dBm (Typical) |
| Modulation | |
| 11n | BPSK, QPSK, 16QAM, 64QAM with OFDM |
| 11g | BPSK, QPSK, 16QAM, 64QAM, OFDM |
| 11b | DQPSK, DBPSK, DSSS, CCK |
| Security | - 64/128-bit WEP encryption - WPA/WPA2, WPA-PSK/WPA2-PSK encryptions, TKIP/AES - Wi-Fi Protected Setup (WPS) |
| Data Rate | |
| 802.11n | up to 150Mbps downlink and uplink |
| 802.11g | 54 / 48 / 36 / 24 / 18/ 12 / 9 / 6 Mbps auto fallback |
| 802.11b | 11 / 5.5 / 2 / 1 Mbps auto fallback |
| Media Access Control | CSMA/CA with ACK |
| LED Indicator | Link/Active (Blue) |
| Interface | 1x USB 2.0 Type A |
| Product | |
| Dimensions (L) x (H) x (W) | 0.82" x 0.59" x 0.31" 2.08 cm x 1.50 cm x 0.79 cm |
| Weight | 0.01 lbs (4.54×10-3 kg) |
| Color | Black |
| Material | Plastic |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 4.33" x 6.69" x 0.67" 11.00 cm x 17.00 cm x 1.70 cm |
| Weight | 0.10 lbs (0.05 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 14.17" x 12.60" x 9.45" 36.00 cm x 32.00 cm x 24.00 cm |
| Weight | 11.02 lbs (5.00 kg) |
| Quantity | 100pcs/ctn |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-026282 |
| Warranty | 2 years limited |
| Country of Origin | China |
| System Requirements | - Laptop or desktop computer with an available USB port - Windows® 10 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) - Windows Server 2016 / Server 2012 (32-/64-bit) / 2008 R2 / Server 2008 & 2003 (32-/64-bit) - Mac OS X® 10.4 to 10.8.x |

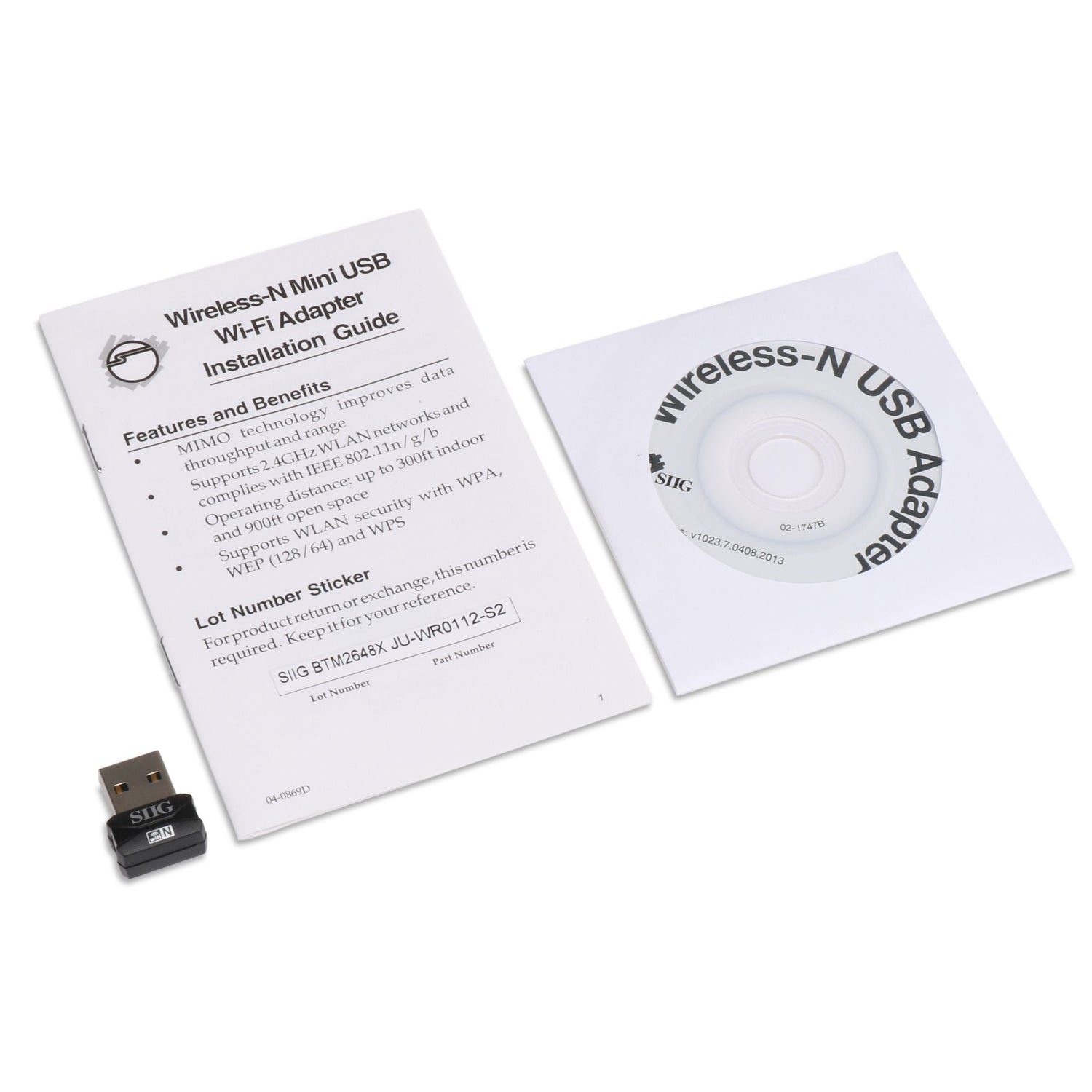

| Package Contents | 1x Wireless-N Mini USB Wi-Fi Adapter 1x Driver CD 1x Installation guide |
