IT-Converter/Adapter |
SKU:
CB-TC0711-S1

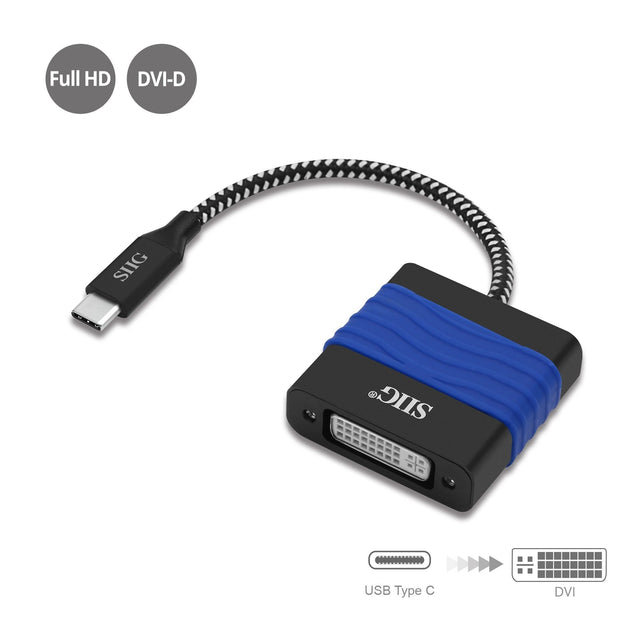

USB Type-C to DVI Video Cable Adapter
USB-C Video Adapter
USB-C to DVI
DP Alt Mode
1080p 60Hz
Triple Display Mode
Regular price
$34.99
Unit price
/
Unavailable
Shipping calculated at checkout.
USB Type-C to DVI Video Cable Adapter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
USB-C to DVI Adapter
USB-C to DVI Adapter
Video Resolution
Video Resolution
Flexible Display Modes
Flexible Display Modes
Compact & Travel-Friendly
Compact & Travel-Friendly
Plug & Play Simplicity
Plug & Play Simplicity
No content found
| Hardware | |
| Chipset | PS171 |
| Video | |
| Standard | DisplayPort 1.2 compliant |
| Resolution | 720p, 1080p and up to 1920x1200 60Hz |
| Transmission Distance | DVI cable: up to 16ft (5m) |
| DVI Signal | DVI-D single link |
| Interface | Input: 1x USB Type-C, male Output: 1x 29-Pin, DVI-D, female |
| System Interface | USB Type-C DisplayPort Alt Thunderbolt 3™ technology |
| System Requirements | - Laptops, Desktops and Ultrabooks with an available Thunderbolt 3 or USB-C with DisplayPort alternate mode port* - DVI-D display *Note: The USB-C source connection must support DisplayPort Alternate Mode (DP Alt) in order for the adapter's DVI connector to pass video signal |
| Package Contents | USB Type-C to DVI Cable Adapter |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-041308 |
| Warranty | 2 years limited |
| Country of Origin | China |
| Product | |
| Dimensions (L) x (H) x (W) | 1.73″ x 0.57″ x 1.73″ 4.39 cm x 1.45 cm x 4.39 cm |
| Weight | 0.08 lbs (0.04 kg) |
| Color | Black |
| Rubber Ring | Blue |
| Housing Material | Aluminum |
| Connector Plating | Nickel-plated |
| Cable Length (Embedded) | 5.91", SR to SR (15.01 cm) |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 6.30″ x 9.37″ 16.00 cm x 23.80 cm |
| Weight | 0.10 lbs (0.05 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 19.29″ x 9.10″ x 15.16″ 49.00 cm x 23.11 cm x 38.51 cm |
| Weight | 14.33 lbs (6.50 kg) |
| Quantity | 120 pcs/ctn |
| Environmental Conditions | |
| Operating Temperature | 32° to 140° F |
| Storage Temperature | 14° to 158° F |
| Relative Humidity | 10% to 90% RH (non-condensing) |
