Docking Station |
SKU:
JU-DK0B11-S1
USB-C Triple 4K Video Docking Station with 100W Power Delivery
USB-C Docking Station
Triple Video
Dual DP / One HDMI
4K60Hz
PD 100W
Regular price
$279.99
Unit price
/
Unavailable
Shipping calculated at checkout.
USB-C Triple 4K Video Docking Station with 100W Power Delivery is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Extremely Powerful
Extremely Powerful
Power Delivery 100W
Power Delivery 100W
Leading Display Technology From Displaylink
Leading Display Technology From Displaylink
Multi-Port
Multi-Port
Wide Compatibility
Wide Compatibility
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
No content found
| Standards | - Compliant with HDMI 1.4 and DisplayPort 1.2 specification - Compliant with Universal Serial Bus 3.0 and 2.0 specification |
| Resolution | DisplayPort: Up to 3840x2160 @60Hz DisplayPort: Up to 5K when connecting both DP outputs to a single 5K DisplayPort display HDMI: Up to 4K (3840x2160) @30Hz Note: HDMI requires DisplayPort Alternate (DP Alt) mode |
| Display Topology | 3 4K Displays simultaneously: 2x 4K/60Hz DP + 1x 4K/30Hz HDMI 2 Displays simultaneously: 1x 5K DP (through dual DP) + 1x 4K/30Hz HDMI |
| Integrated Gigabit Ethernet | Supports up to 1000 Mbps data transfer rate and is backward compatible with 10/100 Mbps |
| Audio | Supports 5.1 channel surround sound (HDMI/DisplayPort) |
| Power Delivery | PD 2.0 compatible 20/15/9/5V @ 3A or 4.25A Power output up to 100W |
| BC 1.2 Compliance | One front facing Type-A port, Output 5V/1.5A (max) |
| Supported Video Cable Length | HDMI: Up to 5m (max) DisplayPort: Up to 3m (max) |
| Power Adapter | Input: AC 100-240V/50-60Hz Output: DC 20V/7.5A (150 Watts) UL Listed: E209833 / Class VI |
| System Requirements | - Desktop or laptop computer with an available USB-C port with DP Alt Mode or Thunderbolt 3 technology Note: The docking station's HDMI output will work properly only when the USB-C port transmits DisplayPort signal (DP Alt mode) - Windows® 11 (64-bit) / 10 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit) - macOS® 10.12 to 10.13.3 / 10.14 / 10.15 / 11 / 12 - macOS 10.15.6 or later: Uninstall any legacy DisplayLink driver (v5.2.5 or earlier) and install the latest driver on SIIG's website macOS limitations - Not compatible with macOS 10.13.4 to 10.13.6. It's recommended to upgrade to Mojave 10.14 or later or stay with 10.13.3 or earlier - MacBook 2018 models (based on the Intel Coffee Lake chipset) running macOS 10.14 or 10.14.1 can experience black extended display(s) with only mouse cursor. This problem is fixed by the macOS 10.14.2 update - Does not support Movie/video playback via iTunes and HDCP protected content via Safari web browser (Netflix, Amazon Prime, Hulu, HBO Go, etc..) |
| Product | |

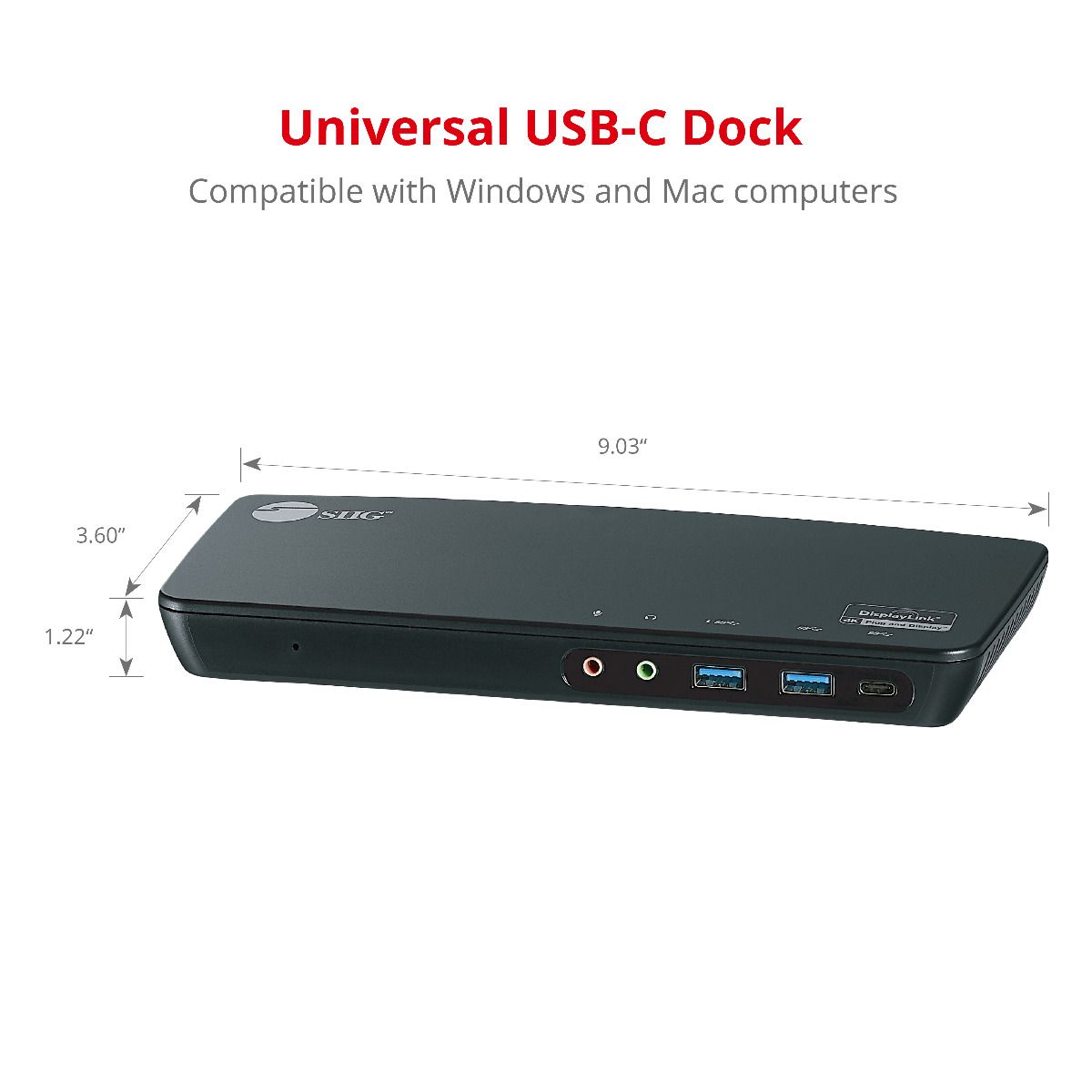

| Dimensions (L) x (H) x (W) | 9.03" x 1.22" x 3.59" 22.94 cm x 3.1 cm x 9.12 cm |
| Weight | 0.78 lbs (0.35 kg) |
| Color | Black |
| Housing Material | ABS |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 10.79" x 3.31" x 5.39" 27.40 cm x 8.40 cm x 13.70 cm |
| Weight | 2.57 lbs (1.17 kg) |
| Master carton | |
| Dimensions (L) x (H) x (W) | 17.72" x 12.20" x 11.81" 45.00 cm x 31.00 cm x 30.00 cm |
| Weight | 31.51 lbs (14.29 kg) |
| Quality | 10 pcs/ctn |

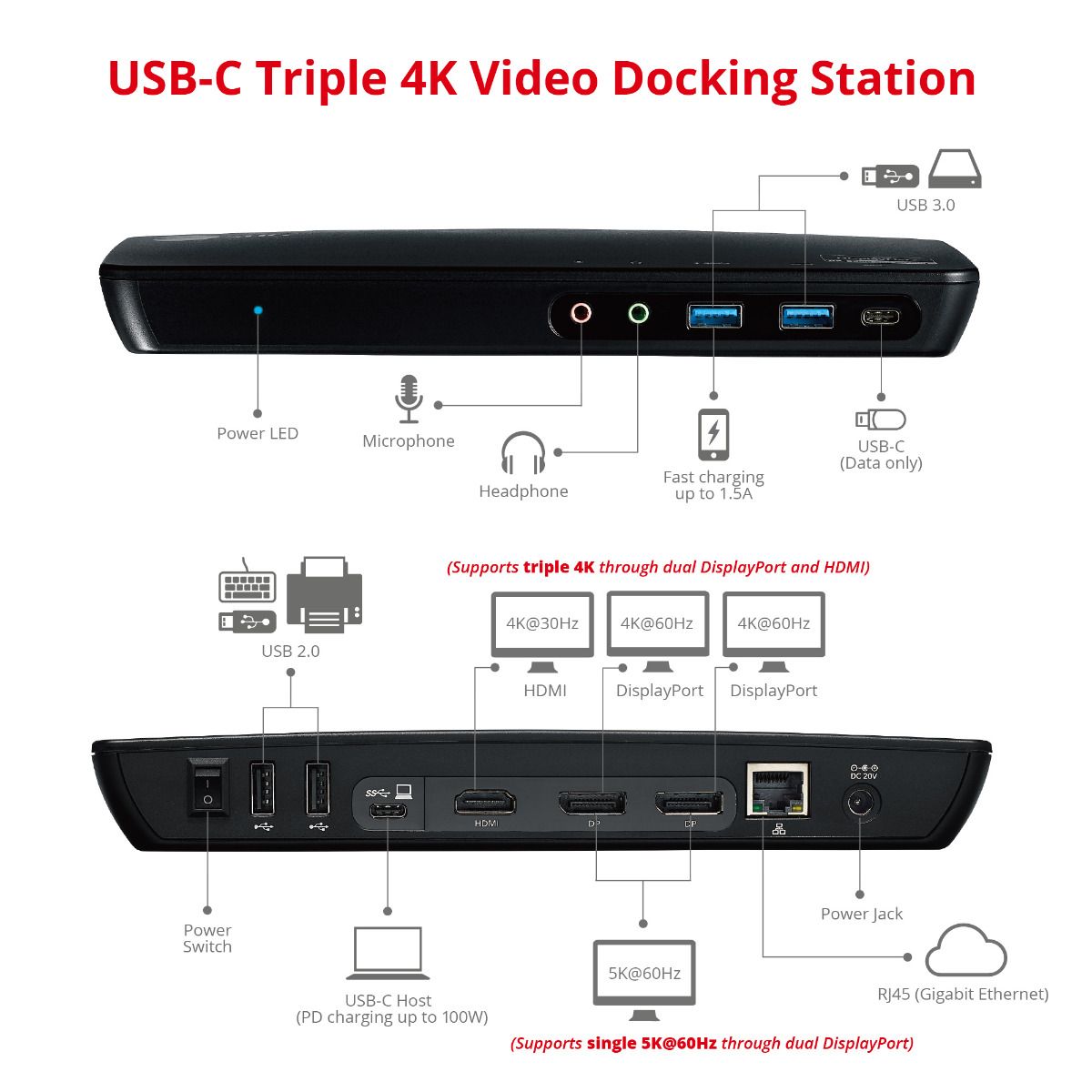

| Connectors | 1x 24-pin, USB-C, Female, Input 2x 9-pin, USB 3.0, Type-A, Female, Output 2x 4-pin, USB 2.0, Type-A, Female, Output 1x 24-pin, USB 3.1 Gen 1, Type-C, Female, Output (data only) 2x 20-pin, DisplayPort, Female, Output 1x 19-pin, HDMI Type-A, Female, Output 1x 8-pin, RJ45, Gigabit Network, Female, Output 1x 3.5mm, Audio, Output 1x 3.5mm, Mic, Input 1x Power Switch |
| Environmental Conditions | |
| Operating Temperature | 32 to 104 degrees F |
| Storage Temperature | 14 to 158 degrees F |
| Relative Humidity | < 5% to 90% RH (non-condensing) |
| Certifications & Warranty | FCC, CE, RoHS, TAA compliant |
| UPC Code | 662774-042541 |
| Warranty | 2 years limited |
| Country of Origin | Taiwan |

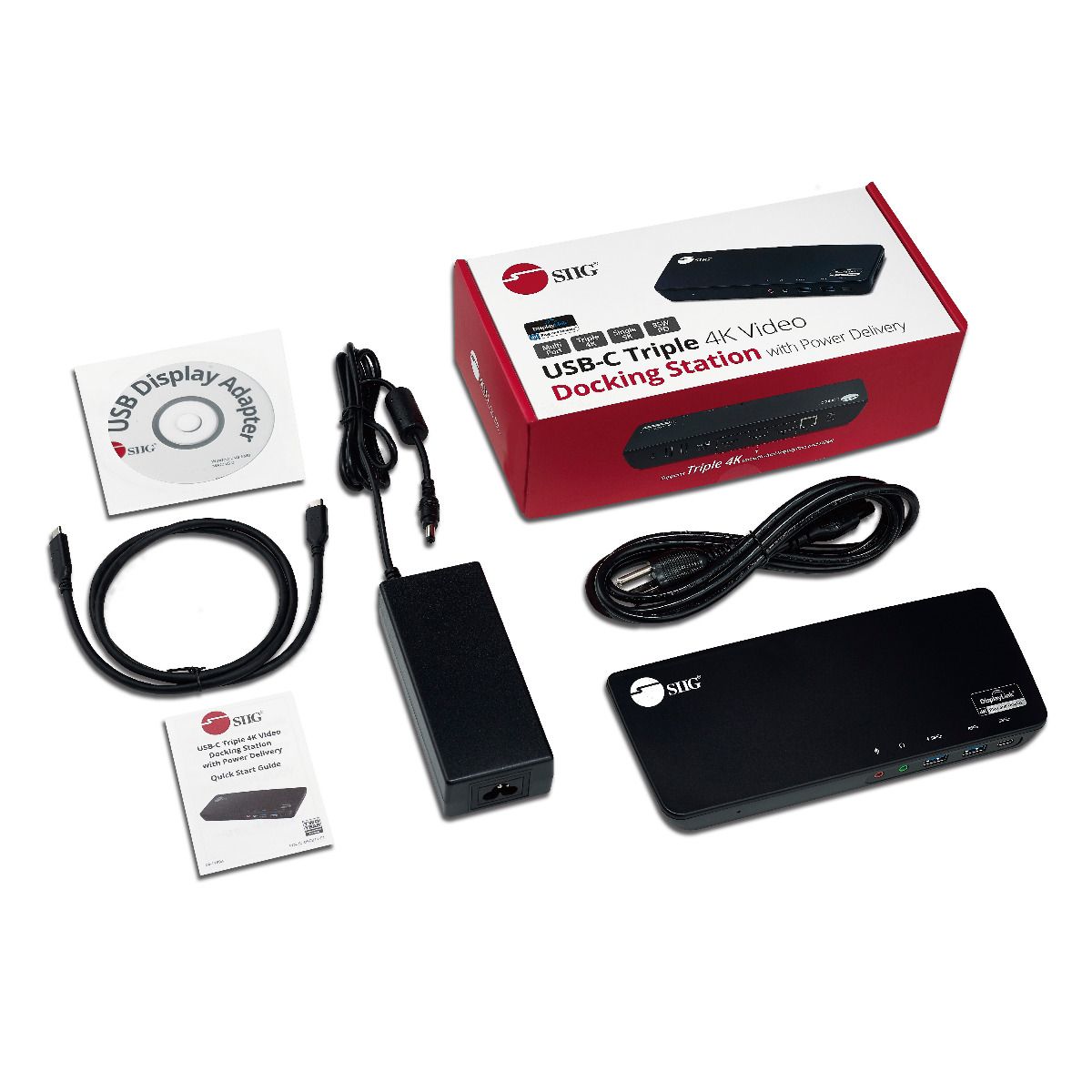

| Package Contents | 1x USB-C Triple 4K Video Docking Station with Power Delivery 1x Power Adapter 1x USB-C to USB-C cable 1x Driver CD 1x User Reference Guide |
No content found
Manuals
Drivers (Hardware Version: 1)
- Windows 8.1 (32-/64-bit) / 7 (32-/64-bit)Software Package Version: 10.3.6419.0. Driver version: 10.3.6400.0
- macOS Monterey 12 / Big Sur 11Build: 0c503bb076 (148). For the latest MAC driver please visit, https://www.synaptics.com/displaylink/downloads/macos, and download the latest driver to maximize compatibility
- macOS Catalina 10.15.xFor the latest MAC driver please visit, https://www.synaptics.com/displaylink/downloads/macos, and download the latest driver to maximize compatibility
- Windows 8 (32-/64-bit)|
- macOS 10.13.3 to 10.12Note: Our adapter DOES NOT work with Mac OS 10.13.4 to 10.13.6 update. It's recommended to upgrade to Mojave 10.14 or stay with 10.13.3 or earlier
- macOS 10.14.xBuild: v5.2.6 (128). For the latest MAC driver please visit, https://www.synaptics.com/displaylink/downloads/macos, and download the latest driver to maximize compatibility
- Windows 11 / 10Software Package Version: 11.7.5852.0. DisplayLink Graphics Driver version: 11.7.5813.0
- macOS Sequoia 15 / Sonoma 14 / Ventura 13Build:2e286d25064 (46)
