IT-Cables |
SKU:
CB-TC0K11-S1
USB-C to DisplayPort Active Cable - 2M, 4K60Hz, HDR
USB-C to DP Cable
21.6Gbps
4K60Hz
7.1ch
DP Alt Mode
Regular price
$34.99
Unit price
/
Unavailable
Shipping calculated at checkout.
USB-C to DisplayPort Active Cable - 2M, 4K60Hz, HDR is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Thunderbolt 3 Compatible
Thunderbolt 3 Compatible
Resolution
Resolution
USB-C Powered
USB-C Powered
Compatibilty
Compatibilty
Ease of Use
Ease of Use
Features

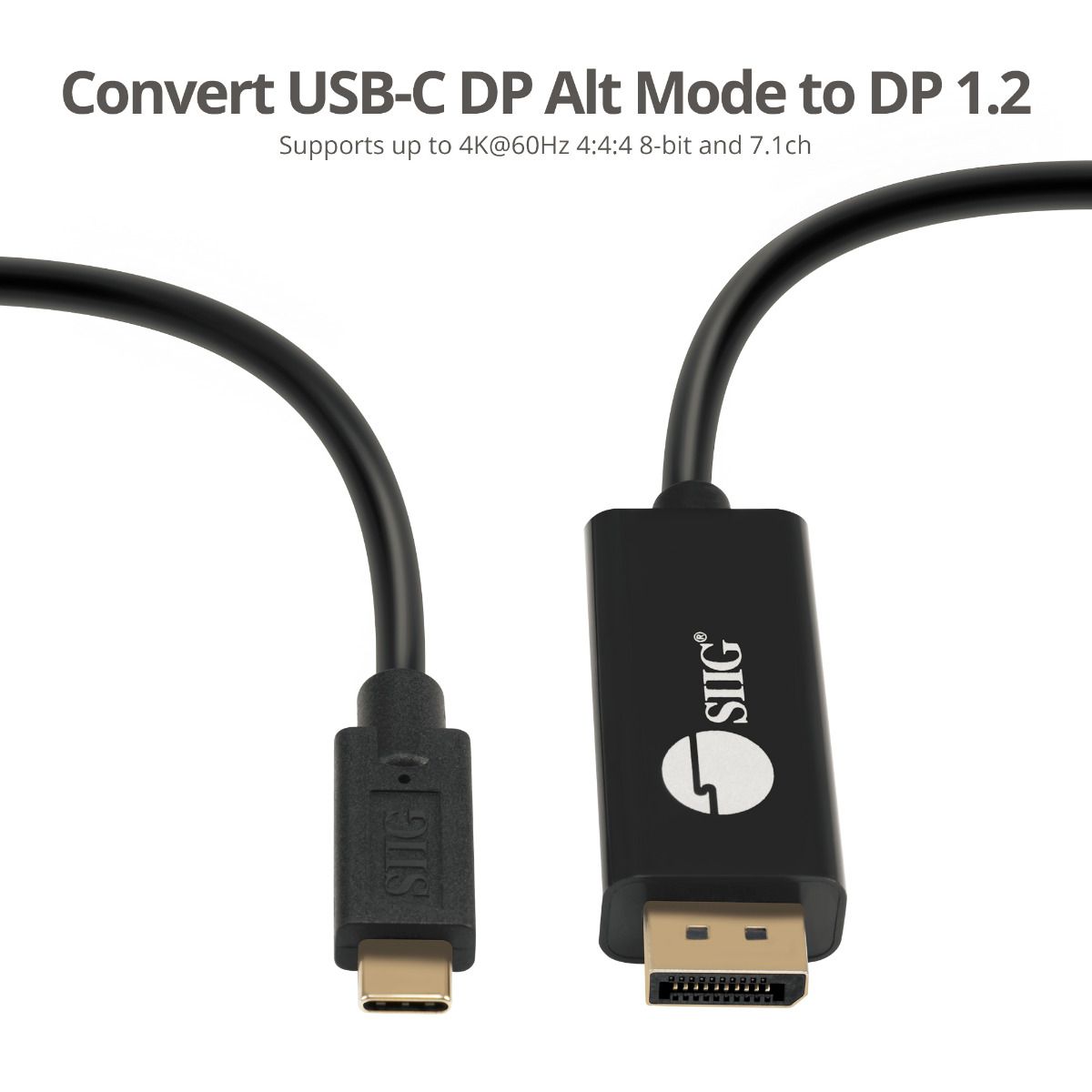

- Easily converts a DisplayPort Alt 1.2 HBR2 enabled USB Type-C port (Thunderbolt 3 compatible) into a DisplayPort output allowing you to add a DisplayPort display
Note: The USB-C source connection must pass DisplayPort 1.2 video/audio signal, aka DisplayPort Alternate/DisplayPort Alt mode, in order for the audio and video signals to pass through the adapter - Allows transmission of DisplayPort Audio and video signals with resolutions of 720p HD, 1080p Full HD, 4K@60Hz YUV 4:4:4 8-bit, and 4K@60Hz YUV 4:2:0 10-bit HDR up to 6.6 ft (2 meters)
- Features USB-C reversible plug design, non-directional plug-in orientation, you will always plug-in the USB-C connector on the first try
- USB-C DisplayPort 1.2 Alt Mode or Thunderbolt 3 technology is available with many computers such as 2016 MacBook Pro, 2015 MacBook, Google Chromebook Pixel, Surface Pro 7, Dell XPS Precision/Latitude, HP Elitebook / Spectre, Thinkpad X1, plus many more
- Plug-n-Play, no driver installation and no external power adapter required

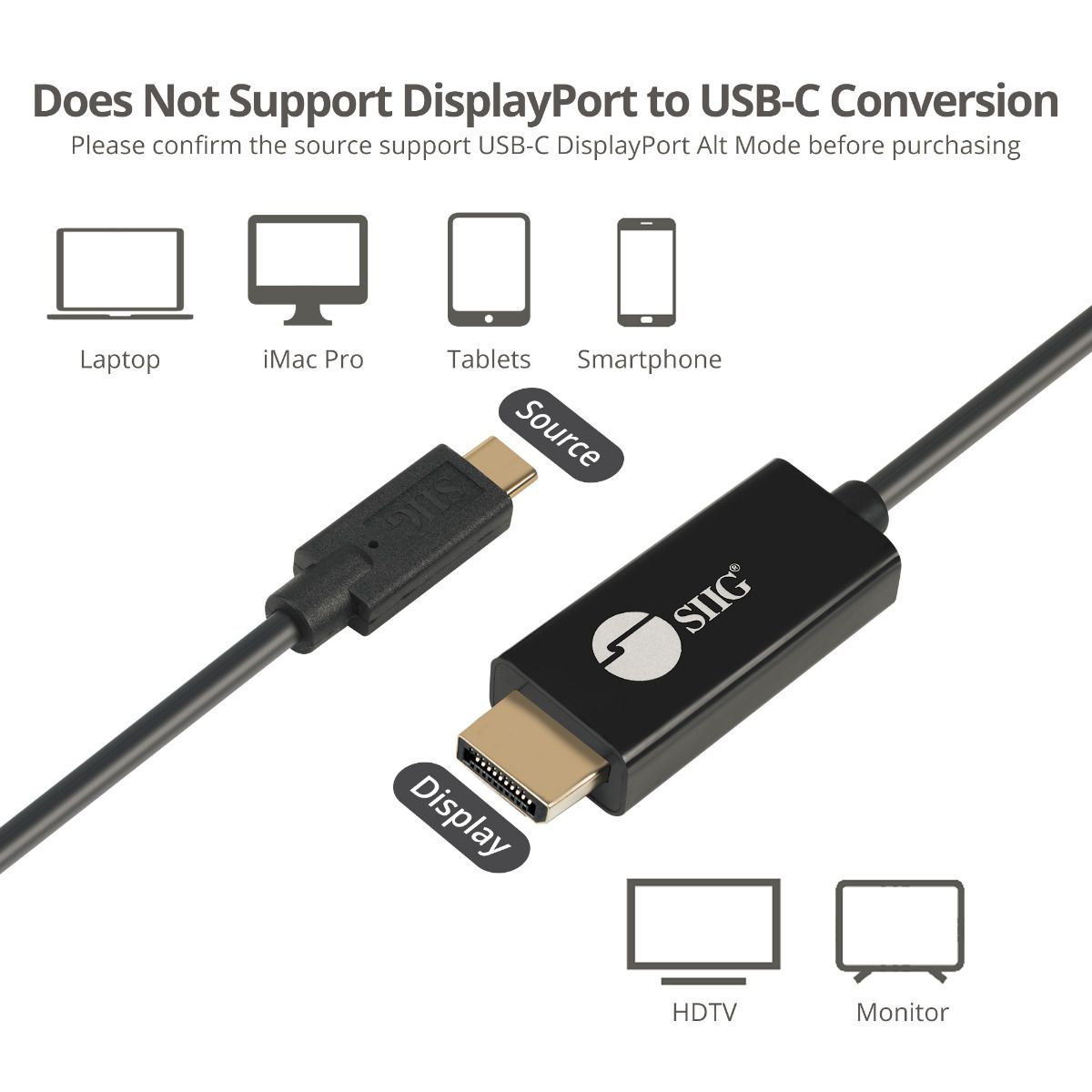

Note: This is not a bi-directional adapter. DisplayPort to USB-C conversion is not supported
| Chipset | WGE19SN |
| Content Protection | HDCP 1.4 |
| Video Resolution | up to 3840x2160@60Hz (4K UHD), HDR 10 |
| Support Audio | up to 7.1-Ch PCM, |
| System Interface | USB-C with DisplayPort 1.2 Alternate Mode HBR2 |
| Bandwidth | Up to 21.6Gbps (HBR2 mode up to 5.4Gbps Single-link) |
| Adapter Type | Active |
| Connectors | 1x USB Type-C, Male, Input 1x 20-Pin, DisplayPort, Male, Output |
| Environmental Conditions | |
| Operating Temperature | 32 to 140 degrees F |
| Storage Temperature | 14 to 158 degrees F |
| Relative humidity | 20 to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-044330 |
| Warranty | 2 years limited |
| Country of Origin | China |
| Product | |

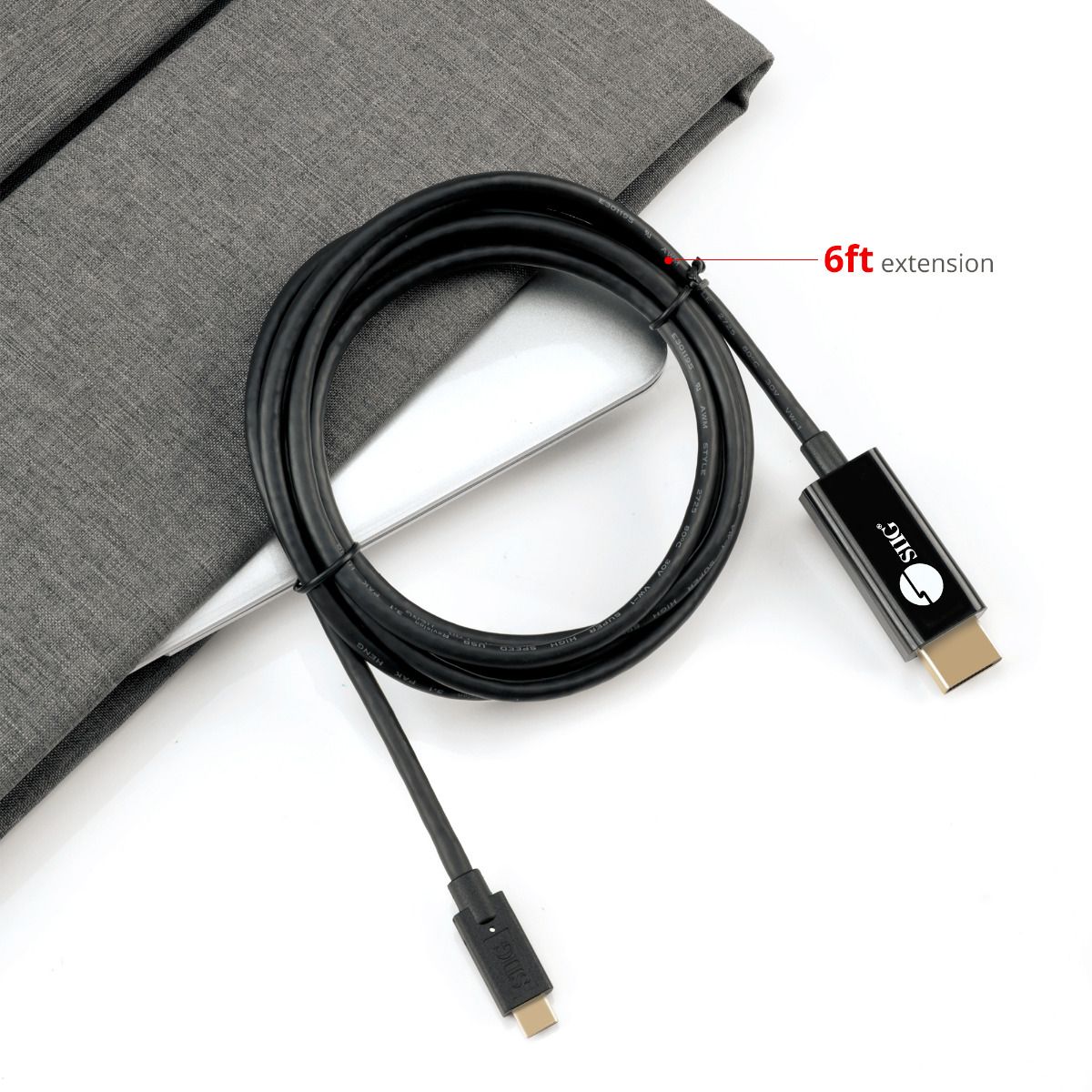

| Built-in Cable Length | 2.00 m (6.6 ft) |
| Weight | 0.18 lbs (0.08 kg) |
| Color | Black |
| Housing | ABS |
| Unit Package | |
| Dimensions (L) x (W) | 5.91" x 9.33" 15.00 cm x 23.70 cm |
| Weight | 0.19 lbs (0.09 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 15.00" x 11.89" x 12.24" 38.10 cm x 30.20 cm x 31.10 cm |
| Weight | 21.16 lbs (9.60 kg) |
| Quantity | 100pcs/ctn |
| System Requirements | - A computer or other source device with a USB-C DisplayPort 1.2 Alternate Mode or Thunderbolt 3 port - DisplayPort display |
| Package Contents | USB-C to DisplayPort Active Cable - 2M |
