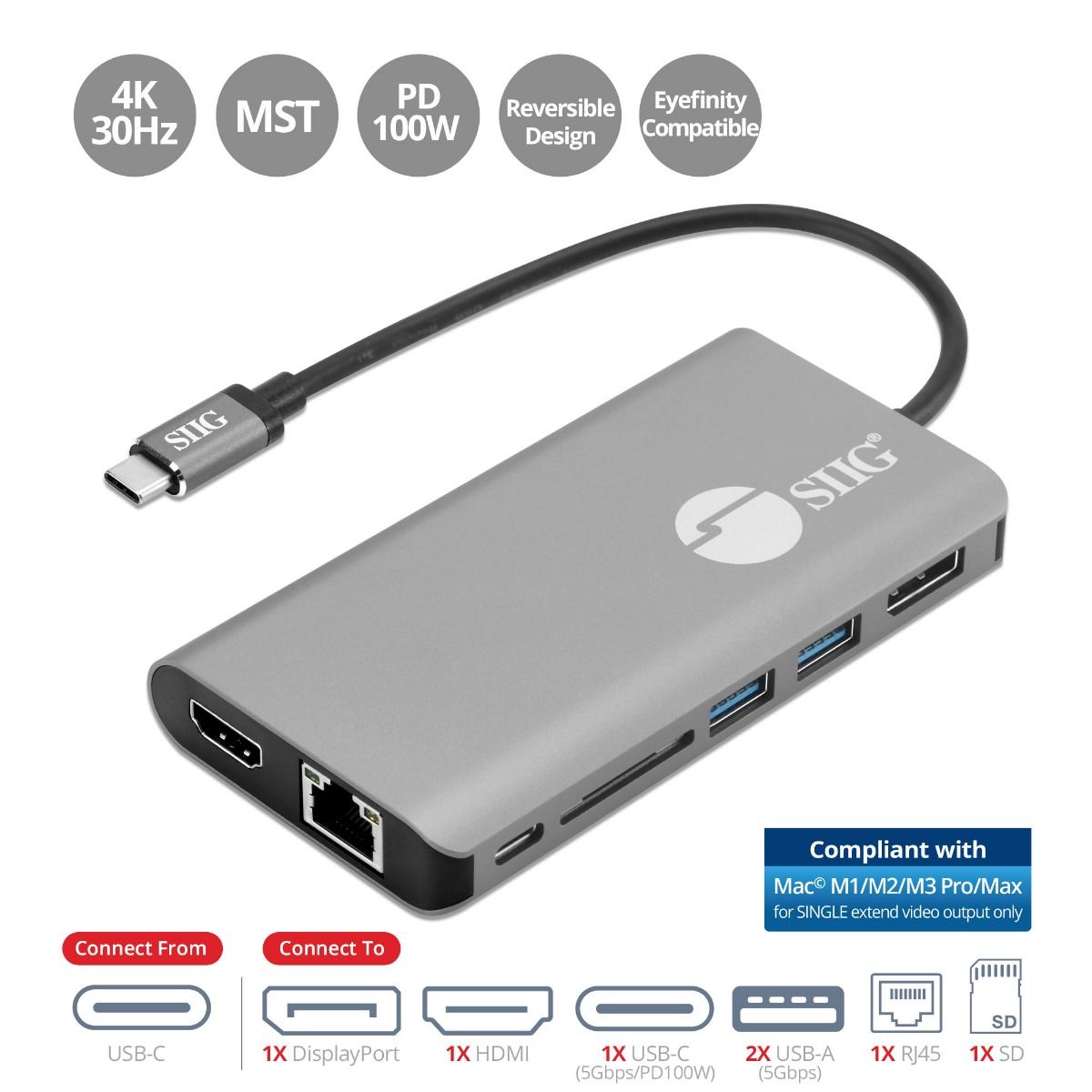

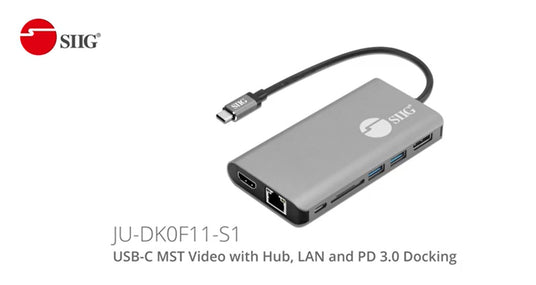

Docking Station | SKU: JU-DK0F11-S1

USB-C MST Video with Hub, LAN and PD 3.0 Docking- Single 4K@30Hz- Dual 1080p- SD card reader

USB-C MST Video Hub
DisplayPort / HDMI
4K30Hz
USB-A 5Gbps
PD 100W Passthrough
$209.99
Shipping calculated at checkout.
Product Features

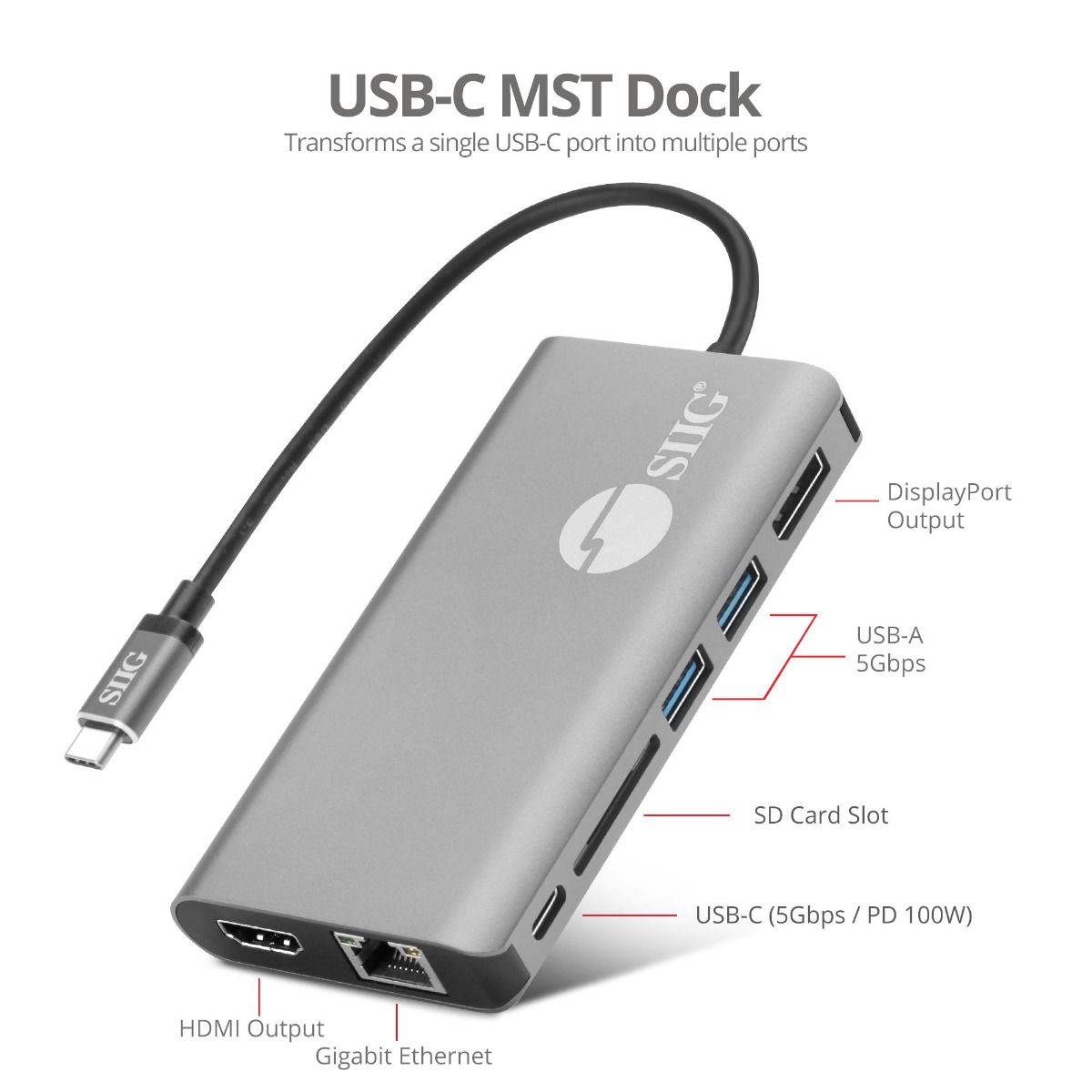

USB-C to HDMI / DP Hub

Transforms a single USB-C port (with DP Alt mode or Thunderbolt 3 technology) into HDMI or DisplayPort video connections and data transfer ports; including one Gigabit Ethernet, one SD memory card, one USB-C (data/ charging) and two USB 3.0 Type-A ports to your Windows, Mac computer

4K UHD Resolution

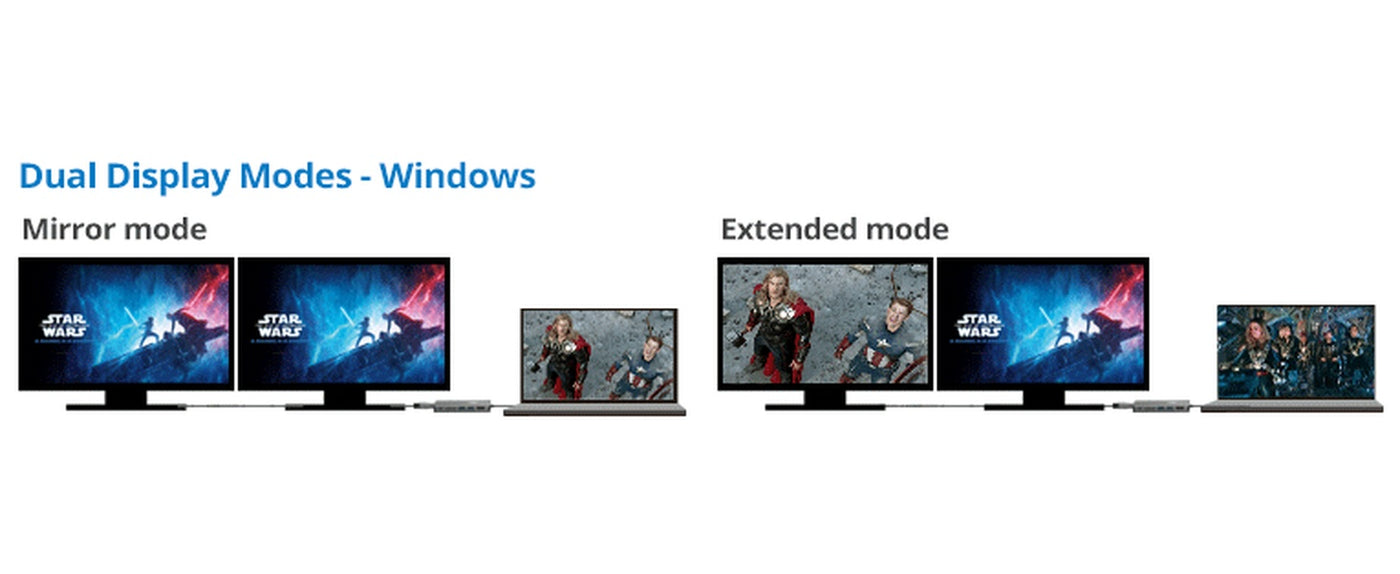

Supports video resolutions up to single 4K (3840x2160) @30Hz Ultra HD display or dual/triple Full HD 1080p displays. Supports Extended mode with individual content displayed on the external screen

Wide Compatibility

Supports PD 3.0 specification, provides up to 100W to power/charge. SuperSpeed USB 3.0 ports support data transfer rate up to 5Gb/s. Supports USB-C with DisplayPort Alternate mode and Thunderbolt 3 technology. Enables you to connect multiple USB peripherals simultaneously: mouse, keyboard, flash drive, printer & more. SD flash memory card slots support SD memory cards of up to 2TB capacity, perfect solution for transferring files from your portable devices to the computer

Slim Compact Design

Slim and compact aluminum housing provides excellent heat dissipation and extra EMF protection for reliable performance, Plug-n-play, no driver installation or power adapter required. A great tool to increase your productivity for home, office or on-the-go

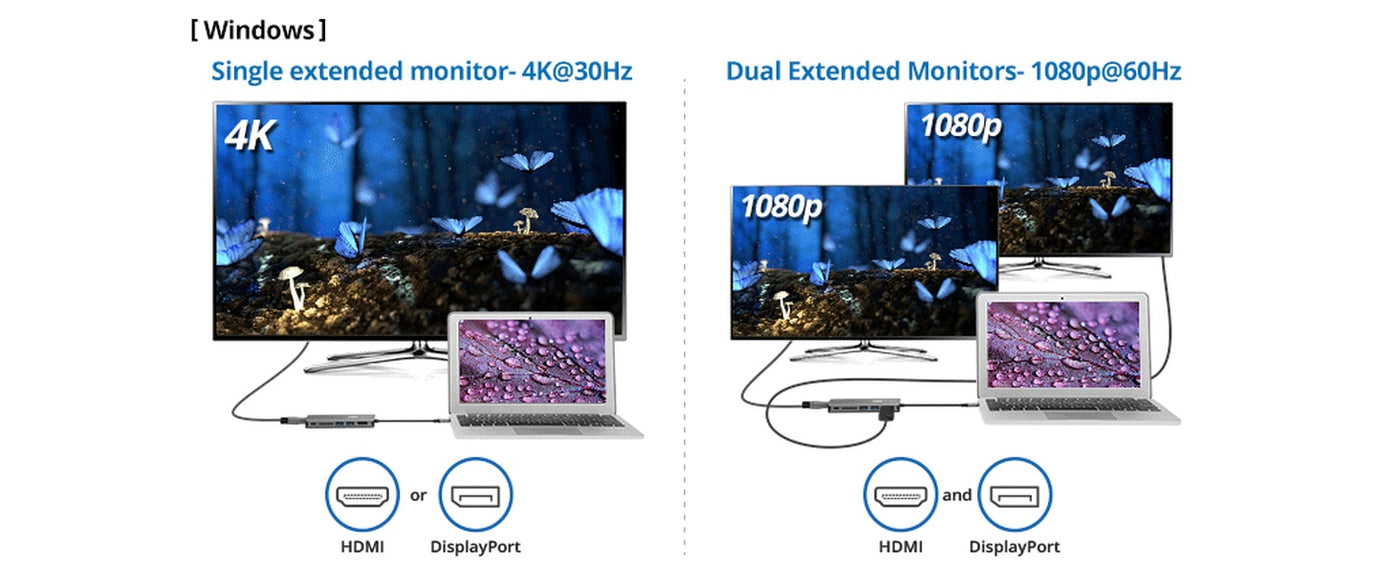

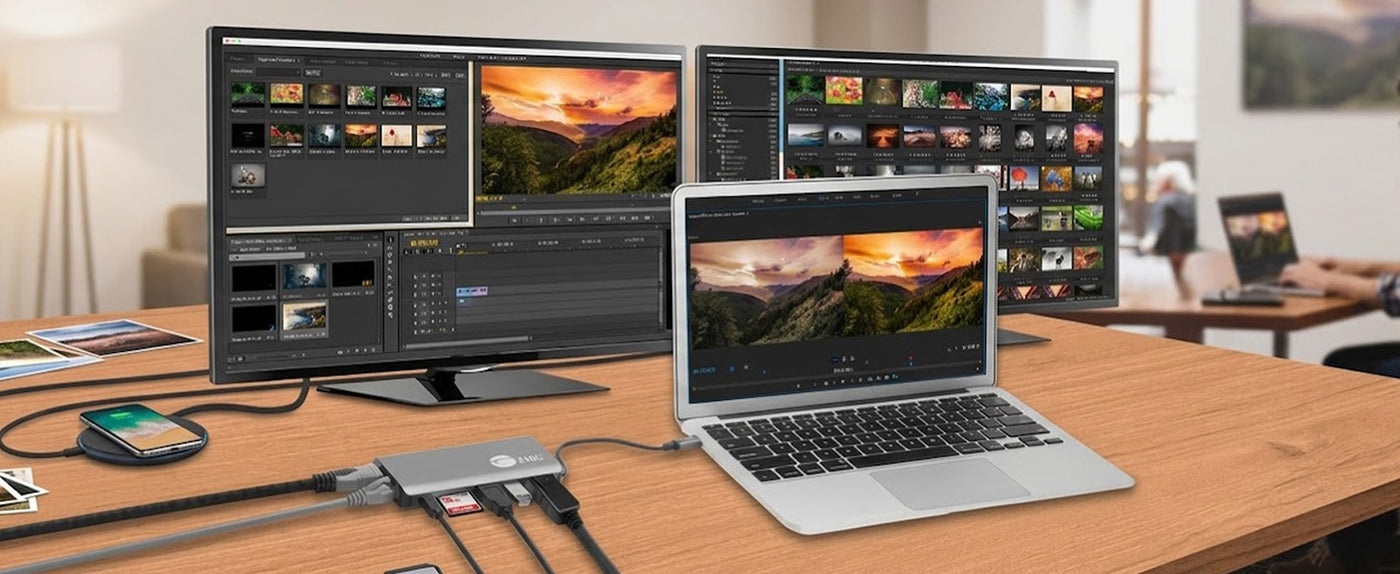

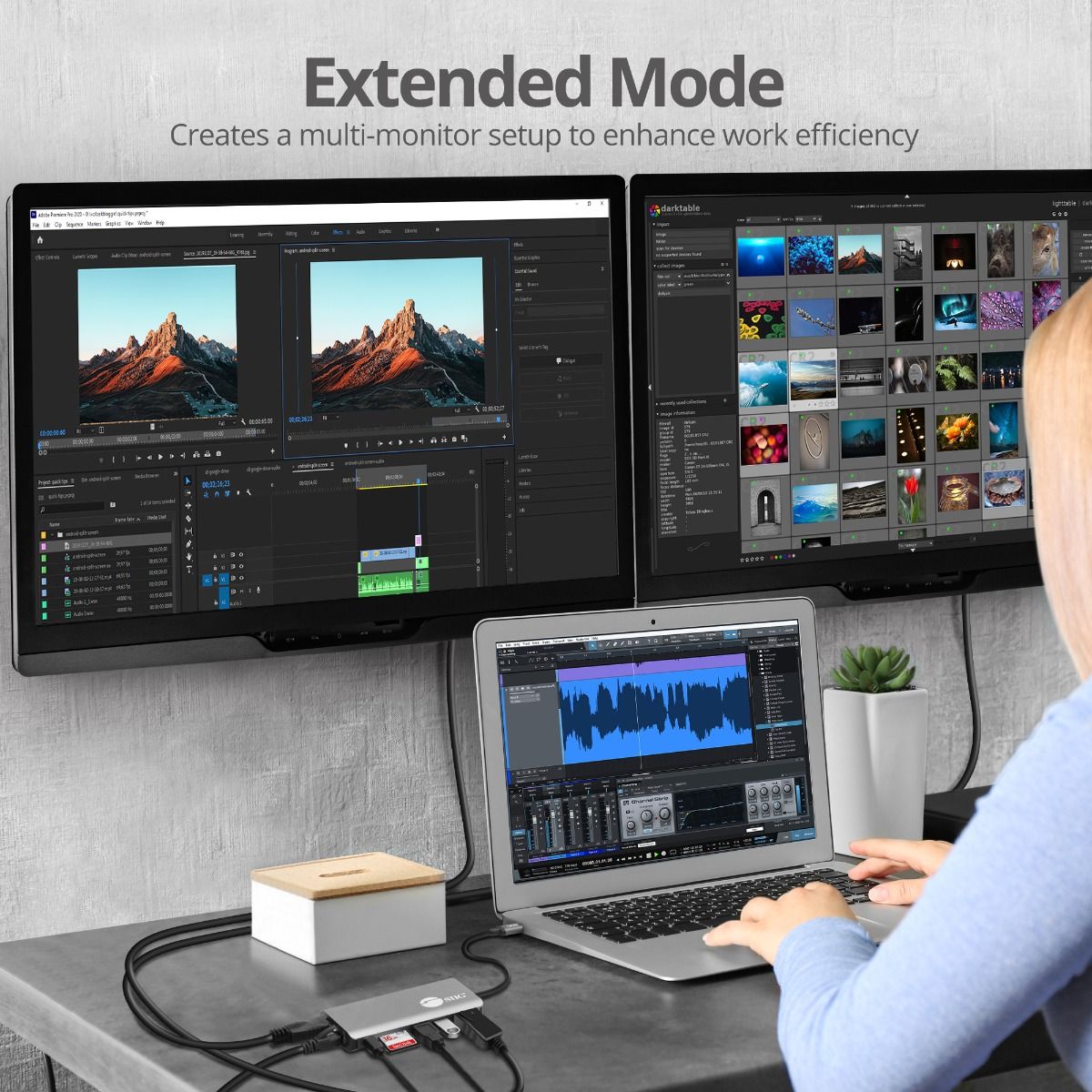

Dual External Monitors

This docking station supports dual external monitor outputs (1080p only) for Windows laptops and Chromebooks. Enjoy two extended external displays from the desktop to boost your working efficiency.

  • 45 Days Free Return

  • 2 Years Warranty

  • Lifetime Technical Support

USB-C MST Video with Hub, LAN and PD 3.0 Docking

    SuperSpeed USB Data Transfer
    Delivers two USB-A and support data transfer rate up to 5Gbps, one USB-C 5Gbps with PD 100W. Enables you to connect multiple USB peripherals simultaneously such as mouse, keyboard, flash drive, printer and more

    SD Memory Card Slot
    Support various SD memory cards of up to 2TB capacity, perfect solution for transferring files from your portable devices to your computer

    1G Ethernet Data Transmission
    Up to 1,000Mbps data transfer rate and seamless backward compatible with 10/100 Mbps

    Maximum Compatibility
    Compatible with DisplayPort 1.2 graphics cards with AMD Eyefinity, NVIDIA Surround or Intel Collage technology, Supports Plug-n-play, hassle-free set up without complicated hardware or driver installation

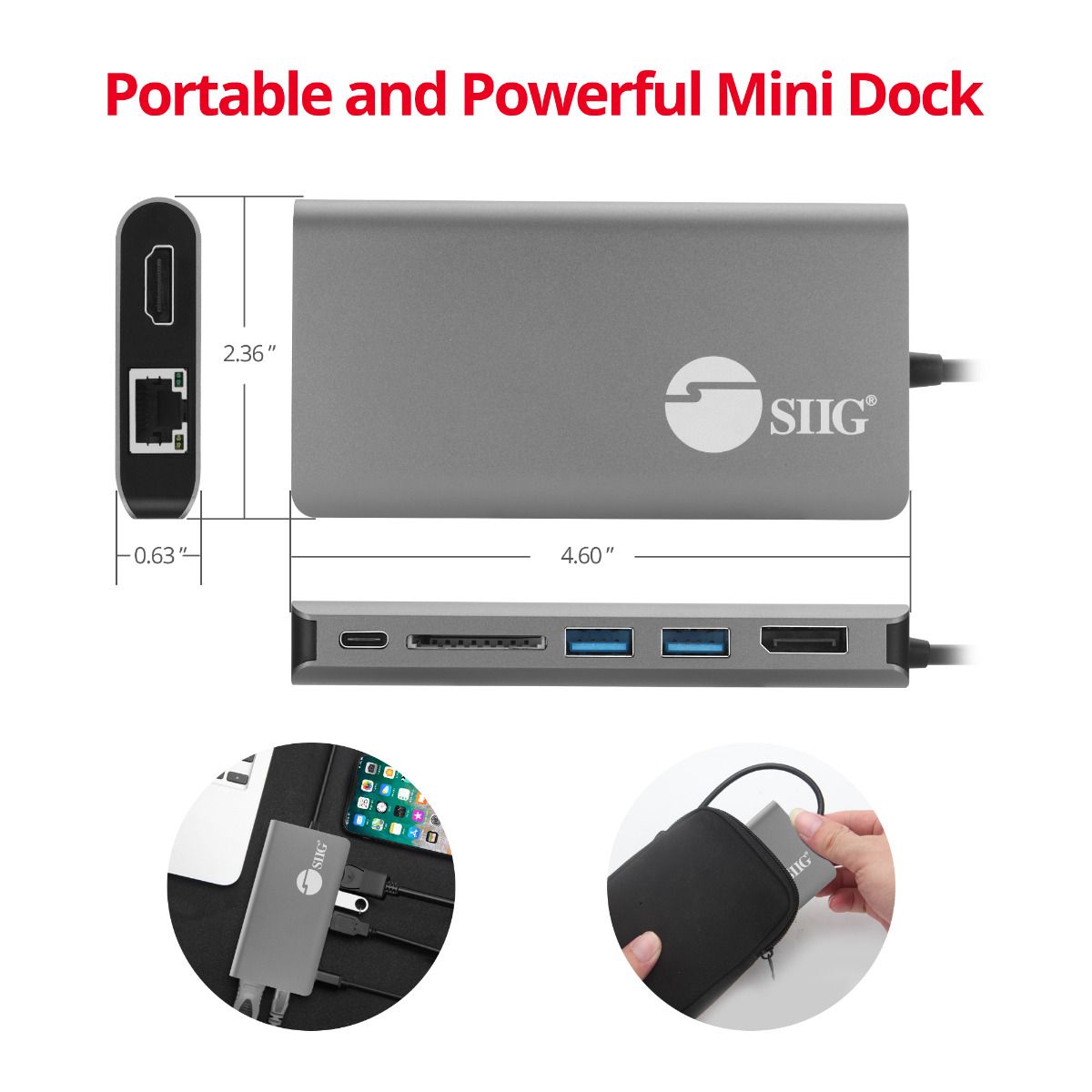

    Aluminum Housing Design
    Slim and compact aluminum housing provides excellent heat dissipation and extra EMF protection for reliable performance, a great tool to increase your productivity for home, office or on-the-go

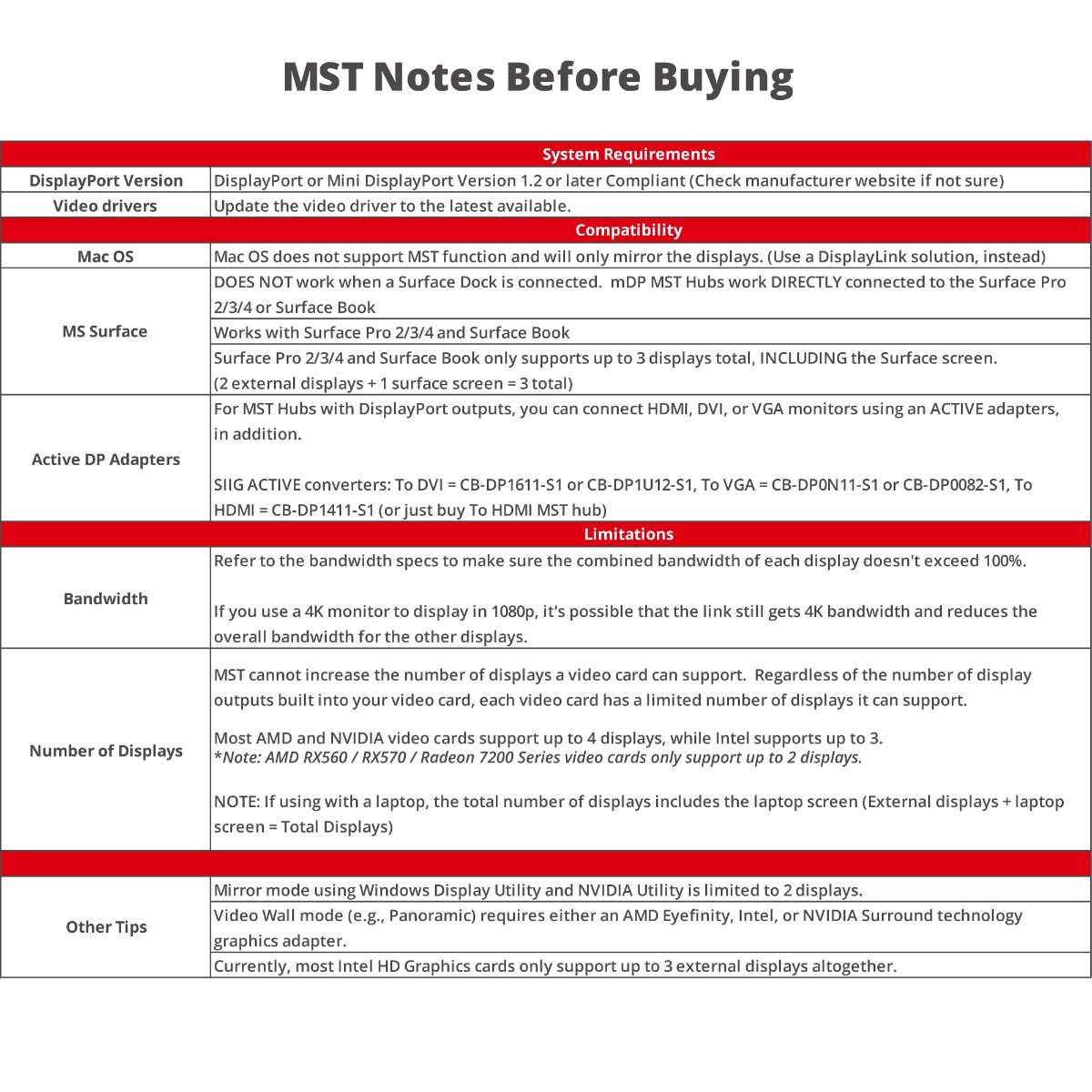

    Need to Know Before Buying

      1. Please confirm your computer is USB-C that supports DP Alt mode or Thunderbolt 3 and supports Multi-Stream Transport (MST) technology. If not, please check on the manual of the computer

      Computer

      *Note:
      - Not all USB-C ports/systems support DP Alt Mode functionality

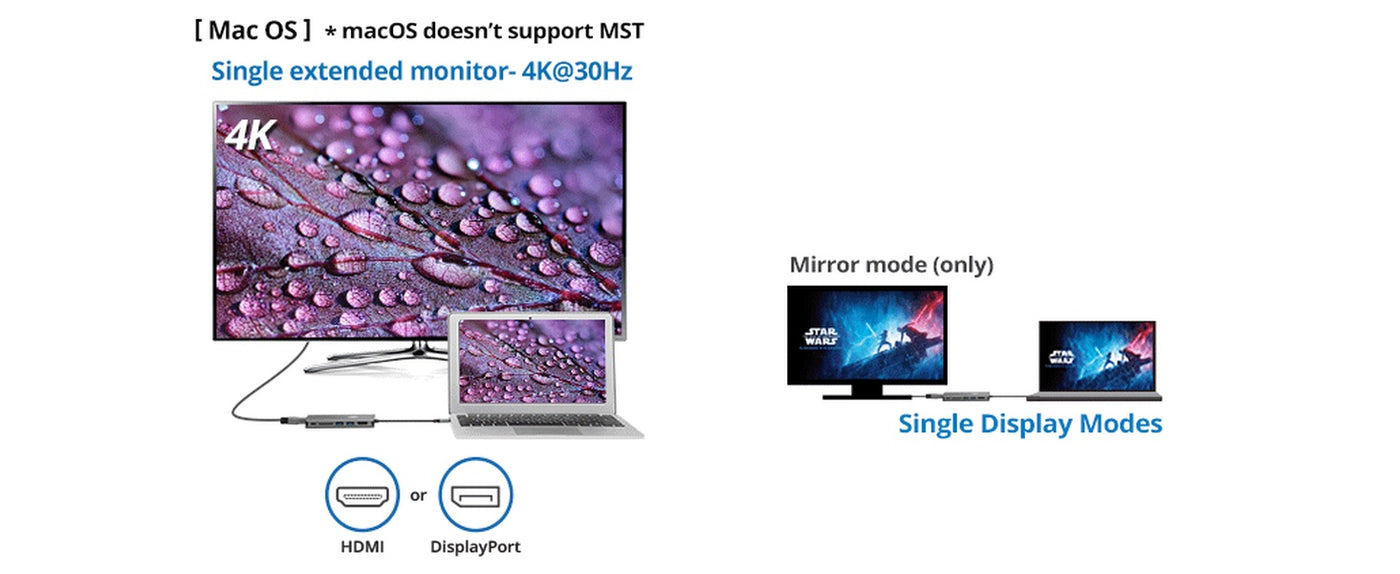

      - Compliant with mac® M1, M2, M3 Pro, & Max systems for single extend video output and Mirror mode only

      2. Check the extended displays/monitors have a DisplayPort and HDMI port. If you are not sure, please check with the manual of the monitor

      Monitor

      *Note: If you use a 4K monitor to display in 1080p, there is a possibility that the link still gets 4K bandwidth and reduces the overall bandwidth for the other displays

      Gcard 3. Install the latest drivers for your video card. Go directly to the system/video card manufacturer or chipset owners, such as AMD, Nvidia, or Intel, to find the latest driver

      4. The computer and power adapter must support PD 3.0 specification, otherwise the dock will reset when power delivery is disconnected and please check your cable with power delivery, then it can handle up to 100W

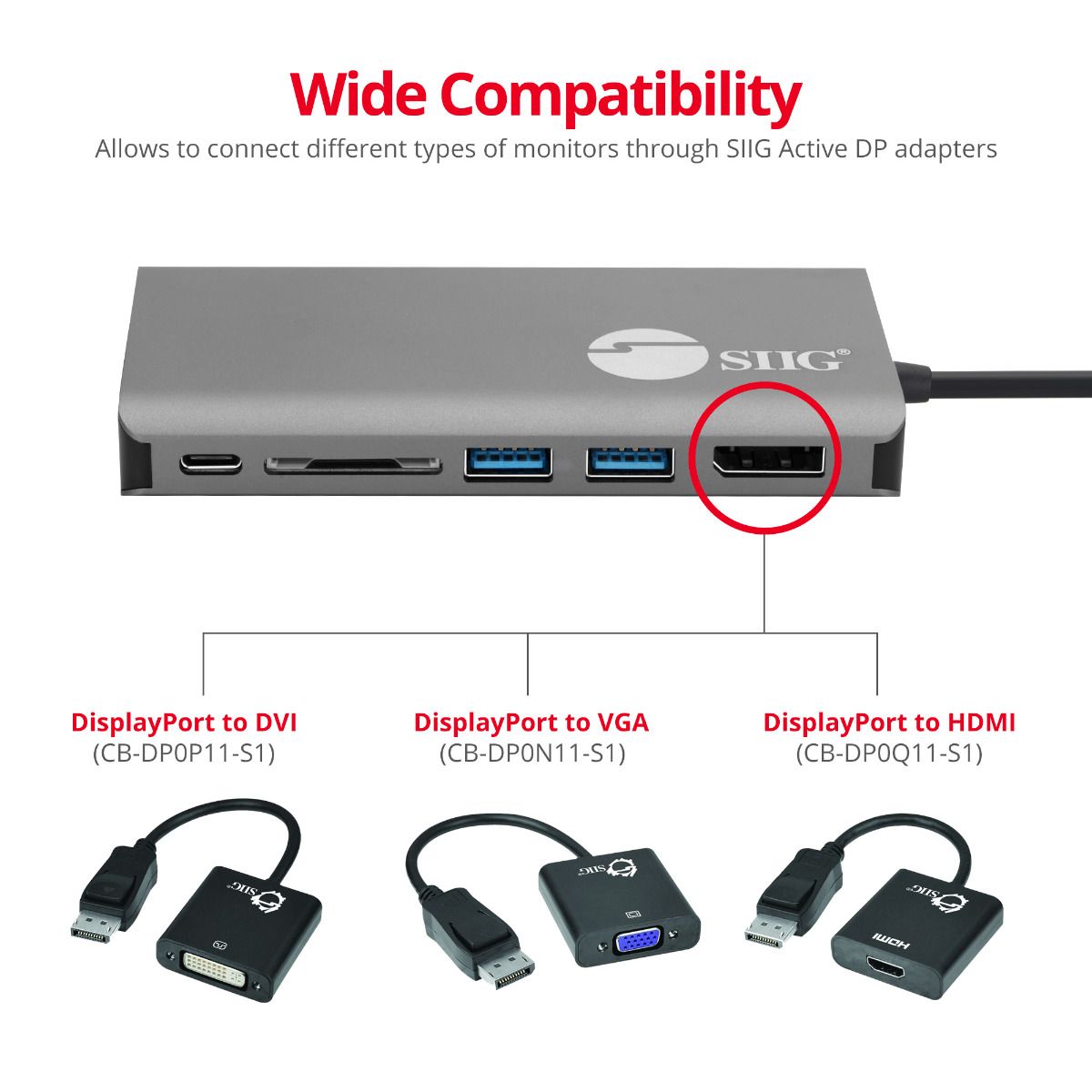

      5. To connect HDMI, DVI, or VGA monitor to our USB-C MST Video, please use ACTIVE converter
      Converter

      note

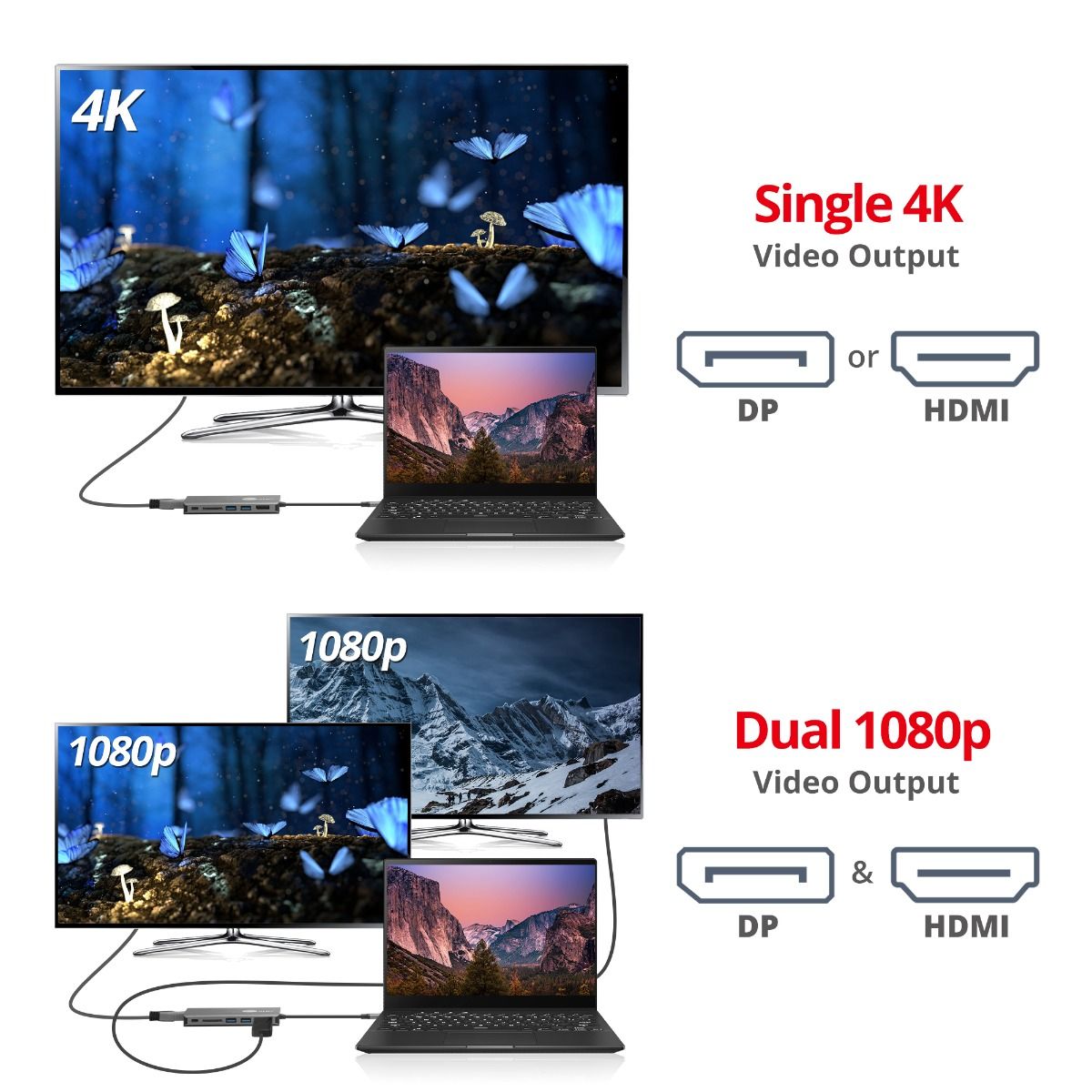

      Dual displays and multiple connections by a single USB-C output with DP Alt mode or Thunderbolt 3 and MST technology, whatever you are on the go or docking at a workstation

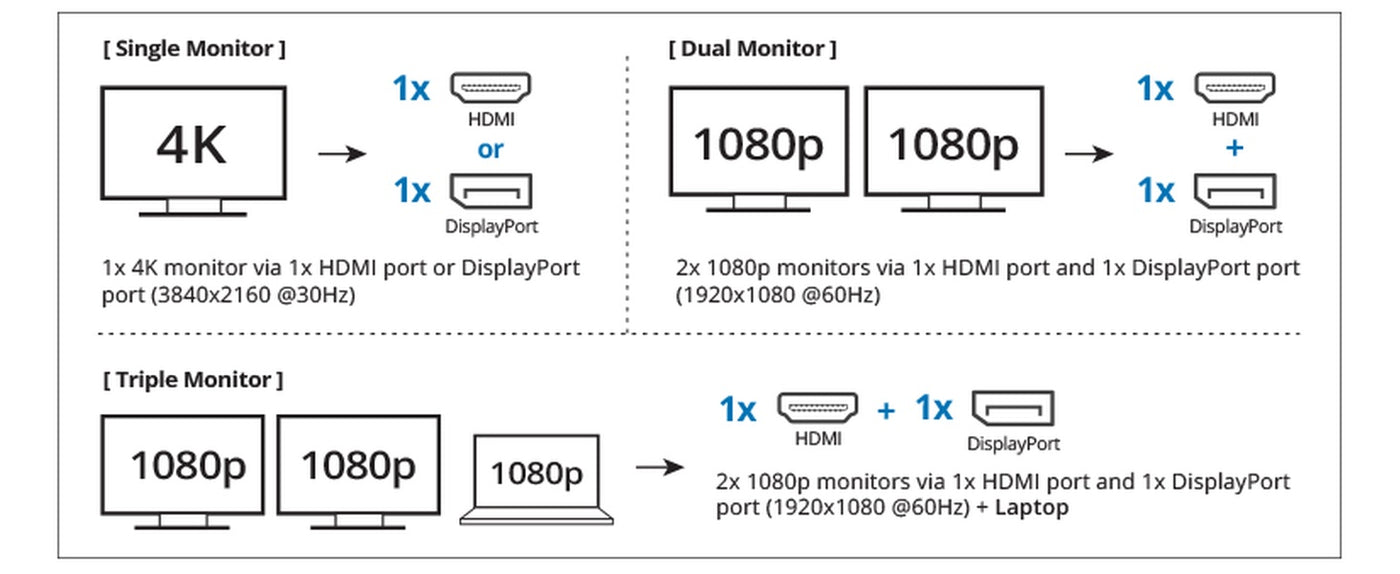

      Supports High Resolution up to Single 4K (3840x2160) @30Hz or Dual/Triple Full HD 1080p

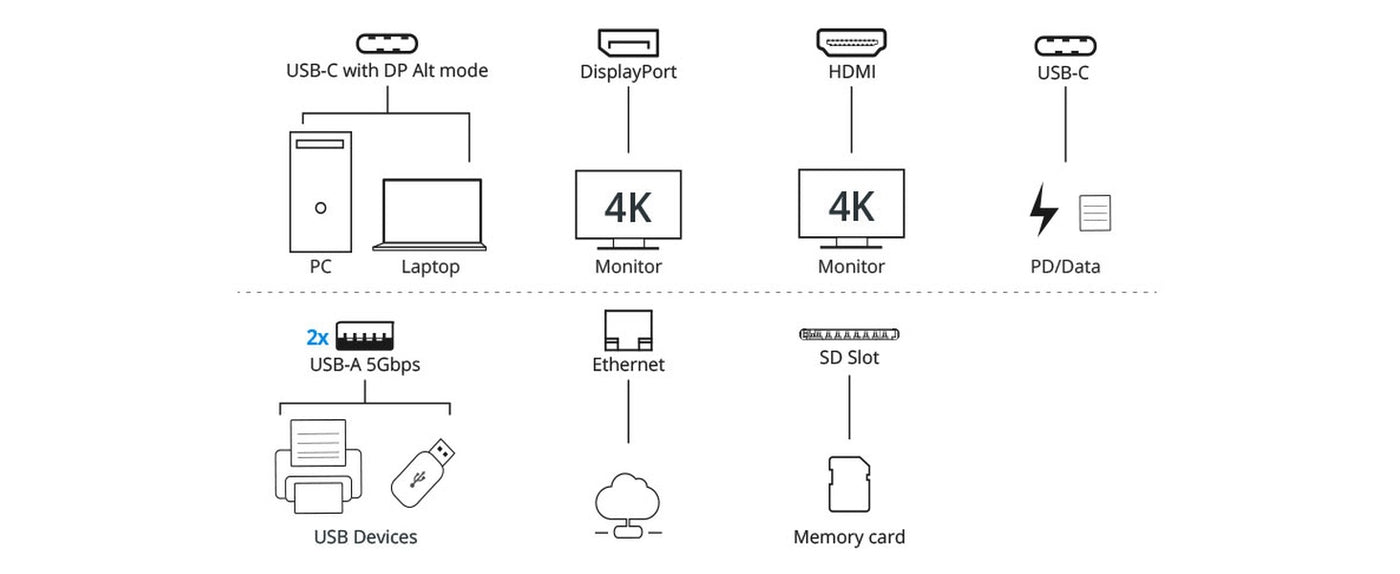

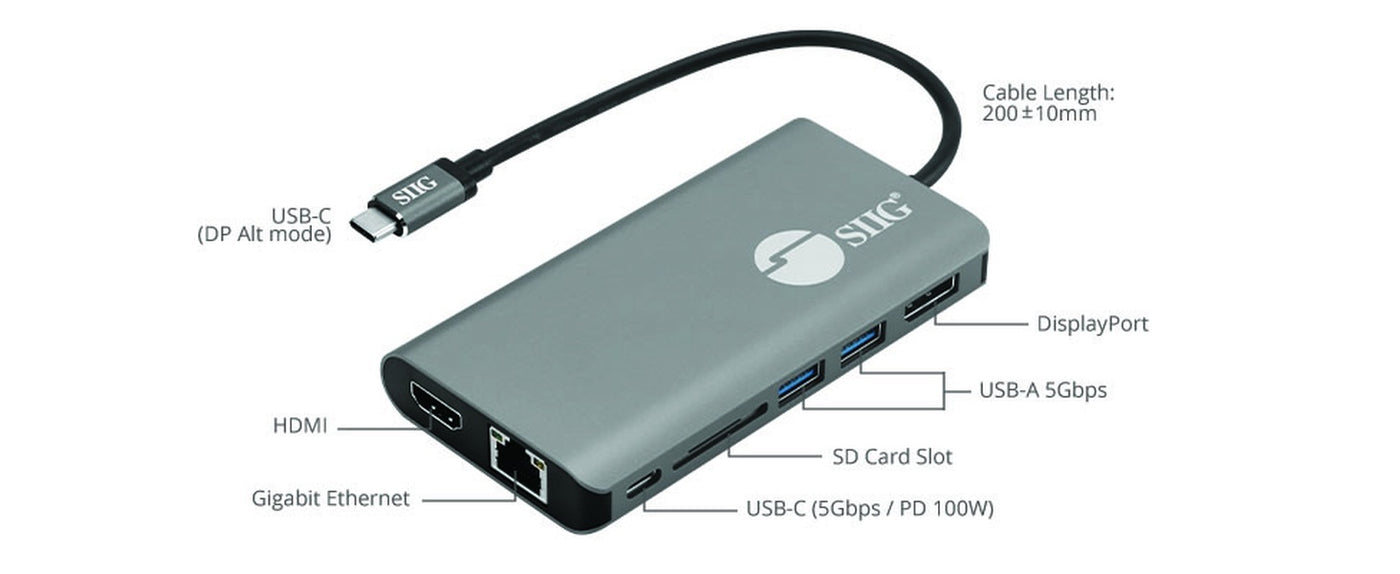

      Multiple Connectivity Ports

      Connection

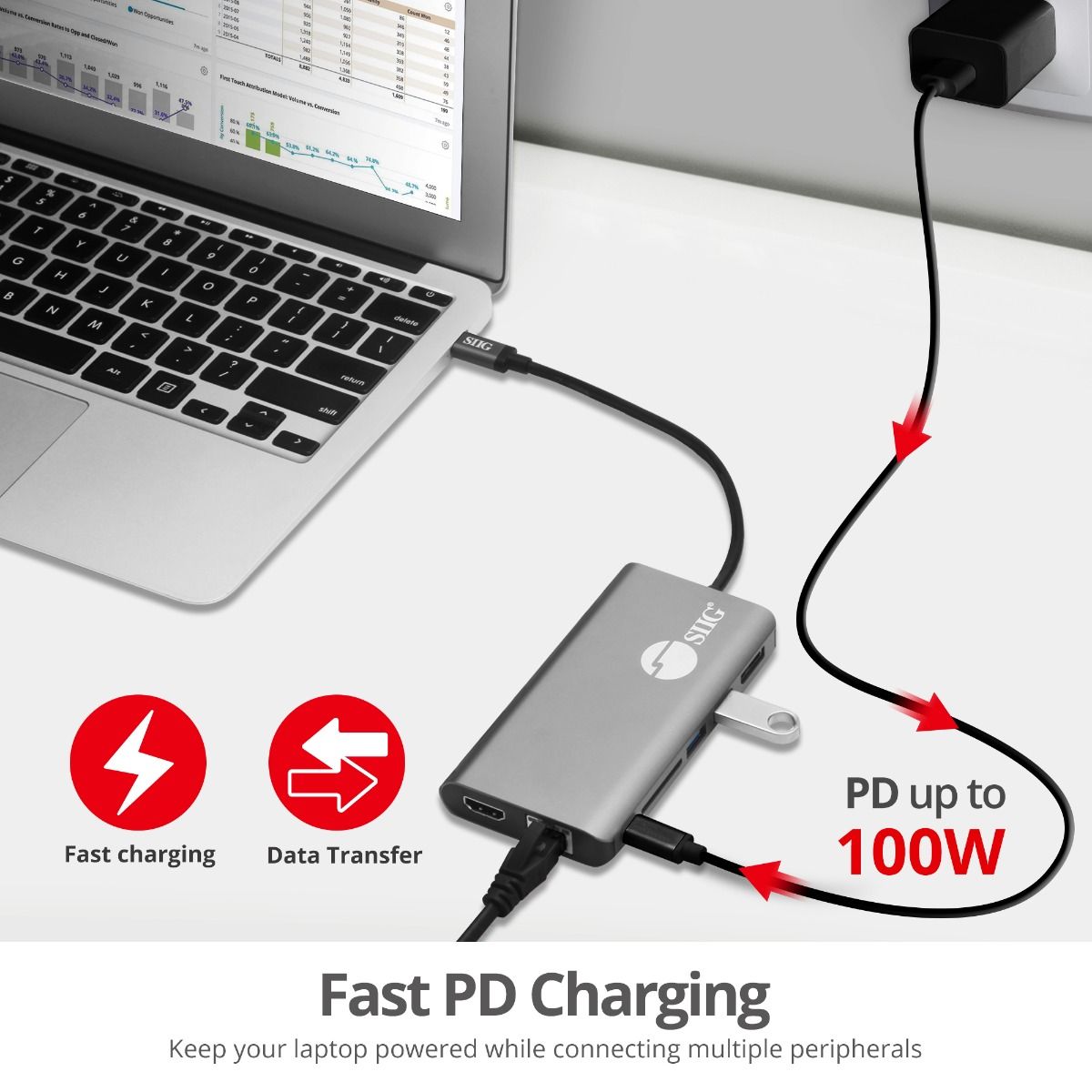

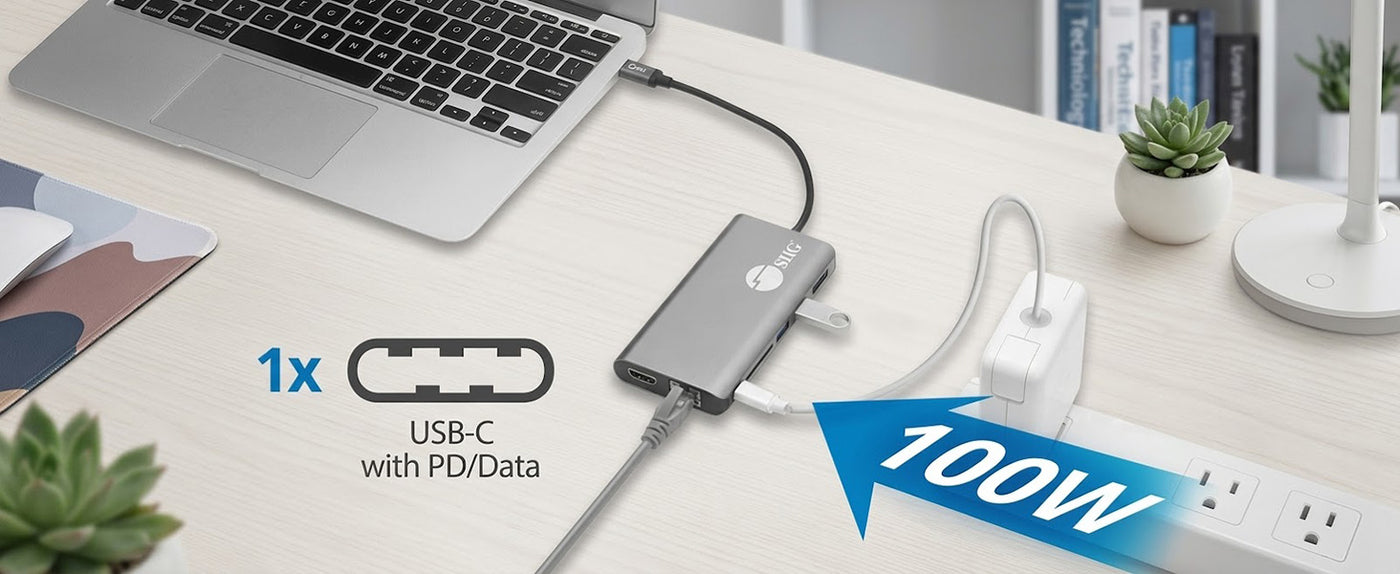

      100W Power Delivery Pass through

      Versatile and compact external docking station adds multiple connectivity ports to USB-C with DP Alt Mode enabled computers and up to 100W PD charging of your laptop

      Adjust Screen Resolution Tutorial

      Key Prerequisites for SIIG MST Hubs
