Docking Station |
SKU:
JU-DK0611-S1
USB-C 4K Triple Display Docking Station with PD Charging - 60W
USB-C Docking Station
Triple Display
4K60Hz
PD 60W
5V/1.5A
Regular price
$299.99
Unit price
/
Unavailable
Shipping calculated at checkout.
USB-C 4K Triple Display Docking Station with PD Charging - 60W is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Powerful USB-C Docking Solution
Powerful USB-C Docking Solution
Triple Display 4K Output
Triple Display 4K Output
Versatile Connectivity Hub
Versatile Connectivity Hub
60W Power Delivery Charging
60W Power Delivery Charging
Smart & Efficient Design
Smart & Efficient Design
SIIG USB-C 5K Triple Display Advanced Docking Station
Transforms a single USB-C port into DisplayPort, HDMI, USB 3.0, Gigabit Ethernet, audio and microphone connectivity with PD charging up to 60W.
* Note: Apple has continued support for video over USB in the latest Mac OS X 10.14 update (Make sure to download latest DisplayLink 5.1.1 driver). This docking station WILL WORK with Mac OS X up to 10.13.3 + 10.14. Our adapter DOES NOT work with Mac OS X 10.13.4 through 10.13.6 updates.
* Note: Apple has continued support for video over USB in the latest Mac OS X 10.14 update (Make sure to download latest DisplayLink 5.1.1 driver). This docking station WILL WORK with Mac OS X up to 10.13.3 + 10.14. Our adapter DOES NOT work with Mac OS X 10.13.4 through 10.13.6 updates.
High-Resolution Display & 60W Power Delivery
Deliver sharp and detailed visuals with versatile display support. DisplayPort supports up to 4096×2160@60Hz, while HDMI delivers up to 3840×2160@30Hz. For ultra-high resolution, dual DisplayPort connections enable a single 5K display at 5120×2880@60Hz, ideal for professional applications and multitasking.

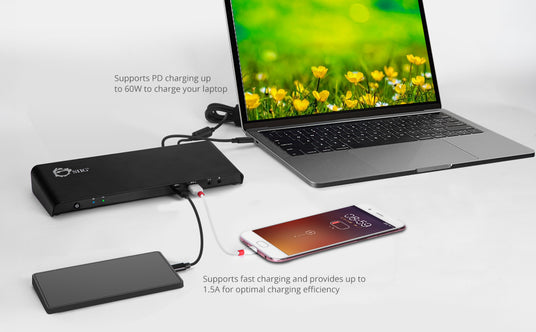

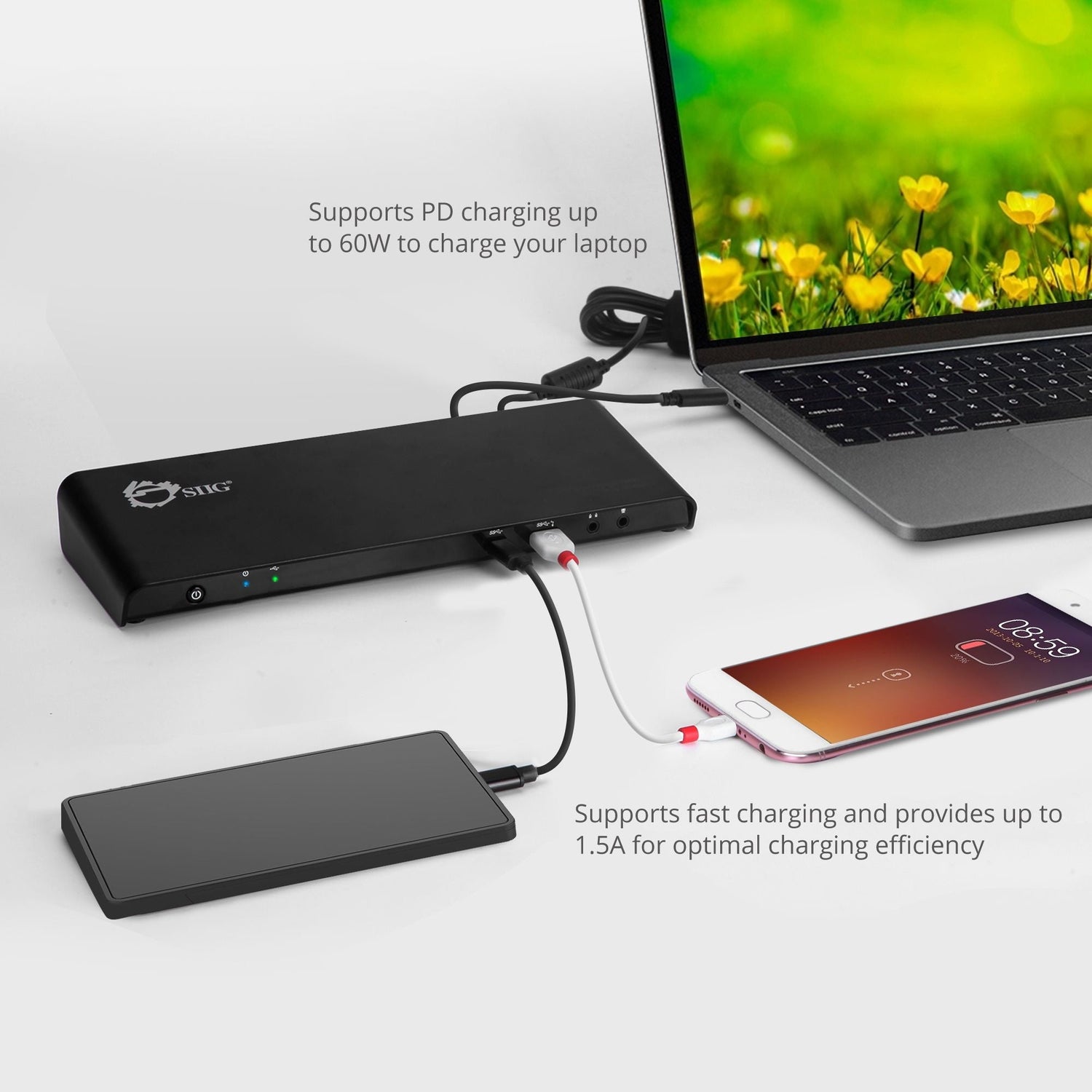

Stay powered while you work with up to 60W Power Delivery, allowing you to charge your laptop and use the dock simultaneously—eliminating the need for separate power adapters and keeping your setup clean and efficient.
*Note:
- HDMI output requires the host USB-C port to support DisplayPort Alt Mode
- Dual DisplayPort connections are required for 5K display output
Stay powered while you work with up to 60W Power Delivery, allowing you to charge your laptop and use the dock simultaneously—eliminating the need for separate power adapters and keeping your setup clean and efficient.
*Note:
- HDMI output requires the host USB-C port to support DisplayPort Alt Mode
- Dual DisplayPort connections are required for 5K display output
All-in-One USB-C Expansion with Triple 4K & 5K Display Support
Turn your USB-C laptop into a powerful all-in-one workstation. Expand connectivity with HDMI, DisplayPort, USB 3.0, USB-C, RJ45 Ethernet, audio/mic, and laptop charging—perfect for MacBook Pro, Chromebook, and other USB-C systems.
Enjoy ultra-clear visuals with support for a single 5K display or a triple 4K monitor setup, ideal for content creation, video editing, and multitasking. A Gigabit Ethernet port provides stable, high-speed wired internet, while multiple USB ports allow seamless connection of peripherals, including fast charging via USB 3.0 BC 1.2.
Built with a durable ABS enclosure, this dock ensures reliable performance for daily use—enabling you to connect, charge, and expand your workspace efficiently, all at once.
Enjoy ultra-clear visuals with support for a single 5K display or a triple 4K monitor setup, ideal for content creation, video editing, and multitasking. A Gigabit Ethernet port provides stable, high-speed wired internet, while multiple USB ports allow seamless connection of peripherals, including fast charging via USB 3.0 BC 1.2.
Built with a durable ABS enclosure, this dock ensures reliable performance for daily use—enabling you to connect, charge, and expand your workspace efficiently, all at once.

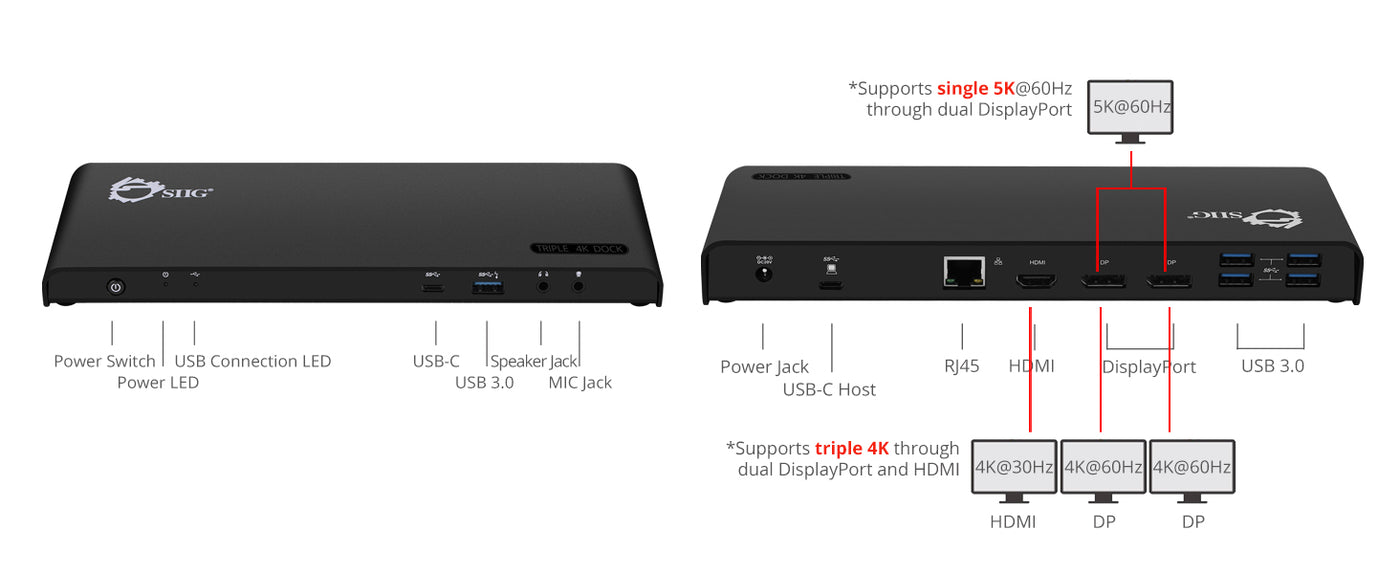

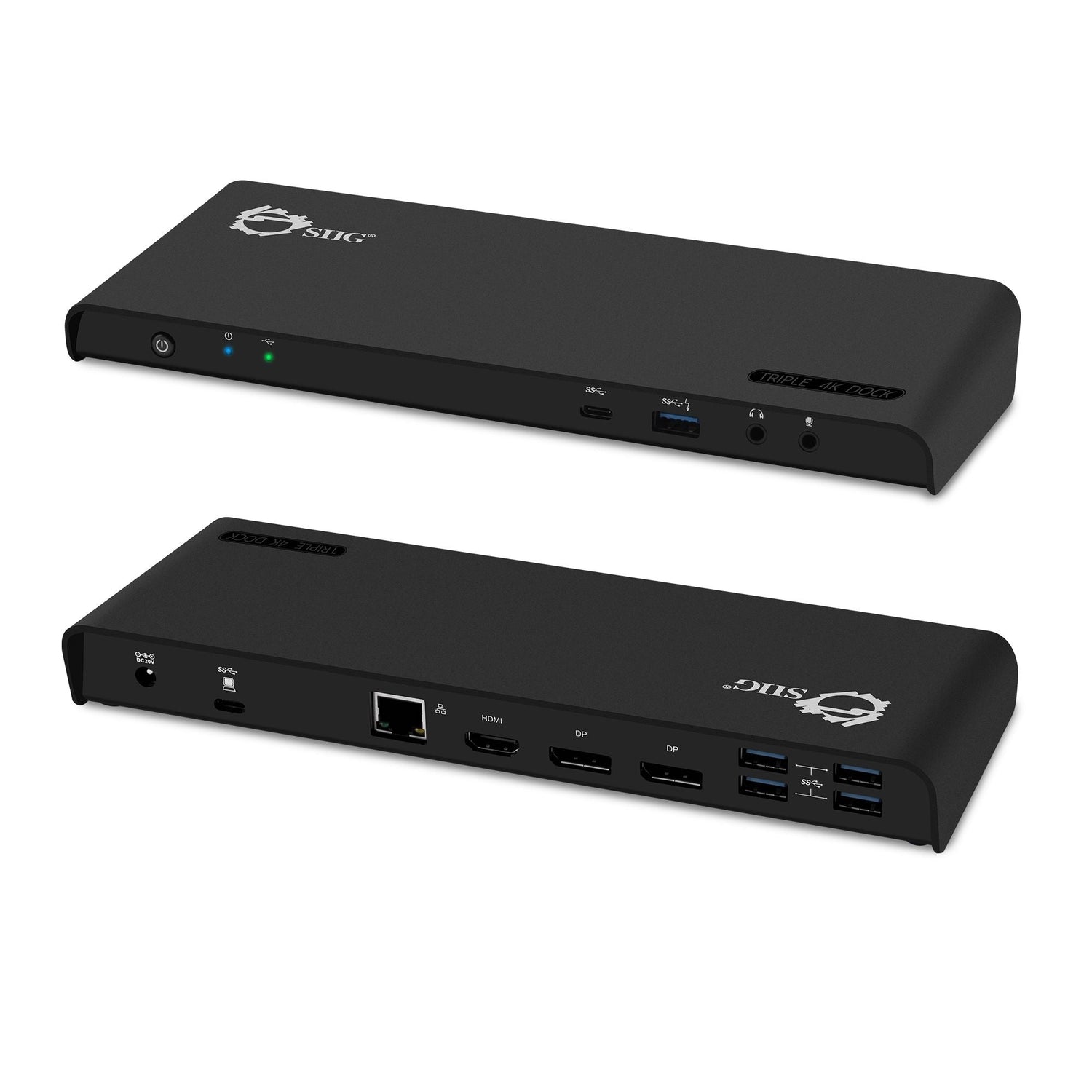

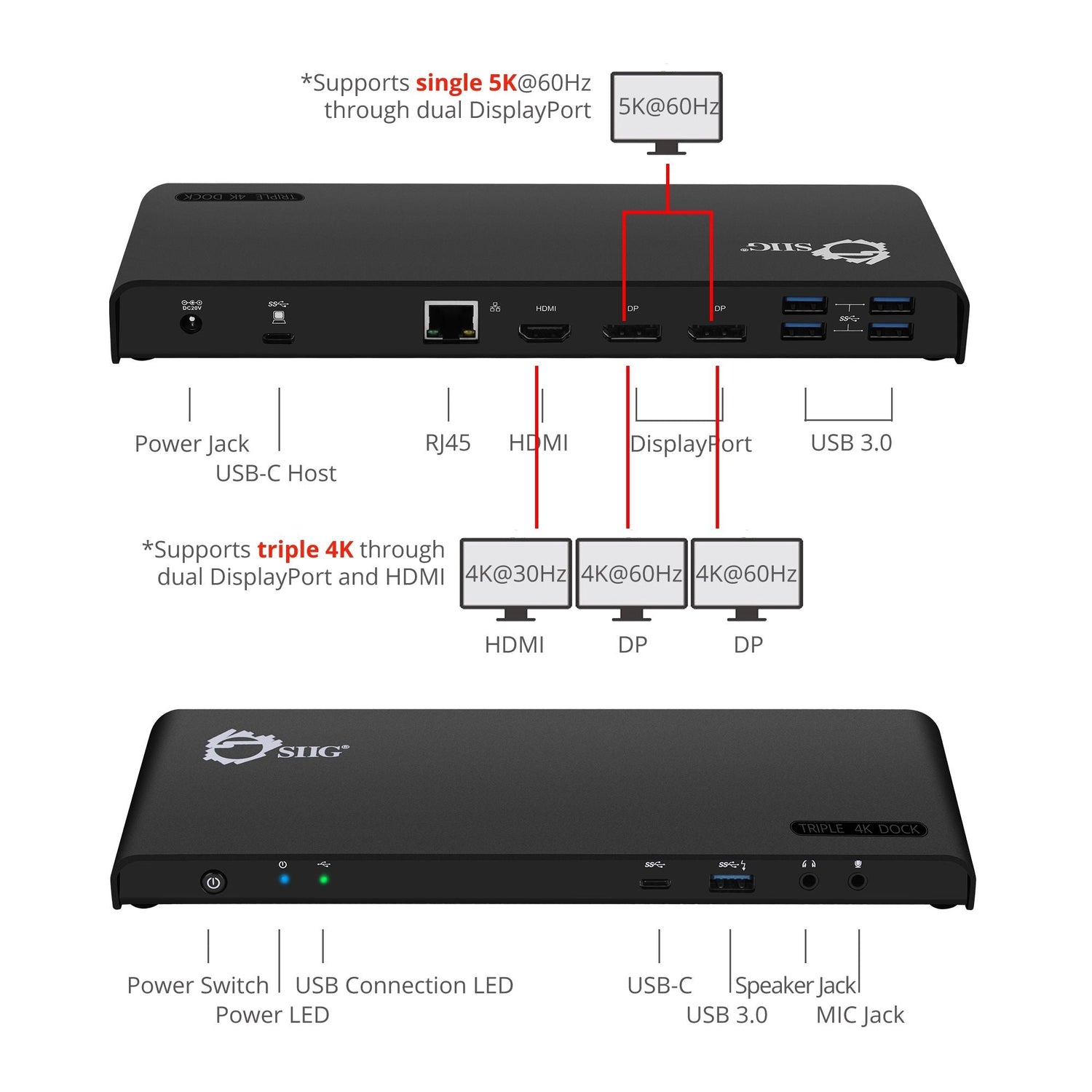

Multiple Connectivity Ports

Create a Powerful Workstation

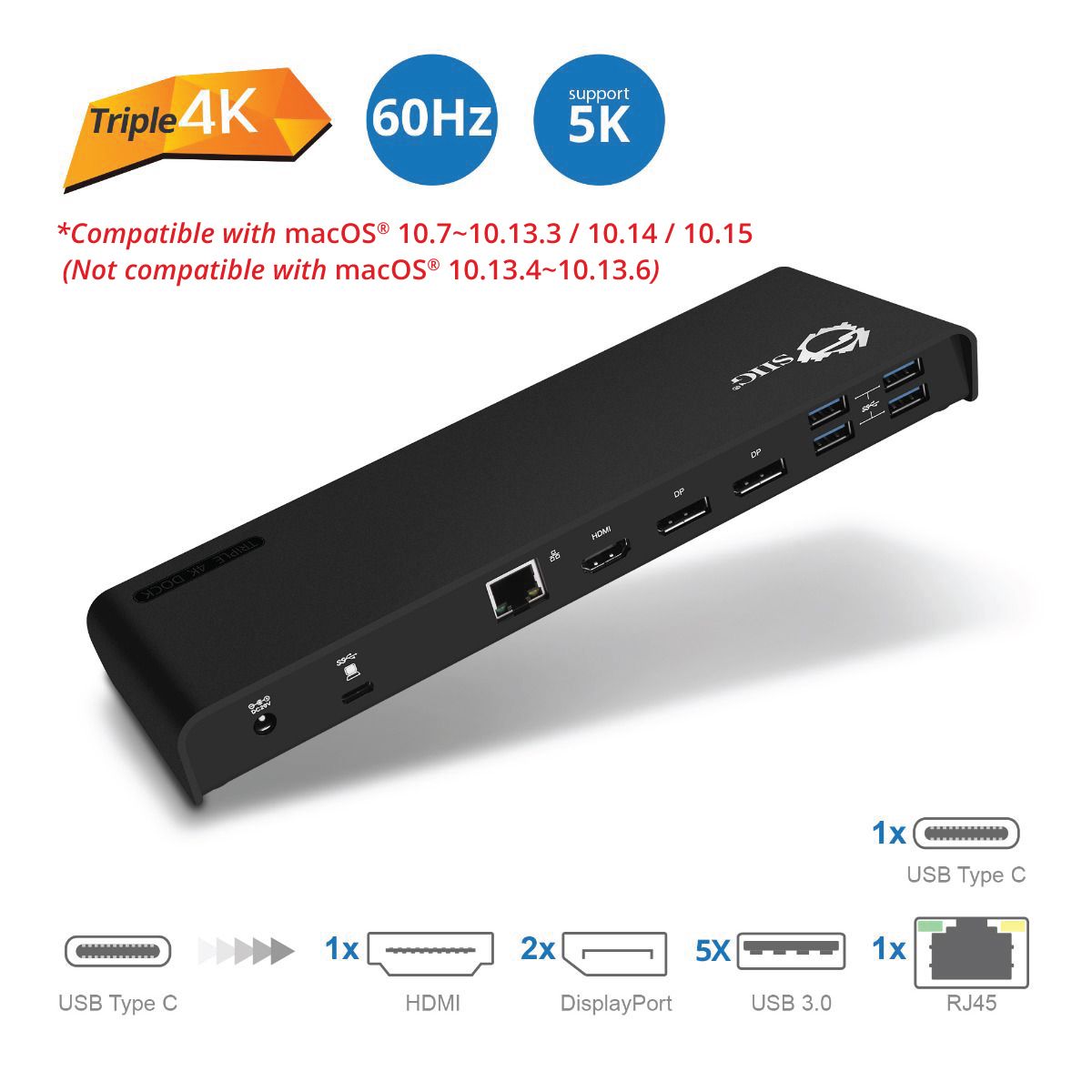

Expand your laptop into a powerful workstation with triple displays (1 HDMI + 2 DisplayPort), Gigabit Ethernet, and five USB ports. Supports Extended, Mirror, and Primary display modes.
| Chipset | DisplayLink DL6950, Parade PS176, VIA VL813, Texas Instruments TPS65983 |
| Stands | Compliant with HDMI 1.4, HDCP 1.4, and DisplayPort 1.2 Compliant with Universal Serial Bus 3.0 Specification and backward compatible with USB 2.0 |
| USB Data Transfer Rate | Up to 5Gbps |
| BC1.2 | Supports USB Battery Charging Specification, Revision 1.2 (BC1.2) |
| Integrated Gigabit Ethernet | Supports up to 1000 Mbps data transfer rate and is backward compatible with 10/100 Mbps |
| Audio | Supports 5.1 channel surround sound through DisplayPort and HDMI |
| PD Charging | Supports PD Charging (for NB) 20/15/9/5V@3A, up to 60W |
| Supported Video Cable Length | HDMI: Up to 5M (max) DisplayPort: Up to 3M (max) |
| Resolution | |
| DisplayPort | Up to 4096x2160@60Hz (YUV 4:4:4 8bit) |
| HDMI | Up to 3840x2160@30Hz (YUV 4:4:4 8bit) Note: The HDMI output will work only when the host USB-C port transmits DisplayPort Alt mode |
| DisplayPort 5K | 5120x2880@60Hz (YUV 4:2:2 8bit) Note: Connect both DisplayPort outputs to a single 5K DisplayPort TV/monitor |
| Power Adapter | Input: AC 100-240V/50-60Hz Output: DC 20V/6.75A UL Listed: E143709 / Class VI |
| System Requirements | - Desktop or laptop computer with an available USB-C with DisplayPort Alt mode, Power Delivery and USB data or Thunderbolt 3 port Note: The docking station's HDMI output will work only when the host USB-C port transmits DisplayPort Alt mode - Intel Core i5 3.0GHz CPU or higher and standalone GPU - Windows® 11 (32-/64-bit) / 10 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit) - macOS® 10.10 to 13.3 / 10.14 / 10.15 / Big Sur 11 / Monterey 12 Note: macOS 10.15.6 or later: Uninstall any legacy DisplayLink driver (v5.2.5 or earlier) and install the latest driver on SIIG's website - Not compatible with macOS 10.13.4 to 10.13.6. It's recommended to upgrade to Mojave 10.14 or later or stay with 10.13.3 or earlier. - macOS limitations: Does not support Movie/video playback via iTunesand HDCP protected content via Safari web browser (Netflix, Amazon Prime, Hulu, HBO Go, etc..) |
| Product | |

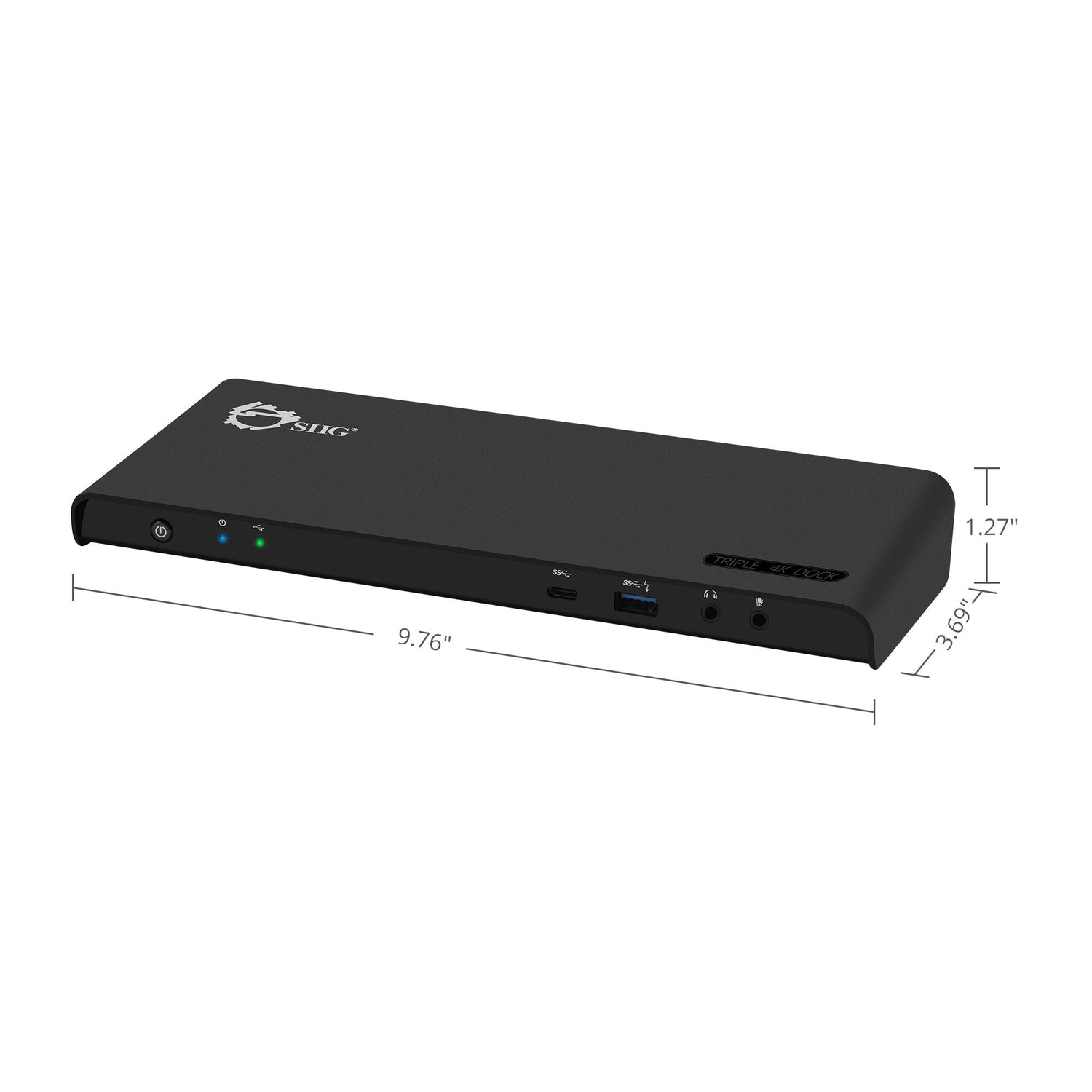

| Dimensions(L) x (H) x (W) | 9.76" x 1.26" x 3.69" 24.80 cm x 3.2 cm x 9.37 cm |
| Weight | 0.72 lbs (0.33 kg) |
| Color | Black |
| Housing | ABS |
| Unit Package | |
| Dimensions(L) x (H) x (W) | 11.69" x 3.54" x 5.75" 29.70 cm x 9.00 cm x 14.60 cm |
| Weight | 2.92 lbs (1.32 kg) |
| Master Carton | |
| Dimensions(L) x (H) x (W) | 18.90" x 12.20" x 12.36" 48.00 cm x 31.00 cm x 31.40 cm |
| Weight | 31.92 lbs (14.48 kg) |
| Quality | 10 pcs/ctn |
| Connectors | 1x 24-pin, USB-C, Female, Input, PD charging, 60W (max) 4x 9-pin, USB 3.0, Type-A, Female, Output 1x 9-pin, USB 3.0, Type-A, Female, Output, Data + USB BC1.2 Charging up to 5V/1.5A 1x 24-pin, USB 3.1 Gen 1, Type-C, Female, Output (Data only) 2x 20-pin, DisplayPort, Female, Output 1x 19-pin, HDMI Type-A, Female, Output 1x 8-pin, RJ45, Gigabit Ethernet, Female, Output 1x 3.5mm, Stereo Audio, Output 1x 3.5mm, Microphone, Input |
| Environmental Conditions | |
| Operating Temp | 32 to 104 degrees F |
| Storage Temp | 14 to 158 degrees F |
| Humidity | 5% to 90% RH (non-condensing) |
| Certifications & Standards | FCC, CE, RoHS |
| UPC Code | 662774-040929 |
| Warranty | 2 years limited |
| Country of Origin | China |

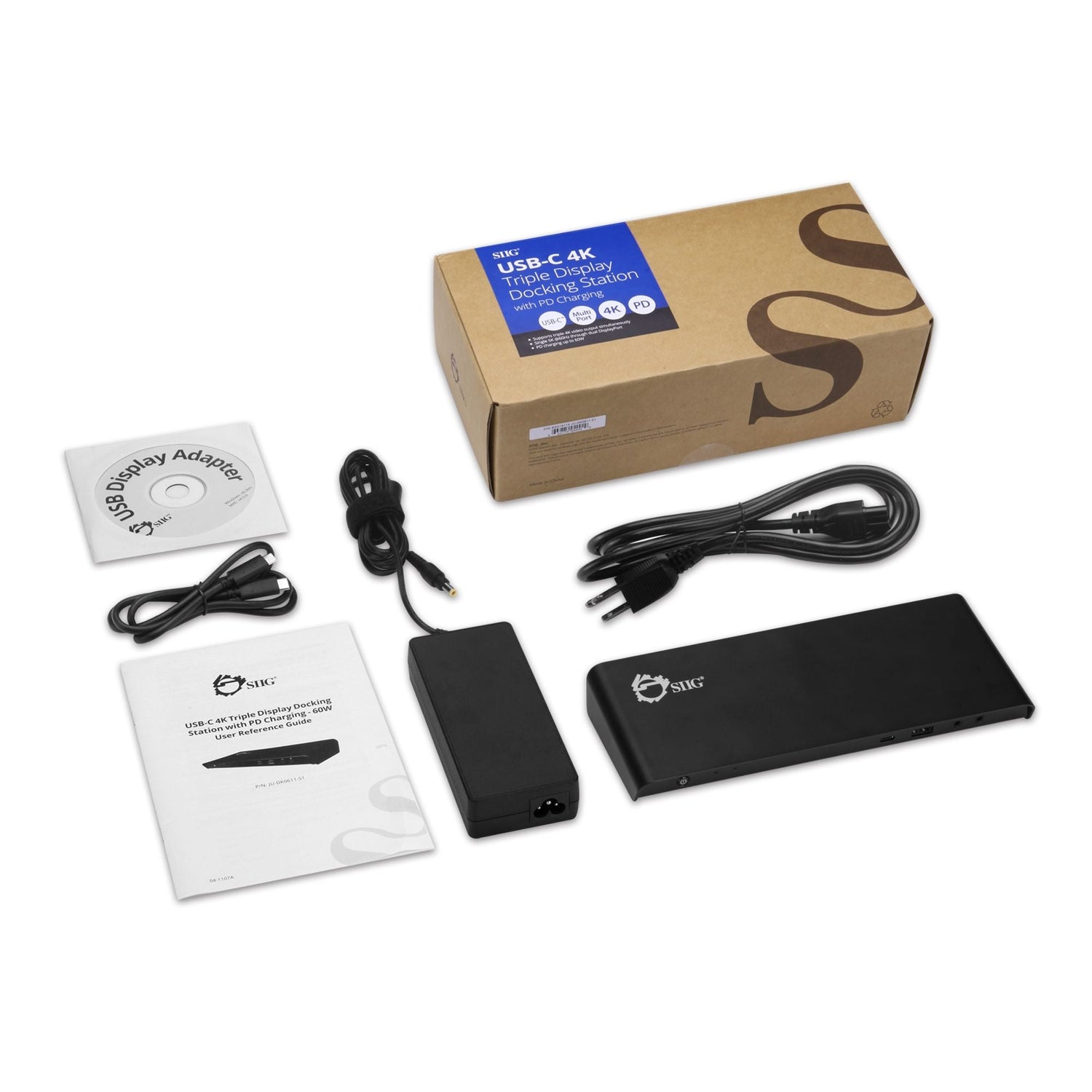

| Package Contents | 1x USB-C Triple 4K Display Docking Station with PD Charging - 60W 1x Power Adapter (DC 20V/6.75A) 1x USB-C to USB-C cable 1x Driver CD 1x User reference guide |
No content found
Manuals
Drivers (Hardware Version: 1)
- macOS 10.14.xBuild: v5.2.6 (128)
- macOS Catalina 10.15.xFor the latest MAC driver please visit, https://www.synaptics.com/displaylink/downloads/macos, and download the latest driver to maximize compatibility
- Windows 8 (32-/64-bit)|
- ma OS X 10.11.5 to 10.11.0For the latest MAC driver please visit, https://www.synaptics.com/displaylink/downloads/macos, and download the latest driver to maximize compatibility
- macOS X 10.10Driver version: v3.1
- macOS X 10.13.3* / 10.12 / 10.11.6*Note: Our adapter DOES NOT work with Mac OS 10.13.4 to 10.13.6 update. It's recommended to upgrade to Mojave 10.14 or stay with 10.13.3 or earlier.
- Windows 8.1 (32-/64-bit) / 7 (32-/64-bit)Software Package Version: 10.3.6419.0. Driver version: 10.3.6400.0
- macOS Sonoma 14 / Ventura 13 / Monterey 12 / Big Sur 11Build: 0c503bb076 (148). For the latest MAC driver please visit, https://www.synaptics.com/displaylink/downloads/macos, and download the latest driver to maximize compatibility
- Windows 11 / 10Software Package Version: 11.7.5852.0. DisplayLink Graphics Driver version: 11.7.5813.0
