I/O |
SKU:
LB-US0614-S1

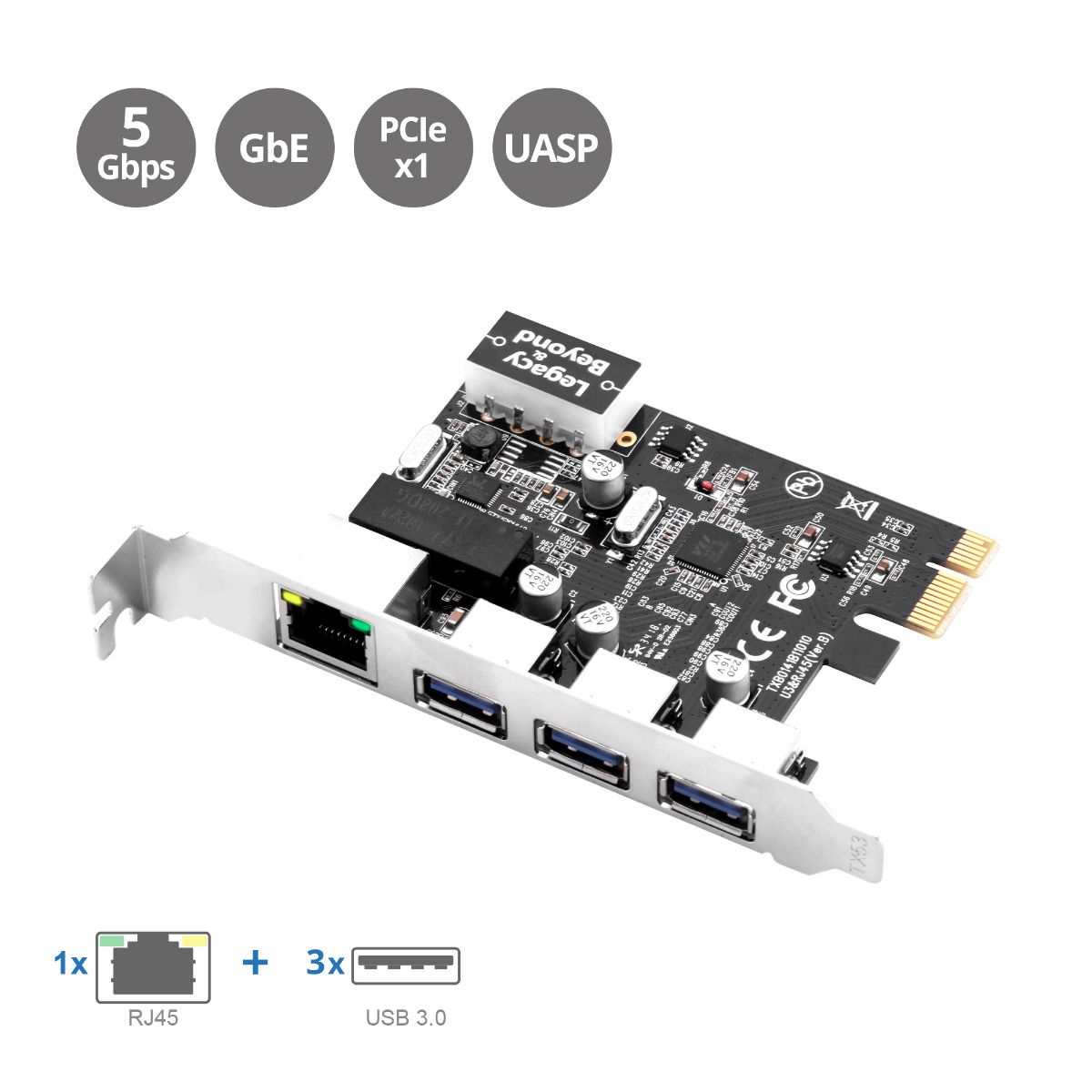

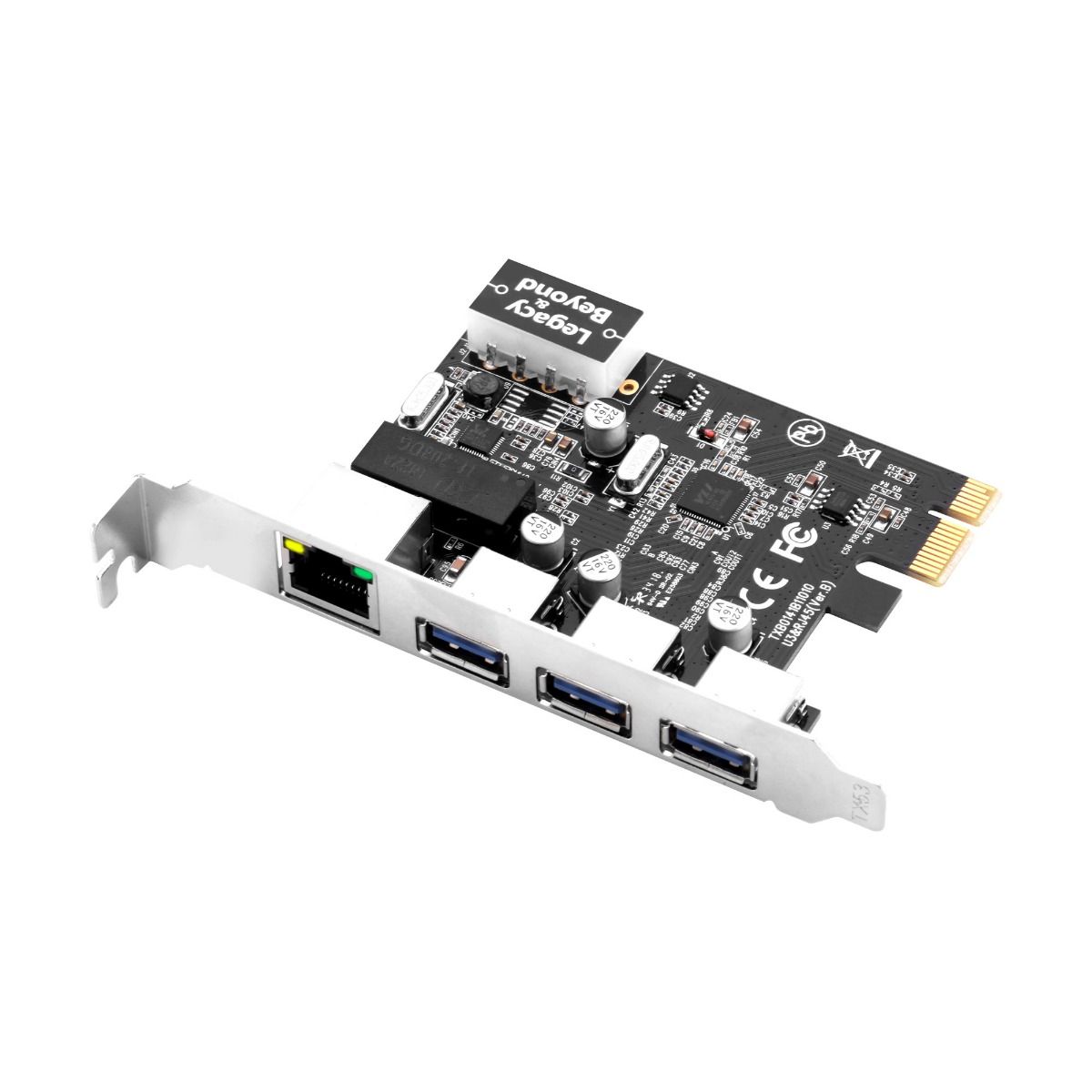

USB 3.0 3-Port Hub with LAN PCIe Host Card
3-Port USB with LAN PCIe
USB-A 5Gbps
Gigabit LAN
UASP
5V/900mA
Regular price
$48.99
Unit price
/
Unavailable
Shipping calculated at checkout.
USB 3.0 3-Port Hub with LAN PCIe Host Card is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
PCIe USB 3.0 & Gigabit Ethernet Expansion
PCIe USB 3.0 & Gigabit Ethernet Expansion
SuperSpeed USB Performance
SuperSpeed USB Performance
Reliable Gigabit Network Connection
Reliable Gigabit Network Connection
UASP Accelerated Storage Performance
UASP Accelerated Storage Performance
Multi-Device Connectivity
Multi-Device Connectivity
Features

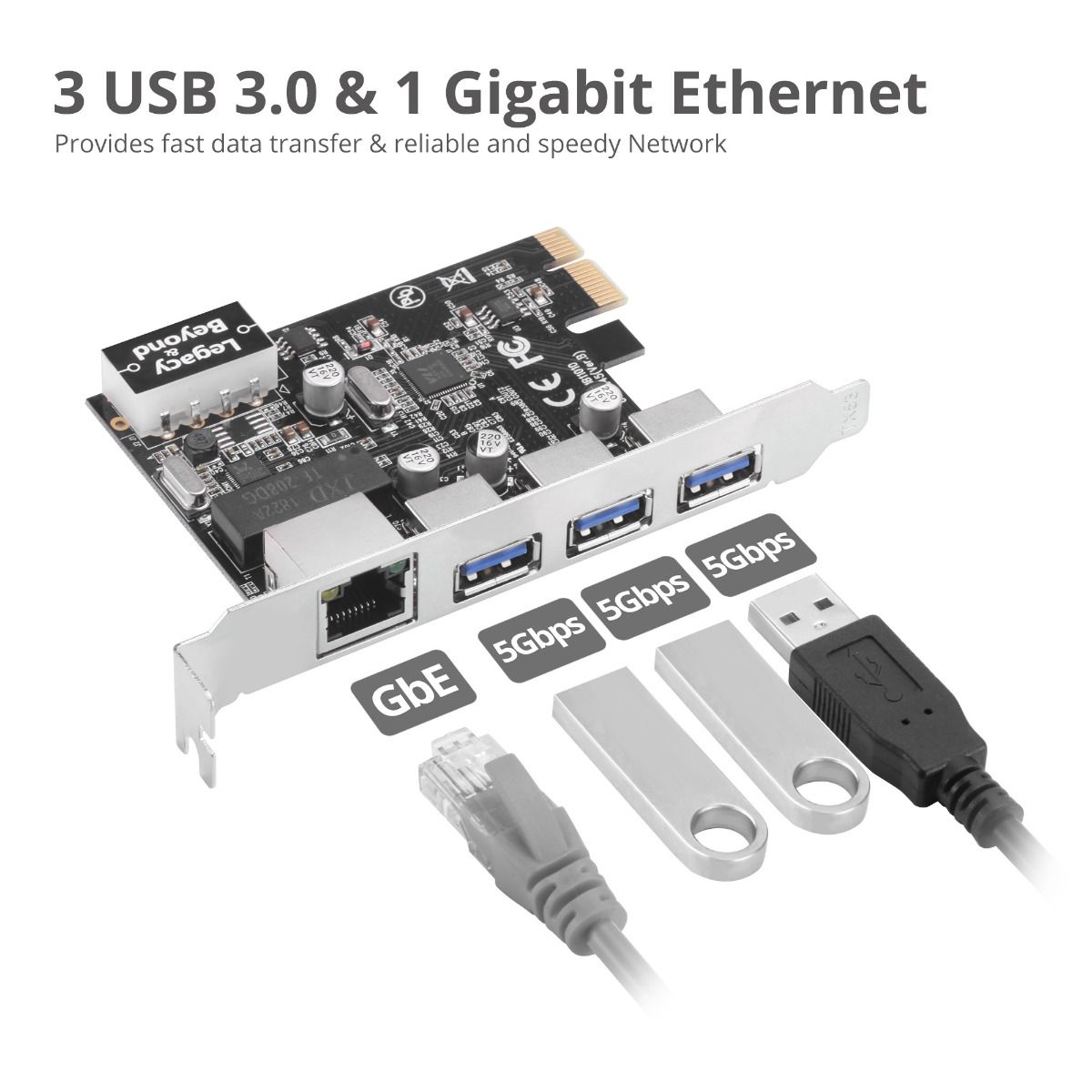

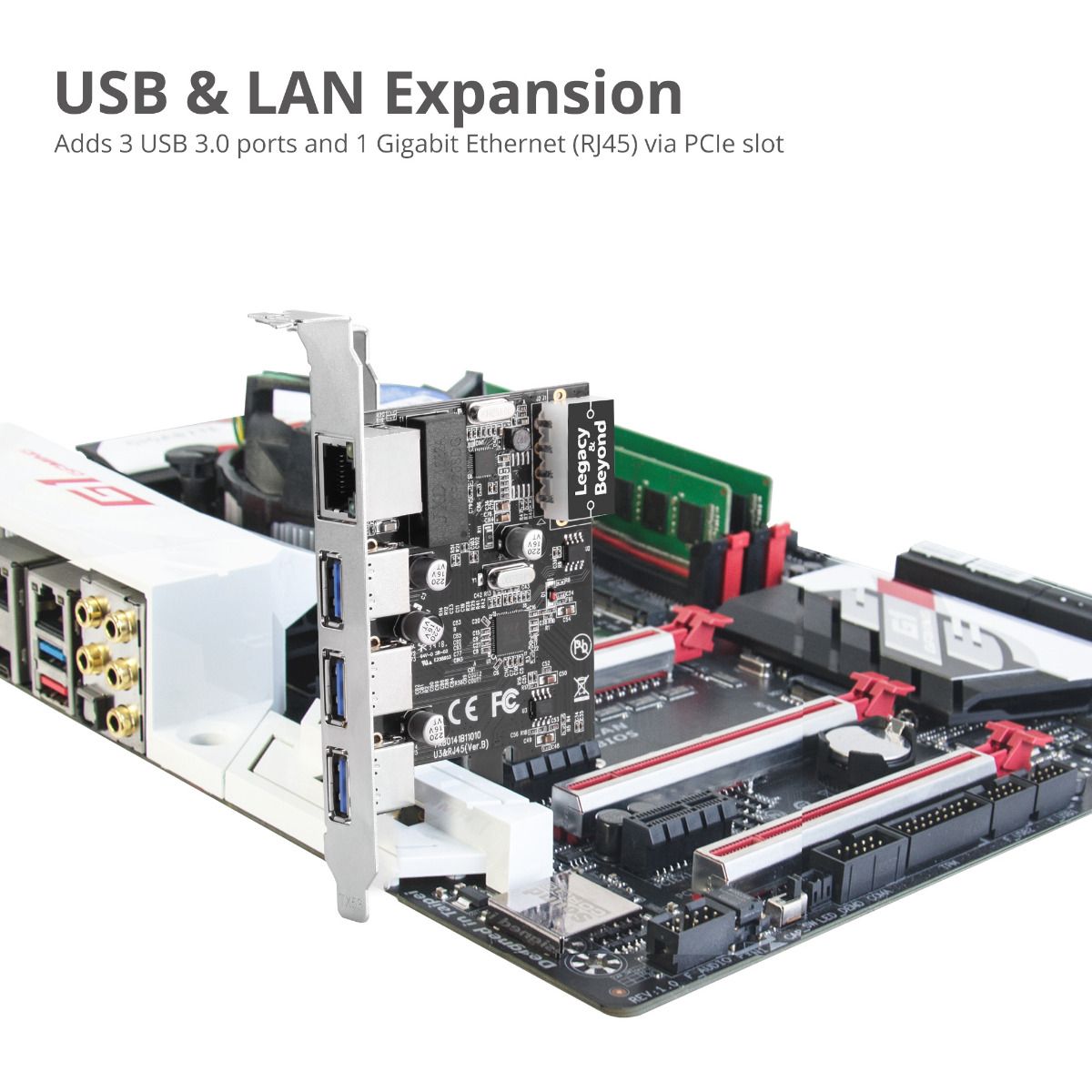

- Adds three USB 3.0 ports and one Gigabit Ethernet (RJ45) port through an available PCI Express slot
- Supports USB data transfer rates up to 5Gb/s shared among the 3 USB ports, and backward compatible with USB 2.0/1.1 devices
- Provides reliable wired network connection with speeds up to 1000Mbps
- Supports UASP (USB Attached SCSI Protocol), dramatically increases data transfer speed when used with UASP supported storage enclosures with SSD media
Note: Windows 10 and 8 have built in UASP support using their embedded USB 3.0 drivers only - Each USB 3.0 port provides power output up to 5V/900mA
- Multi-port feature allows connecting up to 3 USB devices simultaneously avoiding frequent swapping in and out of your devices
| Chipset | VIA VL805, RTL8153 |
| Standard | Compliant with PCI Express 2.0 specification and USB 3.0 Specification |

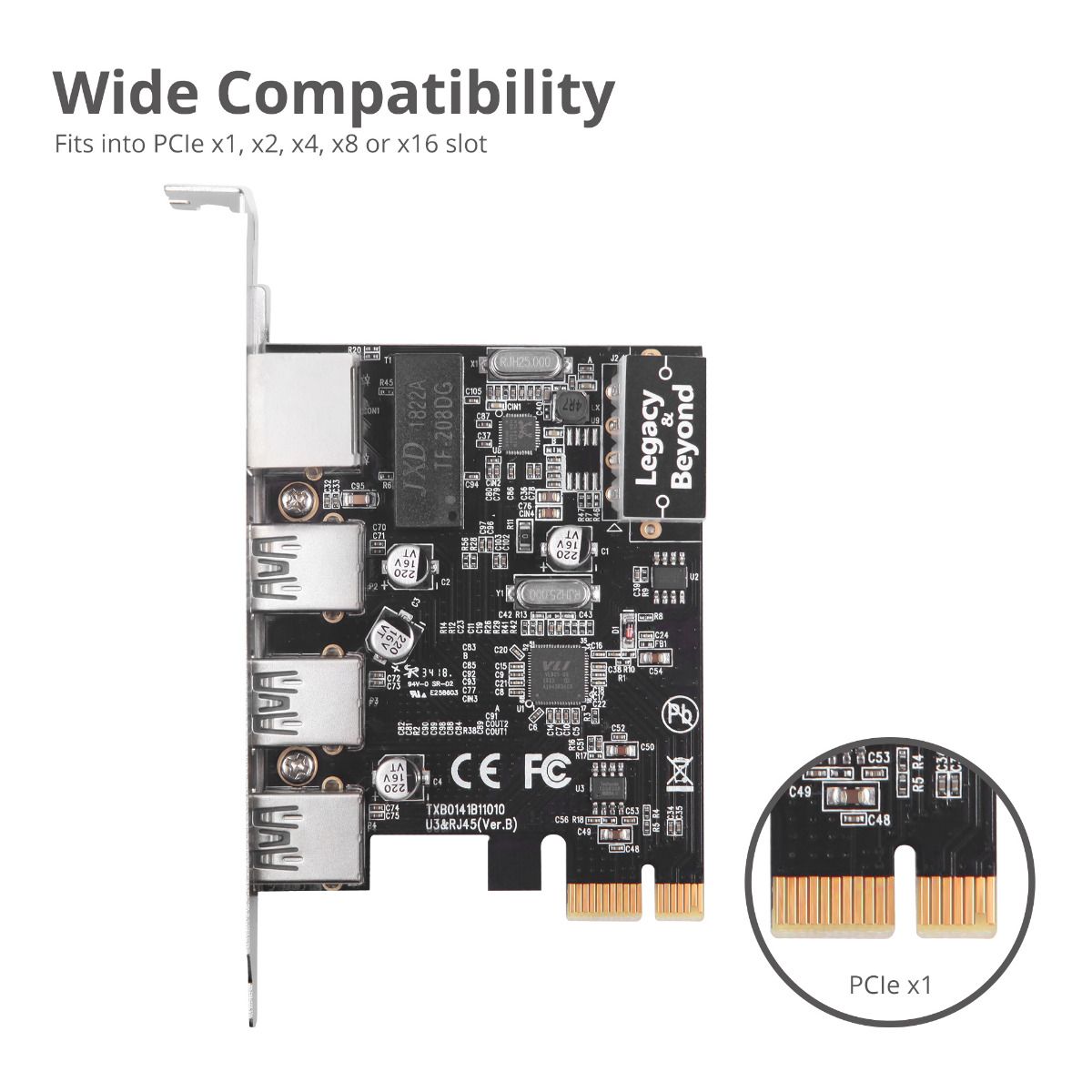

| Bus Connector | PCI Express 1x |
| USB Data Transfer Rate | Up to 5Gbps |
| USB Power Output | Up to 5V/900mA |
| Environmental Conditions | |
| Operating temperature | 32 to 140 degrees F |
| Storage temperature | 14 to 158 degrees F |
| Relative humidity | 5% to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-042695 |
| Warranty | 2 years limited |
| Country of Origin | China |

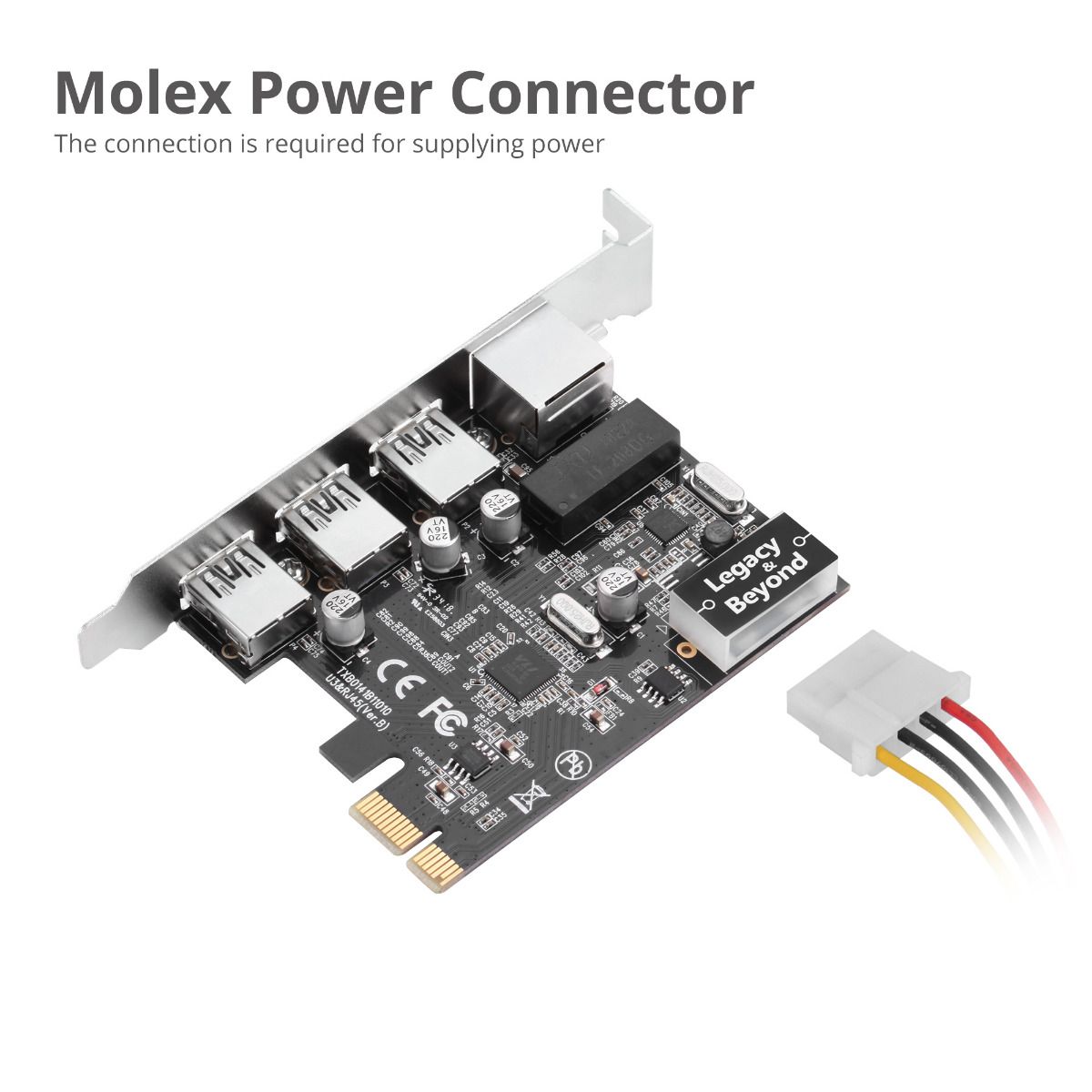

| System Requirements | - Desktop PC with one available PCI Express (PCIe) slot - 4-Pin Molex power connected to system power supply is required - Windows® 11 (64-bit) /10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) - Windows® Server 2016 (32-/64-bit) / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008 |
| Product | |
| Dimensions (L) x (H) x (W) | 2.68" x 0.79" x 4.72" 6.80 cm x 2.00 cm x 12.00 cm |
| Weight | 0.11 lbs (0.05 kg) |
| PCB Color | Black |
| Unit package | |
| Dimensions (L) x (H) x (W) | 7.28" x 5.43" x 1.30" 18.50 cm x 13.80 cm x 3.3 cm |
| Weight | 0.31 lbs (0.14 kg) |
| Master carton | |
| Dimensions (L) x (H) x (W) | 22.44" x 11.69" x 12.20" 57.00 cm x 29.70 cm x 31.00 cm |
| Weight | 17.42 lbs (7.90 kg) |
| Quantity | 50 pcs/ctn |

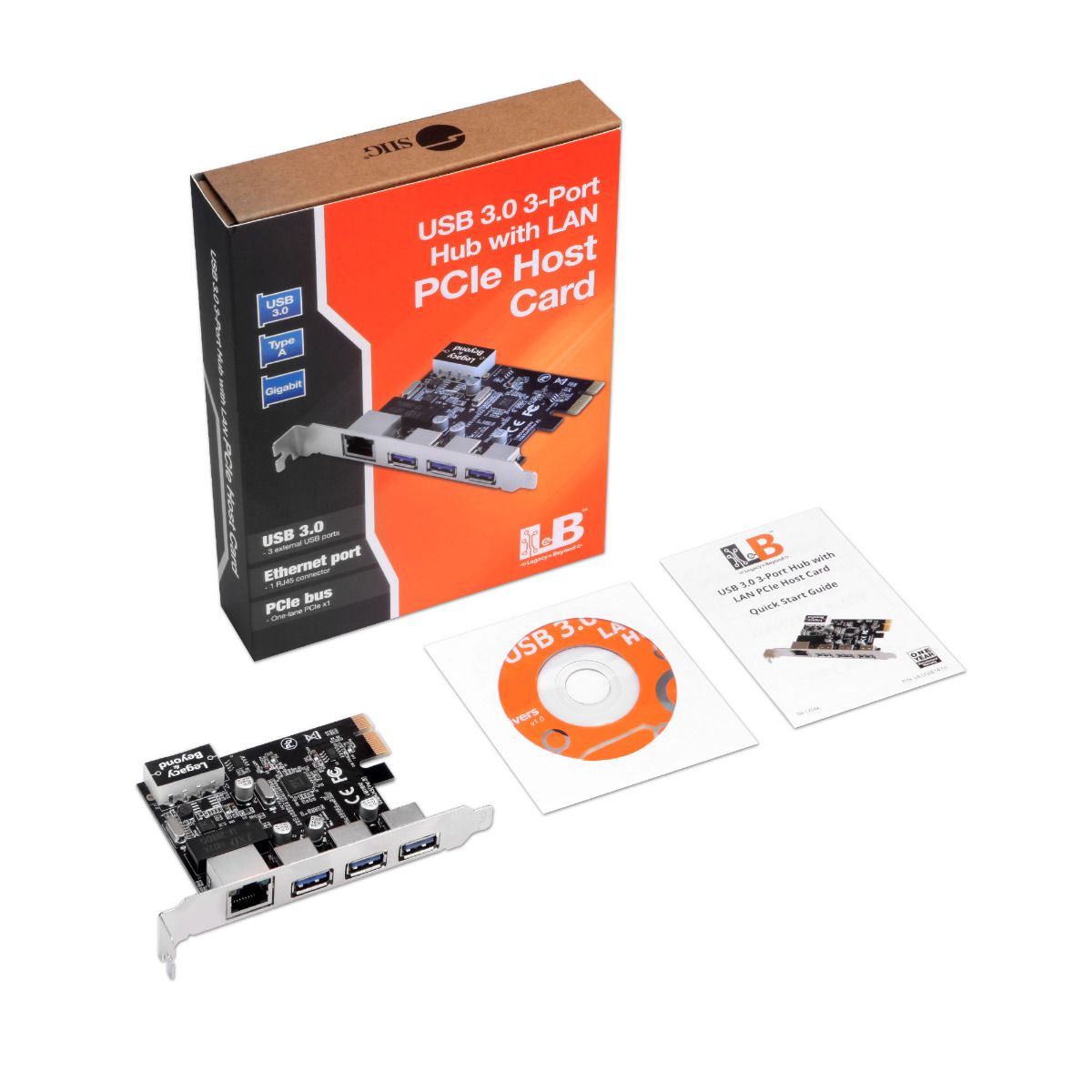

| Package Contents | 1x USB 3.0 3-Port Hub with LAN PCIe Host Card 1x Driver CD 1x Quick start guide |
