IT-Converter/Adapter |
SKU:
LB-CD0014-S1

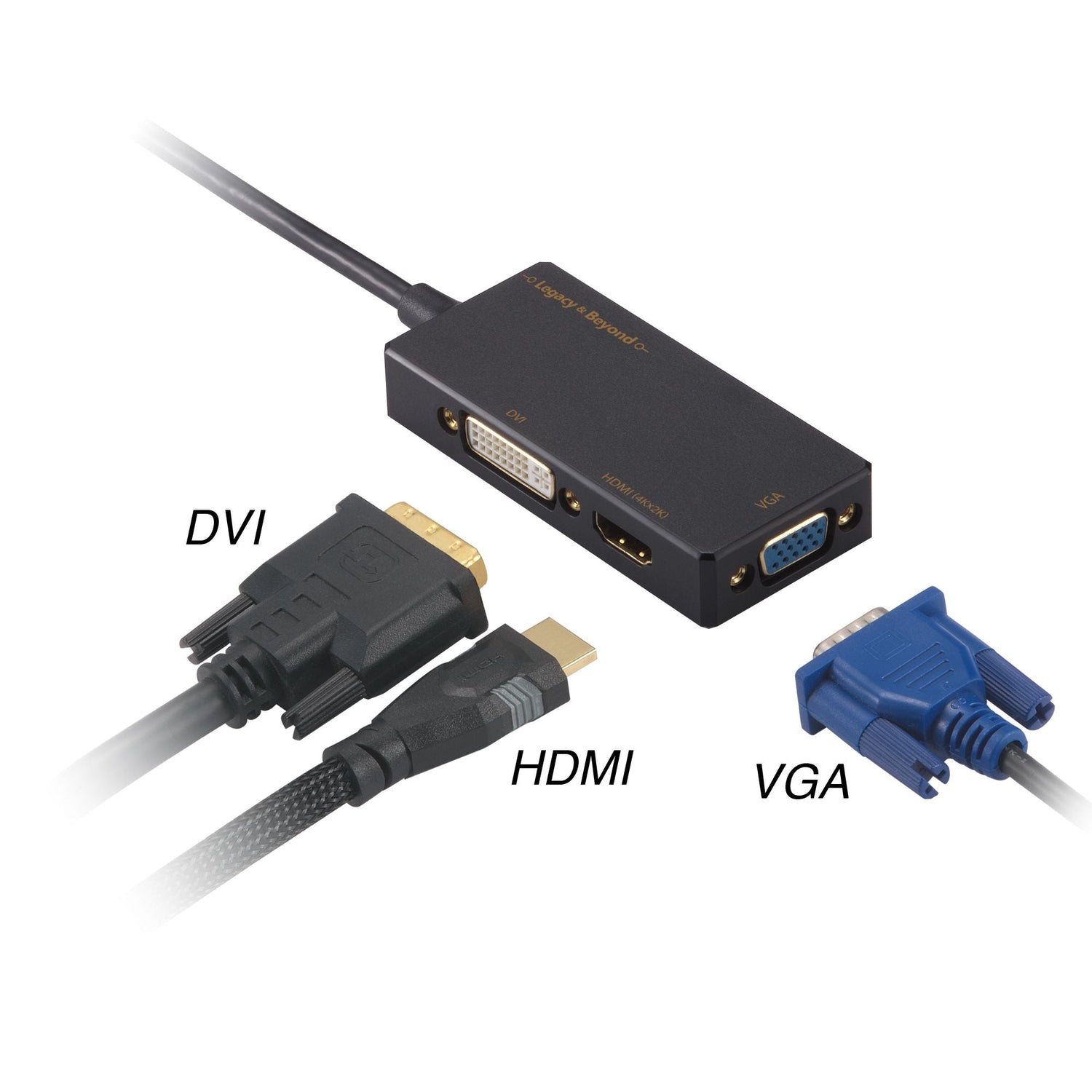

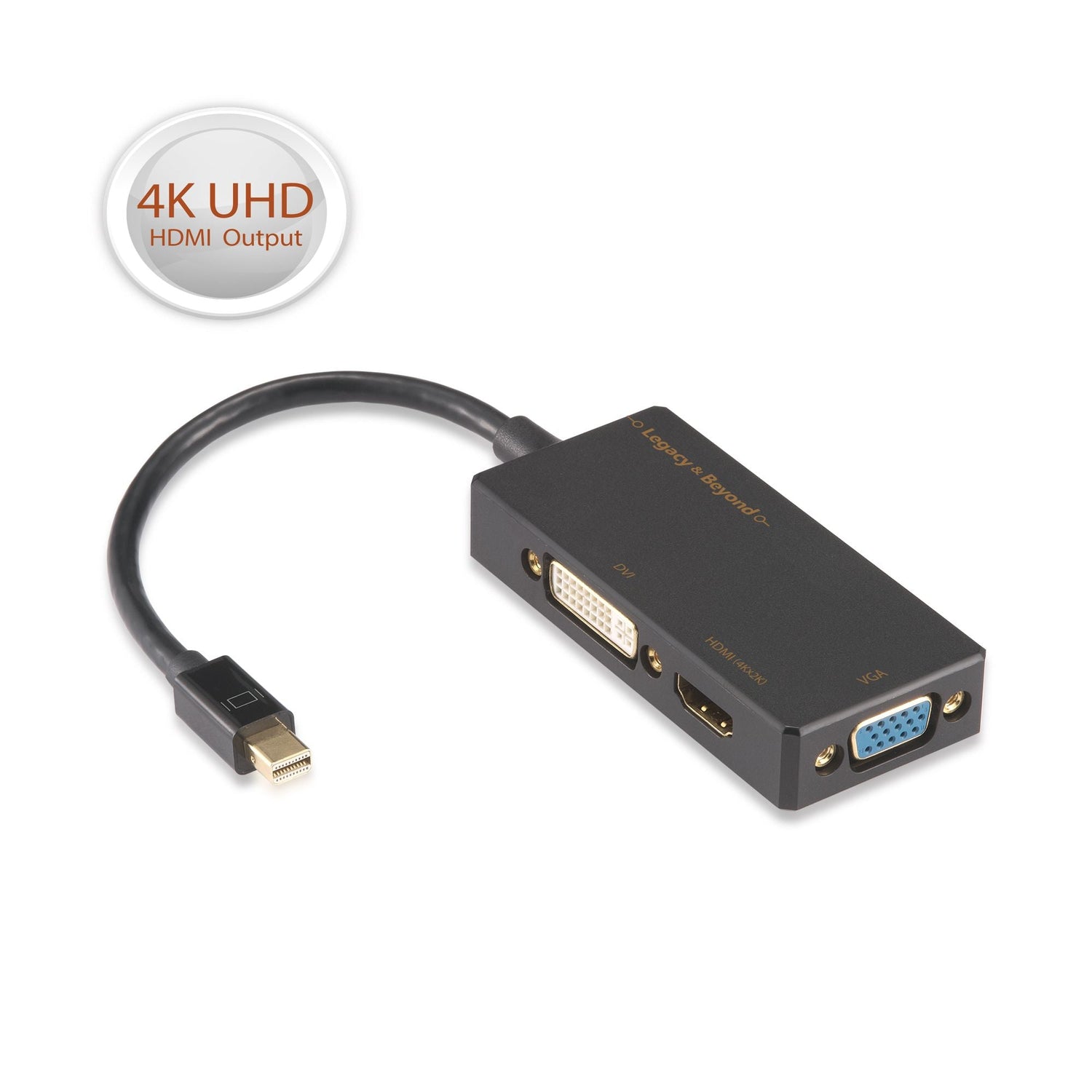

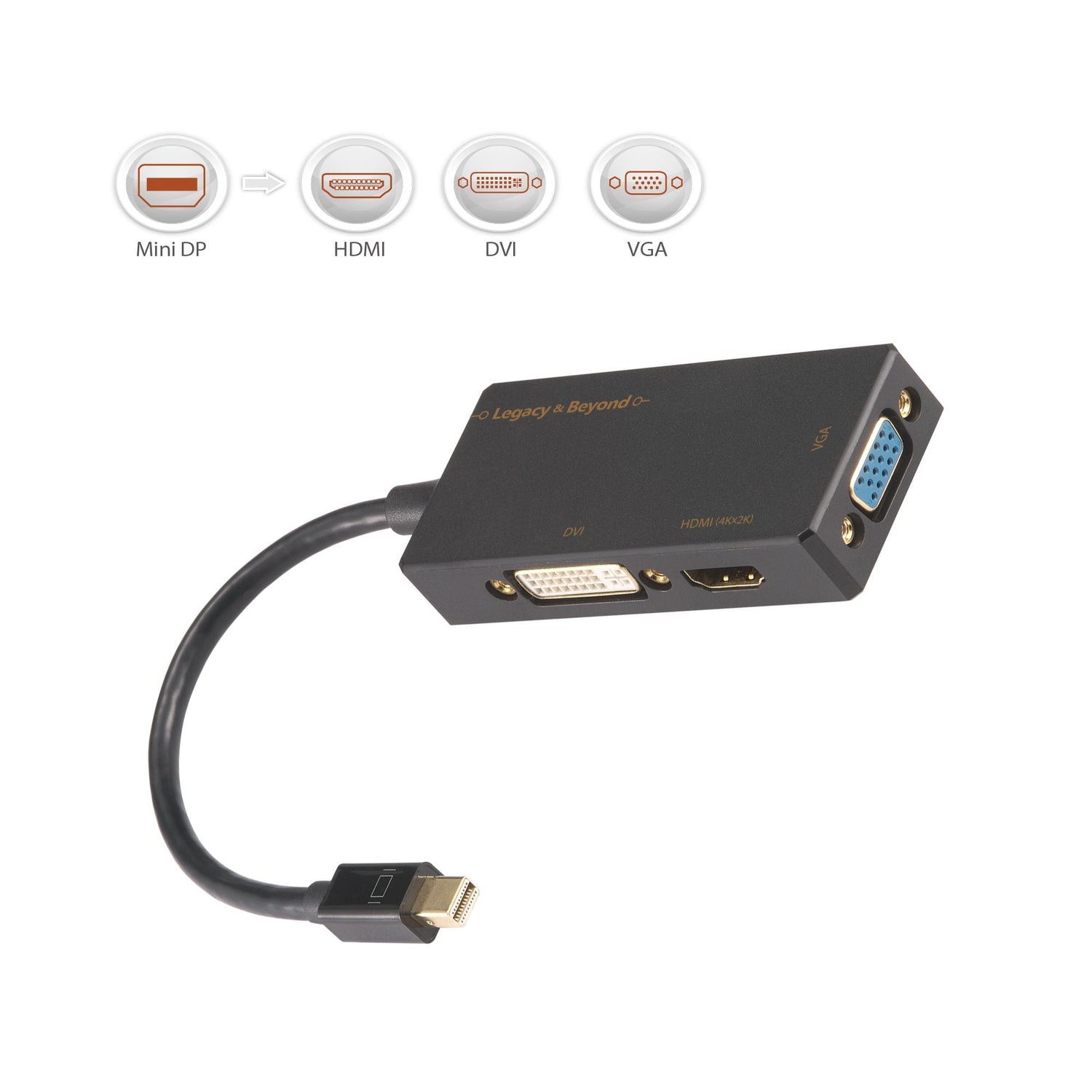

Mini DisplayPort to 4K HDMI/DVI/VGA 3-in-1 Adapter
Mini DisplayPort
HDMI/DVI/VGA
4K
Regular price
$39.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Mini DisplayPort to 4K HDMI/DVI/VGA 3-in-1 Adapter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
3-in-1 Solution
3-in-1 Solution
Flawless Resolution
Flawless Resolution
Lightweight and Easy to Use
Lightweight and Easy to Use
Compatibility
Compatibility
Reliable Quality
Reliable Quality
No content found
| Chipset | ANX9833 + PS8339 |
| Mini DisplayPort Version | v1.2 |

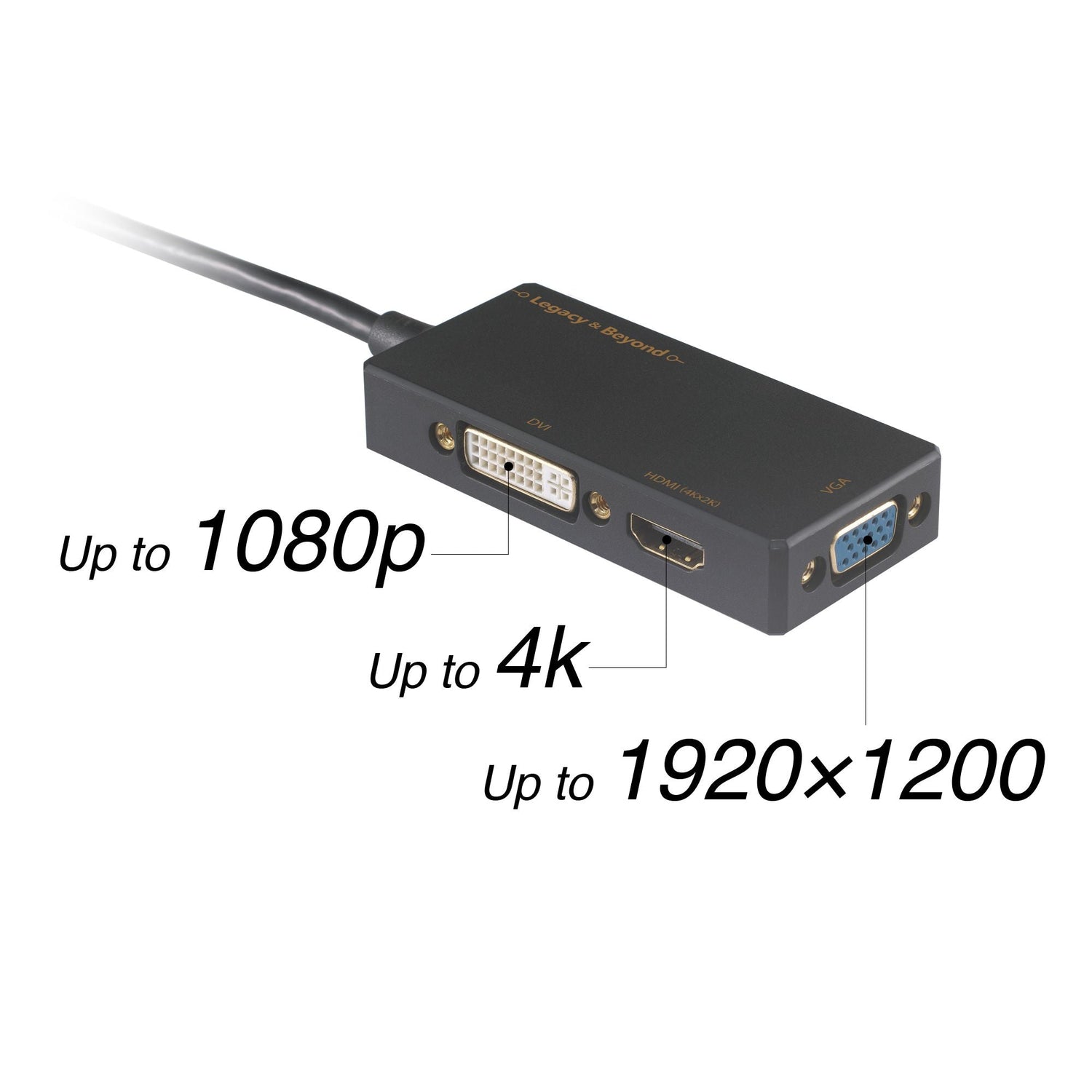

| HDMI Resolution | Up to 4Kx2K @ 30Hz |
| DVI Resolution | Up to 1920x1080 @ 60Hz, DVI-D (Single link) |
| VGA Resolution | Up to 2048x1152 @ 60Hz |
| Audio Support | HDMI: Up to 7.1 channel audio output DVI & VGA: No audio output |

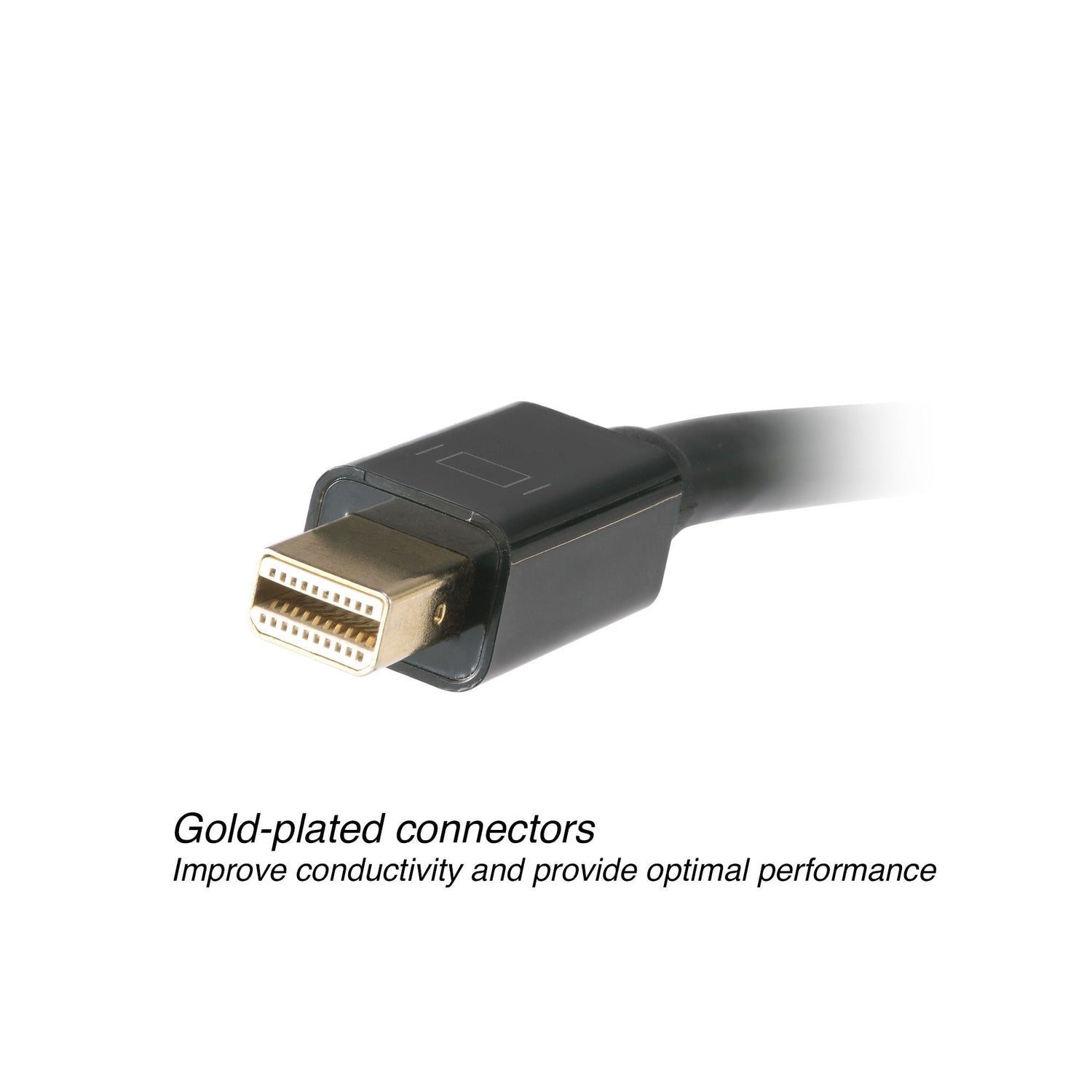

| Connectors | Input: 1x 20-pin, Mini DisplayPort, Male Output: 1x 19-pin, HDMI, Female Output: 1x 25-pin, DVI-I (Dual link), Female Output: 1x 15-pin, D-sub VGA, Female |
| System Requirements | Laptop, desktop, tablet with an available native Dual-mode (DP++) Mini DisplayPort output (MiniDP 1.2 recommended) Note: Mini DisplayPort converters/adapters are not supported |
| Product | |

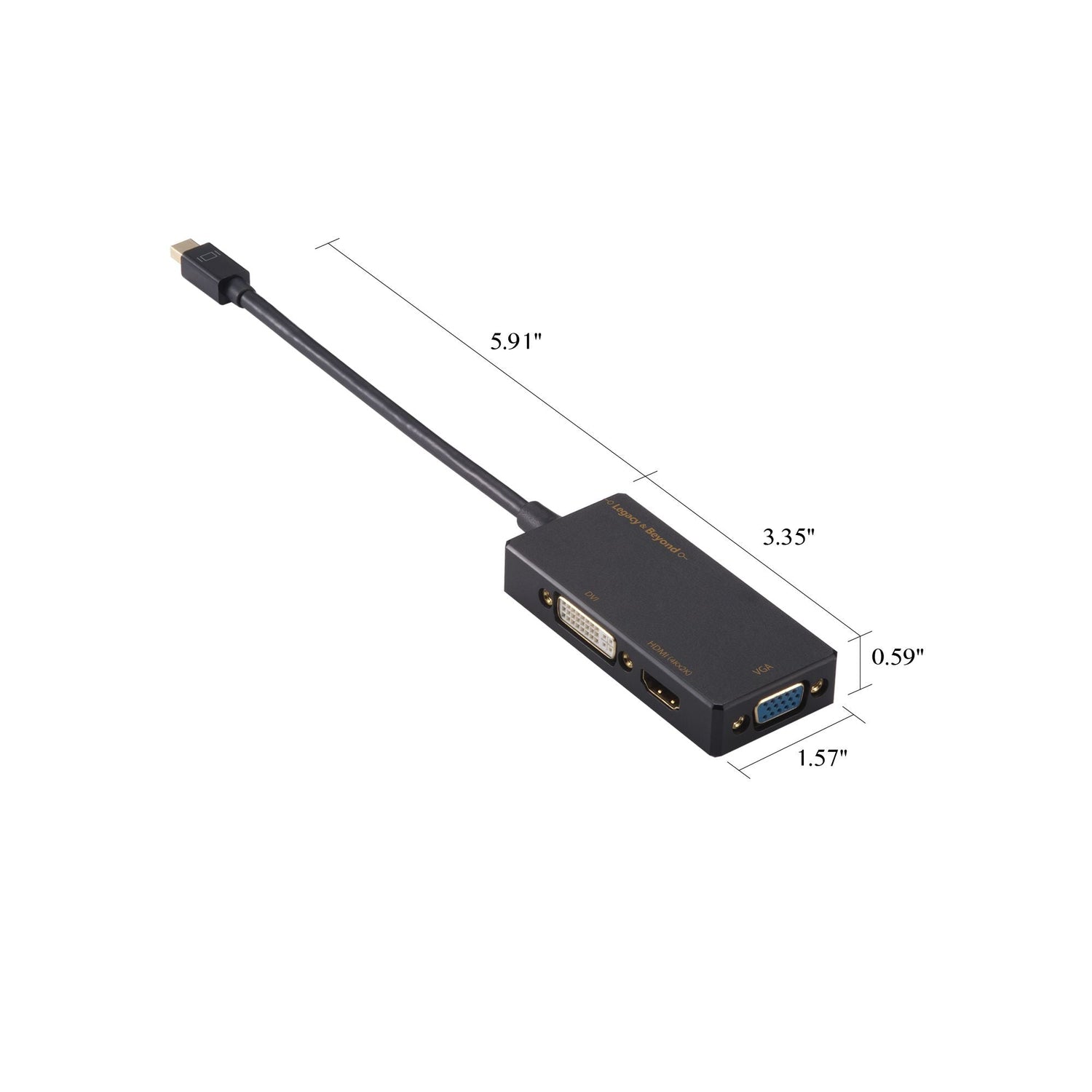

| Product Dimensions | 3.39" (L) x 1.57" (W) x 0.63" (H) |
| Product Weight | 0.10 lbs |
| Embedded Cable Length | 150mm (5.91") |
| Unit Package | |
| Unit Package Dimensions | 5.15″(W) x 18.04″(H) x 1.30″(D) |
| Unit Package Weight | 0.26 lbs |
| Master Carton | |
| Master Carton Dimensions | 18.11″(W) x 14.96″(H) x 12.01″(D) |
| Master Carton Weight | 15.87 lbs |
| Master Carton Quantity | 50pcs/ctn |
| Package Contents | Mini DisplayPort to 4K HDMI/DVI/VGA 3-in-1 Adapter User Reference Guide |
| Housing Material | Plastic |
| Color | Black |
| Environmental Conditions | Operating temperature: 32 to 113°F Storage temperature: 14 to 158°F Relative humidity: < 85% (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS |
| Warranty | 1 year limited |
| Country of Origin | China |
