IT-Converter/Adapter |
SKU:
CB-H21811-S1
HDMI to DisplayPort 1.2 4K 60Hz Converter Adapter
HDMI In
DisplayPort Out
4K60Hz
18Gbps
USB power
Regular price
$59.99
Unit price
/
Unavailable
Shipping calculated at checkout.
HDMI to DisplayPort 1.2 4K 60Hz Converter Adapter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
HDMI to DisplayPort Active Adapter
HDMI to DisplayPort Active Adapter

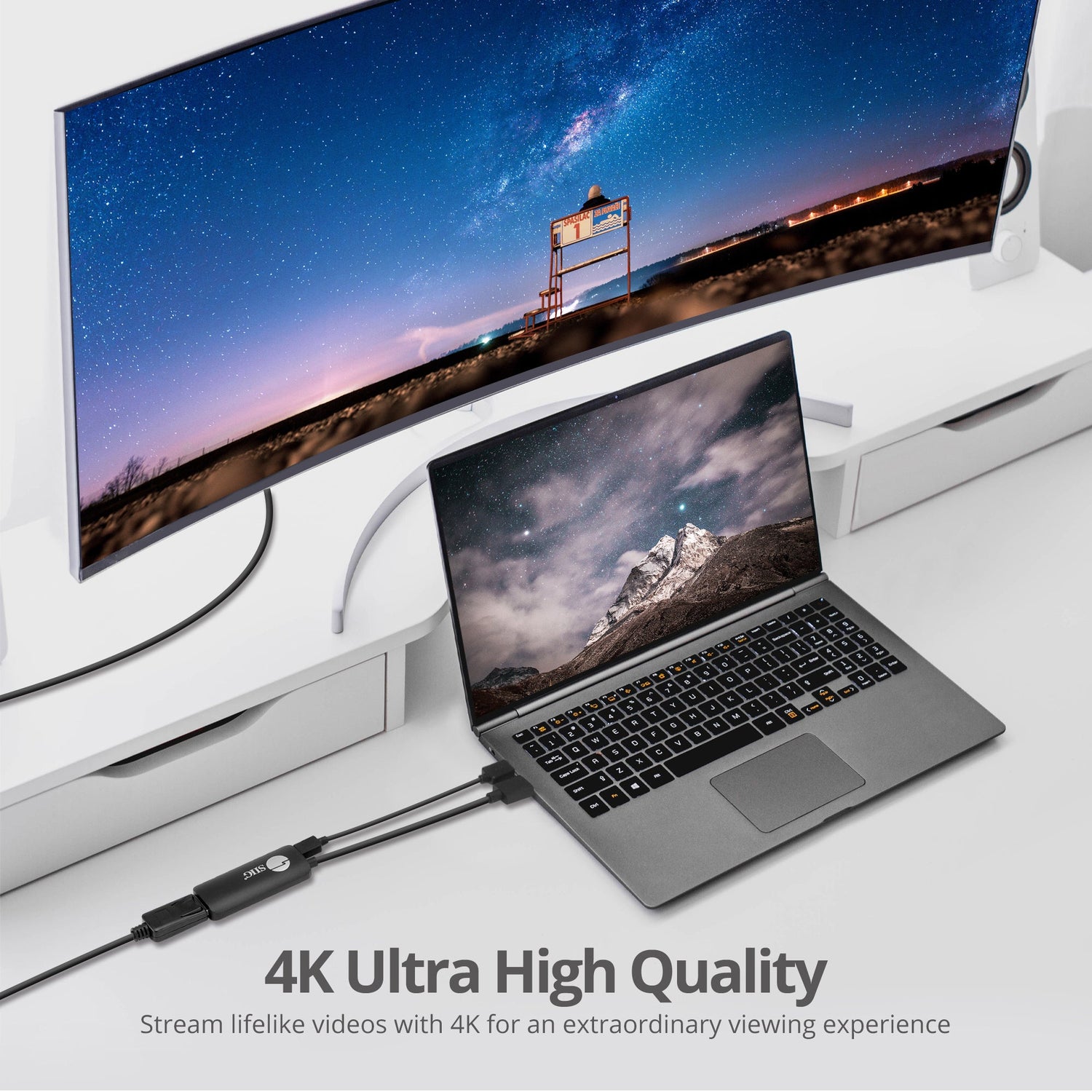

High-Resolution 4K Video Support
High-Resolution 4K Video Support

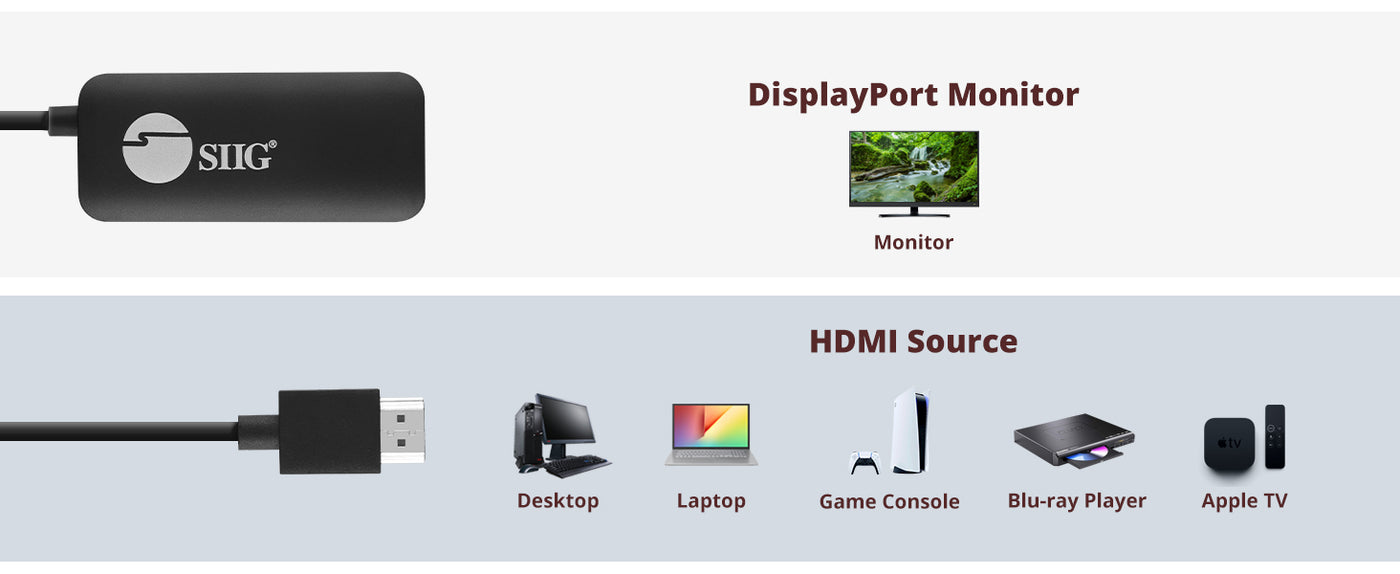

Wide Device Compatibility
Wide Device Compatibility
Built-in Audio Support
Built-in Audio Support
USB-Powered Plug-and-Play
USB-Powered Plug-and-Play

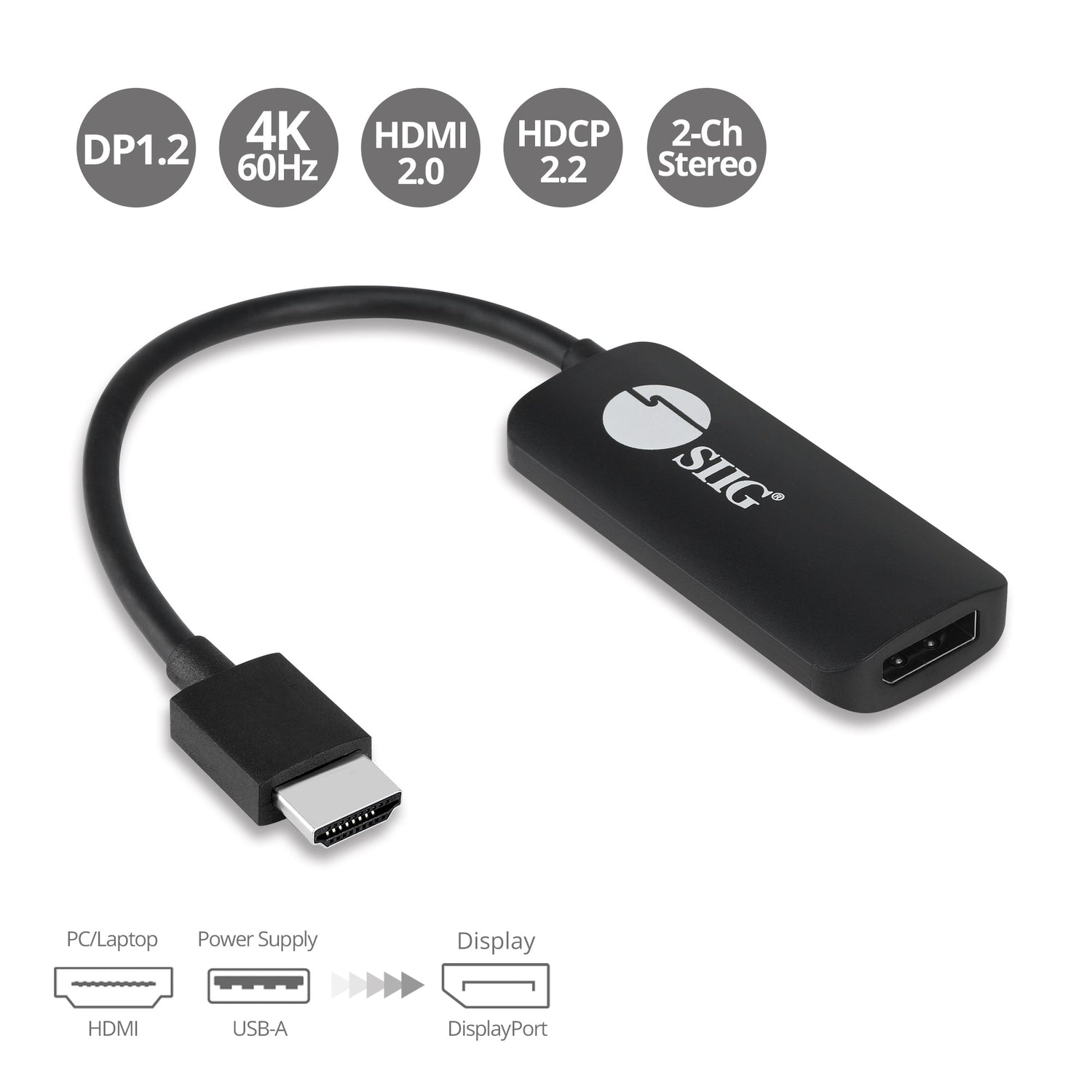

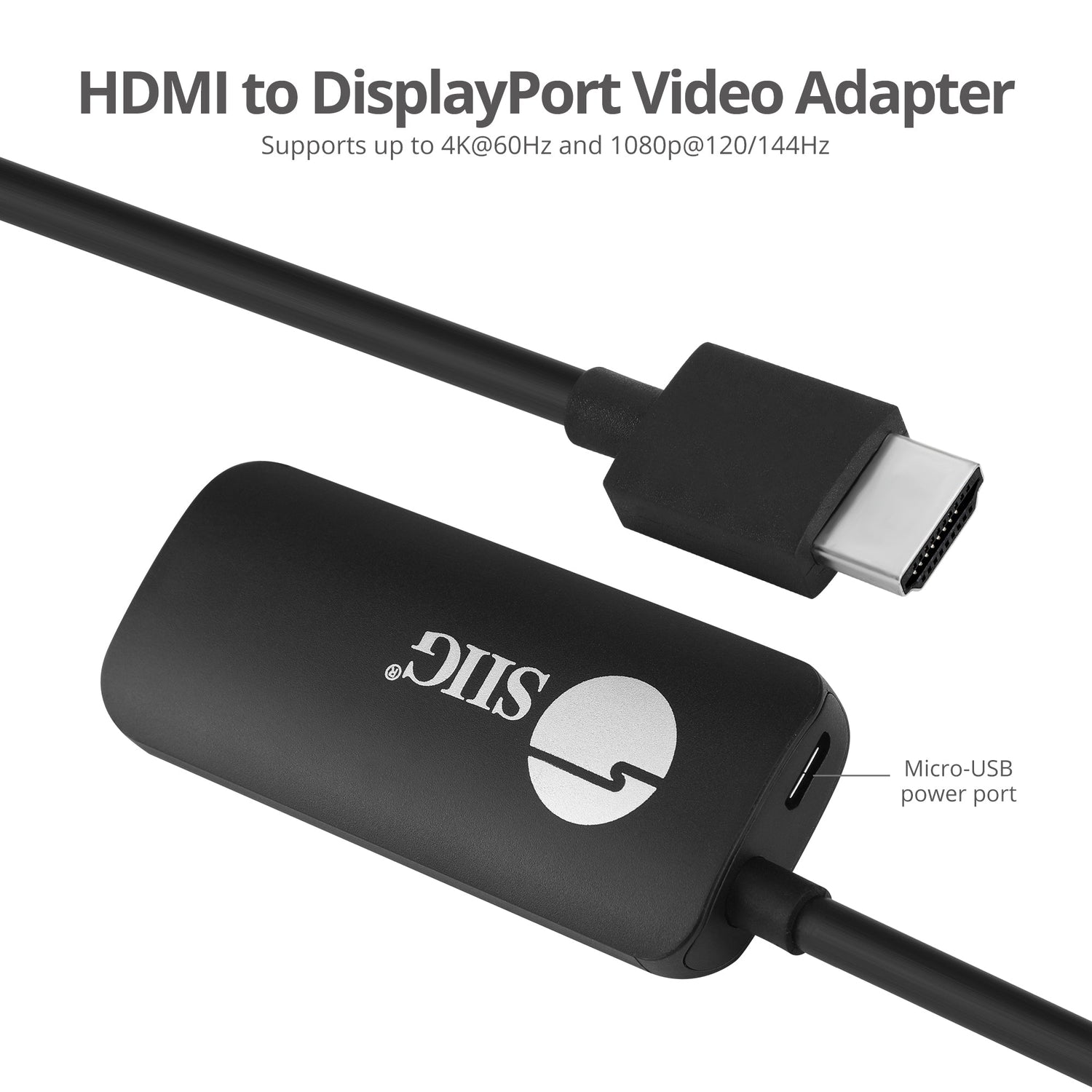

SIIG HDMI to DisplayPort 1.2 4K 60Hz Converter Adapter
Easily connect HDMI source devices to DisplayPort monitors with this active HDMI to DisplayPort 1.2 converter adapter. Designed for seamless compatibility with laptops, desktops, gaming consoles, and other HDMI-enabled devices, it supports stunning Ultra HD resolutions up to 4K@60Hz YUV 4:4:4 8-bit and high refresh rates up to 1080p@144Hz for smooth, detailed visuals.
Featuring DisplayPort 1.2 compliance, HDCP 2.2 support, and 2-channel stereo audio transmission, this converter delivers reliable audio/video performance for workstations, gaming setups, digital signage, and professional AV applications. The included Micro USB power cable ensures stable signal conversion, while the plug-and-play design allows for quick installation without software or driver requirements.

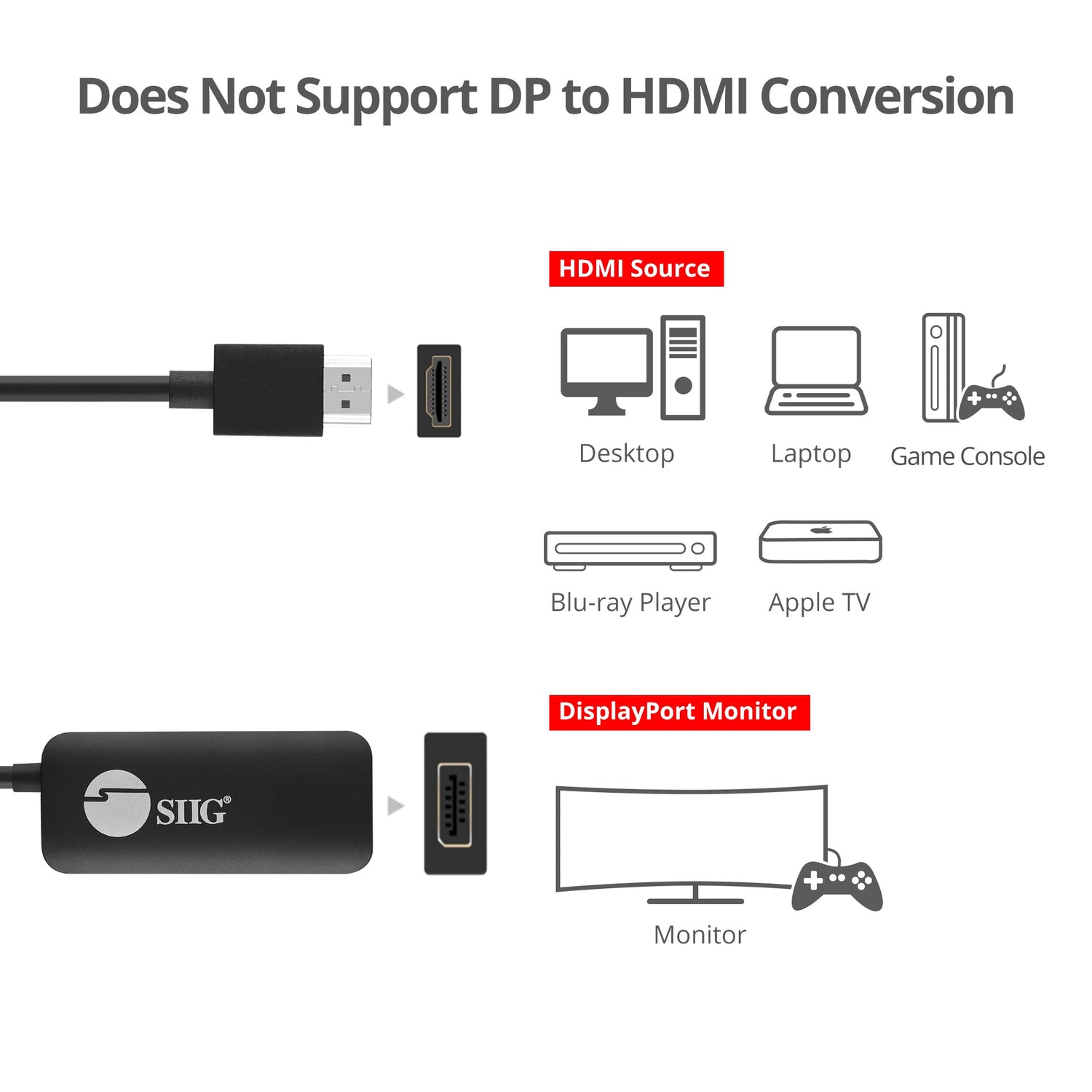

*Note: This is a unidirectional HDMI to DisplayPort converter and does not support DisplayPort to HDMI conversion.
Featuring DisplayPort 1.2 compliance, HDCP 2.2 support, and 2-channel stereo audio transmission, this converter delivers reliable audio/video performance for workstations, gaming setups, digital signage, and professional AV applications. The included Micro USB power cable ensures stable signal conversion, while the plug-and-play design allows for quick installation without software or driver requirements.
*Note: This is a unidirectional HDMI to DisplayPort converter and does not support DisplayPort to HDMI conversion.

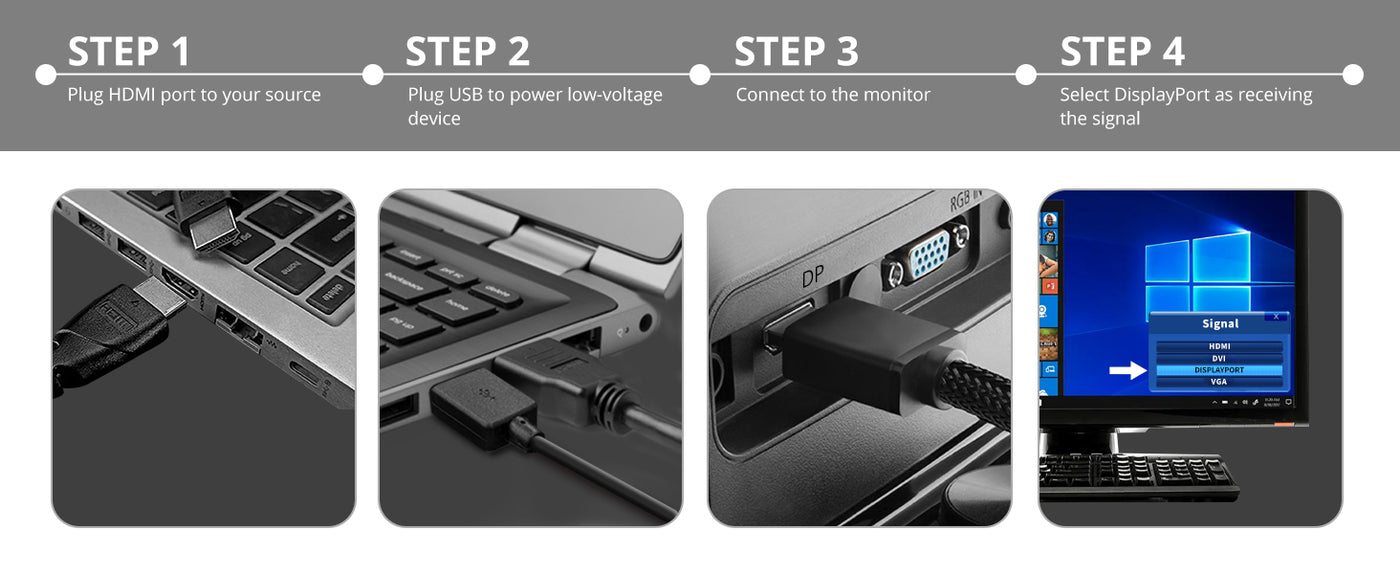

How to connect it to your devices
| Chipset | LT6711A |
| Standard | HDCP 2.2 compliant |
| Video Resolution | Up to 4K 60Hz (YUV 4:4:4 8bit) and 8bit HDR 1920x1080 60/120/144Hz *Note: - 4K 60Hz YUV 4:2:0 video source will display in 4K 30Hz - Does Not support 4K 60Hz YUV 4:2:0 10bit HDR |
| Audio | Supports 2-ch stereo audio |
| Bandwidth | Up to 18Gbps (600MHz Single-link) |
| Adapter Type | Active |
| Interface | 1x 19-Pin, HDMI Type-A, male, input 1x 20-pin, DisplayPort, female, output 1x 5-pin Micro USB, female, power jack, input |
| System Requirements | - A computer or other source device with an HDMI output - DisplayPort display - DisplayPort cable |

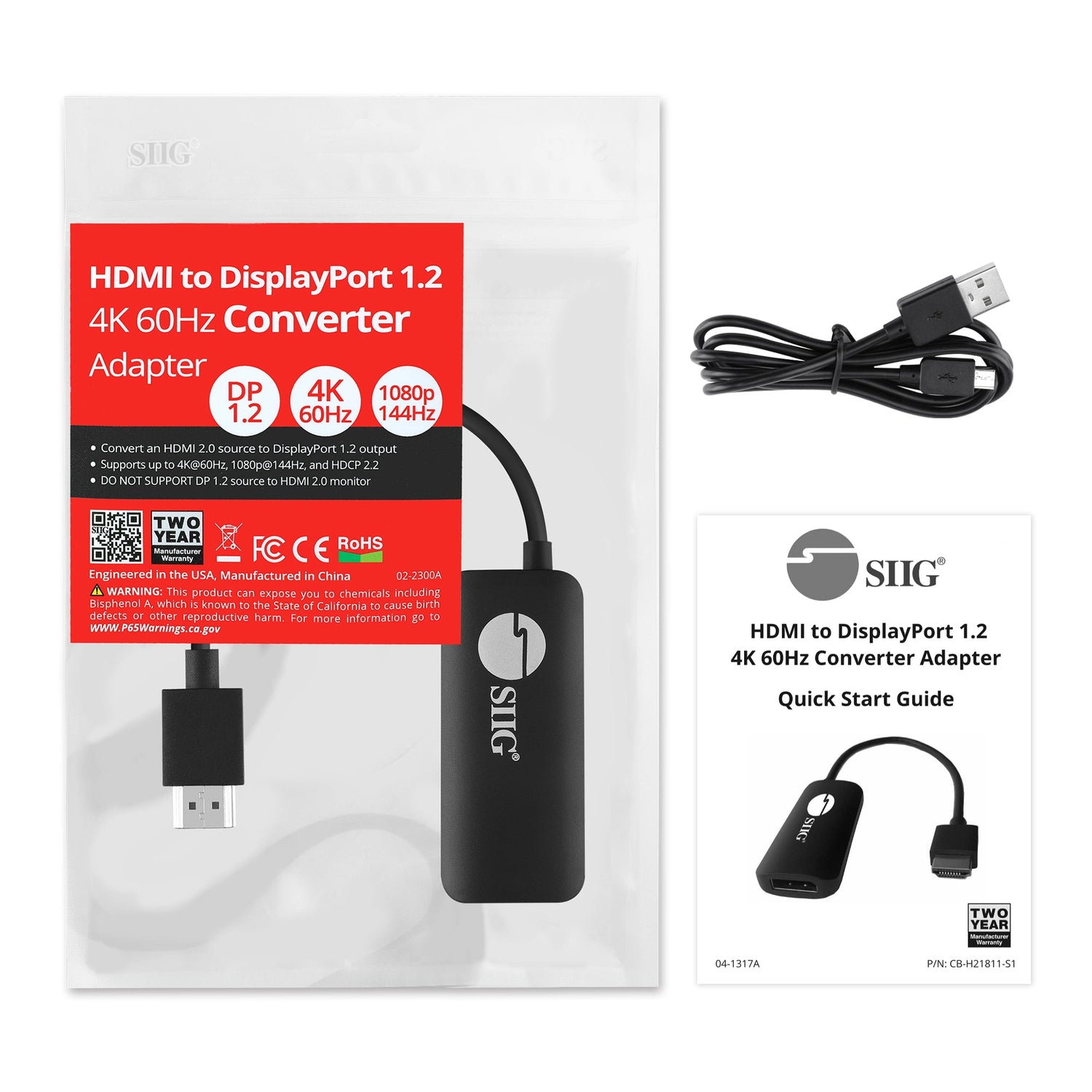

| Package Contents | 1x HDMI to DisplayPort 1.2 4K 60Hz Converter Adapter 1x USB A to Micro B power cable 1x Quick start guide |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-044354 |
| Warranty | 2 years limited |
| Country of origin | China |
| Product | |

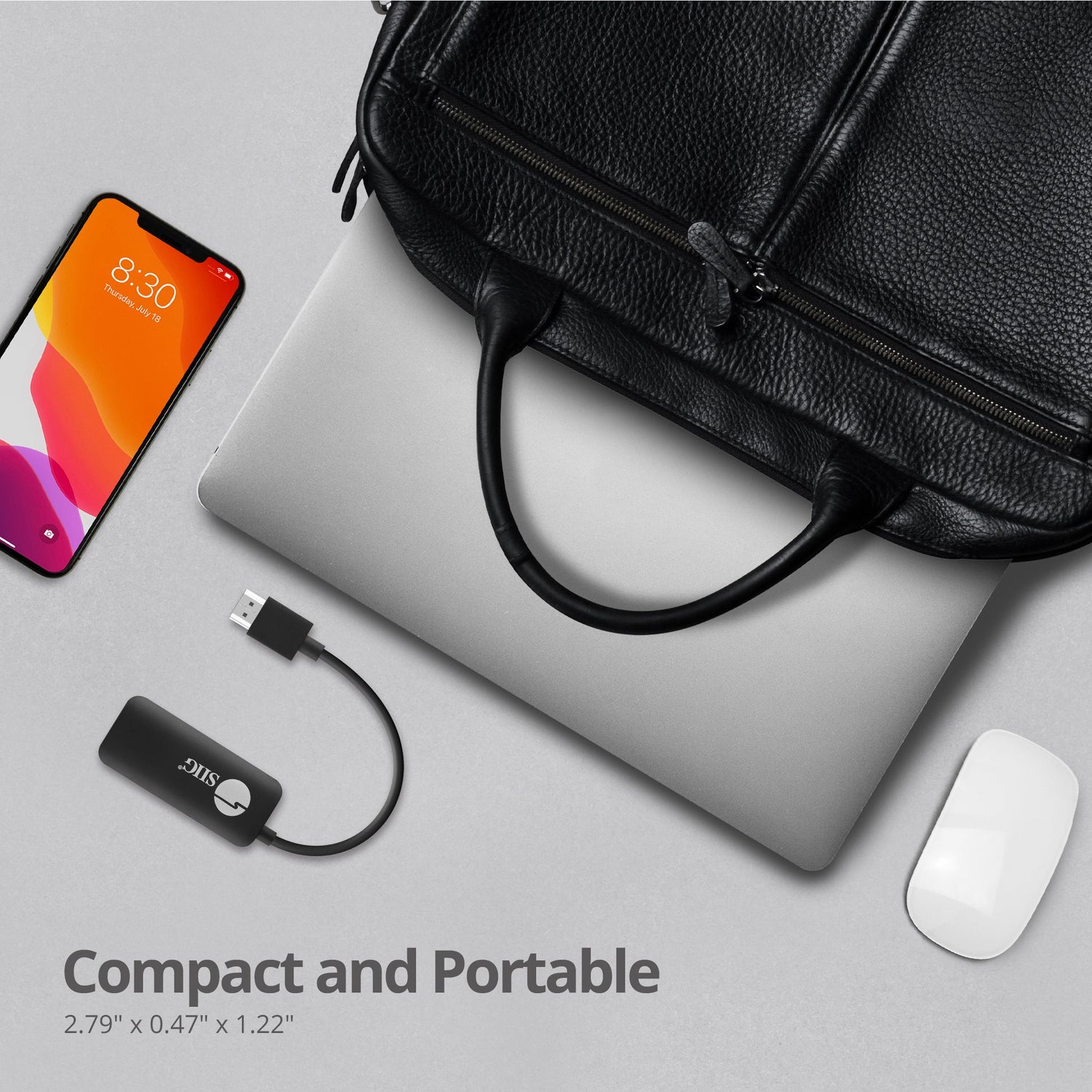

| Dimensions (L) x (H) x (W) | 2.81" x 0.48" x 1.22" 7.14 cm x 1.22 cm x 3.10 cm |
| Weight | 0.07 lbs (0.032 kg) |
| Overall length | 9.8" (24.89cm) |
| Color | Black |
| Housing | ABS |
| Unit package | |
| Dimensions (L) x (H) x (W) | 4.72" x 7.48" x 1.30" 11.99 cm x 19.00 cm x 3.30 cm |
| Weight | 0.12 lbs (0.05 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 15.55" x 10.24" x 11.22" 39.50 cm x 26.01 cm |
| Weight | 13.45 lbs (6.10 kg) |
| Quantity | 100 pcs/ctn |
| Environmental Conditions | |
| Operating Temperature | 32 to 104 degrees F |
| Storage Temperature | -4 to 140 degrees F |
| Relative Humidity | 20 to 90% RH (non-condensing) |
