SKU:
CE-H25711-S1

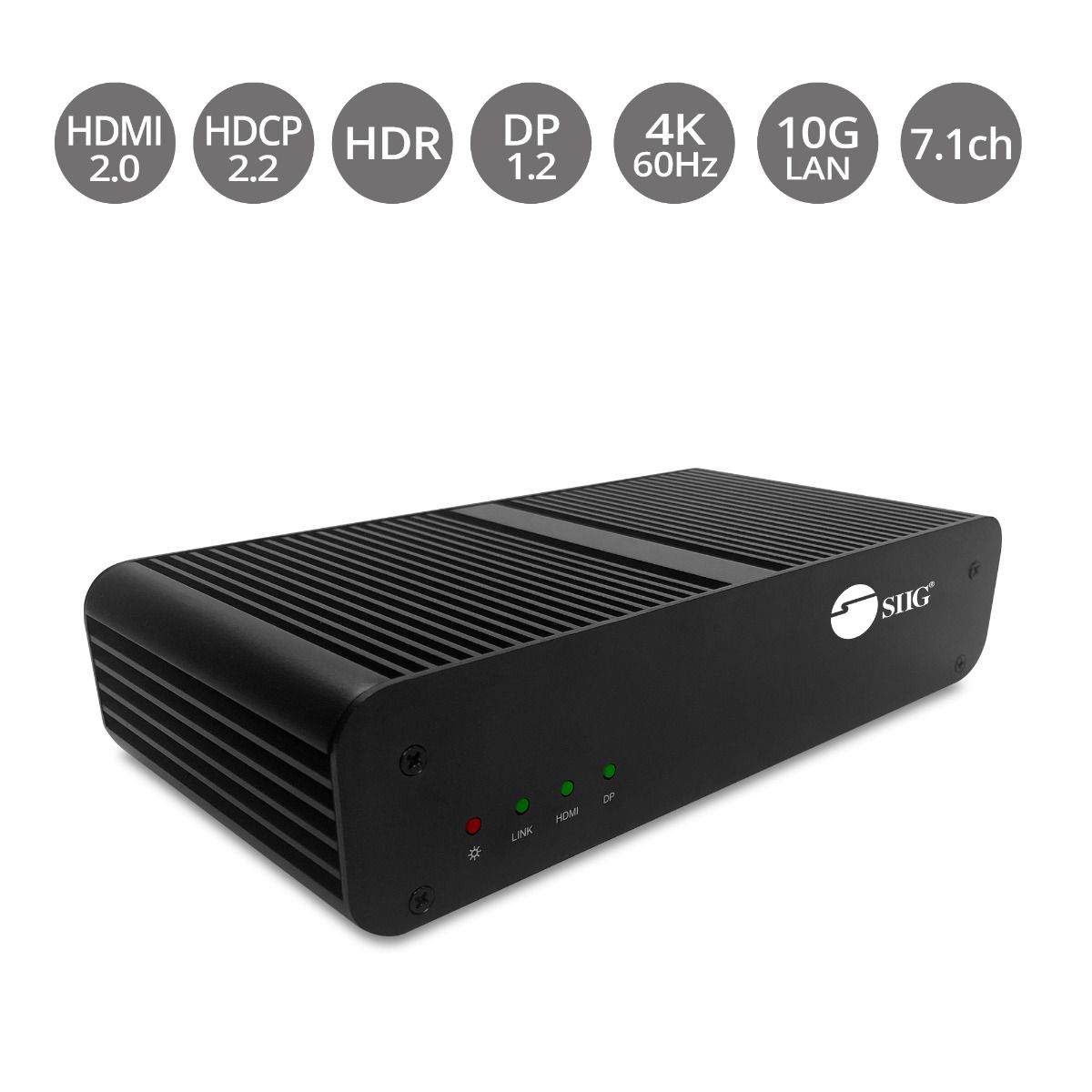

HDMI 2.0 AV Over IP SDVoE - Encoder
AV Over IP Encoder
4K60Hz
IR Bi-direction
Up to 100m
SDVoE
Regular price
$1,899.99
Unit price
/
Unavailable
Shipping calculated at checkout.
HDMI 2.0 AV Over IP SDVoE - Encoder is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
SDVoE overIP Technology
SDVoE overIP Technology
HDMI Extension
HDMI Extension
AptoVision BlueRiver™ NT+ technology
AptoVision BlueRiver™ NT+ technology
Zero Latency
Zero Latency
Control Methods
Control Methods
No content found
| Features | AptoVision BlueRiver NT+ technology solution Supports EDID management, Deep Color, 3D |

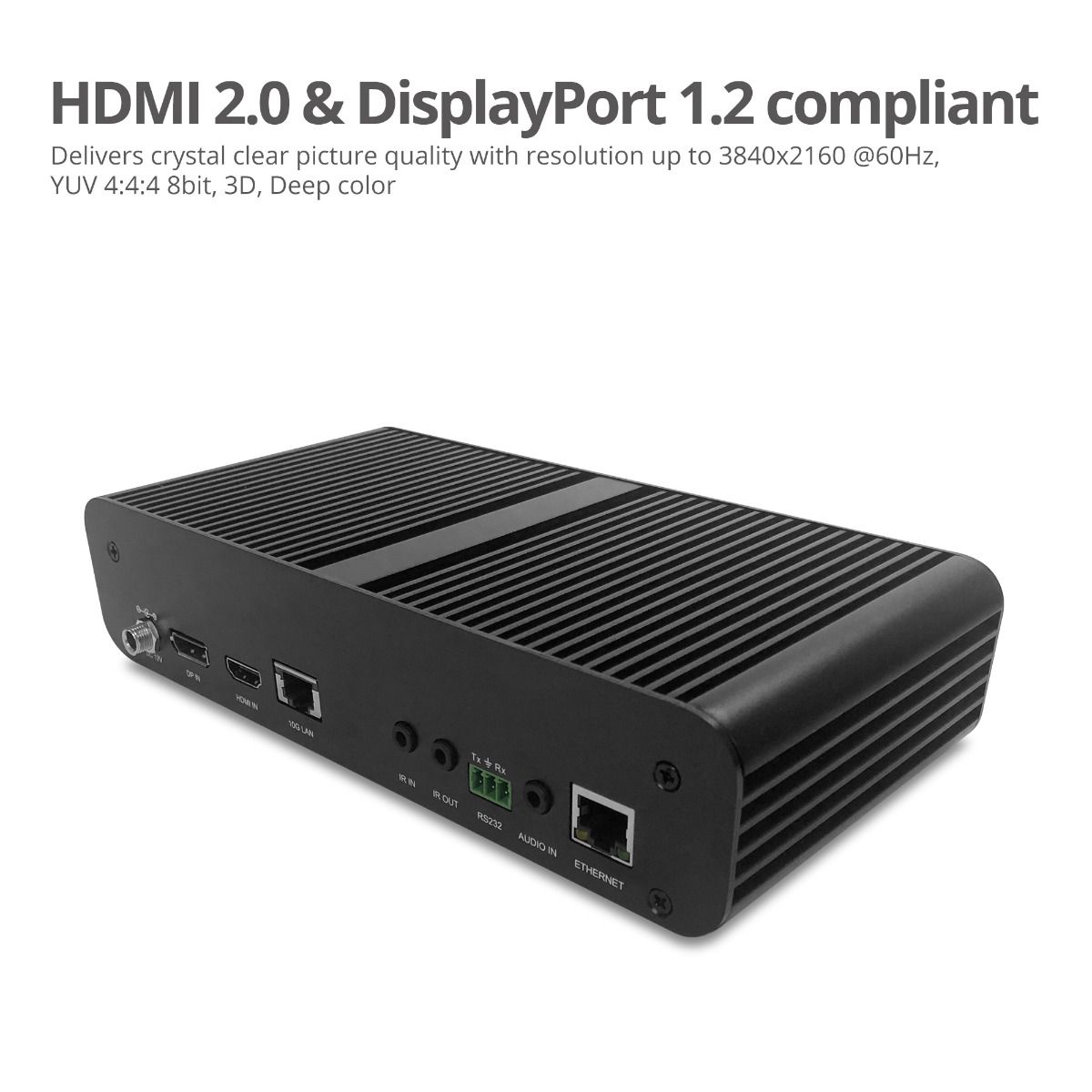

| Standard | SDVoE AV over IP technology HDMI 2.0, HDCP 2.2 compliant |
| Resolution | |
| Input | HDMI: up to 4Kx2K 60Hz YUV 4:4:4 8-bit DisplayPort: up to 4Kx2K 60Hz YUV 4:4:4 8-bit |
| Output | 4Kx2K 60Hz YUV 4:4:4 8bits / YUV 4:2:0 10bits HDR |
| Video Bandwidth | Up to 18Gbps (600MHz per channel) |

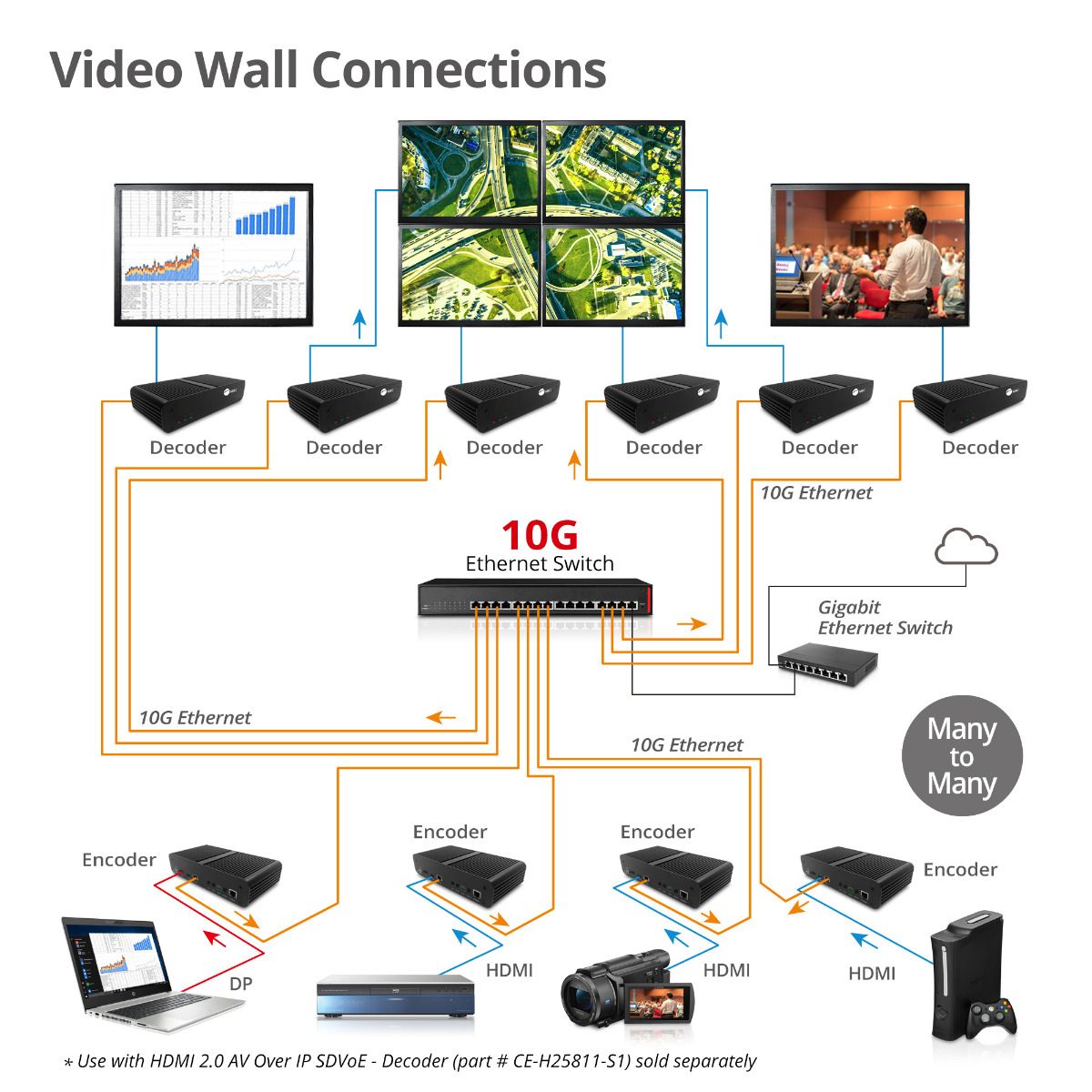

| Connectors Types | One-to-One (Extender) One-to-Many (Splitter) Many-to-Many (Matrix Switcher) |
| Audio | LPCM and DTS-HD in Dolby True HD (7.1 CH) |
| IR Frequency | 20KHz to 60KHz |
| RS-232 Control | Full duplex, up to 115,200bps |
| Connectors | 1x 19-pin HDMI, Type A, female, input 1x 20-pin DisplayPort, female, input 1x 8-pin, RJ45, 10G LAN, AV output (to Decoder or 10G switch) 1x 3.5mm jack, IR in 1x 3.5mm jack, IR out 1x 3-Pin, RS-232, Phoenix connector 1x 3.5mm jack, audio in 1x Power jack 1x 8-pin, RJ45 ethernet, PC or network control |
| Power Adapter | |
| Input | 100-240V / 50-60Hz |
| Output | DC 12V/2A |
| UL Listed | E335801/ Class VI |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-042480 |
| Product | |

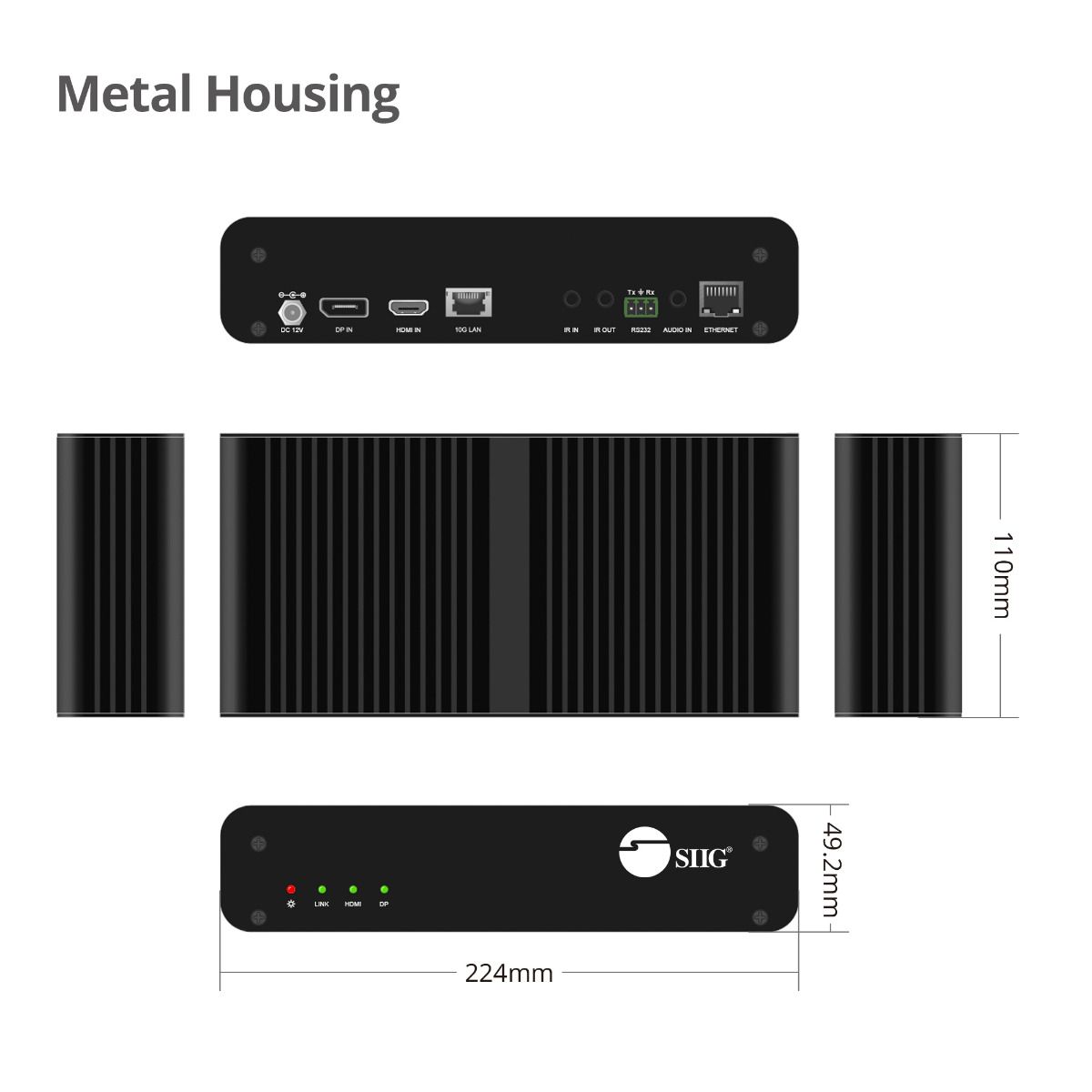

| Dimensions (L) x (H) x (W) | 8.82″ x 1.94″ x 4.33″ 22.40 cm x 4.93 cm x 11.00 cm |
| Weight | 2.54 lbs (1.15 kg) |
| Color | Black |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 10.83″ x 5.32″ x 6.50″ 27.51 cm x 13.51 cm x 16.51 cm |
| Weight | 3.55 lbs (1.61 kg) |
| Package Contents | 1x HDMI 2.0 AV Over IP SDVoE - Encoder 1x Power adapter 1x Terminal block 2x Mounting Ears 14x Screw Kit 4x Rubber pad 1x User reference guide |
| Environmental Conditions | |
| Operating Temperature | 14° to 131° F |
| Storage Temperature | -4° to 158° F |
| Relative Humidity | 5% to 90% RH (non-condensing) |
| System Requirements | HDMI 2.0 AV over IP SDVoE - Decoder, part# CE-H25811-S1, sold separately 10Gbps Ethernet Switch for One-to-Many, Many-to-Many, and Video Wall configurations Cat6/Cat6a/Cat7 solid copper networking cable |
| Warranty | 2 years limited |
| Country of Origin | China |
