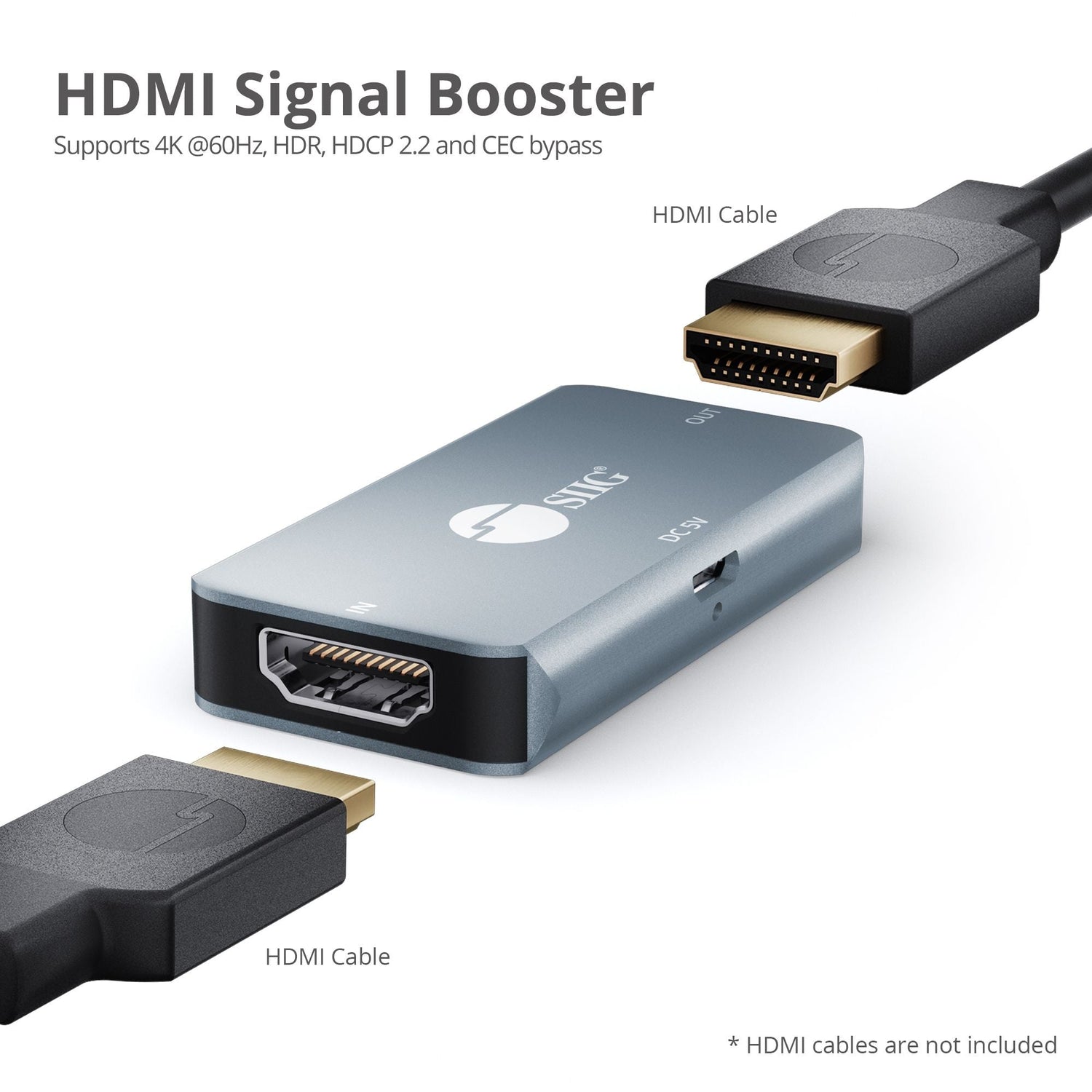

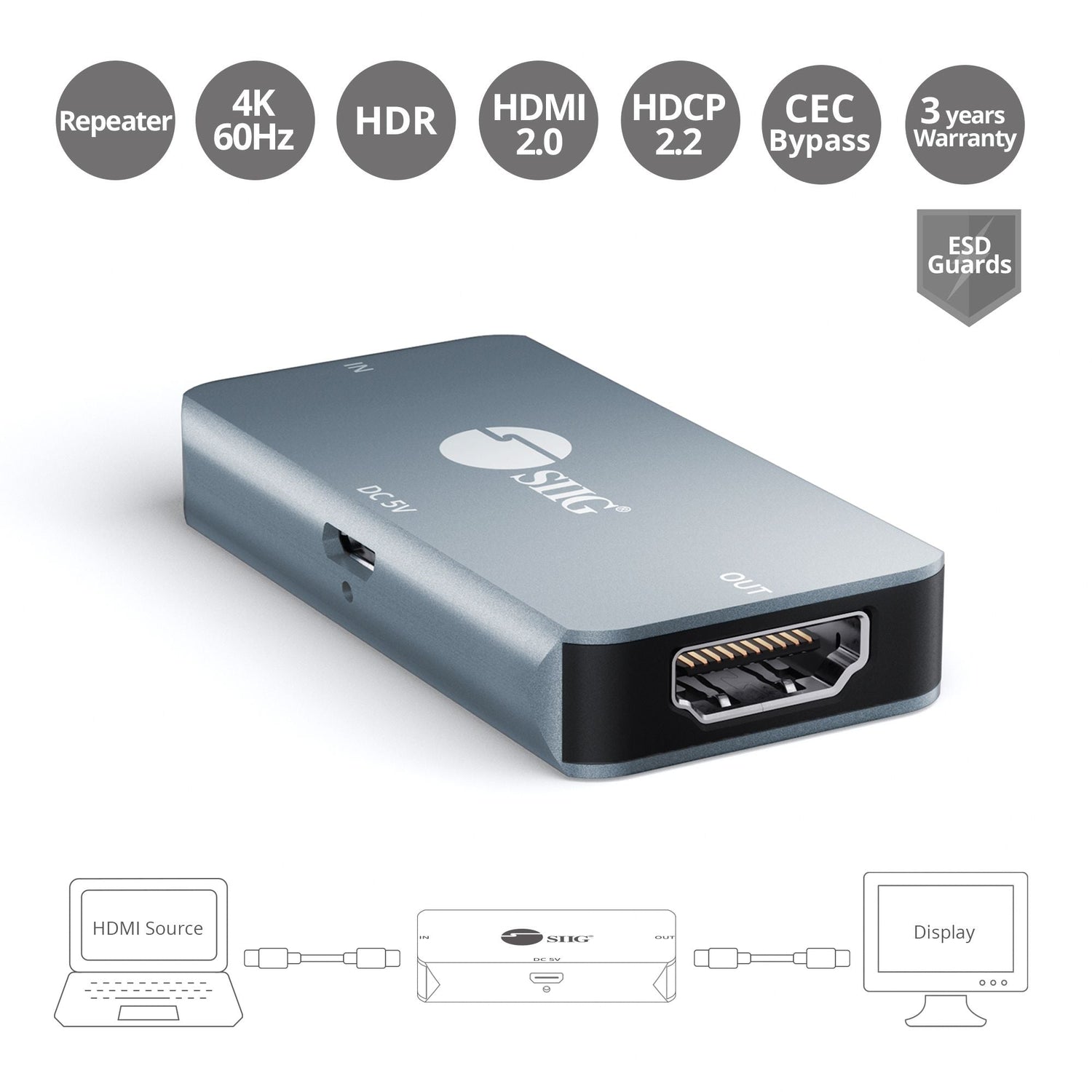

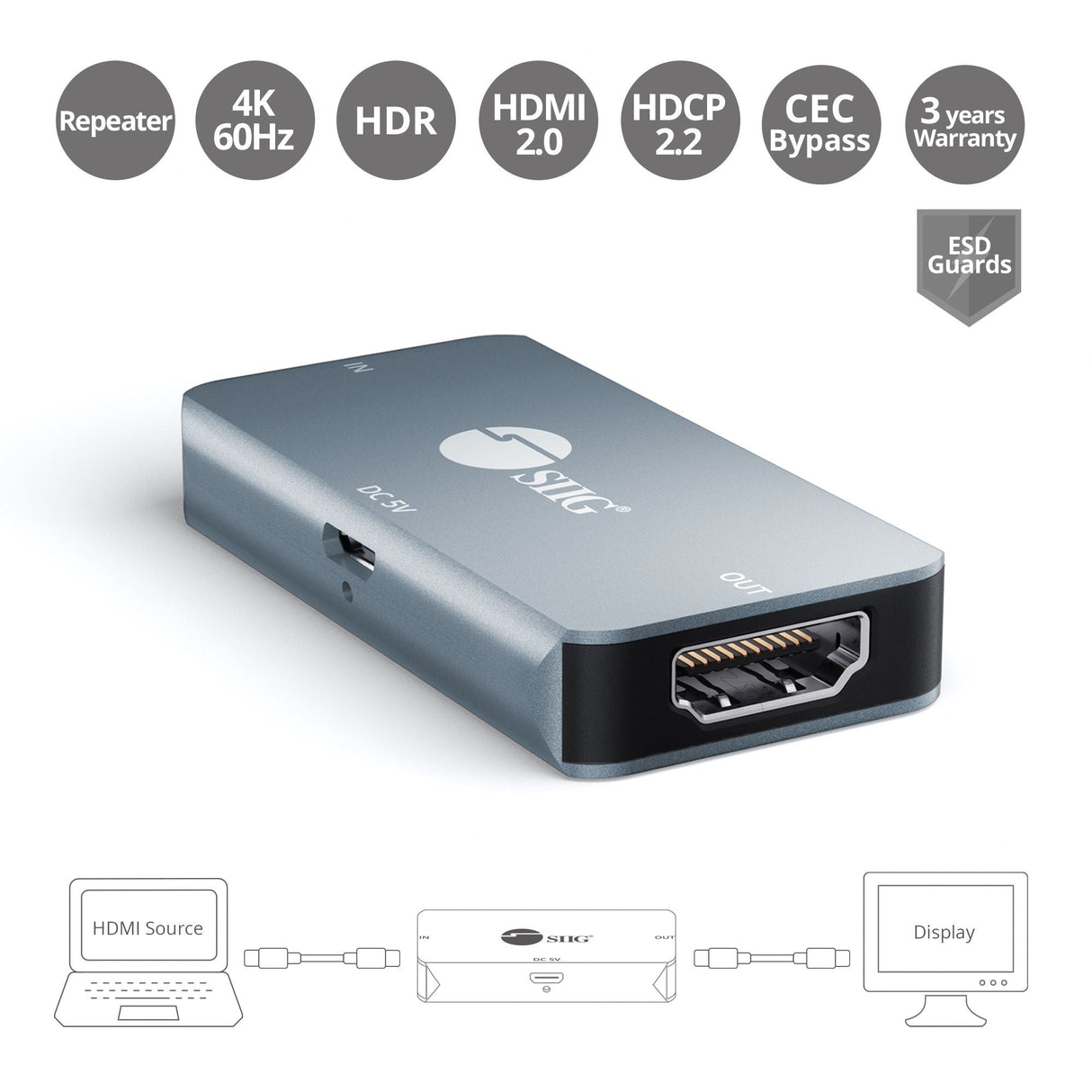

HDMI 4K HDR Repeater
HDMI 4K HDR Repeater is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Extended 4K Signal Range
Extended 4K Signal Range
Vivid 4K HDR Visuals
Vivid 4K HDR Visuals
Advanced Media Features
Advanced Media Features

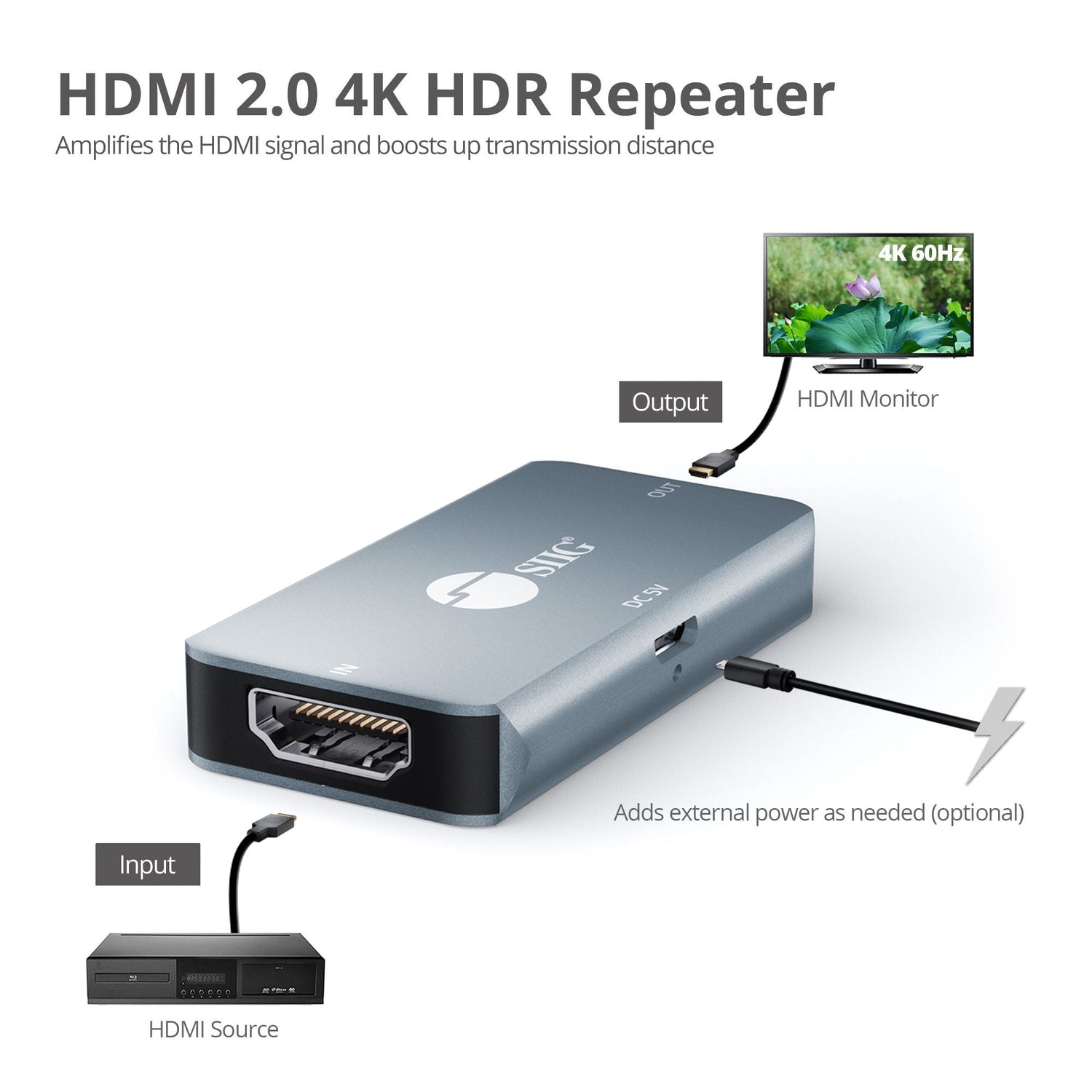

Optional USB Power Boost
Optional USB Power Boost
Durable Aluminum Housing
Durable Aluminum Housing
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
| Chipset | PS8409 |
| Standard | HDCP 2.2 compliant |
| Bandwidth | Up to 18Gbps |
| Resolution | Up to 4K 60Hz, HDR, 3D |

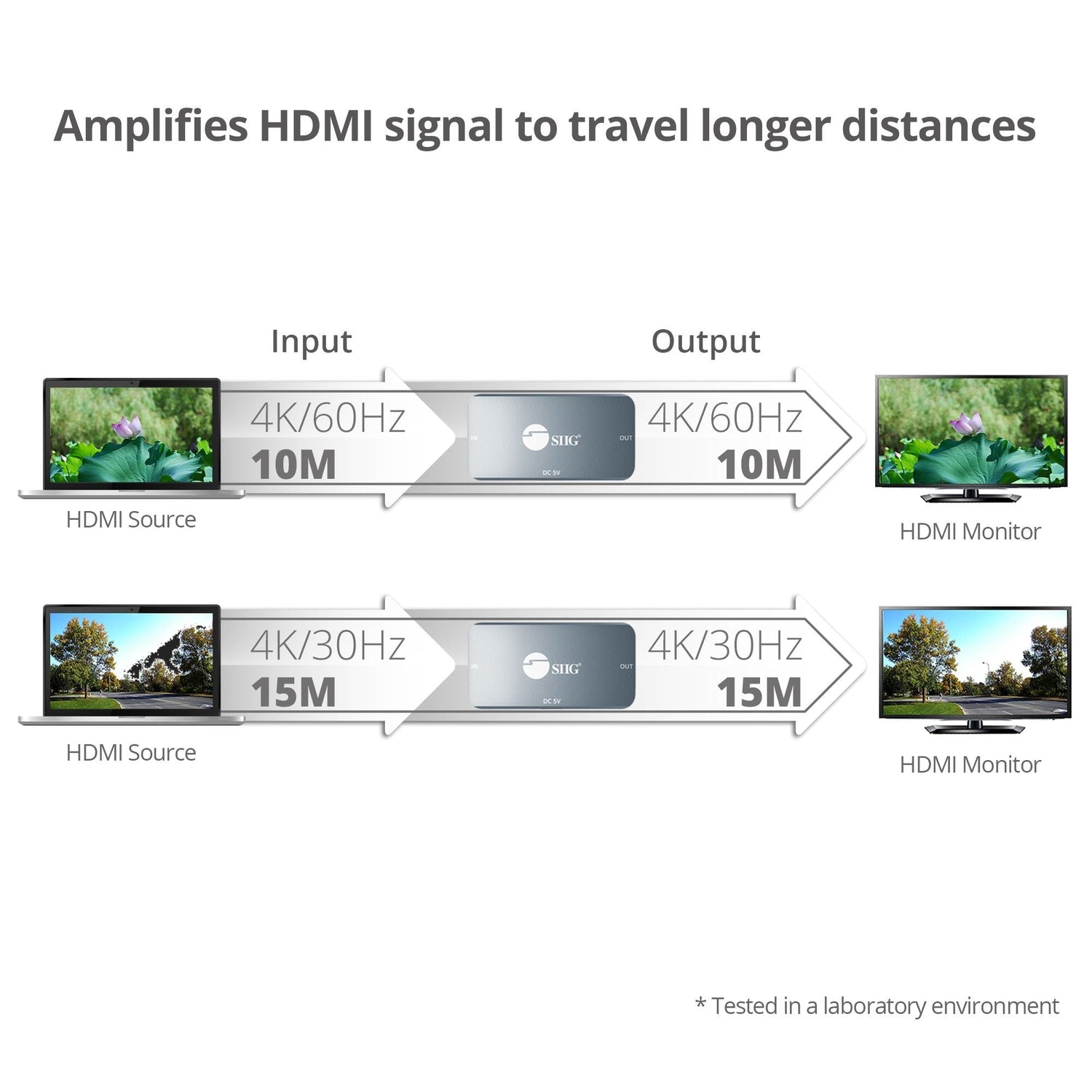

| Transmission Distance | 4K 60Hz / HDR: Up to 20 meters (10m input / 10m output) 4K 30Hz: Up to 30 meters (15m input / 15m output) 1080p 60Hz: Up to 30 meters (15m input / 15m output) *Note: All distances tested using 24AWG HDMI 2.0 cables |
| Connectors | 1x 19-pin, HDMI, Type-A, female, input 1x 19-pin, HDMI, Type-A, female, output 1x 5-pin, Micro USB, female, power-in |

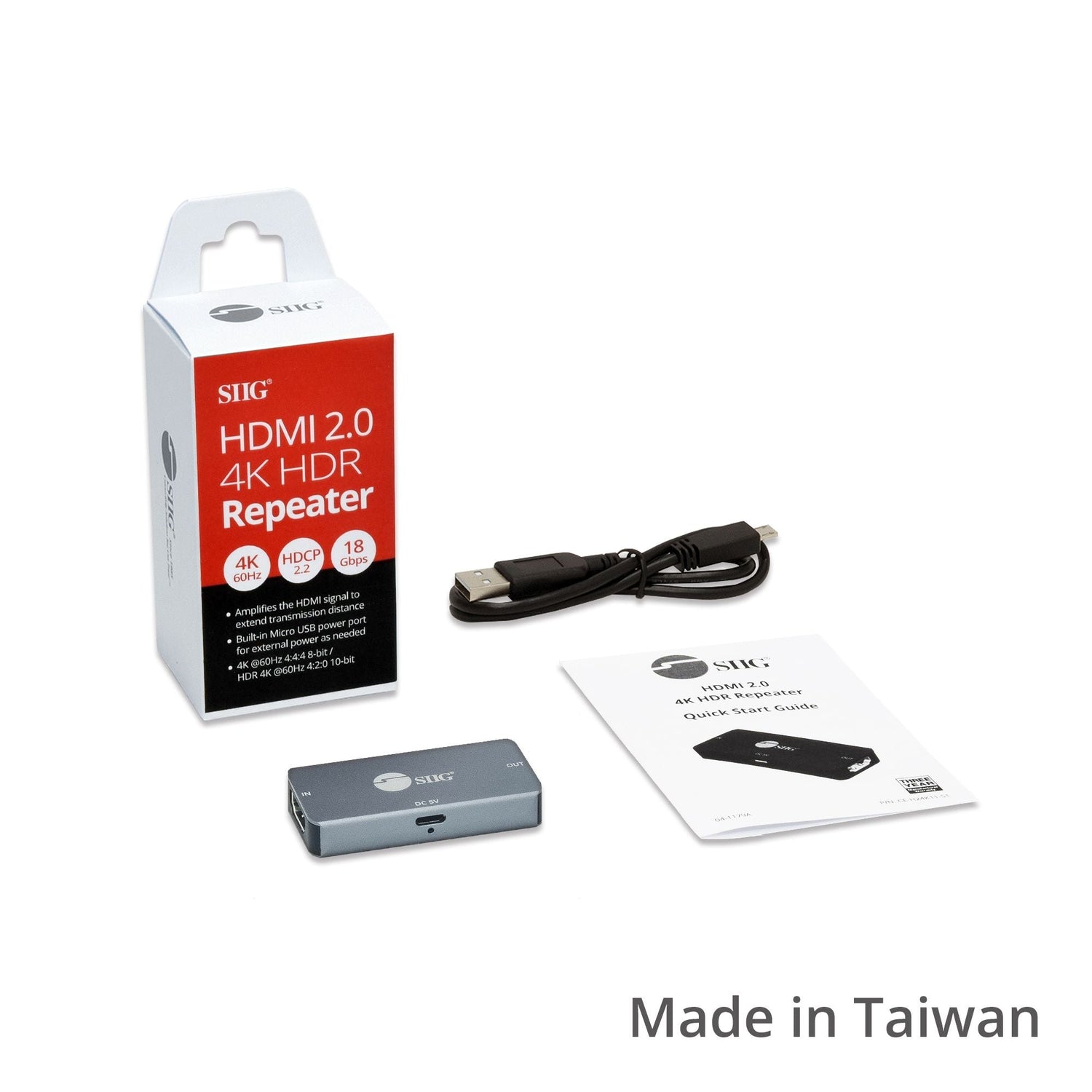

| Package Contents | 1x HDMI 4K HDR Repeater 1x USB A to Micro B cable 1x Quick start guide |
| Environmental Conditions | |
| Operating Temperature | 32° to 122° F |
| Storage Temperature | 14° to 140° F |
| Relative Humidity | 5 to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS, TAA Compliant |
| UPC Code | 662774-042329 |
| Product | |

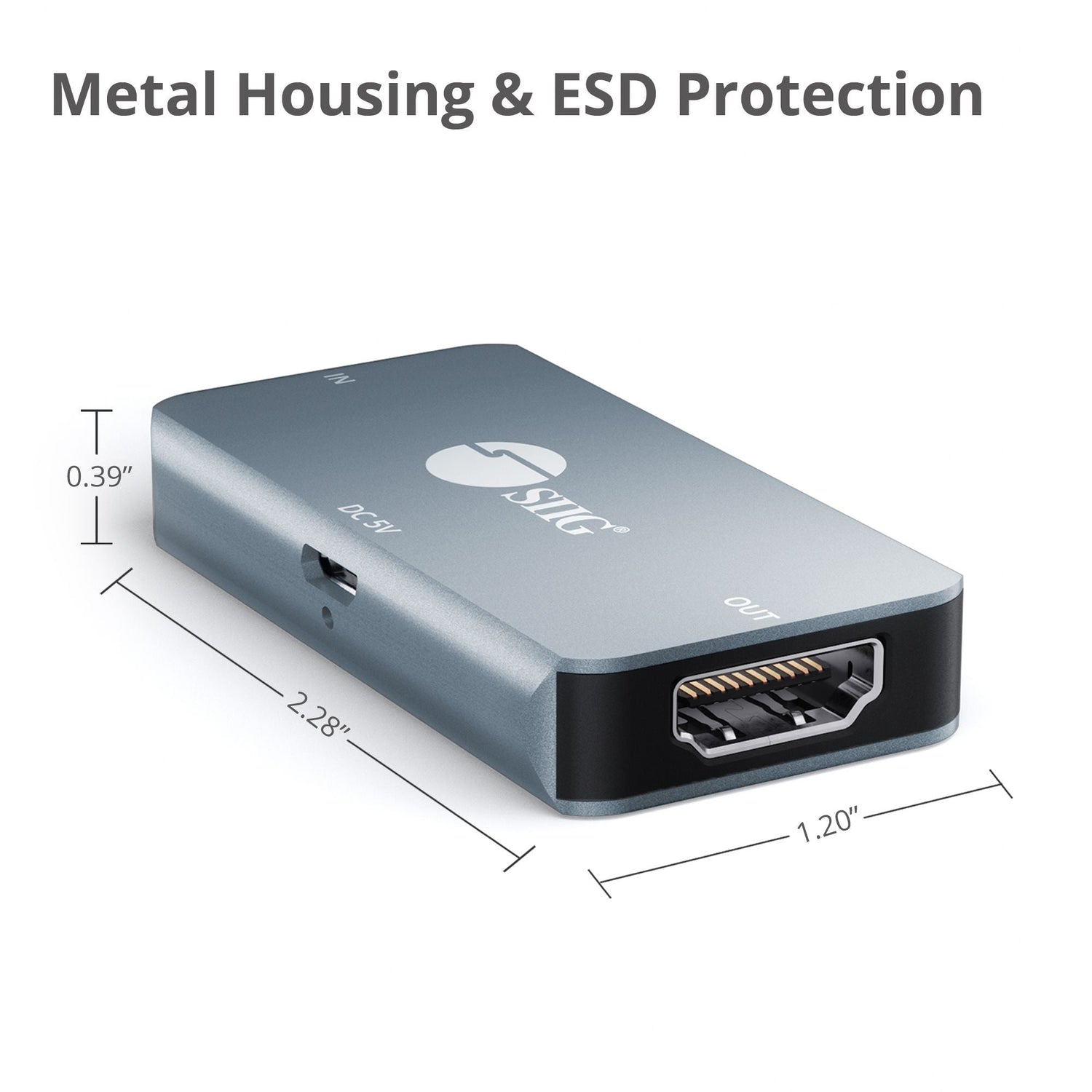

| Dimensions (L) x (H) x (W) | 1.13″ x 0.39″ x 2.28″ 2.87 cm x 0.99 cm x 5.79 cm |
| Weight | 0.04 lb (0.02 kg) |
| Color | Gray |
| Housing Material | Aluminum |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 5.51″ x 0.94″ x 4.45″ 14.00 cm x 2.39 cm x 11.30 cm |
| Weight | 0.13 lb (0.06 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 17.90″ x 10.00″ x11.50″ 45.47 cm x 25.40 cm x 29.21 cm |
| Weight | 15.17 lbs (6.88 kg) |
| Quantity | 100 pcs/ctn |
| Warranty | 3 years limited |
| Country of Origin | Taiwan |
