DP CyberSerial 2S PCI
DP CyberSerial 2S PCI is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Universal PCI Serial Expansion
Universal PCI Serial Expansion
Dual RS-232 Serial Ports
Dual RS-232 Serial Ports
Reliable Data Handling
Reliable Data Handling
Configurable Power Output
Configurable Power Output
Flexible Installation & Protection
Flexible Installation & Protection
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
Features
- Universal PCI card design that works in 32-/64-bit, 3.3V/5V PCI and PCI-X slots
- Provides 2 RS-232 16550 UART serial ports with 32-byte FIFO buffers

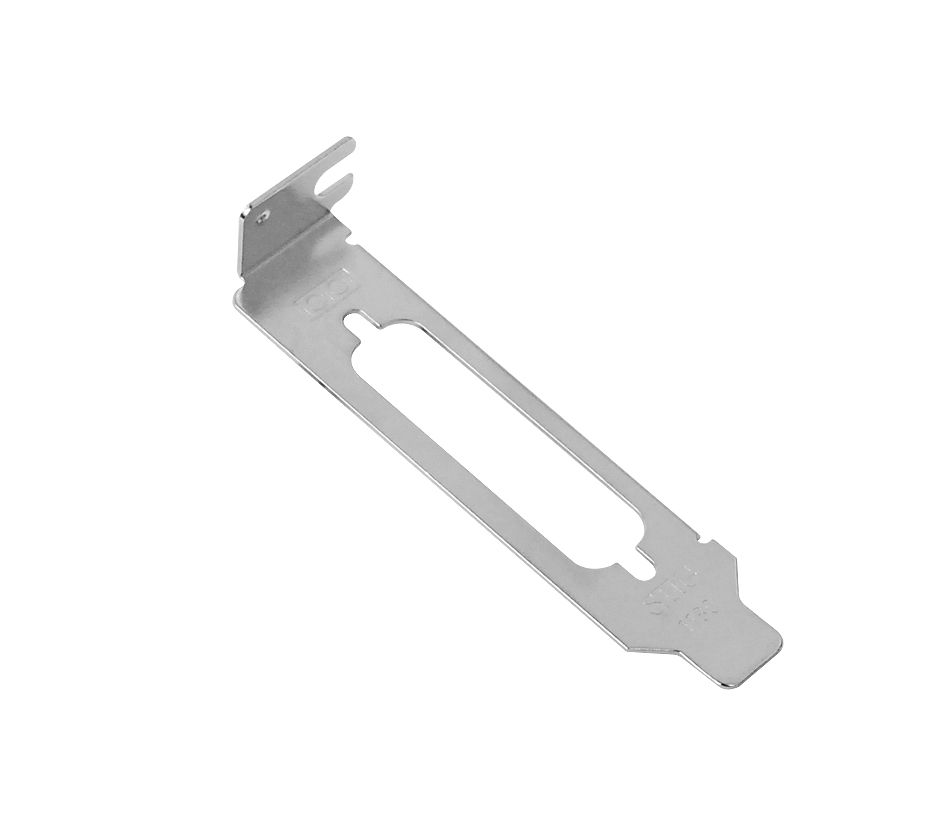

- Installs in standard height or low profile chassis with included brackets
- Can be configured for 5V or 12V power output
| Chipset | Oxford OXuPCI952 |
| Features | Conforms to PCI v2.2 universal card standard PCI-X and 64-bit compatible 3.3V operation with 5V tolerance 32-byte FIFO buffers Per port 1.1A over-current protection IRQ sharing reduces IRQ conflicts |
| Input Interface | PCI |
| Output Interface | RS-232 |
| Connectors | 1x DB25, External |
| Environmental Conditions | |
| Operating Temperature | 32 to 131 degrees F |
| Storage Temperature | -4 to 140 degrees F |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Storage Humidity | 5% to 95% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-009049 |
| Warranty | Lifetime limited |
| Country of Origin | China |
| System Requirements | - Desktop PC with an available 32-/64-bit PCI or PCI-X slot - Windows® 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / Server 2008 R2 / 2000 / ME / 98SE / 98 / 95 |
| Product | |
| Dimensions (L) x (H) x (W) | 5.12" x 4.72" x 0.79" 13 cm x 12.00 cm x 2.00 cm |
| Weight | 0.13 lbs (0.06 kg) |
| Color | Green |
| Unit package | |
| Dimensions (L) x (H) x (W) | 9.50" x 6.50" x 2.50" 24.13 cm x 16.50 cm x 6.35 cm |
| Weight | 0.86 lbs (0.39 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 19.80" x 21.65" x 12.20" 50.30 cm x 55.00 cm x 31.00 cm |
| Weight | 26.46 lbs (12.00 kg) |
| Quantity | 28 pcs/ctn |

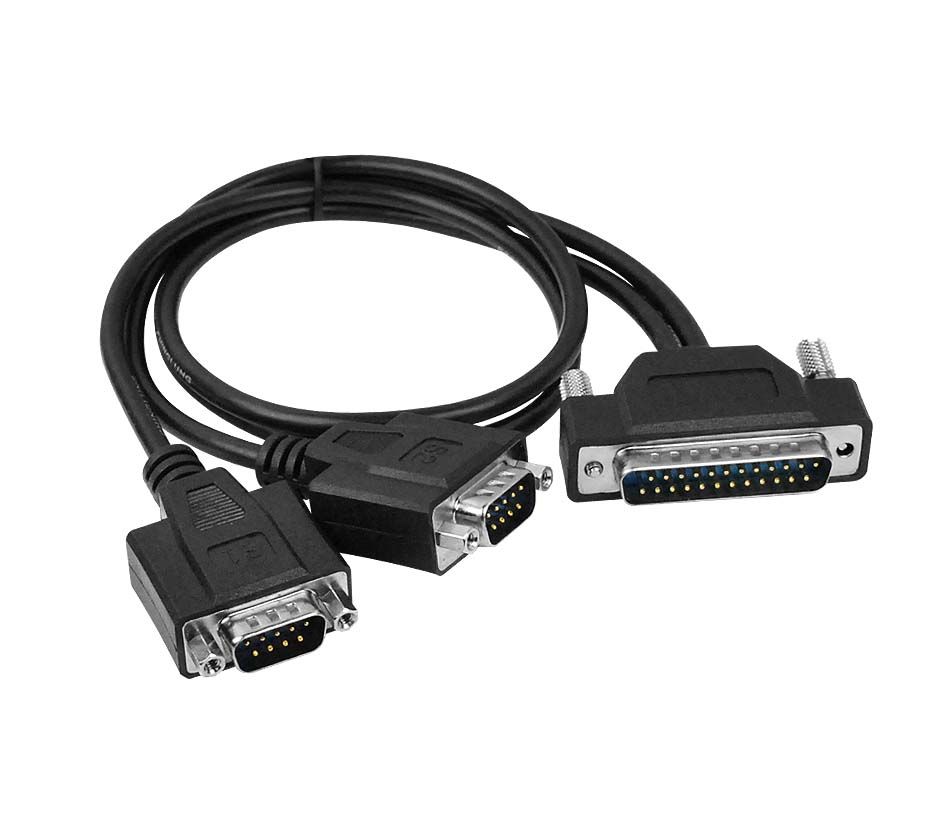

| Package Contents | 1x DP CyberSerial 2S PCI 1x Spare low profile bracket 1x DB25 2-Port fanout cable 2x Jumpers 1x Driver CD 1x Installation guide |
