SKU:
CE-DP0D12-S1

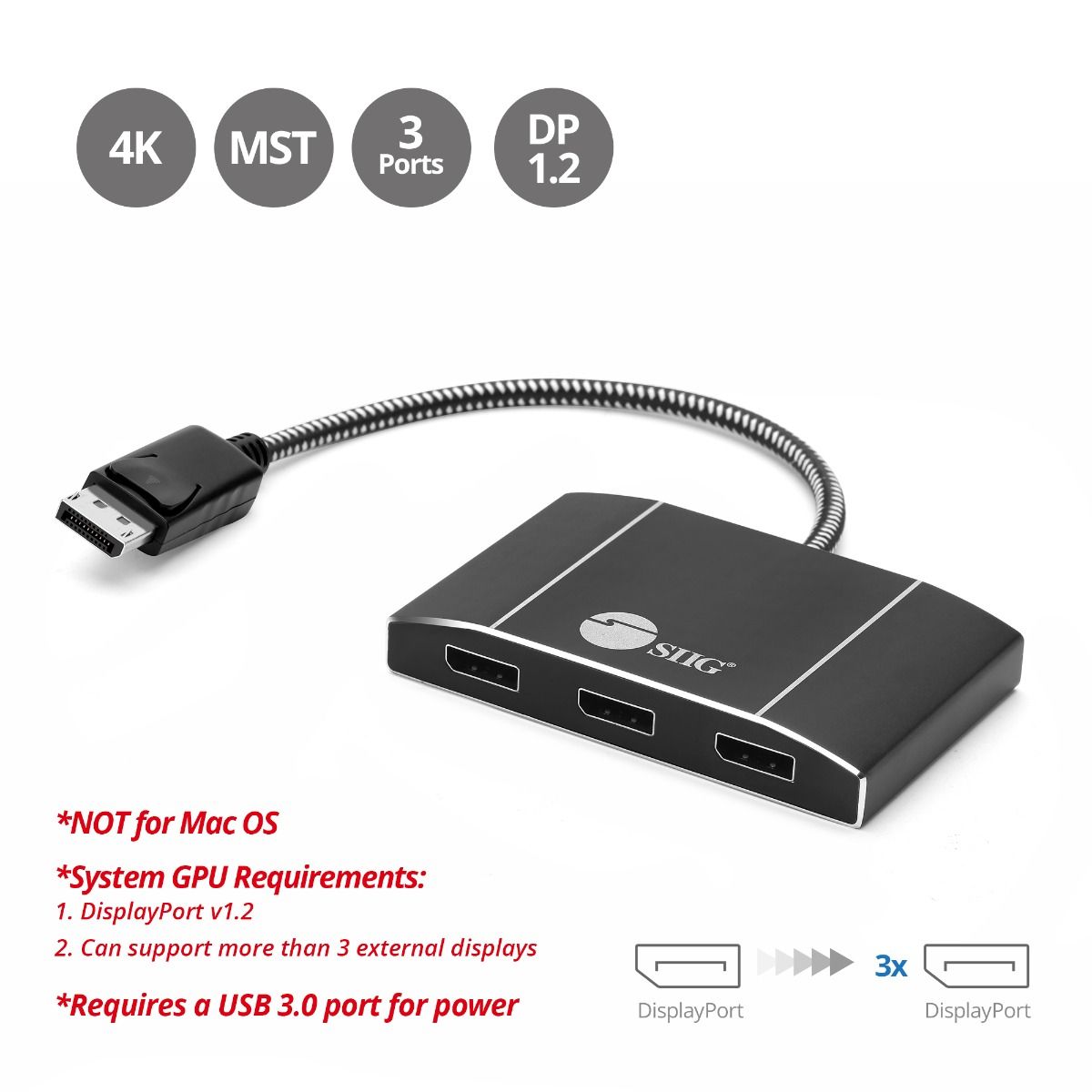

4K 1x3 DisplayPort 1.2 to DisplayPort MST Hub Splitter
MST Splitter
DP to DP
21.6Gbps
Triple Monitors
Micro USB Power
Regular price
$75.88
Unit price
/
Unavailable
Shipping calculated at checkout.
4K 1x3 DisplayPort 1.2 to DisplayPort MST Hub Splitter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features

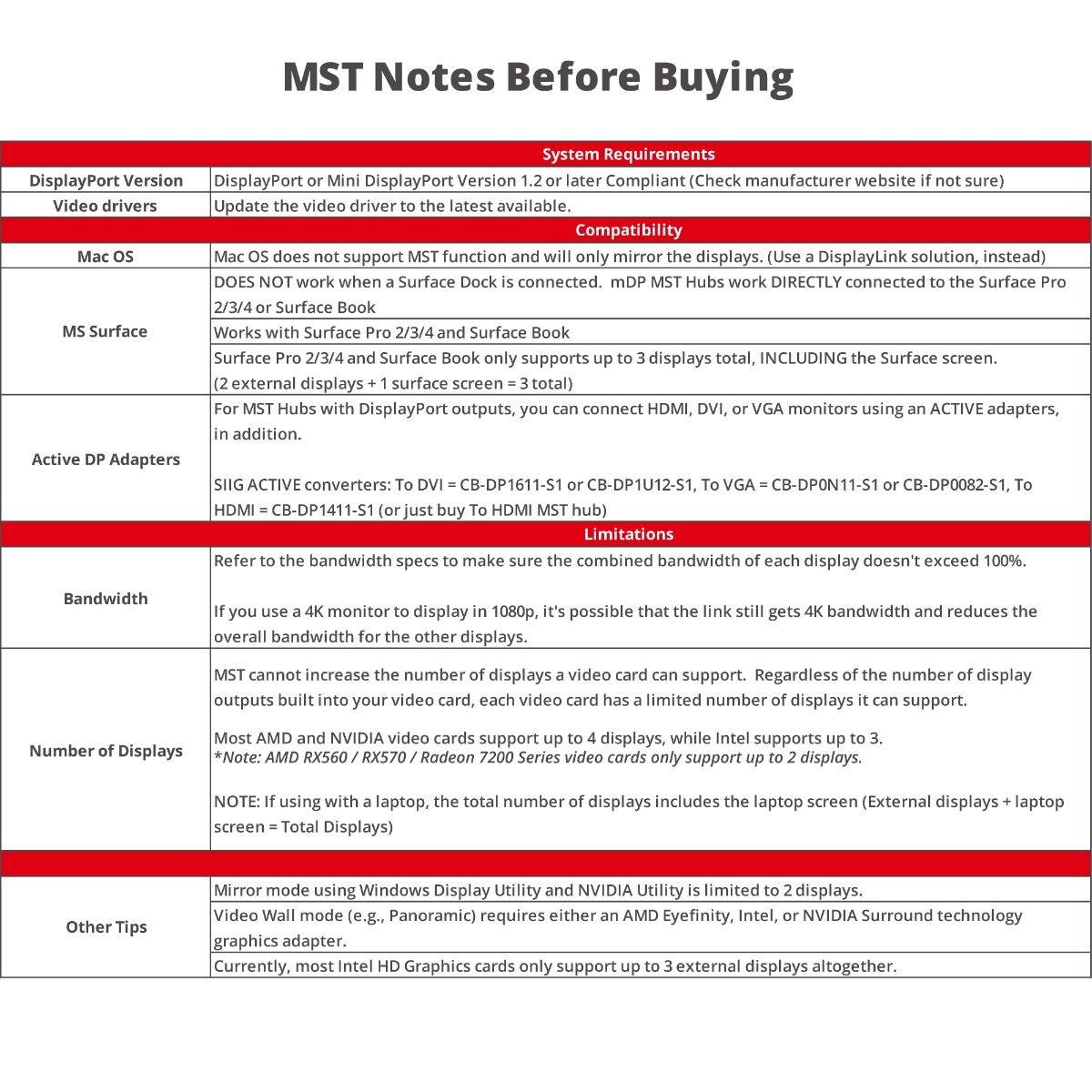

Important notes
Important notes
3 port displayport to displayport splitter mst hub
3 port displayport to displayport splitter mst hub
High performance
High performance
Compatibility
Compatibility
Warranty & customer service
Warranty & customer service
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
No content found
| Hardware | |
| Chipset | STDP4320 |
| Software | |
| OS Compatibility | Windows® 11 |
| Video | |
| Resolution | One screen: up to 3840x2160 (4Kx2K) 60Hz display Two screens: up to 3840x2160 (4Kx2K) 30Hz displays Three screens: up to 1080p displays |

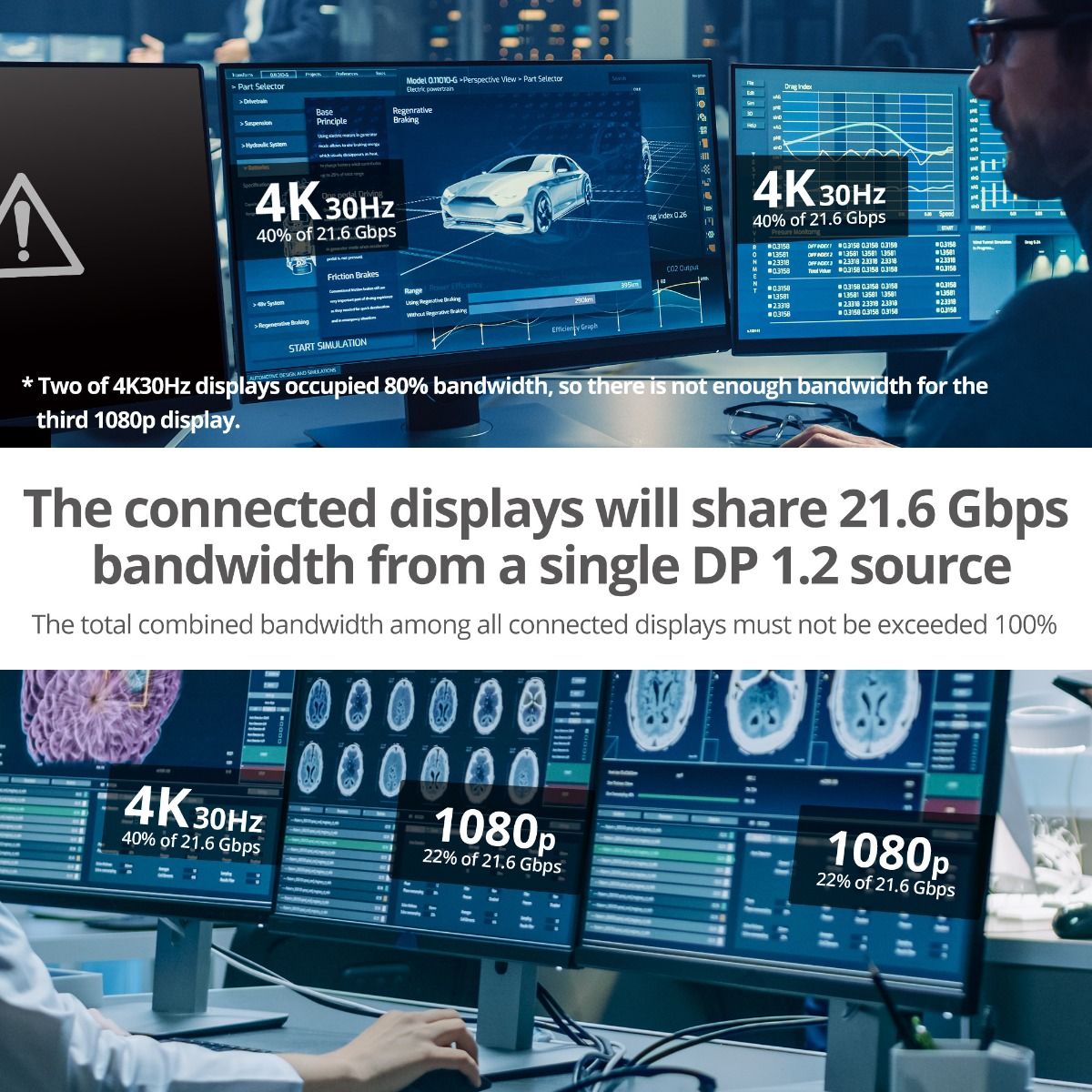

| Bandwidth | Total available bandwidth 21.6Gbps for 3840x2160 @60Hz (100%). 3840x2160 @30Hz (40%), 2560x1600 @60Hz (38%), 2560x1440 @60Hz (35%), 1920x1200 @60Hz (30%), 1920x1080 @60Hz (22%) * Note: Make sure the total combined resolution bandwidth among all displays do NOT exceed 100% |

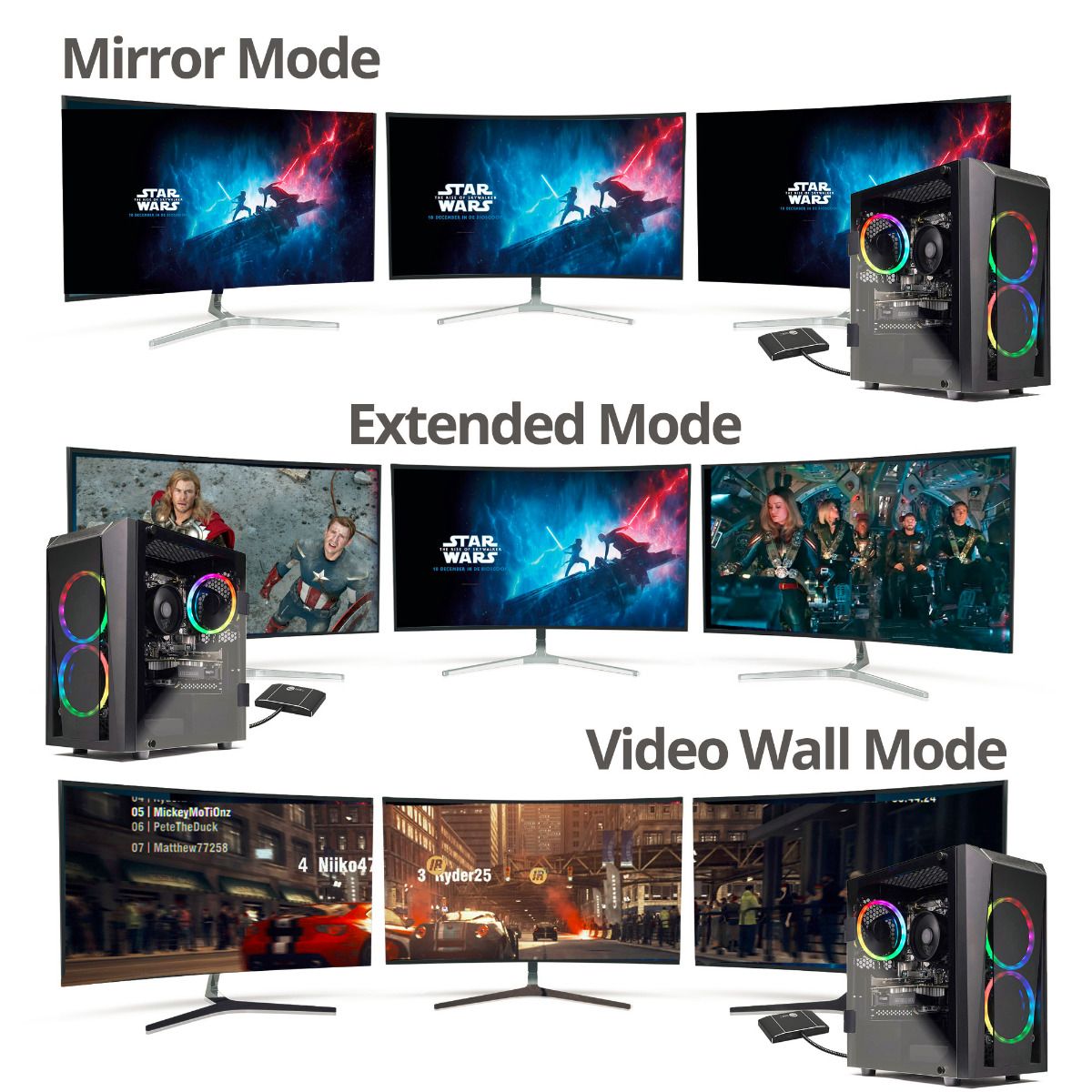

| Display Modes | 3 different Display Modes: Mirror mode, Extended mode, and Panoramic Video Wall mode * Note: AMD Eyefinity, NVIDIA Surround, or Intel Collage technology graphics adapter is required to support Panoramic Video Wall mode |
| Audio | 7.1 channel surround sound, up to 192KHz sampling rate |

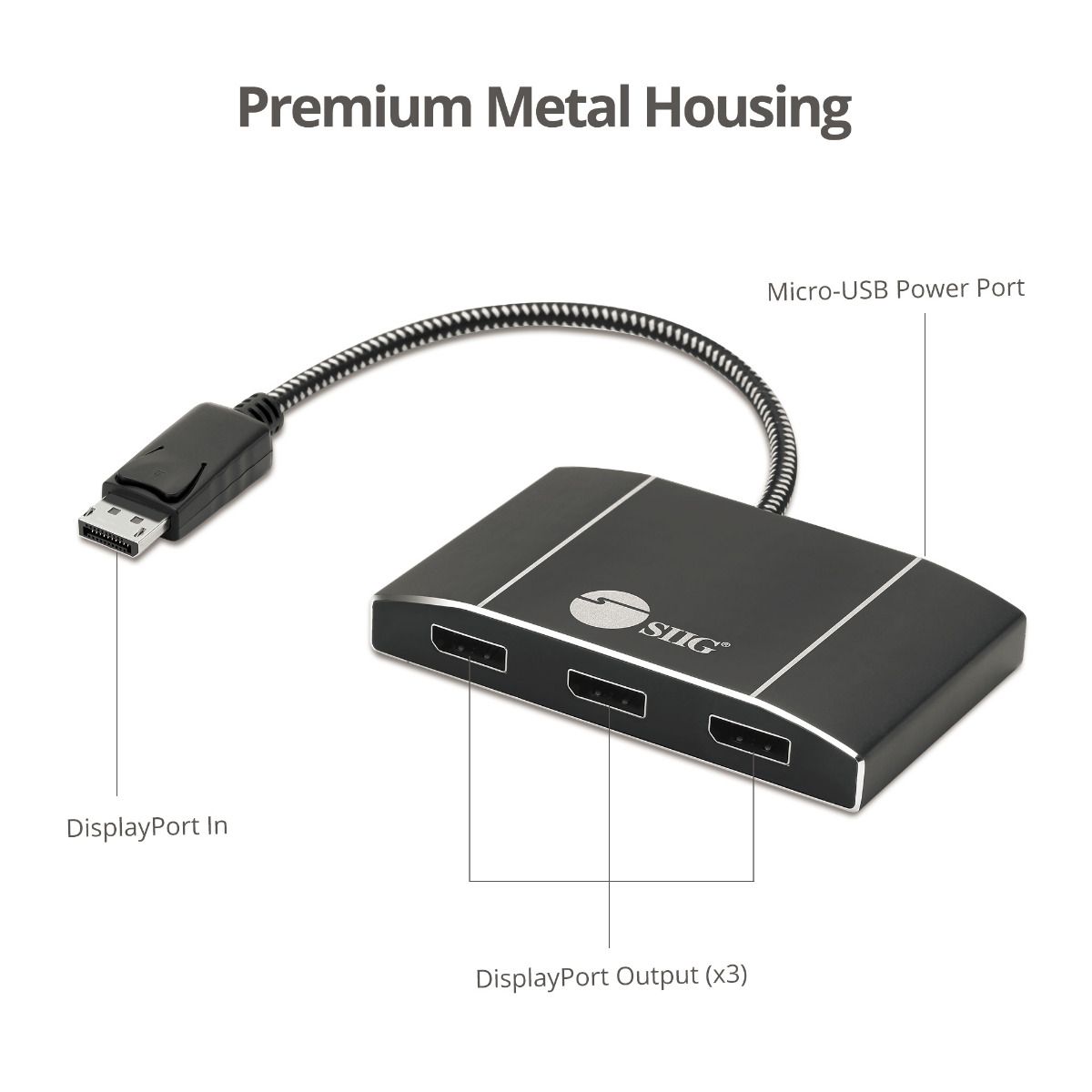

| Interface | 1x 20-pin, DisplayPort 1.2, male 1x 5-pin, Micro USB, power input only (at least 5V/300mA), female 3x 20-pin, DisplayPort, female, output |

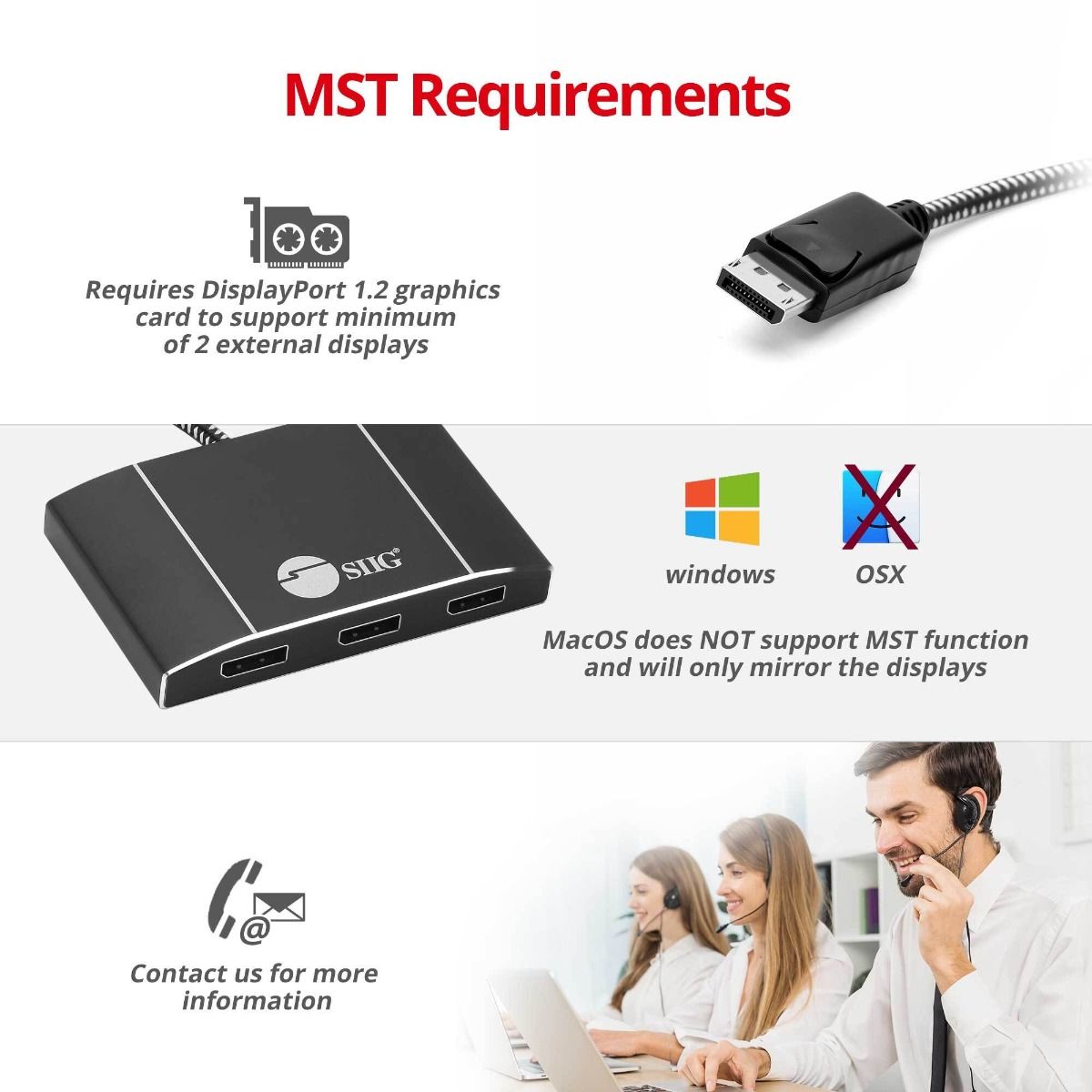

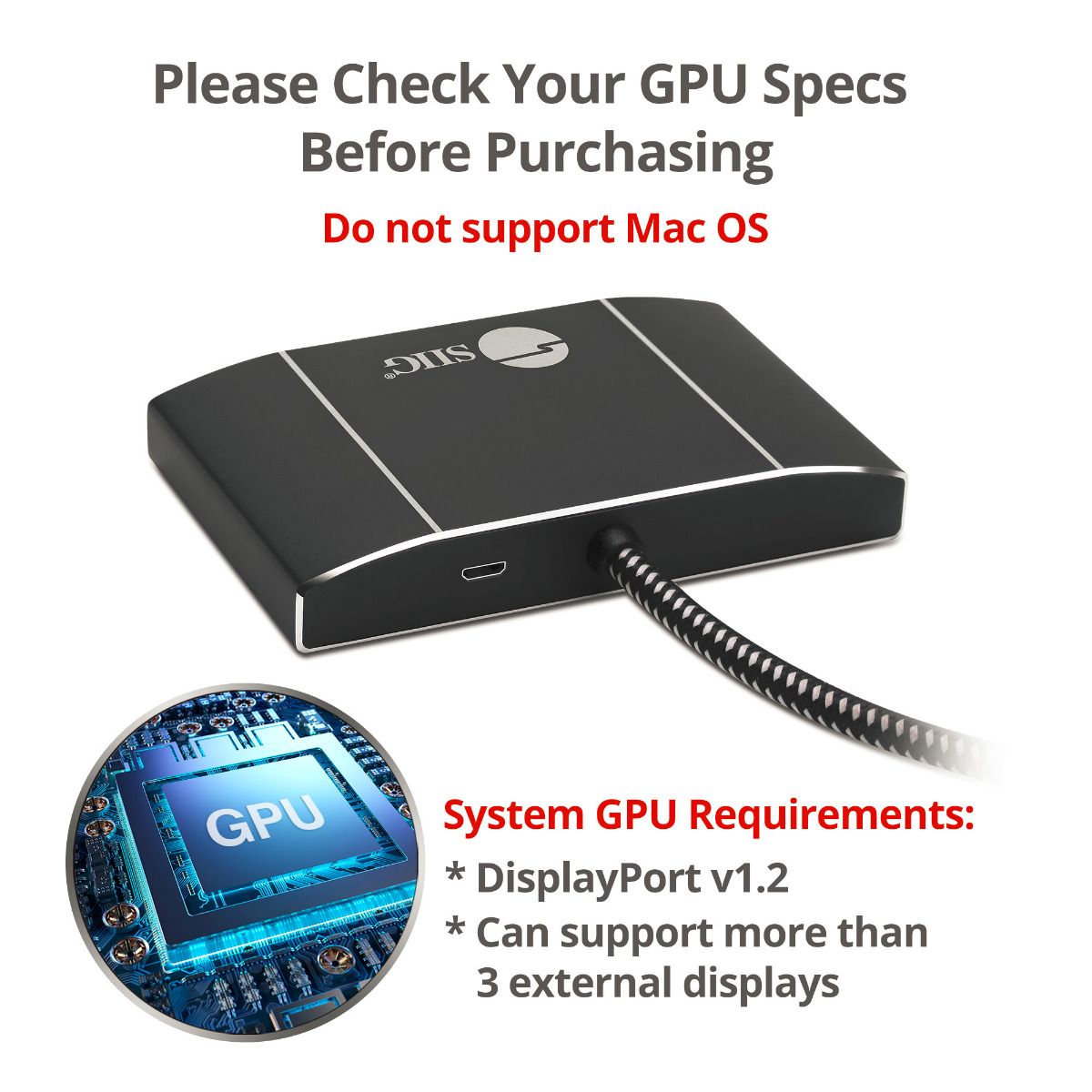

| System Requirements | Desktop or Laptop with available DisplayPort 1.2 port Windows® 11 / 10 |

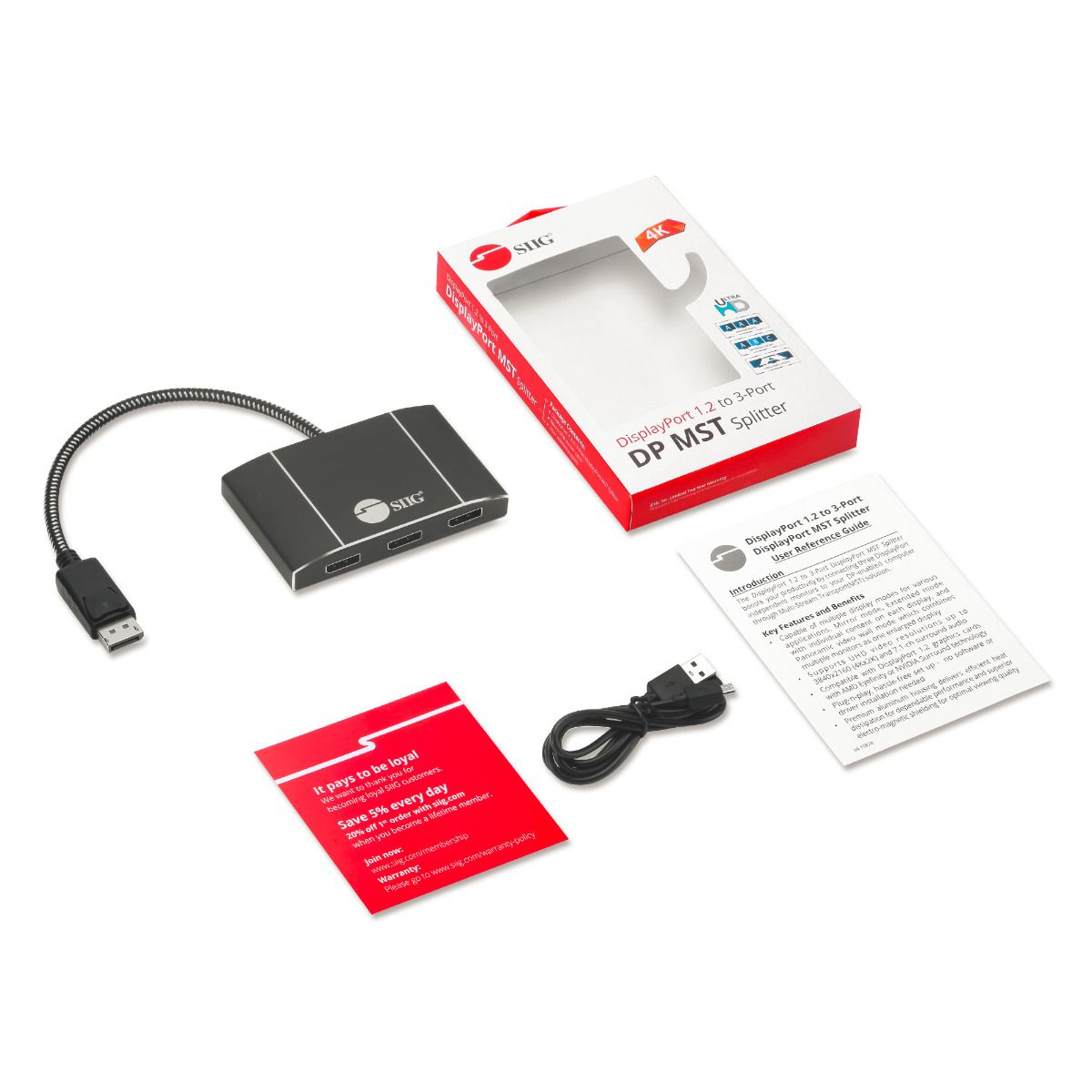

| Package Contents | 1x DisplayPort 1.2 to 3-Port DisplayPort MST Splitter 1x Micro-USB power cable (Micro USB (male) to USB Type-A (male), 3.3ft) 1x User reference guide |
| Product | |

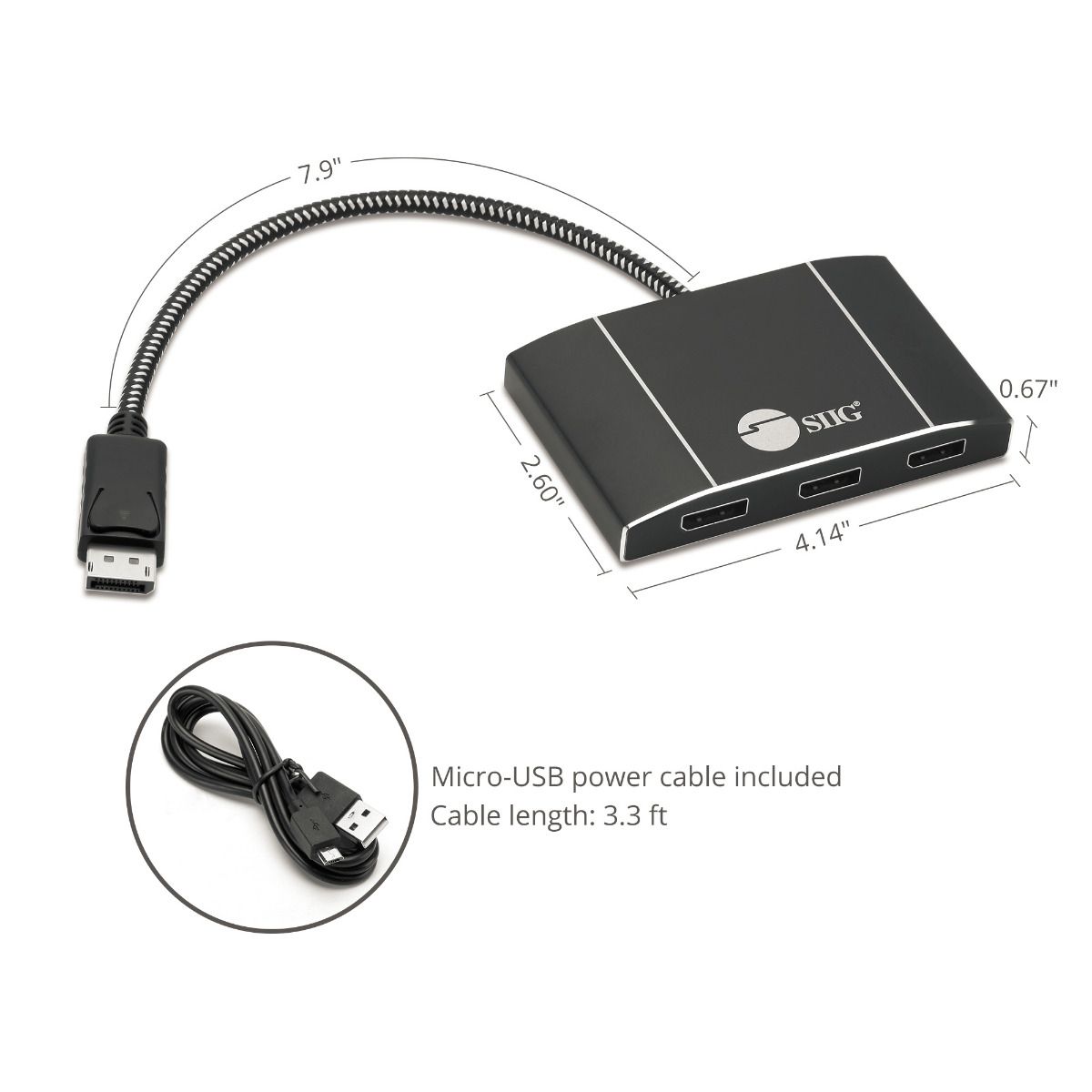

| Dimensions (L) x (H) x (W) | 4.14" x 0.67" x 2.60" 10.52 cm x 1.70 cm x 6.60 cm |
| Weight | 0.29 lb (0.13 kg) |
| Color | Deep brown |
| Housing Material | Aluminum |
| DisplayPort Cable (embedded) | 7.9" (20.07 cm) |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 4.72" x 7.68" x 0.98" 11.99 cm x 19.51 cm x 2.49 cm |
| Weight | 0.44 lb (0.20 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 17.32" x 15.75" x 16.34" 43.99 cm x 40.00 cm x 41.50 cm |
| Weight | 29.55 lbs (13.40 kg) |
| Quantity | 60 pcs/ctn |
| Environmental Conditions | |
| Operating Temperature | 32 to 104 degrees F |
| Storage Temperature | -4 to 158 degrees F |
| Relative Humidity | 5% to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-040639 |
| Warranty | 2 years limited |
| Country of Origin | China |
Q1: Can I use this to connect a 3rd monitor to my AIO (All-in-One PC)?
Q1: Can I use this to connect a 3rd monitor to my AIO (All-in-One PC)?
A1: Yes, it can connect to an All-in-one PC, but, please refer to our notes before buying, there are some limits need to know.
Q2: Does the MST Hub Splitter support 21:9 or 32:9 ultrawide resolution?
Q2: Does the MST Hub Splitter support 21:9 or 32:9 ultrawide resolution?
A2: All MST Hubs can support ultrawide resolutions like 21:9 or 32:9. However, our current examples use 16:9 resolution. It's important to note that 21:9 and 32:9 resolutions require a higher bandwidth compared to 16:9.
Since the total bandwidth of an MST Hub remains constant, the maximum supported resolution and number of connected monitors will vary depending on the bandwidth required by each monitor. For example, with a DP 1.2 connection, an MST Hub can support four 1080p monitors. if you use displays with a resolution of 2560x1080, the maximum number of supported monitors would decrease to three.
Upgrading to DP 1.4, which offers a higher bandwidth than DP 1.2, would allow the MST hub to support four monitors with a resolution of 2560x1080.
Since the total bandwidth of an MST Hub remains constant, the maximum supported resolution and number of connected monitors will vary depending on the bandwidth required by each monitor. For example, with a DP 1.2 connection, an MST Hub can support four 1080p monitors. if you use displays with a resolution of 2560x1080, the maximum number of supported monitors would decrease to three.
Upgrading to DP 1.4, which offers a higher bandwidth than DP 1.2, would allow the MST hub to support four monitors with a resolution of 2560x1080.
