KVM |
SKU:
CE-KV0G11-S1

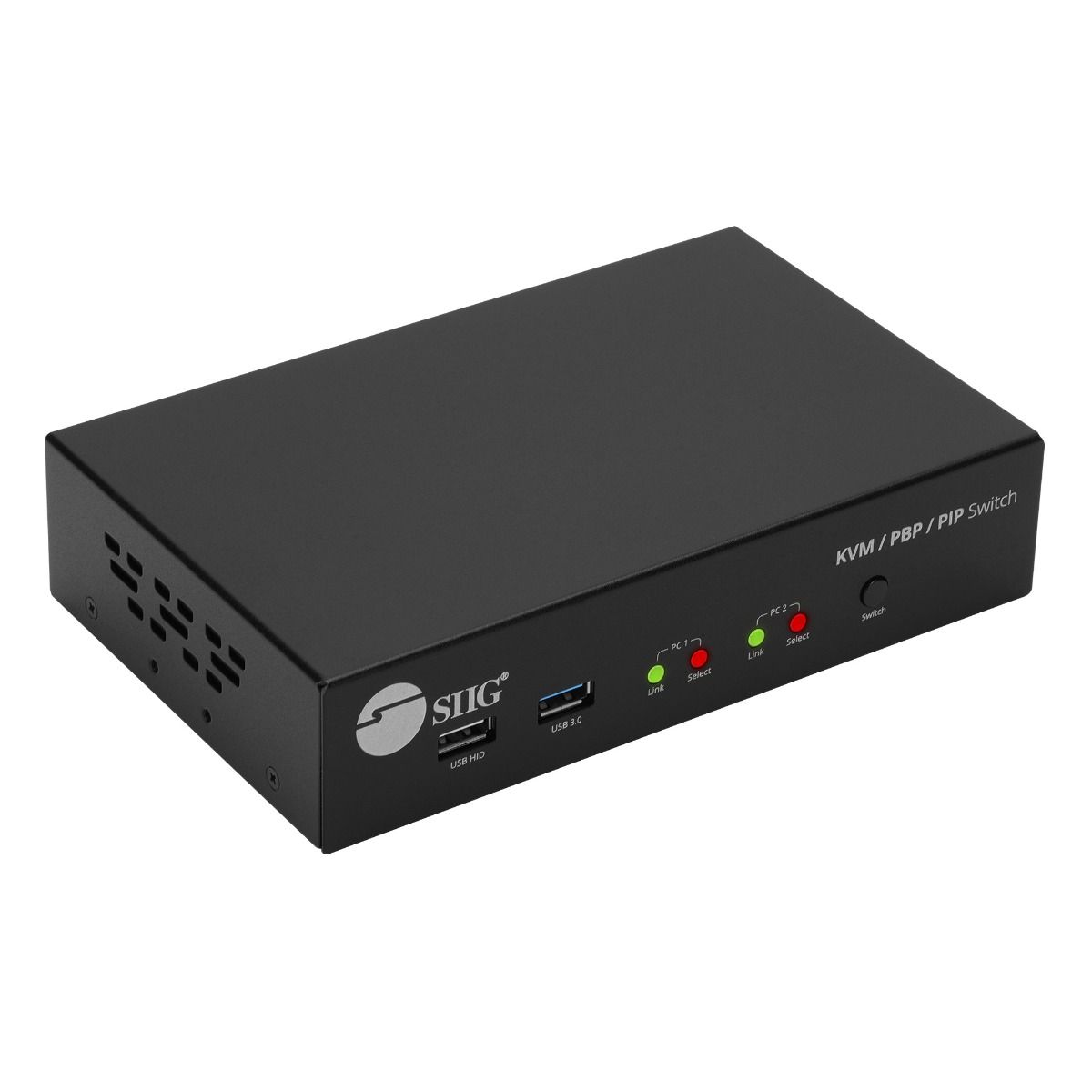

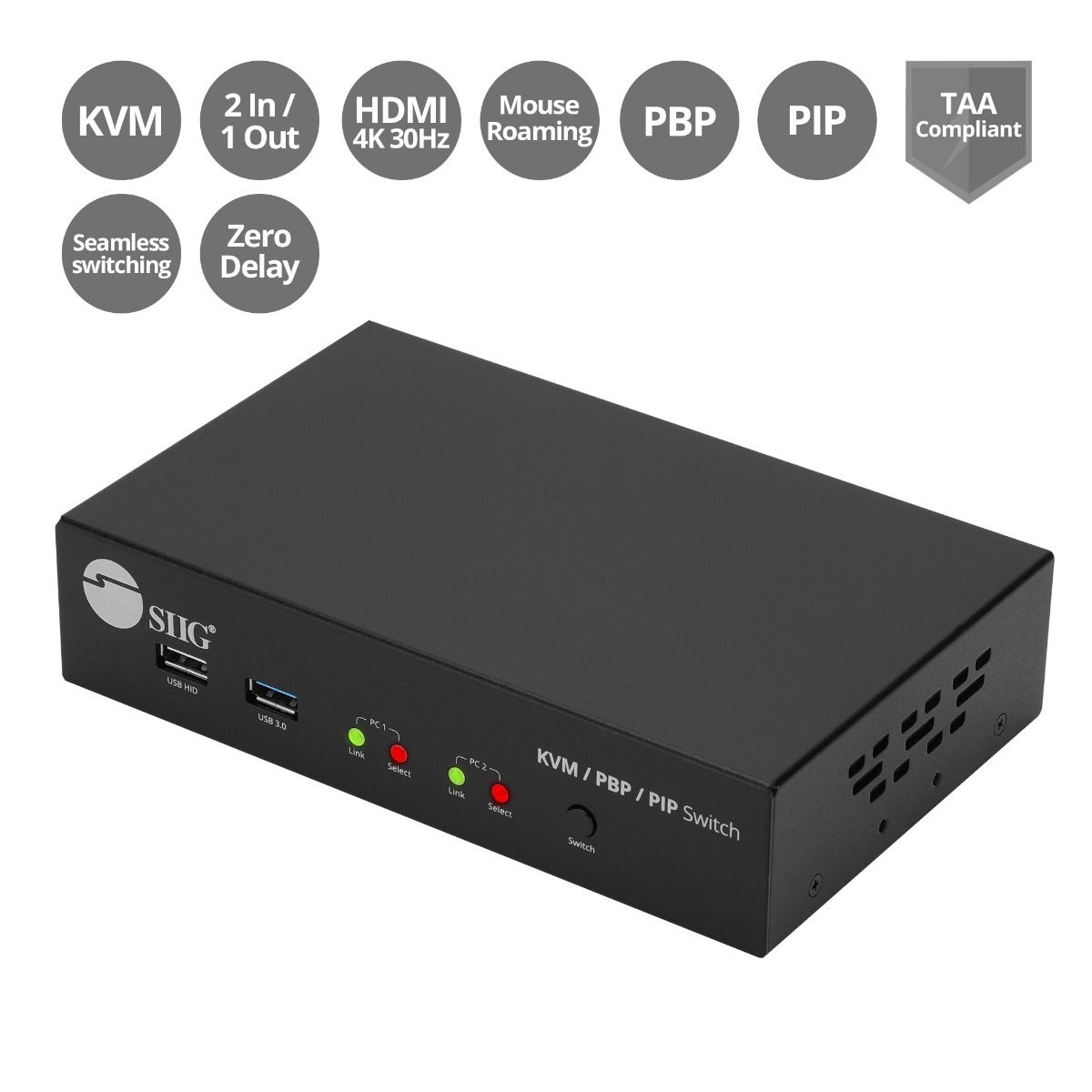

2-Port 4K HDMI KVM Switch with PBP Roaming Mouse & PIP
2x1 HDMI KVM
4K30Hz

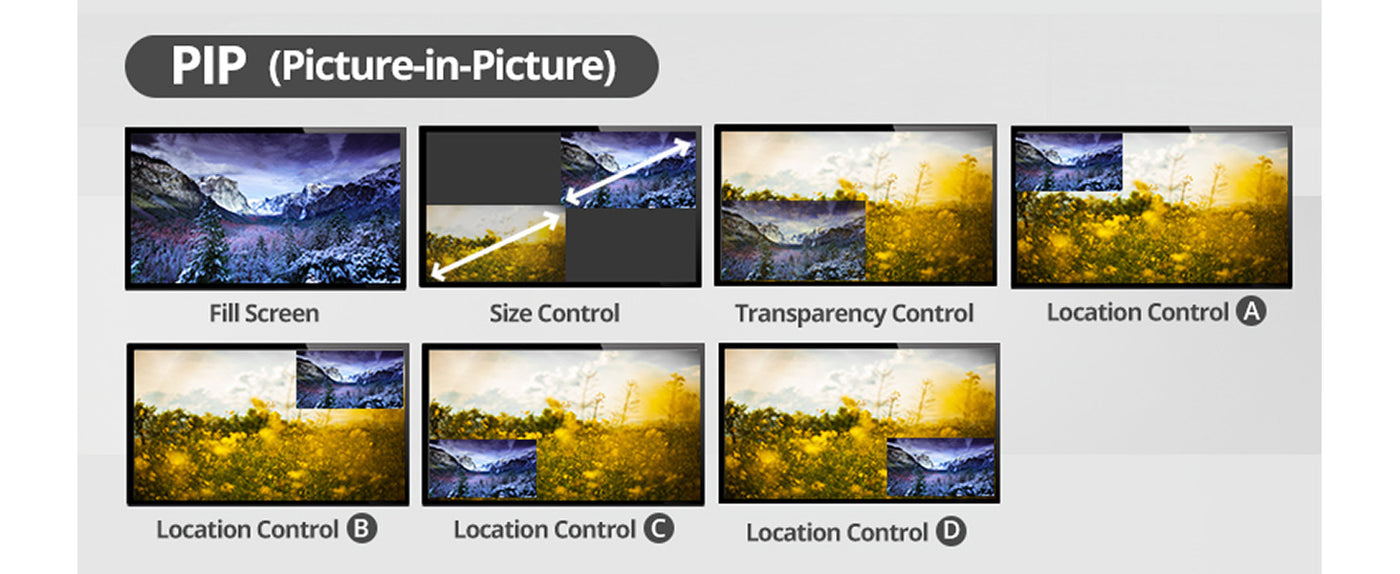

PBP / PIP
Mouse Roaming
TAA Compliant
Regular price
$749.99
Unit price
/
Unavailable
Shipping calculated at checkout.
2-Port 4K HDMI KVM Switch with PBP Roaming Mouse & PIP is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
2x1 HDMI KVM Switch
2x1 HDMI KVM Switch
Mouse Roaming
Mouse Roaming

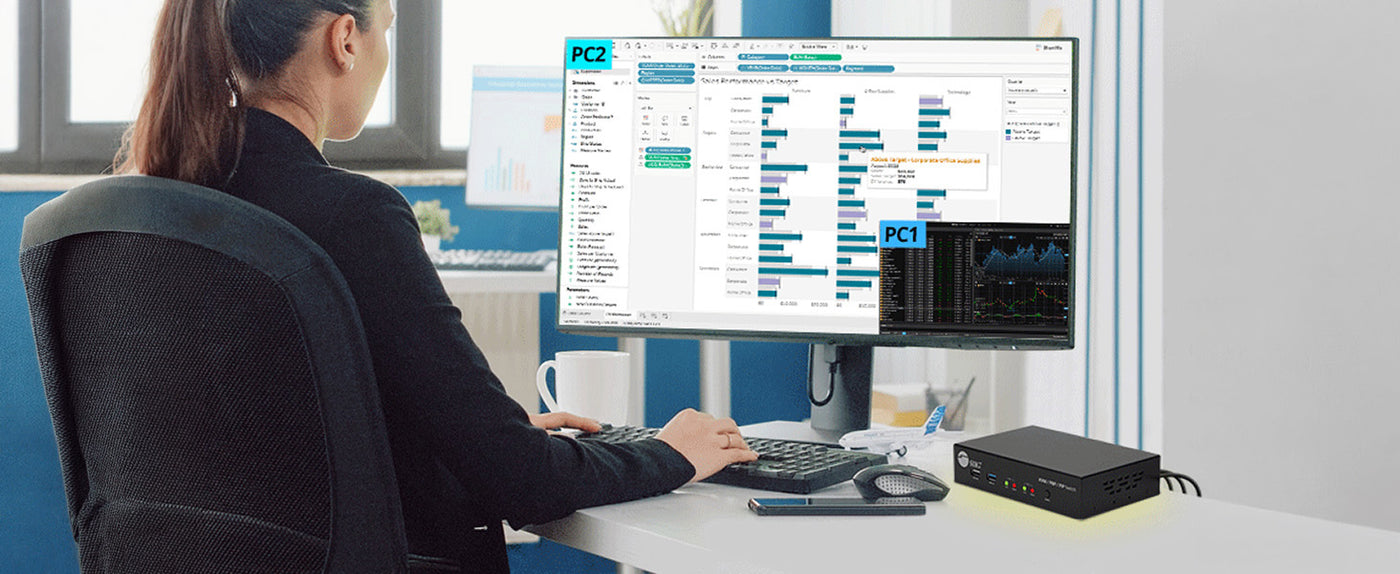

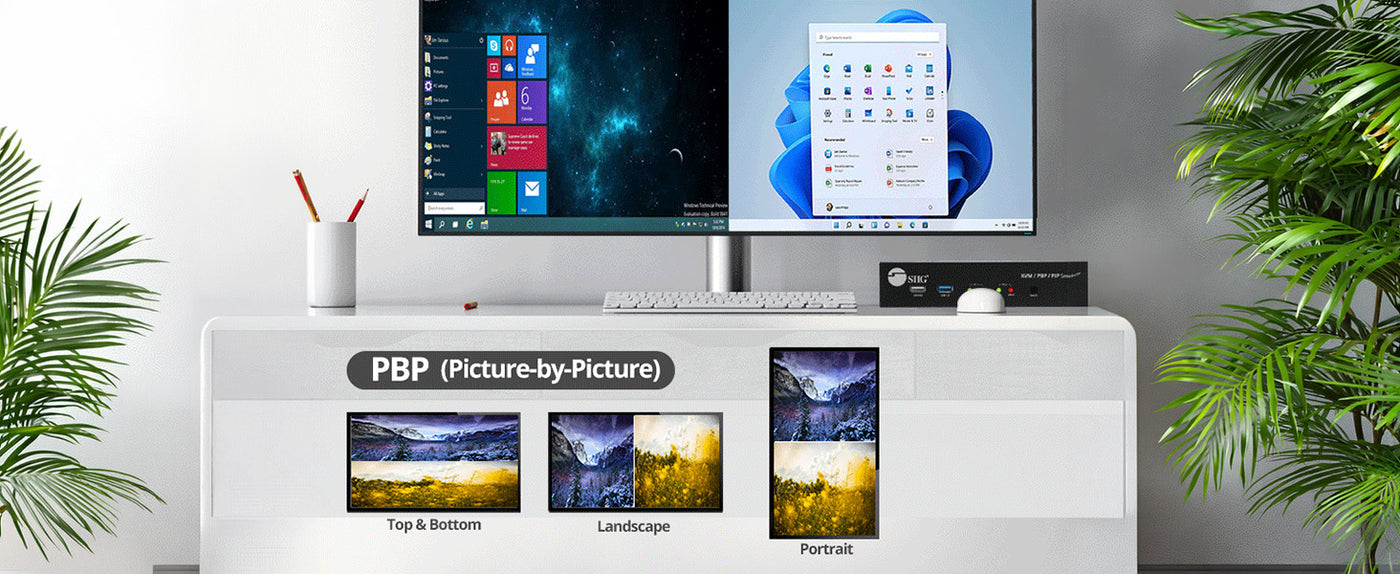

PBP Function
PBP Function

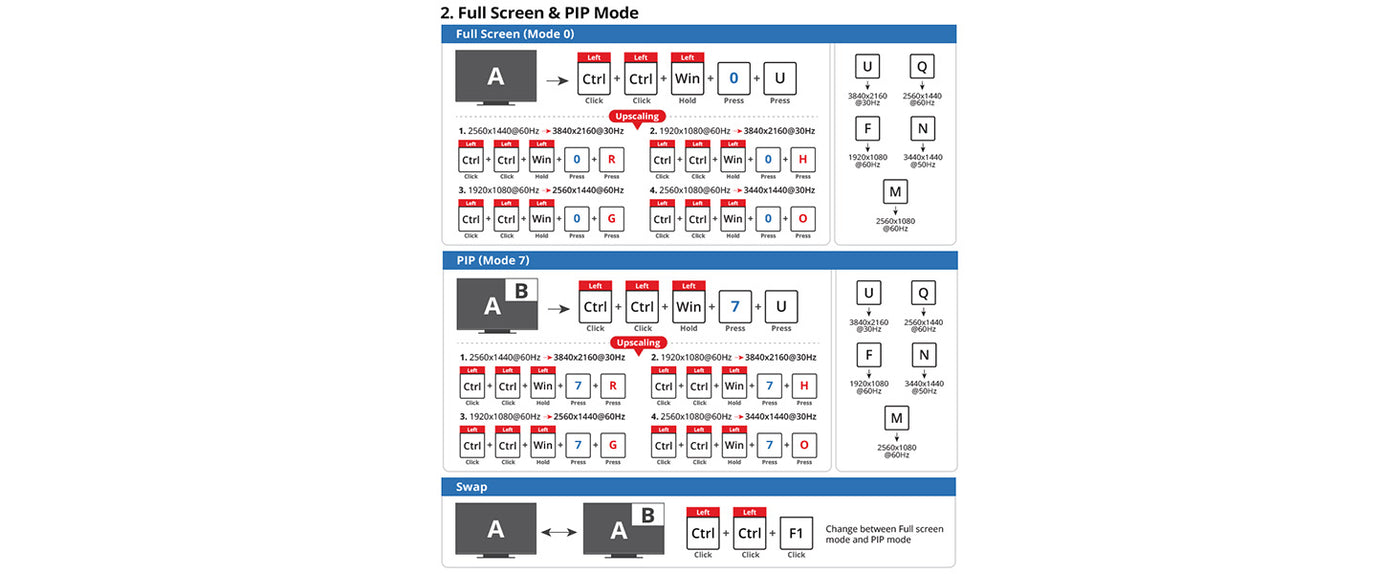

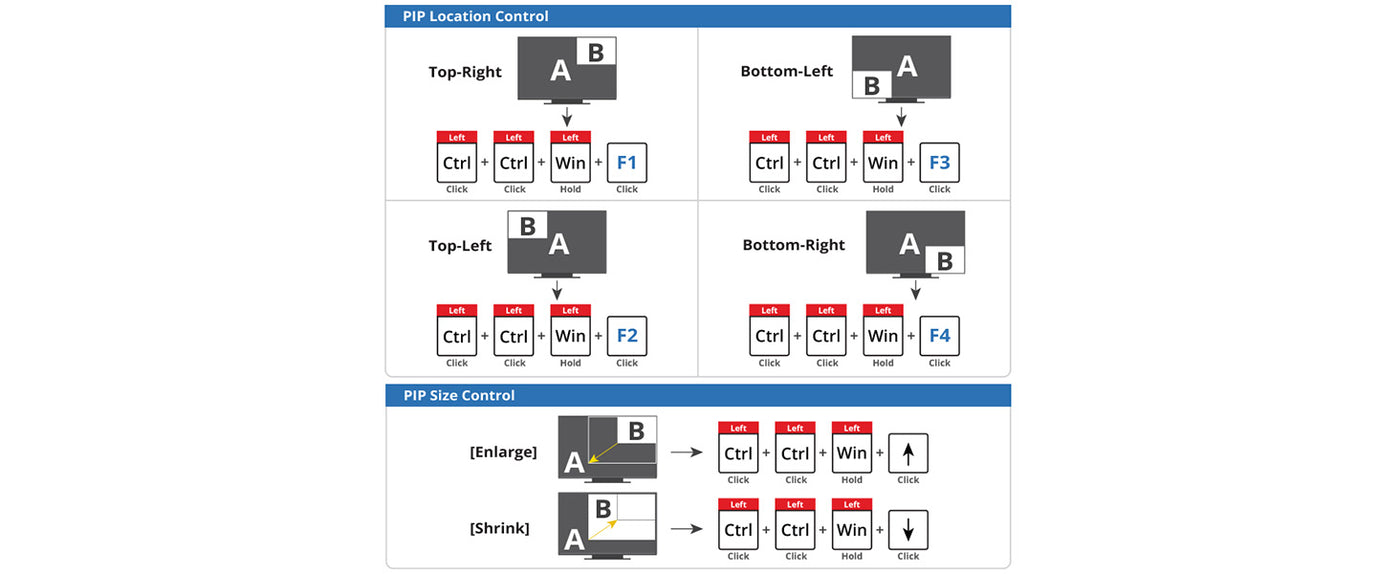

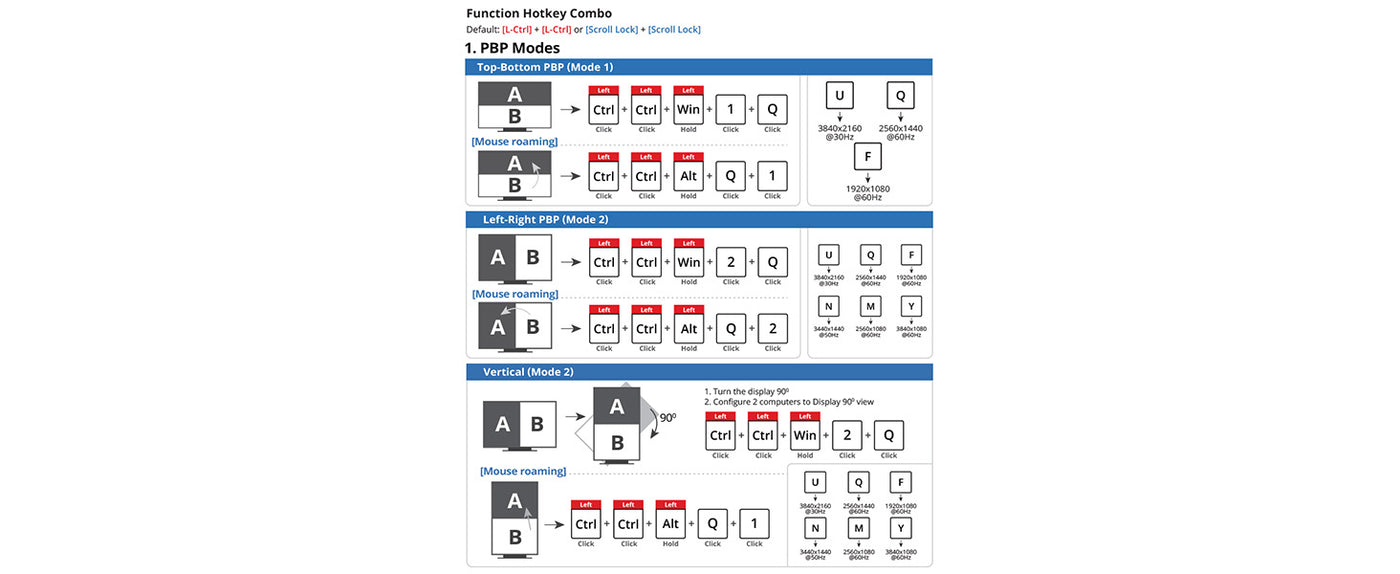

HotKey Operation
HotKey Operation
Metal Housing Design
Metal Housing Design






Overview
2x1 HDMI KVM Switch, Allows you to control 2 HDMI 4K computers using one keyboard and mouse - Mouse Roaming, PBP, PIP, 4K@30, HDCP 1.4, USB 3.0 ports, Stereo Audio Output, Switch Button, Hotkeys, TAA compliant.

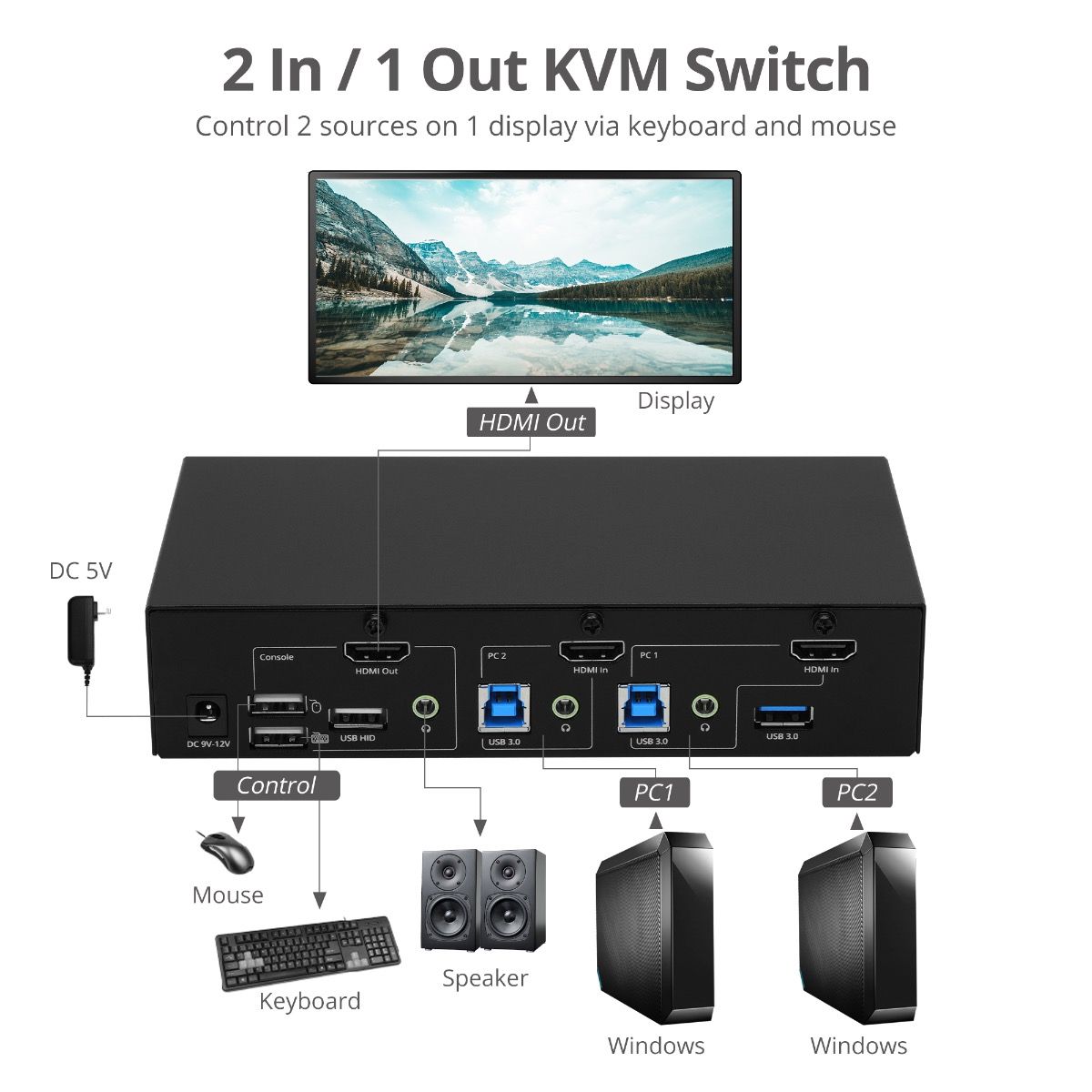

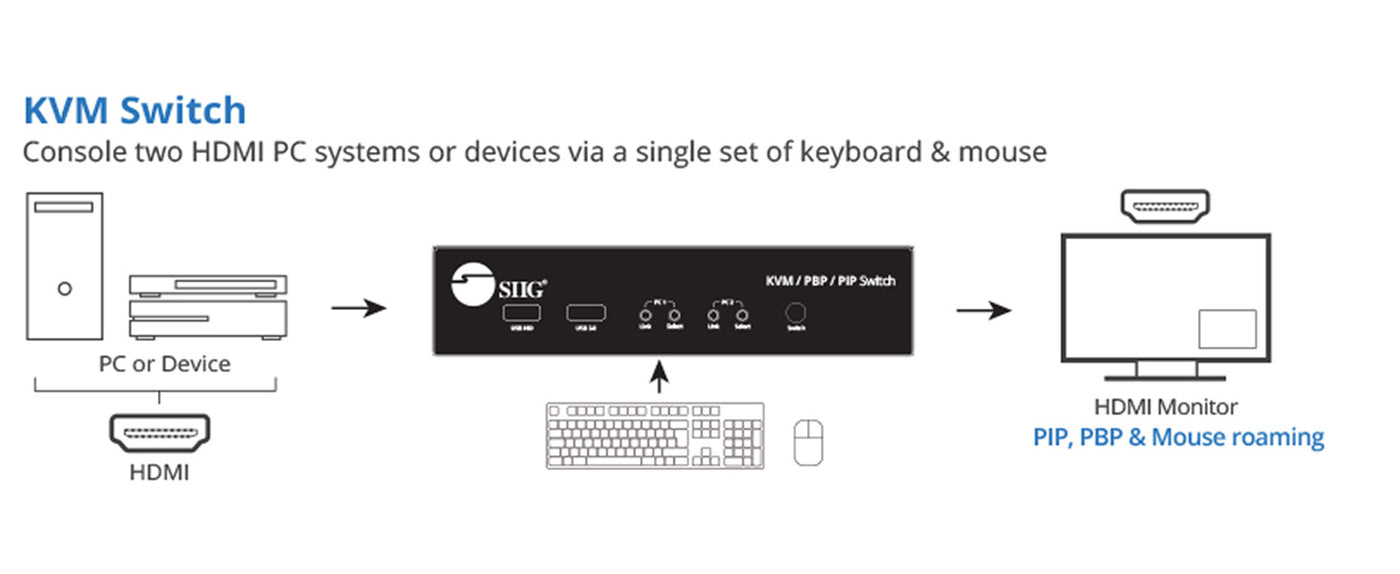

Seamlessly Switch two Computers to one 4K Display/Monitor and USB Peripheral via a one set of Keyboard & Mouse

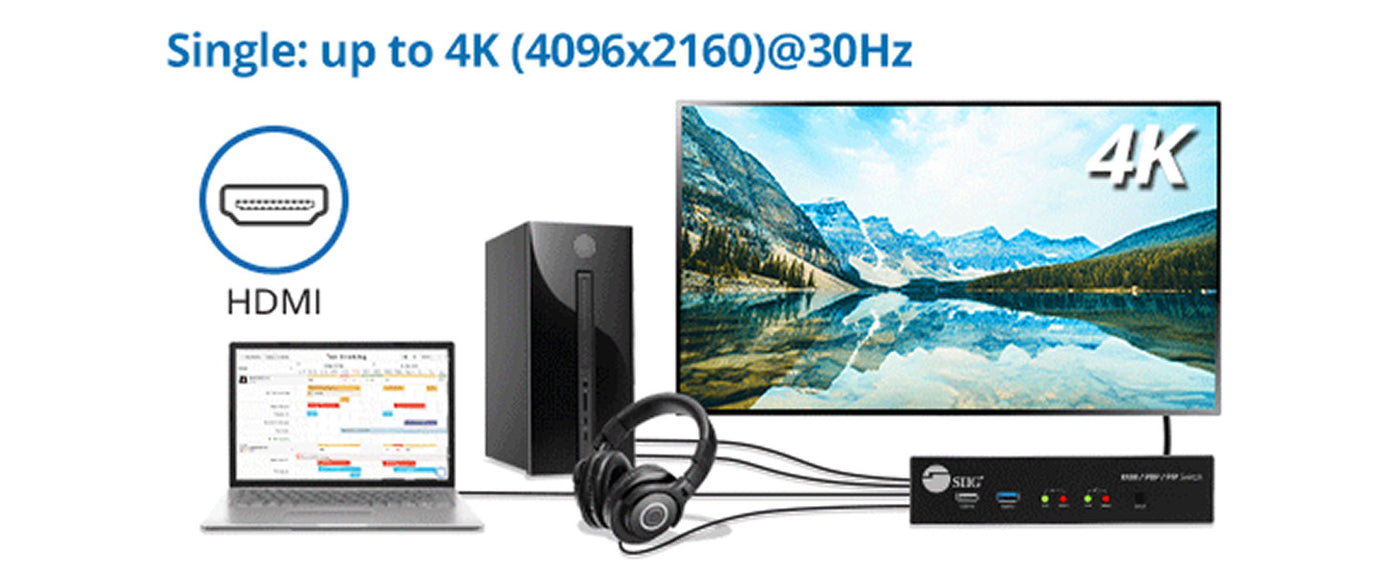

4K Video Resolution - Offers a true 10.2Gbps video bandwidth and supports 5.1ch surround sound

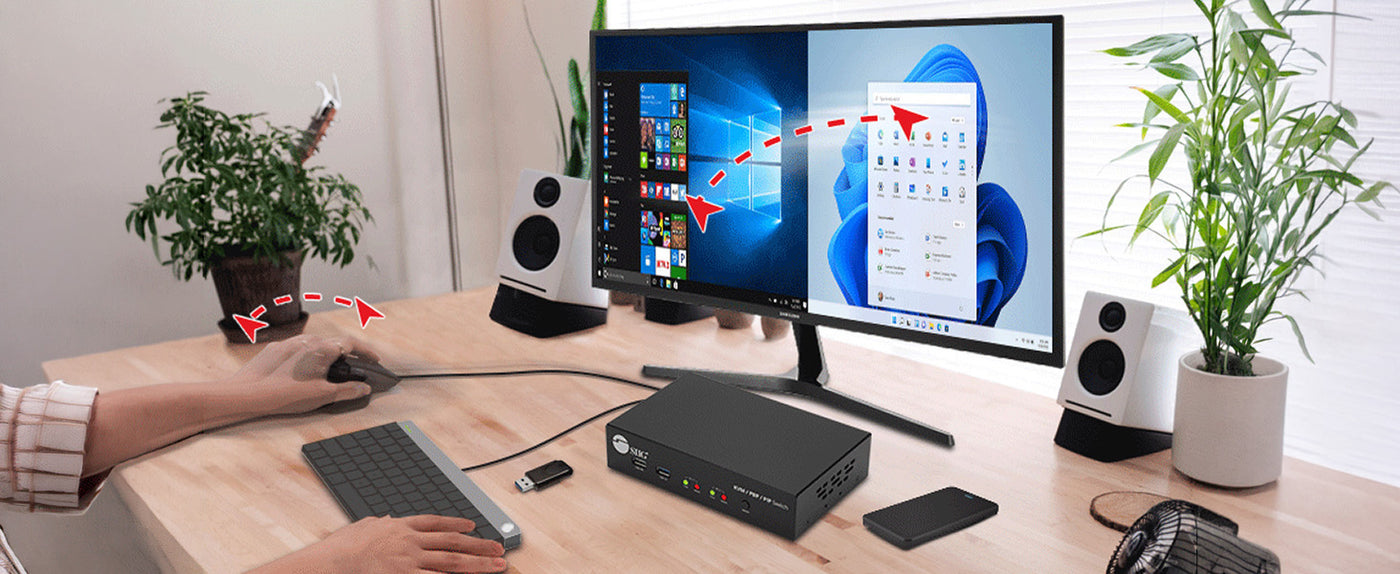

Mouse Roaming - Simple Move the Mouse to Roam Between the Two Windows Systems Make Perfect Operation Experience

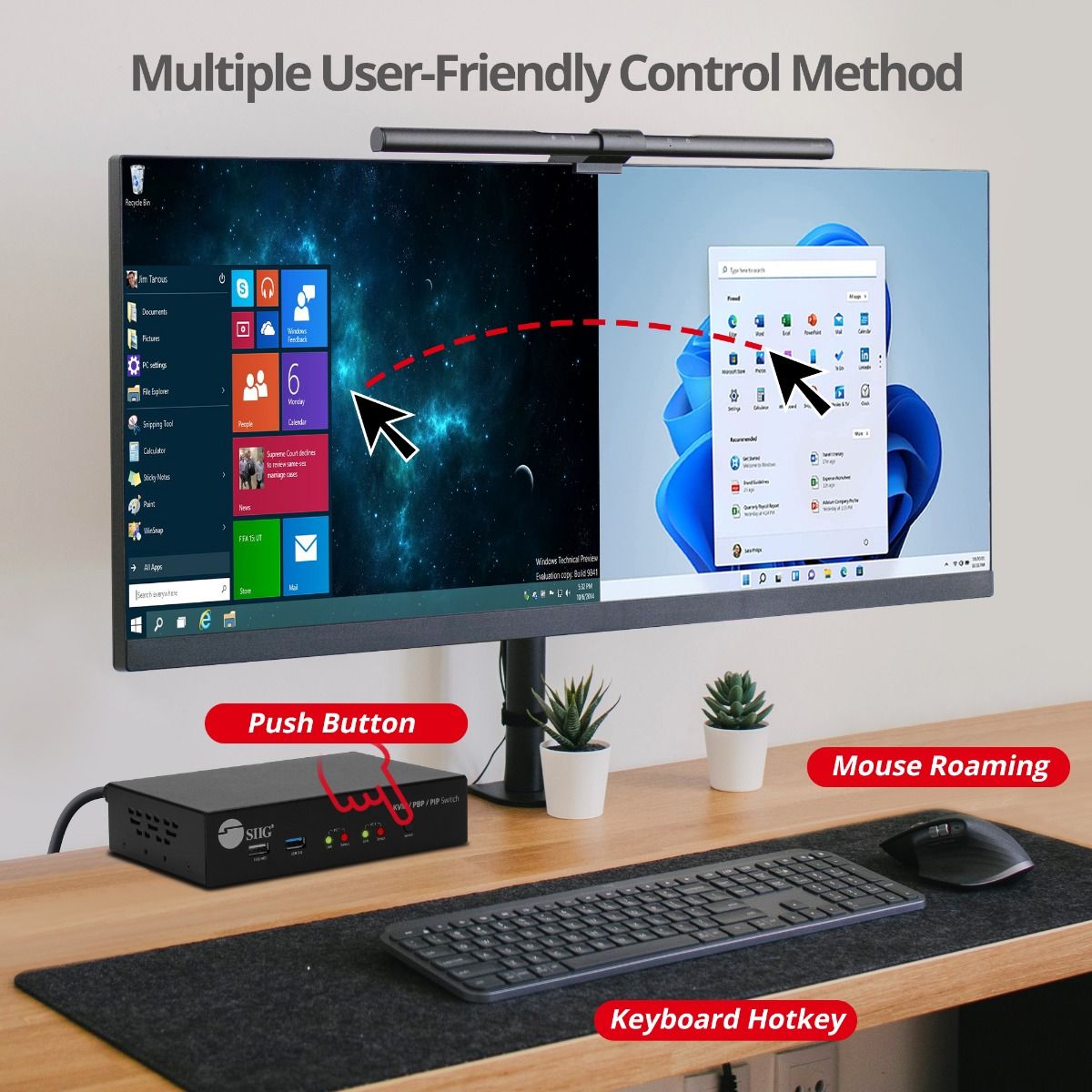

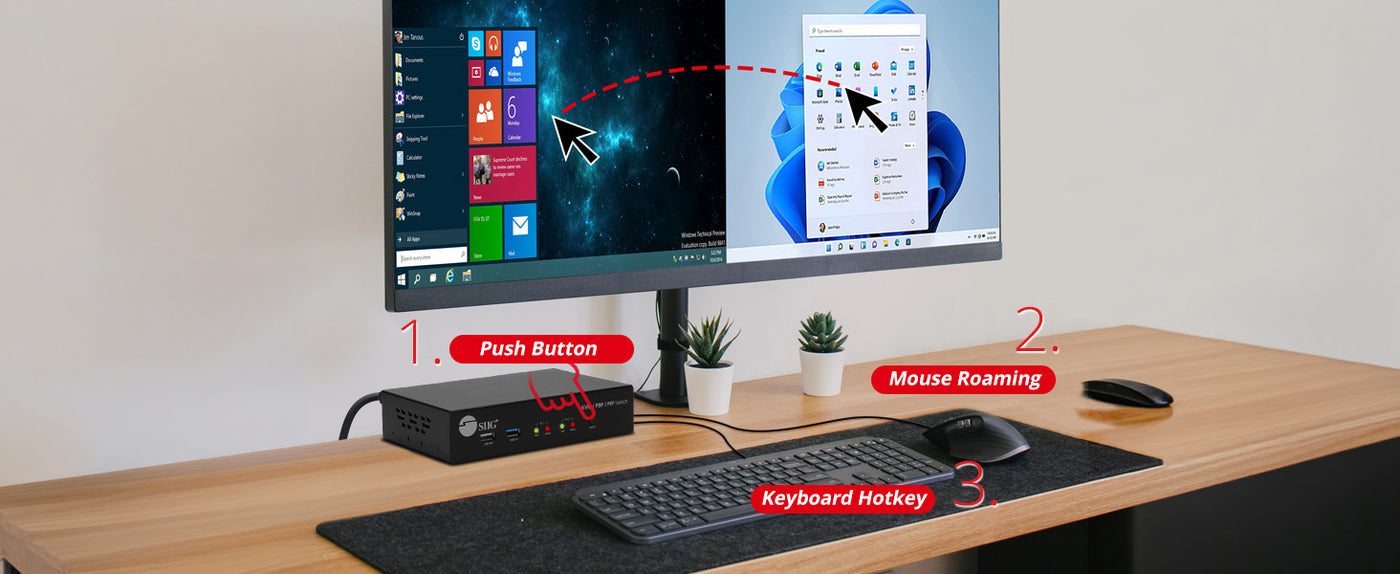

Effortlessly Switch via the Front Panel Select Button, USB Keyboard Hotkeys, and Mouse Roaming

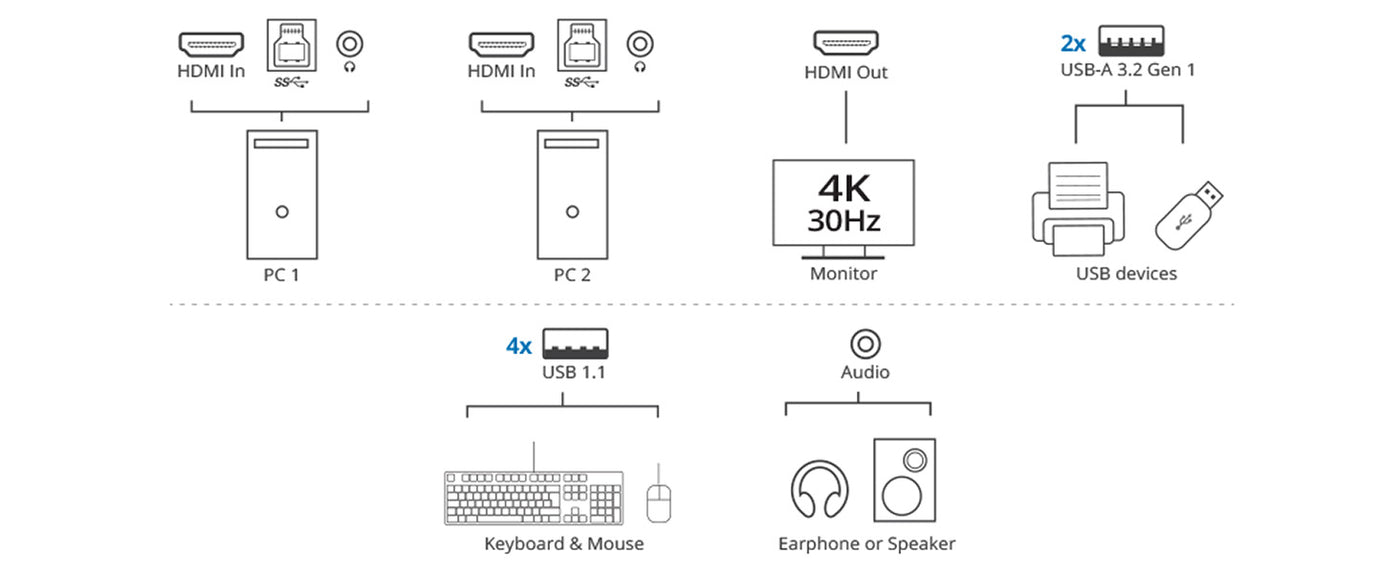

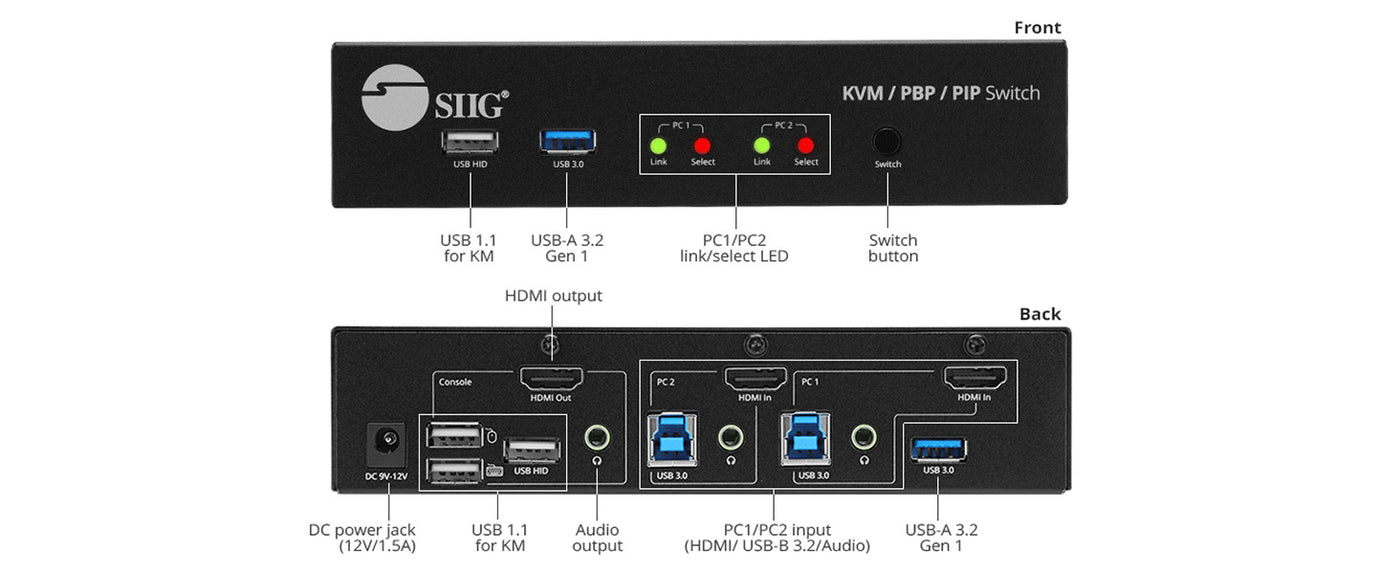

Multiple Connectivity Port
Connection

| Video | |
| HDMI | HDCP 1.4 |
| Resolution | 4K (4096x2160 or 3840x2160) @ 30Hz |
| Video Bandwidth | Up to 10.2Gbps |
| Audio | 5.1 channel surround sound from HDMI port 2 channel stereo audio from 3.5mm audio jack |
| USB Data Transfer Rate | |
| USB 3.2 Gen 1 | 2x Type-A, up to 5Gbps, 5V/900mA |
| USB 1.1 | 4x Type-A, up to 12Mbps for HID keyboard & mouse |
| Power Adapter | Input: AC 100-240V / 50-60Hz Output: DC 12V/1.5A UL Listed: UL E163743/Level: VI |

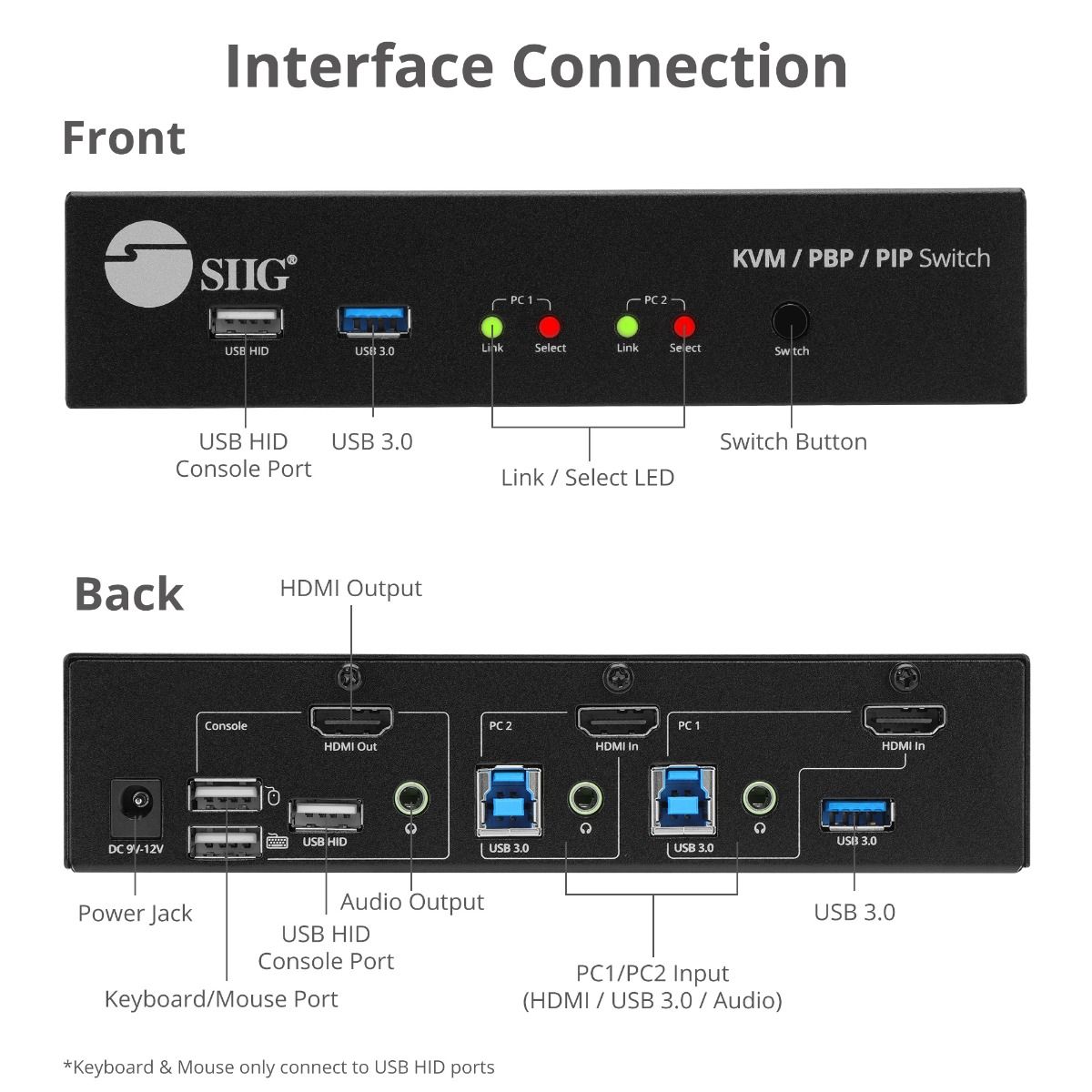

| Interface | |
| Input | 2x 19-pin, HDMI, Female 2x 9-pin, USB-B 3.2 Gen 1, Female 1x Switch button, for PC1/PC2 switching 1x DC power adapter, 12V/1.5A |
| Output | 1x 19-pin, HDMI, Female 2x 9-pin, USB-A 3.2 Gen 1, Female 4x 4-pin, USB-A 1.1, for HID keyboard & mouse, Female 3x 3.5mm phone jack, for stereo audio |
| Environmental | |
| Operating Temperature | 32 to 114 degrees F |
| Storage Temperature | 14 to 178 degrees F |
| Relative Humidity | 5% to 90% RH (non-condensing) |
| System Requirements | - PC with available HDMI, USB-B 3.2 Gen 1 port, and 3.5mm audio ports - Windows 11 / 10 - Linux |
| Product | |

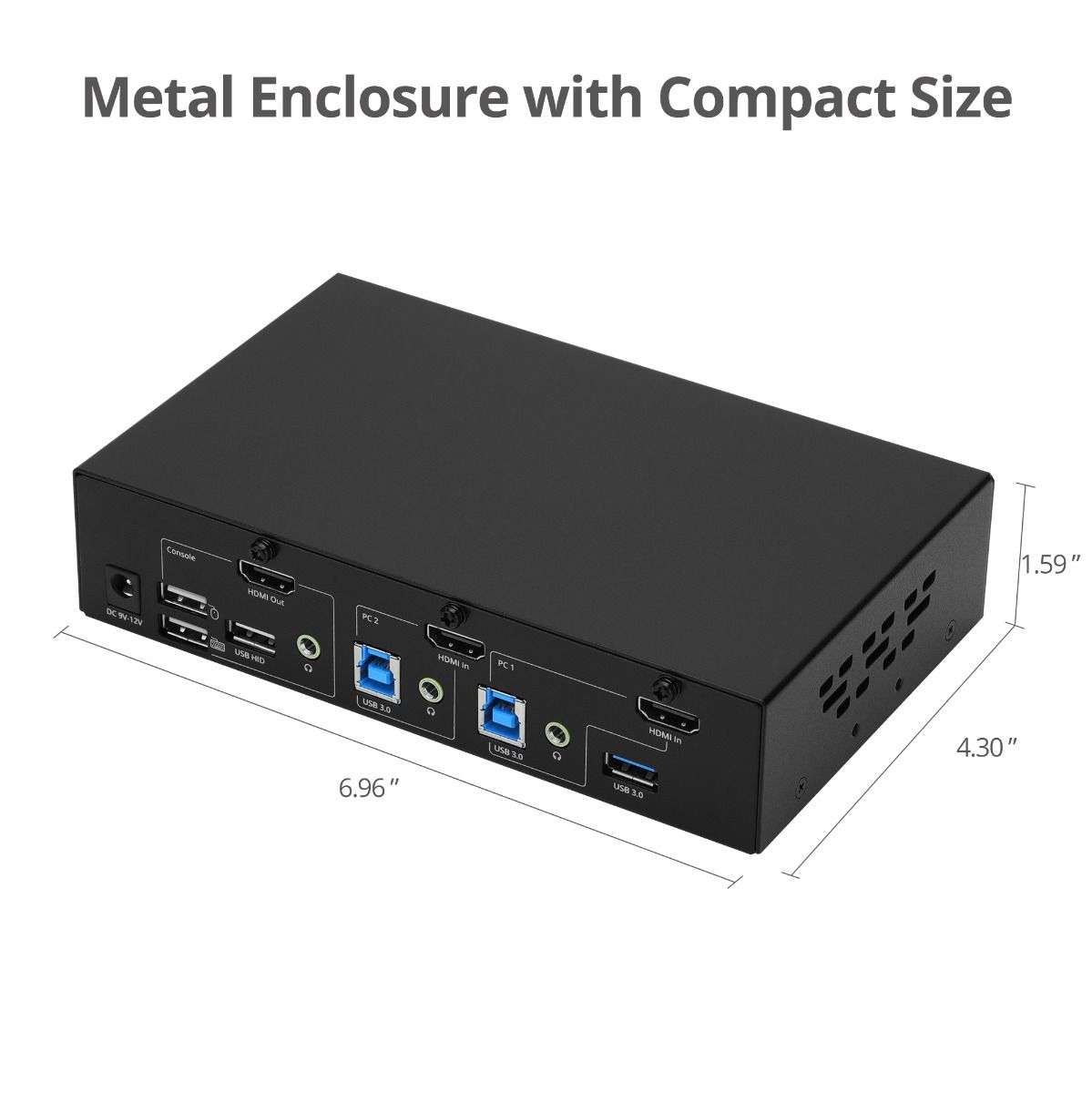

| Dimensions(L) x (H) x (W) | 6.93" x 1.57" x 4.33" 17.60 cm x 4.00 cm x 11.00 cm |
| Weight | 1.60 lbs (0.73 kg) |
| Color | Black |
| Housing Material | Metal |
| Unit Package | |
| Dimensions(L) x (H) x (W) | 12.05" x 2.76" x 6.97" 30.60 cm x 7.00 cm x 17.70 cm |
| Weight | 2.47 lbs (1.12 kg) |
| Master Carton | |
| Dimensions(L) x (H) x (W) | 21.93" x 12.72" x 12.99" 55.7 cm x 32.30 cm x 33.00 cm |
| Weight | 31.31 lbs (14.2 kg) |
| Quantity | 12 pcs/ctn |
| Certifications/Standards | FCC, CE, RoHS 2.0, REACH |
| UPC Code | 662774-045405 |
| Warranty | 2 years limited |
| Country of Origin | Taiwan |

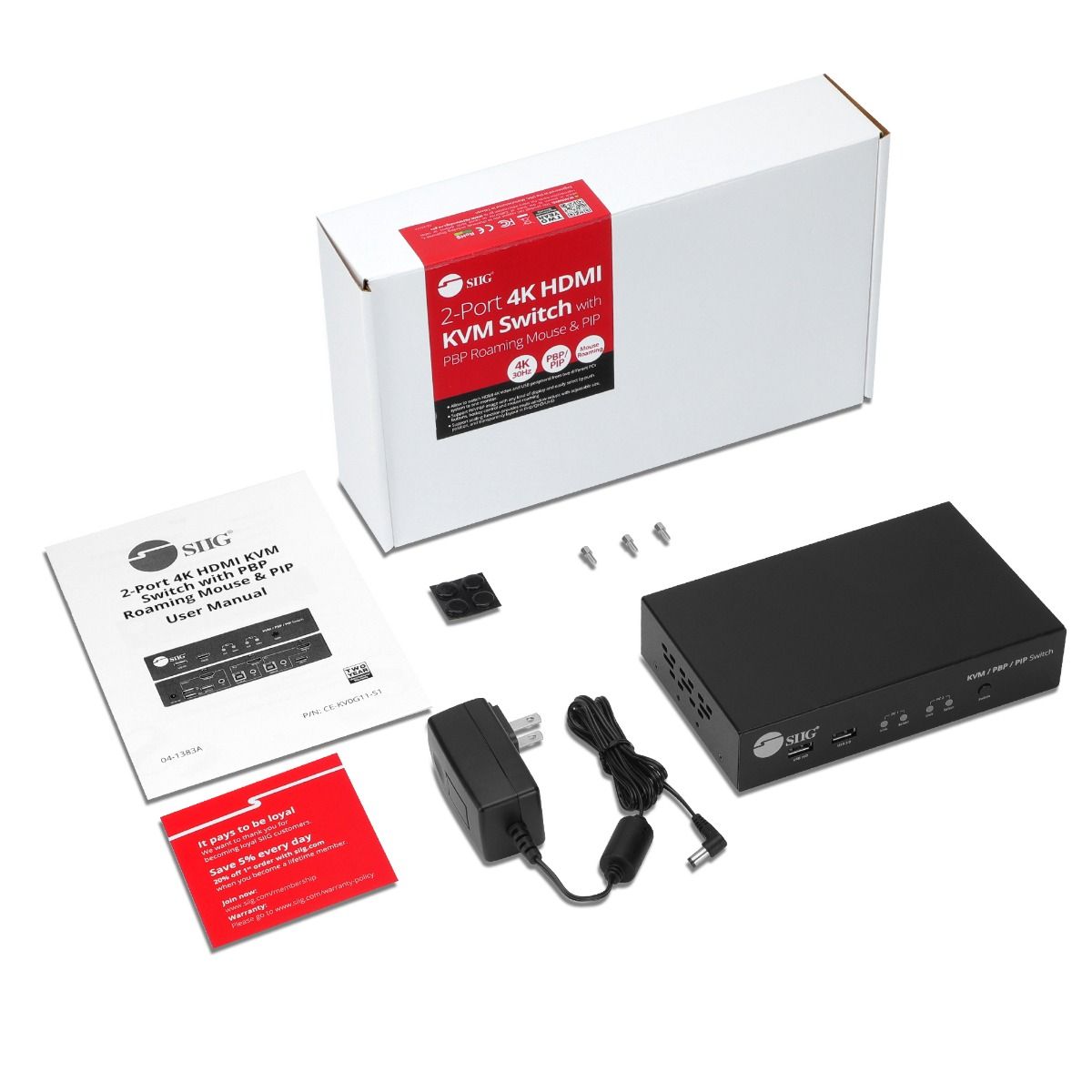

| Package Contents | 1x 2-Port 4K HDMI KVM Switch with PBP Roaming Mouse & PIP 4x Silicone pad 3x Screw kit 1x DC power adapter, 12V/1.5A 1x User reference guide |
Q1: Why do my displays look sending poor quality or flicker?
Q1: Why do my displays look sending poor quality or flicker?

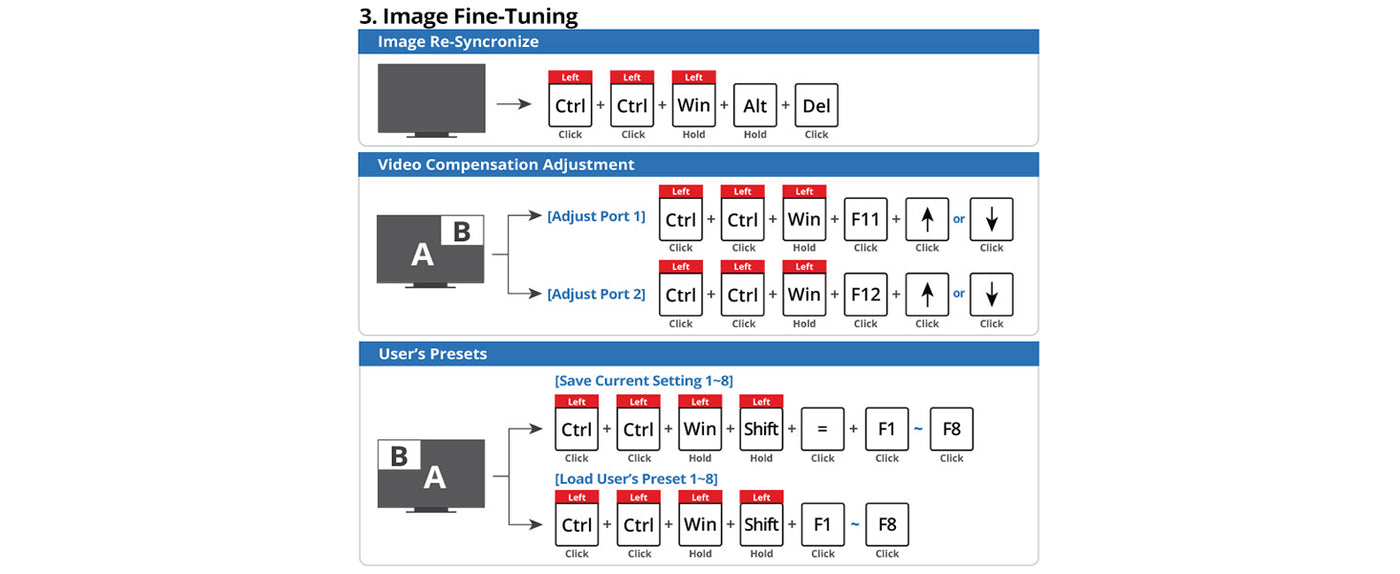

A1: Please refer to the "Advanced Operation" part of the user manual on page 12, use the "Video Compensation Adjustment" hotkey to adjust the signal, you can adjust the image quality
Q2: Are Windows XP or Vista computers supported?
Q2: Are Windows XP or Vista computers supported?
A2: Yes, Windows XP and Vista are supported.
Q3: Can I use VGA to HDMI or DVI to HDMI adapters?
Q3: Can I use VGA to HDMI or DVI to HDMI adapters?
A3: Yes, VGA to HDMI or DVI to HDMI adapters can be supported.
Q4: Does this unit support touch screen monitor input in addition to the roaming mouse?
Q4: Does this unit support touch screen monitor input in addition to the roaming mouse?
A4: No, it doesn't support touch screen monitor or panel.
Q5: Can the split ratio between the computers be changed when in PBP mode?
Q5: Can the split ratio between the computers be changed when in PBP mode?
A5: Unfortunately, the PBP mode can't change the display ration.
