Single Port 1G SFP Ethernet Network PCIe Card - 1Gbps - TAA Compliant
Single Port 1G SFP Ethernet Network PCIe Card - 1Gbps - TAA Compliant is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Add Instant Fiber Networking
Add Instant Fiber Networking
Broad SFP Module Compatibility
Broad SFP Module Compatibility
High-Performance, Energy-Efficient Design
High-Performance, Energy-Efficient Design
Advanced Virtualization & Timing Support
Advanced Virtualization & Timing Support
Enhanced Networking Features
Enhanced Networking Features
Single Port 1G SFP Ethernet Network PCIe Card - 1Gbps - TAA Compliant
Estimated shipping by May 22, 2026
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support

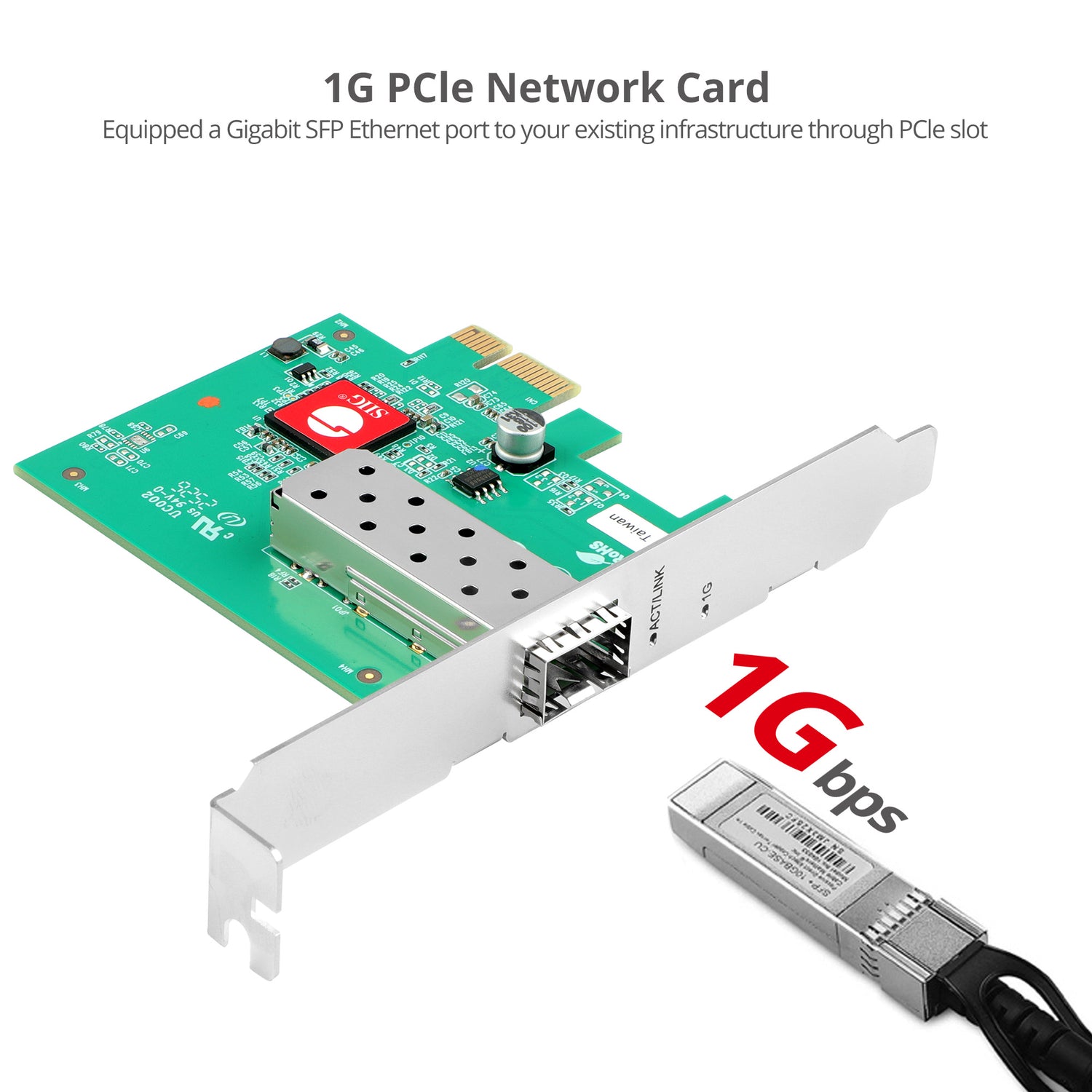

Adds a Reliable Gigabit SFP Fiber Connection to Your PC or Server
High-Speed Fiber Connectivity & TAA Compliant
Wide Compatibility - Works Seamlessly with Most Standard Gigabit SFP Modules

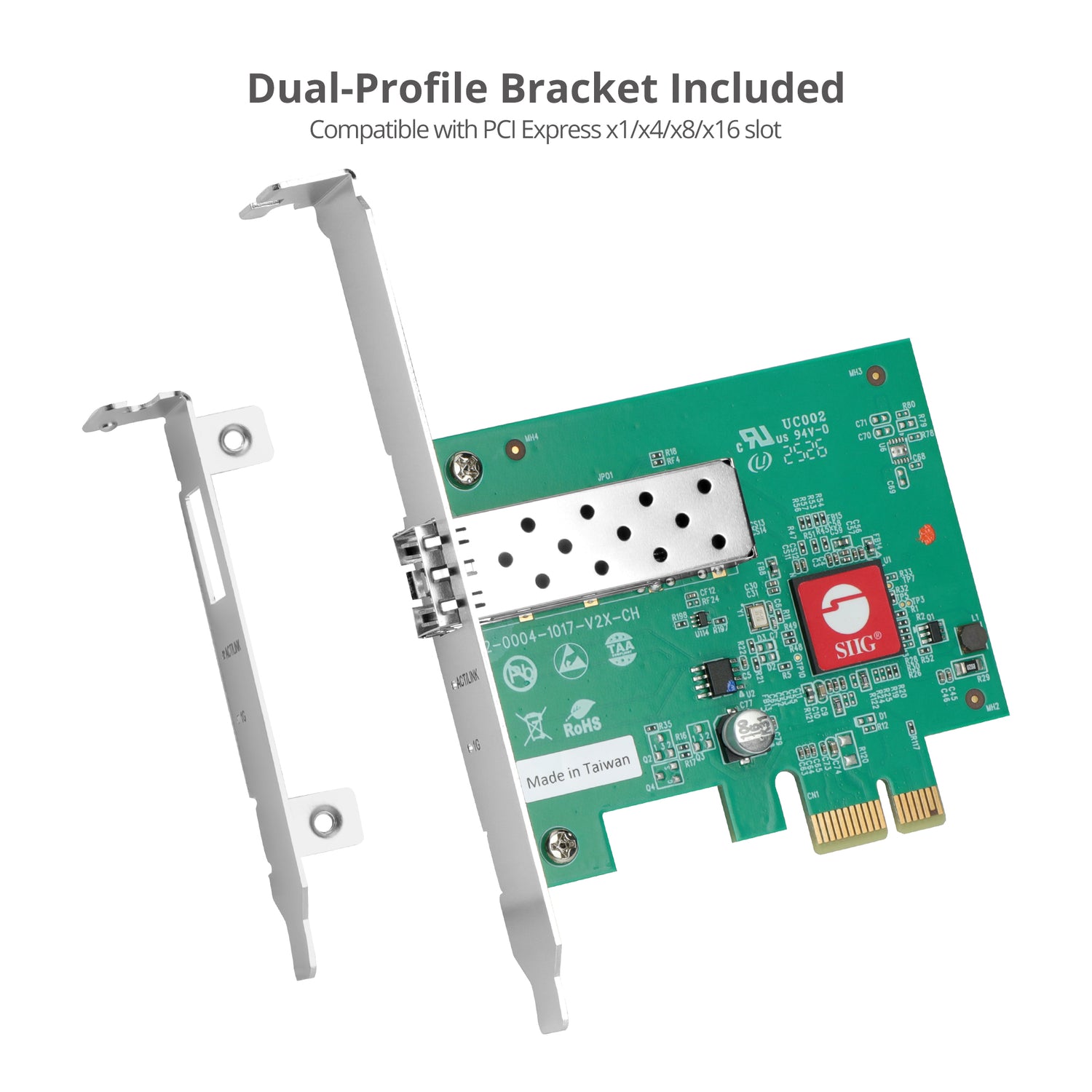

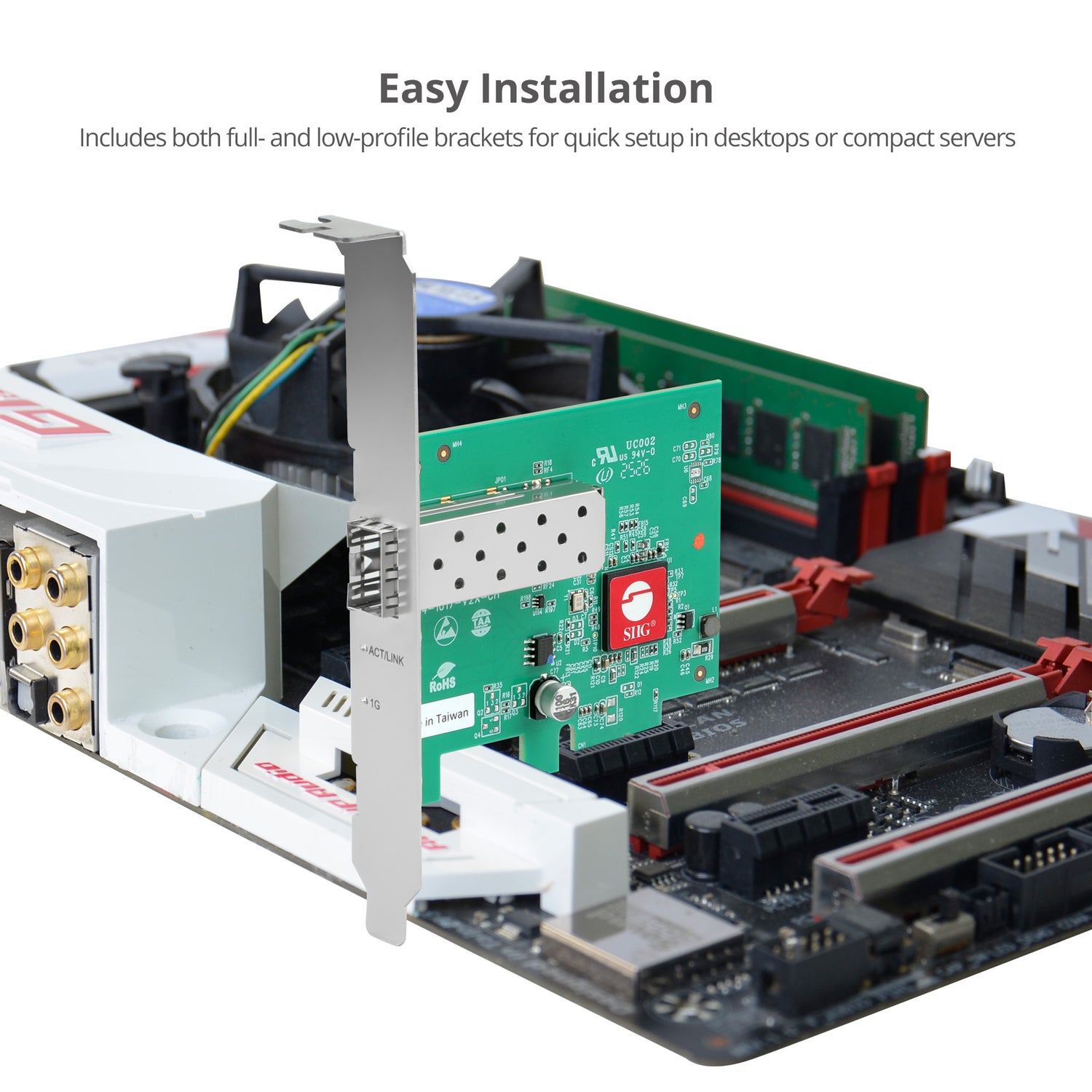

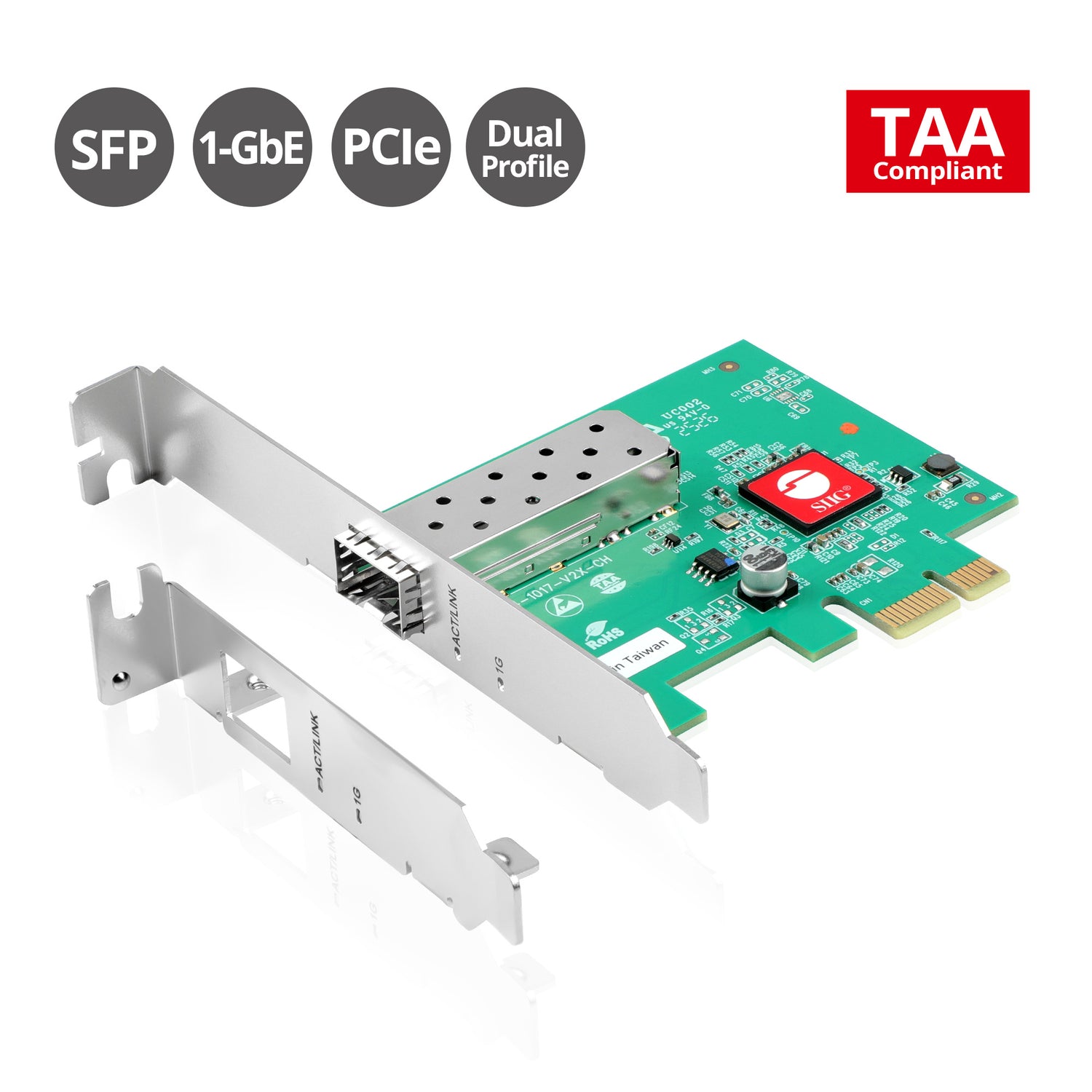

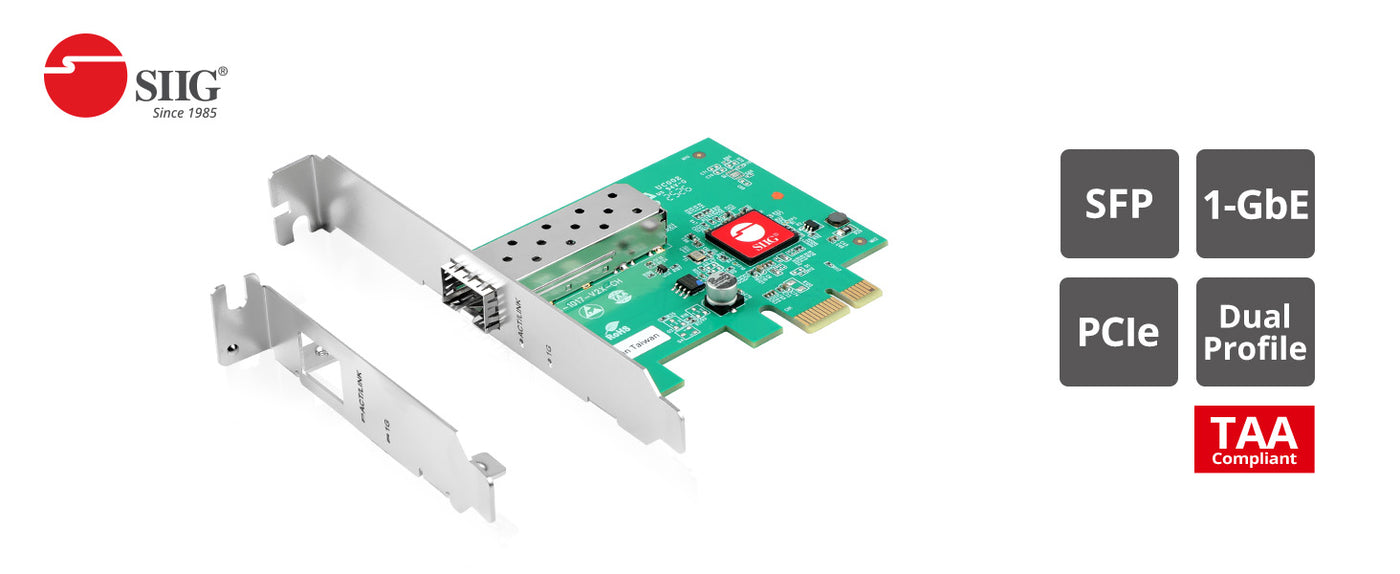

Easy Installation - Includes Both Full-Height and Low-Profile Brackets, Ensuring Compatibility
| Chipset | Broadcom BCM5720 |
| Specifications | |
| Standards | Compatible with IEEE 802.3az-2010, IEEE 802.1q, IEEE 802.3ap, IEEE 1588 and IEEE 802.1AS, IEEE 802.3z, Clause 30 |
| Network Transfer Rate | 10/100/1000 Mbps |
| PCIe Standard | PCIe 2.0 |
| LED Indicators | Link (Green) / Activity (Blue) |
| Form Factor | Full profile & Low profile |
| Connectors | 1x PCI Express x1 1x SFP (Fiber optic), Female |
| Certifications & Standards | FCC, CE, RoHS |
| UPC Code | 662774-046785 |
| Warranty | 2 year limited |
| Country of Origin | Taiwan |

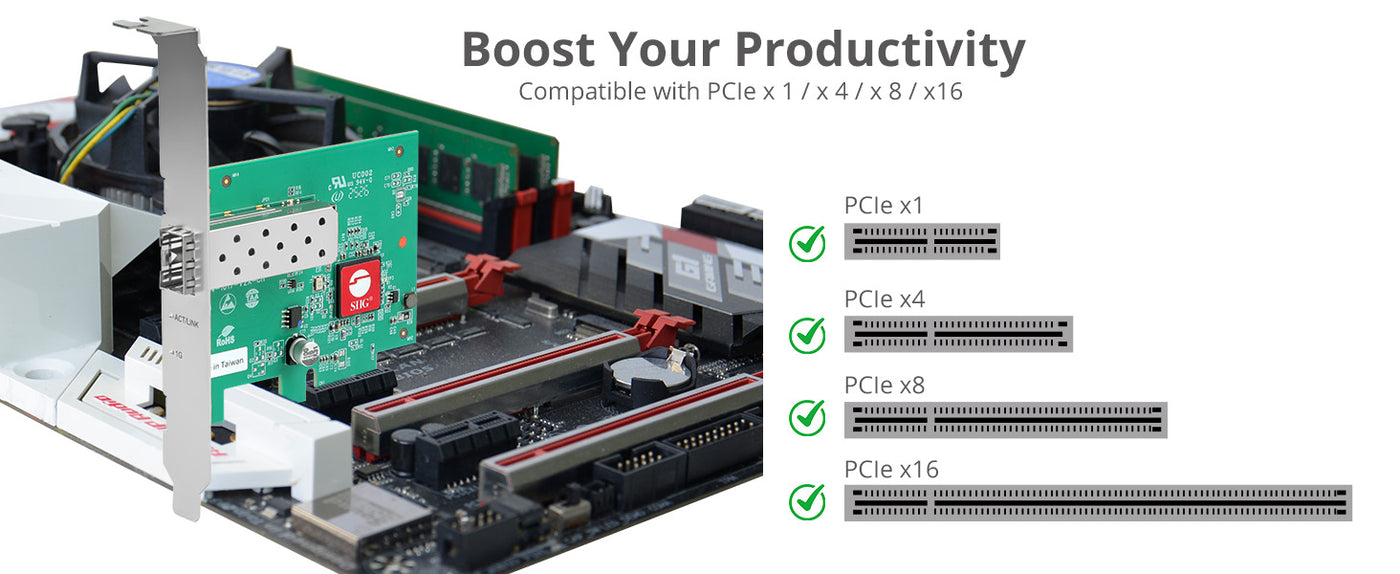

| System Requirements | - PC with an available PCIe 2.0 slot (x1, x4, x8, x16) - Windows® 11 (64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit) - Windows® Server 2019 / 2016 / 2012 R2 / 2012 / 2008 R2 / 2008 / 2003 (32-/64/bit) |
| Product | |

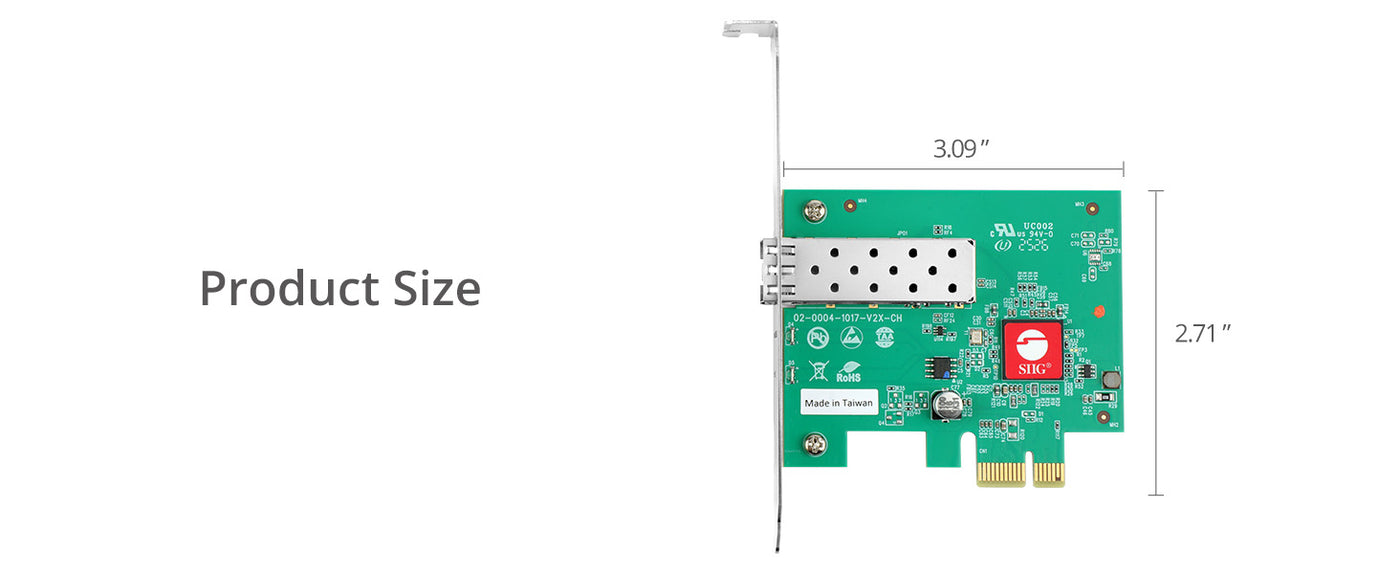

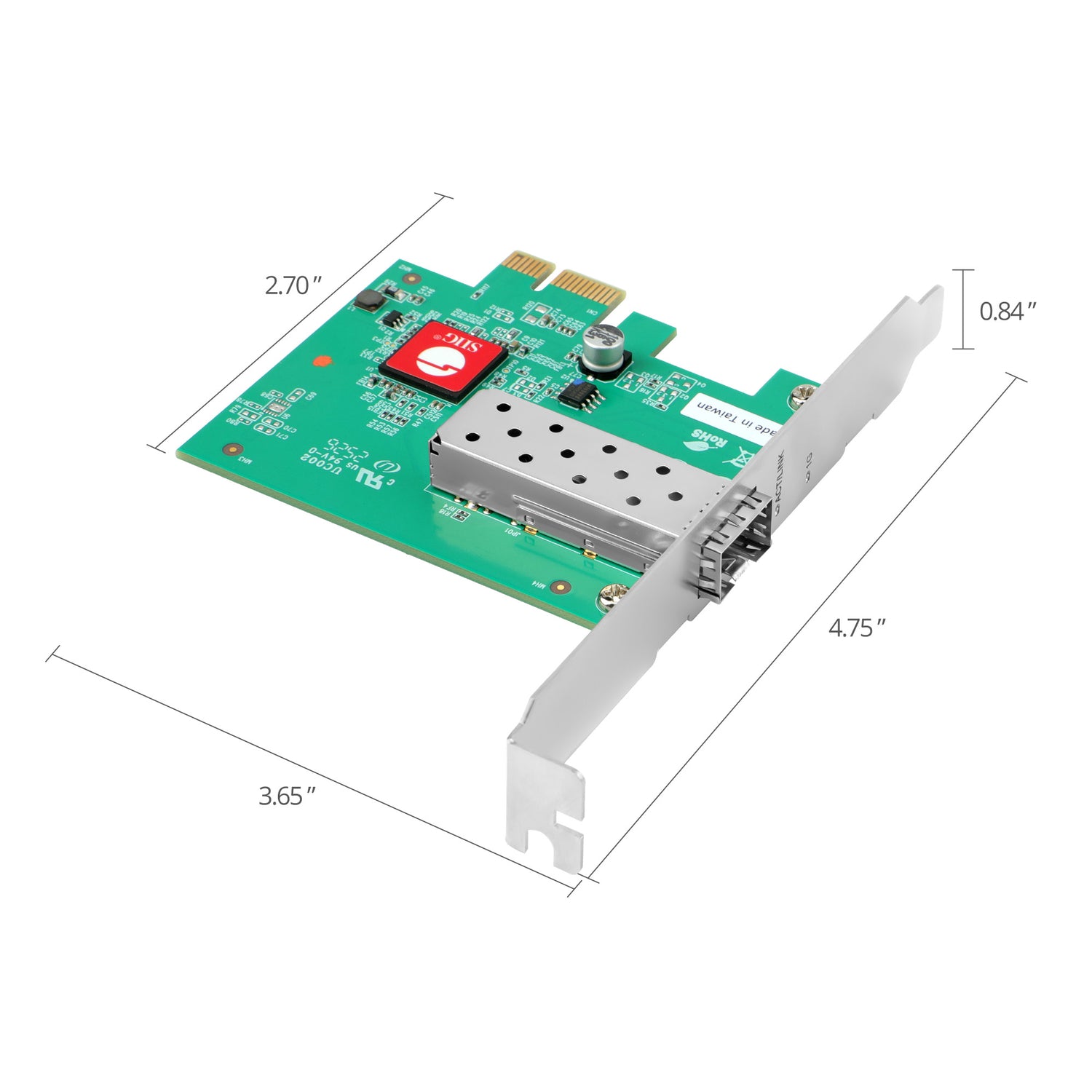

| Dimensions (L) x (H) x (W) | 4.75" x 0.84" x 3.65" 12.07 cm x 2.13 cm x 9.27 cm |
| Weight | 0.07 lbs (0.03 kg) |
| Unit Package | |

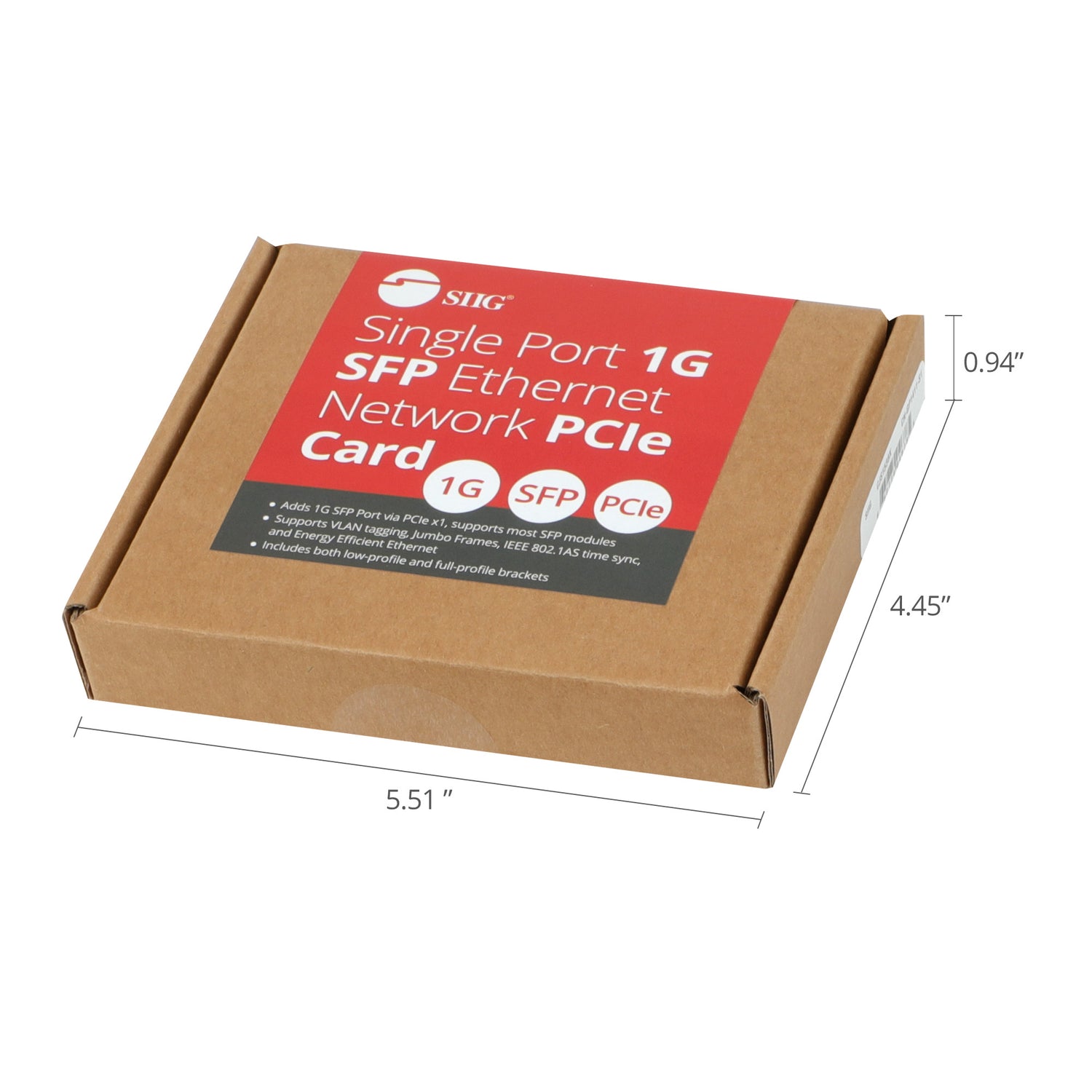

| Dimensions (L) x (H) x (W) | 5.51" x 0.94" x 4.45" 14.00 cm x 2.39 cm x 11.30 cm |
| Weight | 0.24 lbs (0.11 kg) |
| Master carton | |
| Dimensions (L) x (H) x (W) | 15.94" x 11.22" x 11.69" 40.49 cm x 28.50 cm x 29.69 cm |
| Weight | 15.52 lbs (7.04 kg) |
| Quantity | 60pcs/ctn |
| Environmental Conditions | |
| Operating Temperature | 32 to 122 degrees F |
| Storage Temperature | 14 to 140 degrees F |
| Relative Humidity | 5% to 85% RH (non-condensing) |

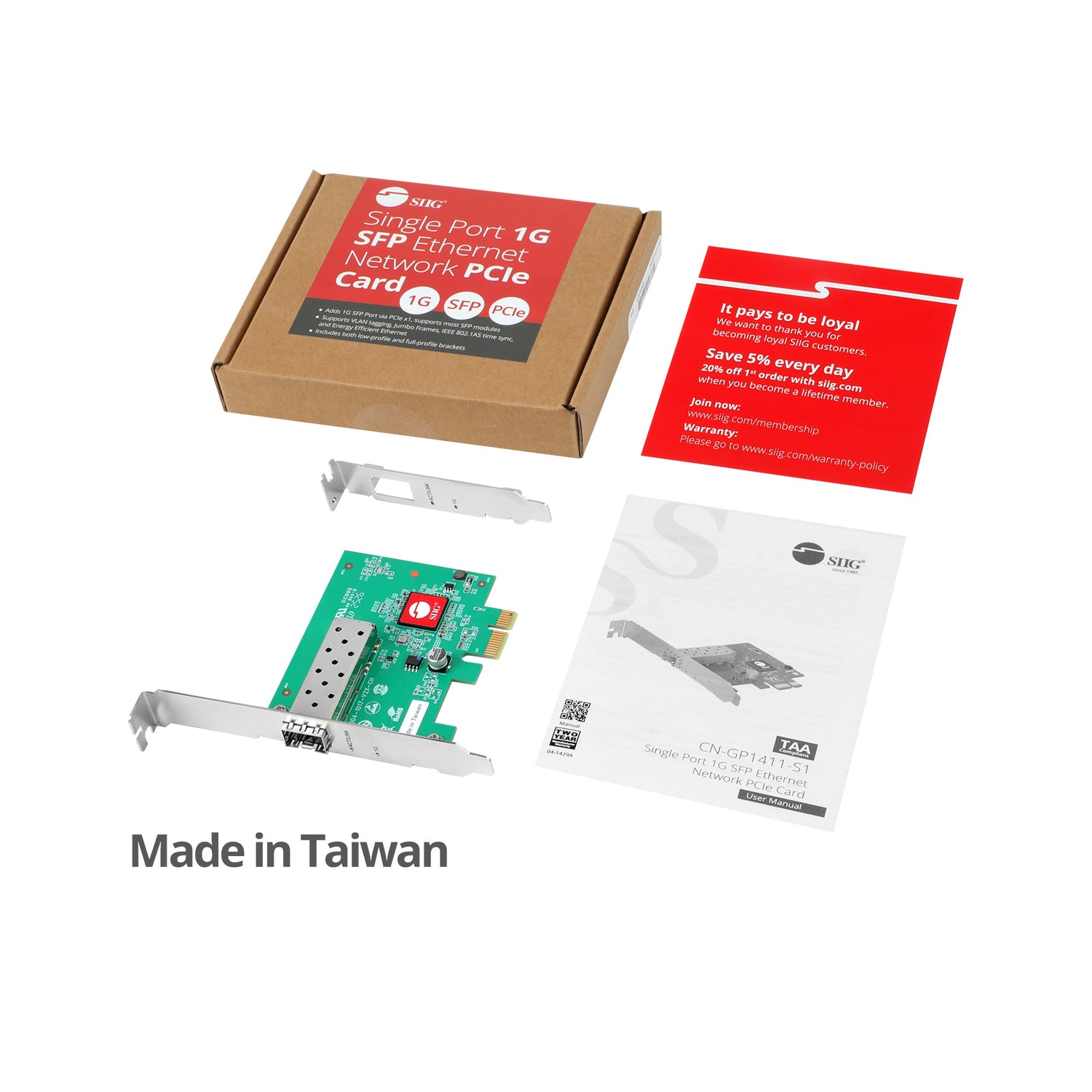

| Package Contents | 1x Single Port 1G SFP Ethernet Network PCIe Card 1x Low profile bracket 1xUser Manual |
