SKU:
CE-H3WE21-S1
Full HD Wireless HDMI Extender with IR - Receiver, 1080p, Up to 492ft, Up to 4 Receivers
Wireless Extender Receiver
492ft (150m)
5GHz
One to Four
1080p 60Hz
Regular price
$139.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Full HD Wireless HDMI Extender with IR - Receiver, 1080p, Up to 492ft, Up to 4 Receivers is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Receiver Unit Only
Receiver Unit Only
4 Receiver Configuration
4 Receiver Configuration
Stable & Low-Latency Performance
Stable & Low-Latency Performance
Hdmi Loop-Out & IR Control
Hdmi Loop-Out & IR Control
Wide Compatibility
Wide Compatibility

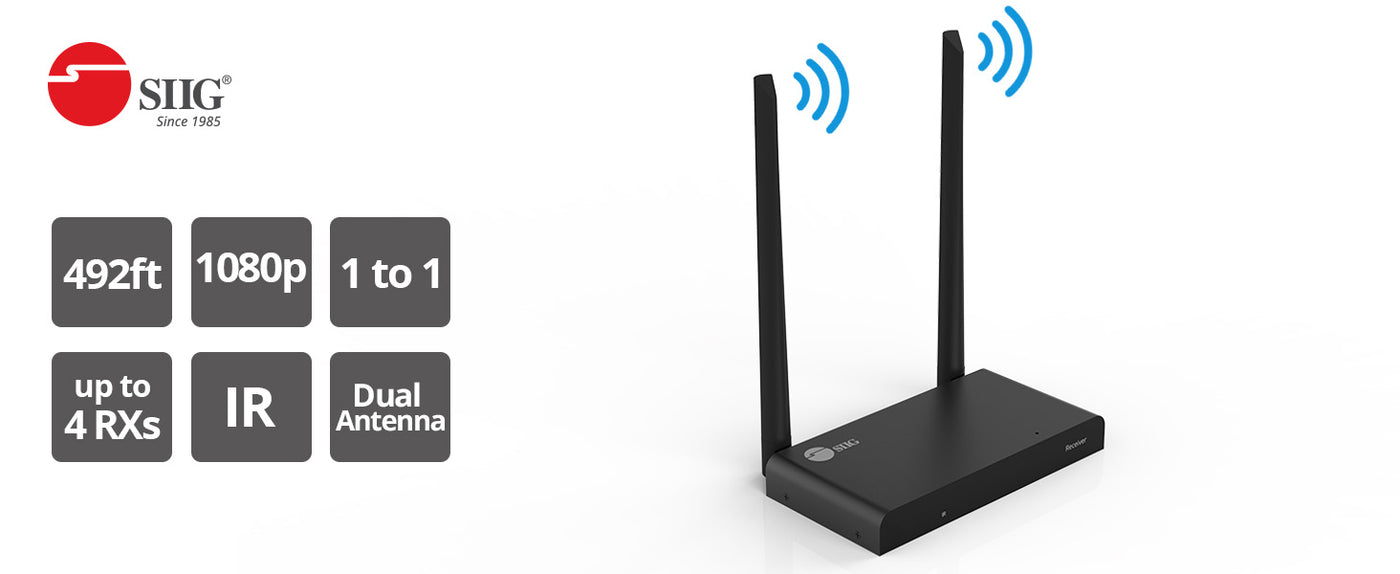

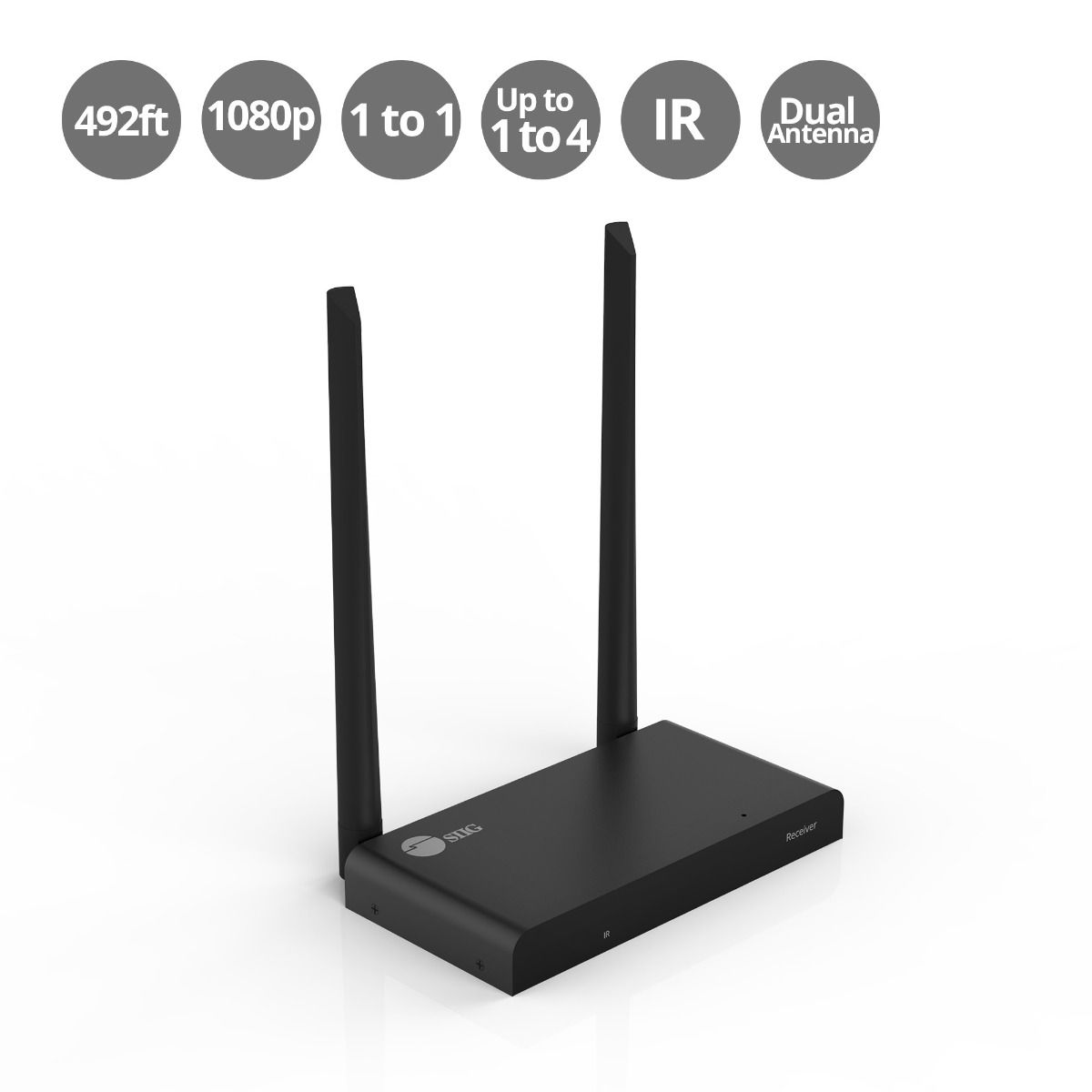

SIIG Full HD Wireless HDMI Extender with IR - Receiver

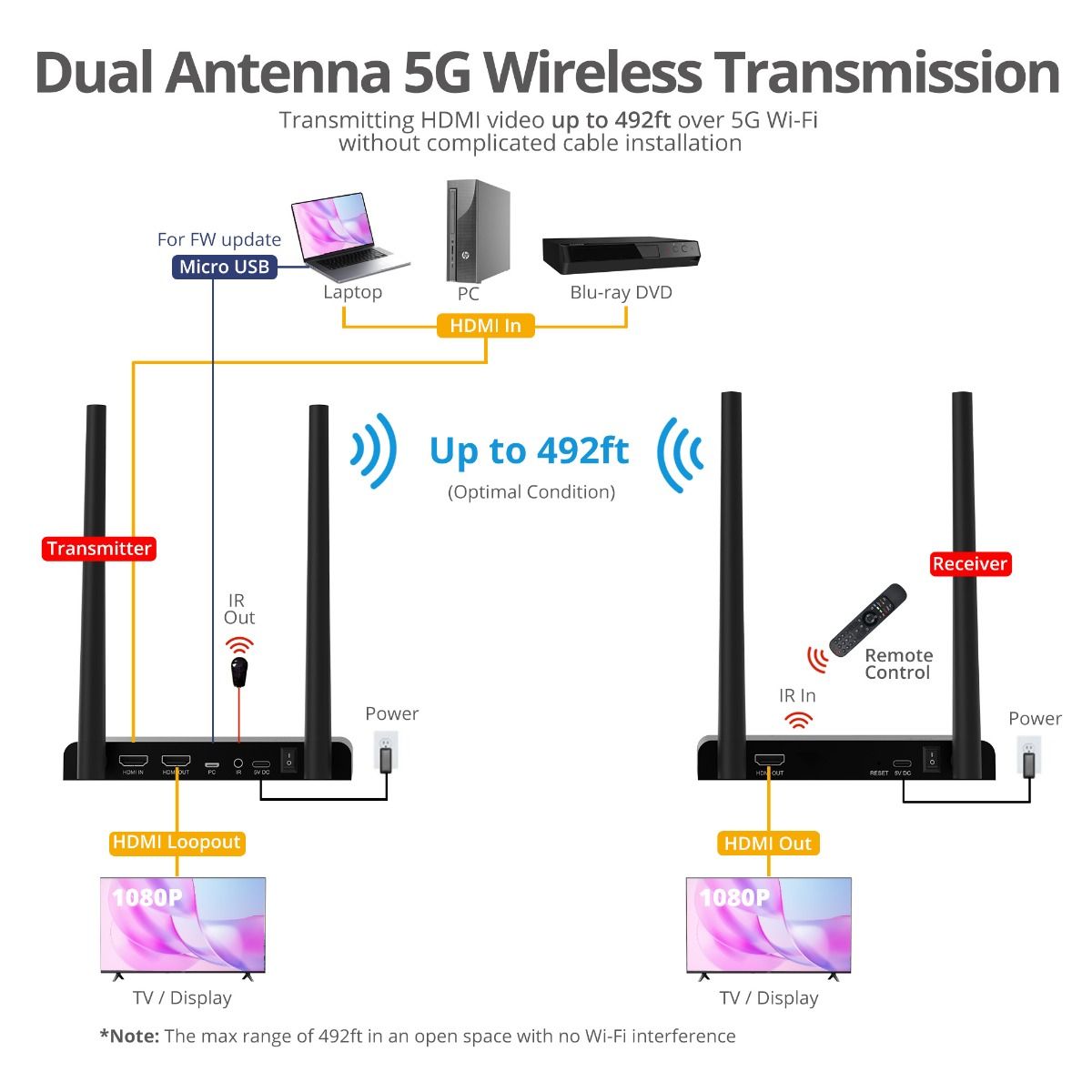

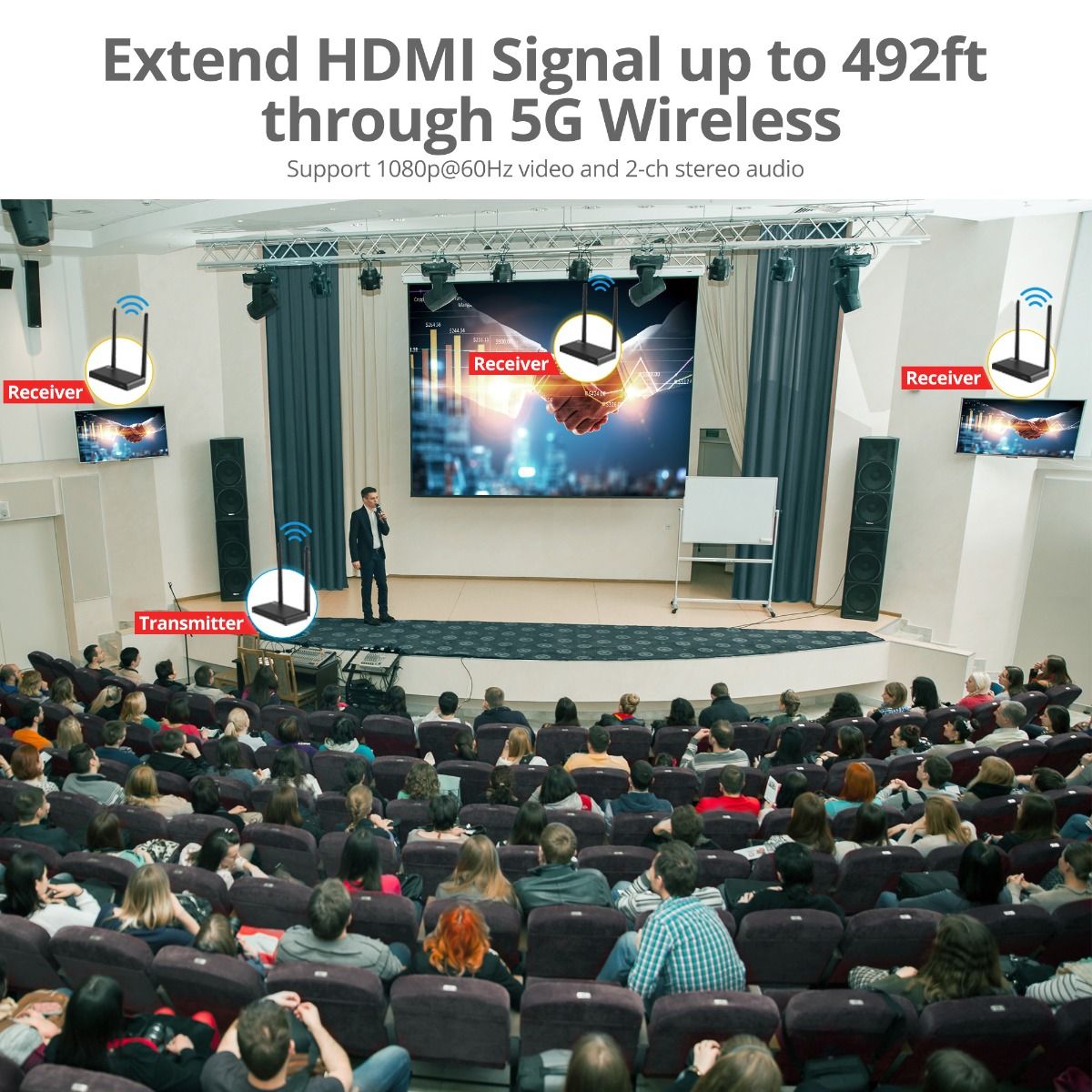

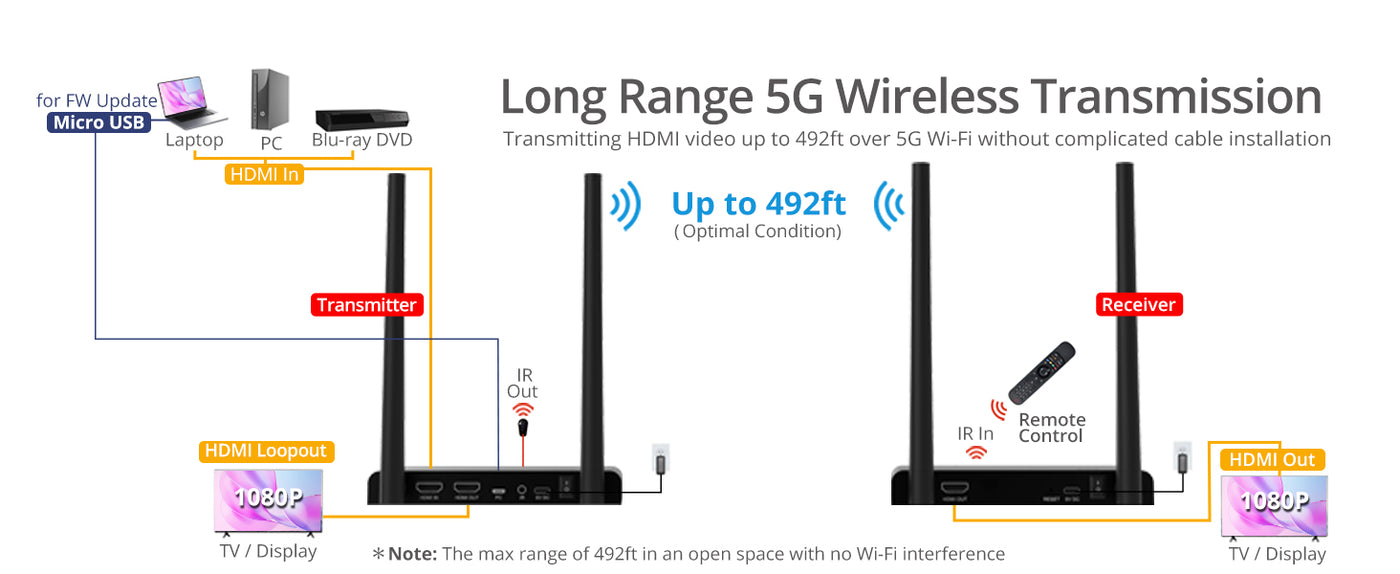

Wirelessly receive 1080p HDMI video and audio up to 492ft (150m) with low latency and strong signal stability. Dual 5dBi antennas and 2T2R MIMO ensure smooth playback, while IR pass-through allows remote control of your source device from the display side.

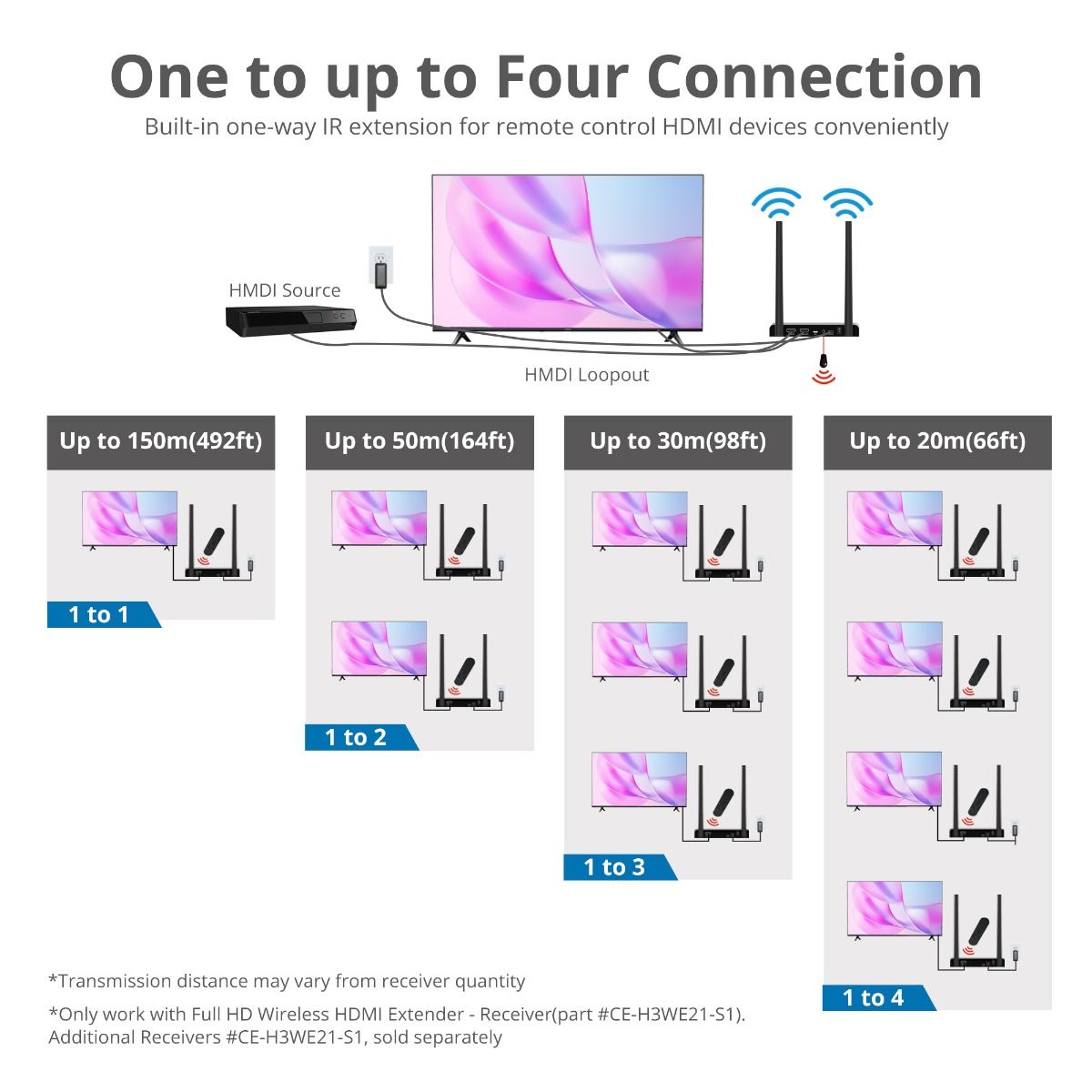

Flexible & Scalable

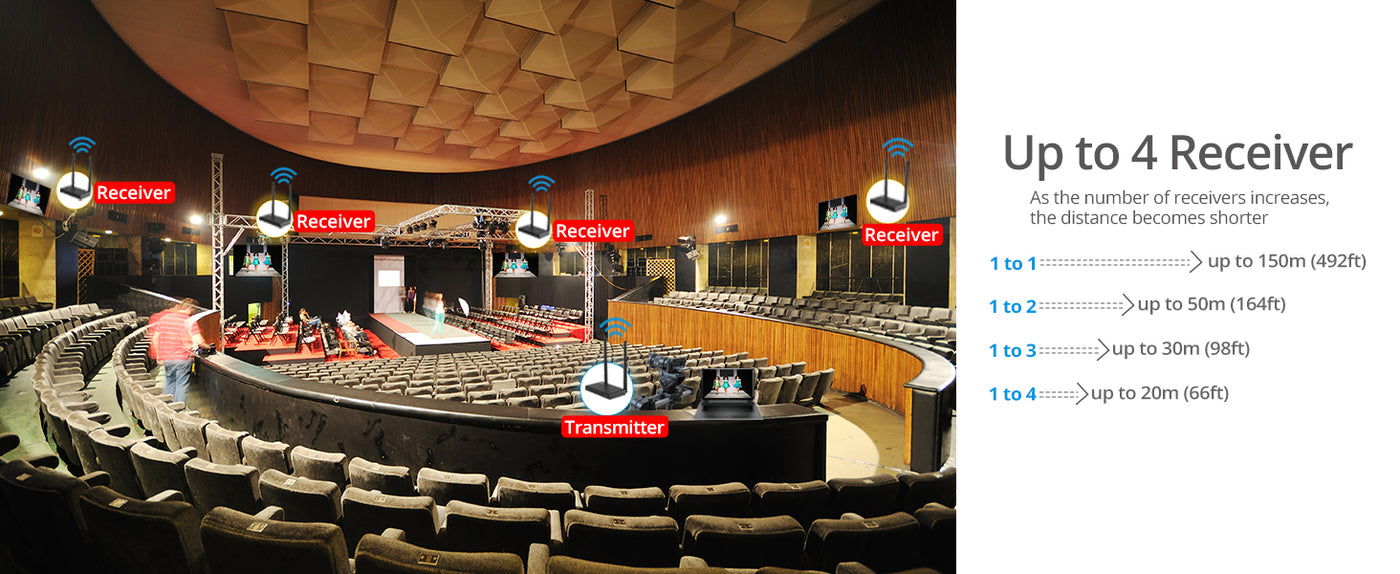

Easily extend and distribute HDMI signals to up to four remote displays plus one local monitor at the same time.

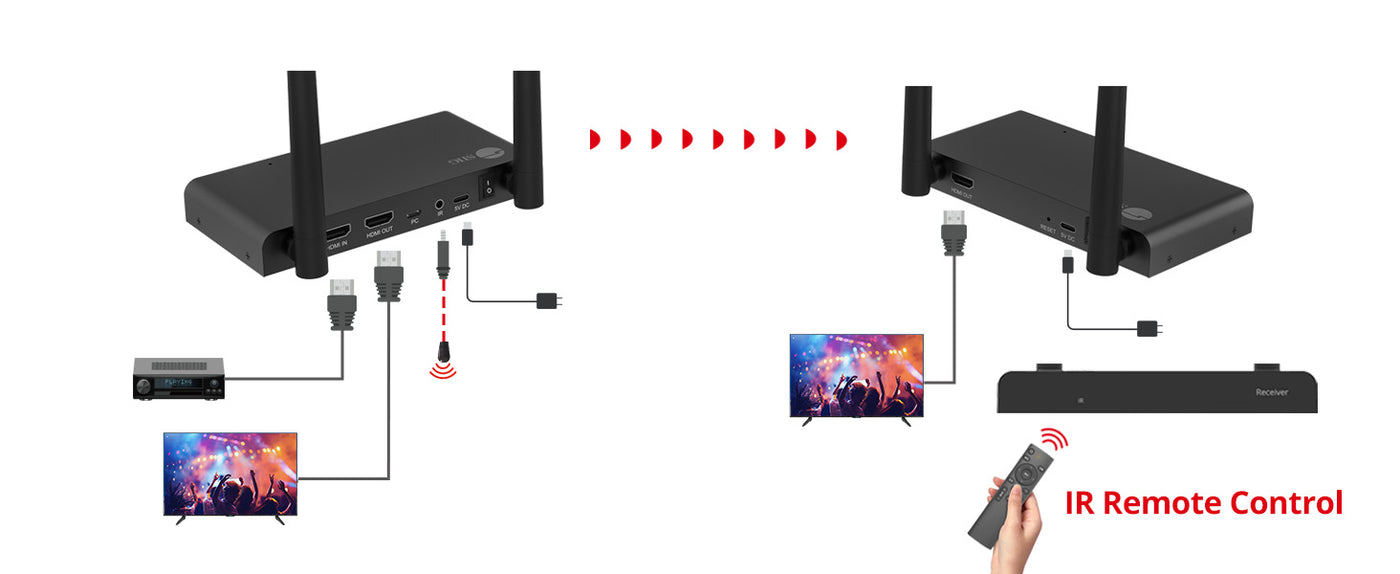

Built-In IR Remote Control Extension
Control your Blu-ray player, streaming stick, or other HDMI source device from the receiver location with ease. The built-in IR pass-through extension lets you operate your media devices remotely, providing convenient access without needing to be near the transmitter.
Quick & Easy Setup

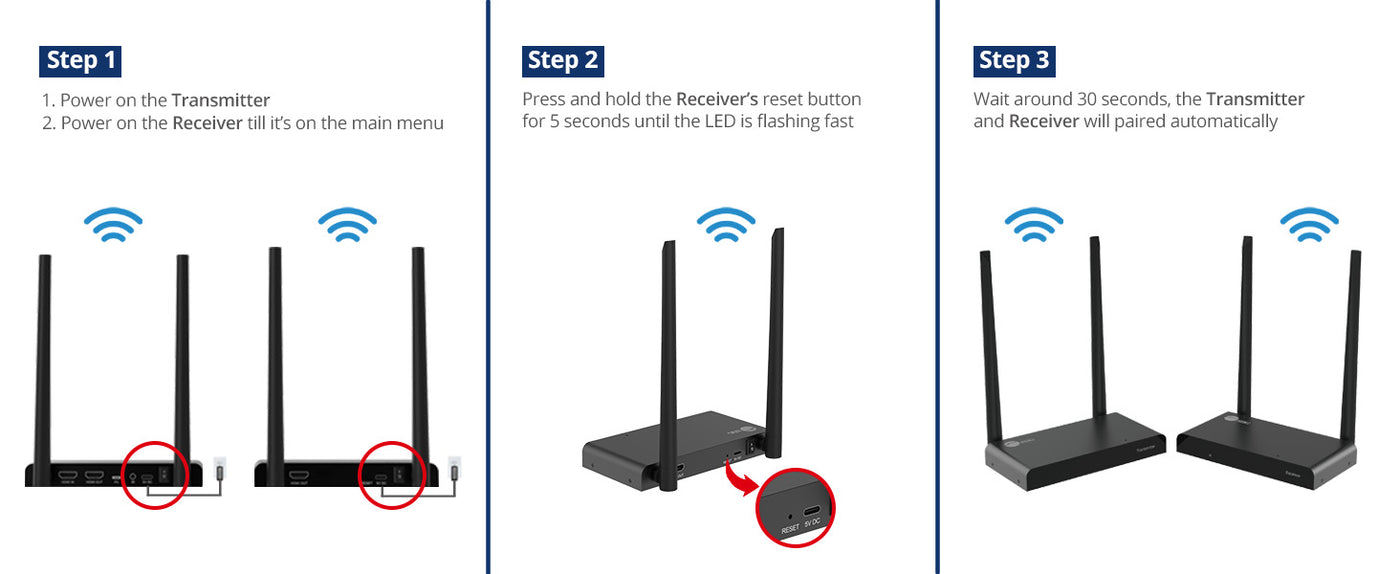

Setup is fast and easy with a true plug-and-play design. The transmitter and receiver come pre-paired before shipment and typically connect automatically. If pairing does not occur, simply follow the included instructions to complete manual pairing in a few quick steps.

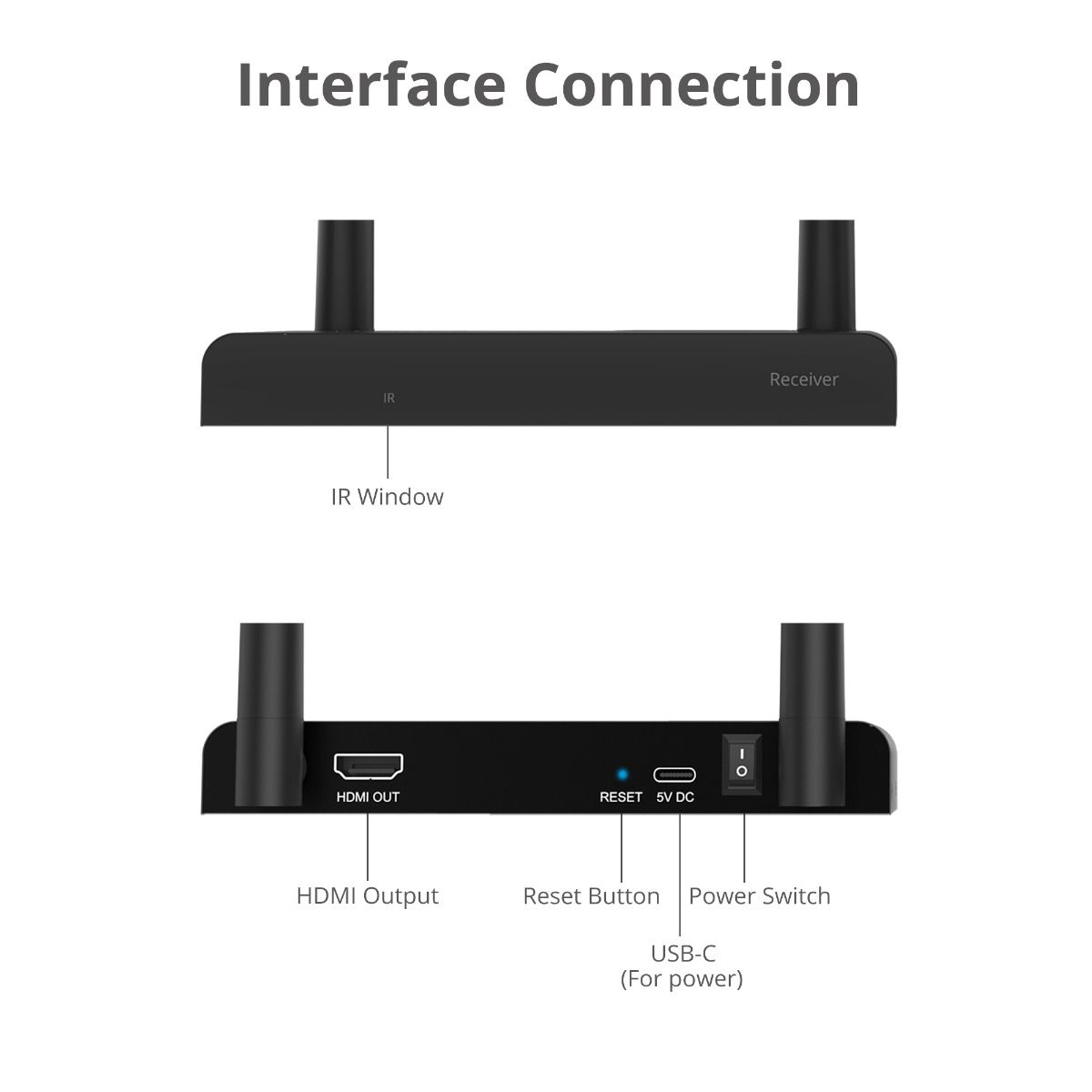

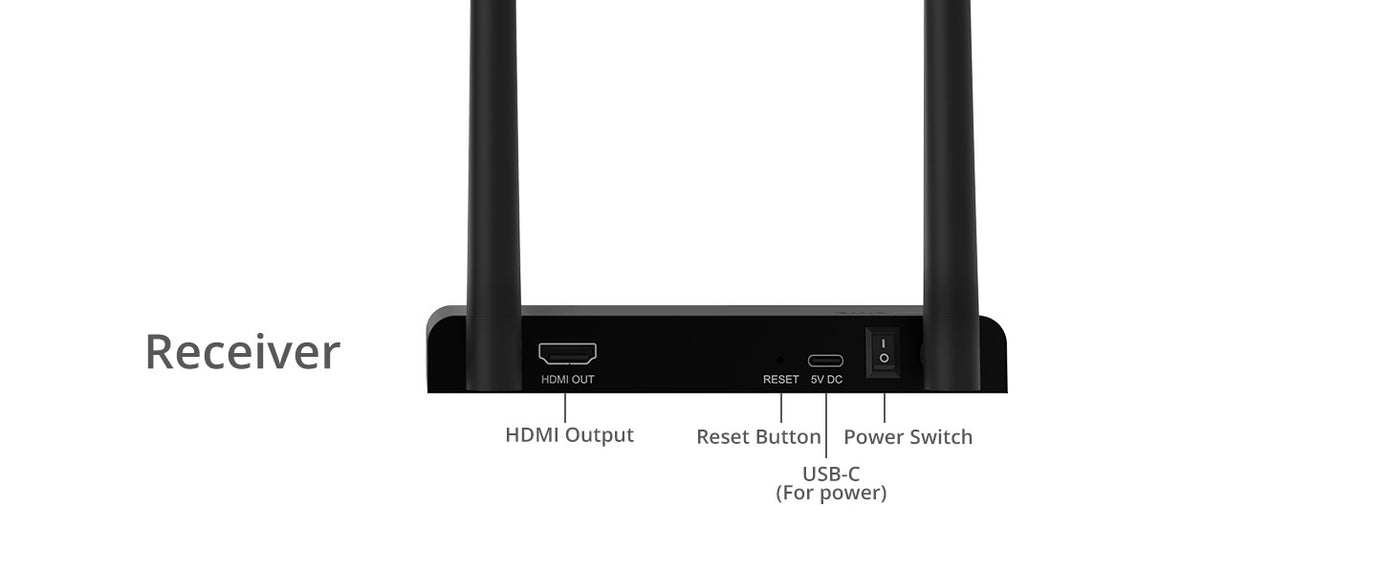

Connectivity Ports
The receiver is equipped with dual antennas, HDMI output, IR receiver, reset button, power switch and power connector to ensure reliable performance and effortless setup.
Quick & Easy Setup
| Standard | HDMI 1.4, HDCP 1.3 compliant |
| Resolutions | Up to 1080p 60Hz |
| Transmission Distance | Up to 150m (492 ft) line-of-sight |
| Wireless | IEEE 802.11b/g/n/ac, 5GHz, 2T2R |
| WIFI Frequency | 5.150GHz ~ 5.825GHz |

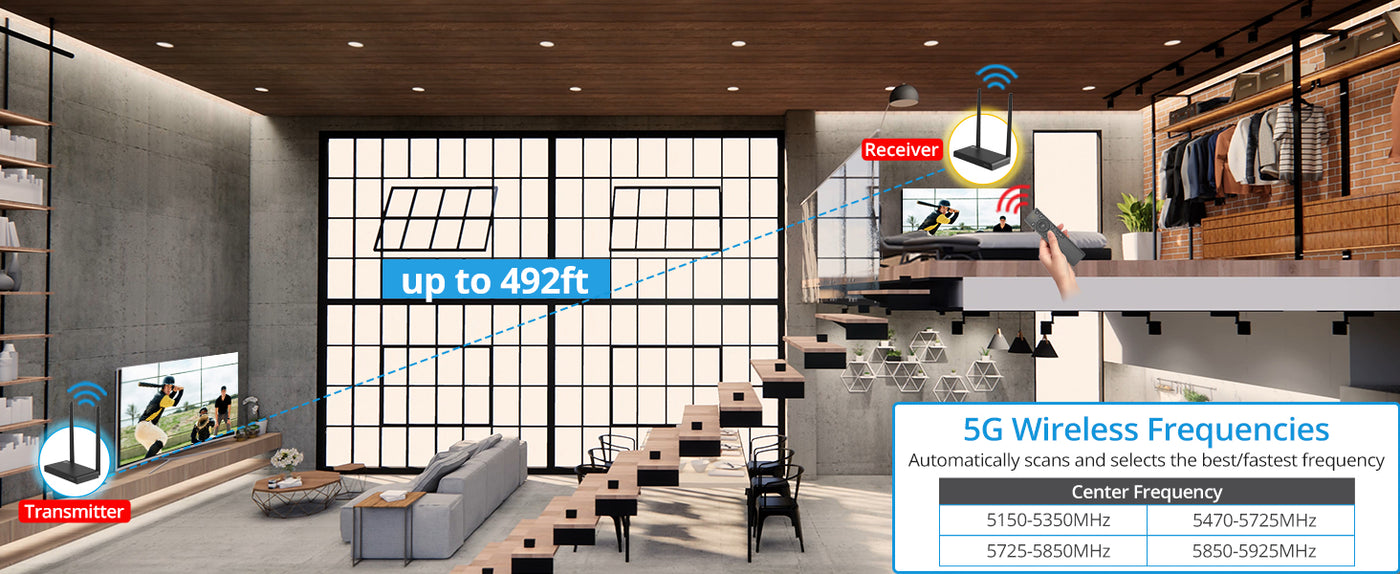

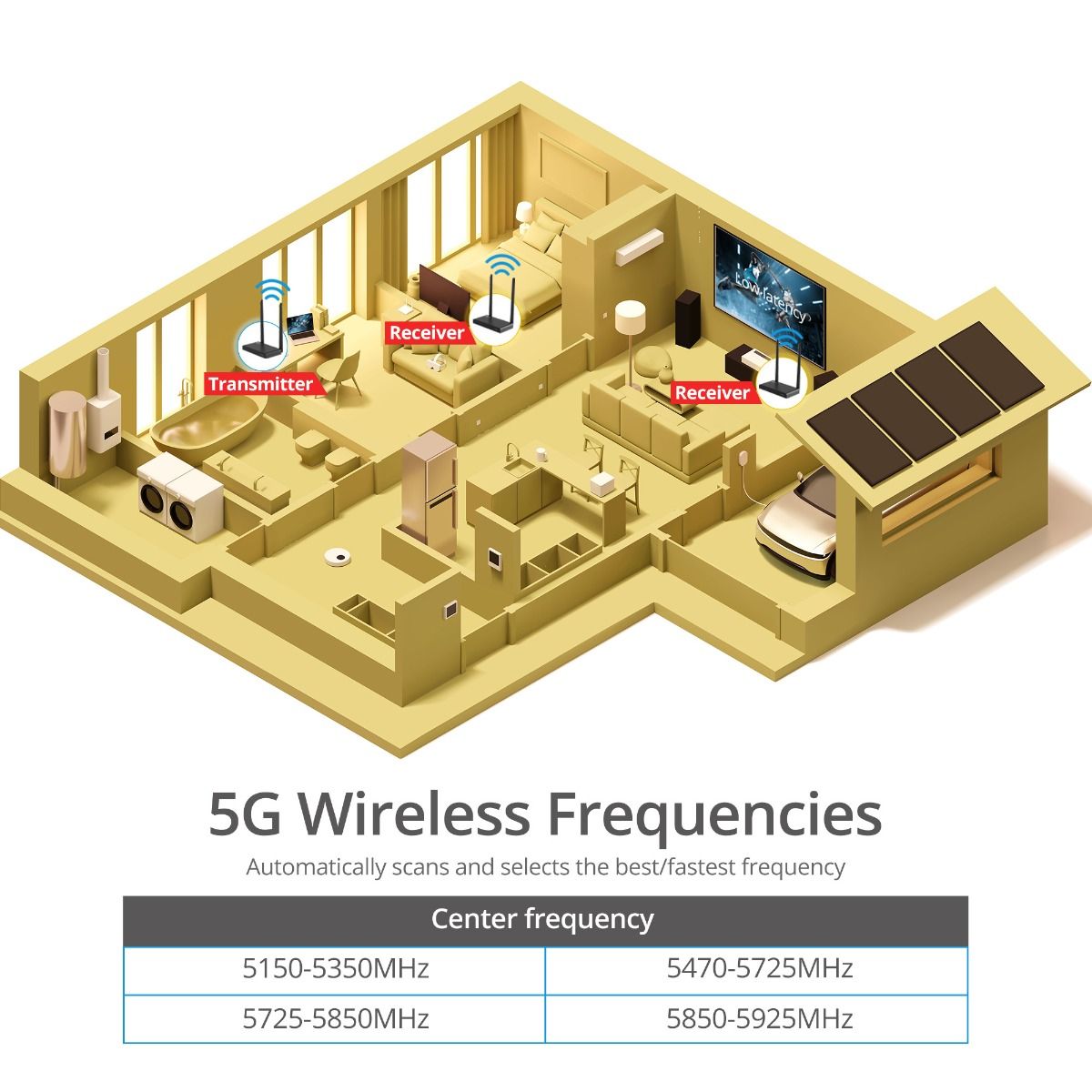

| Frequency Bands | 5150-5350MHz; 5470-5725MHz; 5725-5850MHz; 5850-5925MHz *Note: The specific frequency bands utilized are upon the legal regulations by each country |
| WIFI Bandwidth | 866 Mbps (5GHz) |
| Bitrate | Maximum 50 Mbps (actual rate may vary depending on environmental factors) |
| Channel Width | Supports 20 MHz, 40 MHz, and 80 MHz |
| Latency | About 100ms |
| HDMI Cable Length | Up to 2m (Input & Output) |
| Audio Format | Stereo audio (2CH PCM), 44.1KHz |
| IR Remote Control | Support 20 to 60KHz wide frequency |
| Antennas | 2x 5dBi High-sensitive Antenna |
| Interface | 1x 19-pin HDMI, female, output 2x Antenna port 1x Reset 1x 24-pin USB-C for DC power input 1x Power On/Off switch |

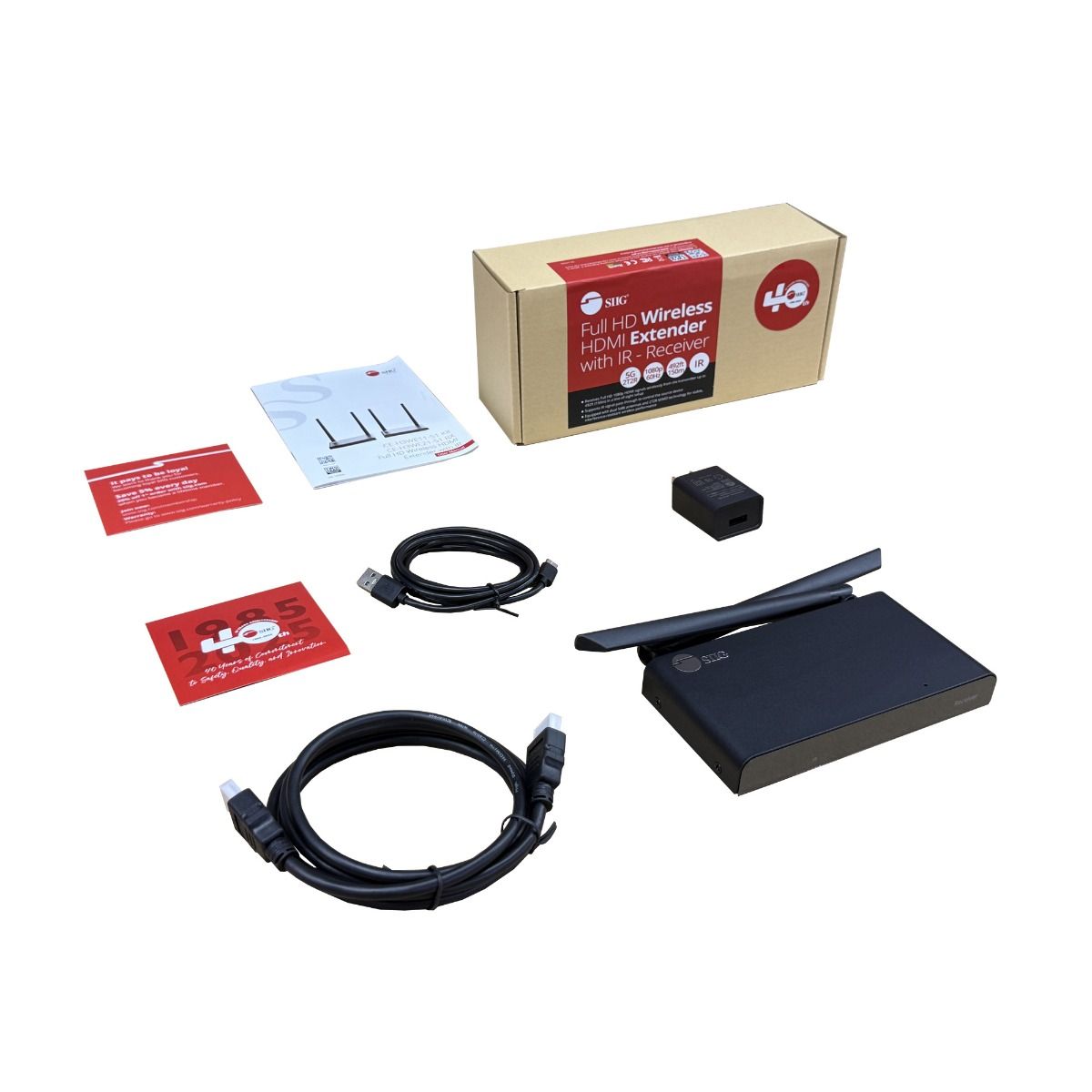

| Package Contents | 1x Full HD Wireless HDMI Extender with IR- Receiver 1x HDMI cable 1x Power adapter, 5V/2A 1x USB A to C power cable 1x User manual |
| Certifications/Standards | FCC, CE, RoHS, FCC ID |
| UPC Code | 662774-046853 |
| Product | |

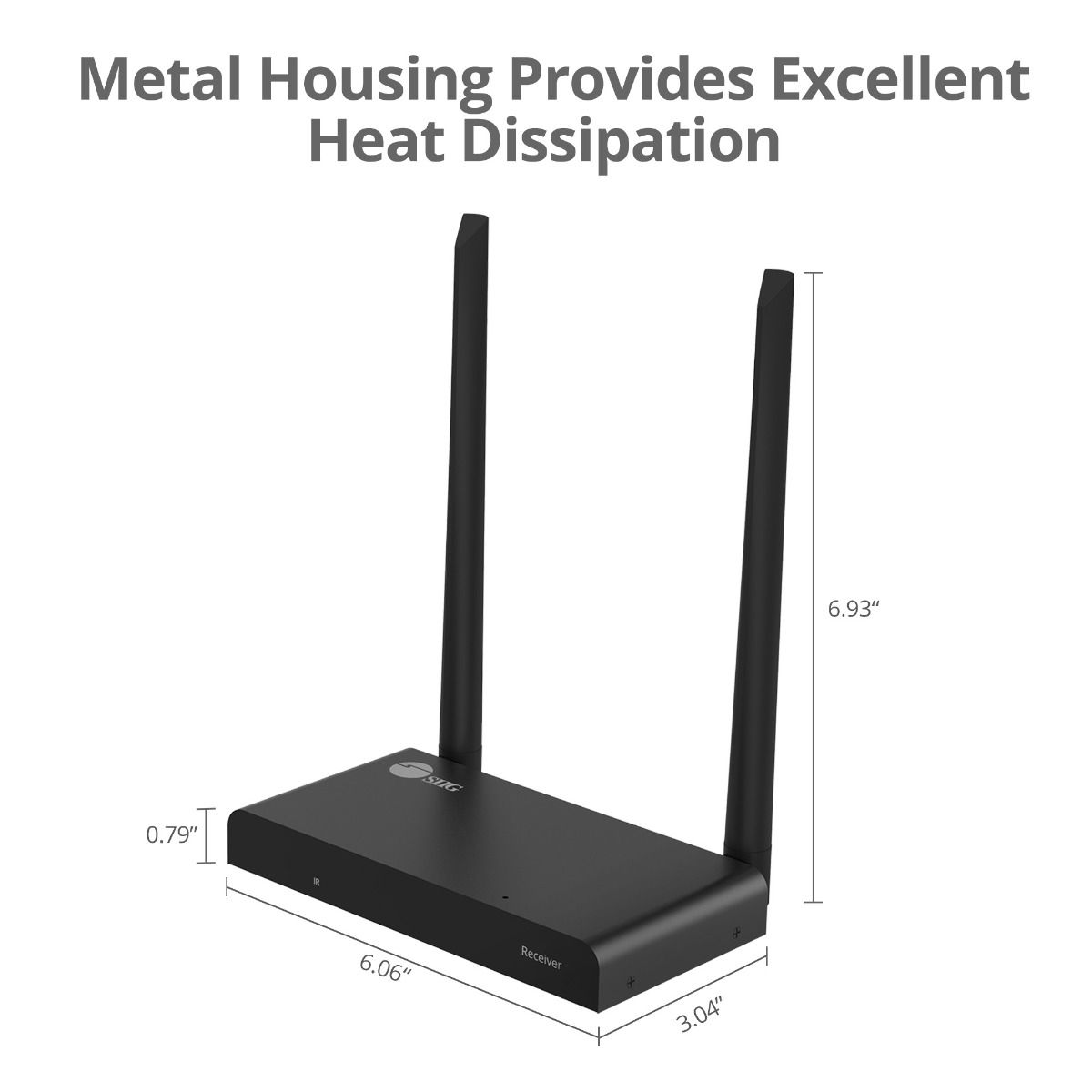

| Dimensions (L) x (H) x (W) | 6.06" x 3.04" x 0.79" 15.40 cm x 7.70 cm x 2.00 cm |
| Weight | 0.73 lbs (0.33 kg) |
| Color | Black |
| Housing | Metal |
| Unit Package | |

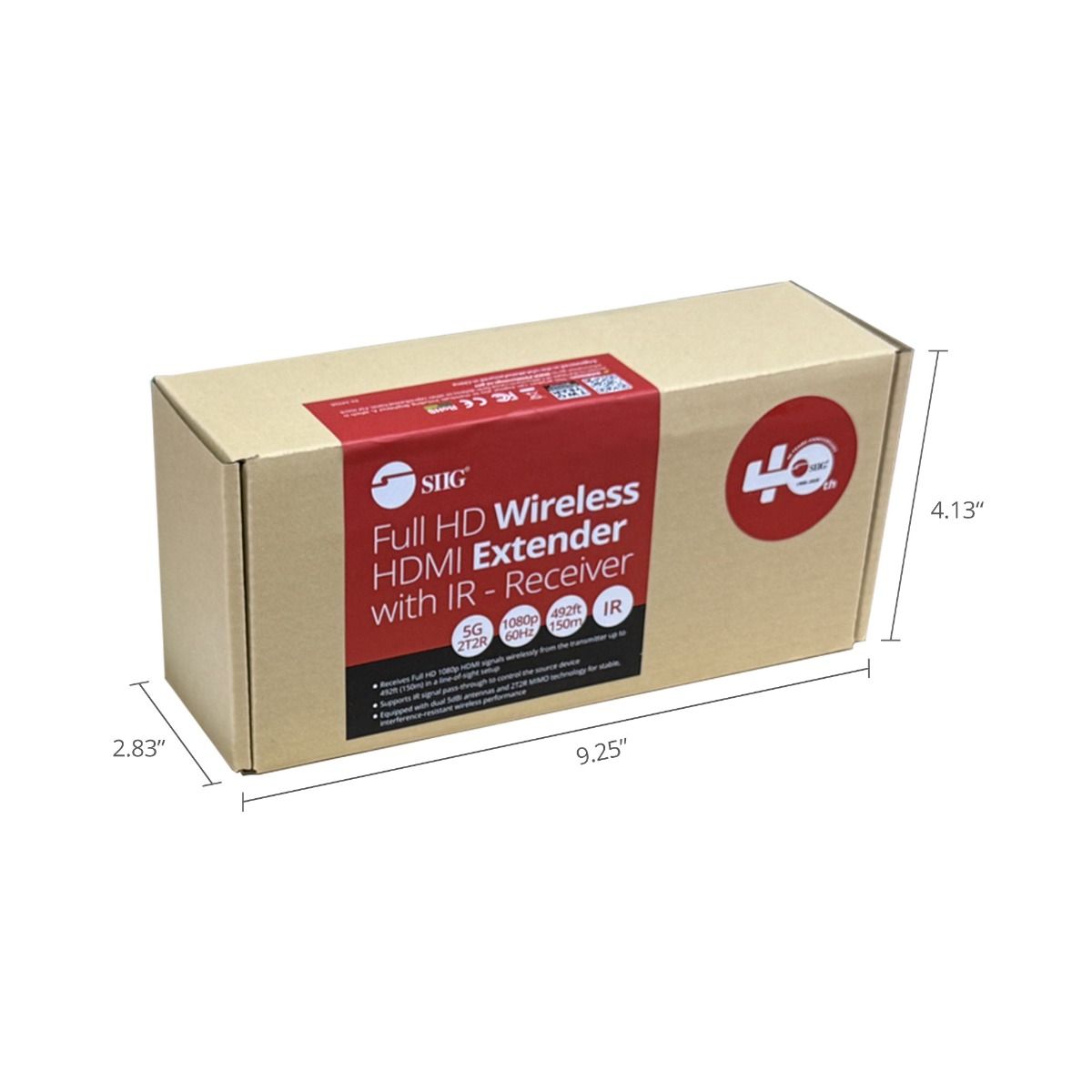

| Dimensions (L) x (H) x (W) | 9.25" x 4.13" x 2.83" 23.50 cm x 10.50 cm x 7.20 cm |
| Weight | 1.36 lbs (0.62 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 15.35" x 10.24" x 9.84" 39.00 cm x 26.00 cm x 25.00 cm |
| Weight | 14.82 lbs (6.72 kg) |
| Quantity | 10 pcs/ctn |
| Power Adapter | |
| Input | AC 100-240V/50-60Hz |
| Output | DC 5V/2A |
| UL Listed | 4007202 / Class: VI |
| Environmental Conditions | |
| Operating Temperature | 32 to 104 degrees F |
| Storage Temperature | 14 to 140 degrees F |
| Relative Humidity | 5% to 90% RH (non-condensing) |
| Warranty | 2 years limited |
| Country of origin | China |
