4K 60Hz HDMI over IP Matrix Kit (CE-H28A11-S1)

Extends 4K@60Hz HDMI signal up to 396Ft (120m) over a single Cat6/7 cable, PoE, One to One, One to Many, Multi-casting, Video Wall, KVM, 18Gbps, HDCP 2.2, HDR 10, 7.1ch, Bi-directional IR, RS-232 Control, TAA Compliant, TX (CE-H27F11-S1), RX (CE-H27G11-S1)

• • Extends video/audio transmission distance up to 120m over Cat6 network cable
• • Supports HDMI 4K@60Hz bandwidth with PoE, IR and RS-232 pass-through path
• • Multiple 5x5 Video wall function via broadcasting management software
• • Supports USB KVM, Webcam, and multi-casting broadcasting architecture
• • Bi-directional IR extension function from remote RX location, allowing you to select and switch between HDMI source devices
• • Power over Ethernet (PoE) technology, allows the power supply connected to either the TX or RX unit by Ethernet port to power both units
• • Supports audio extraction via digital S/PDIF (Toslink) or 3.5mm stereo audio
• • Supports ESD protection, lighting protection, and surge protection to safe your electronic equirement
• • Completely manufactured in a TAA designated country

4K 60Hz HDMI over IP Matrix Kit (CE-H28A11-S1)

HDMI Video Wall Over IP Multicast System- controller (part# CE-H25411-S2)

Smart Controller and central management system allows real time monitoring over IP for CE-H28A11-S1 Matrix Kit, TAA compliant

• • Flexible and scalable video broadcasting by IGMP Gigabit Ethernet/Switch with nearly zero latency
• • Auto-detects the transmitter and receiver units on the network and monitors all devices in one central system
• • Easy to create multiple video walls via web interface and mobile
• • Provides audio and video mapping, 10 scenarios, and 8 custom OSD windows setting

HDMI Video Wall Over IP Multicast System- controller (CE-H25411-S2)

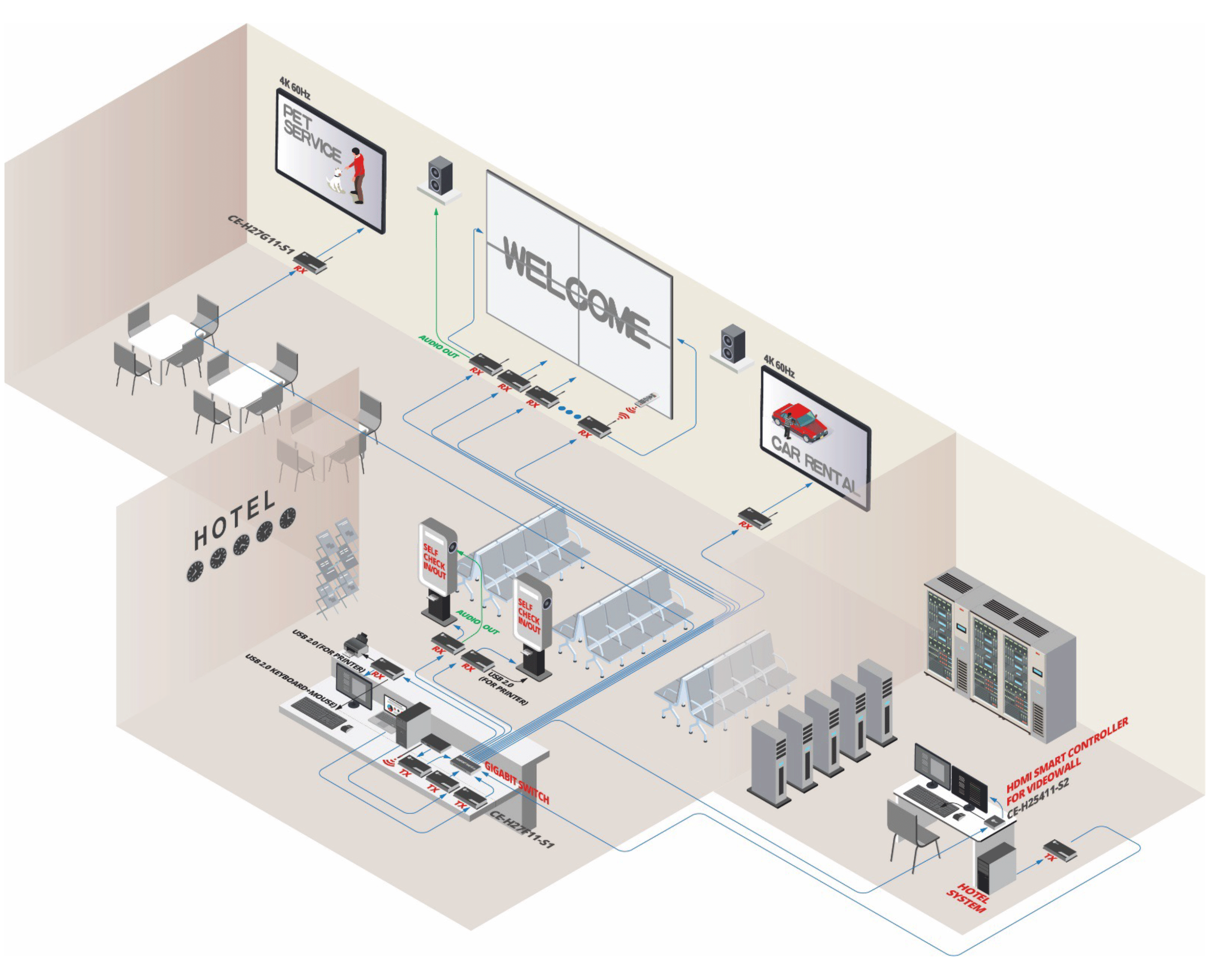

AVoIP Solution	Application	Connection
