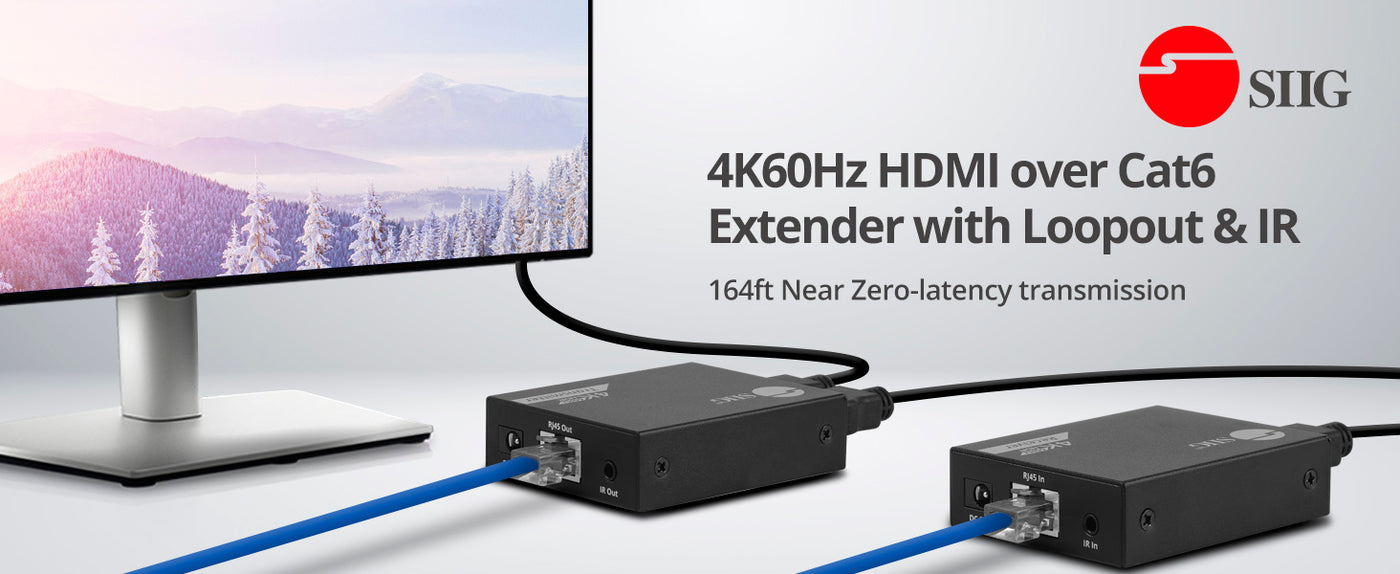

4K60Hz HDMI over Cat6 Extender with Loopout & IR - 50m

• Features
• Applications

---

Overview

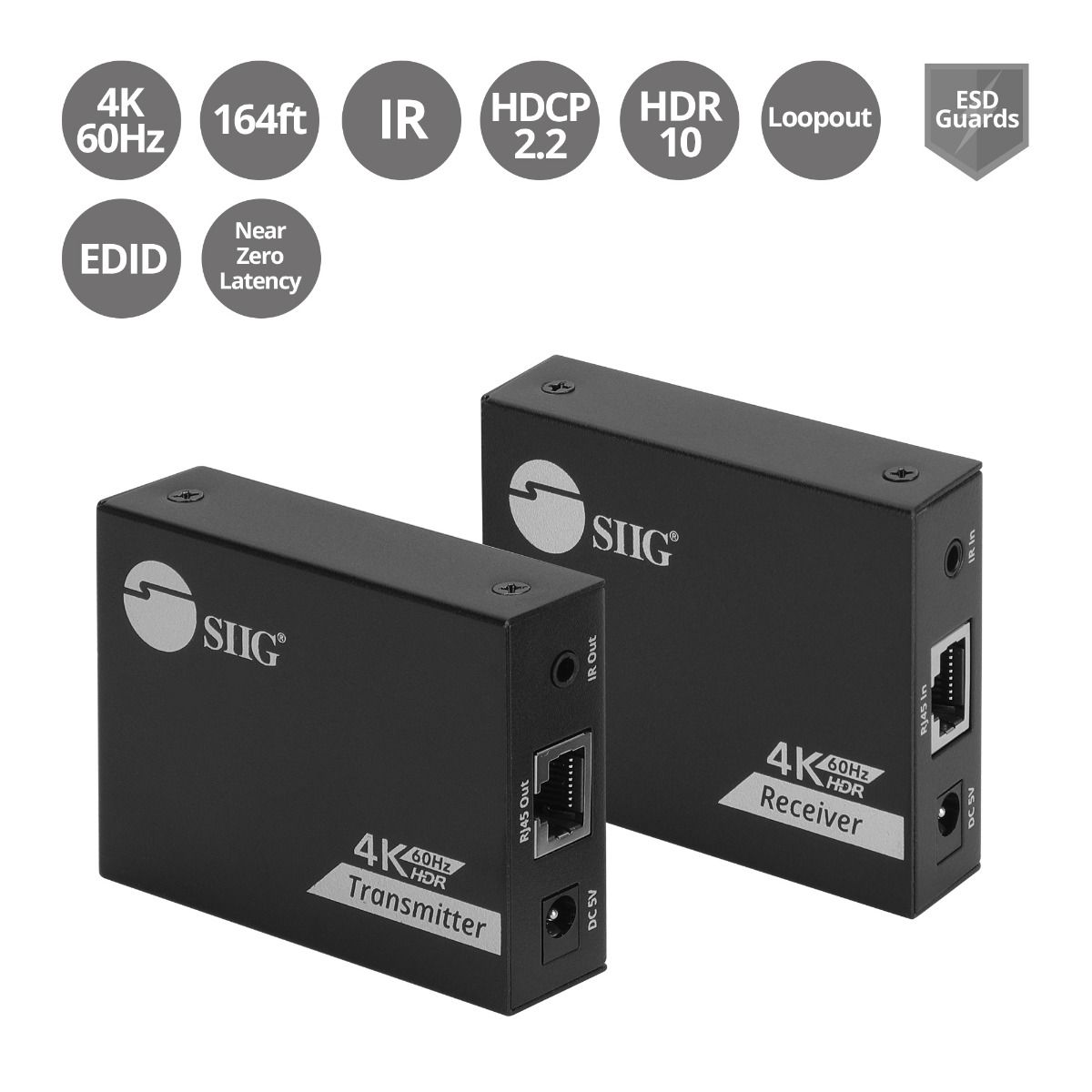

4K HDMI Extender, Easily extends HDMI 4K 60Hz signals up to 164ft over a single Cat6/7 networking cable with a local HDMI output for monitoring the extended display, Nearly zero latency, Auto Downscaling, IR Control, Metal Housing, ESD Protection

---

Features

Say goodbye to the frustration of the limited HDMI signal range and poor picture quality with the SIIG 4K HDMI Extender Over Cat6 164FT/ Loopout & IR

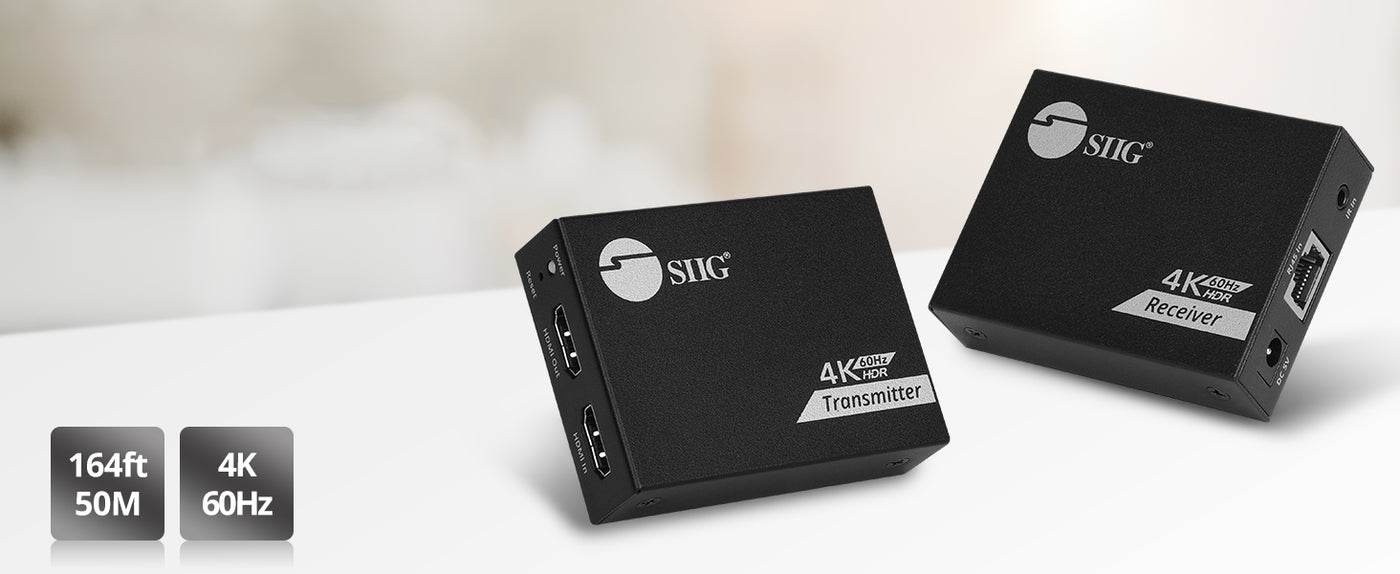

Transmitter and Receiver Kit

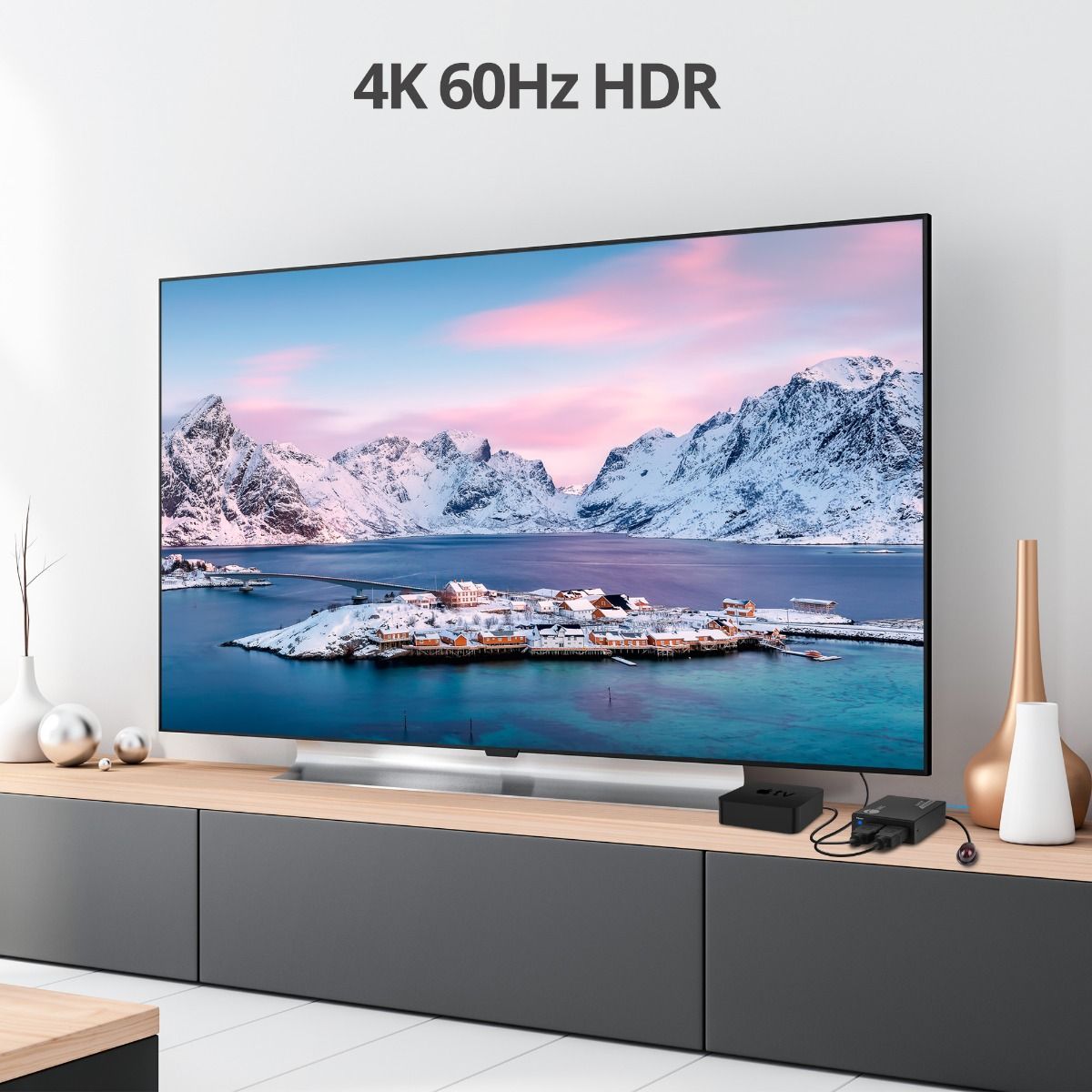

Extend HDMI signals up to 164ft (50m) in Ultra HD 4K 60Hz with the support of HDCP 2.2, YUV 4:4:4, 8-bit, HDR 4:2:0 10-bit to deliver a crystal-clear picture quality, Deep color and 3D

---

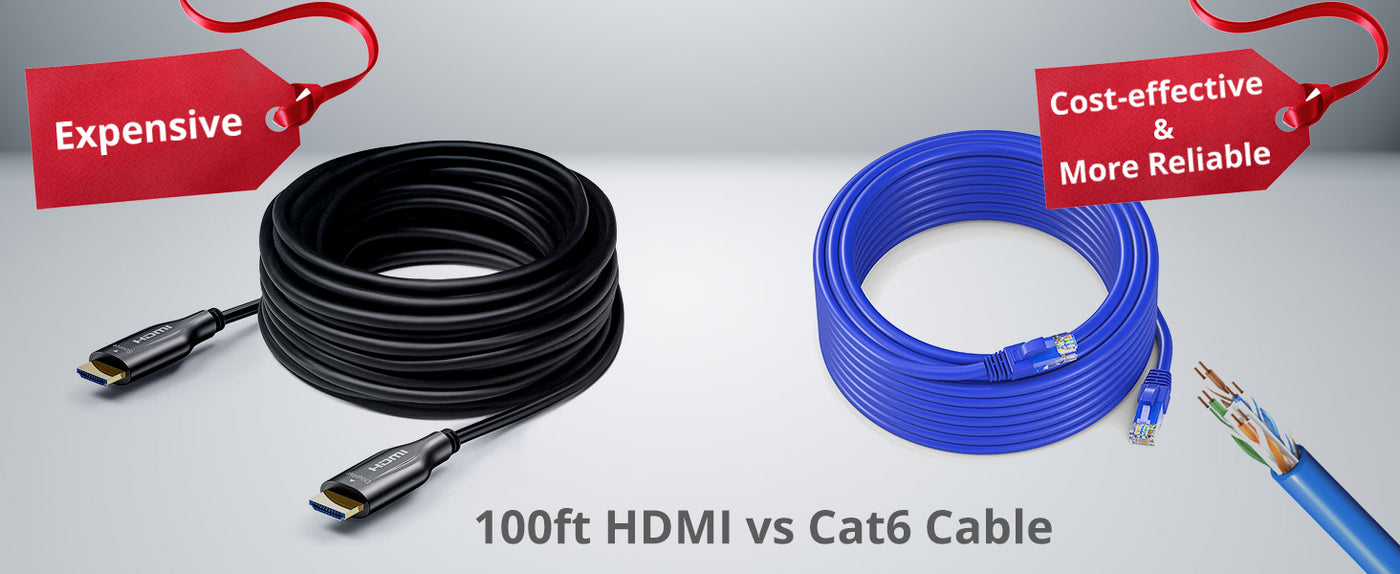

Why Use HDMI Over Cat6?

Ethernet cables cost less and transmit data longer without signal loss than HDMI cables

---

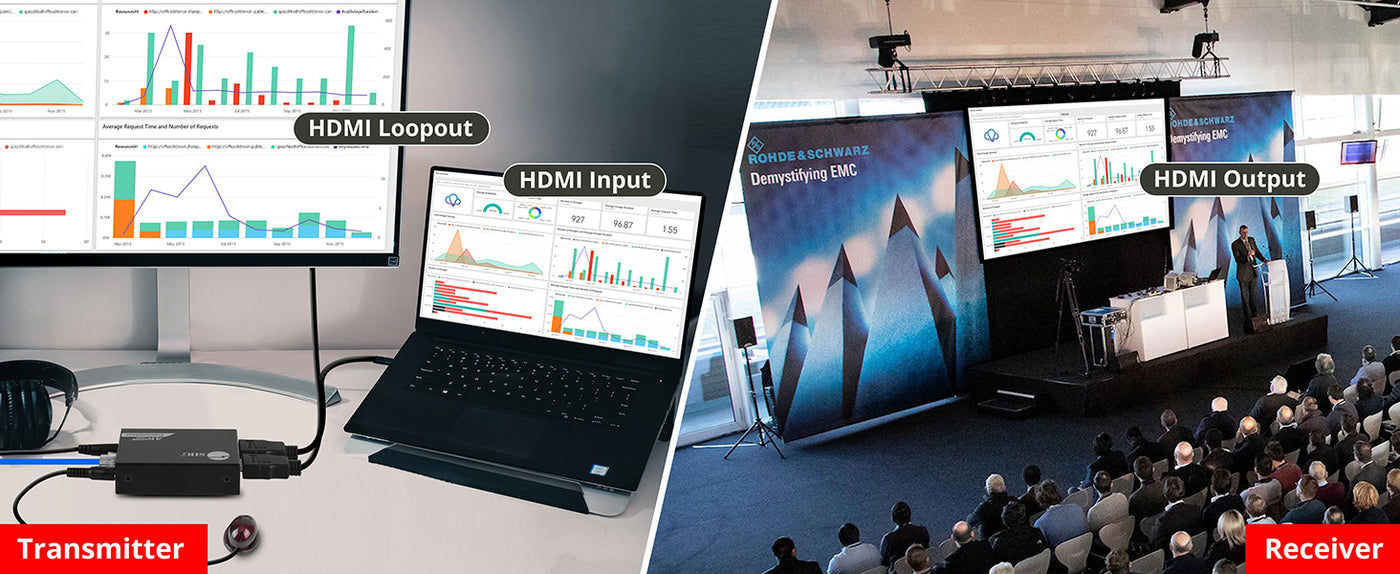

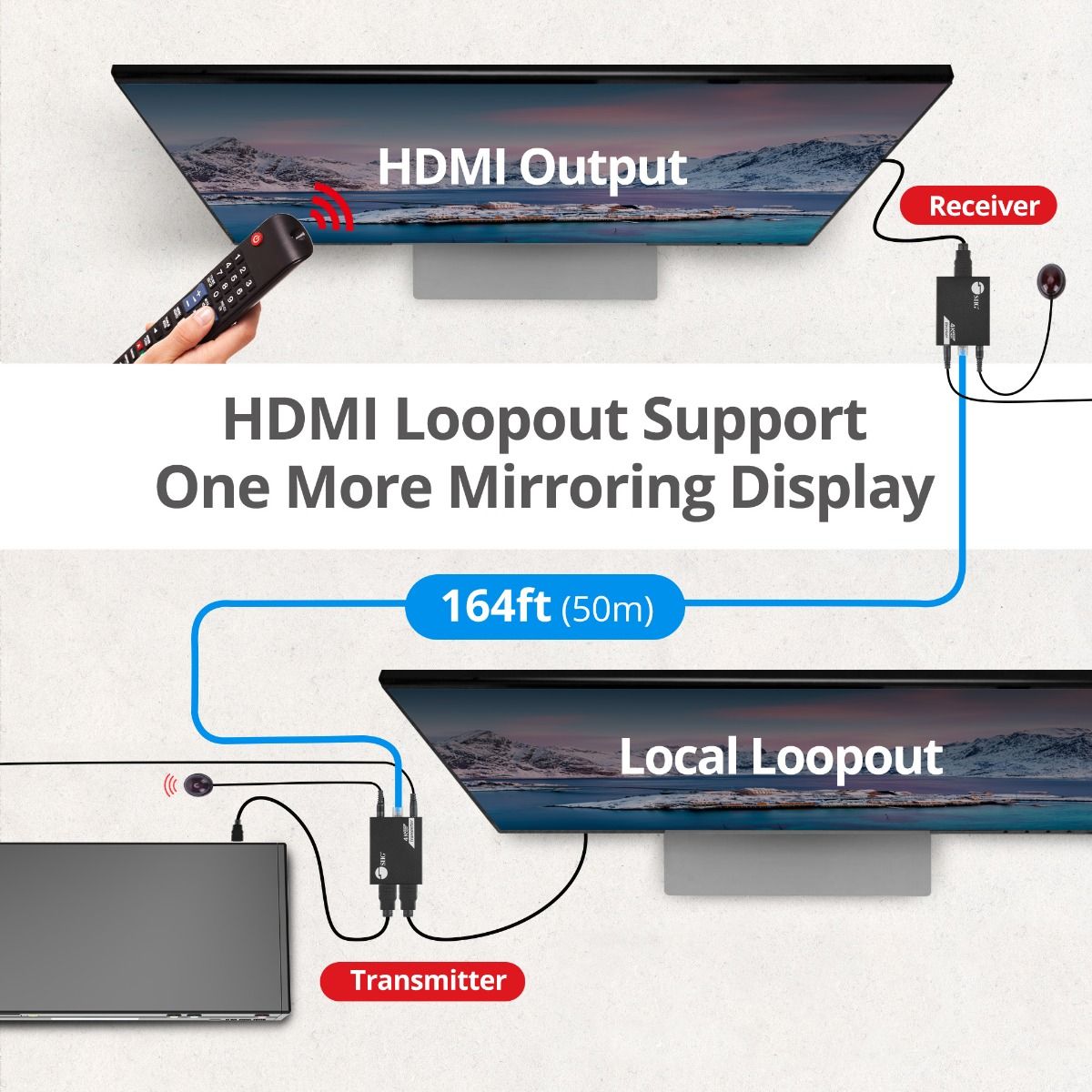

Screen Mirroring

The transmitter acts as a splitter for screen mirroring to another display with extra HDMI output

---






EDID Balance

The extender automatically learns the connected display's EDID and audio output for the receiver

Supports EDID passthrough and auto downscaling, detects and configures video resolution from 4K to 1080p to the capabilities of each connected monitor

---

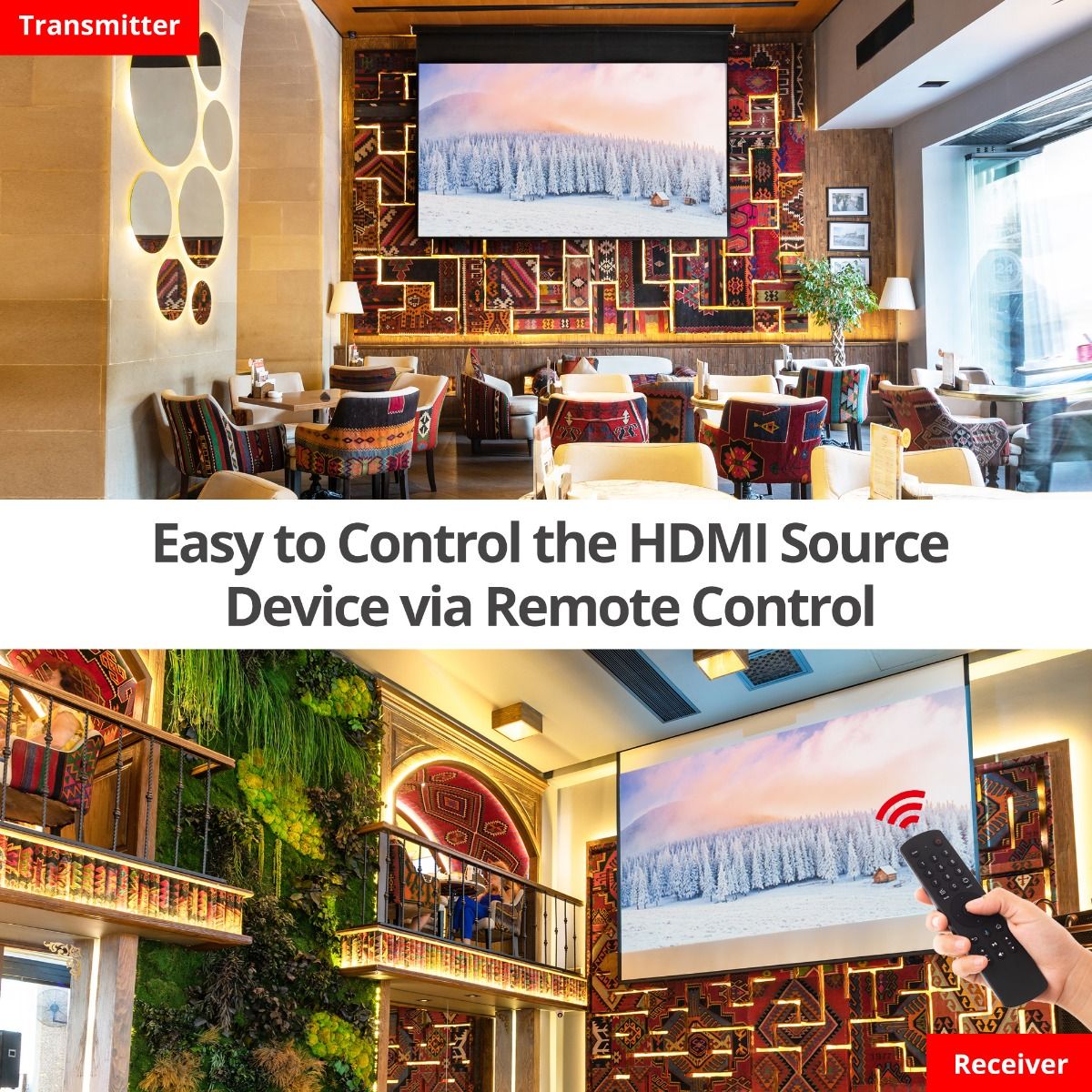

IR Signal Passthrough

IR passthrough allows remote video source control from the extended display location

---

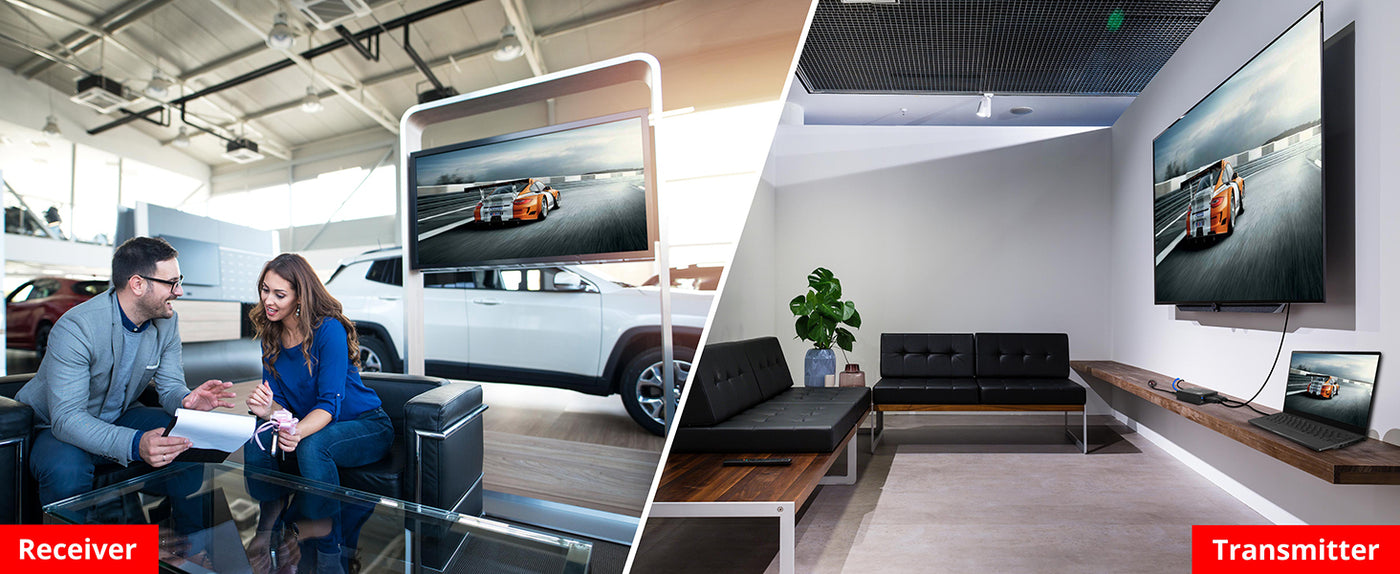

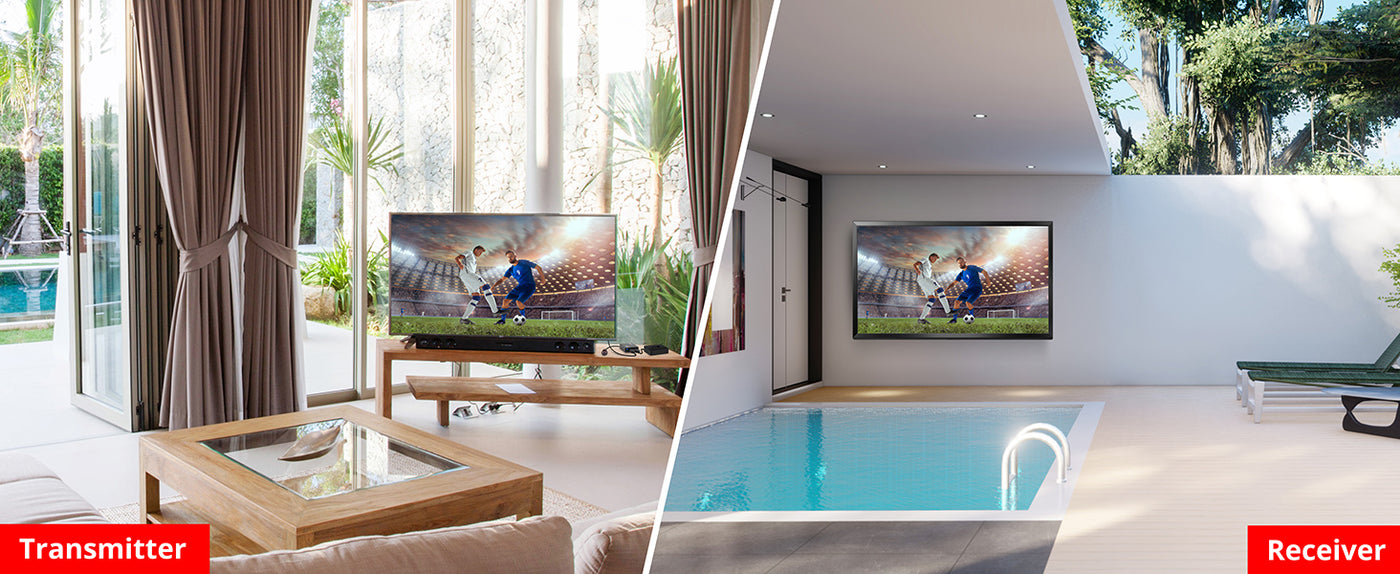

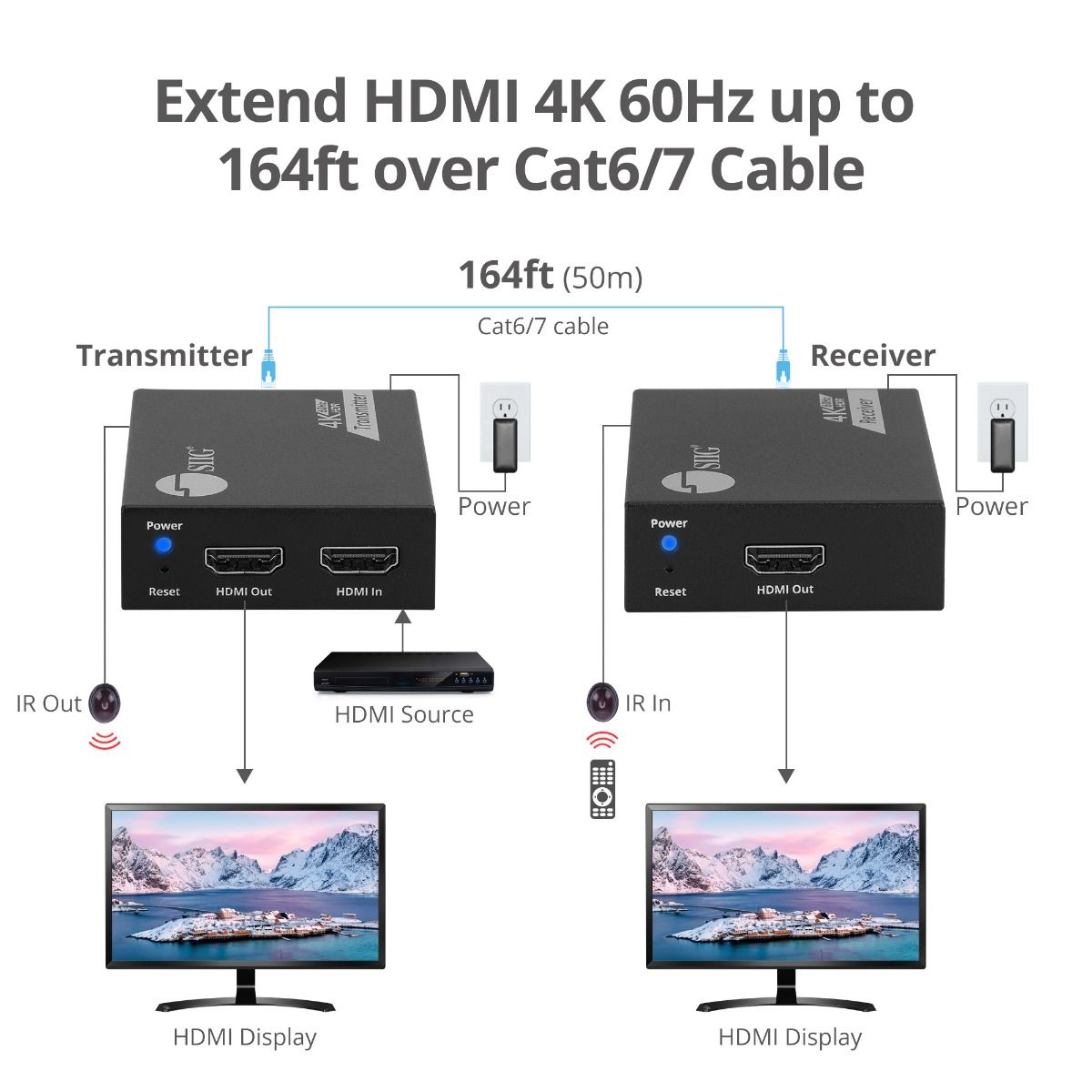

Extend Distance

Extends HDMI signals from DVD players, game consoles, or HDMI-equipped computers up to 164 ft (50 meters) via Cat6/7 networking cable, ideal for home theater, conference room or other audio/video applications that require remote location setup

---






Upgrade Your Audio/Video Setup

Upgrade your audio/video setup with the SIIG 4K HDMI Extender Over Cat6 164FT with Loop-out & IR today and experience the benefits of extended range and ultra-high definition picture quality

Audio supports PCM 7.1 / DTS-HD/ Dolby Digital, support IR passthrough for 20KHz to 60KHz

---




Protection Components

Lightning Protection, Surge Protection, ESD Protection provides durability and minimizes EMI/RFI noise interference

---




Maximum Compatibility

Plug-n-Play, no driver and software installation or hardware setup is required

---




Metal Housing Design

Premium metal housing offers excellent heat dissipation further enhances durability for dependable performance and long life

---




Comparison Table

SKU	CE-H27K11-S1	CE-H28A11-S1	CE-H27F11-S1	CE-H27G11-S1	CE-H23A11-S2	CE-H23B11-S2	CE-H23C11-S2
Input x Output	1 x 1	1 x 1	Transmitter	Receiver	1 x 1	Transmitter	Receiver
Product Protocol	AV Over Ethernet	AV Over IP	AV Over IP	AV Over IP	AV Over IP	AV Over IP	AV Over IP
Transmission Range	164ft (50M)	330ft (100M)	330ft (100M)	330ft (100M)	394ft (120M)	394ft (120M)	394ft (120M)
Resolution / HDR	4K 60Hz HDR	4K 60Hz HDR	4K 60Hz HDR	4K 60Hz HDR	1080p 60Hz	1080p 60Hz	1080p 60Hz
HDMI / HDCP	2.0 / 2.2	2.0 / 2.2	2.0 / 2.2	2.0 / 2.2	1.3 / 1.4	1.3 / 1.4	1.3 / 1.4
HDMI Loopout	✓	✗	✗	✗	✓	✓	✓
PoE or Power Over Cable	✗	✓	✓	✓	✗	✗	✗
RS-232	✗	✓	✓	✓	✓	✓	✓
EDID Management	✓	✓	✓	✓	✗	✗	✗
IR Passthrough	✓	✓	✓	✓	✓	✓	✓
USB	✗	✓	✓	✓	✗	✗	✗
Cascade	✗	Many to Many	Many to Many	Many to Many	Many to Many	Many to Many	Many to Many

---

Applications

• Lecture hall	• Educational facilities	• Multimedia education	• Home theater	• Restaurant
• Shopping center	• Digital signage	• Meeting room	• Trade show	• Library
• Show room	• Church

• Package Contents

---

Specifications

• Compliant with HDCP 2.2/1.4, support HDR 10
• Supports resolution: 4K (3840x2160)/1080p/1080i/720p/480i/480p @60Hz
• Maximum transfer rate: 18Gbps
• Audio: PCM 7.1 / DTS-HD/ Dolby Digital
• Transmission Distance: 4K@60Hz Up to 164ft/50M via Cat6/7 cable
• HDMI cable length: up to 5 meters (Input & output)
• IR Remote Control: 20-60KHz Frequency Range
• Product:
  • Color: Black
  • Housing: Metal
  • Transmitting unit (TX):

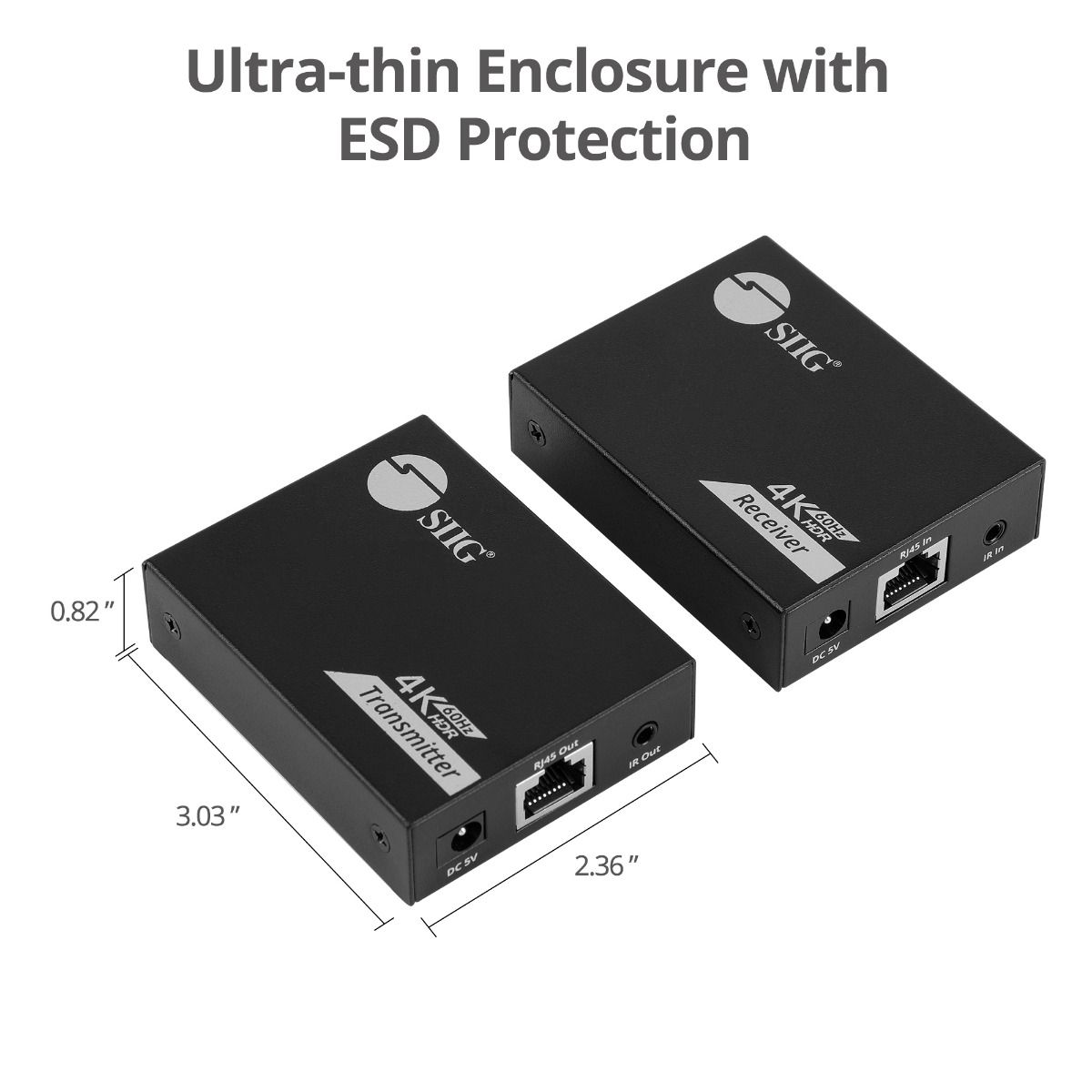

    • Dimensions: 2.95" (W) x 0.83" (H) x 2.36" (D)
    • Weight: 0.29 lbs

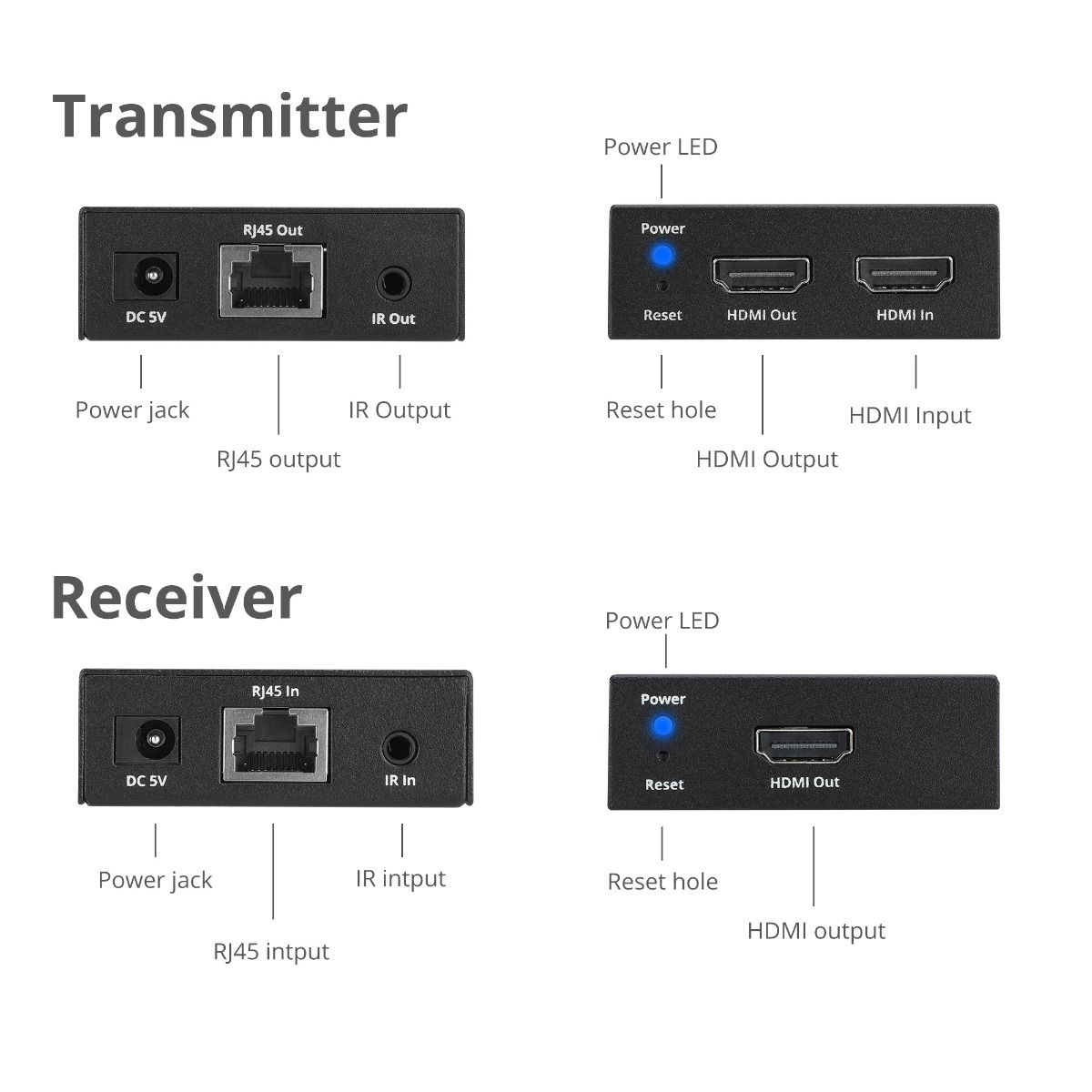

    • Connectors:
      • 1x 19-pin HDMI, Type A, Female, Input
      • 1x 19-pin HDMI, Type A, Female, Loop out
      • 1x 3.5mm jack, IR Blaster
      • 1x 8-pin, RJ45 Output
      • 1x Reset hole
      • 1x Power Jack
  • Receiving unit (RX):
    • Dimensions : 2.95" (W) x 0.83" (H) x 2.36" (D)
    • Weight: 0.29 lbs
    • Connectors:
      • 1x 19-pin HDMI, Type A, Female, Output
      • 1x 3.5mm jack, IR Receiver
      • 1x 8-pin RJ45, Input
      • 1x Reset hole
      • 1x Power Jack
• Unit package:
  • Dimensions: 5.91" (W) x 3.03" (H) x 4.61" (D)
  • Weight: 1.04 lbs
• Power adapter:
  • Input: 100-240V / 50-60Hz
  • Output: DC 5V/0.5A
  • UL listed: E335801 / Level: VI
• Environmental conditions:
  • Operating temperature: -20 to 60 degrees F
  • Storage temperature: -30 to 70 degrees F
  • Relative humidity: 0% to 90% RH (non-condensing)
• Certifications/Standards: FCC, CE, RoHS
• Warranty: 2 years limited
• Country of origin: Engineered in USA , Manufactured in China

---

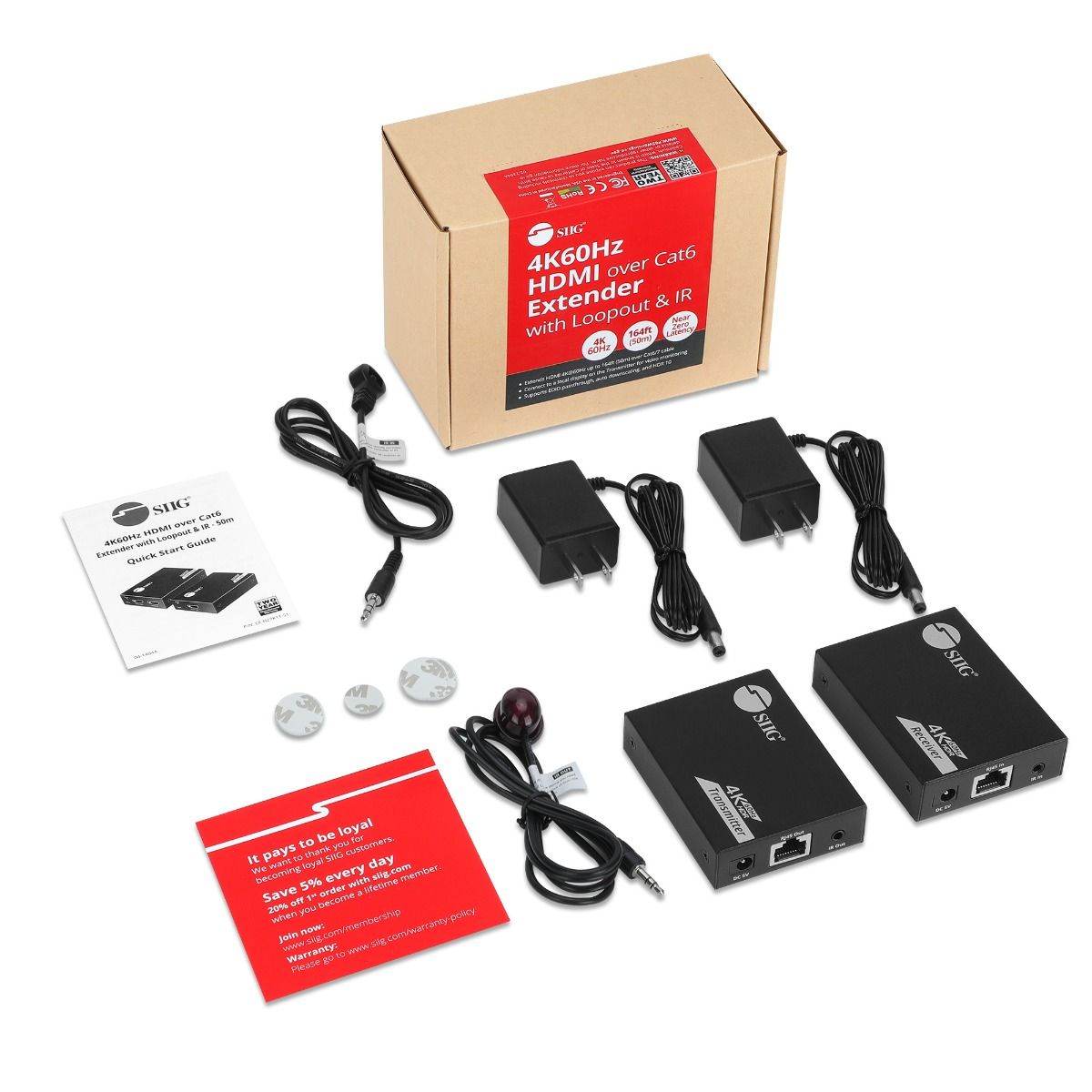

Package contents

• 4K60Hz HDMI over Cat6 Extender with Loopout & IR - 50m
• Power adapter (x2)
• IR Blaster extension cable
• IR Receiver extension cable
• Quick Start Guide
