USB-C to SFP Gigabit Ethernet Adapter

• Features
• Applications

---

Overview

Replacement: JU-NE0D11-S1




USB-C to SFP Gigabit Ethernet adapter allows you to quickly add a SFP Fiber Gigabit Ethernet connection through a USB-C port on your computer or other compatible device, offers data transfer speeds of up to 1 Gbps, security, reliability, power saving, Windows and Mac compatible

---

Features

SFP Fiber Modules Supported
Converter USB Type-C to MSA Compliant SFP modules(1000Base-SX/LX) slot, provides a Gigabit Ethernet (1000 Mbps) optical network connection for portable laptops or tablets, or systems without expansion slots



---

USB-C Connectivity and Bus-Powered
The adapter connects to your device via a USB-C port, which is reversible and easy to plug in, making it a convenient and modern connection option. SuperSpeed USB 3.0 ensures high performance packet transfer rate; Power directly from the USB-C port, No additional power adapter requirements

---

Power Saving Mode

IEEE 802.3az Energy Efficient Ethernet (EEE) function
Saving ethernet power consumption estimate 50 % off when network running as a low data activity period through IEEE 802.3az. It will return normal when data transmission works normally

LINK-DOWN Power Saving
Reduces power consumption when the network cable (uplink) is disconnected. When the network cable is reconnected, the adapter detects an incoming signal and restores normal power

---

Secure Network Connectivity
This USB-C to SFP adapter provides reliable fiber connectivity while protects your network connection from electronic interference which is common with RJ45 CAT cabling, Fiber-to-the-desk connectivity (FTTD) maximizes security and increase network speed, bandwidth, and efficiency. Fiber networking reducing the risk of data leaks for sensitive information

---

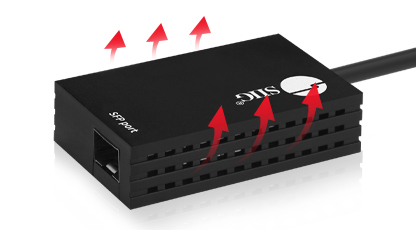

Heat Disspation
The vent design on both sides has good heat dissipation function

---

Reliability
This adapter features full duplex with flow control and half duplex with back pressure operation, and supports pair swap/polarity/skew correction, crossover detection & auto-correction, hardware CRC (Cyclic Redundancy Check) function to ensure the integrity of transmitted data

---

Compact and Portable
Tiny plastic housing, easy to carry with you for on-the-go connectivity or in situations where you need to use different network connections

---

Applications

SIIG's USB-C to SFP Gigabit Ethernet adapter is a secure device that allows you to connect your USB-C-enabled laptop or desktop computer to a Gigabit Ethernet network using an SFP module, offering flexibility and adaptability to different network set up

• Network Troubleshooting Diagnostic Tools: IT professionals and network administrators can use these adapters for network troubleshooting and maintenance, testing various network connections and configurations with different SFP modules
• Server Rooms and Data Centers: In server rooms or data centers, these adapters can be used for temporary connections or when there's a need to configure or diagnose network equipment
• Network Security and Monitoring: Cybersecurity professionals may use these adapters for penetration testing and network security assessments, adapting to various network environments

• System Requirements
• Package Contents

---

Specifications

• Chipset: Realtek RTL8153
• Compatible with IEEE 802.1p, IEEE 802.1Q, IEEE 802.2,IEEE 802.3ac, IEEE 802.3az,IEEE 802.3x, IEEE 802.3z,IEEE 802.3ad
• Network Transfer Rate: 10/100/1000 Mbps
• Supports CDC-EMC
• Supports power Down / Link down power saving
• Product:
• Overall length (including the embedded USB cable): 7.48"
• Dimensions: 2.80" (W) x 0.71" (H) x 1.77" (D)
• Weight: 0.11 lbs
• Color: Black
• Housing material: Plastic
• Connectors:
• 1x USB-C, Male
• 1x SFP Fiber, Female
• Unit Package:

  • Dimensions: 8.66" (W) x 1.18" (H) x 6.14" (D)
  • Weight: 0.33 lbs
• Environmental conditions:
• Operating temperature: 32 to 122 degrees F
• Storage temperature: 14 to 140 degrees F
• Relative humidity: 5% to 85% RH (non-condensing)
• Certifications/Standards: FCC, CE, RoHS
• Warranty: 2 years limited
• Country of origin: China

---

System Requirements

• Windows^® or Mac^® systems with an available USB-C port

---

Package contents

• USB-C to SFP Gigabit Ethernet Adapter
• Quick Start Guide
