Overview

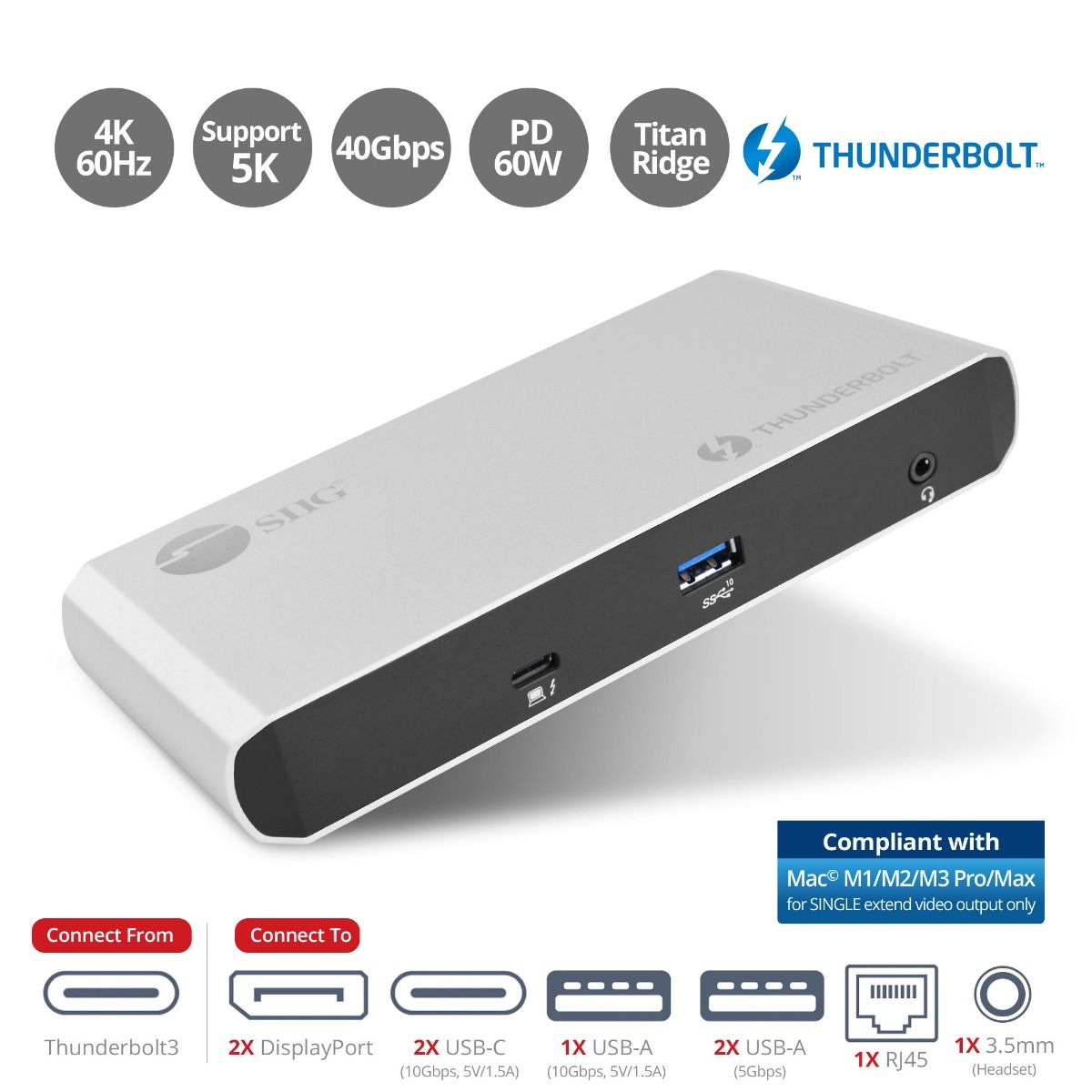

Advanced Thunderbolt 3 docking station adds multiple connectivity ports to your Thunderbolt 3 or USB-C DP Alt mode enabled computer, notebook, or laptop. Dual 4K 60Hz, 2x USB-C 10Gbps with 5V/1.5A charging, 1x USB-A 10Gbps with 5V/1.5A charging, 2x USB-A 5Gbps, 1x Gigabit Ethernet, Headset Jack, Compliant with Mac^® system for M1, M2, M3 Pro, & Max

---

Features

This Thunderbolt 3 dock comes with next generation Intel Titan Ridge IC making the docking station compatible with Thunderbolt 3 and USB-C DP Alt mode compliant systems become the fastest connection



---

High Performance

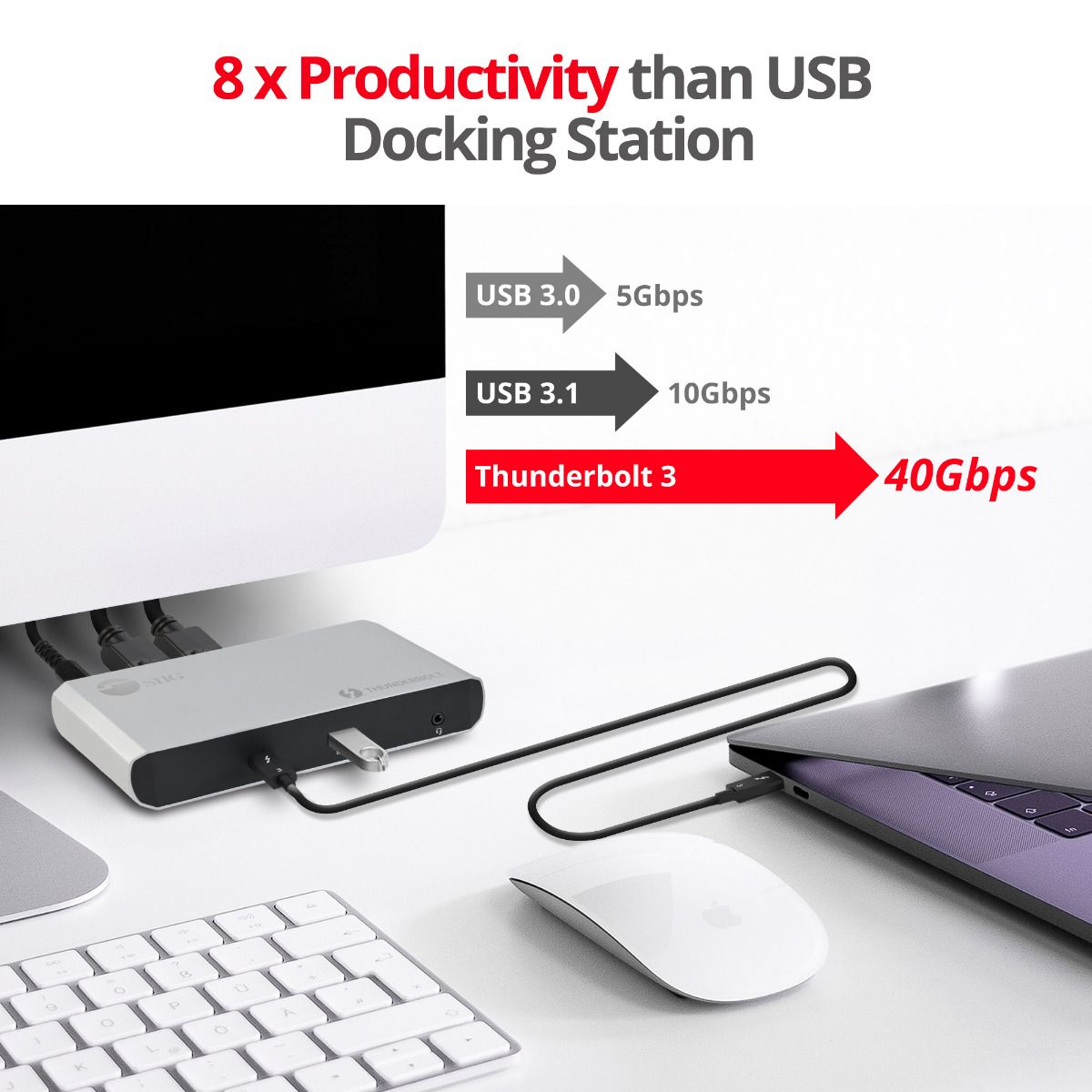

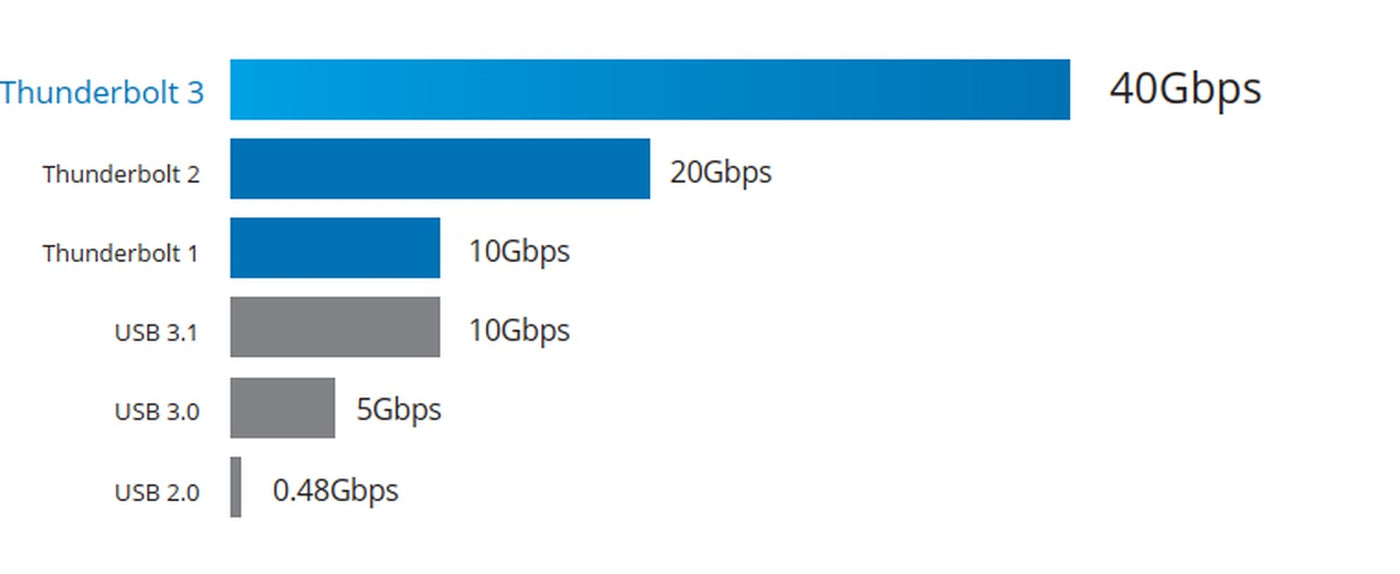

Expand multiple connectivity ports to your Thunderbolt 3/DP Alt Mode* USB-C enabled Mac or Windows PC to increase your efficiency and allows data transfer speeds up to 40Gbps and daisy-chain up to 6 Thunderbolt devices

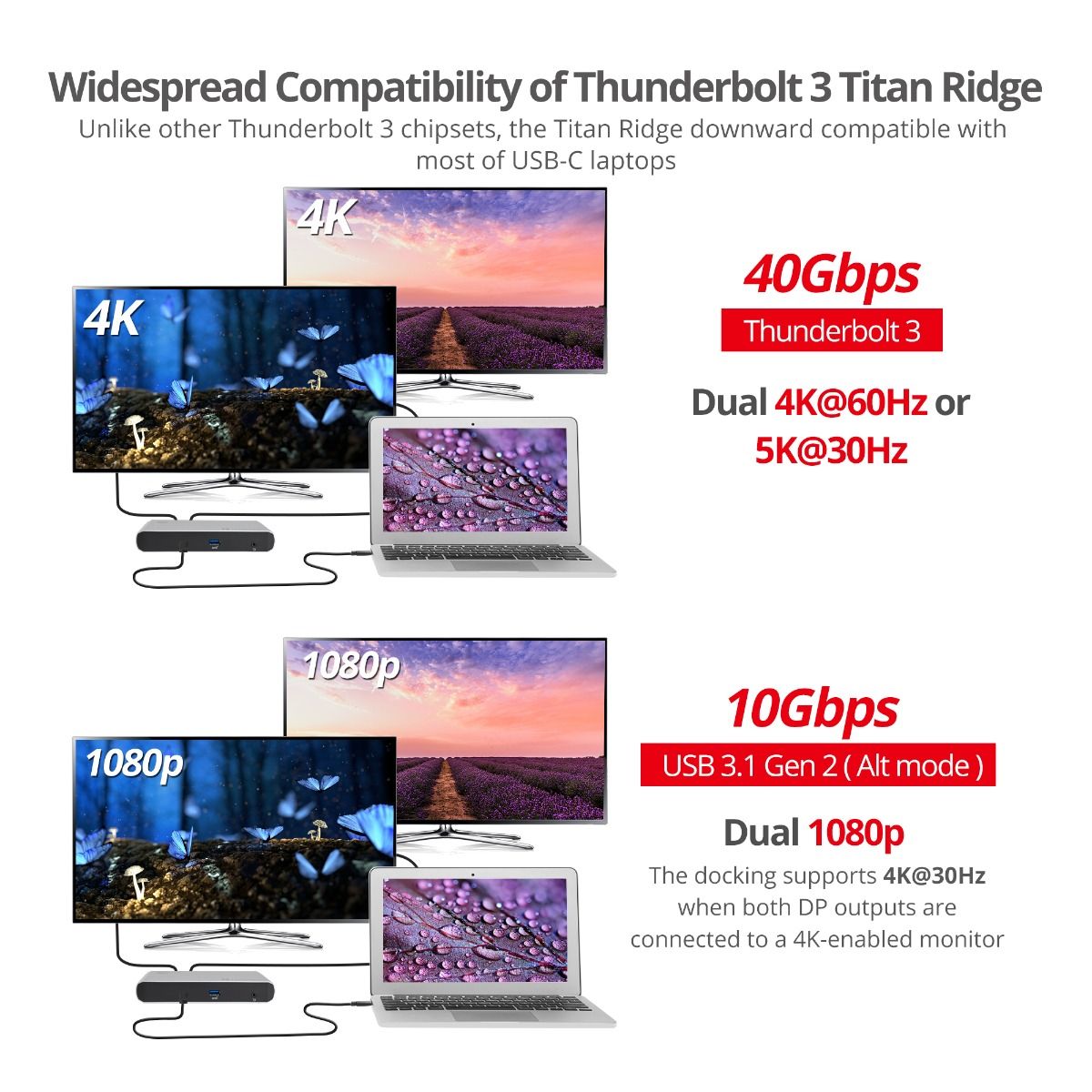

*Note: When connecting to a DP Alt mode USB-C host port the resolution will be 4K@30Hz for single DisplayPort monitor or 1080p for two DisplayPort monitors



* Compatibility Notes:

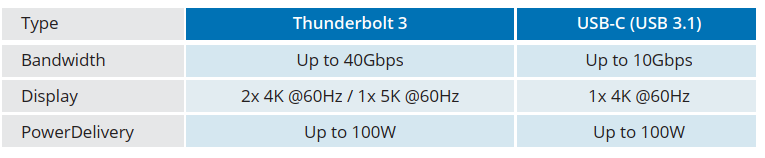

1) The thunderbolt 3 has the same design as the USB-C port. Thunderbolt 3 has the capabilities of USB-C, but USB-C does not have the capabilities of Thunderbolt 3
2) The USB Type-C connector with DisplayPort technology via an Alternative Mode (Alt mode) and allows a USB-C equipped computer and cable to connect directly to a display/monitor

---

High-Resolution Graphics

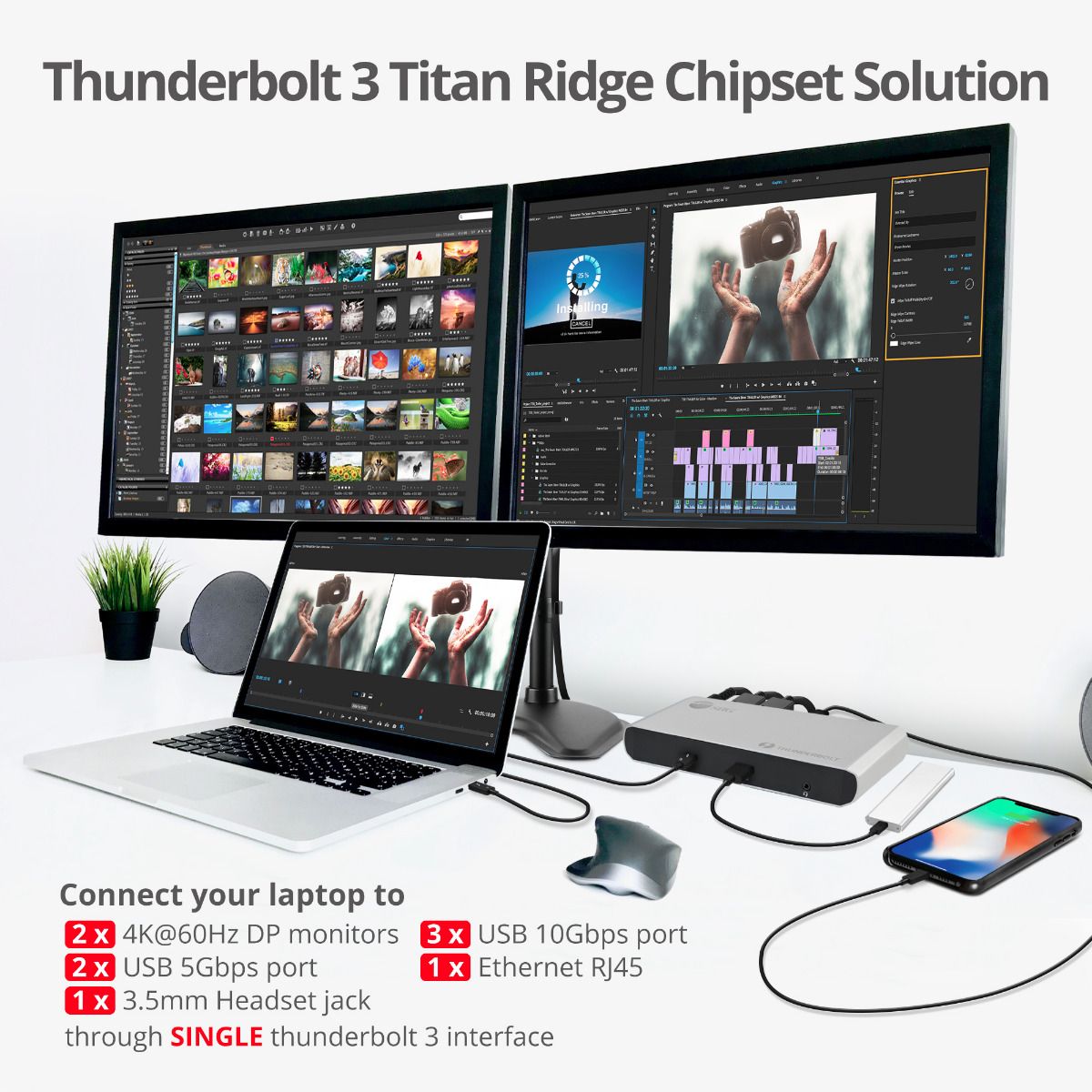

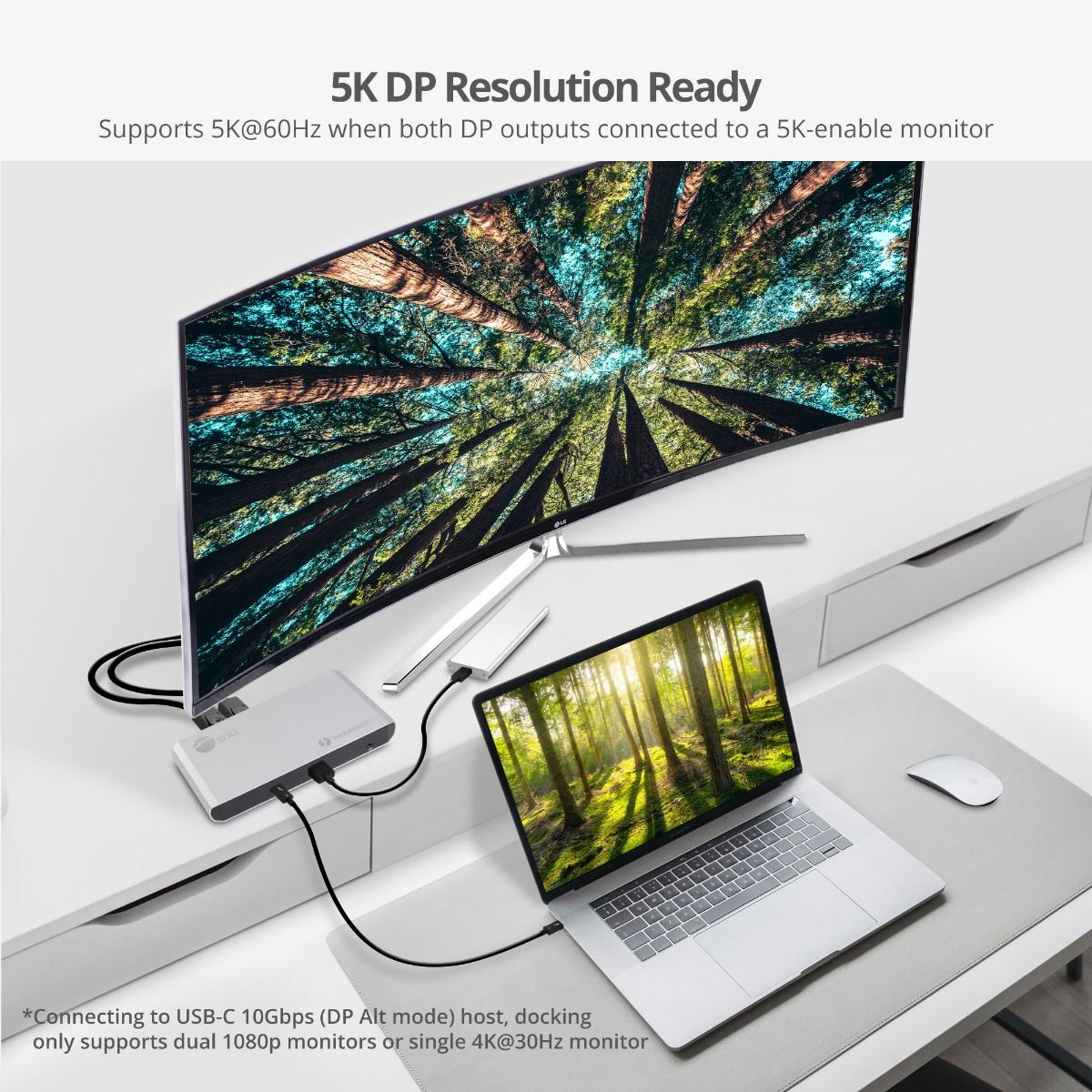

Allows you to connect two 4K Ultra HD displays through DisplayPort connections or a single 5K@60Hz display through dual DisplayPort connection when connected to a Thunderbolt 3 port

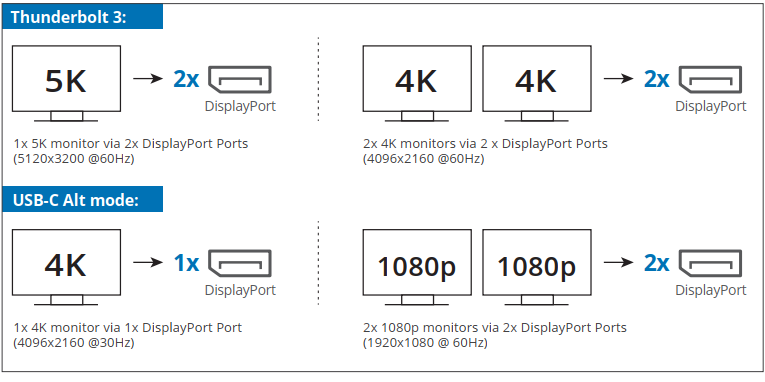

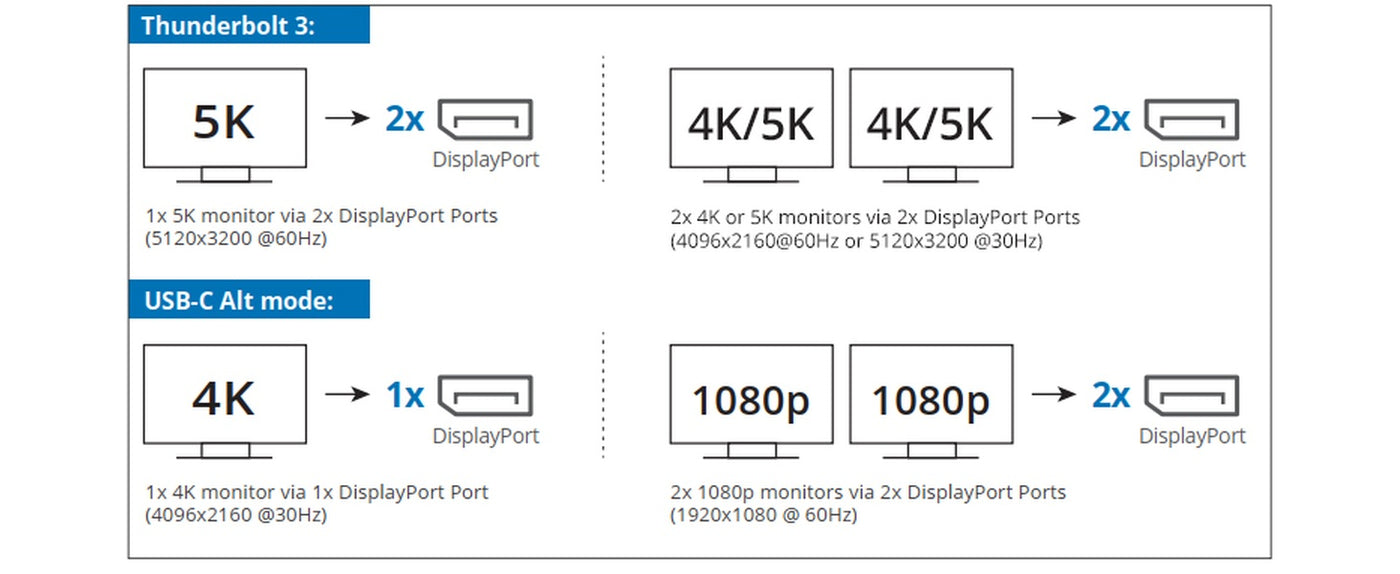

Monitor solutions:



---

Multiple Connectivity Ports

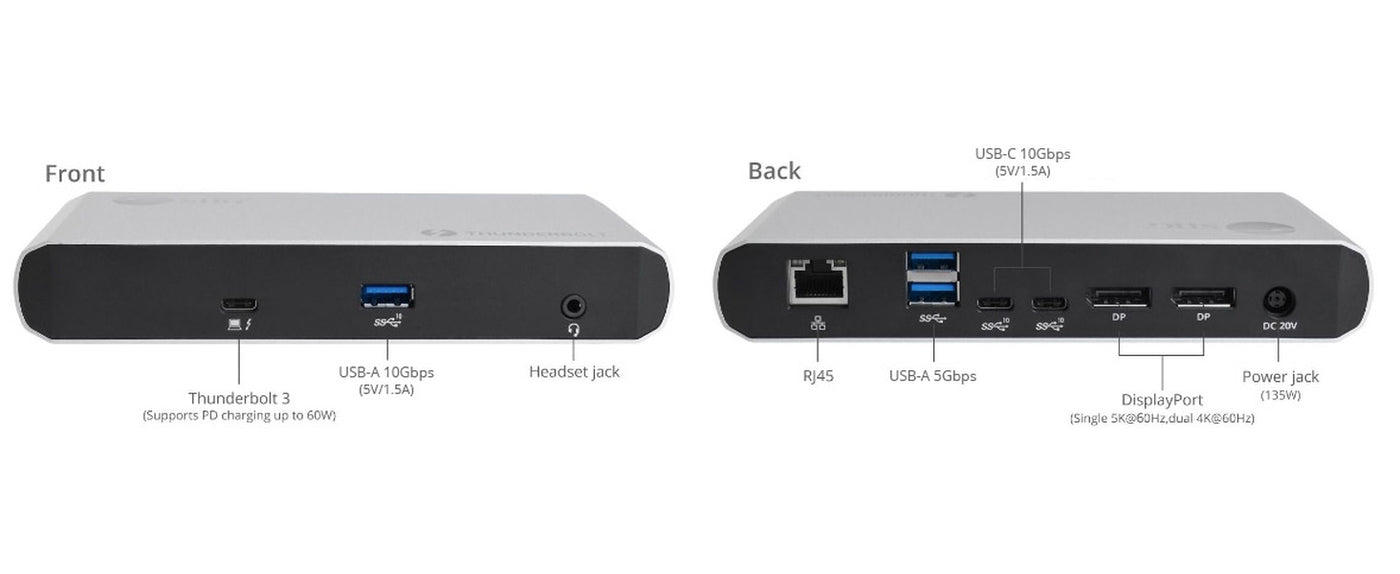

Adds two DisplayPort video ports, two USB-C 10Gbps with 5V/1.5A charging ports, one USB-A 10Gbps with 5V/1.5A charging ports, two USB-A 5Gbps ports, one Gigabit Ethernet port, and one dual mode 3.5mm audio jack to connect headphones / Stereo speakers or microphone input



---

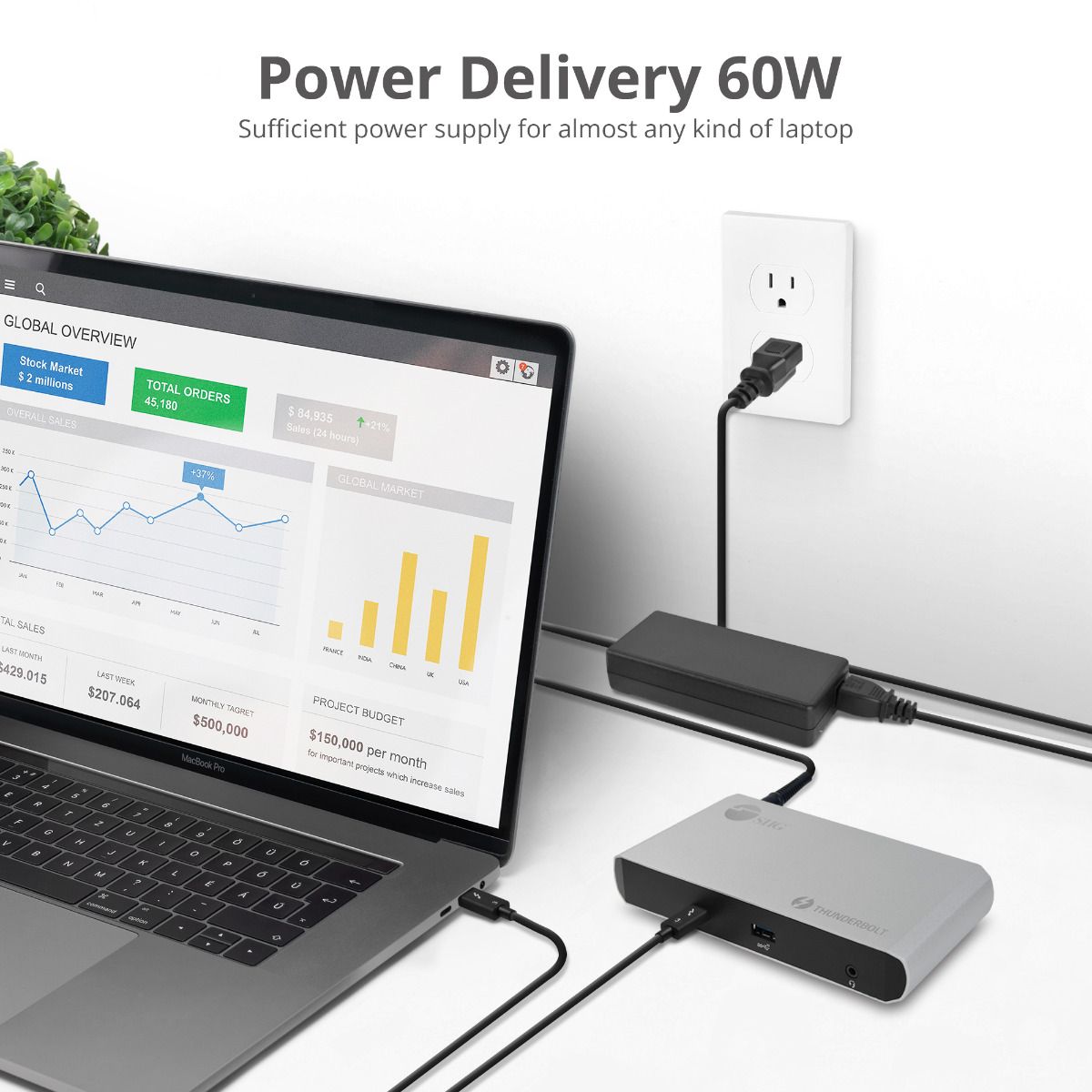

60W Power Delivery

PD 3.0 charging specification compatible supplies up to 60 watts to charge your laptop, notebook, tablet, and smartphone

Includes 135W power adapter to provide enough power for the connected peripherals

---



High-Speed Data Transfer

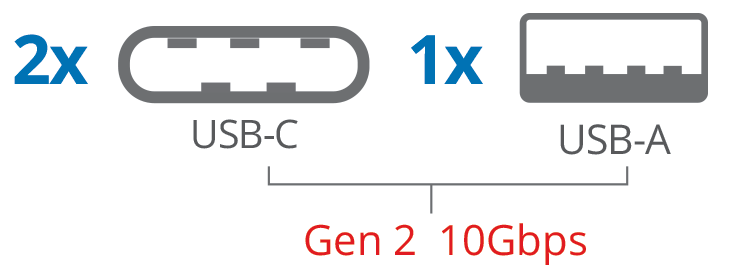

Delivers two USB-C 10Gbps with 5V/1.5A charging ports, one USB-A 10Gbps with 5V/1.5A charging ports, two USB-A 5Gbps ports

---

1G Ethernet Data Transmission

Up to 1000Mbps data transfer rate and seamless backward compatible with 10/100Mbps

---

Aluminum Housing Design

Premium aluminum housing provides efficient heat dissipation for reliable performance and long life

---

Applications

• Media editing	• Video recording	• Educational facilities	• Home workstation	• Medical office	• Gaming
• Show room	• Meeting room	• Financial	• Chain store

---

Need to Know Before Buying

1.Please confirm your computer’s USB-C port supports Thunderbolt 3 and DP Alt Mode (check on manual of computer) and ensure it supports the resolutions and refresh rates you want
*Note: Compliant with mac^® M1, M2, M3 Pro, & Max systems for single extend video output

2. Check the extended display/monitor resolution that supports 4K @60Hz and has Thunderbolt 3 and DisplayPort 1.2 ports

3. Thunderbolt 3, USB-C 10Gbps, USB-A 10Gbps and USB-A 5Gbps icons on certified products and cables

4. Check your USB-C port or cable with Power Delivery 3.0, then it can handle up to 60W and will go to 100W using a full-featured USB Type-C

5. If you are using a DP to HDMI cable or adapter, please make sure it has "Active" word on it. Passive products without "Active" are used for DP dual mode signals

• Interface
• System Requirements
• Package Contents

---

Specifications

Hardware
Chipset	Intel Titan Ridge JHL7440
Software
OS Compatibility	Windows® 11, mac OS® 10.13 or newer *Note: Compliant with mac® M1, M2, M3 Pro, & Max systems for single extend video output
Video
Thunderbolt 3	- Compliant with Intel Thunderbolt 3 specifications, - Data transfer: 40Gbps, Bi-directional - Video/Audio: 2x 4K displays or a 5K display - DisplayPort Alternate Mode (DP Alt Mode): Up to 10.2Gbps data transfer rate - Native audio - Special cables are required for longer connections - Up to 6 daisy-chaining of Thunderbolt devices
DisplayPort	x2, DP1.2, 4Kx2K @60Hz
Video cable length	DisplayPort: Up to 3M (max)

USB
USB-C	x2, up to 10Gbps data transfer rate and 5V/1.5A fast charging
USB-A	x1, up to 10Gbps data transfer rate and 5V/1.5A fast charging
USB-A	x2, up to 5Gbps data transfer rate
Fast-Charge Port(s)	Yes

Power
Power Delivery 3.0 (USB PD): 60W, Support 5V / 9V / 15V / 20V
Power Adapter Input: AC 100-240V/50-60Hz, Output: DC 20V/6.75A

Ethernet
Data transfer Rate: up to 1000Mbps
Supports IEEE 802.3x Full Duplex flow operation, crossover detection and auto-correction
Compatible with IEEE 802.3, 802.3u
Enterprise features: Wake on LAN and PXE boot *Note: Mac address pass-through not supported

Audio
5.1 channel surround sound from DisplayPort output
Combo 3.5mm audio jack for Stereo audio output / 2-ch Microphone input
Environmental conditions
Operating temperature: 32 to 104 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)

Product Info

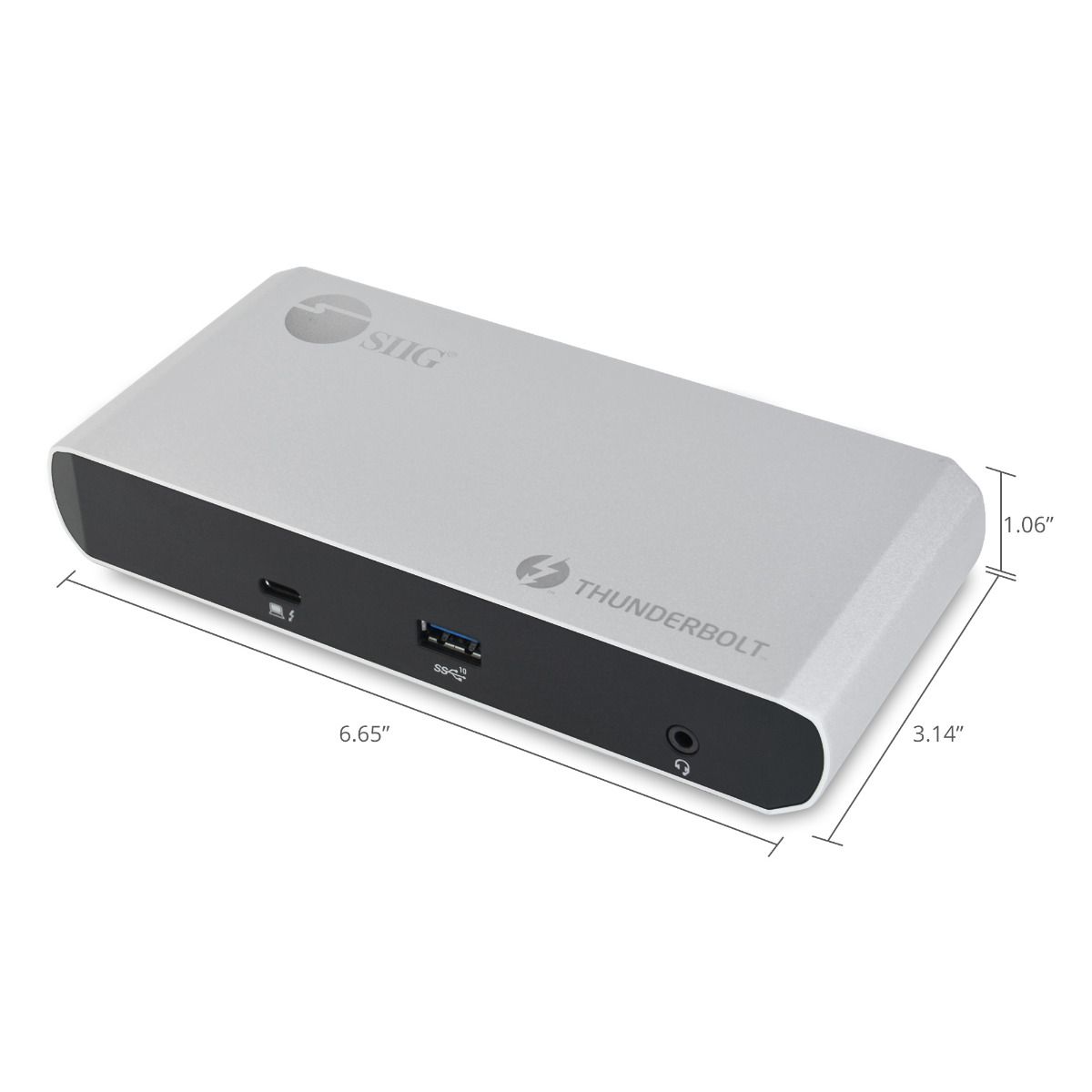

Dimensions:	6.57” (L) x 1.10” (H) x 3.15” (W)
Weight:	0.71 lbs
Color:	Iron Gray
Housing material:	Aluminum + plastic
Unit Package:	Dimensions: 9.09" (W) x 5.63" (H) x 3.27" (D) Weight: 2.40 lbs

Certifications/Standards
FCC, CE, RoHS, UL Listed: E132068 / Class VI
UPC Code: 662774-042664
Warranty: 2 years limited
Country of origin: Thailand

---

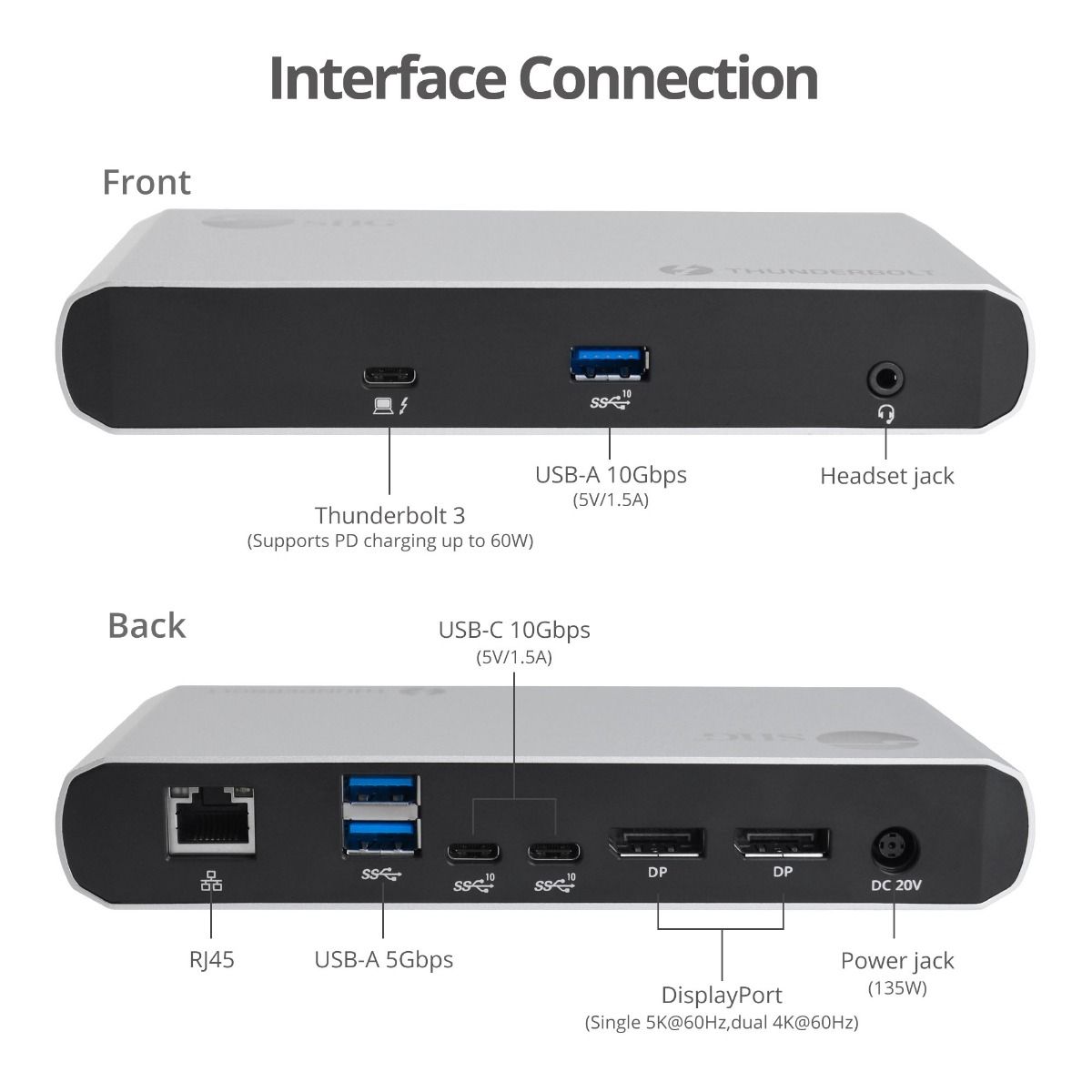

Interface



Input:
1x 24-pin, USB-C, Thunderbolt 3 (With PD Charging), Female
1x DC power jack

Output:
2x 24-pin, USB-C 10Gbps, Female (with 5V/1.5A charging)
1x 9-pin, USB-A 10Gbps, Female (with 5V/1.5A charging)
2x 9-pin, USB-A 5Gbps, Female
2x 20-pin, DisplayPort, Female
1x 8-pin, RJ45, Gigabit Network, Female
1x 3.5mm, Audio/Headset jack

---

System Requirements

• Desktop or laptop computer with an available USB-C DP Alt mode port or Thunderbolt 3 technology
• Windows^® 11 (64-bit) / 10 (32-/64-bit)
• macOS^® 10.13 or new
  *Note: Compliant with mac^® M1, M2, M3 Pro, Max systems for single extend video output

---

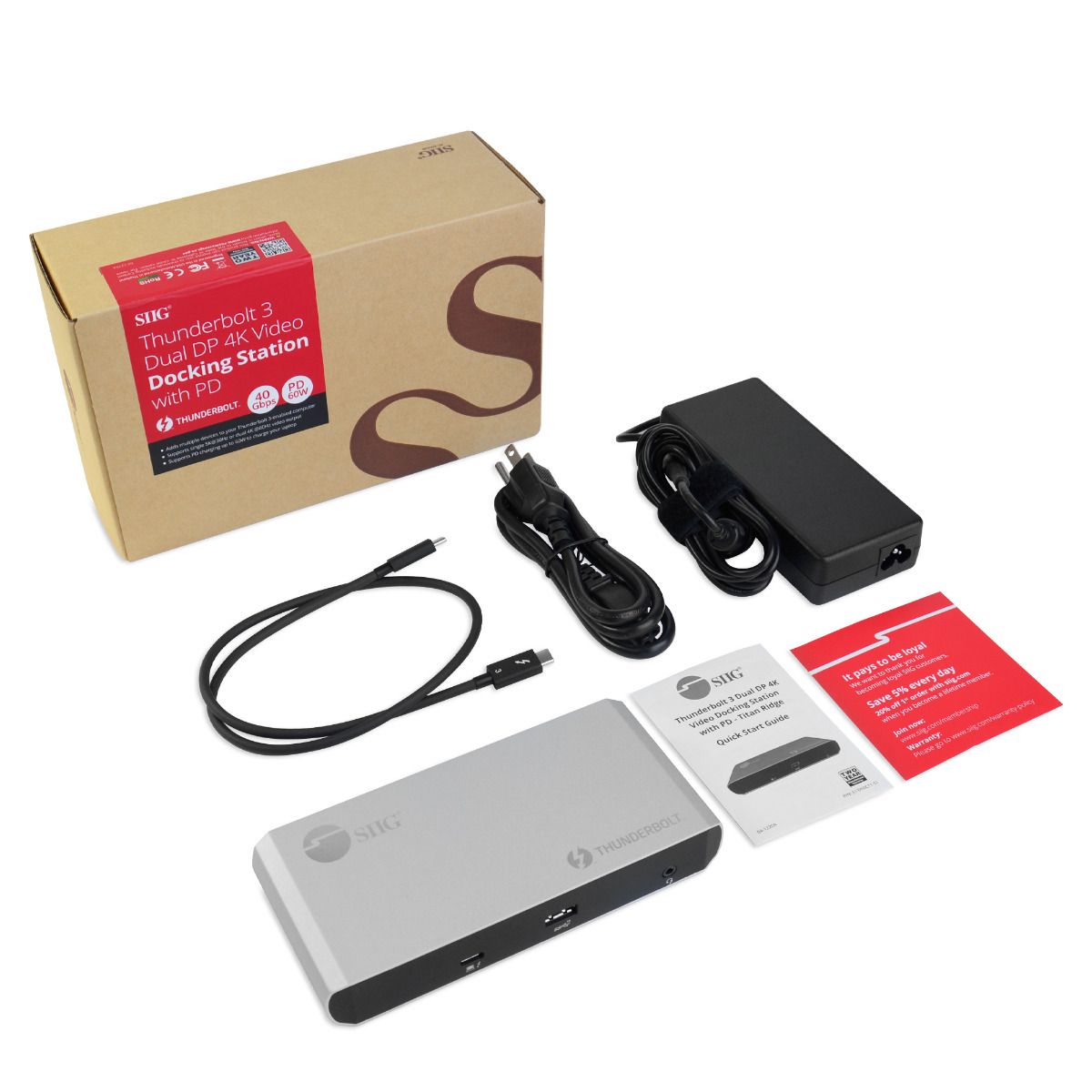

Package contents

• 1x Thunderbolt 3 Dual DP 4K Video Docking Station with PD - Titan Ridge
• 1x Power Adapter
• 1x Thunderbolt 3 cable
• 1x User Reference Guide
