16-port Industrial 600W USB-C PD Charging Station with 5Gbps USB Hub - 2-port 100W & 14-port Charging up to 30W

• Features
• Applications

---

Overview

Industrial Grade USB-C 5Gbps Hub & PD Charging Station - 600W, Adds 16 USB-C Charging Ports, 2-port 100W & 14-port Charging up to 30W; 14 Port USB Hub, Data Transfer up to 5Gbps, PD 2.0 & 3.0 for 5V/3A, 9V/3A and 12V/2.5A, Over Current, Over Voltage, Over Heating, Short Circut, ESD Protection, Metal Housing, UL Certification

---

Features

Unrivaled Charging Capability

• 600W total power output ensures sufficient power for all connected devices
• 16 USB-C charging ports
• 2 ports deliver up to 100W for fast charging laptops and tablets
• 14 ports offer up to 30W for charging smartphones, wearables, and other devices
• Supports PD 2.0 & 3.0 ensuring compatibility with a wide range of devices
• Multiple voltage outputs: 5V/3A, 9V/3A, and 12V/2.5A for flexible charging options
• Built-in Meanwell brand power IC with UL certification





---

USB 5Gbps Data Transfer

• Delivers 14-port USB-C data port via one system or Dual system share the dual USB-C input port
• Support data transfer up to 5Gbps and PD charging back to system up to 100W
• Effortlessly handle large files, backups, and data-intensive tasks



---

Robust Safety Features

• Over Current Protection: Guard against excessive current and potential damage
• Over Voltage Protection: Ensure safe voltage levels for all connected devices
• Over Heating Protection: Smart temperature control to prevent overheating
• Short Circuit Protection: Instant response to protect your devices from electrical mishaps
• ESD Protection: Safeguard against electrostatic discharge for longevity
• Ensures charging station and the connected devices safe



---

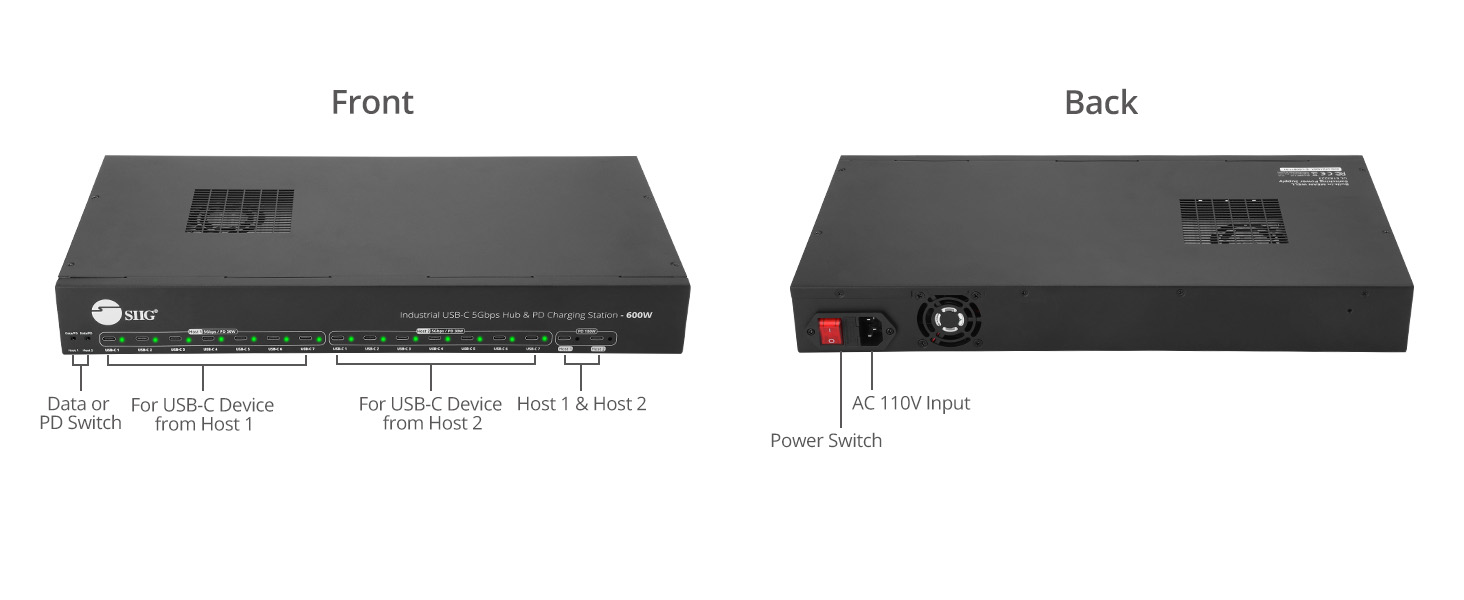

Multiple Connectivity Ports

• 2x USB-C Input: Host 1&2, PD 100W
• 14x USB-C Output: Data transfer up to 5Gbps, PD 30W



---



19” Rack Mountable Metal Housing

Heat dissipation and durable metal shell rack, can be mounted into a standard 2U of EIA-standard 19-inch rack using ear-mounts (included)

---

Industrial Grade Durability

Withstands wear and tear in various harsh environments

---



Power Saving

It is designed with a power switch to allow users to conserve energy when the hub is not in use. There is also a built-in LED to indicate power status

---

Automatic Temperature Control

Enables to turn on/off the fans automatically according to the temperature setup

• >55°C: Start the fans automatically
• <55°C: Cut off the fans automatically

---

Wide Compatibility

Compatible with all USB-C devices, such as Apple iPhone 15/14/13/12/11/X, iPhone 8, iPhone 8 Plus, Samsung Galaxy Note 8, S8, S8 plus and more, Tablets/ Laptop for Apple iPad, MacBook 12-inch, MacBook Air/Pro and more USB-C devices. This is an excellent choice for USB-C products to be charged

*Note: Switch to “Data” supports iPhone 15/16, iPad Mini/Air/Pro come with USB-C devices charging and data sync simultaneously



---

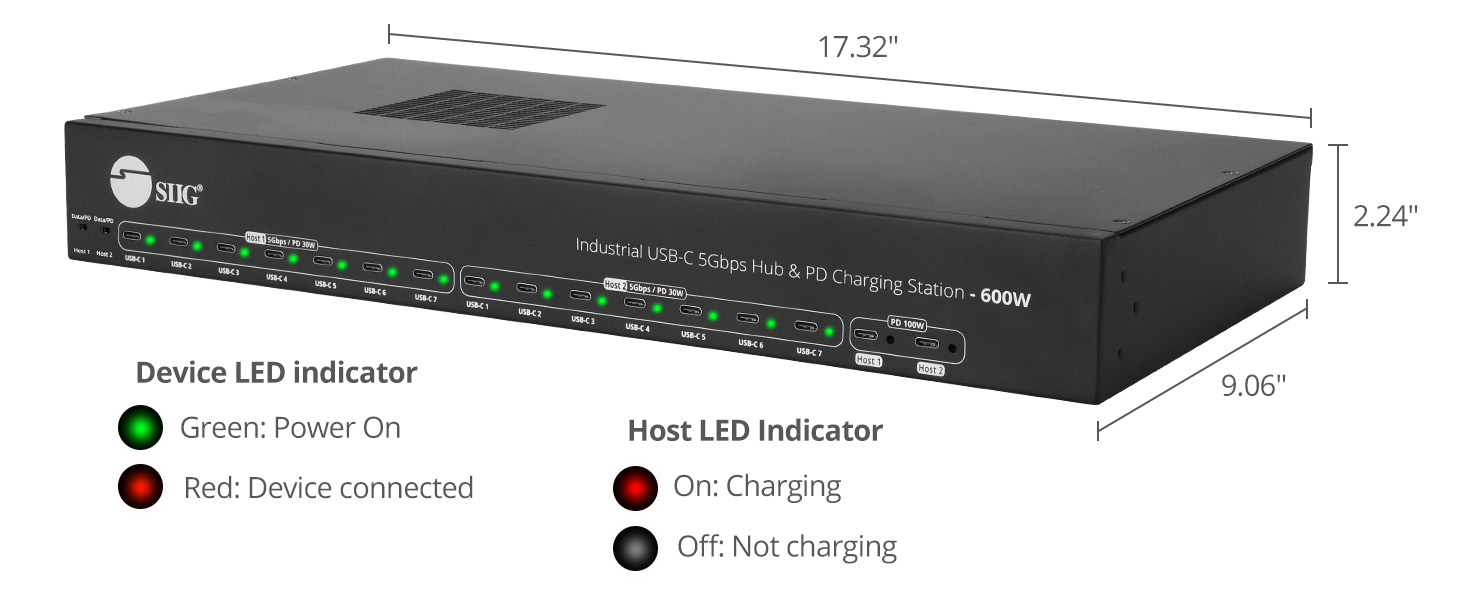

LED Indicator



---

Comparison Table

SKU	ID-US0B11-S3	ID-US0611-S1	ID-US0C11-S1	ID-US0A11-S1
Main Features	PD Charging Station + Hub	Charging Station + Hub	PD Charging Station	PD Charging Station
Total Power Supply (Max)	600W	200W	1000W	600W
Single USB Power Output (Max)	2x 100W and 14x 30W (5V/3A, 9V/3A, 12V/2.5A)	Up to 5V/2.1A	10x 100W / 15x 65W / 16x 60W (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A)	Up to 30W (5V/3A, 9V/3A, 12V/2.5A)
Power Input	110V, 50/60Hz	100-120V, 50/60Hz	100-120V, 50/60Hz	110V, 50/60Hz
Ports and Connections	16x USB-C	2x USB-B / 20x USB-A	16x USB-C	16x USB-C
Data Transfer (Max)	Up to 5Gbps	Up to 5Gbps	✗	✗
19” Rack Mountable	✓	✗	✓	✓
Protection	ESD/Short Circuit/Over Voltage/Over Current/ Over Heating	ESD/Short Circuit/Over Voltage/Over Current/ Over Heating	Short Circuit/Over Voltage/Over Current/ Over Heating	ESD/Short Circuit/Over Voltage/Over Current/ Over Heating
Automatic Temperature Control	✓	✗	✓	✓
Metal Housing	✓	✓	✓	✓
Certifications/Standards	UL, FCC, CE, RoHS	FCC, CE, RoHS	ETL, FCC, CE, RoHS	UL, FCC, CE, RoHS

---

Applications

Upgrade your charging experience with our Industrial Grade USB-C 5Gbps Hub & PD Charging Station- 600W. Say goodbye to clutter, slow charging, and unreliable hubs. Power up your productivity



Industrial Workstations: Charge and connect multiple devices for enhanced productivity



Educational Institutions: Equip classrooms and labs with efficient charging solutions

Healthcare: Charge laptops, tablets, smartphones, and wearables used by doctors, nurses, and other staff throughout the day; Provide power for portable ultrasound machines, blood glucose meters, and other diagnostic tools; Connect multiple devices like scanners, printers, and external hard drives for efficient data transfer and storage



Retail Environments: Power tablets and smartphones for point-of-sale systems

• Package Contents

---

Specifications

• Chipset: VL103R
• Internal Power Supply: 600W–24V Meanwell switching power supply
• Input:
• Input Voltage: 110V AC
• Frequency: 50Hz / 60Hz
• Input Current: 12A/115VAC
• USB-C Input: 2x USB-C port, Female with PD 100W
• Output
• USB Port: 14 x USB-C, Female, data transfer up to 5Gbps
• PD output power: 30W (5V/3A, 9V/3A, 12V/2.5A)
• Efficiency: VIN=24V, VOUT=5V/3A, Conversion Efficiency is 92%
• USB-C Protocol
• Support 5V / 9V / 12V Voltage output
• Support PD 2.0 / PD 3.0
• PPS support 3 to 11V, 20mV/step Voltage output
• Output specification
• Support USB-C PD output
• Support BC 1.2
• 2 port Host LED indicators:
• LED On: Charging
• LED Off: Not Charging
• 14 port USB-C LED indicators:
• RED color: Device connected
• GREEN color: Power On
• Output overcurrent protection: output >3.5 to 3.9A, USB port current output automatic disconnect
• Output overvoltage protection: When the output terminal voltage>16V or more due to an accidental cause, the TVS discharge on the terminal circuit causes the input circuit fuse to open, cutting off power to the circuit and thus protecting the equipment at this port
• Product:
• Dimensions: 17.32"(W) x 2.24"(H) x 8.07"(D)
• Weight: 6.38 lbs
• Color: Black
• Housing: Metal housing with standard 19 inch rack mounting
• Connectors:
• 1x AC Power Jack
• 1x Power Switch
• 2x USB Type-C, Female, for Host 1&2, PD 100W
• 14x USB Type-C, Female, data transfer up to 5Gbps, PD 30W
• Unit Package:
• Dimensions: 21.50"(W) x 2.76"(H) x 10.24"(D)
• Weight: 7.70 lbs
• Environmental conditions:
• Operating temperature: 14 to 131 degrees F
• Storage temperature: -4 to 158 degrees F
• Relative humidity: 20% to 90% RH (non-condensing)
• Working Altitude: Less than 2km
• Certifications/Standards: FCC, CE, RoHS, UL
• UL E183223
• UPC code: 662774-046617
• Warranty: 2 year limited
• Country of origin: China

---

Package contents

• 1x 16-port Industrial 600W USB-C PD Charging Station with 5Gbps USB Hub
• 1x Power cord
• 2x Mounting Bracket
• 8x Screws
• 2x USB-C to C cable(1m)
• 1x User Manual
