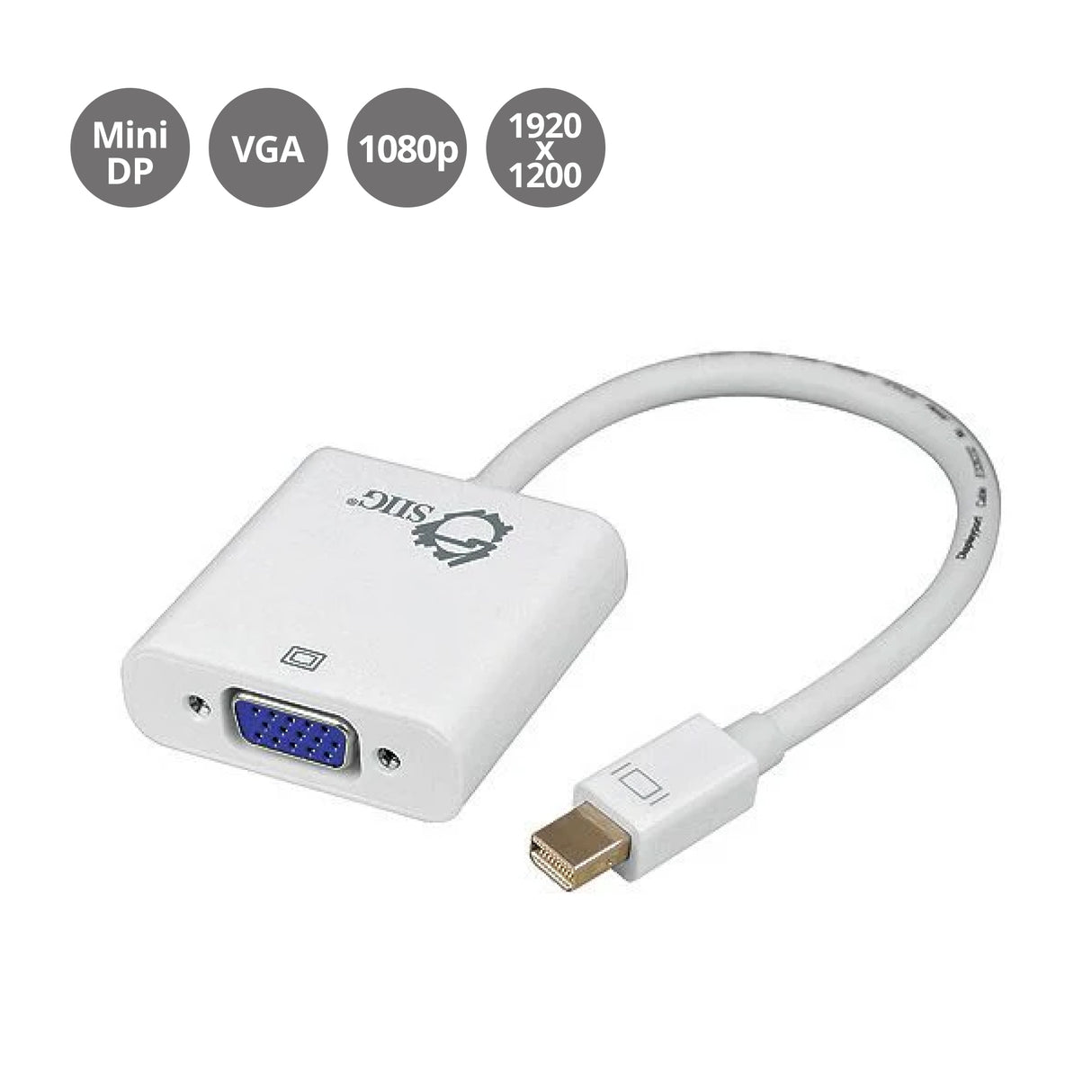

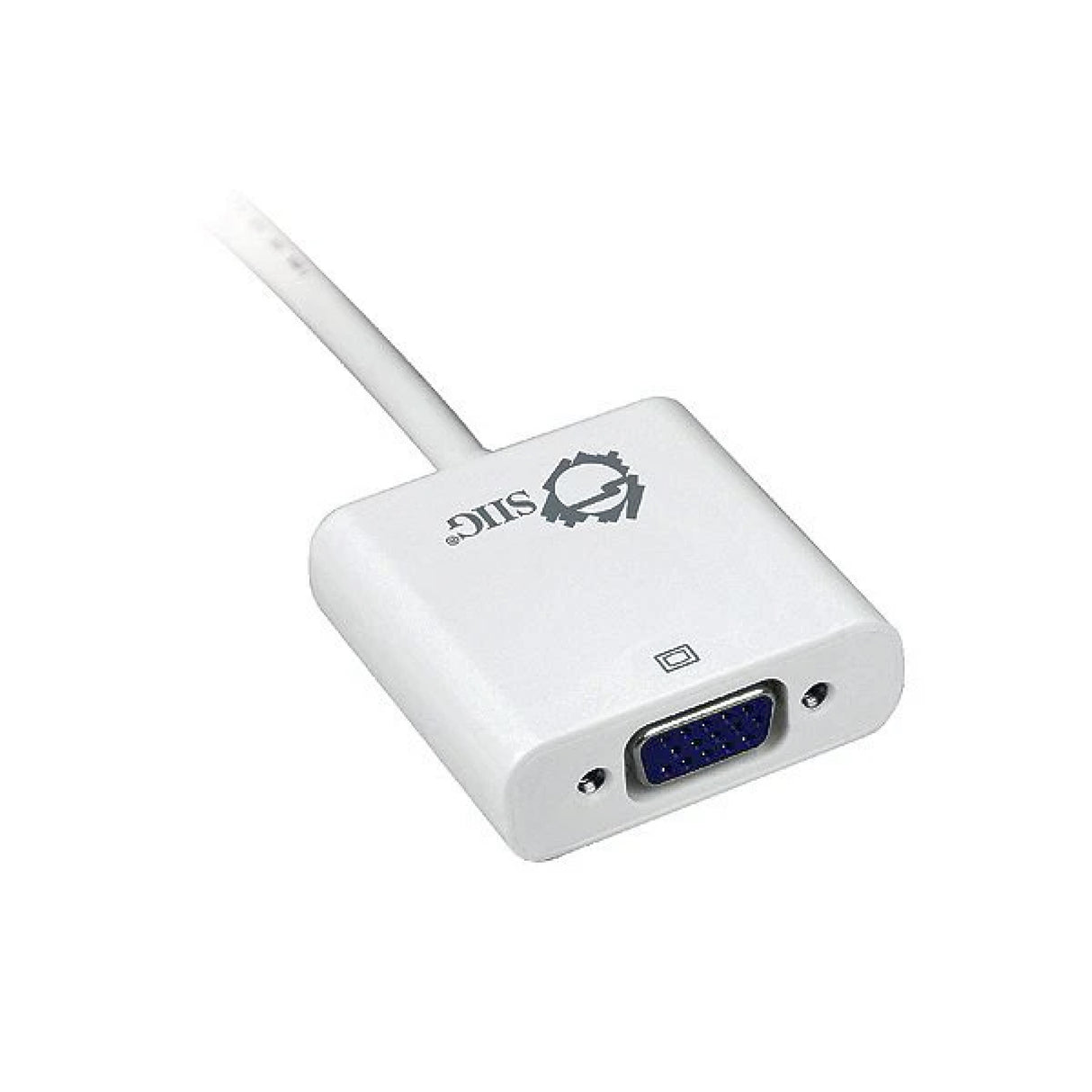

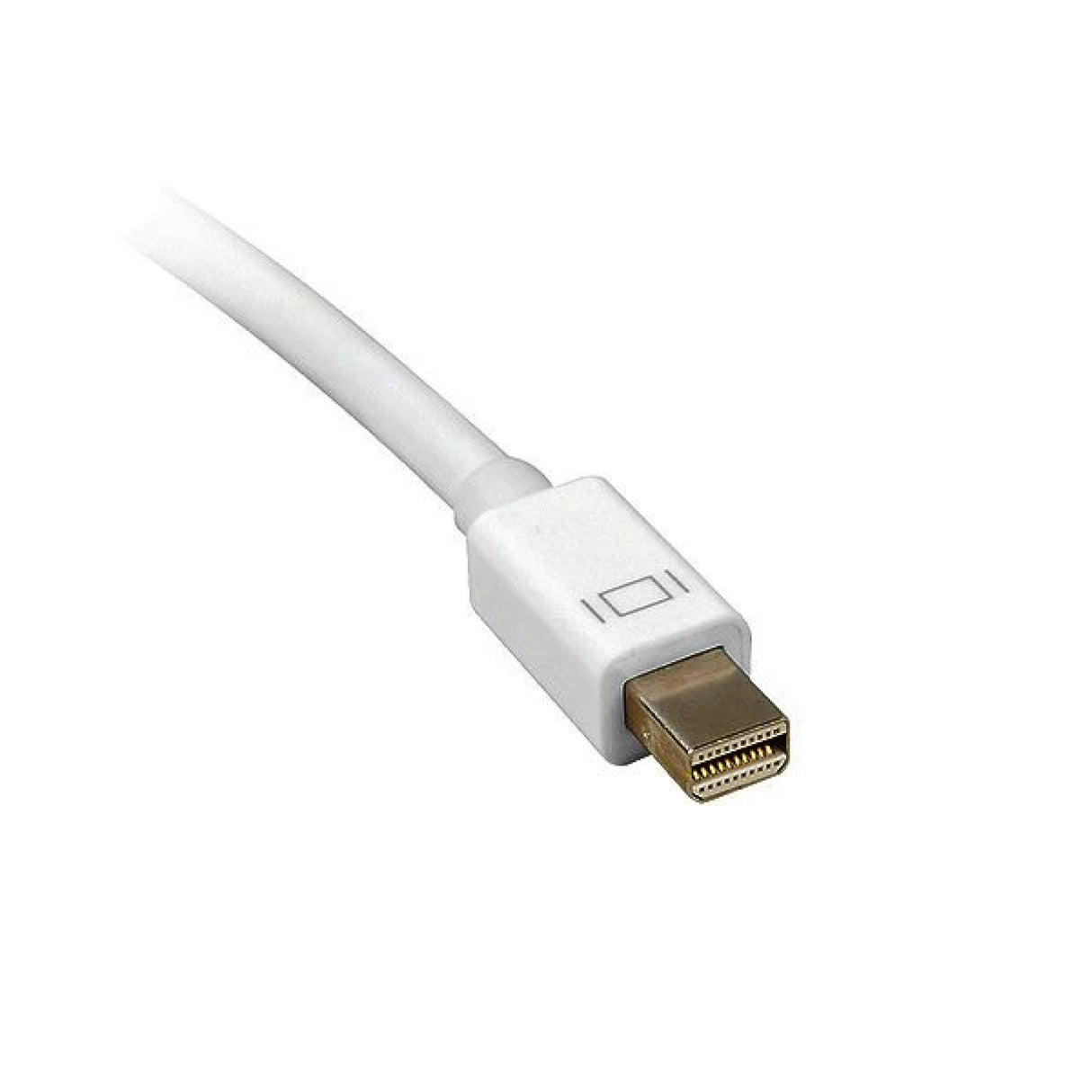

Mini DisplayPort to VGA Adapter Converter

Convert your mini DisplayPort output to VGA

In stock

Quantity in stock: 738

SKU

CB-DP0R11-S1

$24.99

Join our free Membership Program and save 5% off every order

We ship all orders within 1 business day

Contact us now for more information about our products

Lifetime technical support on all of our products

45-day return window and money-back guarantee

WARNING: This product can expose you to chemicals including Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Features Features Compatible with Intel^® Thunderbolt^™ Connect the latest mini DisplayPort equipped computer systems to VGA displays Compliant with DisplayPort standards, supporting 1.62Gbps and 2.7Gbps Supports 1080p and PC graphics resolution up to 1920x1200 Supports 8-bit per color RGB color format Supports full DisplayPort link training Supports EDID and MCCS pass-through Automatic monitor plug and unplug detect for VGA output Compact design with 8KV ESD protection

Specifications

Package Contents Specifications Chipset: Analogix ANX9833 Compliant with DisplayPort 1.1a receiver Configurable 1 or 2 lane operation Supports 1.62 and 2.7 Gbps data rates Supports Down Spread Spectrum (SSC) Display modes: PC: VGA, SVGA, XGA, SXGA, UXGA and WUXGA display modes HDTV: 480i, 576i, 480p, 576p, 1080i and 1080p Product: Overall length: 8.85" ± 0.6" (225mm ± 15mm) Cable length: 5.9" (150mm) Weight: 0.08 lbs Color: White Material: Plastic Connectors: 20-Pin Mini DisplayPort (male) to 15-pin VGA (female) Mini DisplayPort connector housing (L x W x H): 1.06" x 0.43" x 0.35" (27 x 11 x 9 mm) VGA connector housing (L x W x H): 1.77" x 1.77" x 0.59" (45 x 45 x 15 mm) Environmental conditions: Operating temperature: 32 to 140 degrees F Storage temperature: 14 to 158 degrees F Humidity: < 85% non-condensing Certifications/Standards: FCC, CE, RoHS Warranty: 3 years limited Country of origin: China Package contents Mini DisplayPort to VGA Adapter Converter

Channel Codes

Channel Codes

Ingram Micro: TY0852
Tech Data: 11327984
D&H: CBDP0R11S1
ASI: 148986
Synnex: 3760208
