HDMI Over IP Extender, Many to Many, IR control, 4K60Hz, 120m - Encoder (TX) for CE-H25C11-S1

• Features
• Applications
• Need to Know Before Buying

---

Overview

Transmits 4K HDMI signals from a source device and extends the signal through economical Cat5e/6/7 cabling to an HDMI display device up to 120 meters using advanced HDbitT technology, use with HDMI 4K60Hz Over IP Extender/Matrix with IR - Decoder (RX) (part # CE-H25C11-S1) sold separately

---

Features

Perfect solutions for matrixing and extending your HDMI signal with HDbitT over IP technology. Extends HDMI audio and video signals up to 394ft (120m) to remote 4K display/monitor



---

What is HDbitT?

HDbitT is a new generation audio/video digital connection transmission protocol solution. Provides stable performance, long-distance transmission, and high-definition signal



---

Extend Distance

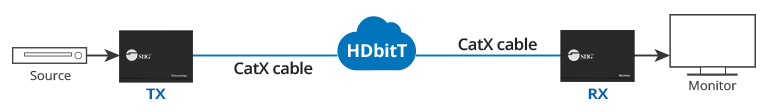

This HDMI 4K60Hz over IP Extender/Matrix with IR Kit designed for transmission/security, HDMI signals up to 394ft (120m) through HDbitT protocol and Gigabit Ethernet switch to a remote HDMI display



---

Highly Scalable

Works as a scalable TX/RX matrix over the dedicated IP network and allows up to 256 total units, limited to 100 units per transmitter, and extends/splits HDMI signals to multiple displays. The additional encoder (TX) unit (part#- CE-H25B11-S1) and decoder (RX) unit (part#- CE-H25C11-S1) is sold separately
*Note: IGMP Gigabit Switch is recommended for best performance and reliability













Multicasting connection

Transmitting data from multiple HDMI sources over an IGMP network switch to the intended Decoders (RXs) via Encoders (TXs)

---



4K HD Resolution

Supports high-definition video resolution up to 4K (3840x2160) @60Hz, HDCP 2.2 to deliver stunning crystal clear picture quality

---

IR Extension

IR pass-through feature allows remote control of the HDMI source device and playback function at the remote display

---

High Performance

Offers a true 18Gbps video bandwidth and supports stereo audio



---

Flexible Control

Easily switch and setup remote displays via front panel LED digital channel buttons or attached remote control, control via wireless APP and software. Configure the smartphone/tablet through the wireless APP, you can set up the connection, preview the HDMI source content, and edit the name of the connected device
*Note: Can not control the APP simultaneously when using more than one smartphone or tablet

---

Multiple Connectivity Ports

Comes with HDMI video input port, one RJ45 network port, one 3.5mm IR emitter port, one IR sensor, one reset button, Channel switch buttons, one DC power jack (5V/3A)



Connection



---



H.264 Compression

HDMI signal is encoded into H.264 to be sent through the network router or switch then decoded before arriving at the specified display. Ensures enough bandwidth is available to pass multiple HDMI signals over one network

---

Maximum Compatibility

Supports Plug-n-play. No driver installation required.
The reset button allows displays to be re-detected if no displays are detected

---

Metal Housing Design

Protects the inside PCBA, also enhance the heat dissipation for better performance. Military-grade component for long service life

---

ESD Protection

An ESD protection device protects a circuit from an Electrostatic discharge (ESD), in order to prevent a malfunction or breakdown of an electronic device

---

Applications

• Digital signage	• Broadcasting	• Video Conference room	• Show room	• Classroom	• Dental office
• Hospitality	• Supermarket	• Shopping center	• Sport bar	• Restaurant	• Retail
• Trade show	• Church	• Airport	• Control center	• Security center	• Surveillance control center

---

Need to Know Before Buying

1. Please confirm your computer or device with HDMI port



2. Check the extended display/monitor with HDMI port and supports 1080p@60Hz resolution



3. Please ensure using UTP Cat5e/6/7 cable for the best video quality and accurate transmission distance

4. IGMP Switch or Managed Ethernet Switch is recommended for the best performance and reliability

5. Encoder (TX) channel must be different, otherwise the system will be broken down

• Interface
• Package Contents

---

Specifications

Video
HDMI	1x input
Resolution	4K (3840x2160) @60Hz, HDCP 2.2
Transport protocol
HDbitT protocol	audio/video digital connection transmission protocol
Audio
Stereo audio from HDMI, support 192Kbps bit rate
IR pass-through
allows remote control of the HDMI source device and playback function at the remote display Full frequency: 20KHz to 60KHz
Power
Power adapter	Input: 100-240V/50-60Hz, Output: DC 5V/3A
UL listed	E335801/Level: VI
Environmental conditions
Operating temperature	32 to 122 degrees F
Storage temperature	14 to 158 degrees F
Relative humidity	0% to 90% RH (non-condensing)
Product Info
Encoder unit (TX)	Dimensions: 5.28” (L) x 0.93” (H) x 4.17" (W) Weight: 0.72lbs Color: black Housing material: metal
Unit package
Dimensions	7.83” (L) x 3.15” (H) x 5.87" (W)
Weight	1.56 lbs
Certifications/Standards
FCC, CE, RoHS, REACH
UPC code: 662774043098
Warranty: 2 years limited
Country of origin: China

---

Interface



Encoder unit (TX):

• 1x 19-pin, HDMI, Female (input)
• 1x 3.5mm infrared jack, IR emitter (output)
• 1x IR sensor
• 1x 8-pin, RJ45 (output)
• 2x Switch TX channel buttons, up/down
• 1x Reset button
• 1x DC power jack, 5V/3A

---

Package contents

• 1x HDMI 4K60Hz over IP Extender - Encoder (TX)
• 1x 3.5mm IR emitter extension cable
• 1x DC power adapter (5V/3A)
• 1x Installation kit
• 1x User Reference Guide
