HDMI HDbitT Over Cat6 Extender with IR & Loop-out - 120m

• Features
• Applications
• Need to Know Before Buying

---

Overview

Extends HDMI signals up to 120m over a single Cat6/7 cable with IR and HDMI Loop-out

---

Features

Extends HDMI audio and video signals to remote displays up to 394ft (120m) over UTP Cat6/7 cable using the best network transport protocol and IR remote control of source devices



---

High Performance
Offers a true 10.2Gbps video bandwidth and supports stereo audio



---

Extend Distance
This HDMI HDbitT over IP Extender designed for transmission/security, HDMI signals up to 394ft (120m) through HDbitT protocol and Gigabit Ethernet switch to a remote HDMI display



---

What is HDbitT?
HDbitT is a new generation audio/video digital connection transmission protocol solution. Provides stable performance, long-distance transmission, and high-definition signal



---

Full HD Resolution
Supports high-definition video resolution up to 1080p (1920x1080) @60Hz, HDCP 1.2 to deliver a clear picture quality

---

IR Extension
IR pass-through feature allows remote control of the HDMI source device and playback function at the remote display

---

Highly Scalable
Works as a scalable TX/RX matrix over the dedicated IP network and extends/splits HDMI signals to multiple displays. Allows up to 256 total units, the additional receiver unit (part#- CE-H24V11-S1) is sold separately

*Note: IGMP Gigabit Switch is recommended for best performance and reliability







VLAN setup supported
create a separate VLAN for each TX and its corresponding RX’s

---

Multiple Connectivity Ports
Comes with one HDMI video input port, one HDMI video loop-out port, one HDMI output port, two RJ45 network ports, one 3.5mm IR emitter port, one 3.5mm IR receiver port, two reset buttons, two DC power jacks (5V/1A)

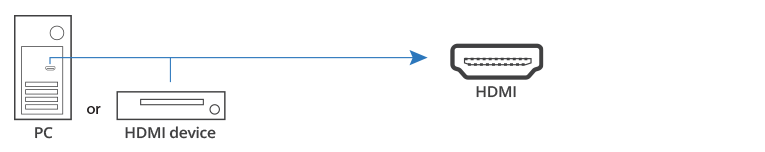

Connection



---

Maximum Compatibility
Supports Plug-n-play. No driver installation required The reset button allows displays to be re-detected if no displays are detected

---

Metal Housing Design
Protects the inside PCBA, also enhance the heat dissipation for better performance. Military-grade component for long service life

---

Applications

• Surveillance control center
• Security center
• Control center
• Digital signage
• Broadcasting
• Show room
• Video conference room
• Classroom
• Dental office
• Hospitality
• Supermarket
• Shopping center
• sport bar
• Restaurant
• Retail
• Trade show
• Church
• Airport

---

Need to Know Before Buying

1. Please confirm your computer or device with HDMI port



2. Check the extended and local displays/monitors with HDMI port and supports 1080p@60Hz resolution



3. Please ensure using UTP Cat6 or Cat7 cable for the best video quality and accurate transmission distance

4. IGMP Switch or Managed Ethernet Switch is recommended for the best performance and reliability

• Interface
• Package Contents

---

Specifications

Video
HDMI	1x input, 1x loop-out, 1x output
Resolution	1080p/1080i/720p/480i/480p @60Hz
Transport protocol
HDbitT protocol	Audio/video digital connection transmission protocol
Audio
Stereo audio from HDMI, support 192Kbps bit rate
IR pass-through
Allows remote control of the HDMI source device and playback function at the remote display Full frequency: 20KHz to 60KHz
Power
Power adapter	Input: 100-240V/50-60Hz, Output: DC 5V/1A
UL listed	E335801/Level: VI
Environmental conditions
Operating temperature	32 to 122 degrees F
Storage temperature	14 to 158 degrees F
Relative humidity	5% to 90% RH (non-condensing)
Product Info
Transmitter unit (TX)	Dimensions: 5.12” (L) x 0.89” (H) x 3.31" (W) Weight: 0.45lbs Color: black Housing material: metal
Receiver unit (RX)	Dimensions: 5.12” (L) x 0.89” (H) x 3.31" (W) Weight: 0.45lbs Color: black Housing material: metal
Unit package
Dimensions	7.83” (L) x 3.15” (H) x 5.87" (W)
Weight	1.58 lbs
Certifications/Standards
FCC, CE, RoHS, REACH
Warranty: 2 years limited
Country of origin: China

---

Interface



Transmitter unit (TX):

• 1x 19-pin, HDMI, Female (input)
• 1x 19-pin, HDMI, Loop-out, Female (output)
• 1x 3.5mm infrared jack, IR emitter (output)
• 1x 8-pin, RJ45 (output)
• 1x Reset button
• 1x Power LED
• 1x DC power jack, 5V/1A

Receiver unit (RX):

• 1x 19-pin, HDMI, Female (output)
• 1x 3.5mm infrared jack, IR receiver (input)
• 1x 8-pin, RJ45 (input)
• 1x Reset button
• 1x Power LED
• 1x DC power jack, 5V/1A

---

Package contents

• 1x HDMI HDbitT over Cat 6 Extender with IR & Loop-Out - 120m
• 1x 3.5mm IR emitter extension cable
• 1x 3.5mm IR receiver extension cable
• 2x DC power adapters (5V/1A)
• 1x User Reference Guide
