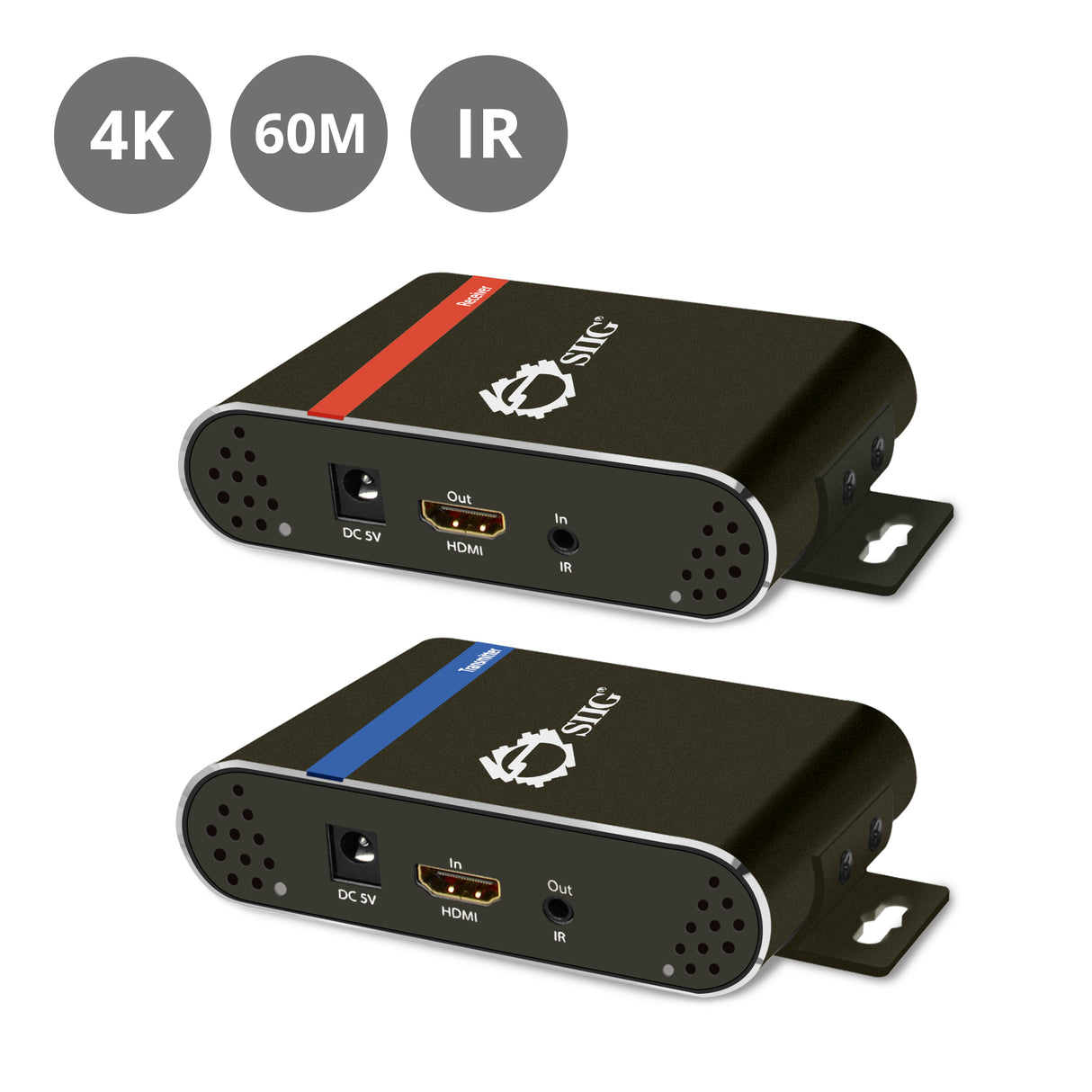

HDMI 4K Extender over Single CAT5e/6 Cable with IR - 60m

Extends 4K HDMI signal to a remote display up to 60m over a single CAT5e/6 cable with IR support
Clearance
Quantity in stock: 6
SKU
CE-H22N15-S1
$139.99

We ship all orders within 1 business day

Lifetime technical support on all of our products

45-day return window and money-back guarantee



    Features

    • Extends your HDMI A/V signals to a remote display up to 197ft (60m) away over economical CAT5e/6 cable.  Note: Does not work with a switch or a router

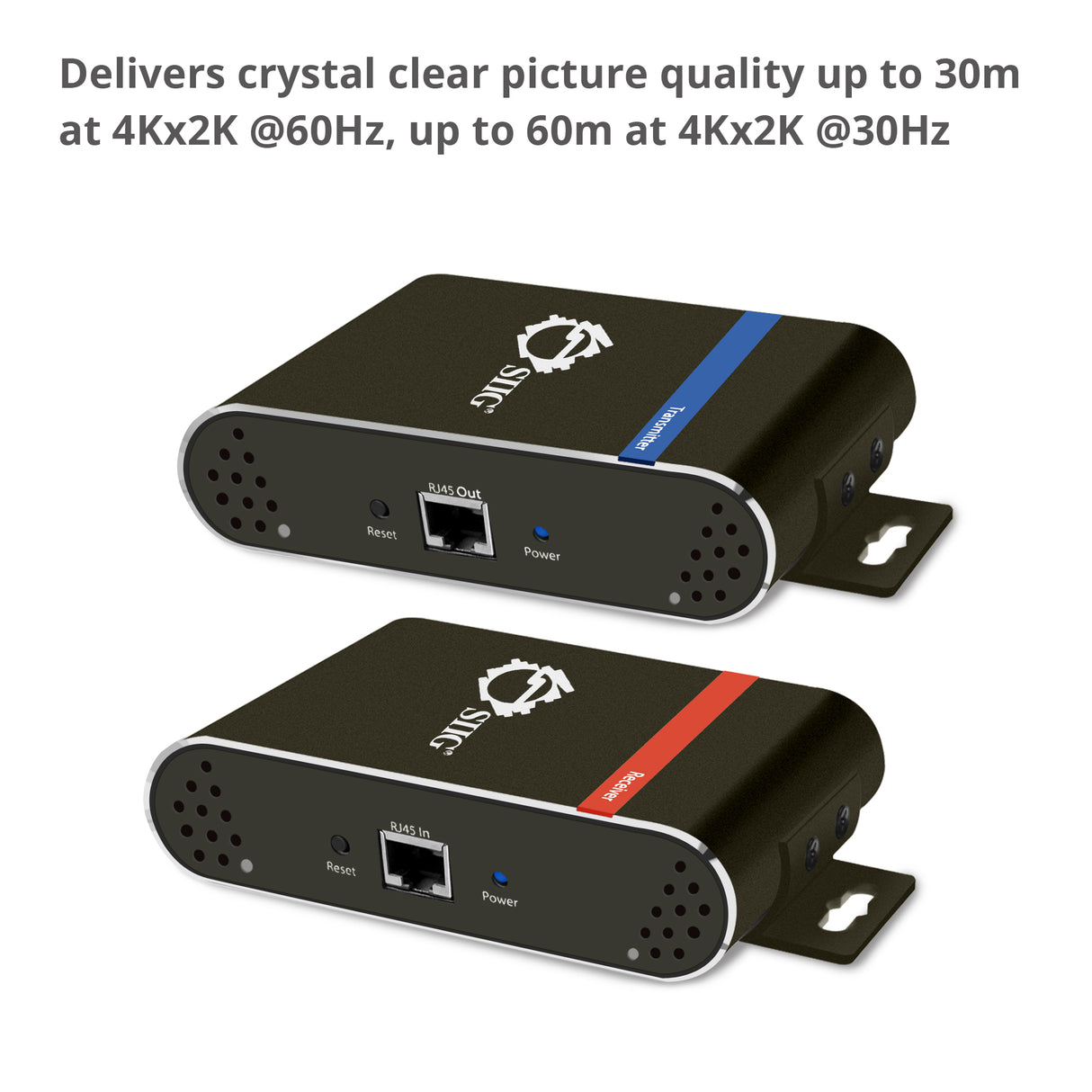

    • Transmits and extends crystal clear Ultra High Definition (4K UHD) picture quality up to 30m at 4Kx2K@60Hz YUV420 and up to 60m at 4Kx2K@30Hz YUV444

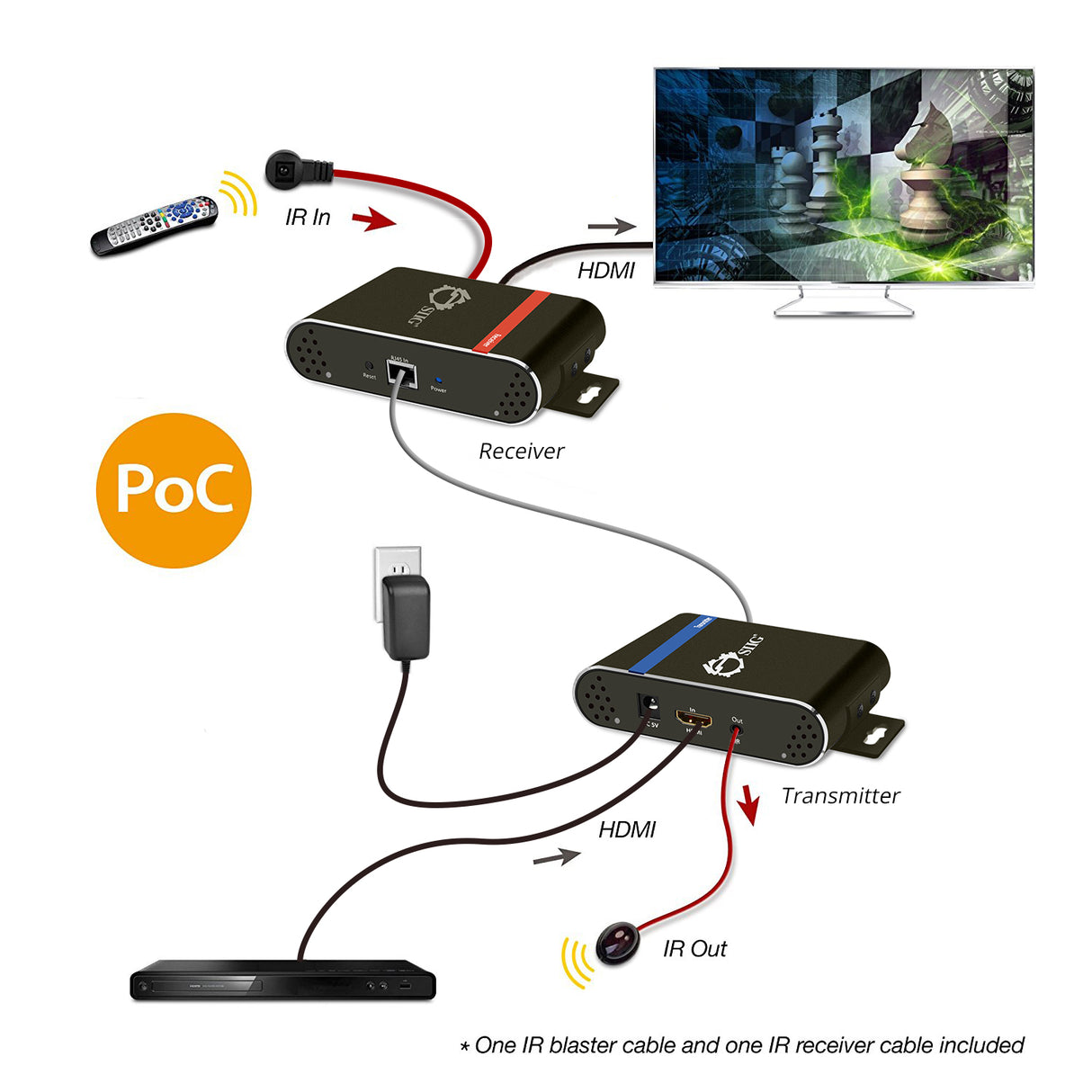

    • IR remote control extension technology allows you to remotely control the HDMI source device from the remote display side
    • Plug-n-Play installation, no software installation or hardware setup is required
    • Ultra-slim low profile color coded design with mounting brackets make it easy to be identified and integrated into versatile application environment
    • High quality metal housing with strategically positioned ventilation holes increase airflow to improve heat dissipation and ensure system stability and reliability during extended hours of operation
    • Built-in power indicator provides easy power status monitoring

    Specifications

    • Compatible with HDCP 2.2
    • Supports 2-Ch PCM stereo audio
    • Supports full frequency IR signal from 20KHz to 60KHz
    • Aluminum housing with wall mount design
    • Resolution: 480p / 720p / 1080i / 1080p / 2160p@30Hz YUV444, 2160p@60Hz YUV420
    • Distance:
      • 4Kx2K@30Hz (YUV444): up to 60m
      • 4Kx2K@60Hz (YUV420): up to 30m
    • Product:
      • Transmitter (TX):

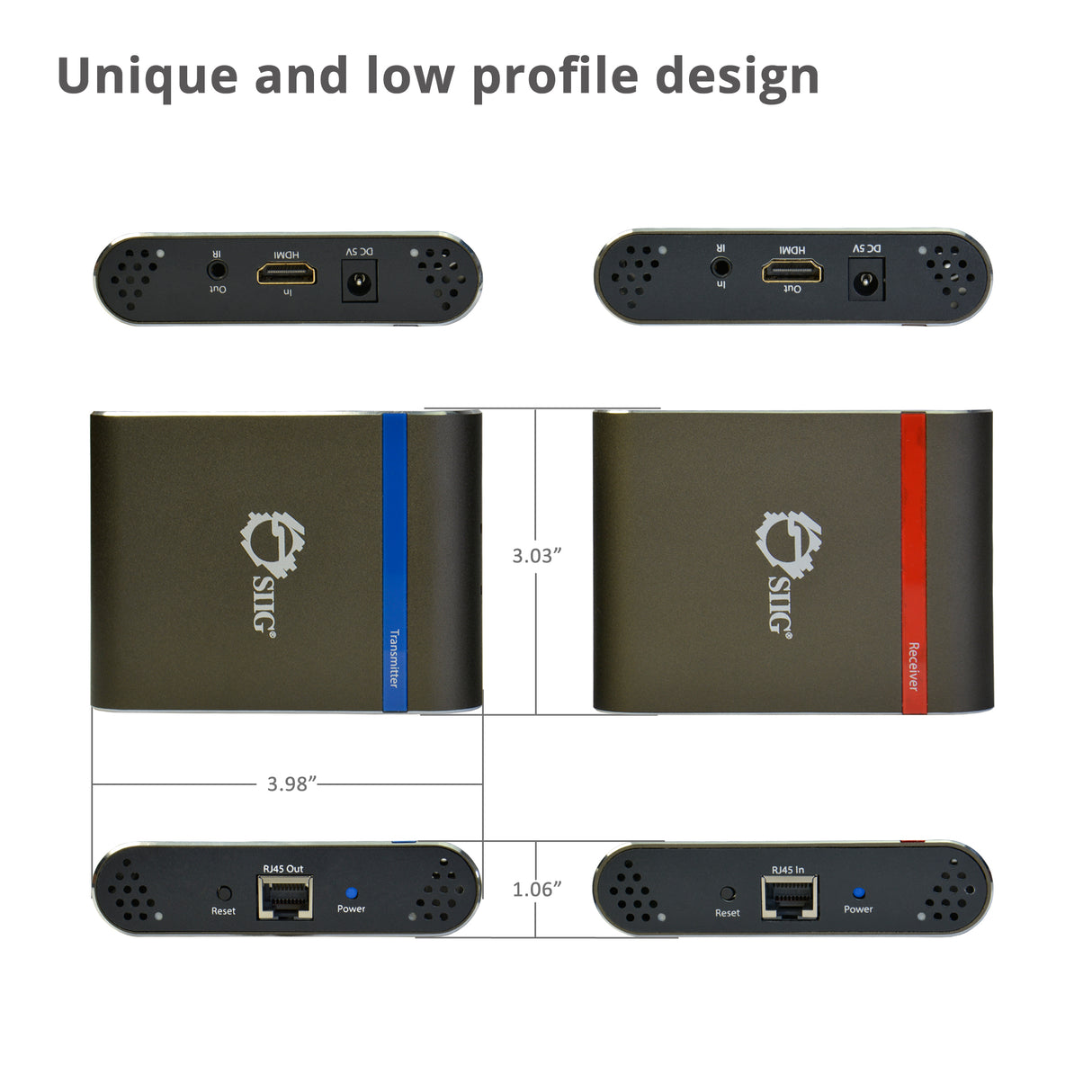

        • Dimensions: 3.94" (W) x 1.06" (H) x 3.03" (D)
        • Weight: 0.44 lbs

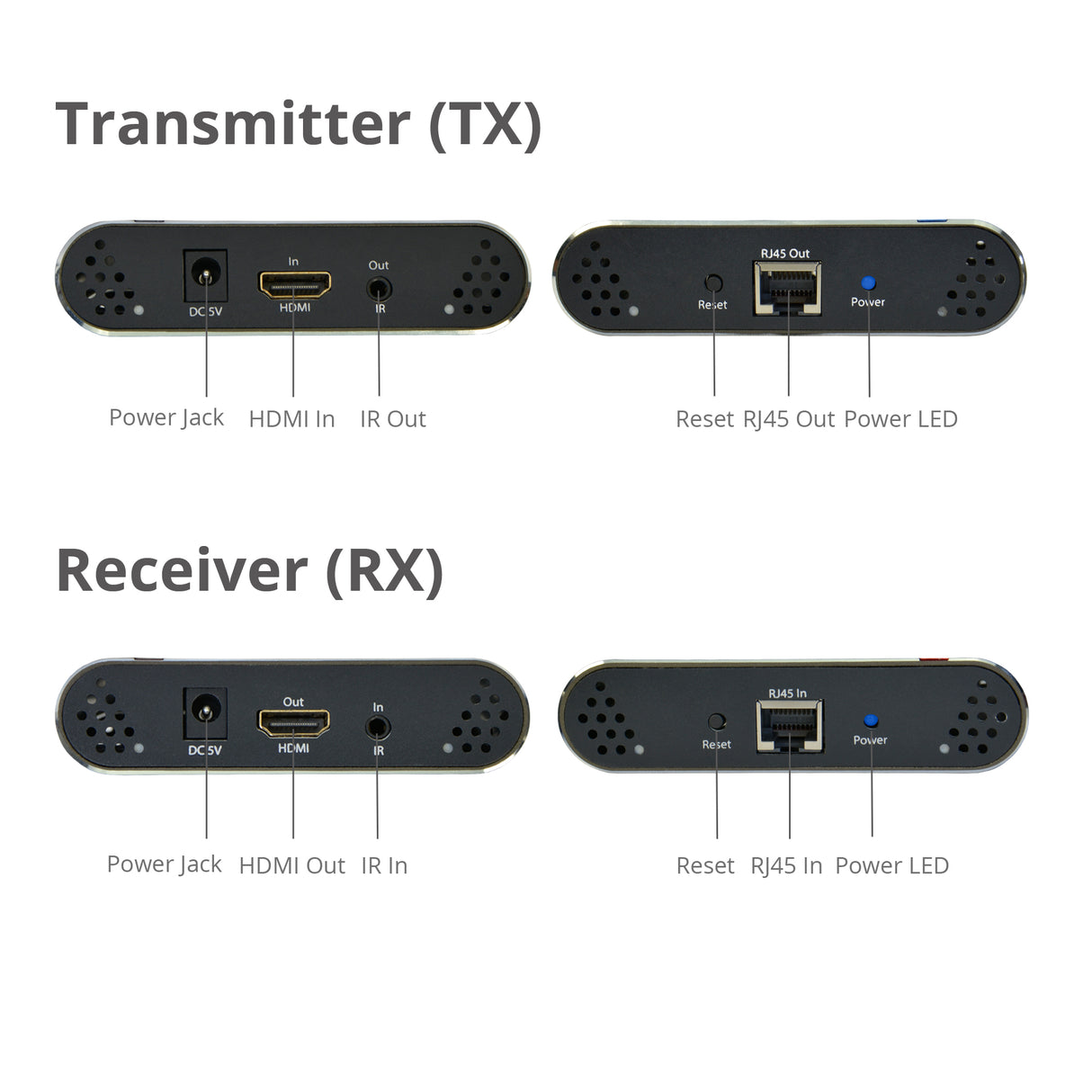

        • Connectors:
          • 1x 19-pin HDMI, Type A, Female, Input
          • 1x 3.5mm Jack, IR Blaster
          • 1x 8-pin, RJ45, output
          • 1x Power Jack
          • 1x Reset Button
      • Receiver (RX):
        • Dimensions: 3.94" (W) x 1.06" (H) x 3.03" (D)
        • Weight: 0.44 lbs
        • Connectors:
          • 1x 19-pin HDMI, Type A, Female, Output
          • 1x 3.5mm Jack, IR Receiver
          • 1x 8-pin, RJ45, Input
          • 1x Reset Button
          • 1x Power Jack
    • Power Adapter:
      • Input: 100-240VAC / 50-60Hz
      • Output: 5VDC / 1A
    • Environmental Conditions:
      • Operating Temperature: 32 to 104 degrees F
      • Storage Temperature: 14 to 158 degrees F
      • Relative Humidity: 5% to 90% RH (non-condensing)
    • Certifications/Standards: FCC, CE, RoHS
    • Warranty: 2 years limited
    • Country of Origin: China

    Note: Does not work with a switch or a router

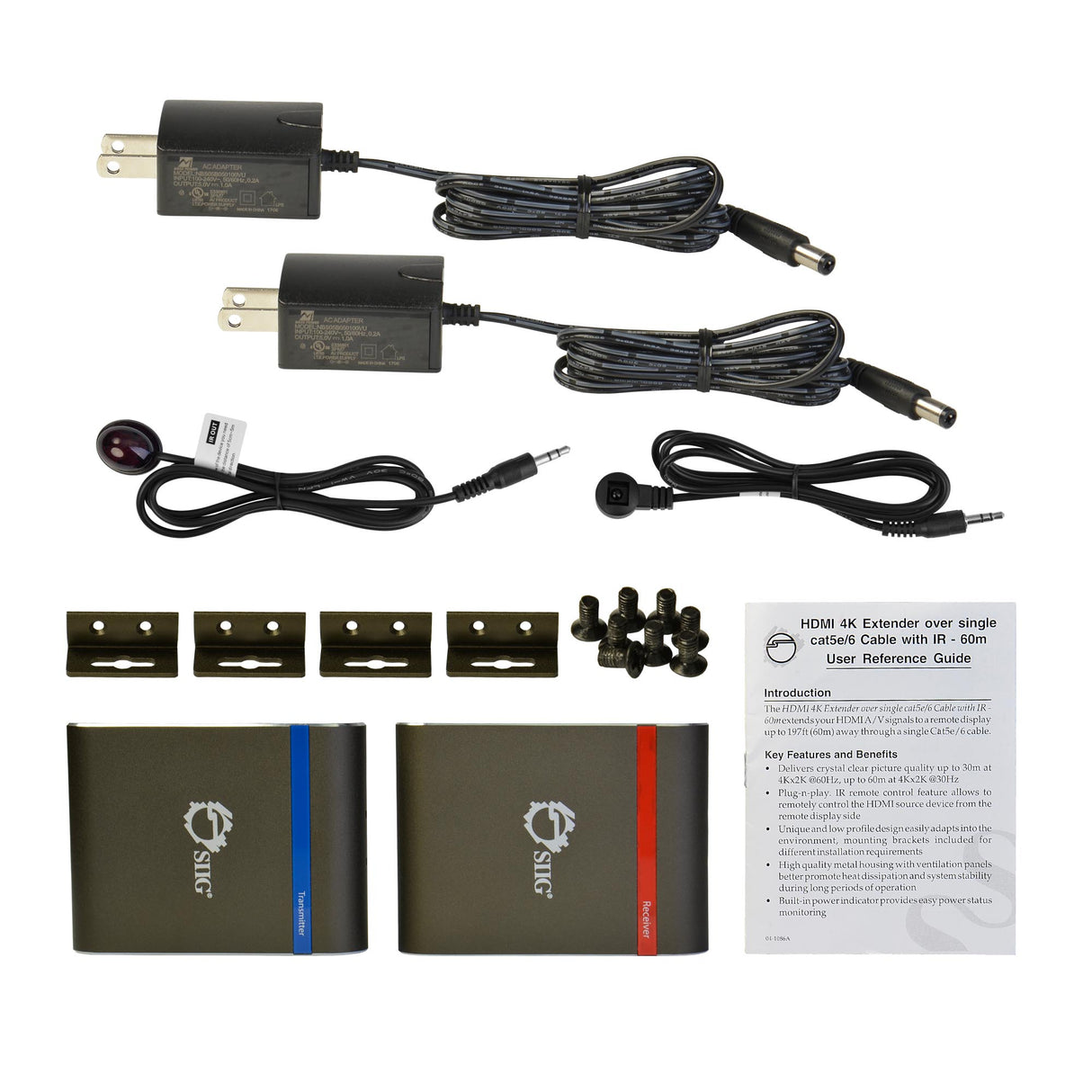

    Package contents

    • HDMI 4K Extender over single CAT5e/6 Cable with IR - 60m (TX and RX)
    • Power adapter (2pcs)
    • IR Blaster extension cable and IR Receiver extension cable
    • Mounting ears and Screw kit
    • User Reference Guide
