Full HD Wireless HDMI KVM Extender with Loop out

• Features
• Applications
• Need to Know Before Buying

---

Overview

Transmits 1080p HDMI signals wirelessly up to 500ft (150m) with IR control, keyboard and mouse control, and local HDMI loop-out

---

Features



Wirelessly extend or mirror HDMI audio and video signals up to 500ft (150m) via one set of keyboard and mouse without latency. Add IR extension for remote control of your video source and HDMI loop out allows local monitoring of the extended display

---

Wireless Long-Range Extension



Wireless 2.4G technology reliably extends HDMI and USB signals up to 500ft (150M) through line-of sight to a remote HDMI display

*Note: The transmission distance will vary depending on building layout, electronic, interference, walls and partitions, other environmental conditions, and may be much less than the maximum




Dual Antenna Design

Dual 5dBi antenna with 2T2R data rate MIMO (Multiple-Input Multiple-Output) technology prevents signal interference and provides optimal reception quality

*Note: 2T2R (2 Transmitters and 2 receivers): supports fast upload and download speed



---



Full HD Resolution

Supports vivid, high-definition video up to 1080p @60Hz Full HD resolution and streaming flawless 2-ch R/L stereo audio. Compatible with HDCP 1.4

---

High Performance



---

IR Extension Modules

Allows remote controlling the HDMI source device and playback at the distant display. Supports an IR signal in the 20-60Hz carrier frequency



---

HDMI Local Output

HDMI loop-out on the transmitter to connect to a local display for monitoring

---

Multiple Connectivity Ports



Transmitter:

Comes with two 5dBi antennas, one HDMI video input port, one HDMI loop-out, one 3.5mm IR blaster output port, one Micro USB 2.0 for PC USB host and one DC 5V/2A power jack, and one power button

Receiver:

Comes with two 5dBi antennas, one HDMI video output, one 3.5mm IR receiver input port, two USB Type-A for keyboard & mouse, one DC 5V/2A power, and one power button

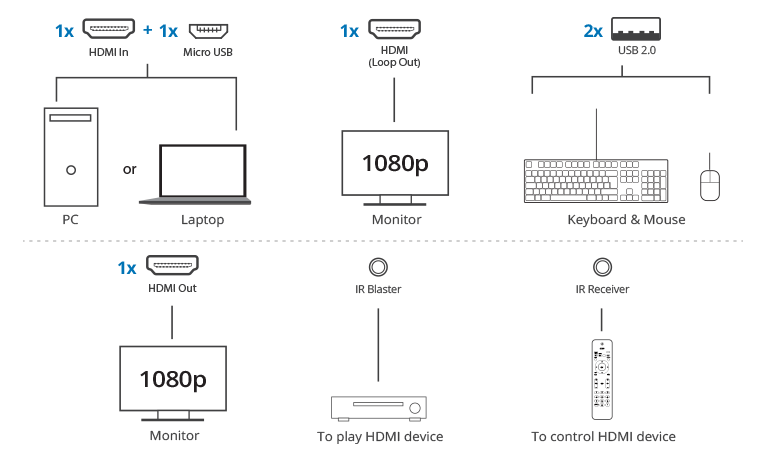

Connection



---



USB Data Transfer

Provides 3 additional USB 2.0 ports, the two USB 2.0 Type-A on the receiver to connect one set of keyboard and mouse at the extended location for remotely operate your PC system; the one Micro USB on the transmitter to connect a USB 2.0 host

---

Maximum Compatibility

Supports Plug-n-play, minimizes EMI/RFI noise interference, and hassle-free set up without complicated hardware or driver installation

---

Metal Housing Design

Protects the inside PCBA, also enhance the heat dissipation for better performance. Military-grade component and ESD protection for long service life

---

Applications

• Meeting room	• Church	• Restaurant	• Lecture hall	• Shopping center	• Library
• Home Theater	• Show room	• Digital signage	• Multimedia education

---

Need to Know Before Buying

1. When many networks are located closely together that will affect the wireless network. If you have multiple wireless networks in your home, please set the distance to 2 meters to avoid signal interference

2. When have walls or objects blocking the line of sight between transmitter and receiver, the signal will be significantly reduced

3. Different building materials will block the wireless signal, the most weakened by having to go through thick walls, especially reinforced concrete

4. Please confirm your computer with HDMI and USB 2.0 Type-A ports



5. Check the extended and local displays/monitors with HDMI port, if you are not sure, please check with the manual of the monitor



6. HDMI cable and Micro USB to USB-A cable are required to connect to the HDMI and USB host

7. Before using, please connect the two powers adapter to provide enough power

• Interface
• Package Contents

---

Specifications

Wireless
Bandwidth	2.4GHz
Transmission distance	500ft (150m) line-of-sight *Note: The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less thab the maximum
IR Control
Frequency rate	20-60Hz
Video
HDMI	HDCP 1.4
Bandwidth	Up to 10.2Gbps
Resolution	1920x1080 @60Hz
Audio
PCM 2-channel stereo audio
Power Adapter
Input	AC 100-240V / 50-60Hz
Output	DC 5V/2A
UL Listed	STD1310:2011/Class: VI
Environmental conditions
Operating temperature	32 to 104 degrees F
Storage temperature	-4 to 158 degrees F
Relative humidity:	0% to 90% RH (non-condensing)
Product Info
Transmitter unit:
Dimensions:	6.05” (L) x 0.83” (H) x 3.15” (W)
Weight	0.71 lbs
Color	Black
Receiver unit:
Dimensions:	6.05” (L) x 0.83” (H) x 3.15” (W)
Weight	0.71 lbs
Color	Black
Housing material	Metal
Unit Package
Dimensions	11.41” (L) x 2.17” (H) x 9.45” (W)
Weight	2.38 lbs
Certifications/Standards
FCC, CE, RoHS
Warranty: 2 years limited
Country of origin: China

---

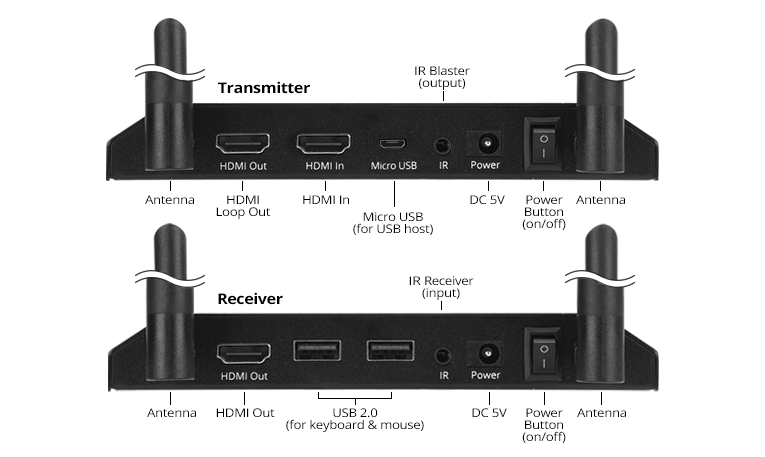

Interface



Transmitter unit (TX):

• 1x 19-pin, HDMI, Female (input)
• 1x 19-pin, HDMI, Loop out, Female
• 1x 5-pin, Micro USB, USB 2.0 (for PC USB host)
• 1x 3.5mm infrared jack (IR output)
• 1x DC 5V/2A power jack
• 1x Power button
• 2x Wi-Fi antenna jack, MIMO 2x2, 2.4G bandwidth

---



Receiver unit (RX):

• 1x 19-pin, HDMI, Female (output)
• 2x 4-pin, USB 2.0 Type-A, Female (for keyboard & mouse)
• 1x 3.5mm infrared jack (IR input)
• 1x DC 5V/2A power jack
• 1x Power button
• 2x Wi-Fi antenna jack, MIMO 2x2, 2.4G bandwidth

---

Package contents

• 1x Full HD Wireless HDMI KVM Extender with Loop out (1x TX & 1x RX)
• 1x IR blaster cable
• 1x IR receiver cable
• 2x DC power adapter (5V/2A)
• 1x User Reference Guide
