8K Ultra High Speed HDMI Cable - 10ft (3M) - 48Gbps - 8K 60Hz/4K 120Hz - HDR10+ - eARC - Dynamic HDR - HDCP 2.3- Ultra HD 8K HDMI Cable - Zinc alloy

• Features
• Applications
• Need to Know Before Buying

---

Overview

Supports Ultra High Definition 8K video signal transmission, Bandwidth up to 48Gbps, 8K@60Hz / 4K@120Hz, HDR10+, Dynamic HDR, Dolby Atmos, DTS:X, eARC, Ethernet, CEC, Zinc alloy housing, Gold-plated connectors

---

Features

This Ultra High Speed HDMI cable, featuring the latest, higher bandwidth, and most advanced video and audio technologies, connects your devices to TV or display, enhancing your viewing experience and video quality. It supports 4K@120Hz and 8K@60Hz resolutions, high refresh rate, dynamic HDR, advanced audio formats, variable refresh rate (VRR), auto low latency mode (ALLM), Quick Media Switching (QMS), Quick Frame Transport (QFT), and eARC





---



8K/4K UHD Video Resolution

Support higher resolutions and refresh rates, such as 8K@60Hz and 4K@120Hz resolution, ensure smoother and more detailed video playback, especially for high-end gaming and fast-motion content



---

Dynamic HDR

Automatically adjusts the HDR (High Dynamic Range) settings of the TV or display to match the content that is being played and improves contrast and color accuracy



---

Higher Perfomance

Provides a bandwidth of up to 48Gbps, allow to support the transmission of high-resolution video, audio, and advanced features with optimal quality and performance. Backward compatible with previous versions



---

Reduced Screen Tearing

VRR (Variable refresh rate) prevents screen tearing for a smoother gaming experience by dynamically adjusting the refresh rate of the TV or display to match the frame rate of the source device



---

Low Latency

ALLM (Auto low latency mode) automatically sets the TV's latency to the lowest possible setting for gaming and reduces input lag, which can make it difficult to play games that require precise timing

---

Reduces Time

Quick Frame Transport (QFT) reduces latency by optimizing data transmission for faster frame delivery between the source device and the TV or display. It enhances the responsiveness of the TV or display, which can be helpful for playing fast-paced games

---



Faster Switch

QMS (Quick Media Switching) reduce the delay between when a source device sends a signal and when the TV or display starts displaying it. For example, if you are playing a game on a console and then want to switch to watching a movie on a streaming device, QMS can help to reduce the amount of time it takes for the TV or display to switch inputs

---

Connection Ports

Features two HDMI Ultra High Speed ports for faster data transfer, sharper images, and more stable connections



---

Enhance Audio

eARC is an updated version of the ARC (Audio Return Channel), simplifies the transfer of uncompressed high quality audio formats such as Dolby Atmos and DTS:X from your TV to an AV receiver



---

Durable and reliable design

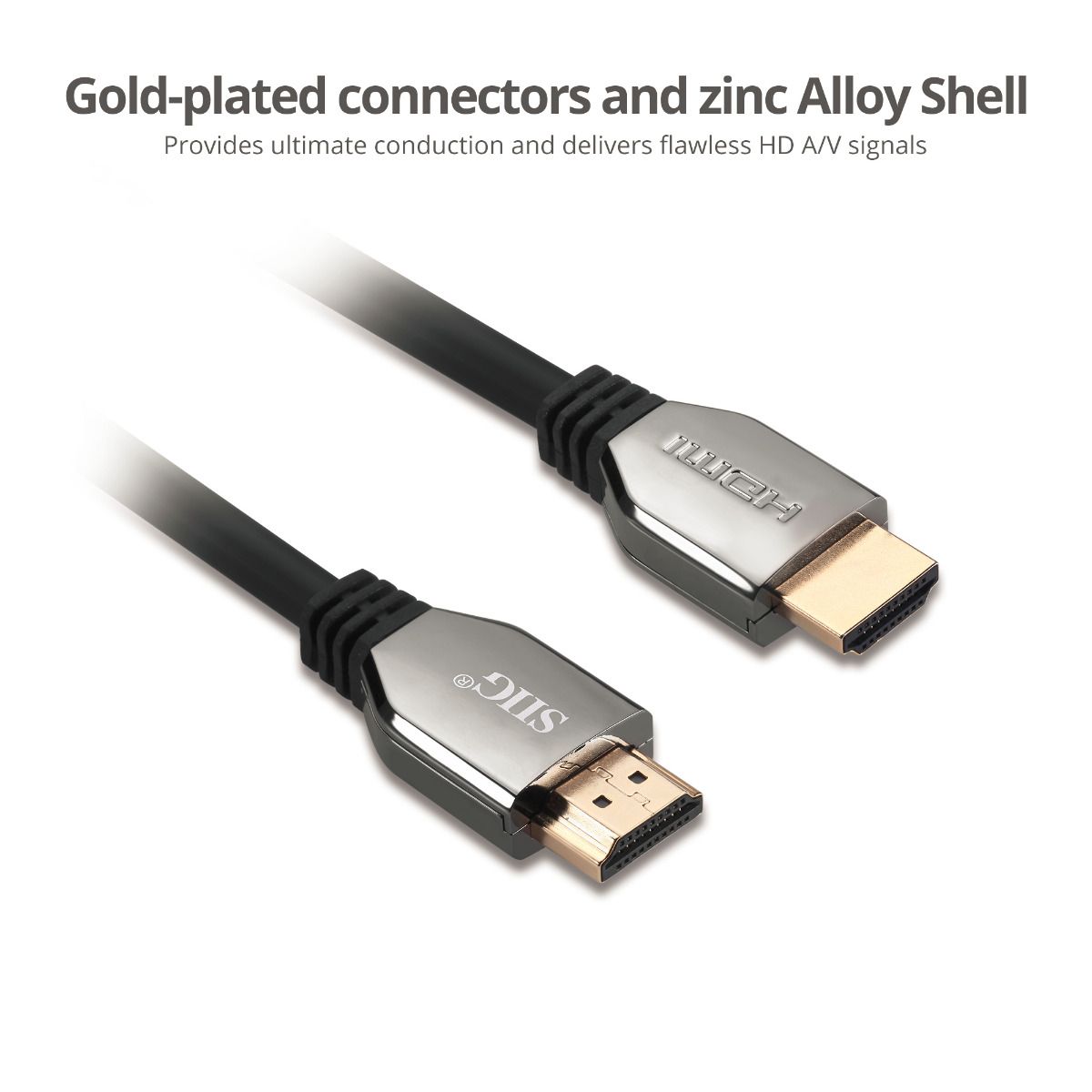

This HDMI Ultra High Speed cable features a zinc alloy shield and PVC cable jacket material to protect data transmission with high quality. The triple-shielding to protect the signal from external interference, EMI and RFI. The gold-plated connectors to ensure a solid and corrosion-resistant connection

---

Applications

• Office
• Conference room
• Presentation room
• TV broadcasting
• Home entertainment
• Medical center
• Auditorium
• Lecture hall
• Classroom
• Gaming room
• Security room
• Surveillance control center

---

Need to Know Before Buying

1. Please confirm your device, such as computer or game console, with a HDMI Ultra High Speed port. If you are not sure, please check on the manual of the devices



2. Check the display or TV has a HDMI Ultra High Speed port and support 8K@60Hz or 4K@120Hz resolution. If you are not sure, please check with the manual of the monitor or TV



3. If you want to use the eARC feature, please make sure your TV supports eARC

4. Make sure that the cable is the right length for your needs. SIIG offers lengths of 3.3ft (CB-H21411-S1), 6.6ft (CB-H21511-S1) and 10ft (CB-H21611-S1) for your best choice

• Interface
• Package Contents

---

Specifications

Video
Input	1x HDMI, 19-pin, male
Output	1x HDMI, 19-pin, male
Bandwidth	Up to 48Gbps
Resolution	Standard (4:3 & 5:4):2048x1536, 1600x1200, 1440x900, 1280x1024, 1280x960, 1024x768, 800x600 Widescreen (16:9 & 16:10): 7680x4320, 4096x2160, 3840x2160, 2560x1600, 2560x1440, 2048x1152, 1920x1200, 1920x1080, 1680x1050, 1600x900, 1366x768, 1280x768, 1280x720
Color depth	48-bit Deep Color
Advanced Features of HDMI
eARC, Ethernet, VRR, ALLM, QFT, and QMS
Audio
Supports 7.1 surround sound from HDMI port and uses up to 32 channels
Audio format: Dolby Atmos, Dolby TrueHD, DTS:X, and DTS Master
Environmental conditions
Operating temperature	32 to 122 degrees F
Storage temperature	14 to 149 degrees F
Relative humidity:	5% to 90% RH (non-condensing)
Product Info

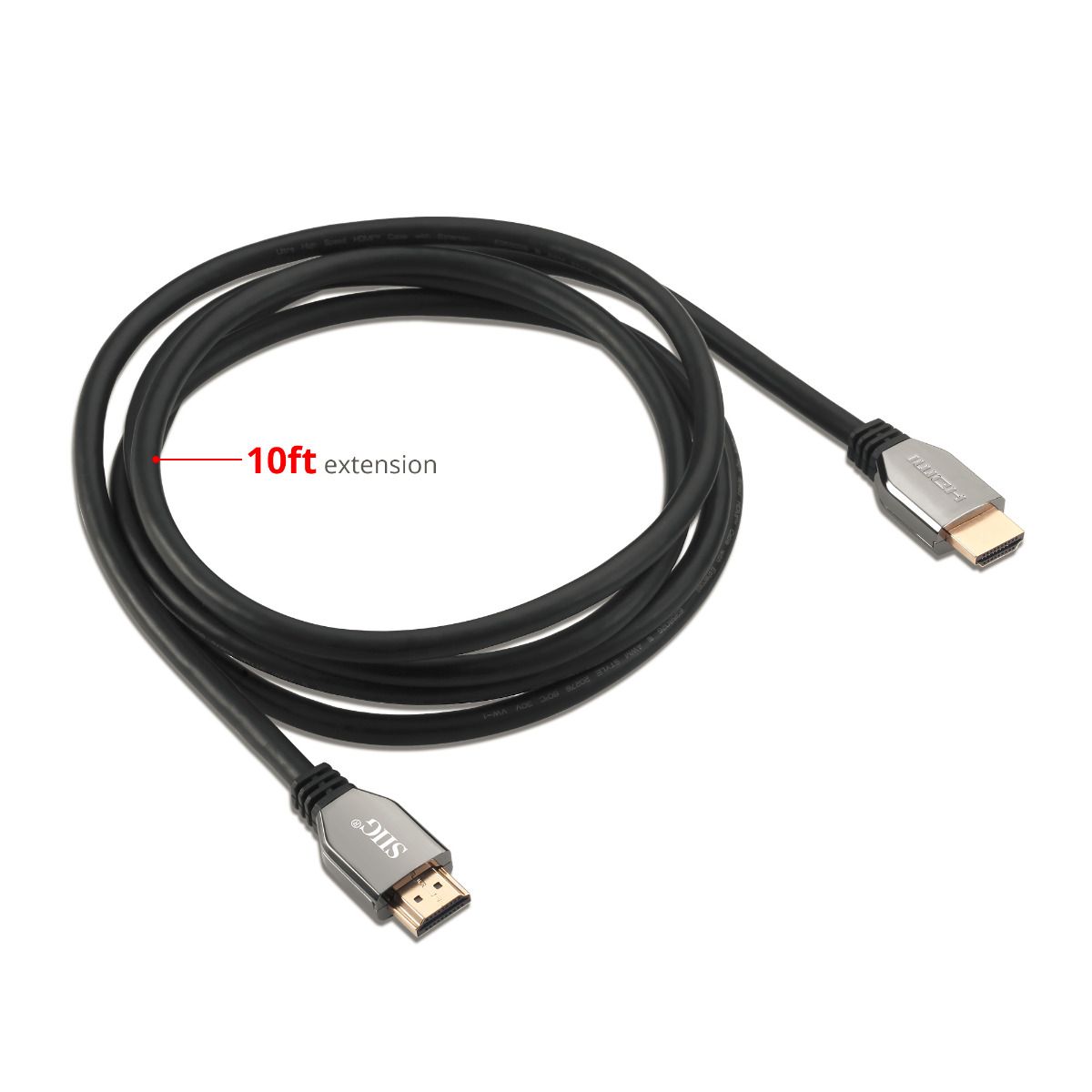

Length	10ft (3m)
Weight	0.32 lbs
Wire gauge	30AWG
OD	6.3mm
Color	Black
Connector plating	Gold
Cable jacket material	PVC
Cable shield material	Zinc alloy
Unit Package
Dimensions	8.27” (W) x 9.05” (H) x 1.5” (D)
Weight	0.34 lbs
Certifications/Standards
RoHS and REACH
Warranty: 2 years limited
Country of origin: China

---

Interface



Input

• 1x 19-pin, HDMI, male

Output

• 1x 19-pin, HDMI, male

---

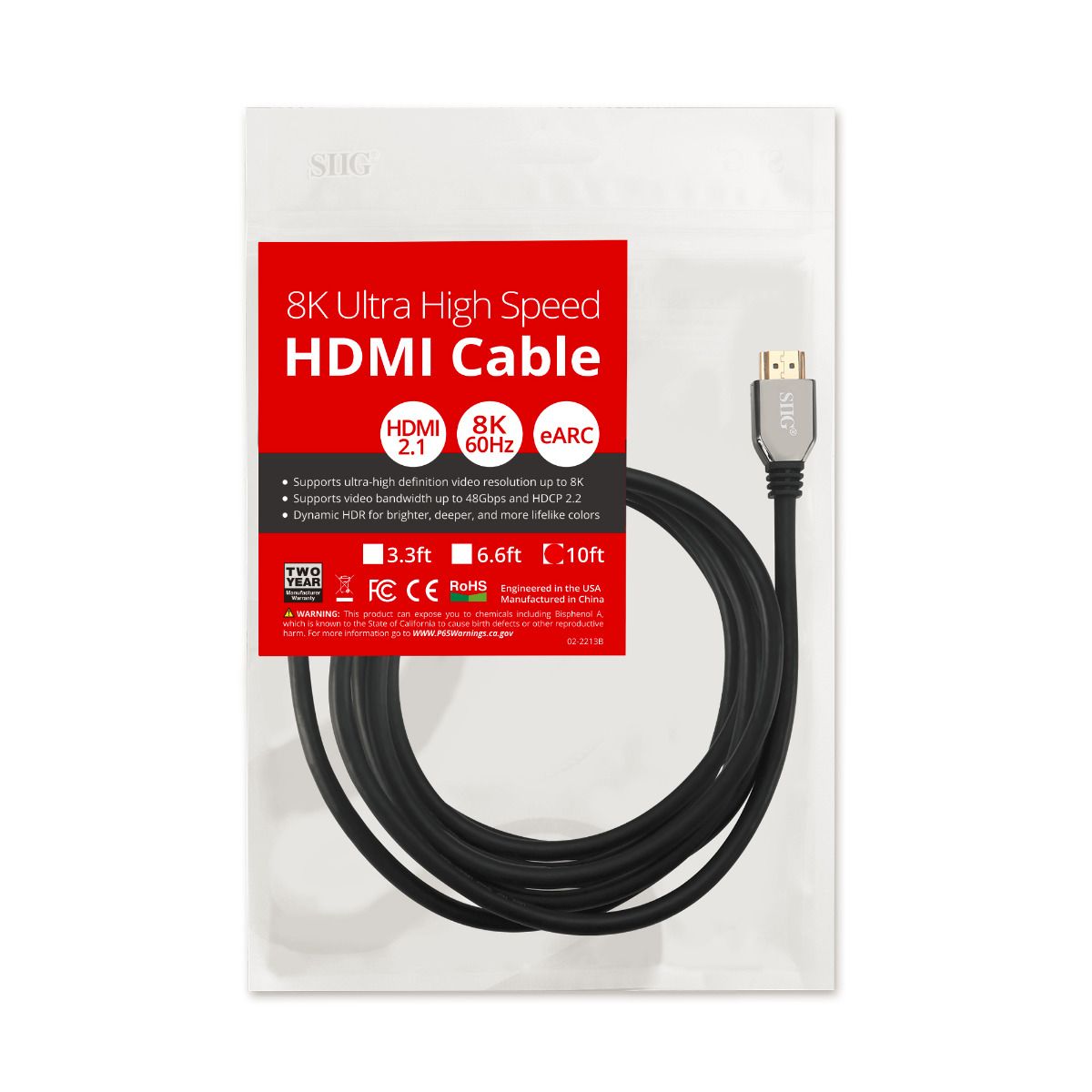

Package contents

• 1x 8K Ultra High Speed HDMI Cable - 10ft
