4K HDMI USB KVM Extender over Cat6 - Up to 230 feet - Zero Latency - ESD Protection - Metal Housing

• Features
• Applications
• Need to Know Before Buying

---

Overview

HDMI KVM Extender transmits HDMI 1080p and USB signals up to 230ft (70m) over single Cat6/7 cable with zero latency, and 4K@30Hz up to 130ft (40m), allows you to control computer from a remote location with a USB keyboard and mouse, HDCP 1.4, HDR 10, Reset Button, ESD Protection, Metal Housing

---

Features

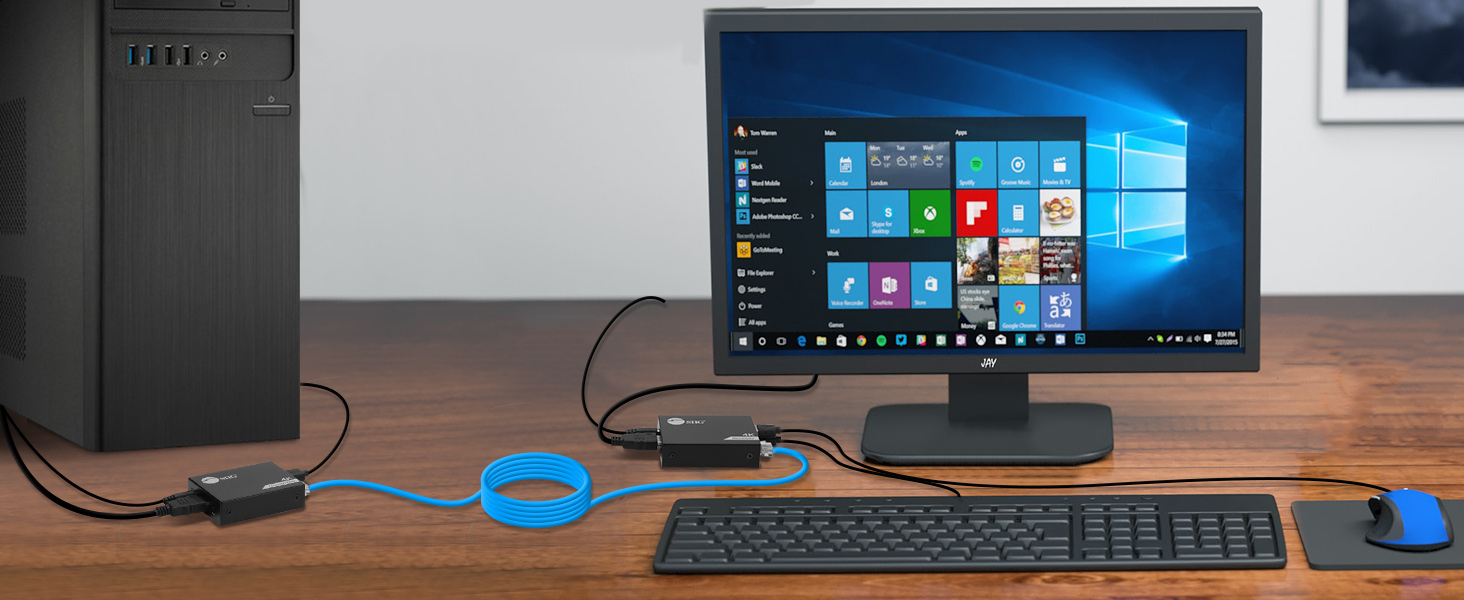

Extending HDMI and USB Signals

Easily extend HDMI audio/video and USB signals up to 230ft (70m) through a Cat6/7 network cable to remote 1080p display with zero latency and 4K@30Hz transmission distance is up to 130ft (40m), allow you to use a one set of keyboard & mouse for remote control



---

Keyboard and Mouse Control

Delivers three USB Type-A ports, two for independent HID keyboard & mouse to control your PC system from a remote location and one for Host connection such as Laptop or Desktop. It also supports wireless keyboard and mouse with a dongle plugged into the USB port



---

High Performance

Offers a true 10.2Gbps video bandwidth and supports PCM 2/5.1/7.1-ch, Dolby 5.1/7.1-ch, DTS 5.1/7.1-ch audio formats



---



4K UHD Video Resolution

Supports video resolution up to 1080p (1920x1080) @60Hz, 4K@30Hz, HDCP 1.4, HDR 10, YUV 4:4:4 8-bit to deliver a clear picture quality, and supports High Dynamic Range (HDR) 10 for enhanced video quality

---

Protection Components

Supports ESD protection, lightning protection, and surge protection to safe your electronic equipment

---

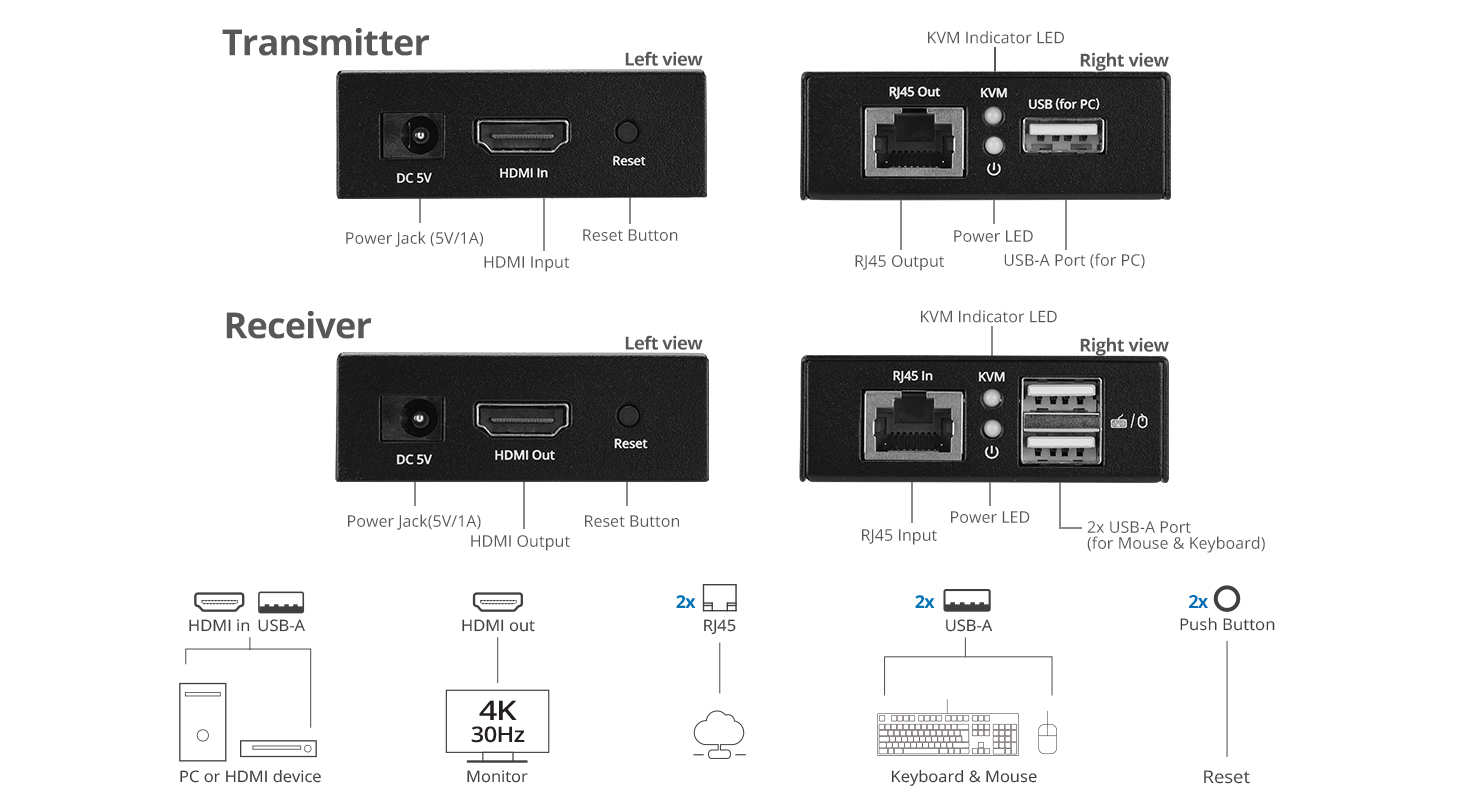

Multiple Connectivity Ports

Comes with one HDMI video input port, one USB Type-A port for PC host connection, one HDMI video output port, two USB Type-A ports for connecting keyboard and mouse, one RJ45 input port, one RJ45 output port, two DC 5V/1A power jack and two reset buttons



---



Maximum Compatibility

Supports Plug-n-play and no driver installation required. The reset button allows displays to be re-detected if no displays are detected. Automatically adjusts parameters to match different network cables and achieve the best display performance

---

Compact Metal Housing Design

It features a high-quality surface metal housing that efficiently dissipates heat, ensuring system stability and trouble-free operation

---

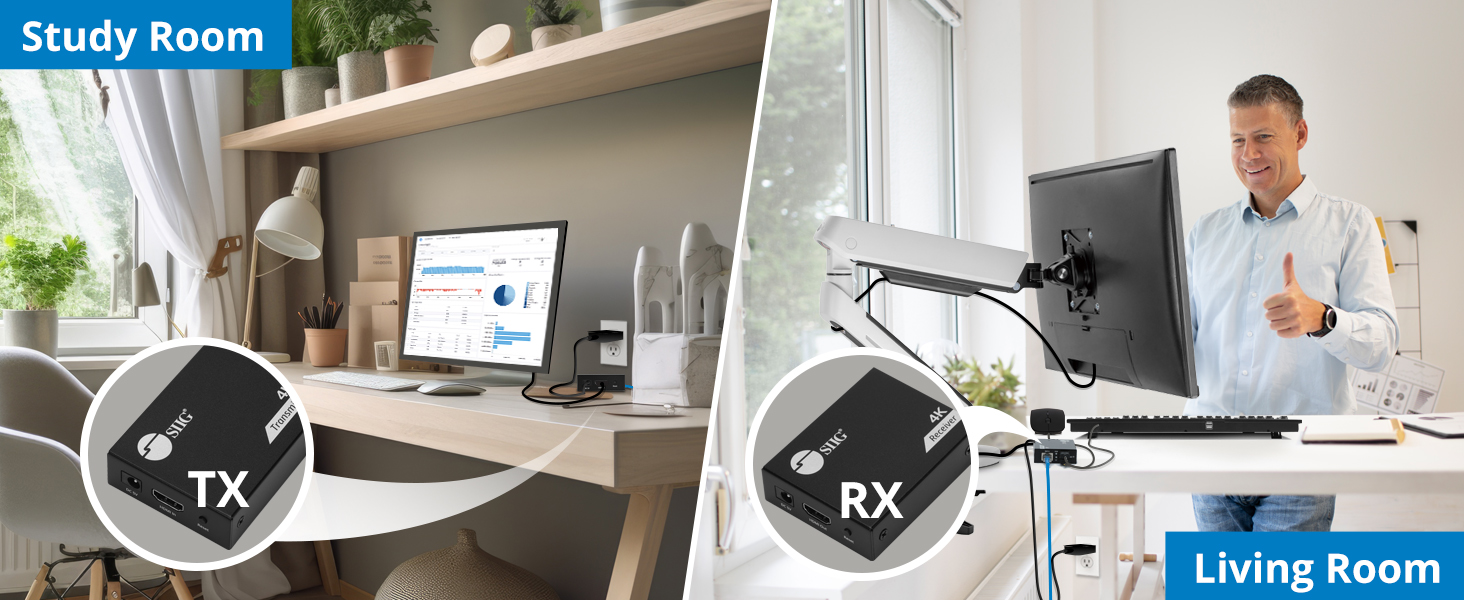

Applications

SIIG's 4K HDMI USB KVM Extender over CAT6 - 230 feet - Zero Latency offers a reliable and flexible solution for various professional and residential applications where high-definition video extension and remote control are required over long distances




Professional AV Installations:

In conference rooms, lecture halls, or auditoriums, where presentations require high-definition video output and control of the source device from a remote location









Digital Signage:

Deploying digital signage in retail stores, airports, or corporate environments, where the display needs to be located far from the media player or content source






Education and Training:

In classrooms or training centers, where instructors can control multimedia presentations or demonstrations from their desk while the content is displayed on a projector or large screen






Home Theater:

Enabling home theater enthusiasts to place their media players, gaming consoles, or other AV equipment in a dedicated equipment closet while extending video and control signals to the main viewing area

---

Need to Know Before Buying

1. Please confirm your computer or device with HDMI port



2. Check the extended display/monitor with HDMI port and supports 1080p@60Hz and 4K@30Hz resolution



3. Please ensure using UTP Cat6/7 cable for the best video quality and accurate transmission distance

4. After changing the display, please press the reset button to relearn the EDID

---

Comparison Table

SKU	CE-H28411-S1	CE-H27811-S1	CE-H27411-S1	CE-H26Y11-S1	CE-H25H11-S1
Max. Resolution	4K30Hz/1080p	4K 60Hz	1080p	4K 60Hz	4K 30Hz
Transmission Distance	130ft (40M)/ 230ft (70m)	230ft (70m)	230ft (70m)	230ft (70m)	328ft (100m)
HDCP Version	1.4	2.2	1.4	2.2	2.2
Transmission Mode	Cable	Cable	Cable	Cable	Cable
# of USB Port	2	2	2	2	2

• Package Contents

---

Specifications

• Compliant with HDCP 1.4 specification
• Video resolution: 3840x2160@30Hz / 1080p@60Hz / 1080i@60Hz / 720p@60Hz / 576p@50Hz / 576i@50Hz / 480p@60Hz / 480i@60Hz / 1920x1080 / 1680x1050 / 1440x900 / 1366x768 / 1280x960 / 1280x720 / 1024x768 / 800x600
• HDR Supported
• Bandwidth: True 10.2Gbps
• Transmission distance: 70m (230 feet) for 1080p @60Hz, 40m (130 feet) for 4K @30Hz
• Audio Format: PCM 2/5.1/7.1ch, Dolby 5.1/7.1ch, DTS 5.1/7.1ch
• Product:
  • Color: Black
  • Housing: Metal
  • Transmitting unit (TX):
    • Dimensions: 3.03" (W) x 0.83" (H) x 2.36" (D)
    • Weight: 0.27 lbs
    • Connectors:
      • 1x 19-pin HDMI, Type A, Female, Input
      • 1x 8-pin, RJ45 Output
      • 1x 4-pin USB Type-A, Female, for Host connection
      • 1x Reset Button
      • 1x Power Jack
  • Receiving unit (RX):
    • Dimensions : 3.03" (W) x 0.83" (H) x 2.36" (D)
    • Weight: 0.27 lbs
    • Connectors:
      • 1x 19-pin HDMI, Type A, Female, Output
      • 1x 8-pin RJ45, Input
      • 2x 4-pin USB Type-A Female, connect to Keyboard/Mouse
      • 1x Reset Button
      • 1x Power Jack
• Unit package:
  • Dimensions: 6.02" (W) x 3.03" (H) x 4.61" (D)
  • Weight: 1.04 lbs
• Power adapter:
  • Input: 100-240V AC, 50/60 Hz
  • Output: DC 5V/1A
  • UL listed: E335801 / Level: VI
• Environmental conditions:
  • Operation Temperature: 32 to 122 degrees F
  • Storage Temperature: 14 to 158 degrees F
  • Relative humidity: 0 to 90% RH (non-condensing)
• Certifications/Standards: FCC, CE, RoHS
• UPC Code: 662774-046310
• Warranty: 2 years limited
• Country of origin: China

---

Package contents

• 4K HDMI USB KVM Extender over Cat6 – 230 feet – Zero Latency
• 2x Power Adapter DC 5V/1A
• USB A to A Cable
• User Manual
