4-Port Roaming KM Switch with USB 2.0 Hub

• Features
• Applications
• Need to Know Before Buying

---

Overview

4-Port Roaming KM Switch, Allows you to share a set of Keyboard, Mouse, Audio and USB peripherals among 4 USB PC system - USB 2.0, Stereo Audio Output, Mouse Roaming, Switch Button, Hotkeys, TAA compliant

---

Features

Easily control 4 computers, audio, and USB devices simultaneously from one set of keyboard & mouse, and seamlessly switch 4 monitors with switch buttons, hotkey commands, or mouse roaming



---

Unique Tracking System

Allows sharing of USB devices or audio between different operating systems



---

Mouse Roaming Function

Simple move the mouse to roam on the four Windows, Mac or mixed systems make perfect operation experience





---

Multiple Connectivity Port

Comes with four USB-B 2.0 input ports (Host), five 3.5mm phone jacks for stereo audio, two USB-A 2.0 hub ports, two USB-A HID ports for connecting KM, four PC1/PC2/PC3/PC4 switch buttons, and one DC power jack (12V/1.5A)



Connection



---



USB-A Data Transfer

Delivers four USB-A 2.0 ports with data transfer rate up to 480Mbps, two for Flash drive, Printer, Enclosure, or other USB peripheral devices, and another two for independent HID keyboard and mouse

---

Maximum Compatibility

Compatible with Windows^® 11 /10 and macOS^® 10.13 or later. Supports Plug-n-play and no driver installation required

---

Metal Housing Design

Protects the inside PCBA, also enhance the heat dissipation for better performance. Military-grade component and ESD protection for long service life

---

TAA Compliant

Completely manufactured in a TAA designated country

---

Applications

• Office	• Workstation	• Medical office	• Testing lab	• Meeting room	• Control center
• Server room	• Retail store	• Dental office	• Hospital	• Hotel	• Classroom

---

Need to Know Before Buying

1. Please confirm your computers with USB-B 2.0 port and audio ports



2. Check that your keyboard & mouse are USB-A connect port



*Note: Don’t use the keypad to the right of the keyboard

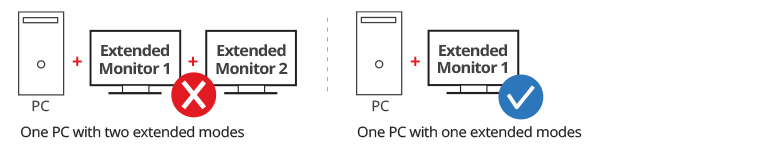

3. This KM Switch doesn't support using two monitors in extended mode on one PC

• Interface
• System Requirements
• Package Contents

---

Specifications

Software
OS Compatibility	Windows® 11, mac OS® 10.13 or new
Screen layout presets	1x4, 2x2, 4x1, and 1+3
USB data transfer rate
USB 2.0	2x Type-A, up to 480Mbps
USB HID	2x Type-A, for keyboard & Mouse
Audio
2 channel stereo audio for 3.5mm audio jack
Power Adapter
Input	AC 100-240V / 50-60Hz
Output	DC 12V/1.5A
UL Listed	UL E163743/Level Vl
Environmental conditions
Operating temperature	32 to 114 degrees F
Storage temperature	14 to 178 degrees F
Relative humidity:	5% to 90% RH (non-condensing)
Product Info
Dimensions	8.66” (L) x 1.34” (H) x 3.94” (W)
Weight	1.52 lbs
Color	Black
Housing material	Metal
Unit Package
Dimensions	11.61” (L) x 2.52” (H) x 8.19” (W)
Weight	2.31 lbs
Certifications/Standards
FCC, CE, RoHS, REACH
Warranty: 2 years limited
Country of origin: Taiwan

---

Interface



Input

• 4x 9-pin, USB-B 2.0, Female
• 4x Switch button, for PC1/PC2/PC3/PC4 switching
• 1x DC power adapter, 12V/1.5A

Output

• 2x 4-pin, USB-A 2.0, for USB devices, Female
• 2x 4-pin, USB-A HID, for keyboard & mouse, Female
• 5x 3.5mm phone jack, for stereo audio

---

System Requirements

• PC with available USB-B 2.0 and 3.5mm stereo audio ports
• Windows^® 11 / 10
• macOS^® 10.13 or new

---

Package contents

• 1x 4-Port Roaming KM Switch with USB 2.0 Hub
• 4x Silicone pad
• 1x DC power adapter, 12V/1.5A
• 1x User reference guide
